NISSAN TIIDA 2010 Service Repair Manual

AT-244
< SERVICE INFORMATION >
OVERHAUL
With ABS
SCIA7956E
1. Pinion mate gear thrust washer 2. Pinion mate gear3. Pinion mate shaft
4. Lock pin 5. Side gear 6. Side gear thrust washer
7. Differential side bearing 8. Speedometer drive gear9. Differential case
10. Final gear 11. Differential side bearing adjusting
shim 12. Plug
13. O-ring 14. Bracket 15. RH differential side oil seal
16. Torque converter 17. Converter housing18. Differential lubricant tube
Revision: January 20102010 Versa

OVERHAULAT-245
< SERVICE INFORMATION >
DE
F
G H
I
J
K L
M A
B
AT
N
O P
Without ABS
19. Clip 20. O-ring21. O-ring
22. Oil pump housing oil seal 23. Oil pump housing24. Outer gear
25. Inner gear 26. Oil pump cover27. Seal ring
28. Oil pump assembly
SCIA7957E
1. Pinion mate gear thrust washer 2. Pinion mate gear 3. Pinion mate shaft
4. Lock pin 5. Side gear6. Side gear thrust washer
Revision: January 20102010 Versa

AT-246
< SERVICE INFORMATION >
OVERHAUL
7. Differential side bearing8. Speedometer drive gear9. Differential case
10. Final gear 11. Differential side bearing adjusting
shim 12. Speedometer pinion
13. O-ring 14. Bracket 15. RH differential side oil seal
16. Torque converter 17. Converter housing18. Differential lubricant tube
19. Clip 20. O-ring 21. O-ring
22. Oil pump housing oil seal 23. Oil pump housing24. Outer gear
25. Inner gear 26. Oil pump cover27. Seal ring
28. Oil pump assembly
Revision: January 20102010 Versa

OVERHAULAT-247
< SERVICE INFORMATION >
DE
F
G H
I
J
K L
M A
B
AT
N
O P
1. Retaining plate 2. Driven plate3. Dish plate
4. Snap ring 5. Spring retainer assembly6. Reverse clutch piston
7. Seal lip 8. D-ring9. Reverse clutch drum
10. Thrust washer 11. Reverse clutch assembly 12. Drive plate
13. Snap ring 14. Needle bearing15. Front sun gear
16. Needle bearing 17. High clutch hub18. Snap ring
SCIA7991E
Revision: January 20102010 Versa

AT-248
< SERVICE INFORMATION >
OVERHAUL
19. Retaining plate20. Drive plate21. Snap ring
22. Cancel cover 23. Spring retainer assembly 24. High clutch piston
25. Input shaft assembly (high clutch drum) 26. Needle bearing
27. High clutch assembly
28. Bearing race 29. Seal ring30. Driven plate
31. Needle bearing 32. Needle bearing33. Overrun clutch hub
34. End bearing 35. Forward clutch hub 36. Needle bearing
37. Rear planetary carrier 38. Rear sun gear 39. Front planetary carrier
40. Low one-way clutch 41. Snap ring42. Needle bearing
43. Needle bearing 44. Rear internal gear 45. Thrust washer
46. Forward one-way clutch 47. Thrust washer48. Thrust washer
49. Forward clutch drum 50. Seal lip51. Seal lip
52. Overrun clutch piston 53. Spring retainer assembly54. Snap ring
55. Dish plate 56. Driven plate57. Retaining plate
58. Snap ring 59. Dish plate60. Driven plate
61. Retaining plate 62. Snap ring63. Forward clutch assembly and over-
run clutch assembly
64. Drive plate 65. Drive plate 66. D-ring
67. Forward clutch piston 68. D-ring 69. Needle bearing
70. Seal lip 71. Driven plate 72. Snap ring
73. Low & reverse brake assembly 74. Retaining plate 75. Drive plate
76. Retaining plate 77. Dish plate78. Driven plate
79. Snap ring 80. Spring retainer assembly 81. Low & reverse brake piston
82. D-ring
Revision: January 20102010 Versa

OVERHAULAT-249
< SERVICE INFORMATION >
DE
F
G H
I
J
K L
M A
B
AT
N
O P
1. Snap ring 2. Governor cap3. O-ring
4. Lock nut 5. Anchor end pin6. Transaxle case
7. Reduction pinion gear bearing 8. Reduction pinion gear 9. Brake band
10. Snap ring 11. Radial needle bearing12. Seal ring
13. Bearing retainer 14. O-ring15. Servo release accumulator piston
16. Return spring 17. Control valve assembly18. Oil pan gasket
SCIA7959E
Revision: January 20102010 Versa

AT-250
< SERVICE INFORMATION >
OVERHAUL
Oil Channel
INFOID:0000000005397432
HR16DE ENGINE MODELS
19. Oil pan 20. Drain plug gasket21. Drain plug
22. Magnet 23. Oil pan bolt24. Snap ring
25. O-ring 26. O-ring27. N-D accumulator piston
28. Return spring 29. O-ring 30. Lip seal
31. Input speed sensor 32. O-ring 33. Retaining pin
34. Detent spring 35. Retaining pin 36. Manual shaft
37. Manual shaft oil seal 38. Manual plate 39. Parking rod plate
40. Parking rod 41. OD servo piston retainer42. Snap ring
43. O-ring 44. OD servo piston45. D-ring
46. Servo piston retainer 47. O-ring48. E-ring
49. Spring retainer 50. OD servo return spring 51. D-ring
52. Band servo piston 53. Band servo thrust washer 54. Band servo piston stem
55. 2nd servo return spring 56. Transmission range switch57. Parking shaft
58. Return spring 59. Thrust needle bearing60. Seal ring
61. Output shaft 62. Output shaft bearing63. Output shaft adjusting shim
64. Side cover 65. Side cover bolt 66. Lock nut
67. Idler gear 68. Idler gear bearing69. Reduction pinion gear adjusting
shim
70. Parking actuator support 71. Parking pawl 72. LH differential side oil seal
73. Output speed sensor
: Apply Genuine Anaerobic Liquid Gasket or equivalent.
Revision: January 20102010 Versa

OVERHAULAT-251
< SERVICE INFORMATION >
DE
F
G H
I
J
K L
M A
B
AT
N
O P

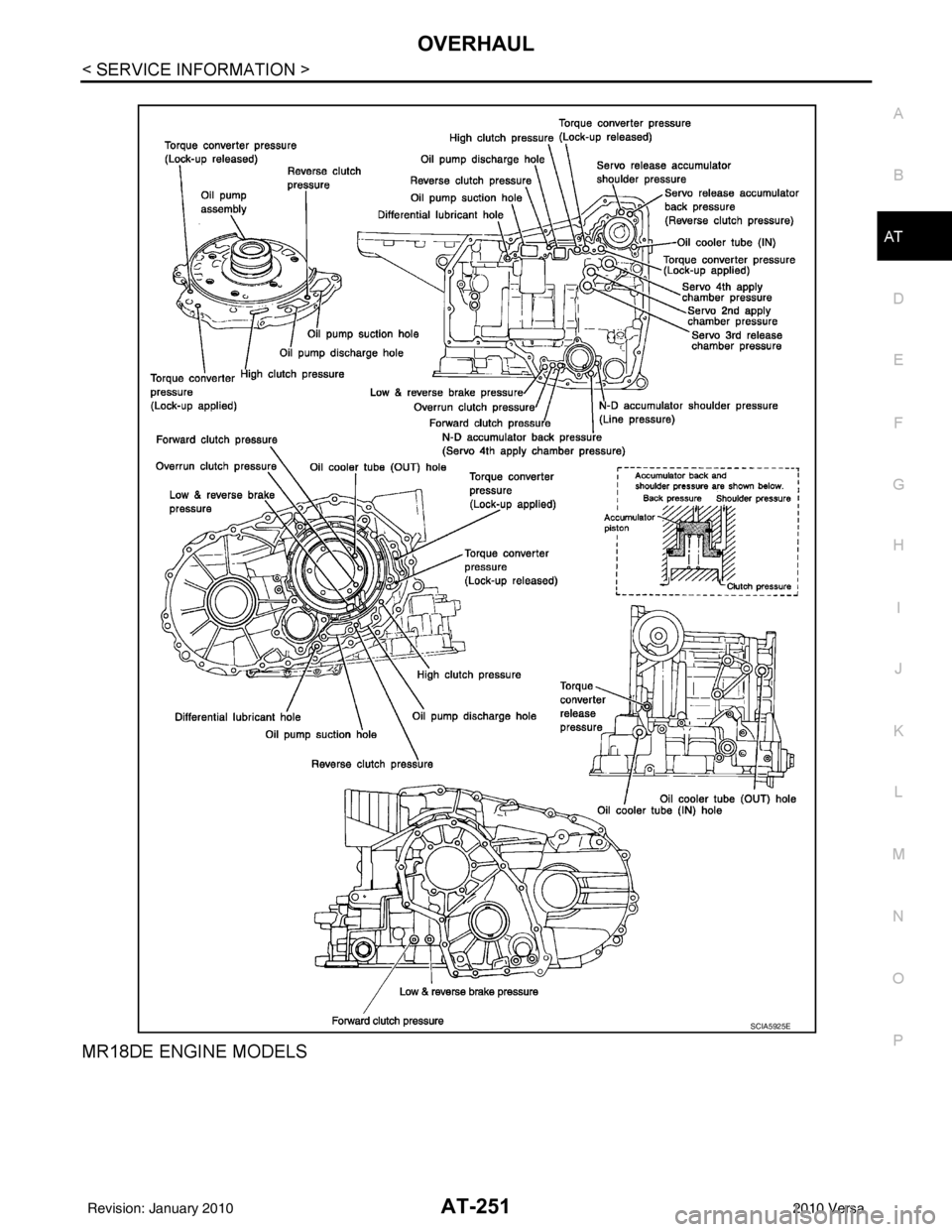

MR18DE ENGINE MODELS
SCIA5925E
Revision: January 20102010 Versa

AT-252
< SERVICE INFORMATION >

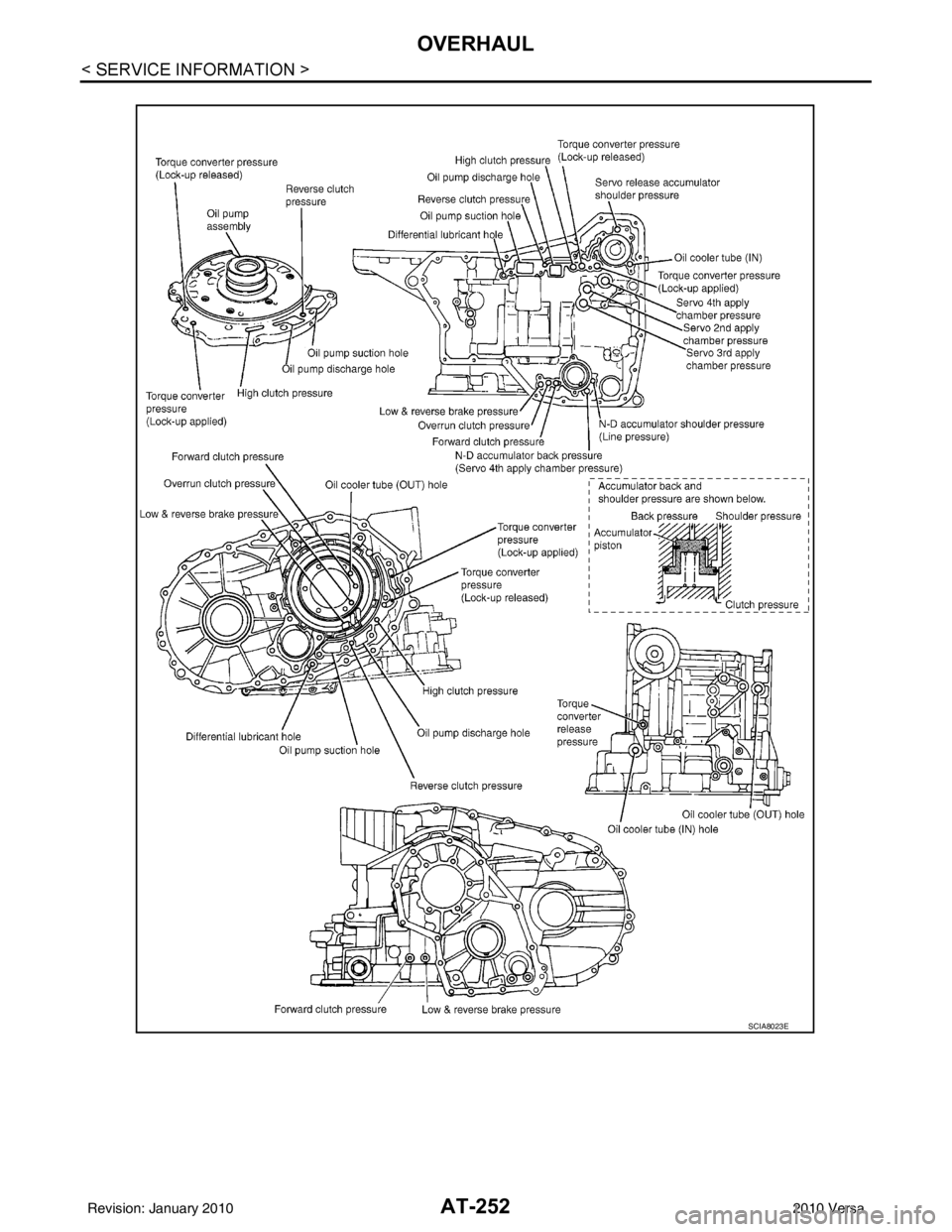

OVERHAUL
SCIA8023E
Revision: January 20102010 Versa

OVERHAULAT-253
< SERVICE INFORMATION >
DE
F
G H
I
J
K L
M A
B
AT
N
O P

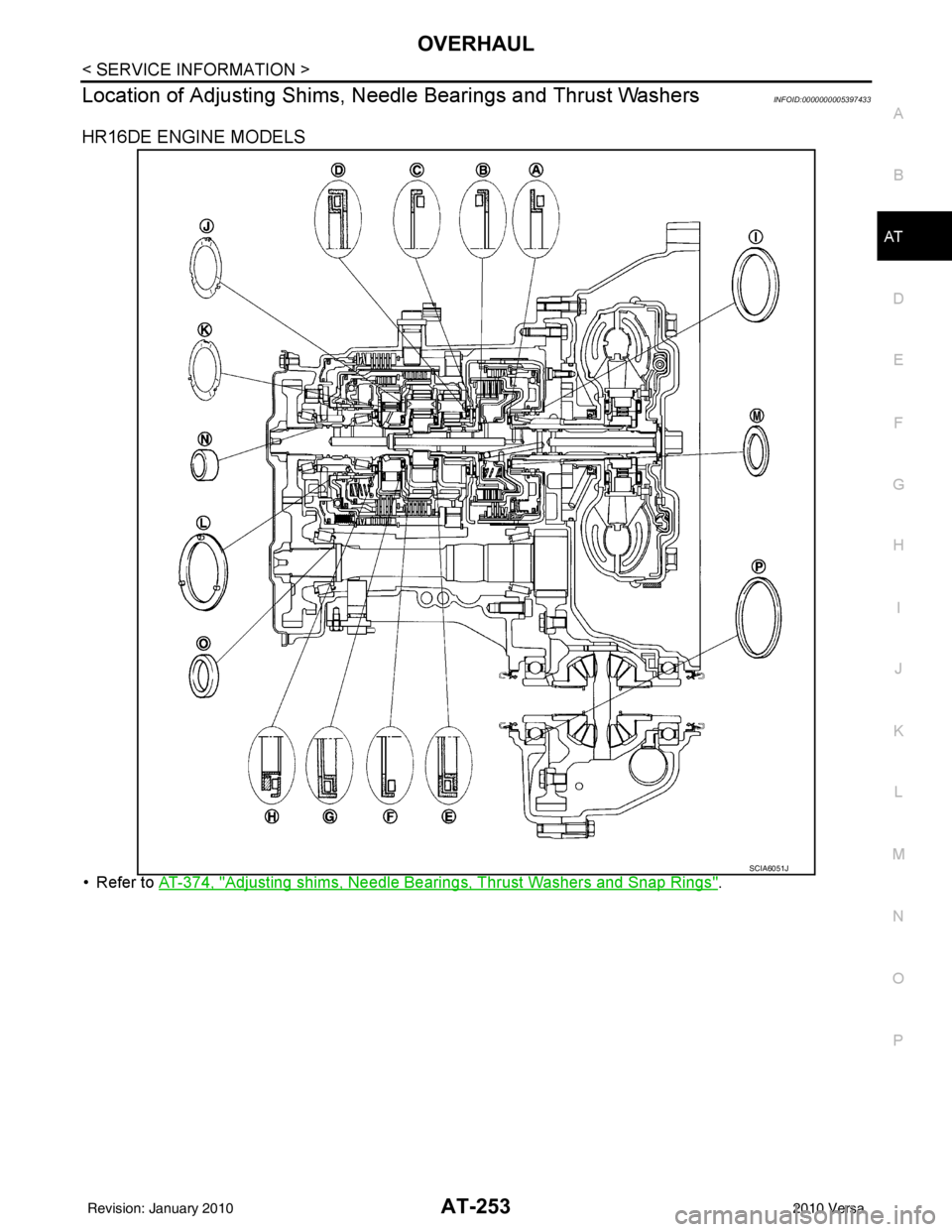

Location of Adjusting Shims, Needle Bearings and Thrust WashersINFOID:0000000005397433
HR16DE ENGINE MODELS
• Refer to AT-374, "Adjusting shims, Needle Bearings, Thrust Washers and Snap Rings".
SCIA6051J
Revision: January 20102010 Versa
