TRANSAXLE ASSEMBLY
MT-25
D
E
F
G
H
I
J
K
L
MA
B
MT

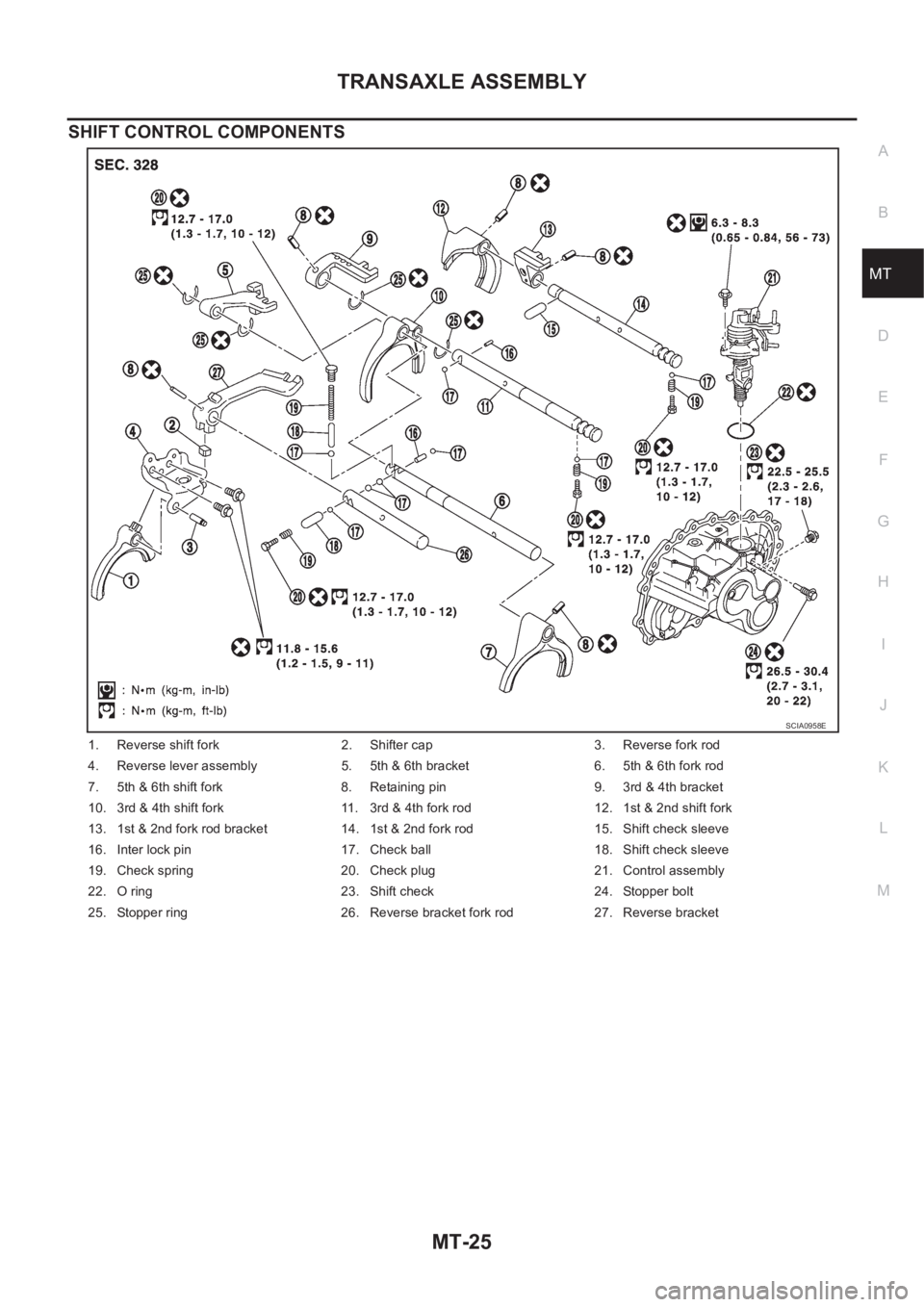

SHIFT CONTROL COMPONENTS
1. Reverse shift fork 2. Shifter cap 3. Reverse fork rod
4. Reverse lever assembly 5. 5th & 6th bracket 6. 5th & 6th fork rod
7. 5th & 6th shift fork 8. Retaining pin 9. 3rd & 4th bracket
10. 3rd & 4th shift fork 11. 3rd & 4th fork rod 12. 1st & 2nd shift fork
13. 1st & 2nd fork rod bracket 14. 1st & 2nd fork rod 15. Shift check sleeve
16. Inter lock pin 17. Check ball 18. Shift check sleeve
19. Check spring 20. Check plug 21. Control assembly
22. O ring 23. Shift check 24. Stopper bolt
25. Stopper ring 26. Reverse bracket fork rod 27. Reverse bracket
SCIA0958E

MT-26
TRANSAXLE ASSEMBLY

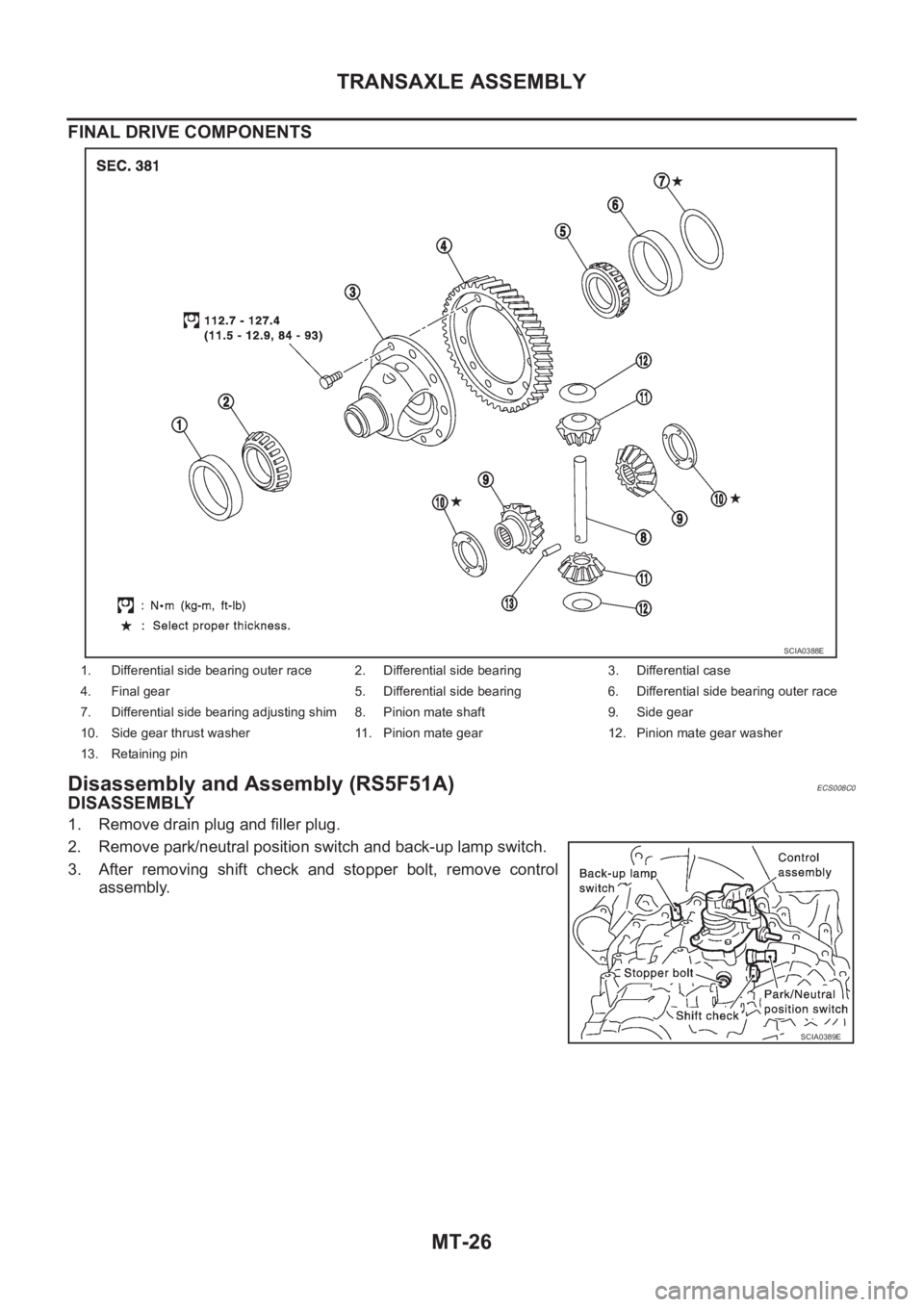

FINAL DRIVE COMPONENTS
Disassembly and Assembly (RS5F51A)ECS008C0
DISASSEMBLY
1. Remove drain plug and filler plug.
2. Remove park/neutral position switch and back-up lamp switch.
3. After removing shift check and stopper bolt, remove control
assembly.
1. Differential side bearing outer race 2. Differential side bearing 3. Differential case
4. Final gear 5. Differential side bearing 6. Differential side bearing outer race
7. Differential side bearing adjusting shim 8. Pinion mate shaft 9.Side gear
10. Side gear thrust washer 11. Pinion mate gear 12. Pinion mate gear washer
13. Retaining pin
SCIA0388E
SCIA0389E

TRANSAXLE ASSEMBLY
MT-27
D
E
F
G
H
I
J
K
L
MA
B
MT

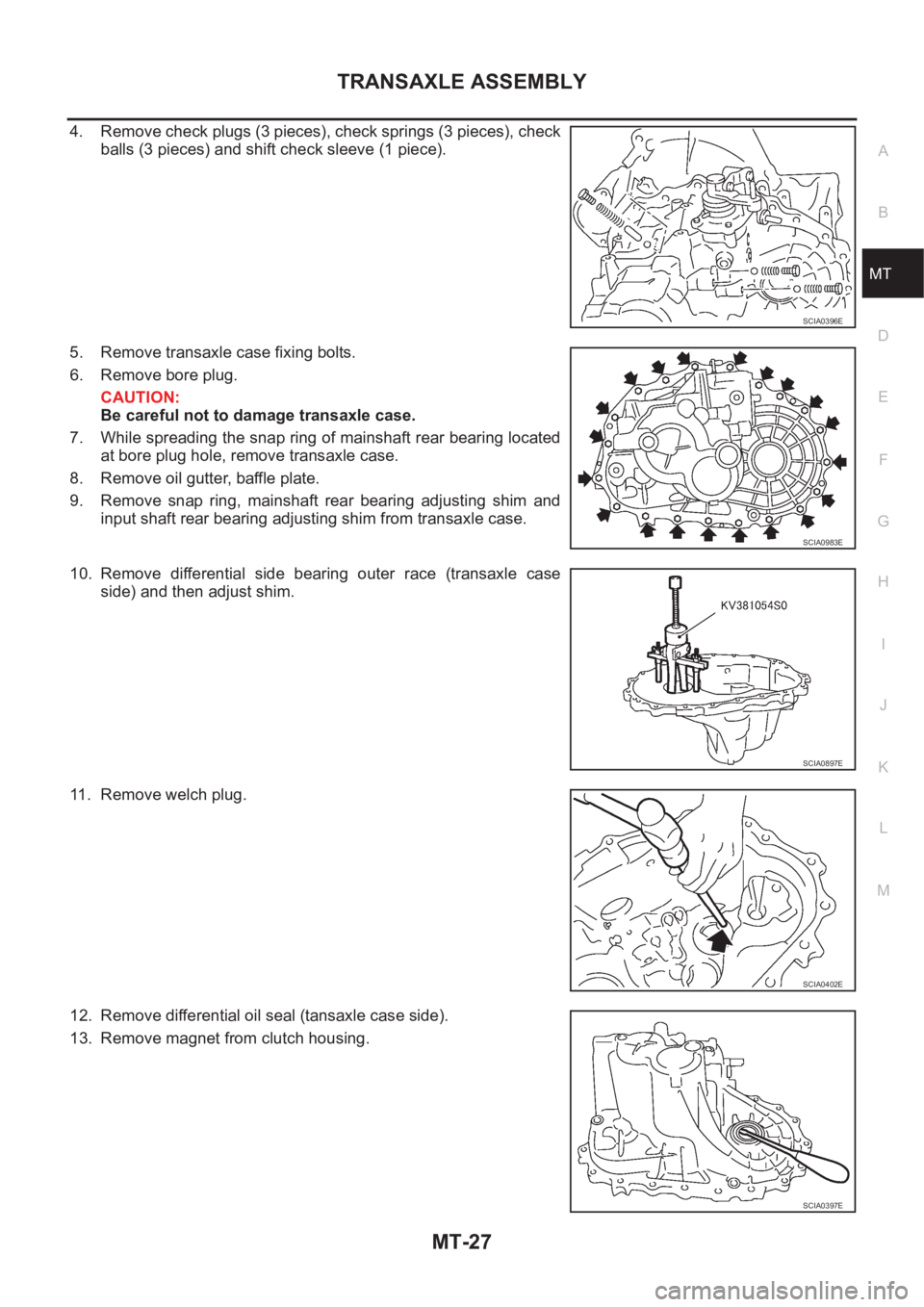

4. Remove check plugs (3 pieces), check springs (3 pieces), check
balls (3 pieces) and shift check sleeve (1 piece).
5. Remove transaxle case fixing bolts.
6. Remove bore plug.
CAUTION:
Be careful not to damage transaxle case.
7. While spreading the snap ring of mainshaft rear bearing located
at bore plug hole, remove transaxle case.
8. Remove oil gutter, baffle plate.
9. Remove snap ring, mainshaft rear bearing adjusting shim and
input shaft rear bearing adjusting shim from transaxle case.
10. Remove differential side bearing outer race (transaxle case
side) and then adjust shim.
11. Remove welch plug.
12. Remove differential oil seal (tansaxle case side).
13. Remove magnet from clutch housing.
SCIA0396E
SCIA0983E
SCIA0897E
SCIA0402E
SCIA0397E

MT-28
TRANSAXLE ASSEMBLY

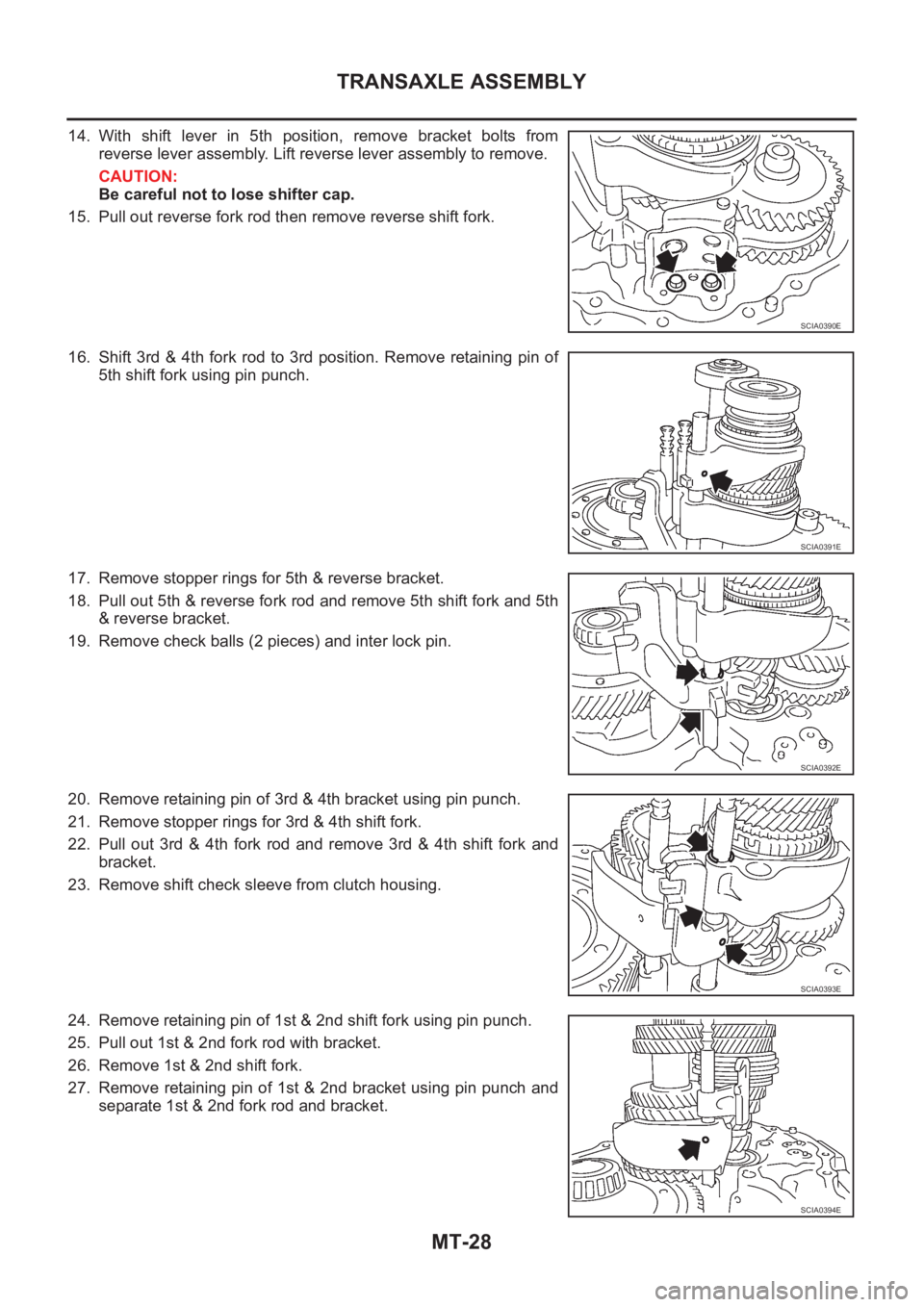

14. With shift lever in 5th position, remove bracket bolts from
reverse lever assembly. Lift reverse lever assembly to remove.
CAUTION:
Be careful not to lose shifter cap.
15. Pull out reverse fork rod then remove reverse shift fork.
16. Shift 3rd & 4th fork rod to 3rd position. Remove retaining pin of
5th shift fork using pin punch.
17. Remove stopper rings for 5th & reverse bracket.
18. Pull out 5th & reverse fork rod and remove 5th shift fork and 5th
& reverse bracket.
19. Remove check balls (2 pieces) and inter lock pin.
20. Remove retaining pin of 3rd & 4th bracket using pin punch.
21. Remove stopper rings for 3rd & 4th shift fork.
22. Pull out 3rd & 4th fork rod and remove 3rd & 4th shift fork and
bracket.
23. Remove shift check sleeve from clutch housing.
24. Remove retaining pin of 1st & 2nd shift fork using pin punch.
25. Pull out 1st & 2nd fork rod with bracket.
26. Remove 1st & 2nd shift fork.
27. Remove retaining pin of 1st & 2nd bracket using pin punch and
separate 1st & 2nd fork rod and bracket.
SCIA0390E
SCIA0391E
SCIA0392E
SCIA0393E
SCIA0394E

TRANSAXLE ASSEMBLY
MT-29
D
E
F
G
H
I
J
K
L
MA
B
MT

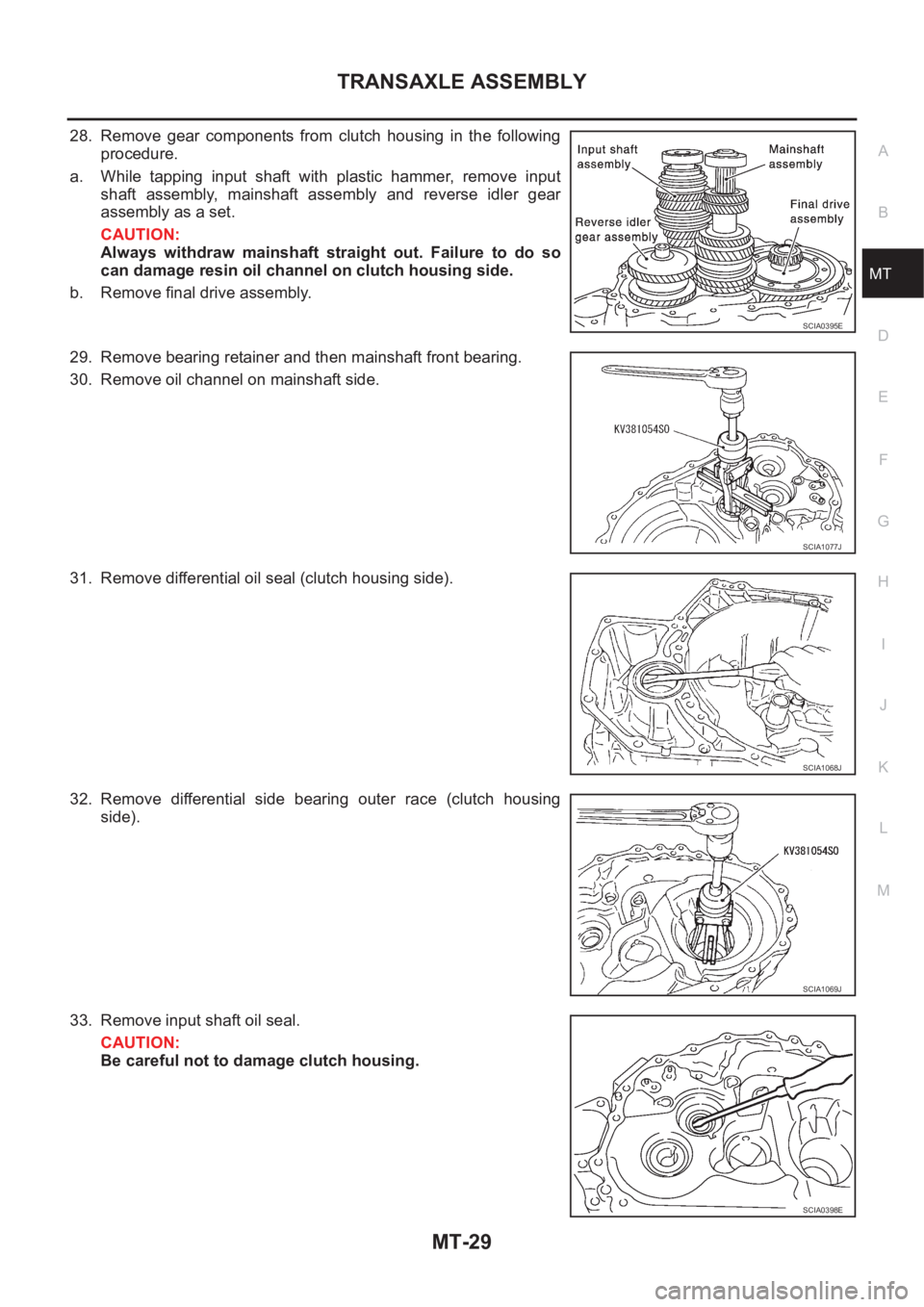

28. Remove gear components from clutch housing in the following
procedure.
a. While tapping input shaft with plastic hammer, remove input
shaft assembly, mainshaft assembly and reverse idler gear
assembly as a set.
CAUTION:
Always withdraw mainshaft straight out. Failure to do so
can damage resin oil channel on clutch housing side.
b. Remove final drive assembly.
29. Remove bearing retainer and then mainshaft front bearing.
30. Remove oil channel on mainshaft side.
31. Remove differential oil seal (clutch housing side).
32. Remove differential side bearing outer race (clutch housing
side).
33. Remove input shaft oil seal.
CAUTION:
Be careful not to damage clutch housing.
SCIA0395E
SCIA1077J
SCIA1068J
SCIA1069J
SCIA0398E

MT-30
TRANSAXLE ASSEMBLY
ASSEMBLY

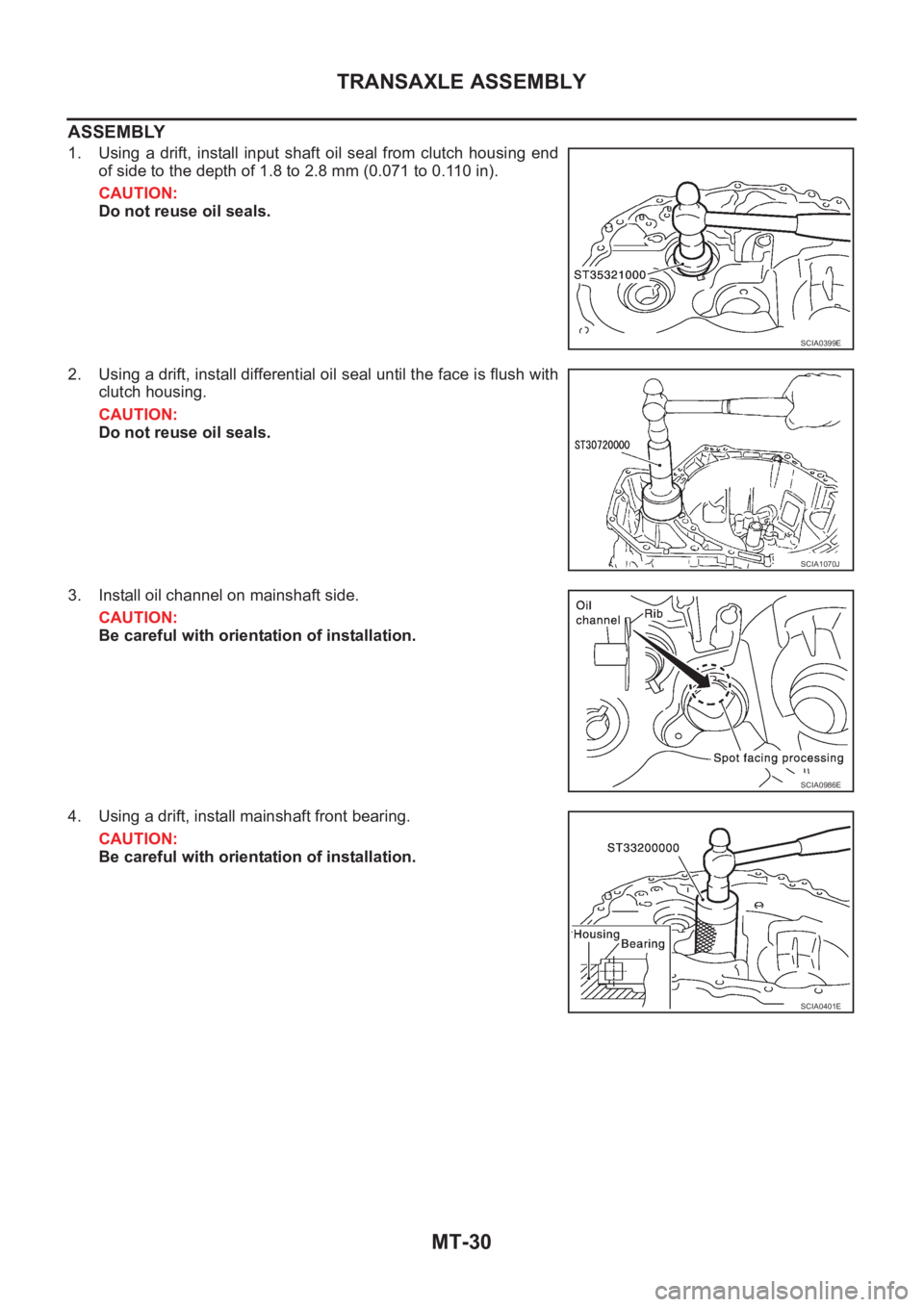

1. Using a drift, install input shaft oil seal from clutch housing end
of side to the depth of 1.8 to 2.8 mm (0.071 to 0.110 in).
CAUTION:
Do not reuse oil seals.
2. Using a drift, install differential oil seal until the face is flush with
clutch housing.
CAUTION:
Do not reuse oil seals.
3. Install oil channel on mainshaft side.
CAUTION:
Be careful with orientation of installation.
4. Using a drift, install mainshaft front bearing.
CAUTION:
Be careful with orientation of installation.
SCIA0399E
SCIA1070J
SCIA0986E
SCIA0401E

TRANSAXLE ASSEMBLY
MT-31
D
E
F
G
H
I
J
K
L
MA
B
MT

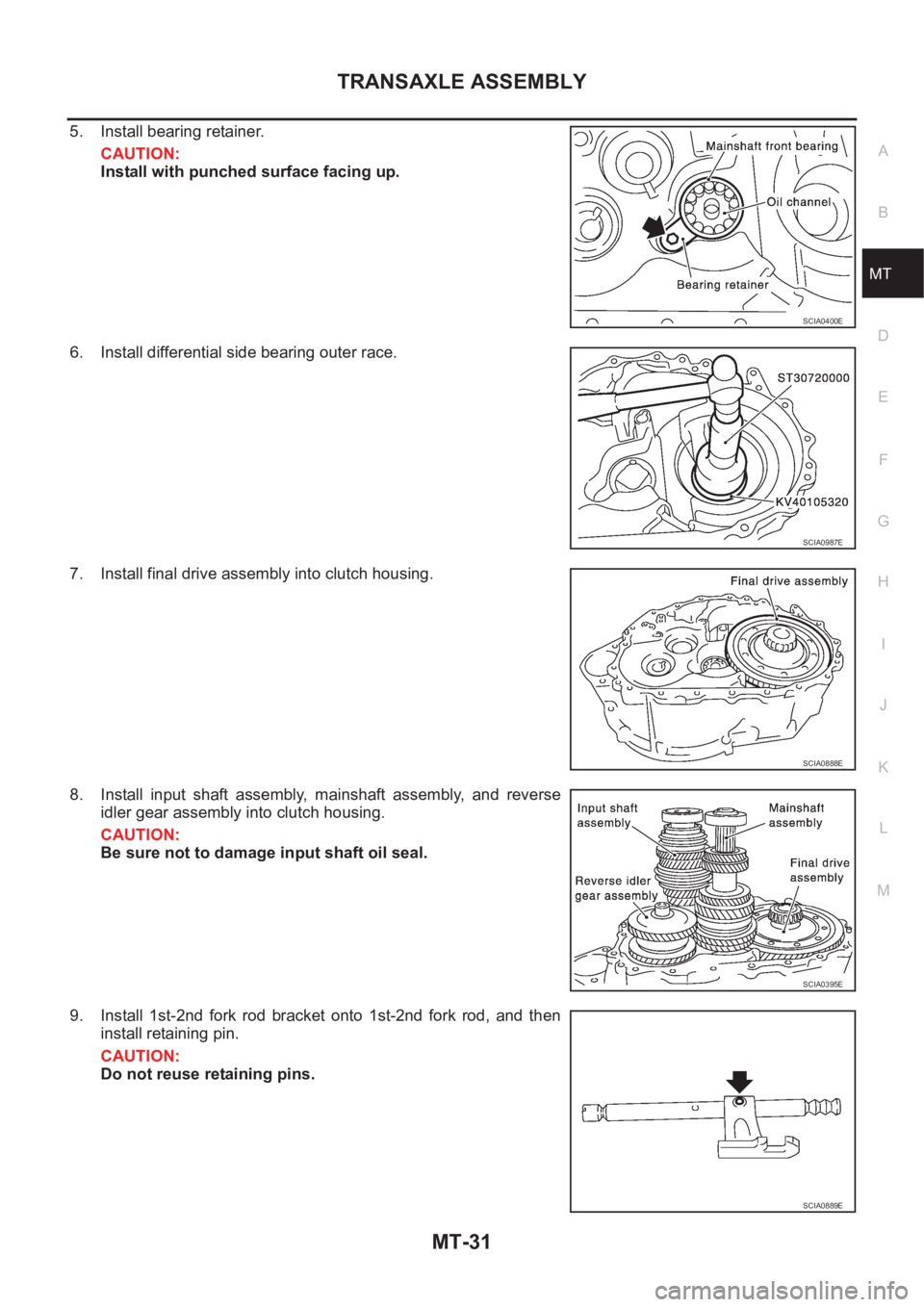

5. Install bearing retainer.
CAUTION:
Install with punched surface facing up.
6. Install differential side bearing outer race.
7. Install final drive assembly into clutch housing.
8. Install input shaft assembly, mainshaft assembly, and reverse
idler gear assembly into clutch housing.
CAUTION:
Be sure not to damage input shaft oil seal.
9. Install 1st-2nd fork rod bracket onto 1st-2nd fork rod, and then
install retaining pin.
CAUTION:
Do not reuse retaining pins.
SCIA0400E
SCIA0987E
SCIA0888E
SCIA0395E
SCIA0889E

MT-32
TRANSAXLE ASSEMBLY

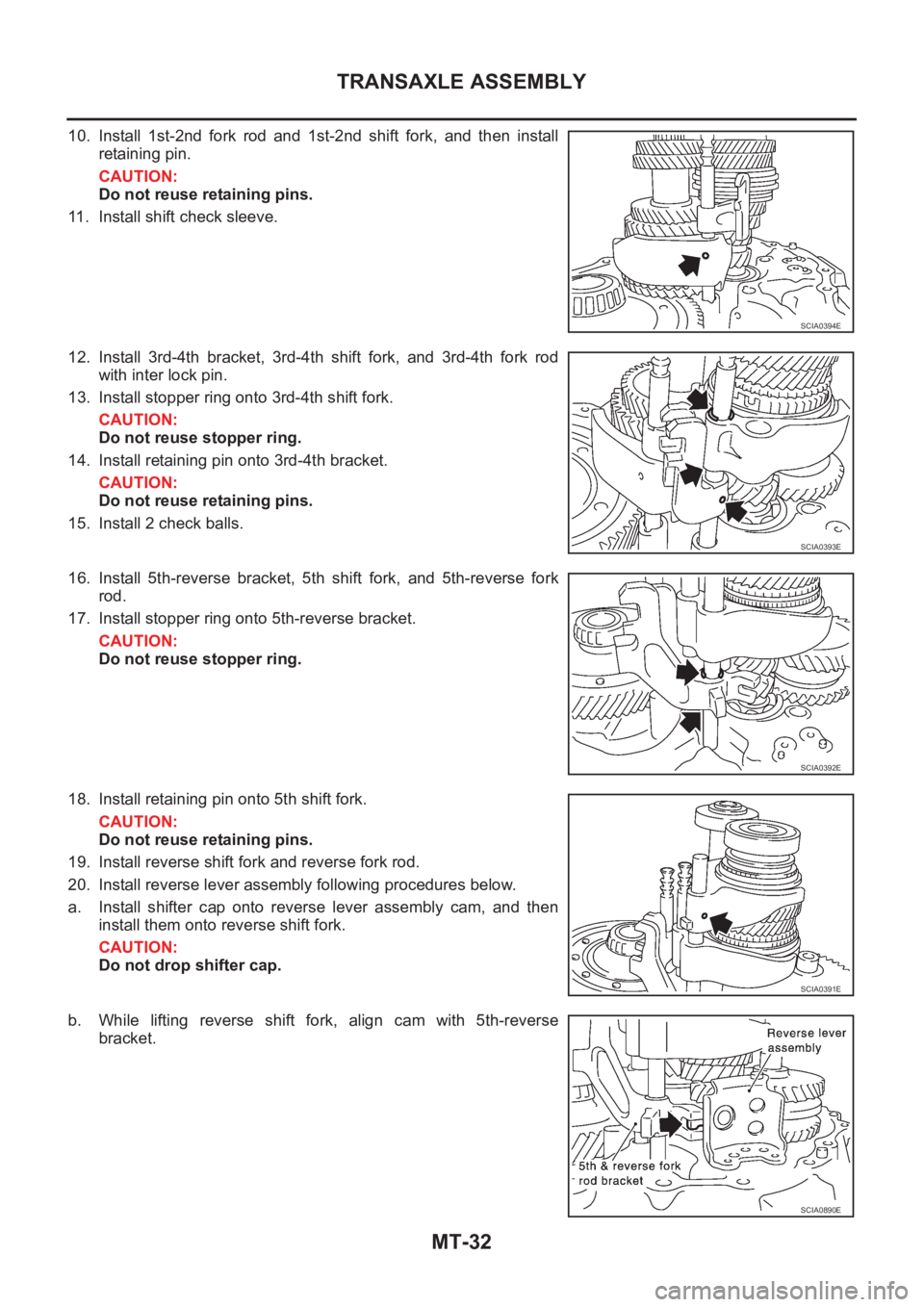

10. Install 1st-2nd fork rod and 1st-2nd shift fork, and then install
retaining pin.
CAUTION:
Do not reuse retaining pins.
11. Install shift check sleeve.
12. Install 3rd-4th bracket, 3rd-4th shift fork, and 3rd-4th fork rod
with inter lock pin.
13. Install stopper ring onto 3rd-4th shift fork.
CAUTION:
Do not reuse stopper ring.
14. Install retaining pin onto 3rd-4th bracket.
CAUTION:
Do not reuse retaining pins.
15. Install 2 check balls.
16. Install 5th-reverse bracket, 5th shift fork, and 5th-reverse fork
rod.
17. Install stopper ring onto 5th-reverse bracket.
CAUTION:
Do not reuse stopper ring.
18. Install retaining pin onto 5th shift fork.
CAUTION:
Do not reuse retaining pins.
19. Install reverse shift fork and reverse fork rod.
20. Install reverse lever assembly following procedures below.
a. Install shifter cap onto reverse lever assembly cam, and then
install them onto reverse shift fork.
CAUTION:
Do not drop shifter cap.
b. While lifting reverse shift fork, align cam with 5th-reverse
bracket.
SCIA0394E
SCIA0393E
SCIA0392E
SCIA0391E
SCIA0890E

TRANSAXLE ASSEMBLY
MT-33
D
E
F
G
H
I
J
K
L
MA
B
MT
c. Tighten mounting bolts to specified torque, and then install
reverse lever assembly.
21. Install check ball, 5th-reverse shift check sleeve, check spring
and 5th-reverse check ball plug.
CAUTION:
●Do not reuse check ball plug.
●Do not drop check ball.
22. Install the magnet onto clutch housing.
23. Using a drift, install differential oil seal until it is flush with end
face of transaxle case.
CAUTION:
Do not reuse oil seals.
24. Install selected input shaft adjusting shim onto input shaft.
●For selection of adjusting shims, refer to MT-45, "INPUT
SHAFT END PLAY" .
25. Install baffle plate and oil gutter.
26. Install transaxle case following procedures below.
a. Install selected mainshaft rear bearing adjusting shim into tran-
saxle case.
●For selection of adjusting shims, refer to MT-46, "MAINSHAFT END PLAY" .
b. Temporarily install snap ring of mainshaft rear bearing into transaxle case.
CAUTION:
Do not reuse the snap ring.
c. Apply recommended sealant to mating surfaces of transaxle
case and clutch housing.
CAUTION:
Remove old sealant adhering to mounting surfaces. Also
remove any moisture, oil, or foreign material adhering to
application and mounting surfaces.
d. With snap ring of mainshaft rear bearing temporarily installed,
place transaxle case over clutch housing.
SCIA0390E
SCIA0887E
SCIA0891E
SCIA0892E

MT-34
TRANSAXLE ASSEMBLY

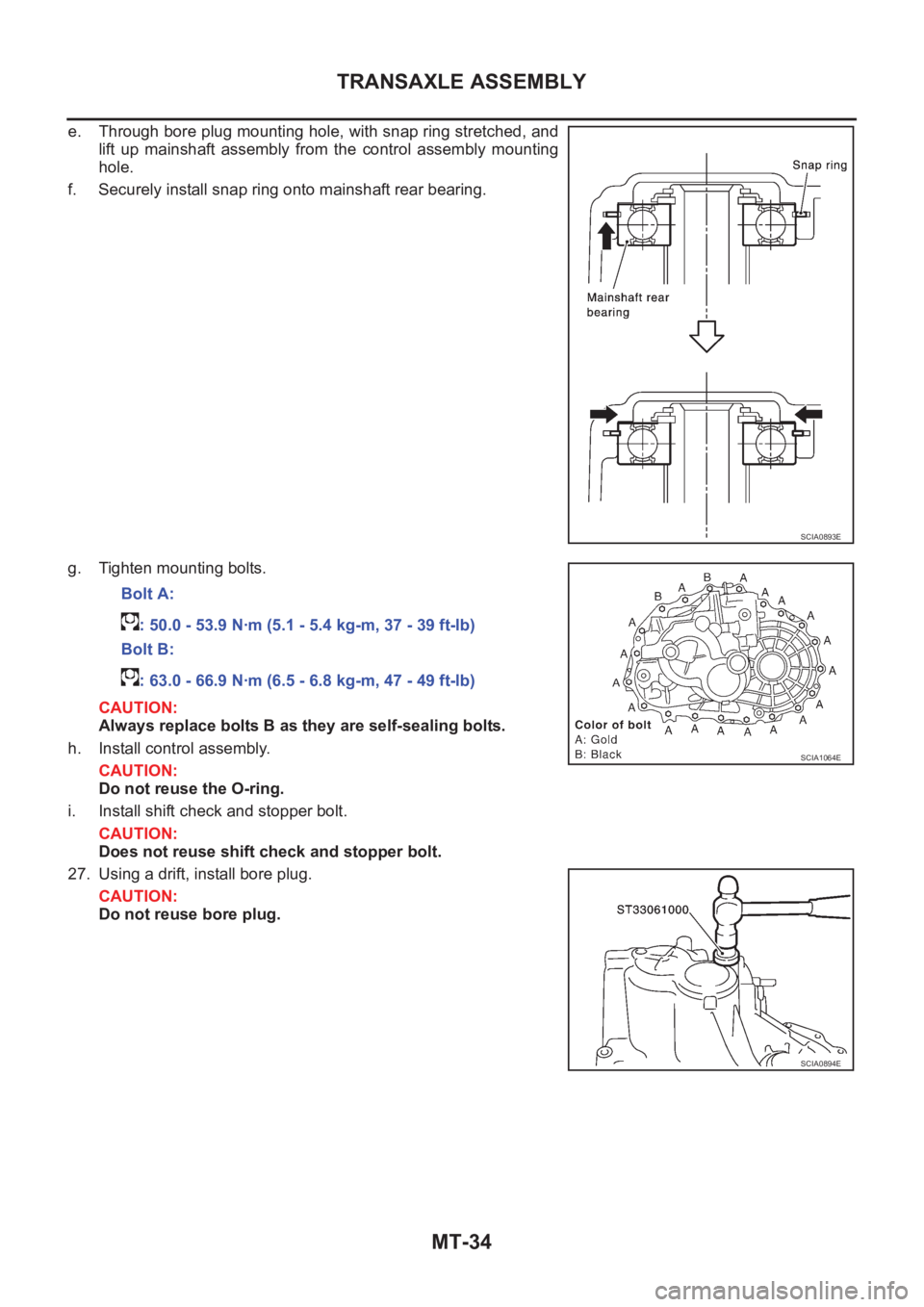

e. Through bore plug mounting hole, with snap ring stretched, and
lift up mainshaft assembly from the control assembly mounting
hole.
f. Securely install snap ring onto mainshaft rear bearing.
g. Tighten mounting bolts.
CAUTION:
Always replace bolts B as they are self-sealing bolts.
h. Install control assembly.
CAUTION:
Do not reuse the O-ring.
i. Install shift check and stopper bolt.
CAUTION:
Does not reuse shift check and stopper bolt.
27. Using a drift, install bore plug.
CAUTION:
Do not reuse bore plug.
SCIA0893E
Bolt A:
: 50.0 - 53.9 N·m (5.1 - 5.4 kg-m, 37 - 39 ft-lb)
Bolt B:
: 63.0 - 66.9 N·m (6.5 - 6.8 kg-m, 47 - 49 ft-lb)
SCIA1064E
SCIA0894E
