NISSAN X-TRAIL 2001 Service Repair Manual

SERVICE DATA AND SPECIFICATIONS (SDS)
AT-523
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
For 85X64 model
Unit: mm (in)
*: Always check with the Parts Department for the latest parts information.
AccumulatorECS004MN
O-RING
Unit: mm (in)
*: Always check with the Parts Department for the latest parts information. PartsItem
Part No.* Free length Outer diameter
Upper body23 Pilot valve spring 31742-3AX03 38.98 (1.535) 8.9 (0.350)
7 1-2 accumulator valve spring 31742-3AX00 20.5 (0.807) 6.95 (0.274)
28 1-2 accumulator piston spring 31742-3AX08 55.26 (2.176) 19.6 (0.772)
33 1st reducing valve spring 31742-80X05 27.0 (1.063) 7.0 (0.276)
35 3-2 timing valve spring 31736-01X00 23.29 (0.917) 6.65 (0.262)
18 Overrun clutch reducing valve spring 31742-80X15 37.5 (1.476) 6.9 (0.272)
16 Torque converter relief valve spring 31742-80X07 31.0 (1.220) 9.0 (0.354)
11 Torque converter clutch control valve spring 31742-85X00 56.98 (2.243) 6.5 (0.256)
3 Cooler check valve spring 31742-85X01 29.4 (1.157) 6.0 (0.236)
Lower body15 Pressure regulator valve spring 31742-80X13 45.0 (1.772) 15.0 (0.591)
20 Overrun clutch control valve spring 31762-80X00 21.7 (0.854) 7.0 (0.276)
24 Accumulator control valve spring 31742-80X02 22.0 (0.866) 6.5 (0.256)
29 Shift valve A spring 31762-80X00 21.7 (0.854) 7.0 (0.276)
32 Shuttle valve spring 31762-41X04 51.0 (2.008) 5.65 (0.222)
12 Shift valve B spring 31762-80X00 21.7 (0.854) 7.0 (0.276)
7
Pressure modifier valve spring31742-41X15 30.5 (1.201) 9.8 (0.386)
3 31742-80X16 32.0 (1.260) 6.9 (0.272)
— Oil cooler relief valve spring 31872-31X00 17.02 (0.670) 8.0 (0.315)
Accumulator Part No.*Inner diameter
(Small)Part No.*Inner diameter
(Large)
Servo release accumulator 31526 41X03 26.9 (1.059) 31526 41X02 44.2 (1.740)
N-D accumulator 31526 31X08 34.6 (1.362) 31672 21X00 39.4 (1.551)

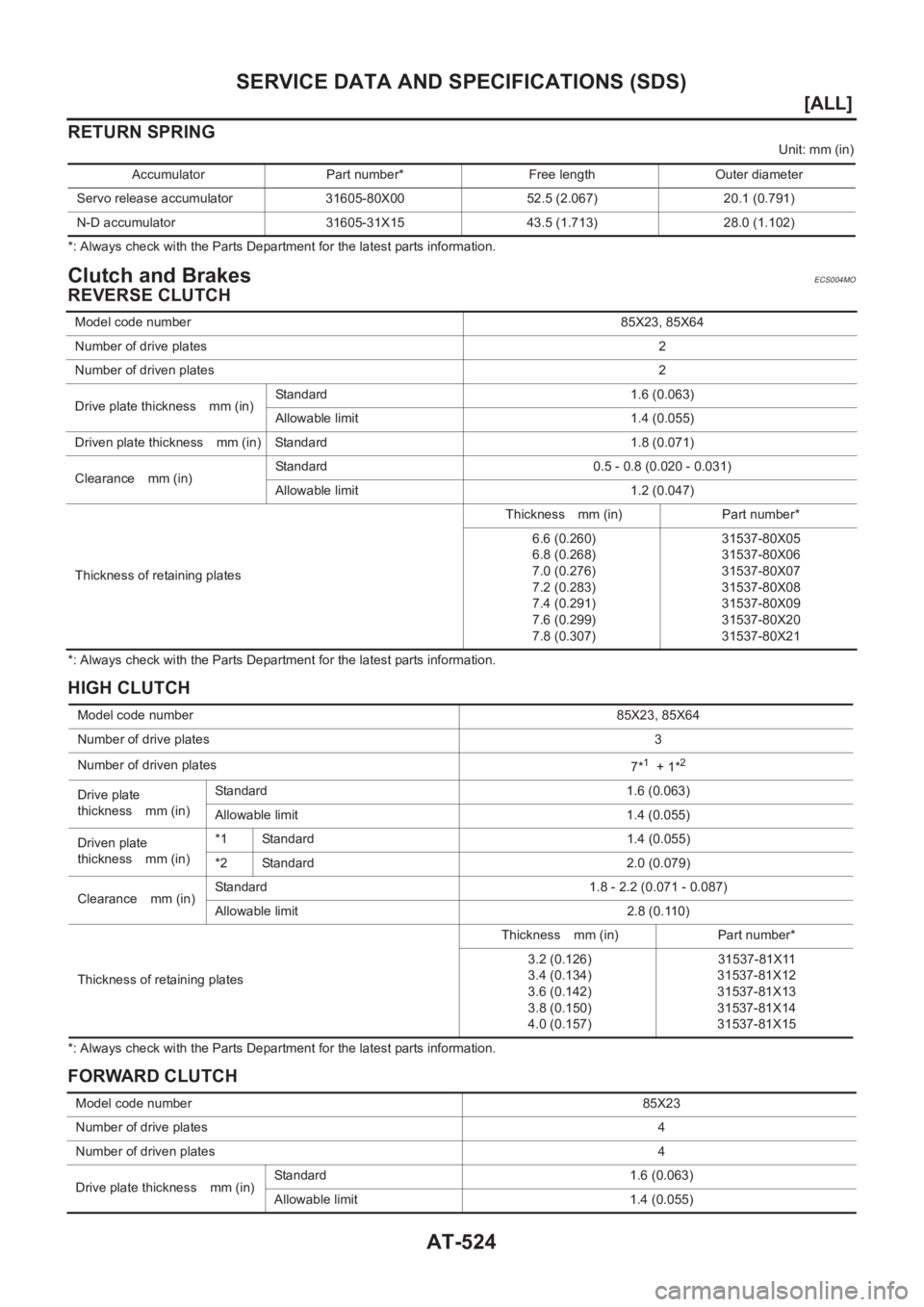

AT-524
[ALL]
SERVICE DATA AND SPECIFICATIONS (SDS)
RETURN SPRING
Unit: mm (in)
*: Always check with the Parts Department for the latest parts information.
Clutch and BrakesECS004MO
REVERSE CLUTCH
*: Always check with the Parts Department for the latest parts information.
HIGH CLUTCH
*: Always check with the Parts Department for the latest parts information.
FORWARD CLUTCH
Accumulator Part number* Free length Outer diameter
Servo release accumulator 31605-80X00 52.5 (2.067) 20.1 (0.791)
N-D accumulator 31605-31X15 43.5 (1.713) 28.0 (1.102)
Model code number85X23, 85X64
Number of drive plates2
Number of driven plates2
Drive plate thickness mm (in)Standard 1.6 (0.063)
Allowable limit 1.4 (0.055)
Driven plate thickness mm (in) Standard 1.8 (0.071)
Clearance mm (in)Standard 0.5 - 0.8 (0.020 - 0.031)
Allowable limit 1.2 (0.047)
Thickness of retaining platesThickness mm (in) Part number*
6.6 (0.260)
6.8 (0.268)
7.0 (0.276)
7.2 (0.283)
7.4 (0.291)
7.6 (0.299)
7.8 (0.307)31537-80X05
31537-80X06
31537-80X07
31537-80X08
31537-80X09
31537-80X20
31537-80X21
Model code number85X23, 85X64
Number of drive plates3
Number of driven plates
7*
1 + 1*2
Drive plate
thickness mm (in)Standard 1.6 (0.063)
Allowable limit 1.4 (0.055)
Driven plate
thickness mm (in)*1 Standard 1.4 (0.055)
*2 Standard 2.0 (0.079)
Clearance mm (in)Standard 1.8 - 2.2 (0.071 - 0.087)
Allowable limit 2.8 (0.110)
Thickness of retaining platesThickness mm (in) Part number*
3.2 (0.126)
3.4 (0.134)
3.6 (0.142)
3.8 (0.150)
4.0 (0.157)31537-81X11
31537-81X12
31537-81X13
31537-81X14
31537-81X15
Model code number85X23
Number of drive plates4
Number of driven plates4
Drive plate thickness mm (in)Standard 1.6 (0.063)
Allowable limit 1.4 (0.055)

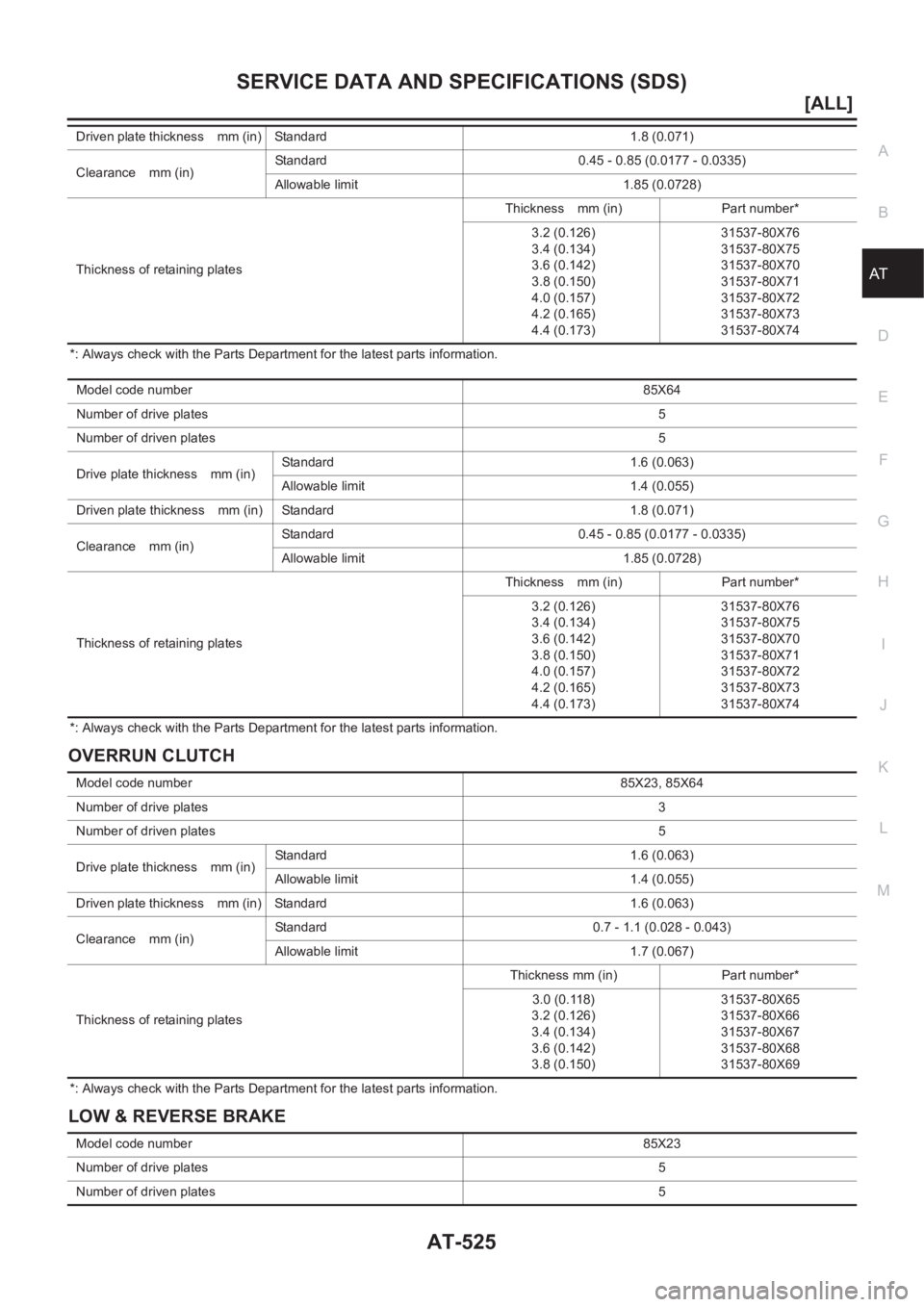

SERVICE DATA AND SPECIFICATIONS (SDS)
AT-525
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
*: Always check with the Parts Department for the latest parts information.
*: Always check with the Parts Department for the latest parts information.
OVERRUN CLUTCH
*: Always check with the Parts Department for the latest parts information.
LOW & REVERSE BRAKE
Driven plate thickness mm (in) Standard 1.8 (0.071)
Clearance mm (in)Standard 0.45 - 0.85 (0.0177 - 0.0335)
Allowable limit 1.85 (0.0728)
Thickness of retaining platesThickness mm (in) Part number*
3.2 (0.126)
3.4 (0.134)
3.6 (0.142)
3.8 (0.150)
4.0 (0.157)
4.2 (0.165)
4.4 (0.173)31537-80X76
31537-80X75
31537-80X70
31537-80X71
31537-80X72
31537-80X73
31537-80X74
Model code number85X64
Number of drive plates5
Number of driven plates5
Drive plate thickness mm (in)Standard 1.6 (0.063)
Allowable limit 1.4 (0.055)
Driven plate thickness mm (in) Standard 1.8 (0.071)
Clearance mm (in)Standard 0.45 - 0.85 (0.0177 - 0.0335)
Allowable limit 1.85 (0.0728)
Thickness of retaining platesThickness mm (in) Part number*
3.2 (0.126)
3.4 (0.134)
3.6 (0.142)
3.8 (0.150)
4.0 (0.157)
4.2 (0.165)
4.4 (0.173)31537-80X76
31537-80X75
31537-80X70
31537-80X71
31537-80X72
31537-80X73
31537-80X74
Model code number85X23, 85X64
Number of drive plates3
Number of driven plates5
Drive plate thickness mm (in)Standard 1.6 (0.063)
Allowable limit 1.4 (0.055)
Driven plate thickness mm (in) Standard 1.6 (0.063)
Clearance mm (in)Standard 0.7 - 1.1 (0.028 - 0.043)
Allowable limit 1.7 (0.067)
Thickness of retaining platesThickness mm (in) Part number*
3.0 (0.118)
3.2 (0.126)
3.4 (0.134)
3.6 (0.142)
3.8 (0.150)31537-80X65
31537-80X66
31537-80X67
31537-80X68
31537-80X69
Model code number85X23
Number of drive plates5
Number of driven plates5

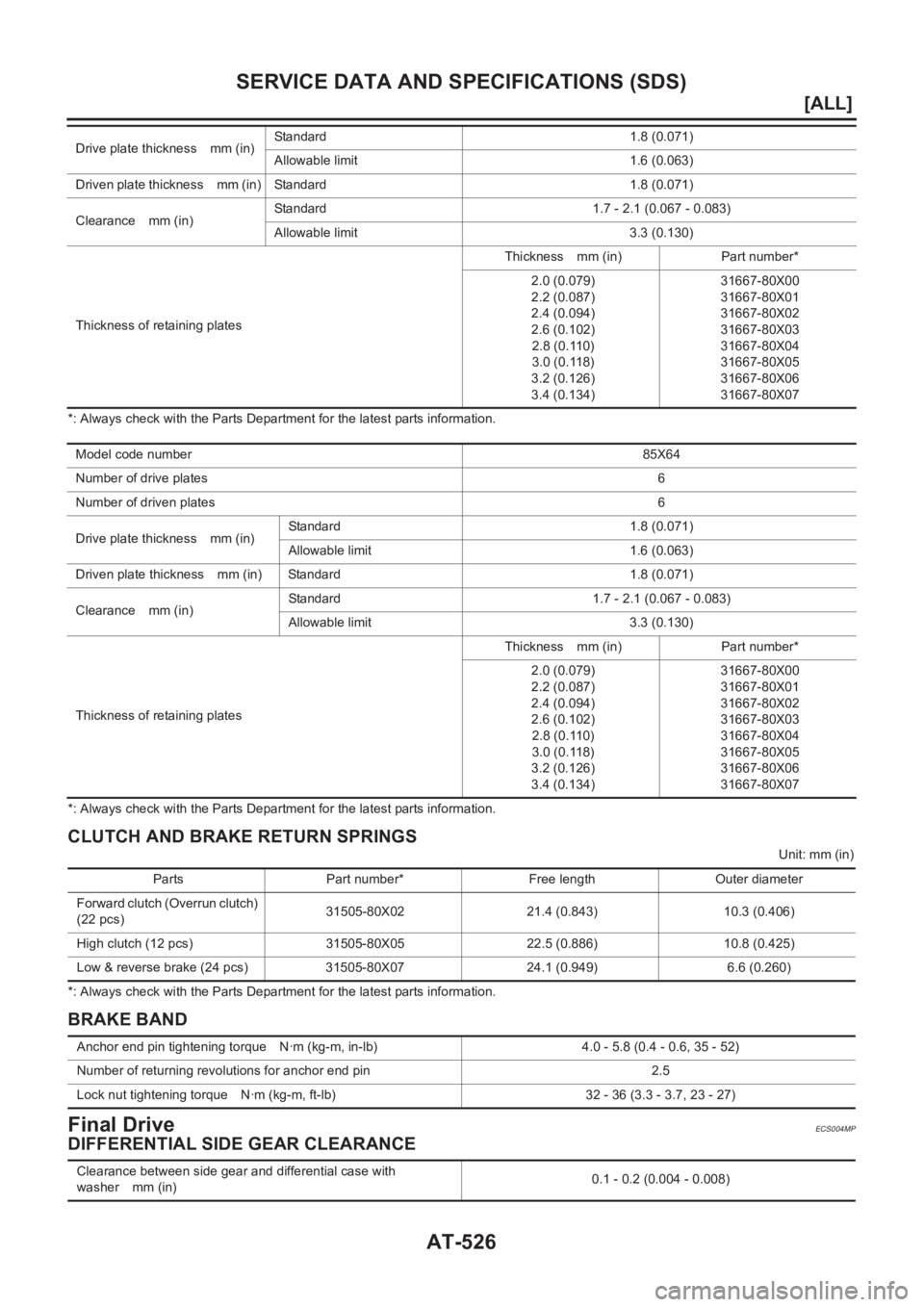

AT-526
[ALL]
SERVICE DATA AND SPECIFICATIONS (SDS)
*: Always check with the Parts Department for the latest parts information.
*: Always check with the Parts Department for the latest parts information.
CLUTCH AND BRAKE RETURN SPRINGS
Unit: mm (in)
*: Always check with the Parts Department for the latest parts information.
BRAKE BAND
Final DriveECS004MP
DIFFERENTIAL SIDE GEAR CLEARANCE
Drive plate thickness mm (in)Standard 1.8 (0.071)
Allowable limit 1.6 (0.063)
Driven plate thickness mm (in) Standard 1.8 (0.071)
Clearance mm (in)Standard 1.7 - 2.1 (0.067 - 0.083)
Allowable limit 3.3 (0.130)
Thickness of retaining platesThickness mm (in) Part number*
2.0 (0.079)
2.2 (0.087)
2.4 (0.094)
2.6 (0.102)
2.8 (0.110)
3.0 (0.118)
3.2 (0.126)
3.4 (0.134)31667-80X00
31667-80X01
31667-80X02
31667-80X03
31667-80X04
31667-80X05
31667-80X06
31667-80X07
Model code number85X64
Number of drive plates6
Number of driven plates6
Drive plate thickness mm (in)Standard 1.8 (0.071)
Allowable limit 1.6 (0.063)
Driven plate thickness mm (in) Standard 1.8 (0.071)
Clearance mm (in)Standard 1.7 - 2.1 (0.067 - 0.083)
Allowable limit 3.3 (0.130)
Thickness of retaining platesThickness mm (in) Part number*
2.0 (0.079)
2.2 (0.087)
2.4 (0.094)
2.6 (0.102)
2.8 (0.110)
3.0 (0.118)
3.2 (0.126)
3.4 (0.134)31667-80X00
31667-80X01
31667-80X02
31667-80X03
31667-80X04
31667-80X05
31667-80X06
31667-80X07
Parts Part number* Free length Outer diameter
Forward clutch (Overrun clutch)
(22 pcs)31505-80X02 21.4 (0.843) 10.3 (0.406)
High clutch (12 pcs) 31505-80X05 22.5 (0.886) 10.8 (0.425)
Low & reverse brake (24 pcs) 31505-80X07 24.1 (0.949) 6.6 (0.260)
Anchor end pin tightening torque N·m (kg-m, in-lb) 4.0 - 5.8 (0.4 - 0.6, 35 - 52)
Number of returning revolutions for anchor end pin 2.5
Lock nut tightening torque N·m (kg-m, ft-lb) 32 - 36 (3.3 - 3.7, 23 - 27)
Clearance between side gear and differential case with
washer mm (in)0.1 - 0.2 (0.004 - 0.008)

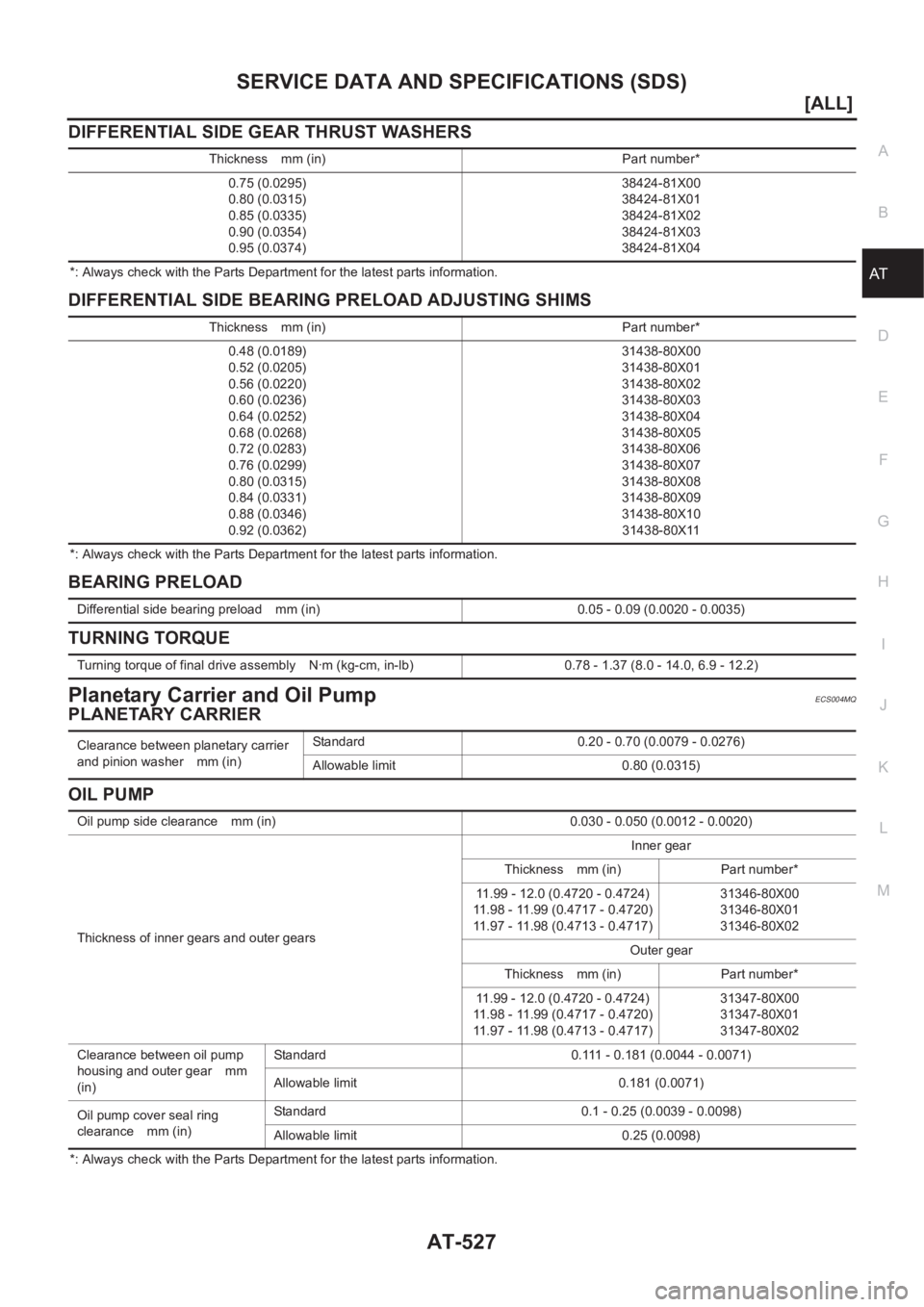

SERVICE DATA AND SPECIFICATIONS (SDS)
AT-527
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
DIFFERENTIAL SIDE GEAR THRUST WASHERS
*: Always check with the Parts Department for the latest parts information.
DIFFERENTIAL SIDE BEARING PRELOAD ADJUSTING SHIMS
*: Always check with the Parts Department for the latest parts information.
BEARING PRELOAD
TURNING TORQUE
Planetary Carrier and Oil PumpECS004MQ
PLANETARY CARRIER
OIL PUMP
*: Always check with the Parts Department for the latest parts information. Thickness mm (in) Part number*
0.75 (0.0295)
0.80 (0.0315)
0.85 (0.0335)
0.90 (0.0354)
0.95 (0.0374)38424-81X00
38424-81X01
38424-81X02
38424-81X03
38424-81X04
Thickness mm (in) Part number*
0.48 (0.0189)
0.52 (0.0205)
0.56 (0.0220)
0.60 (0.0236)
0.64 (0.0252)
0.68 (0.0268)
0.72 (0.0283)
0.76 (0.0299)
0.80 (0.0315)
0.84 (0.0331)
0.88 (0.0346)
0.92 (0.0362)31438-80X00
31438-80X01
31438-80X02
31438-80X03
31438-80X04
31438-80X05
31438-80X06
31438-80X07
31438-80X08
31438-80X09
31438-80X10
31438-80X11
Differential side bearing preload mm (in) 0.05 - 0.09 (0.0020 - 0.0035)
Turning torque of final drive assembly N·m (kg-cm, in-lb) 0.78 - 1.37 (8.0 - 14.0, 6.9 - 12.2)
Clearance between planetary carrier
and pinion washer mm (in)Standard 0.20 - 0.70 (0.0079 - 0.0276)
Allowable limit 0.80 (0.0315)
Oil pump side clearance mm (in) 0.030 - 0.050 (0.0012 - 0.0020)
Thickness of inner gears and outer gearsInner gear
Thickness mm (in) Part number*
11.99 - 12.0 (0.4720 - 0.4724)
11.98 - 11.99 (0.4717 - 0.4720)
11.97 - 11.98 (0.4713 - 0.4717)31346-80X00
31346-80X01
31346-80X02
Outer gear
Thickness mm (in) Part number*
11.99 - 12.0 (0.4720 - 0.4724)
11.98 - 11.99 (0.4717 - 0.4720)
11.97 - 11.98 (0.4713 - 0.4717)31347-80X00
31347-80X01
31347-80X02
Clearance between oil pump
housing and outer gear mm
(in)Standard 0.111 - 0.181 (0.0044 - 0.0071)
Allowable limit 0.181 (0.0071)
Oil pump cover seal ring
clearance mm (in)Standard 0.1 - 0.25 (0.0039 - 0.0098)
Allowable limit 0.25 (0.0098)

AT-528
[ALL]
SERVICE DATA AND SPECIFICATIONS (SDS)
Input Shaft
ECS004MR
SEAL RING CLEARANCE
SEAL RING
*: Always check with the Parts Department for the latest parts information.
Reduction Pinion GearECS004MS
TURNING TORQUE
REDUCTION PINION GEAR BEARING ADJUSTING SHIMS
Input shaft seal ring clearance mm
(in)Standard 0.08 - 0.23 (0.0031 - 0.0091)
Allowable limit 0.23 (0.0091)
Outer diameter mm (in) 1nner diameter mm (in) Width mm (in) Part number*
26 (1.024) 22.4 (0.882) 1.97 (0.078) 31525 80X02
Turning torque of reduction pinion gear N·m (kg-cm, in-lb) 0.05 - 0.39 (0.5 - 4.0, 0.43 - 3.47)
NO. Thickness mm (in) Part number NO. Thickness mm (in) Part number*
1 5.00 (0.1969) 31439-81X00 33 5.64 (0.2220) 31439-81X63
2 5.02 (0.1976) 31439-81X01 34 5.66 (0.2228) 31439-81X64
3 5.04 (0.1984) 31439-81X02 35 5.68 (0.2236) 31439-81X65
4 5.06 (0.1992) 31439-81X03 36 5.70 (0.2244) 31439-81X66
5 5.08 (0.2000) 31439-81X04 37 5.72 (0.2252) 31439-81X67
6 5.10 (0.2008) 31439-81X05 38 5.74 (0.2260) 31439-81X68
7 5.12 (0.2016) 31439-81X06 39 5.76 (0.2268) 31439-81X69
8 5.14 (0.2024) 31439-81X07 40 5.78 (0.2276) 31439-81X70
9 5.16 (0.2031) 31439-81X08 41 5.80 (0.2283) 31439-81X71
10 5.18 (0.2039) 31439-81X09 42 5.82 (0.2291) 31439-81X72
11 5.20 (0.2047) 31439-81X10 43 5.84 (0.2299) 31439-81X73
12 5.22 (0.2055) 31439-81X11 44 5.86 (0.2307) 31439-81X74
13 5.24 (0.2063) 31439-81X12 45 4.60 (0.1811) 31439-85X01
14 5.26 (0.2071) 31439-81X13 46 4.62 (0.1819) 31439-85X02
15 5.28 (0.2079) 31439-81X14 47 4.64 (0.1827) 31439-85X03
16 5.30 (0.2087) 31439-81X15 48 4.66 (0.1835) 31439-85X04
17 5.32 (0.2094) 31439-81X16 49 4.68 (0.1843) 31439 85X05
18 5.34 (0.2102) 31439-81X17 50 4.70 (0.1850) 31439 85X06
19 5.36 (0.2110) 31439-81X18 51 4.72 (0.1858) 31439 83X11
20 5.38 (0.2118) 31439-81X19 52 4.74 (0.1866) 31439 83X12
21 5.40 (0.2126) 31439-81X20 53 4.76 (0.1874) 31439 83X13
22 5.42 (0.2134) 31439-81X21 54 4.78 (0.1882) 31439 83X14
23 5.44 (0.2142) 31439-81X22 55 4.80 (0.1890) 31439 83X15
24 5.46 (0.2150) 31439-81X23 56 4.82 (0.1898) 31439 83X16
25 5.48 (0.2157) 31439-81X24 57 4.84 (0.1906) 31439 83X17
26 5.50 (0.2165) 31439-81X46 58 4.86 (0.1913) 31439 83X18
27 5.52 (0.2173) 31439-81X47 59 4.88 (0.1921) 31439 83X19
28 5.54 (0.2181) 31439-81X48 60 4.90 (0.1929) 31439 83X20
29 5.56 (0.2189) 31439-81X49 61 4.92 (0.1937) 31439 83X21
30 5.58 (0.2197) 31439-81X60 62 4.94 (0.1945) 31439 83X22
31 5.60 (0.2205) 31439-81X61 63 4.96 (0.1953) 31439 83X23
32 5.62 (0.2213) 31439-81X62 64 4.98 (0.1961) 31439 83X24

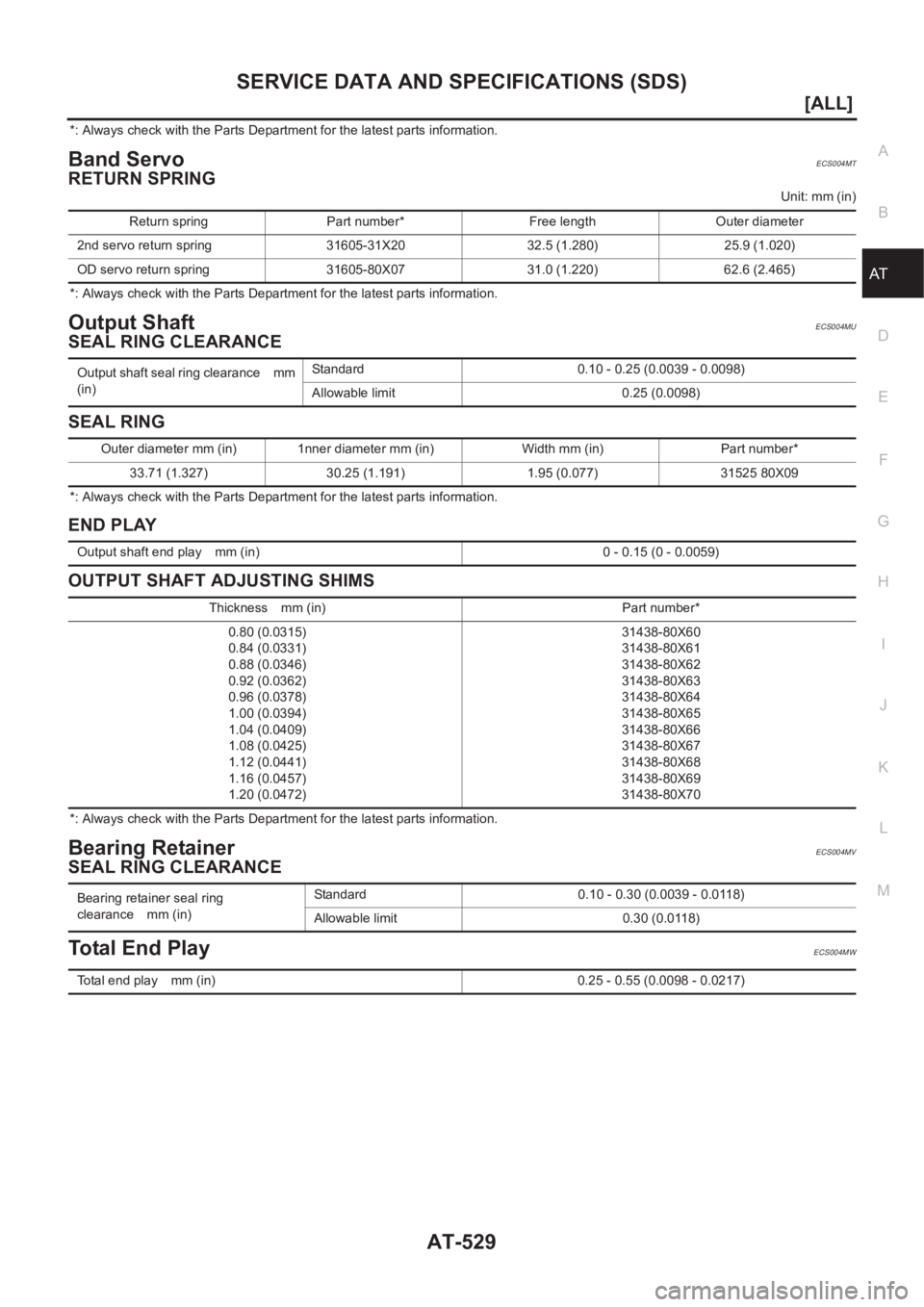

SERVICE DATA AND SPECIFICATIONS (SDS)
AT-529
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
*: Always check with the Parts Department for the latest parts information.
Band ServoECS004MT
RETURN SPRING
Unit: mm (in)
*: Always check with the Parts Department for the latest parts information.
Output ShaftECS004MU
SEAL RING CLEARANCE
SEAL RING
*: Always check with the Parts Department for the latest parts information.
END PLAY
OUTPUT SHAFT ADJUSTING SHIMS
*: Always check with the Parts Department for the latest parts information.
Bearing RetainerECS004MV
SEAL RING CLEARANCE
Total End PlayECS004MW
Return spring Part number* Free length Outer diameter
2nd servo return spring 31605-31X20 32.5 (1.280) 25.9 (1.020)
OD servo return spring 31605-80X07 31.0 (1.220) 62.6 (2.465)
Output shaft seal ring clearance mm
(in)Standard 0.10 - 0.25 (0.0039 - 0.0098)
Allowable limit 0.25 (0.0098)
Outer diameter mm (in) 1nner diameter mm (in) Width mm (in) Part number*
33.71 (1.327) 30.25 (1.191) 1.95 (0.077) 31525 80X09
Output shaft end play mm (in) 0 - 0.15 (0 - 0.0059)
Thickness mm (in) Part number*
0.80 (0.0315)
0.84 (0.0331)
0.88 (0.0346)
0.92 (0.0362)
0.96 (0.0378)
1.00 (0.0394)
1.04 (0.0409)
1.08 (0.0425)
1.12 (0.0441)
1.16 (0.0457)
1.20 (0.0472)31438-80X60
31438-80X61
31438-80X62
31438-80X63
31438-80X64
31438-80X65
31438-80X66
31438-80X67
31438-80X68
31438-80X69
31438-80X70
Bearing retainer seal ring
clearance mm (in)Standard 0.10 - 0.30 (0.0039 - 0.0118)
Allowable limit 0.30 (0.0118)
Total end play mm (in) 0.25 - 0.55 (0.0098 - 0.0217)

AT-530
[ALL]

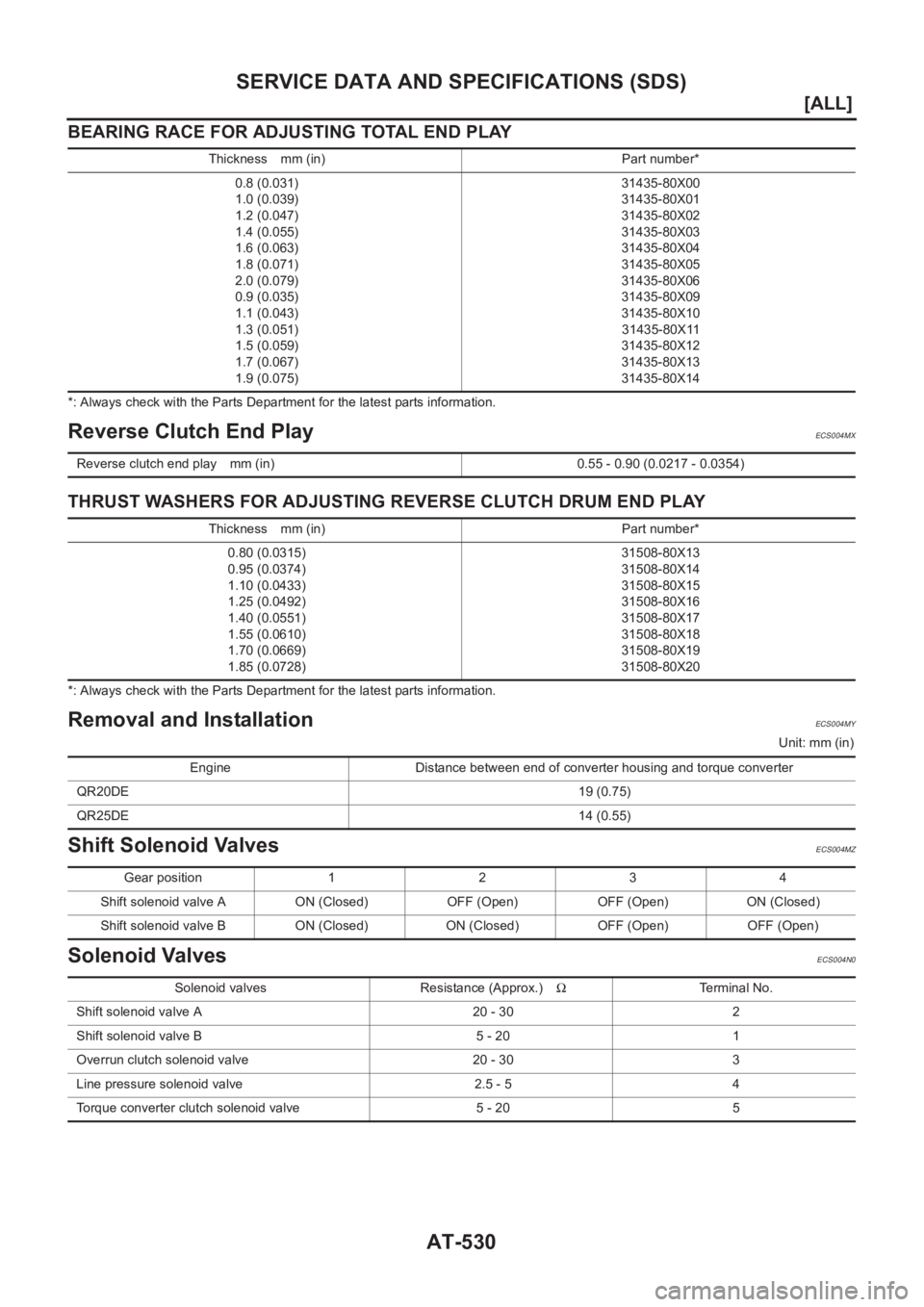

SERVICE DATA AND SPECIFICATIONS (SDS)
BEARING RACE FOR ADJUSTING TOTAL END PLAY
*: Always check with the Parts Department for the latest parts information.
Reverse Clutch End PlayECS004MX
THRUST WASHERS FOR ADJUSTING REVERSE CLUTCH DRUM END PLAY
*: Always check with the Parts Department for the latest parts information.
Removal and InstallationECS004MY
Unit: mm (in)
Shift Solenoid ValvesECS004MZ
Solenoid ValvesECS004N0
Thickness mm (in) Part number*
0.8 (0.031)
1.0 (0.039)
1.2 (0.047)
1.4 (0.055)
1.6 (0.063)
1.8 (0.071)
2.0 (0.079)
0.9 (0.035)
1.1 (0.043)
1.3 (0.051)
1.5 (0.059)
1.7 (0.067)
1.9 (0.075)31435-80X00
31435-80X01
31435-80X02
31435-80X03
31435-80X04
31435-80X05
31435-80X06
31435-80X09
31435-80X10
31435-80X11
31435-80X12
31435-80X13
31435-80X14
Reverse clutch end play mm (in) 0.55 - 0.90 (0.0217 - 0.0354)
Thickness mm (in) Part number*
0.80 (0.0315)
0.95 (0.0374)
1.10 (0.0433)
1.25 (0.0492)
1.40 (0.0551)
1.55 (0.0610)
1.70 (0.0669)
1.85 (0.0728)31508-80X13
31508-80X14
31508-80X15
31508-80X16
31508-80X17
31508-80X18
31508-80X19
31508-80X20
Engine Distance between end of converter housing and torque converter
QR20DE19 (0.75)
QR25DE14 (0.55)
Gear position 1 2 3 4
Shift solenoid valve A ON (Closed) OFF (Open) OFF (Open) ON (Closed)
Shift solenoid valve B ON (Closed) ON (Closed) OFF (Open) OFF (Open)
Solenoid valves Resistance (Approx.)ΩTerminal No.
Shift solenoid valve A 20 - 30 2
Shift solenoid valve B 5 - 20 1
Overrun clutch solenoid valve 20 - 30 3
Line pressure solenoid valve 2.5 - 5 4
Torque converter clutch solenoid valve 5 - 20 5

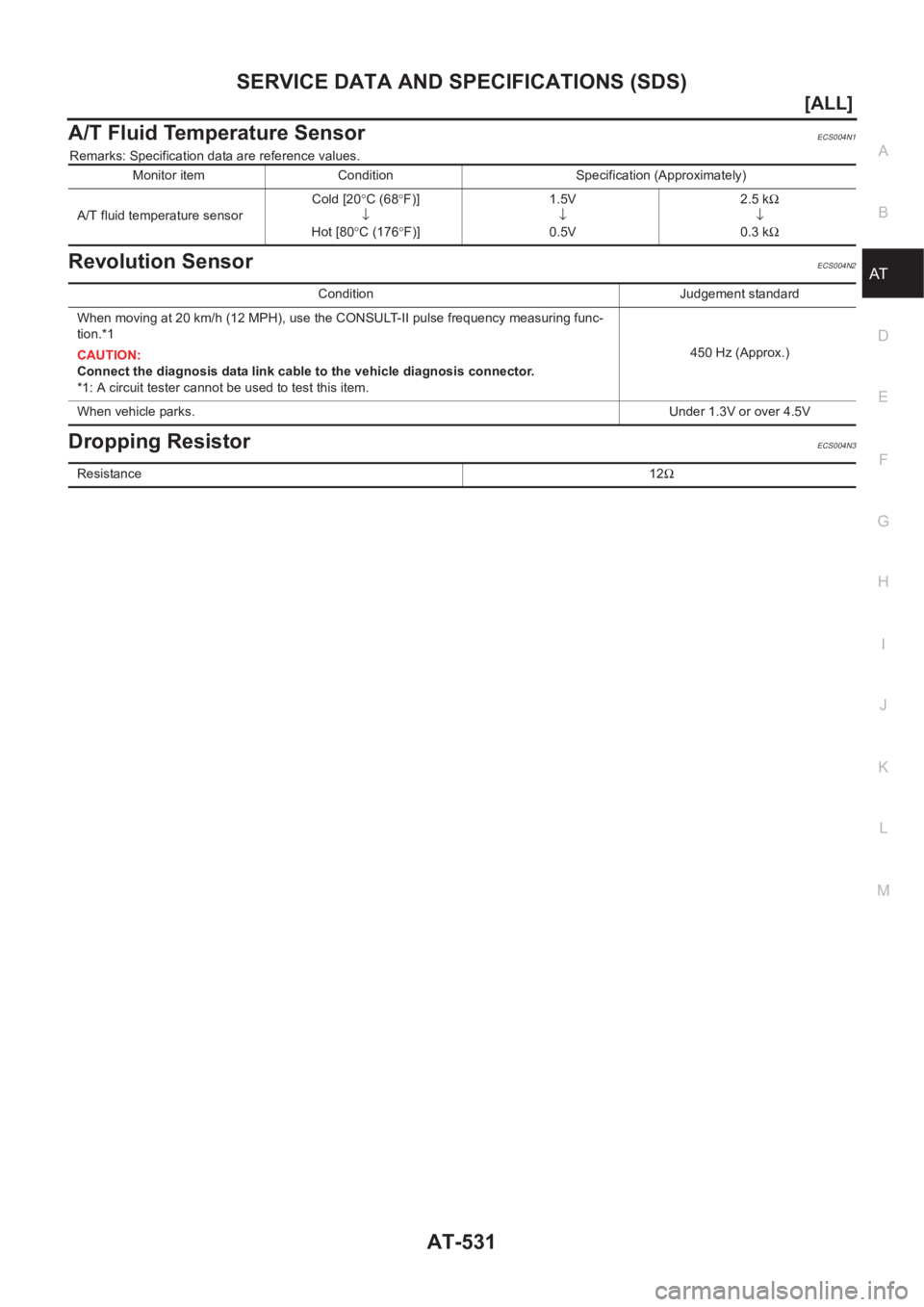

SERVICE DATA AND SPECIFICATIONS (SDS)
AT-531
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
A/T Fluid Temperature SensorECS004N1
Remarks: Specification data are reference values.
Revolution SensorECS004N2
Dropping ResistorECS004N3
Monitor item Condition Specification (Approximately)
A/T fluid temperature sensorCold [20°C (68°F)]
↓
Hot [80°C (176°F)]1.5V
↓
0.5V2.5 kΩ
↓
0.3 kΩ
Condition Judgement standard
When moving at 20 km/h (12 MPH), use the CONSULT-II pulse frequency measuring func-
tion.*1
CAUTION:
Connect the diagnosis data link cable to the vehicle diagnosis connector.
*1: A circuit tester cannot be used to test this item.450 Hz (Approx.)
When vehicle parks.Under 1.3V or over 4.5V
Resistance12Ω

AT-532
[ALL]
SERVICE DATA AND SPECIFICATIONS (SDS)
