9. Install band servo piston assembly and 2nd servo return spring
to transmission case.
●Apply ATF to O-ring of band servo piston and transmis-
sion case.
10. Install O/D servo piston assembly to transmission case.
●Apply ATF to O-ring of band servo piston and transmis-
sion case.
11. Install O/D servo piston retainer to transmission case.
Refer to AT-424, "
Oil Channel" .
Final DriveECS004MC
COMPONENTS
SAT865H
AAT885
AAT879
SCIA0807E

AT-494
[ALL]
REPAIR FOR COMPONENT PARTS
DISASSEMBLY
1. Remove final gear.
2. Press out differential side bearings.
●Be careful not to mix up the right and left bearings.
3. Remove differential side bearing outer race, and side bearing
adjusting shim from transmission case.
4. Remove speedometer drive gear.
SMT505B
SMT744AA
SAT010FA
SAT313D

REPAIR FOR COMPONENT PARTS
AT-495
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
5. Drive out pinion mate shaft lock pin.
6. Draw out pinion mate shaft lock pin.
7. Remove pinion mate gears and side gears.
INSPECTION
Gear, Washer, Shaft and Case
●Check mating surfaces of differential case, side gears and pin-
ion mate gears.
●Check washers for wear.
Bearings
●Make sure bearings roll freely and are free from noise, cracks,
pitting or wear.
●When replacing taper roller bearing, replace outer and inner
race as a set.
SAT904DA
SAT316D
SAT544F
SPD715

AT-496
[ALL]
REPAIR FOR COMPONENT PARTS
ASSEMBLY

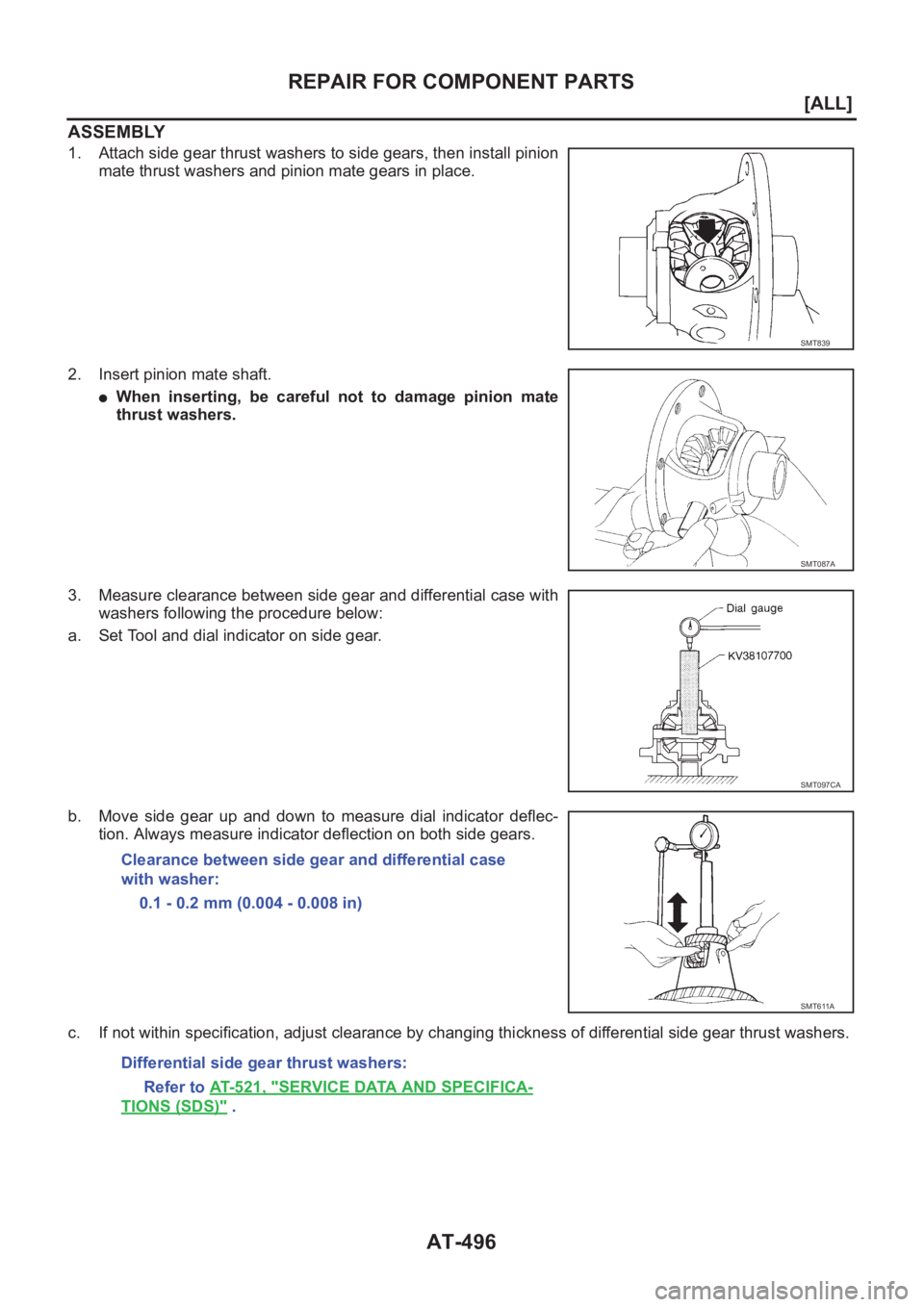

1. Attach side gear thrust washers to side gears, then install pinion
mate thrust washers and pinion mate gears in place.
2. Insert pinion mate shaft.
●When inserting, be careful not to damage pinion mate
thrust washers.
3. Measure clearance between side gear and differential case with
washers following the procedure below:
a. Set Tool and dial indicator on side gear.
b. Move side gear up and down to measure dial indicator deflec-
tion. Always measure indicator deflection on both side gears.
c. If not within specification, adjust clearance by changing thickness of differential side gear thrust washers.
SMT839
SMT087A
SMT097CA
Clearance between side gear and differential case
with washer:
0.1 - 0.2 mm (0.004 - 0.008 in)
SMT611A
Differential side gear thrust washers:
Refer to AT-521, "
SERVICE DATA AND SPECIFICA-
TIONS (SDS)" .

REPAIR FOR COMPONENT PARTS
AT-497
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
4. Install lock pin.
●Make sure that lock pin is flush with case.
5. Install speedometer drive gear on differential case.
●Align the projection of speedometer drive gear with the
groove of differential case.
6. Press on differential side bearings.
7. Install final gear and tighten fixing bolts in a crisscross pattern.
SMT699BA
SAT313D
SAT545FA
SAT546F

AT-498
[ALL]
ASSEMBLY
ASSEMBLY
PFP:00000
Assembly (1)ECS004MD
1. Install differential side oil seals on transmission case and con-
verter housing.
2. Install parking actuator support to transmission case. Tighten
parking actuator support bolts to the specified torque. Refer to
AT-421, "
OVERHAUL" .
●Pay attention to direction of parking actuator support.
3. Install parking pawl on transmission case and fix it with parking
shaft.
4. Install return spring.
SAT181FC
SAT182F
SAT183F
SAT039F

ASSEMBLY
AT-499
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
Adjustment (1)ECS004ME
DIFFERENTIAL SIDE BEARING PRELOAD
1. Install differential side bearing outer race without adjusting shim
on transmission case.
2. Install differential side bearing outer race on converter housing.
3. Place final drive assembly on transmission case.
4. Install transmission case on converter housing. Tighten trans-
mission case fixing bolts to the specified torque. Refer to AT-
421, "OVERHAUL" .
5. Attach dial indicator on differential case at converter housing
side.
6. Insert Tool into differential side gear from transmission case
side.
7. Move Tool up and down and measure dial indicator deflection.
8. Select proper thickness of differential side bearing adjusting
shim(s).
Suitable shim thickness = Dial indicator deflection + Speci-
fied bearing preload
SAT870D
SAT008F
Differential side bearing preload adjusting shim:
Refer to AT- 5 2 1 , "
SERVICE DATA AND SPECIFICA-
TIONS (SDS)" .
Bearing preload:
0.05 - 0.09 mm (0.0020 - 0.0035 in)
SAT186FA

AT-500
[ALL]
ASSEMBLY
9. Remove converter housing from transmission case.
10. Remove final drive assembly from transmission case.
11. Remove differential side bearing outer race from transmission
case.
12. Reinstall differential side bearing outer race and shim(s)
selected from SDS table on transmission case.
13. Reinstall converter housing on transmission case and tighten
transmission case fixing bolts to the specified torque. Refer to
AT-421, "
OVERHAUL" .
14. Insert Tool and measure turning torque of final drive assembly.
●Turn final drive assembly in both directions several times
to seat bearing rollers correctly.
●When old bearing is used again, turning torque will be
slightly less than the above.
●Make sure torque is close to the specified range.
REDUCTION PINION GEAR BEARING PRELOAD
1. Remove transmission case and final drive assembly from con-
verter housing.
2. Select proper thickness of reduction pinion gear bearing adjust-
ing shim using the following procedures.
a. Place reduction pinion gear on transmission case as shown.
b. Place idler gear bearing on transmission case.
c. Measure dimensions “B” “C” and “D” and calculate dimension
“A”.
SAT010FC
Turning torque of final drive assembly (New bearing):
0.78 - 1.37 N-m (8.0 - 14.0 kg-cm, 6.9 - 12.2 in-lb)
Preload adapter: KV38105210
SAT188FA
SAT332DA
A = D − (B + C)
“A”: Distance between the surface of idler gear bear-
ing inner race and the adjusting shim mating
surface of reduction pinion gear.
SAT333DA

ASSEMBLY
AT-501
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
●Measure dimension “B” between the end of reduction pinion
gear and the surface of transmission case.
●Measure dimension “B” in at least two places.
●Measure dimension “C” between the surface of idler gear
bearing inner race and the surface of transmission case.
●Measure dimension “C” in at least two places.
●Measure dimension “D” between the end of reduction pinion
gear and the adjusting shim mating surface of reduction pin-
ion gear.
●Measure dimension “D” in at least two places.
●Calculate dimension “A”.
d. Measure dimension “E” between the end of idler gear and the
idler gear bearing inner race mating surface of idler gear.
●Measure dimension “E” in at least two places.
e. Select proper thickness of reduction pinion gear bearing adjust-
ing shim.
SAT334DA
SAT335D
A = D − (B + C)
SAT336DA
Proper shim thickness = A − E − 0.05 mm (0.0020 in)*
(*... Bearing preload)
Reduction pinion gear bearing adjusting shim:
Refer to AT- 5 2 1 , "
SERVICE DATA AND SPECIFICA-
TIONS (SDS)" .SAT337D

AT-502
[ALL]
ASSEMBLY
3. Install reduction gear and reduction gear bearing adjusting shim
selected in step 2-e on transmission case.
4. Press idler gear bearing inner race on idler gear.
5. Press idler gear on reduction gear.
●Press idler gear until idler gear fully contacts adjusting
shim.
6. Tighten idler gear lock nut to the specified torque. Refer to AT-
421, "OVERHAUL" .
●Lock idler gear with parking pawl when tightening lock
nut.
7. Measure turning torque of reduction pinion gear.
●When measuring turning torque, turn reduction pinion
gear in both directions several times to seat bearing roll-
ers correctly.
●If turning torque is out of specification, decrease or
increase thickness of reduction pinion gear bearing
adjusting shim.
8. After properly adjusting turning torque, clinch idler gear lock nut
as shown.
SAT873DE
SAT189F
Turning torque of reduction pinion gear:
0.05 - 0.39 N-m (0.5 - 4.0 kg-cm, 0.43 - 3.47 in-lb)
SAT190FB
SAT699D
