NISSAN X-TRAIL 2001 Service Repair Manual

POWER WINDOW SYSTEM
GW-29
C
D
E
F
G
H
J
K
L
MA
B
GW

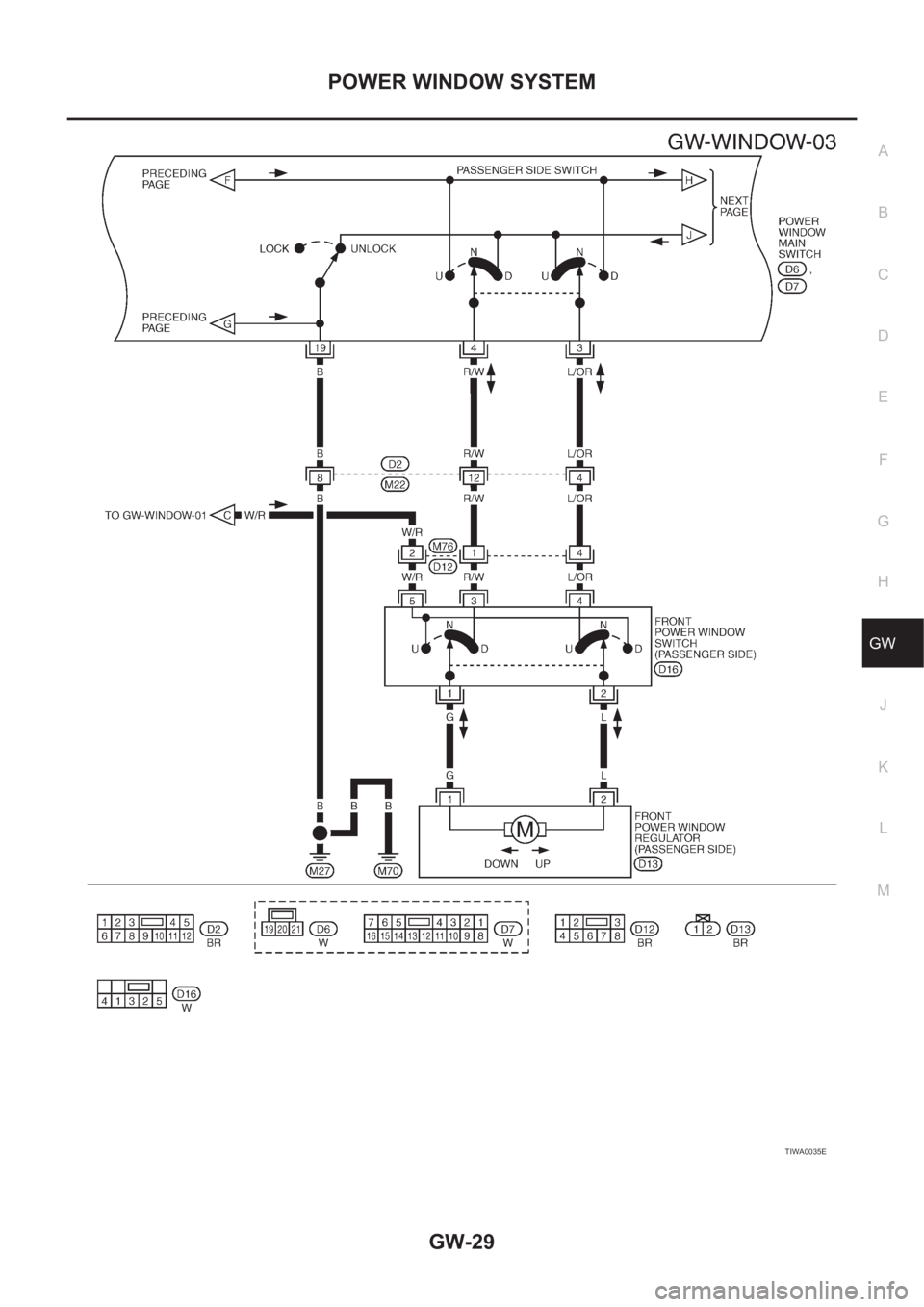

TIWA0035E

GW-30
POWER WINDOW SYSTEM

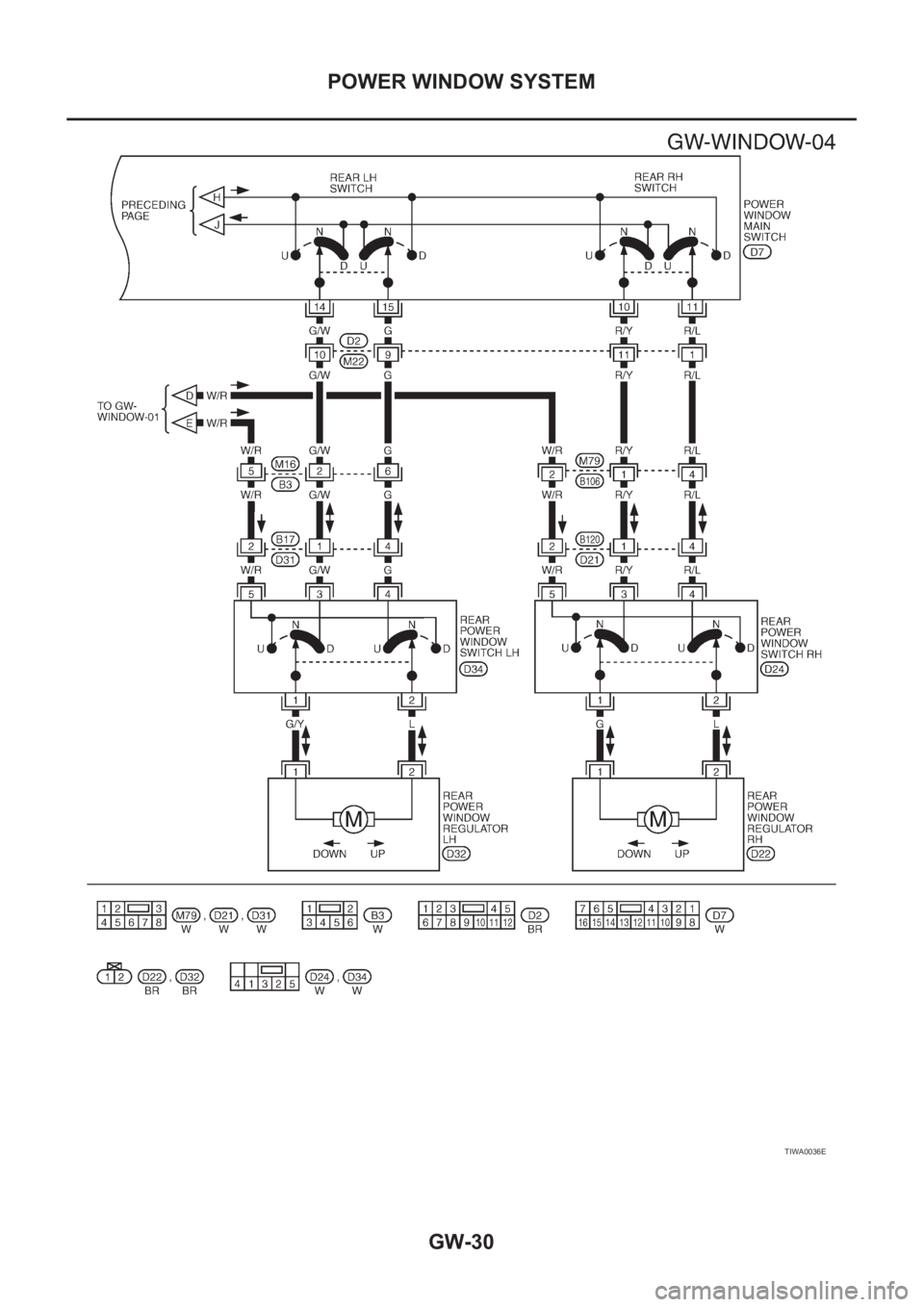

TIWA0036E

POWER WINDOW SYSTEM
GW-31
C
D
E
F
G
H
J
K
L
MA
B
GW
Terminal and Reference Value for Power Window Main Switch (LHD models)EIS0045Z
TERMINALWIRE
COLORITEM CONDITIONVOLTAGE (V)
(Approx.)
1LDriver side power window
motor DOWN signalWhen DOWN operation. Battery voltage
Other than above. 0
2G/BDriver side power window motor
UP signalWhen UP operation. Battery voltage
Other than above. 0
3 L/ORPassenger side power window
motor DOWN signalMain switch passenger side
switch DOWN operation.Battery voltage
Other than above. 0
4R/WPassenger side power window
motor UP signalMain switch passenger side
switch UP operation.Battery voltage
Other than above. 0
5 W BAT power supply — Battery voltage
6 R Driver side door switch signalDriver side door open (ON). 0
Driver side door close (OFF). Battery voltage
7 G/R Encoder power supply IGN ON and timer operating 10
8 W/B Limit switch and encoder ground — 0
9 G/OR Limit switch signalDriver door window is between
fully-open and just before fully-
closed position (ON). 0
Driver door window is between
just before fully-closed position
and fully-closed position (OFF). 5
10 R/YRear RH side power window
motor UP signalMain switch rear RH side switch
UP operation.Battery voltage
Other than above. 0
11 R / LRear RH side power window
motor DOWN signalMain switch rear RH side switch
DOWN operation.Battery voltage
Other than above. 0
12 W/R Power supply IGN ON Battery voltage
14 G/WRear LH side power window
motor UP signalMain switch rear LH side switch
UP operation.Battery voltage
Other than above. 0
15 GRear LH side power window
motor DOWN signalMain switch rear LH side switch
DOWN operation.Battery voltage
Other than above. 0
16 G/Y Encoder pulse signalWhen power window motor
operates. 2.5
19 B Ground — 0
OCC3383D

GW-32
POWER WINDOW SYSTEM

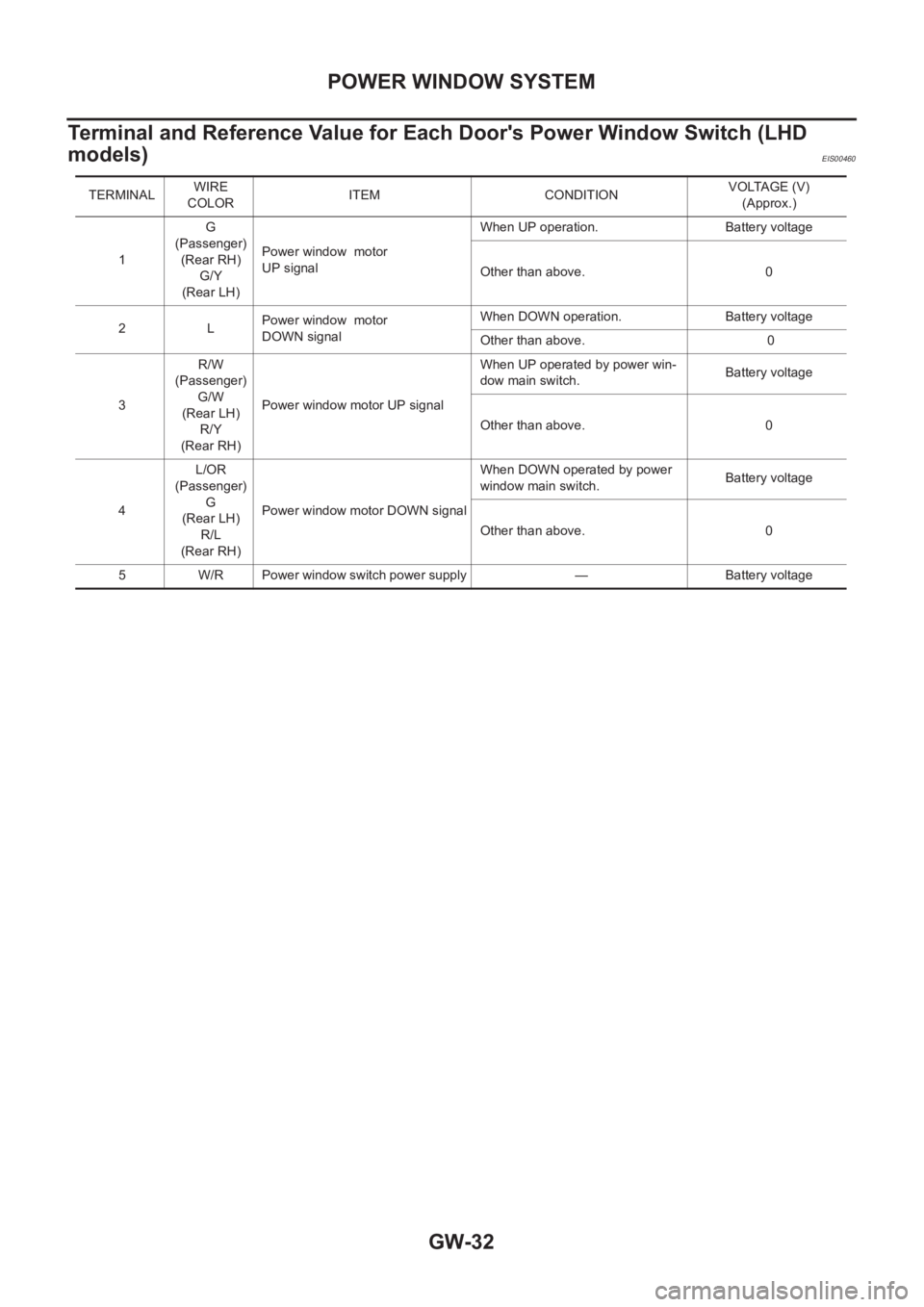

Terminal and Reference Value for Each Door's Power Window Switch (LHD
models)
EIS00460
TERMINALWIRE
COLORITEM CONDITIONVOLTAGE (V)
(Approx.)
1G
(Passenger)
(Rear RH)
G/Y
(Rear LH)Power window motor
UP signalWhen UP operation. Battery voltage
Other than above. 0
2LPower window motor
DOWN signalWhen DOWN operation. Battery voltage
Other than above. 0
3R/W
(Passenger)
G/W
(Rear LH)
R/Y
(Rear RH)Power window motor UP signalWhen UP operated by power win-
dow main switch.Battery voltage
Other than above. 0
4L/OR
(Passenger)
G
(Rear LH)
R/L
(Rear RH)Power window motor DOWN signalWhen DOWN operated by power
window main switch.Battery voltage
Other than above. 0
5 W/R Power window switch power supply — Battery voltage

POWER WINDOW SYSTEM
GW-33
C
D
E
F
G
H
J
K
L
MA
B
GW

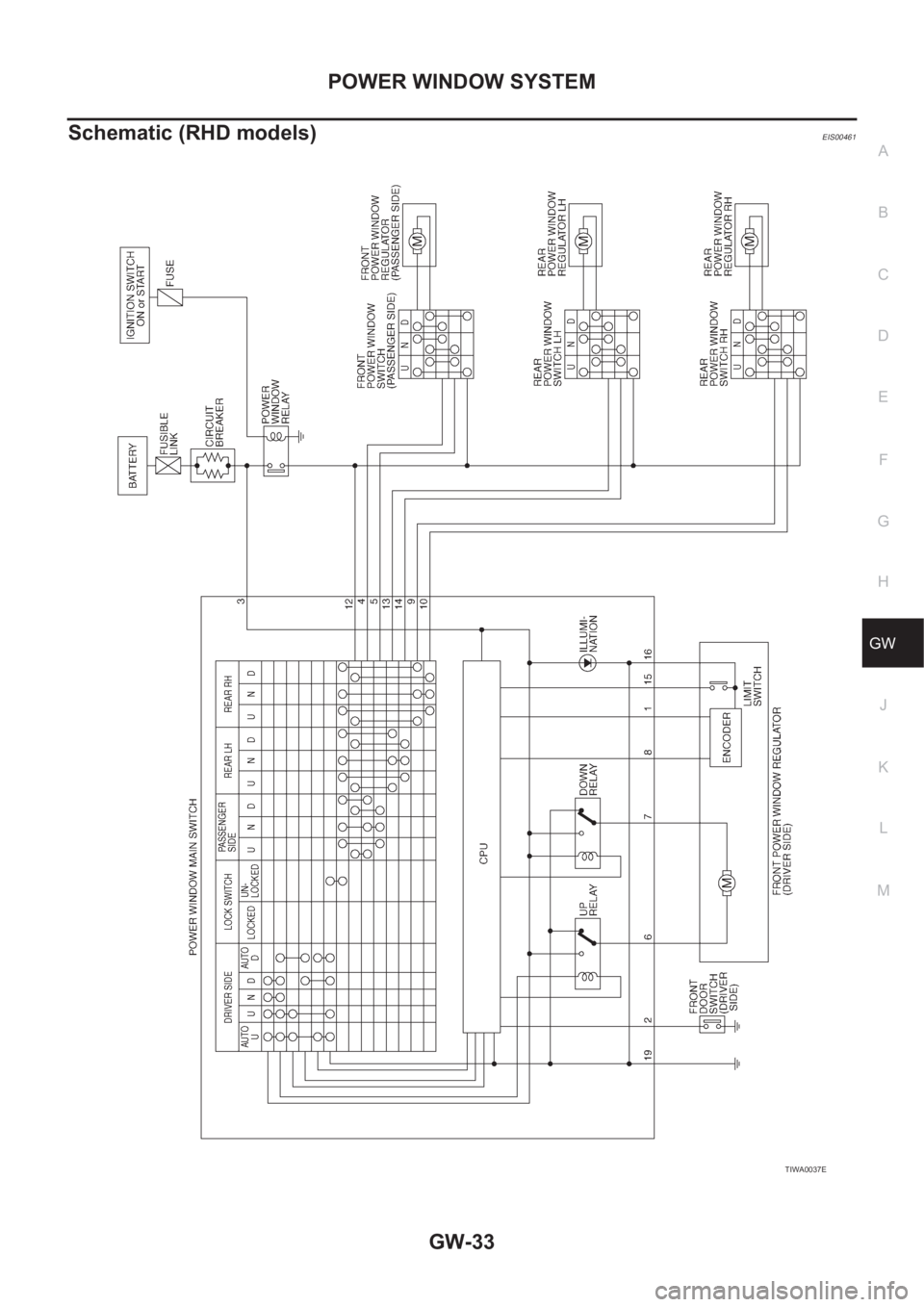

Schematic (RHD models)EIS00461
TIWA0037E

GW-34
POWER WINDOW SYSTEM

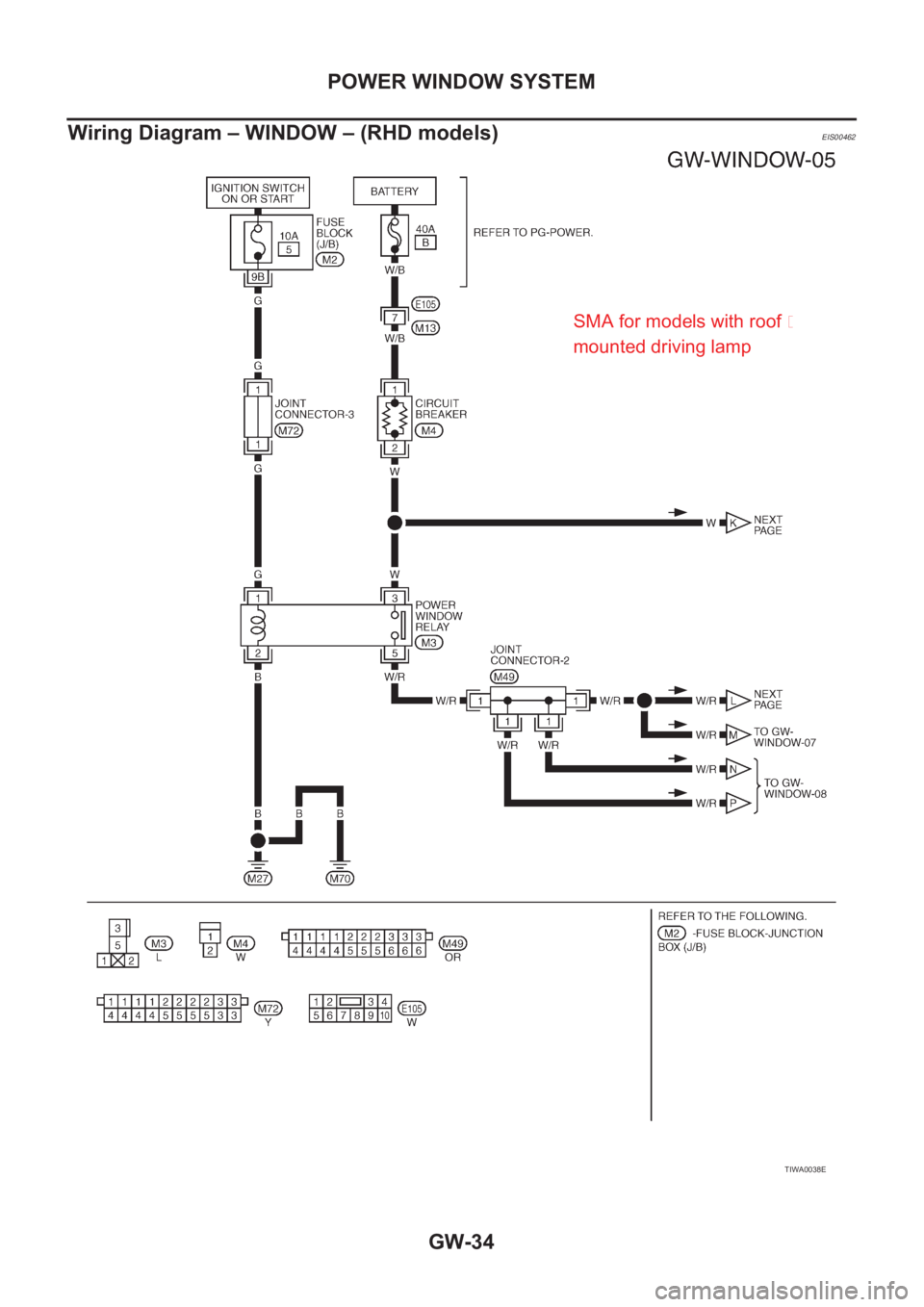

Wiring Diagram – WINDOW – (RHD models)
EIS00462
TIWA0038E
SMA for models with roof
mounted driving lamp

POWER WINDOW SYSTEM
GW-35
C
D
E
F
G
H
J
K
L
MA
B
GW

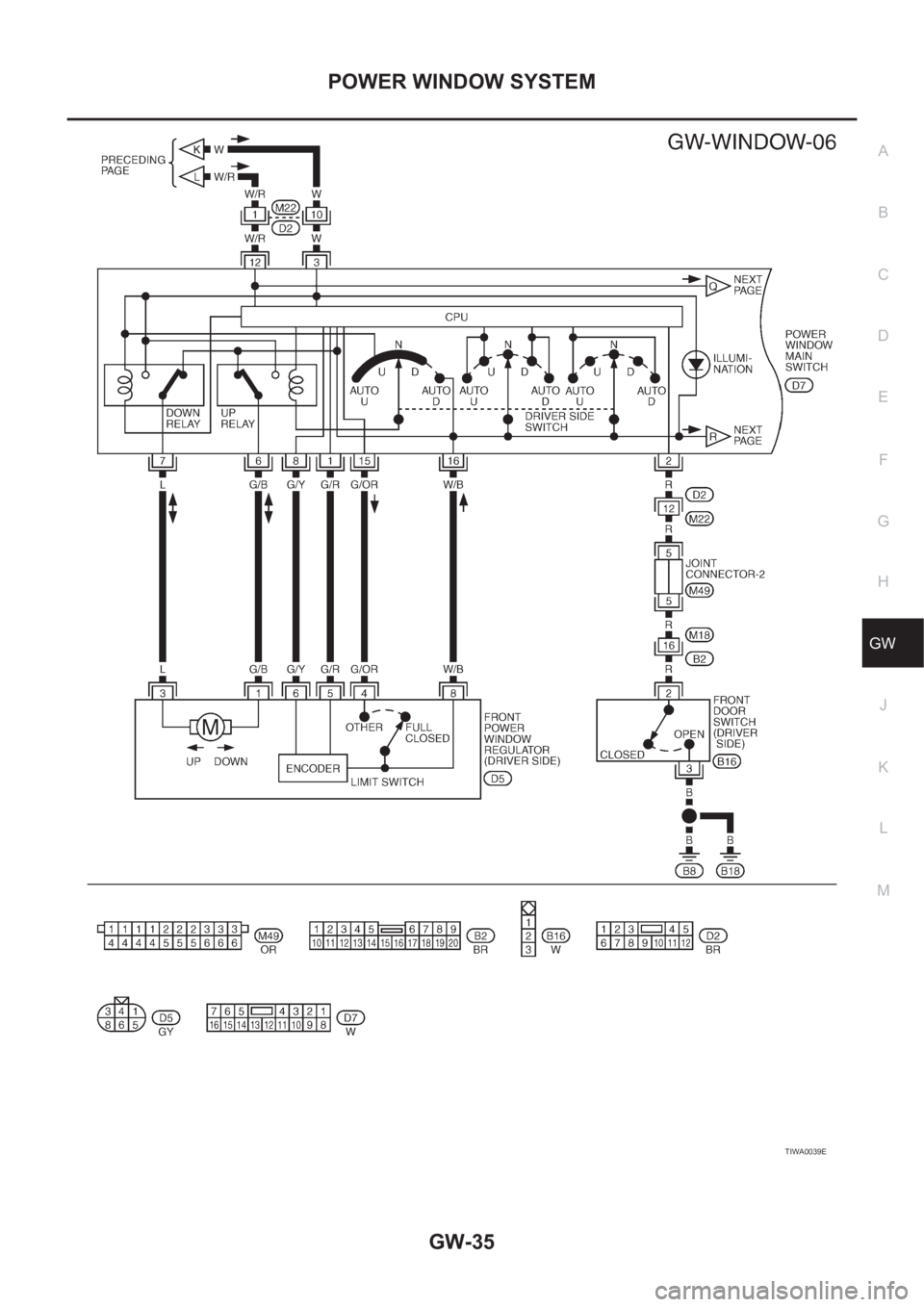

TIWA0039E

GW-36
POWER WINDOW SYSTEM

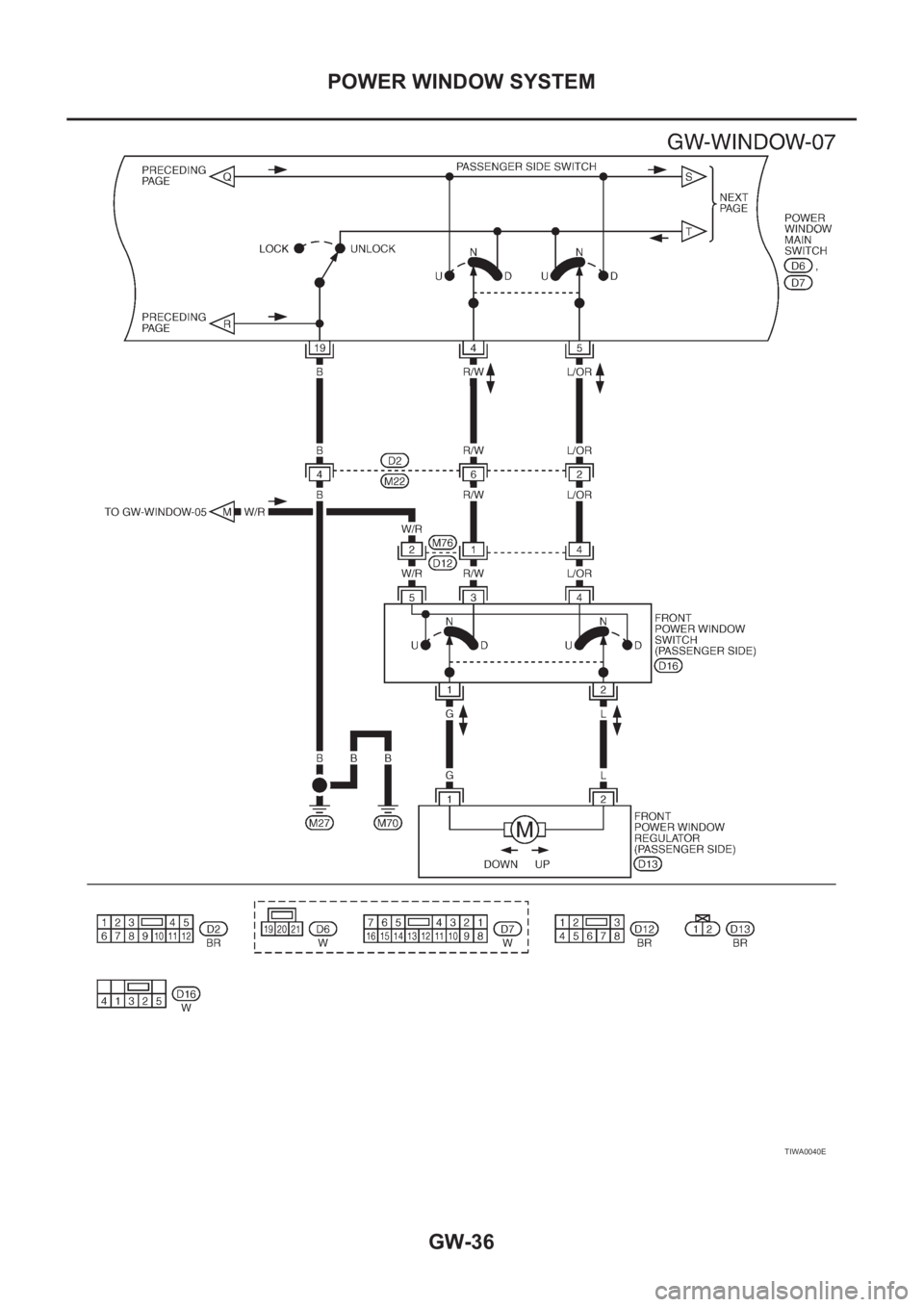

TIWA0040E

POWER WINDOW SYSTEM
GW-37
C
D
E
F
G
H
J
K
L
MA
B
GW

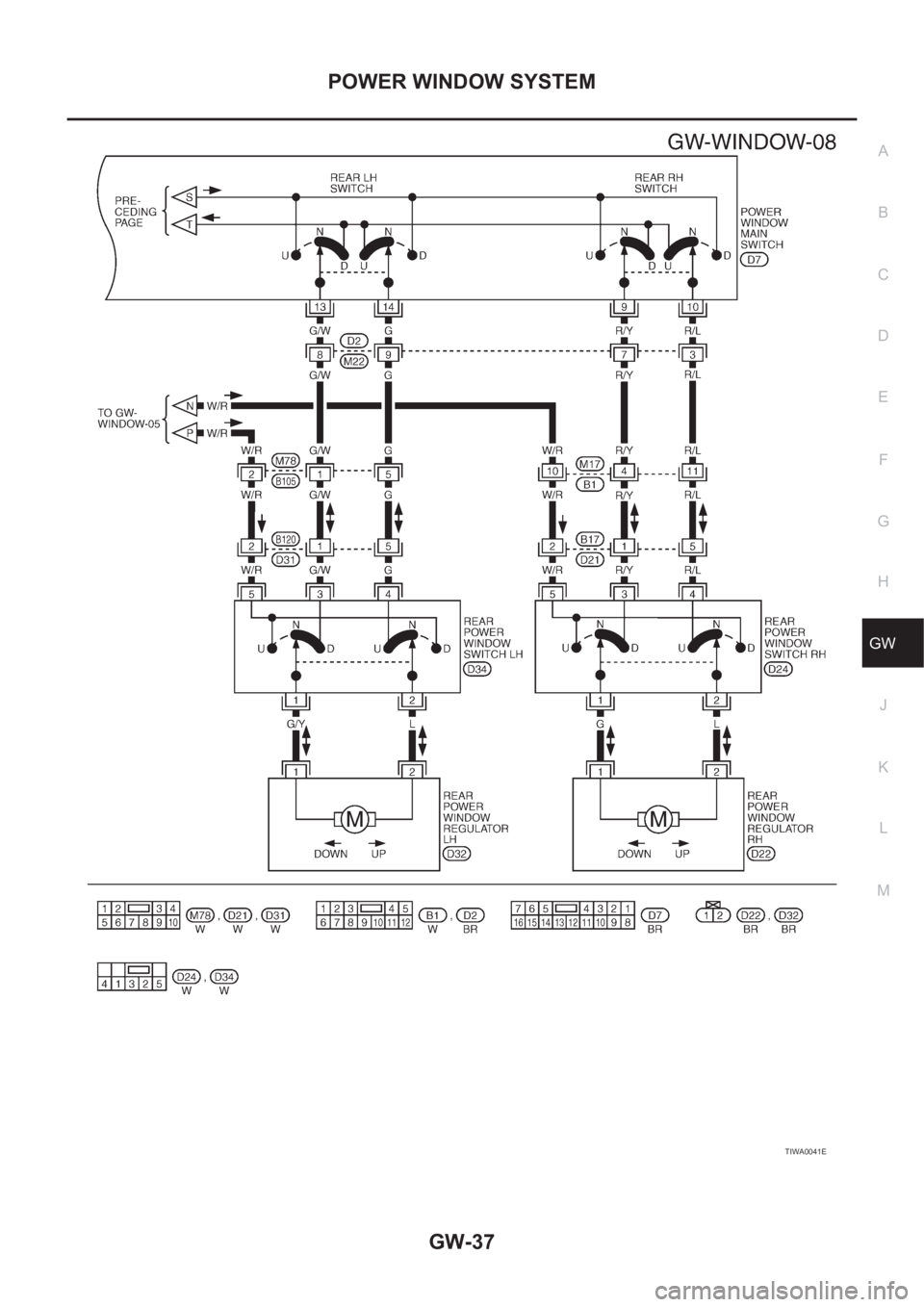

TIWA0041E

GW-38
POWER WINDOW SYSTEM
Terminal and Reference Value for Power Window Main Switch (RHD models)
EIS00463
TERMINALWIRE
COLORITEM CONDITIONVOLTAGE (V)
(Approx.)
1 G/R Encoder power supply IGN ON or timer is operating 10
2 R Driver side door switch signalDriver side door open (ON). 0
Driver side door close (OFF). Battery voltage
3 W BAT power supply — Battery voltage
4R/WPassenger side power window
motor UP signalMain switch passenger side
switch UP operation.Battery voltage
Other than above. 0
5 L/ORPassenger side power window
motor DOWN signalMain switch passenger side
switch DOWN operation.Battery voltage
Other than above. 0
6G/BDriver side power window motor
UP signalWhen UP operation. Battery voltage
Other than above. 0
7LDriver side power window motor
DOWN signalWhen DOWN operation. Battery voltage
Other than above. 0
8 G/Y Encoder pulse signalWhen power window motor
operates.2.5
9R/YRear RH side power window
motor UP signalMain switch rear RH side switch
UP operation.Battery voltage
Other than above. 0
10 R/LRear RH side power window
motor DOWN signalMain switch rear RH side switch
DOWN operation.Battery voltage
Other than above. 0
12 W/R Power supply IGN ON Battery voltage
13 G/WRear LH side power window
motor UP signalMain switch rear LH side switch
UP operation.Battery voltage
Other than above. 0
14 GRear LH side power window
motor DOWN signalMain switch rear LH side switch
DOWN operation.Battery voltage
Other than above. 0
15 G/OR Limit switch signalDriver door window is between
fully-open and just before fully-
closed position (ON).0
Driver door window is between
just before fully-closed position
and fully-closed position (OFF).5
16 W/B Limit switch and encoder ground — 0
19 B Ground — 0
OCC3383D
