NISSAN X-TRAIL 2001 Service Repair Manual

ENGINE MAINTENANCE (YD22DDTI)
MA-31
C
D
E
F
G
H
I
J
K
MA
B
MA

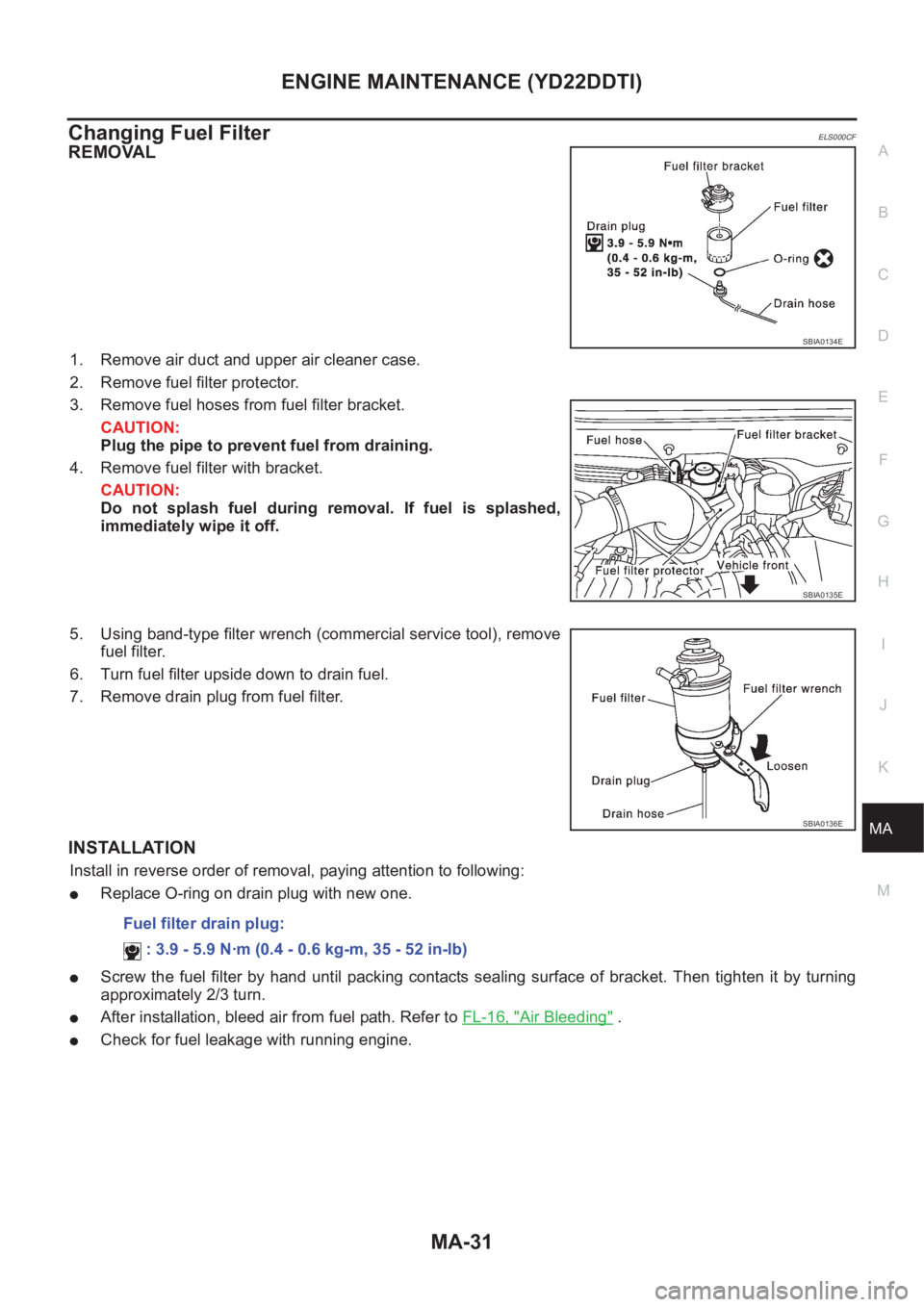

Changing Fuel FilterELS000CF
REMOVAL
1. Remove air duct and upper air cleaner case.
2. Remove fuel filter protector.
3. Remove fuel hoses from fuel filter bracket.
CAUTION:
Plug the pipe to prevent fuel from draining.
4. Remove fuel filter with bracket.
CAUTION:
Do not splash fuel during removal. If fuel is splashed,
immediately wipe it off.
5. Using band-type filter wrench (commercial service tool), remove
fuel filter.
6. Turn fuel filter upside down to drain fuel.
7. Remove drain plug from fuel filter.
INSTALLATION
Install in reverse order of removal, paying attention to following:
●Replace O-ring on drain plug with new one.
●Screw the fuel filter by hand until packing contacts sealing surface of bracket. Then tighten it by turning
approximately 2/3 turn.
●After installation, bleed air from fuel path. Refer to FL-16, "Air Bleeding" .
●Check for fuel leakage with running engine.
SBIA0134E
SBIA0135E
SBIA0136E
Fuel filter drain plug:
: 3.9 - 5.9 N·m (0.4 - 0.6 kg-m, 35 - 52 in-lb)

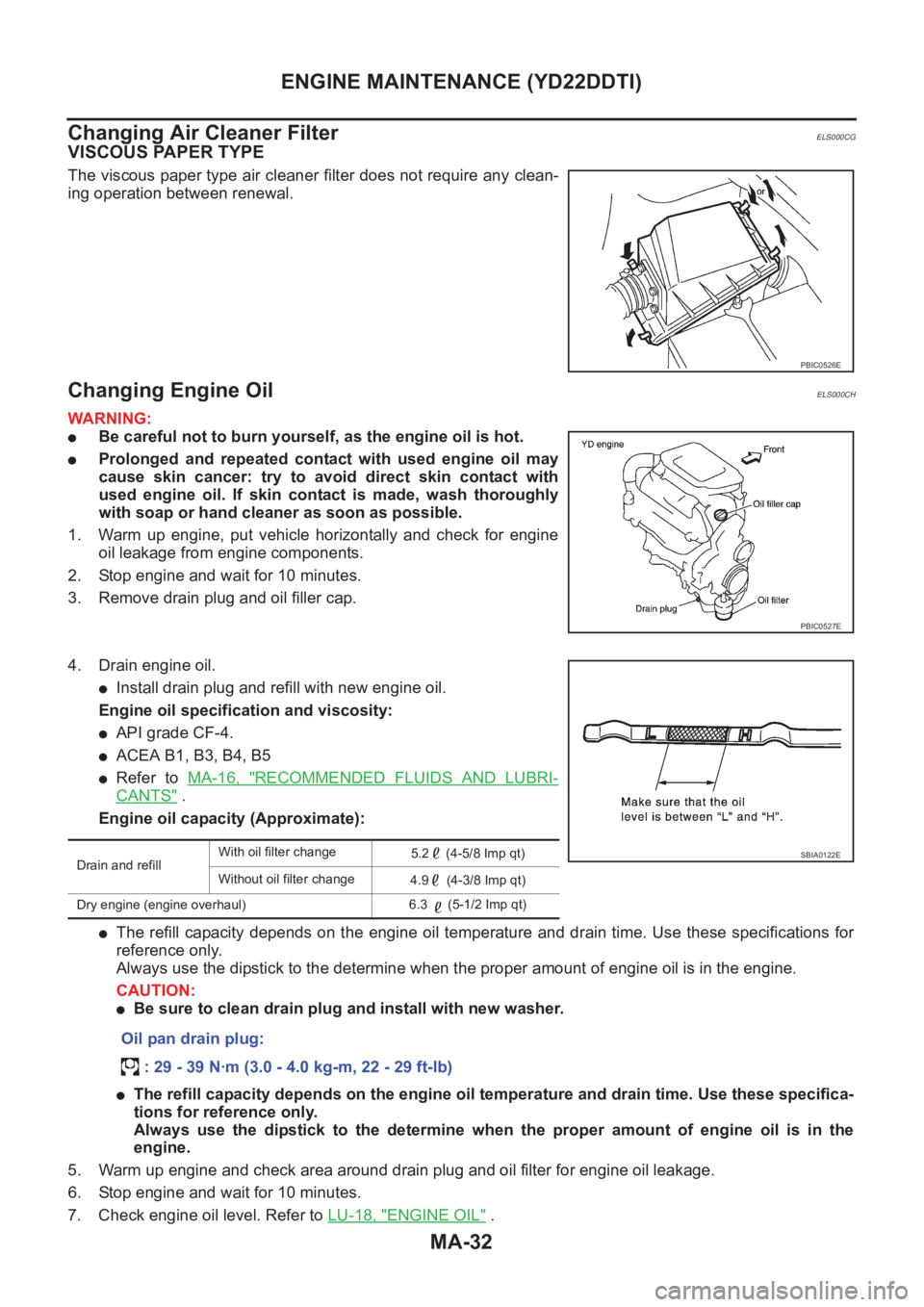

MA-32
ENGINE MAINTENANCE (YD22DDTI)
Changing Air Cleaner Filter
ELS000CG
VISCOUS PAPER TYPE
The viscous paper type air cleaner filter does not require any clean-
ing operation between renewal.
Changing Engine OilELS000CH
WARNING:
●Be careful not to burn yourself, as the engine oil is hot.
●Prolonged and repeated contact with used engine oil may
cause skin cancer: try to avoid direct skin contact with
used engine oil. If skin contact is made, wash thoroughly
with soap or hand cleaner as soon as possible.
1. Warm up engine, put vehicle horizontally and check for engine
oil leakage from engine components.
2. Stop engine and wait for 10 minutes.
3. Remove drain plug and oil filler cap.
4. Drain engine oil.
●Install drain plug and refill with new engine oil.
Engine oil specification and viscosity:
●API grade CF-4.
●ACEA B1, B3, B4, B5
●Refer to MA-16, "RECOMMENDED FLUIDS AND LUBRI-
CANTS" .
Engine oil capacity (Approximate):
●The refill capacity depends on the engine oil temperature and drain time. Use these specifications for
reference only.
Always use the dipstick to the determine when the proper amount of engine oil is in the engine.
CAUTION:
●Be sure to clean drain plug and install with new washer.
●The refill capacity depends on the engine oil temperature and drain time. Use these specifica-
tions for reference only.
Always use the dipstick to the determine when the proper amount of engine oil is in the
engine.
5. Warm up engine and check area around drain plug and oil filter for engine oil leakage.
6. Stop engine and wait for 10 minutes.
7. Check engine oil level. Refer to LU-18, "
ENGINE OIL" .
PBIC0526E
PBIC0527E
Drain and refillWith oil filter change
5.2 (4-5/8 Imp qt)
Without oil filter change
4.9 (4-3/8 Imp qt)
Dry engine (engine overhaul)6.3 (5-1/2 Imp qt)
Oil pan drain plug:
: 29 - 39 N·m (3.0 - 4.0 kg-m, 22 - 29 ft-lb)
SBIA0122E

ENGINE MAINTENANCE (YD22DDTI)
MA-33
C
D
E
F
G
H
I
J
K
MA
B
MA

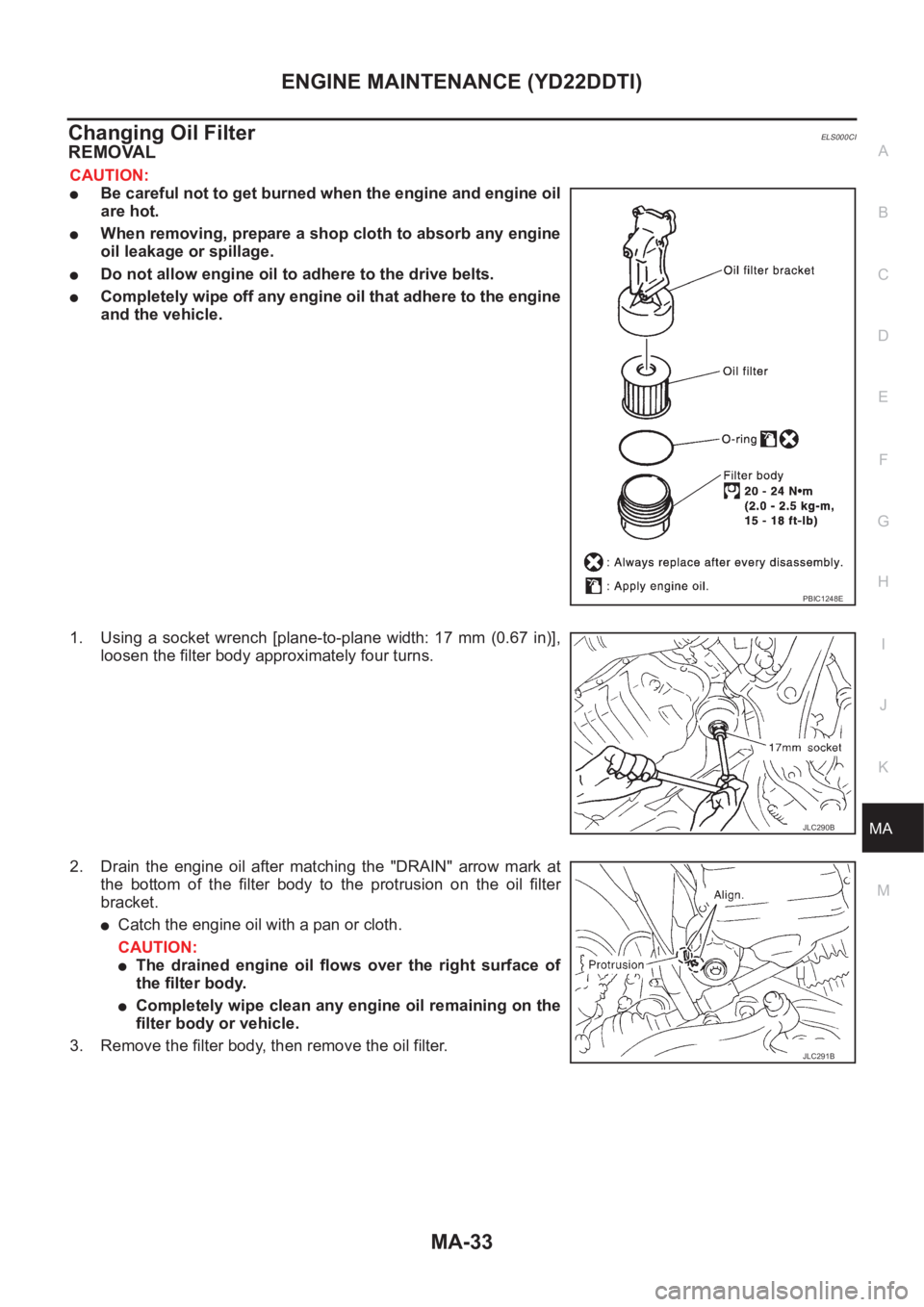

Changing Oil FilterELS000CI
REMOVAL
CAUTION:
●Be careful not to get burned when the engine and engine oil
are hot.
●When removing, prepare a shop cloth to absorb any engine
oil leakage or spillage.
●Do not allow engine oil to adhere to the drive belts.
●Completely wipe off any engine oil that adhere to the engine
and the vehicle.
1. Using a socket wrench [plane-to-plane width: 17 mm (0.67 in)],
loosen the filter body approximately four turns.
2. Drain the engine oil after matching the "DRAIN" arrow mark at
the bottom of the filter body to the protrusion on the oil filter
bracket.
●Catch the engine oil with a pan or cloth.
CAUTION:
●The drained engine oil flows over the right surface of
the filter body.
●Completely wipe clean any engine oil remaining on the
filter body or vehicle.
3. Remove the filter body, then remove the oil filter.
PBIC1248E
JLC290B
JLC291B

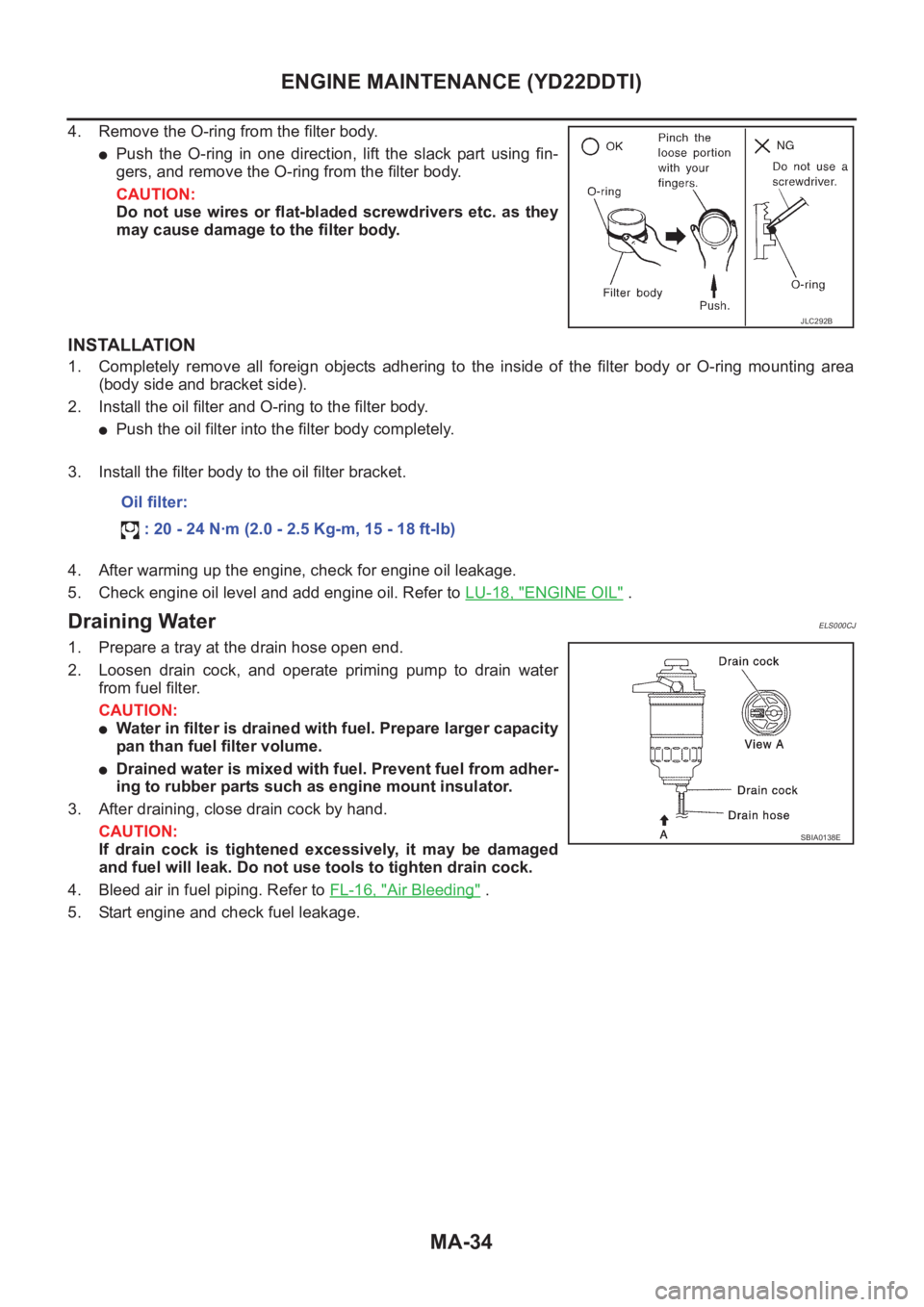

MA-34
ENGINE MAINTENANCE (YD22DDTI)
4. Remove the O-ring from the filter body.
●Push the O-ring in one direction, lift the slack part using fin-
gers, and remove the O-ring from the filter body.
CAUTION:
Do not use wires or flat-bladed screwdrivers etc. as they
may cause damage to the filter body.
INSTALLATION
1. Completely remove all foreign objects adhering to the inside of the filter body or O-ring mounting area
(body side and bracket side).
2. Install the oil filter and O-ring to the filter body.
●Push the oil filter into the filter body completely.
3. Install the filter body to the oil filter bracket.
4. After warming up the engine, check for engine oil leakage.
5. Check engine oil level and add engine oil. Refer to LU-18, "
ENGINE OIL" .
Draining WaterELS000CJ
1. Prepare a tray at the drain hose open end.
2. Loosen drain cock, and operate priming pump to drain water
from fuel filter.
CAUTION:
●Water in filter is drained with fuel. Prepare larger capacity
pan than fuel filter volume.
●Drained water is mixed with fuel. Prevent fuel from adher-
ing to rubber parts such as engine mount insulator.
3. After draining, close drain cock by hand.
CAUTION:
If drain cock is tightened excessively, it may be damaged
and fuel will leak. Do not use tools to tighten drain cock.
4. Bleed air in fuel piping. Refer to FL-16, "
Air Bleeding" .
5. Start engine and check fuel leakage.
JLC292B
Oil filter:
: 20 - 24 N·m (2.0 - 2.5 Kg-m, 15 - 18 ft-lb)
SBIA0138E

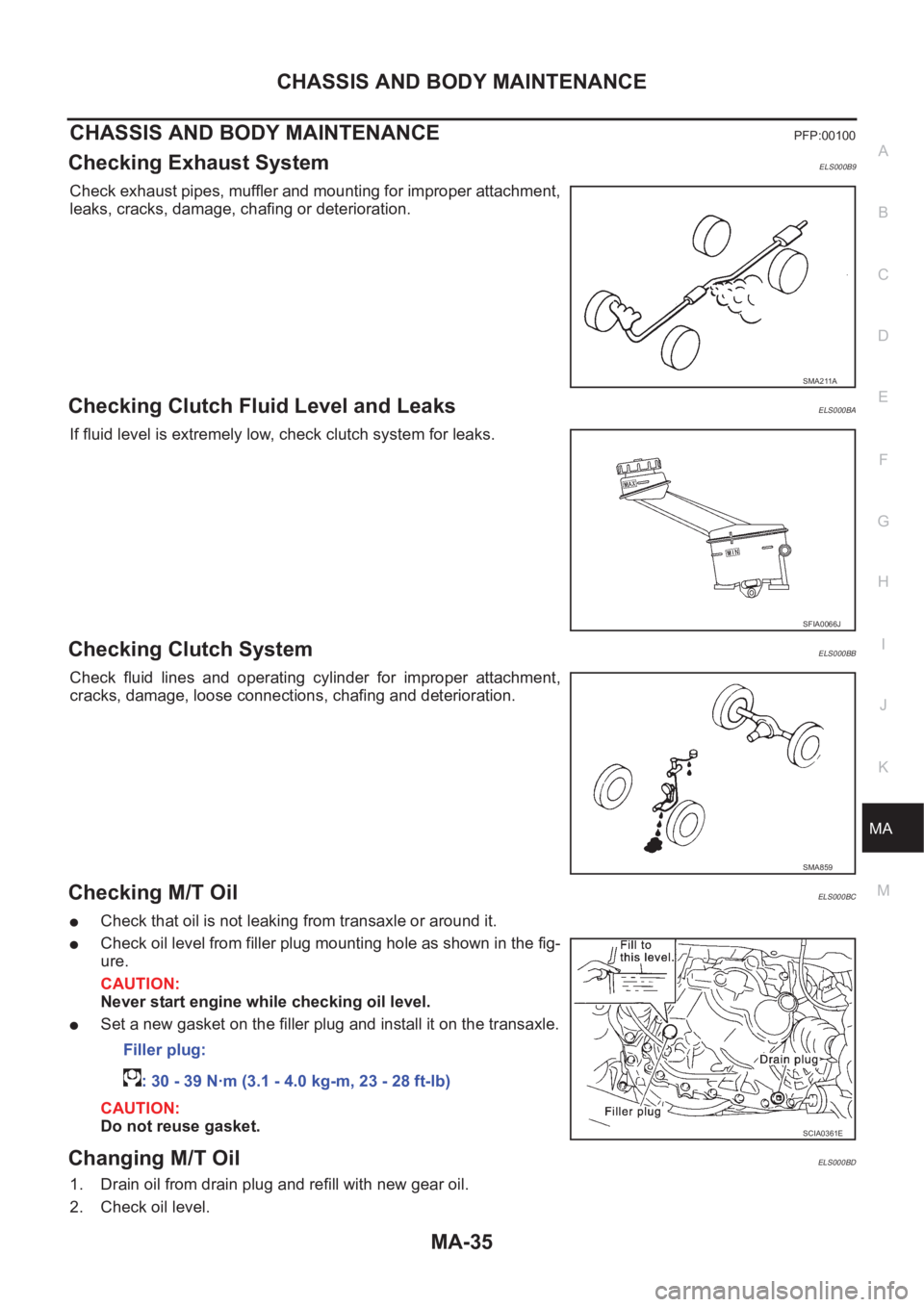

CHASSIS AND BODY MAINTENANCE
MA-35
C
D
E
F
G
H
I
J
K
MA
B
MA
CHASSIS AND BODY MAINTENANCEPFP:00100
Checking Exhaust SystemELS000B9
Check exhaust pipes, muffler and mounting for improper attachment,
leaks, cracks, damage, chafing or deterioration.
Checking Clutch Fluid Level and LeaksELS000BA
If fluid level is extremely low, check clutch system for leaks.
Checking Clutch SystemELS000BB
Check fluid lines and operating cylinder for improper attachment,
cracks, damage, loose connections, chafing and deterioration.
Checking M/T OilELS000BC
●Check that oil is not leaking from transaxle or around it.
●Check oil level from filler plug mounting hole as shown in the fig-
ure.
CAUTION:
Never start engine while checking oil level.
●Set a new gasket on the filler plug and install it on the transaxle.
CAUTION:
Do not reuse gasket.
Changing M/T OilELS000BD
1. Drain oil from drain plug and refill with new gear oil.
2. Check oil level.
SMA211A
SFIA0066J
SMA859
Filler plug:
: 30 - 39 N·m (3.1 - 4.0 kg-m, 23 - 28 ft-lb)
SCIA0361E

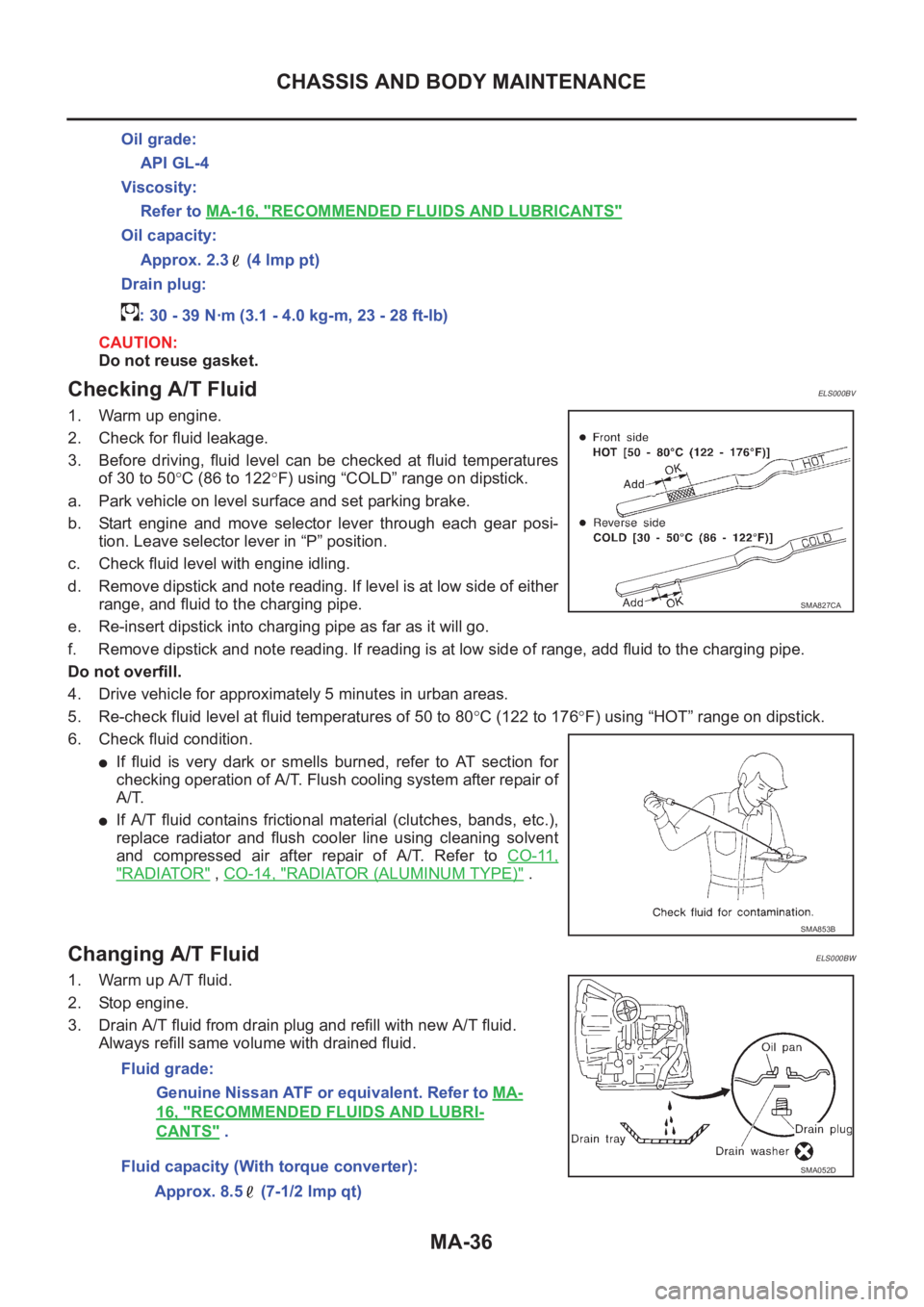

MA-36
CHASSIS AND BODY MAINTENANCE
CAUTION:
Do not reuse gasket.
Checking A/T FluidELS000BV
1. Warm up engine.
2. Check for fluid leakage.
3. Before driving, fluid level can be checked at fluid temperatures
of 30 to 50°C (86 to 122°F) using “COLD” range on dipstick.
a. Park vehicle on level surface and set parking brake.
b. Start engine and move selector lever through each gear posi-
tion. Leave selector lever in “P” position.
c. Check fluid level with engine idling.
d. Remove dipstick and note reading. If level is at low side of either
range, and fluid to the charging pipe.
e. Re-insert dipstick into charging pipe as far as it will go.
f. Remove dipstick and note reading. If reading is at low side of range, add fluid to the charging pipe.
Do not overfill.
4. Drive vehicle for approximately 5 minutes in urban areas.
5. Re-check fluid level at fluid temperatures of 50 to 80°C (122 to 176°F) using “HOT” range on dipstick.
6. Check fluid condition.
●If fluid is very dark or smells burned, refer to AT section for
checking operation of A/T. Flush cooling system after repair of
A/T.
●If A/T fluid contains frictional material (clutches, bands, etc.),
replace radiator and flush cooler line using cleaning solvent
and compressed air after repair of A/T. Refer to CO-11,
"RADIATOR" , CO-14, "RADIATOR (ALUMINUM TYPE)" .
Changing A/T FluidELS000BW
1. Warm up A/T fluid.
2. Stop engine.
3. Drain A/T fluid from drain plug and refill with new A/T fluid.
Always refill same volume with drained fluid.Oil grade:
API GL-4
Viscosity:
Refer to MA-16, "
RECOMMENDED FLUIDS AND LUBRICANTS"
Oil capacity:
Approx. 2.3 (4 lmp pt)
Drain plug:
: 30 - 39 N·m (3.1 - 4.0 kg-m, 23 - 28 ft-lb)
SMA827CA
SMA853B
Fluid grade:
Genuine Nissan ATF or equivalent. Refer to MA-
16, "RECOMMENDED FLUIDS AND LUBRI-
CANTS" .
Fluid capacity (With torque converter):
Approx. 8.5 (7-1/2 lmp qt)
SMA052D

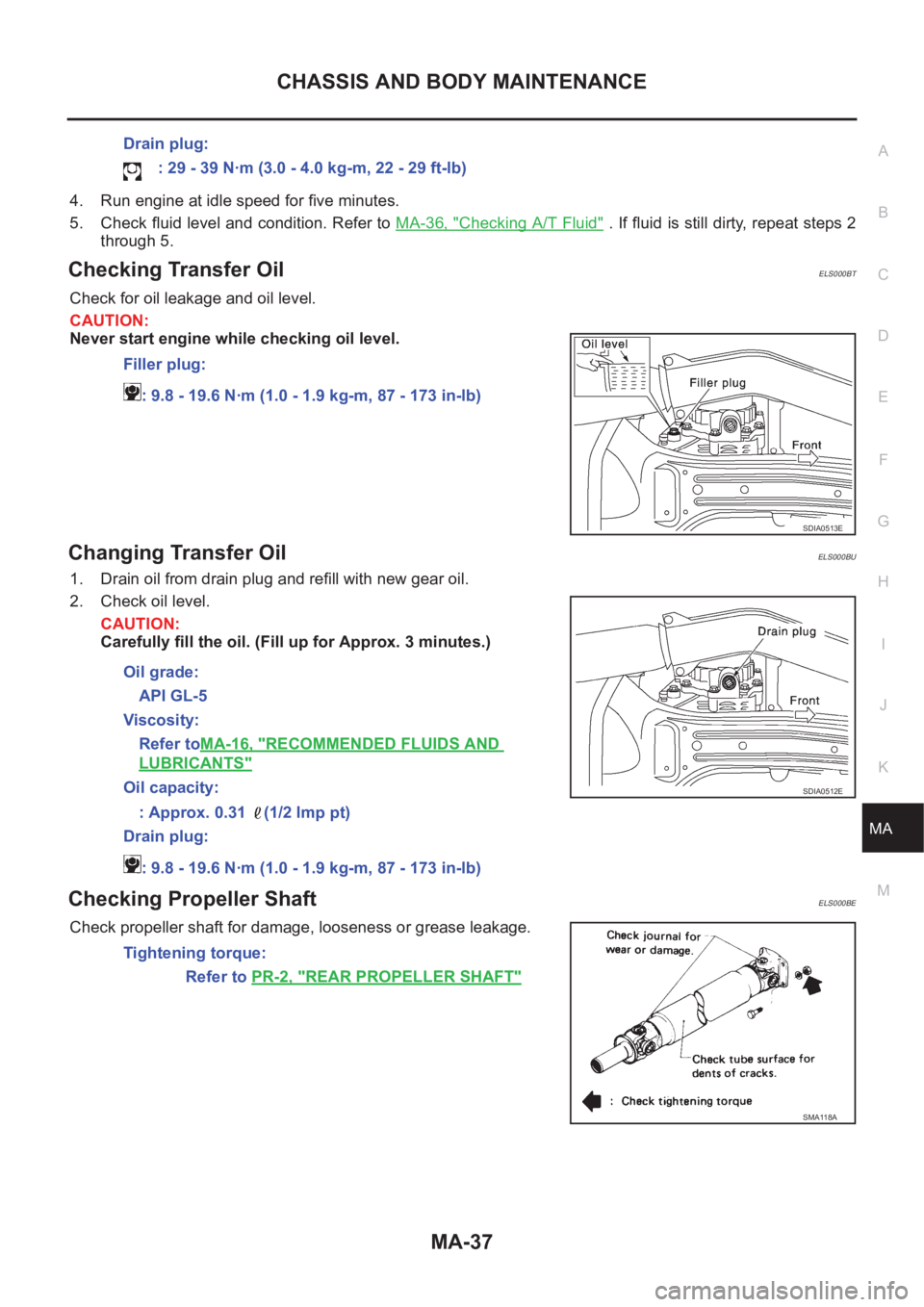

CHASSIS AND BODY MAINTENANCE
MA-37
C
D
E
F
G
H
I
J
K
MA
B
MA
4. Run engine at idle speed for five minutes.
5. Check fluid level and condition. Refer to MA-36, "
Checking A/T Fluid" . If fluid is still dirty, repeat steps 2
through 5.
Checking Transfer OilELS000BT
Check for oil leakage and oil level.
CAUTION:
Never start engine while checking oil level.
Changing Transfer OilELS000BU
1. Drain oil from drain plug and refill with new gear oil.
2. Check oil level.
CAUTION:
Carefully fill the oil. (Fill up for Approx. 3 minutes.)
Checking Propeller ShaftELS000BE
Check propeller shaft for damage, looseness or grease leakage.Drain plug:
: 29 - 39 N·m (3.0 - 4.0 kg-m, 22 - 29 ft-lb)
Filler plug:
: 9.8 - 19.6 N·m (1.0 - 1.9 kg-m, 87 - 173 in-lb)
SDIA0513E
Oil grade:
API GL-5
Viscosity:
Refer toMA-16, "
RECOMMENDED FLUIDS AND
LUBRICANTS"
Oil capacity:
: Approx. 0.31 (1/2 lmp pt)
Drain plug:
: 9.8 - 19.6 N·m (1.0 - 1.9 kg-m, 87 - 173 in-lb)SDIA0512E
Tightening torque:
Refer to PR-2, "
REAR PROPELLER SHAFT"
SMA118A

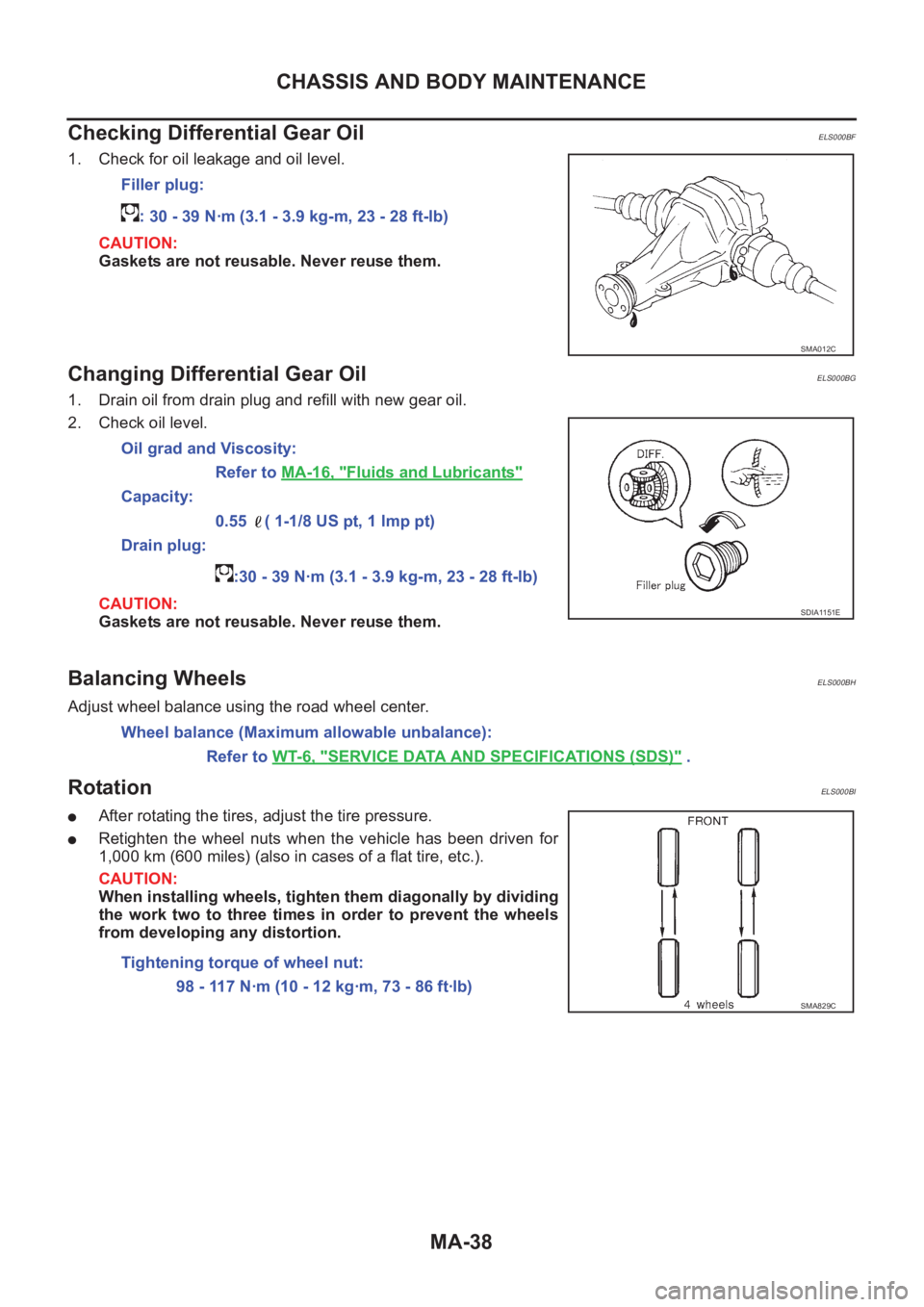

MA-38
CHASSIS AND BODY MAINTENANCE
Checking Differential Gear Oil
ELS000BF
1. Check for oil leakage and oil level.
CAUTION:
Gaskets are not reusable. Never reuse them.
Changing Differential Gear OilELS000BG
1. Drain oil from drain plug and refill with new gear oil.
2. Check oil level.
CAUTION:
Gaskets are not reusable. Never reuse them.
Balancing WheelsELS000BH
Adjust wheel balance using the road wheel center.
RotationELS000BI
●After rotating the tires, adjust the tire pressure.
●Retighten the wheel nuts when the vehicle has been driven for
1,000 km (600 miles) (also in cases of a flat tire, etc.).
CAUTION:
When installing wheels, tighten them diagonally by dividing
the work two to three times in order to prevent the wheels
from developing any distortion.Filler plug:
: 30 - 39 N·m (3.1 - 3.9 kg-m, 23 - 28 ft-lb)
SMA012C
Oil grad and Viscosity:
Refer to MA-16, "
Fluids and Lubricants"
Capacity:
0.55 ( 1-1/8 US pt, 1 lmp pt)
Drain plug:
:30 - 39 N·m (3.1 - 3.9 kg-m, 23 - 28 ft-lb)
SDIA1151E
Wheel balance (Maximum allowable unbalance):
Refer to WT-6, "
SERVICE DATA AND SPECIFICATIONS (SDS)" .
Tightening torque of wheel nut:
98 - 117 N·m (10 - 12 kg·m, 73 - 86 ft·lb)
SMA829C

CHASSIS AND BODY MAINTENANCE
MA-39
C
D
E
F
G
H
I
J
K
MA
B
MA

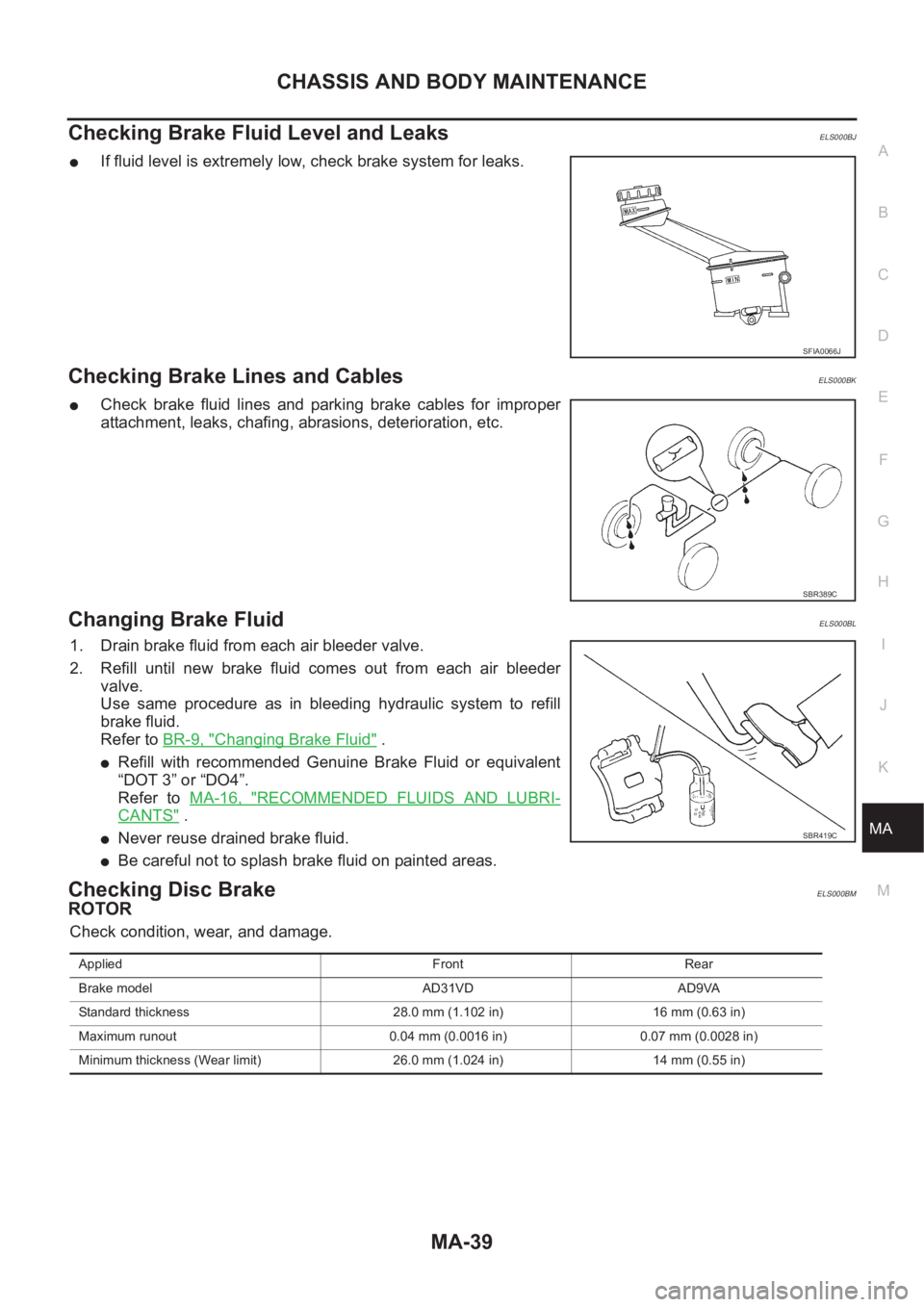

Checking Brake Fluid Level and LeaksELS000BJ
●If fluid level is extremely low, check brake system for leaks.
Checking Brake Lines and CablesELS000BK
●Check brake fluid lines and parking brake cables for improper
attachment, leaks, chafing, abrasions, deterioration, etc.
Changing Brake FluidELS000BL
1. Drain brake fluid from each air bleeder valve.
2. Refill until new brake fluid comes out from each air bleeder
valve.
Use same procedure as in bleeding hydraulic system to refill
brake fluid.
Refer to BR-9, "
Changing Brake Fluid" .
●Refill with recommended Genuine Brake Fluid or equivalent
“DOT 3” or “DO4”.
Refer to MA-16, "
RECOMMENDED FLUIDS AND LUBRI-
CANTS" .
●Never reuse drained brake fluid.
●Be careful not to splash brake fluid on painted areas.
Checking Disc BrakeELS000BM
ROTOR
Check condition, wear, and damage.
SFIA0066J
SBR389C
SBR419C
Applied Front Rear
Brake model AD31VD AD9VA
Standard thickness 28.0 mm (1.102 in) 16 mm (0.63 in)
Maximum runout 0.04 mm (0.0016 in) 0.07 mm (0.0028 in)
Minimum thickness (Wear limit) 26.0 mm (1.024 in) 14 mm (0.55 in)

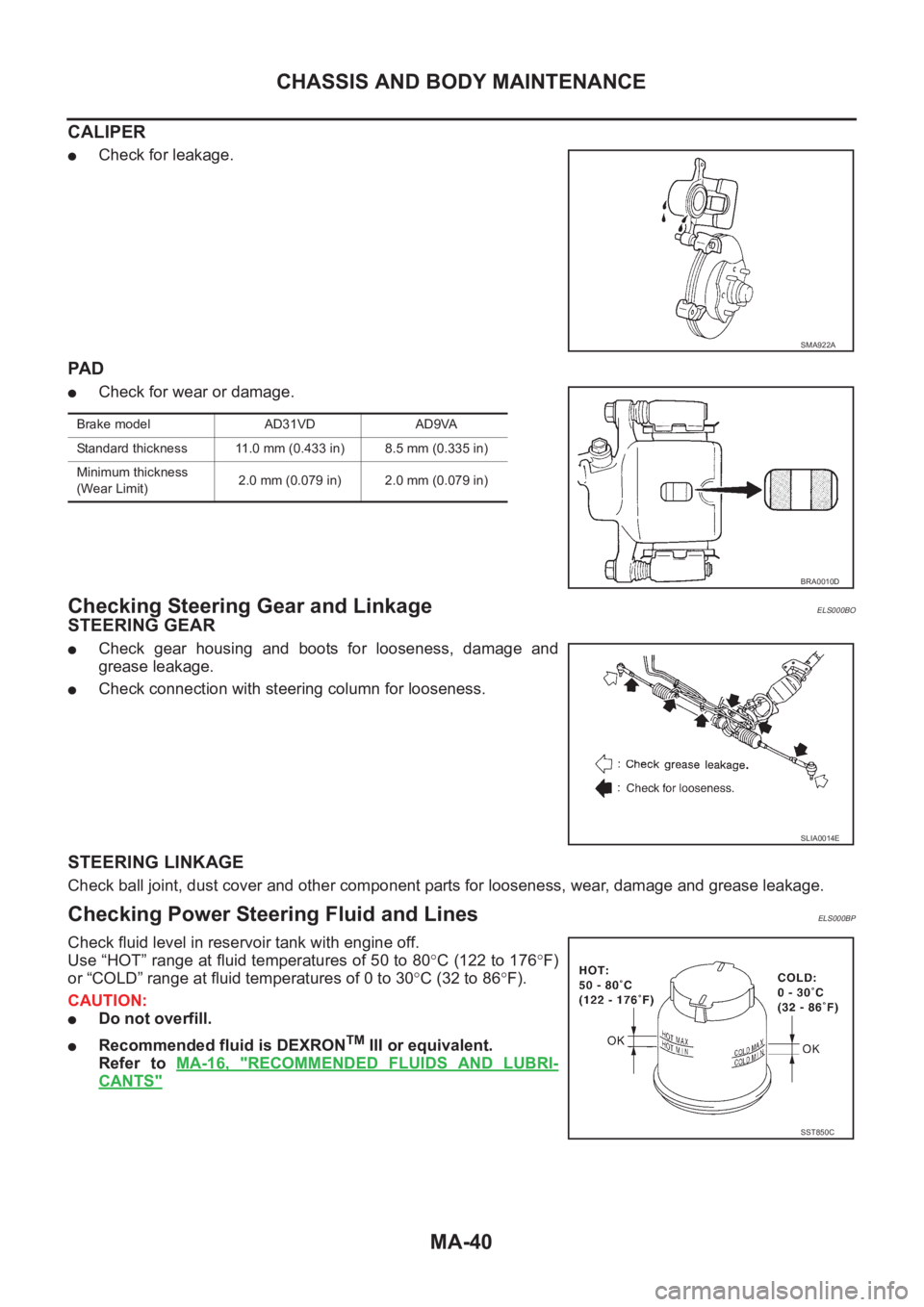

MA-40
CHASSIS AND BODY MAINTENANCE
CALIPER
●Check for leakage.
PA D
●Check for wear or damage.
Checking Steering Gear and LinkageELS000BO
STEERING GEAR
●Check gear housing and boots for looseness, damage and
grease leakage.
●Check connection with steering column for looseness.
STEERING LINKAGE
Check ball joint, dust cover and other component parts for looseness, wear, damage and grease leakage.
Checking Power Steering Fluid and LinesELS000BP
Check fluid level in reservoir tank with engine off.
Use “HOT” range at fluid temperatures of 50 to 80°C (122 to 176°F)
or “COLD” range at fluid temperatures of 0 to 30°C (32 to 86°F).
CAUTION:
●Do not overfill.
●Recommended fluid is DEXRONTM III or equivalent.
Refer to MA-16, "
RECOMMENDED FLUIDS AND LUBRI-
CANTS"
SMA922A
Brake model AD31VD AD9VA
Standard thickness 11.0 mm (0.433 in) 8.5 mm (0.335 in)
Minimum thickness
(Wear Limit)2.0 mm (0.079 in) 2.0 mm (0.079 in)
BRA0010D
SLIA0014E
SST850C
