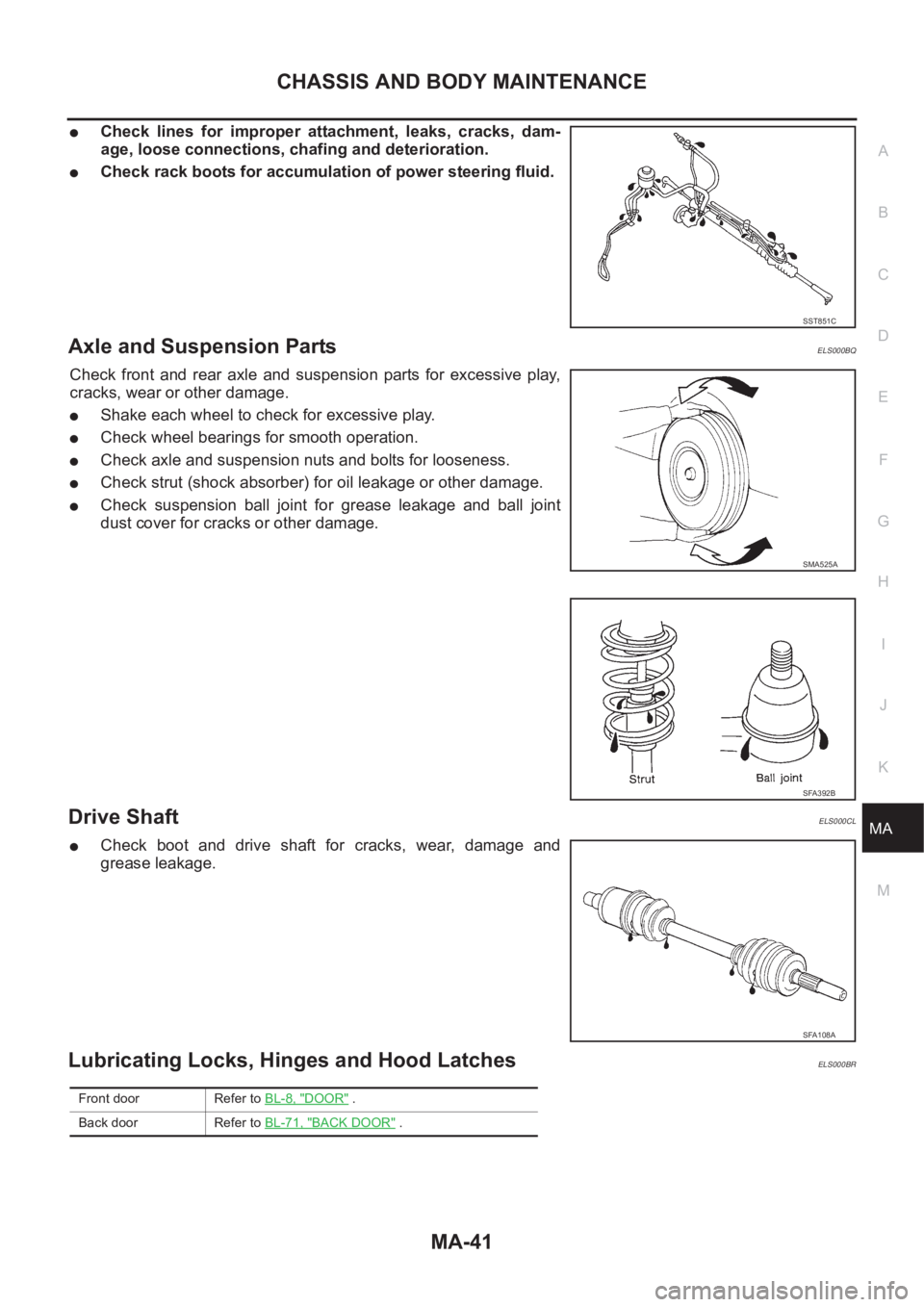

Page 3821 of 3833
CHASSIS AND BODY MAINTENANCE
MA-41
C
D
E
F
G
H
I
J
K
MA
B
MA
●Check lines for improper attachment, leaks, cracks, dam-
age, loose connections, chafing and deterioration.
●Check rack boots for accumulation of power steering fluid.
Axle and Suspension PartsELS000BQ
Check front and rear axle and suspension parts for excessive play,
cracks, wear or other damage.
●Shake each wheel to check for excessive play.
●Check wheel bearings for smooth operation.
●Check axle and suspension nuts and bolts for looseness.
●Check strut (shock absorber) for oil leakage or other damage.
●Check suspension ball joint for grease leakage and ball joint
dust cover for cracks or other damage.
Drive ShaftELS000CL
●Check boot and drive shaft for cracks, wear, damage and
grease leakage.
Lubricating Locks, Hinges and Hood LatchesELS000BR
SST851C
SMA525A
SFA392B
SFA108A
Front door Refer to BL-8, "DOOR" .
Back door Refer to BL-71, "
BACK DOOR" .
Page 3822 of 3833
MA-42
CHASSIS AND BODY MAINTENANCE
Checking Seat Belts, Buckles, Retractors, Anchors and Adjusters
ELS000BS
Checking Body CorrosionELS000C0
Visually check body panels for collision damage (scratches, chipping, rubbing, etc.) or damage to the anti-cor-
rosion materials. In particular, check the following locations.
HEMMED PANELS
Hood front end, door lower end, trunk lid rear end, etc.
PANEL JOINT
Side sill of rear fender and center pillar, rear wheel housing of rear fender, around strut tower in engine com-
partment, etc.
PANEL EDGE
Trunk lid opening, sunroof opening, fender wheel-arch flange, fuel filler lid flange, around holes in panel, etc.
PARTS CONTACT
Waist moulding, windshield moulding, bumper, etc.
PROTECTORS
Damage or condition of mudguard, fender protector, chipping protector, etc.
ANTI-CORROSION MATERIALS
Damage or separation of anti-corrosion materials under the body.
DRAIN HOLES
Condition of drain holes at door and side sill. When repairing corroded areas, refer to the Corrosion Repair
Manual.

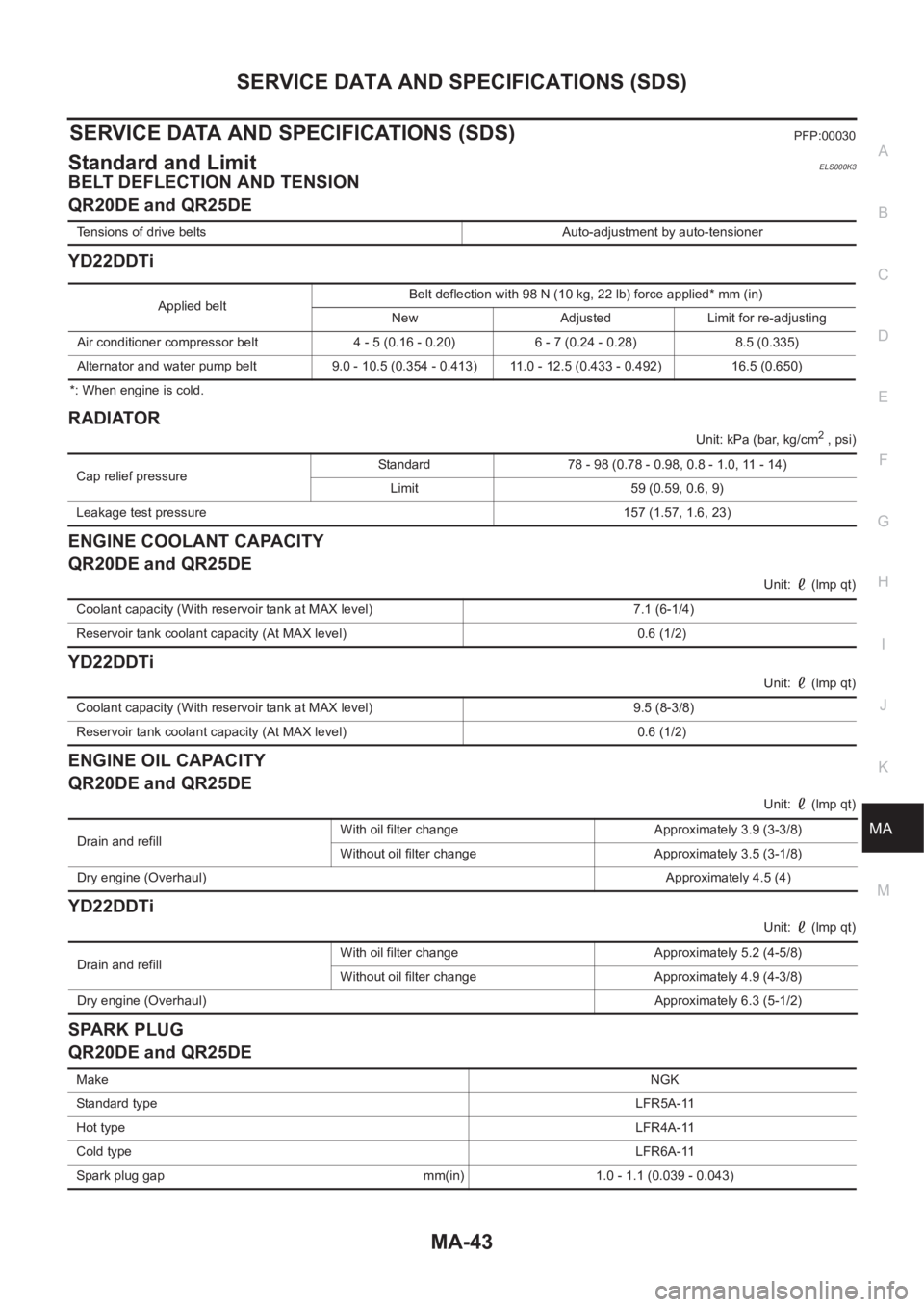

Page 3823 of 3833
SERVICE DATA AND SPECIFICATIONS (SDS)
MA-43
C
D
E
F
G
H
I
J
K
MA
B
MA
SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
Standard and LimitELS000K3
BELT DEFLECTION AND TENSION
QR20DE and QR25DE
YD22DDTi
*: When engine is cold.
RADIATOR
Unit: kPa (bar, kg/cm2 , psi)
ENGINE COOLANT CAPACITY
QR20DE and QR25DE
Unit: (lmp qt)
YD22DDTi
Unit: (lmp qt)
ENGINE OIL CAPACITY
QR20DE and QR25DE
Unit: (lmp qt)
YD22DDTi
Unit: (lmp qt)
SPARK PLUG
QR20DE and QR25DE
Tensions of drive belts Auto-adjustment by auto-tensioner
Applied beltBelt deflection with 98 N (10 kg, 22 lb) force applied* mm (in)
New Adjusted Limit for re-adjusting
Air conditioner compressor belt 4 - 5 (0.16 - 0.20) 6 - 7 (0.24 - 0.28) 8.5 (0.335)
Alternator and water pump belt 9.0 - 10.5 (0.354 - 0.413) 11.0 - 12.5 (0.433 - 0.492) 16.5 (0.650)
Cap relief pressureStandard 78 - 98 (0.78 - 0.98, 0.8 - 1.0, 11 - 14)
Limit 59 (0.59, 0.6, 9)
Leakage test pressure 157 (1.57, 1.6, 23)
Coolant capacity (With reservoir tank at MAX level) 7.1 (6-1/4)
Reservoir tank coolant capacity (At MAX level) 0.6 (1/2)
Coolant capacity (With reservoir tank at MAX level) 9.5 (8-3/8)
Reservoir tank coolant capacity (At MAX level) 0.6 (1/2)
Drain and refill With oil filter change Approximately 3.9 (3-3/8)
Without oil filter change Approximately 3.5 (3-1/8)
Dry engine (Overhaul)Approximately 4.5 (4)
Drain and refill With oil filter change Approximately 5.2 (4-5/8)
Without oil filter change Approximately 4.9 (4-3/8)
Dry engine (Overhaul)Approximately 6.3 (5-1/2)
MakeNGK
Standard typeLFR5A-11
Hot typeLFR4A-11
Cold typeLFR6A-11
Spark plug gap mm(in) 1.0 - 1.1 (0.039 - 0.043)
Page 3824 of 3833
MA-44
SERVICE DATA AND SPECIFICATIONS (SDS)
Page 3825 of 3833
IDX-1
A
C
D
E
F
G
H
I
J
K
L B
IDX
ALPHABETICAL INDEX
M INDEX
SECTION
Page 3826 of 3833
IDX-2
ALPHABETICAL INDEX
Numerics
4WD mode switch ................................... TF-54
,TF-57
4WD shift indicator lamp .................................... TF-55
4WD solenoid valve ................................ TF-49,TF-52
4WD warning lamp TF-40,TF-55,TF-56,TF-57,TF-58
A
A/C air flow ......................................... ATC-31
,MTC-5
A/C component layout ..................................... ATC-23
A/C compressor clutch removal and installation ...........
ATC-135
A/C compressor precaution ............................... ATC-9
A/C compressor special service tool ................ ATC-14
A/C diagnostic work flow (auto A/C) ................ ATC-33
A/C HFC134a (R134a) system precaution ........ ATC-4
A/C HFC134a (R134a) system service procedure .......
ATC-129
A/C HFC134a (R134a) system service tools ... ATC-15
A/C HFC134a system service equipment precaution ...
ATC-10
A/C lubricant (R134a) ...................................... ATC-24
A/C operational check ......................... ATC-54,MTC-7
A/C performance test diagnoses ..................... ATC-88
A/C reray .......................................................... ATC-84
A/C self-diagnoses (auto A/C) ......................... ATC-46
A/C system description (auto A/C) ................... ATC-27
A/C trouble diagnoses (auto A/C) ....... ATC-33,MTC-3
A/C, A - Wiring diagram ................................... ATC-38
A/CCUT - Wiring diagram .............................. EC-1572
A/T - Wiring diagram - AT - FTS ...................... AT-118
A/T - Wiring diagram - AT - MAIN .................... AT-350
A/T - Wiring diagram - AT - PNP/SW ............... AT-112
A/T - Wiring diagram - AT - VSS A/T . AT-124,AT-355
A/T fluid checking .................................. AT-13,MA-36
A/T fluid replacement ............................. AT-13,MA-36
A/T fluid temperature sensor ........................... AT-121
A/T IND - Wiring diagram .................................... DI-57
A/T indicator ........................................................ DI-57
A/T shift lock system ........................................ AT-406
A/T shift lock system - Wiring diagram ............ AT-407
A/T trouble diagnoses .......................... AT-56,AT-258
A/T Wiring diagram - AT - ENG SS ... AT-128,AT-393
A/T Wiring diagram AT - 1ST ........................... AT-134
A/T Wiring diagram AT - 2ND .......................... AT-140
A/T Wiring diagram AT - 3RD .......................... AT-146
A/T Wiring diagram AT - 4TH .......................... AT-152
A/T Wiring diagram AT - BA/FTS ....... AT-195,AT-388
A/T Wiring diagram AT - CAN ............ AT-191,AT-404
A/T Wiring diagram AT - LPSV .......... AT-165,AT-398
A/T Wiring diagram AT - OVRCSV .... AT-187,AT-378
A/T Wiring diagram AT - SSV/A ......... AT-172,AT-369
A/T Wiring diagram AT - SSV/B ......... AT-177,AT-374
A/T Wiring diagram AT - TCV ............ AT-160,AT-383
A/T Wiring diagram AT - TPS ............ AT-182,AT-364
A/T Wiring diagrawm AT - VSSMTR .. AT-201,AT-360
ABS - Wiring diagram ..................................... BRC-12
Absolute pressure sensor .............................. EC-1494
Accelerator control system ............................... ACC-2
Accelerator pedal position (APP) sensor ........ EC-355,
EC-361
,EC-373,EC-631,EC-637,EC-651,EC-893,
EC-1222
,EC-1460
Accelerator pedal released position learning . EC-1404
Accelerator pedal released position switch .... EC-1531
Actuator relay ..................................................... TF-52
Aiming adjustment ............................................... LT-4
Air bag .............................................................. SRS-3
Air bag disposal .............................................. SRS-41
Air bleeding (hydraulic clutch) .............................. CL-8
Air bleeding for brake system ............................ BR-10
Air cleaner and air duct(QR20DE•QR25DE) .... EM-14
Air cleaner and air duct(YD22DDTi) ............... EM-120
Air cleaner filter replacement(QR20DE•QR25DE) ........
MA-22
Air cleaner filter replacement(YD22DDTi) ......... MA-32
Air cleaner filter(QR20DE•QR25DE) ................ EM-14
Air cleaner filter(YD22DDTi) ........................... EM-120
Air conditioner cut control .... EC-36,EC-446,EC-768,
EC-1132
,EC-1401
Air flow meter - See Mass air flow sensor ....... EC-138,
EC-516
,EC-870,EC-999,EC-1202
Air mix door control linkage adjustment ......... ATC-66,
ATC-125
,MTC-10,MTC-28
Air mix. door motor ......................... ATC-64,ATC-125
Air spoiler, rear ................................................... EI-21
Alternator ........................................................... SC-12
Ambient sensor ............. ATC-100,ATC-102,ATC-112
Angular tightening application(QR20DE•QR25DE) ......
EM-5
Angular tightening application(YD22DDTi) ..... EM-110
Antenna - See Power antenna ........................... AV-16
APPS - Wiring diagram ... EC-895,EC-1225,EC-1462
APPS1 - Wiring diagram ................... EC-357,EC-633
APPS2 - Wiring diagram ................... EC-363,EC-640
APPS3 - Wiring diagram ................... EC-375,EC-653
APRSW - Wiring diagram .............................. EC-1533
Audio .................................................................... AV-3
Auto air conditioner - Wiring diagram ............. ATC-38
Automatic amplifier ........................... ATC-44,ATC-57
Automatic transmission fluid replacement ....... MA-35,
MA-37
Axle ................................................................... MA-41
B
Back door ........................................................... BL-71
Back door trim ..................................................... EI-25
Back door window .............................................. GW-8
Back window ...................................................... GW-8
BACK/L - Wiring diagram ................................... LT-28
Back-up lamp .......................................... LT-28,LT-42
Back-up lamp switch (M/T) ............................... MT-12
Basic inspection ... EC-73,EC-465,EC-805,EC-1152,
EC-1412
Battery ................................................................. SC-3
Baulk ring (M/T) .................................... MT-18,MT-23
Blower motor ..... ATC-70,ATC-77,ATC-118,MTC-14,

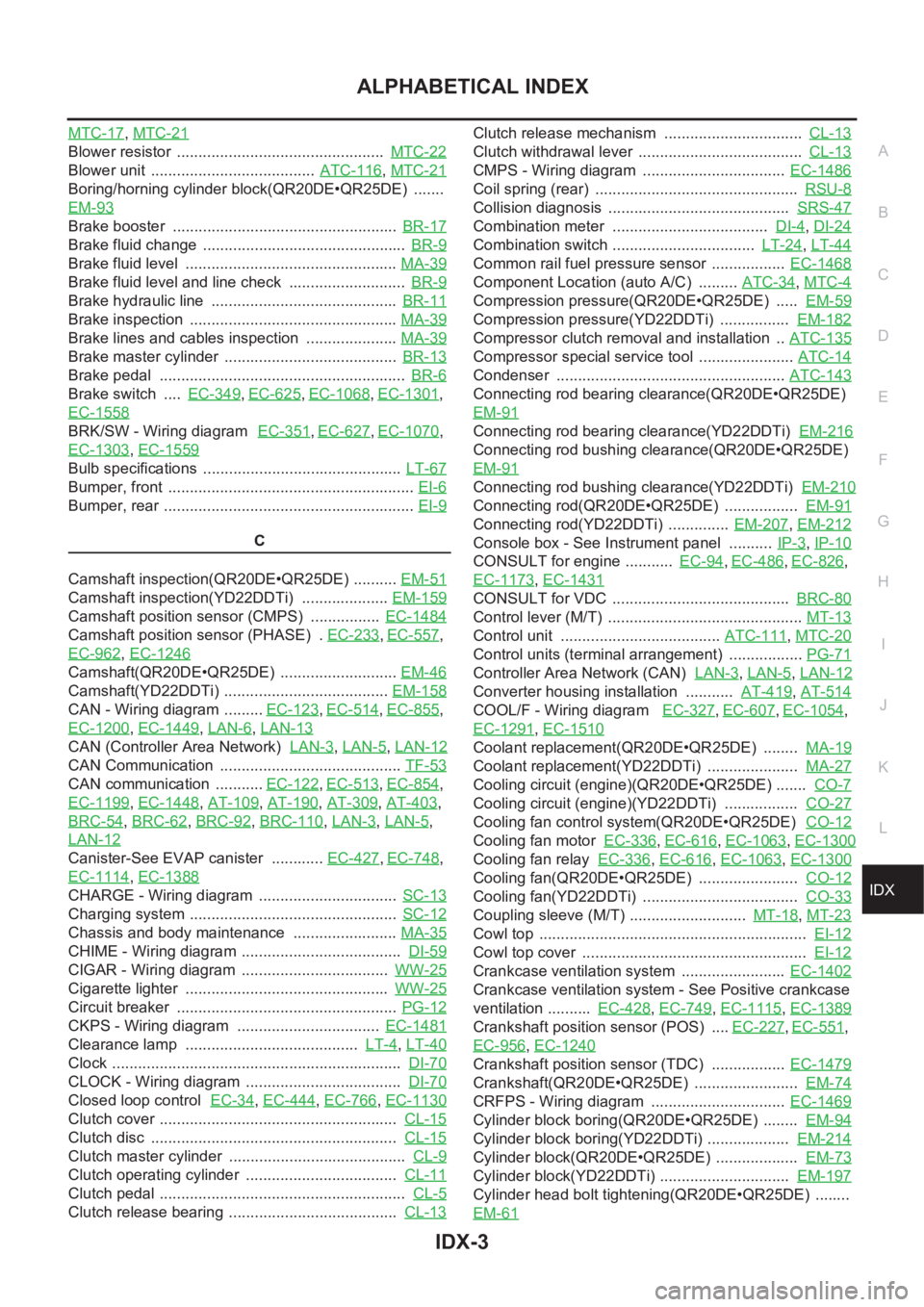

Page 3827 of 3833
IDX-3
A
C
D
E
F
G
H
I
J
K
L B
IDX
ALPHABETICAL INDEX
MTC-17,MTC-21
Blower resistor ................................................ MTC-22
Blower unit ...................................... ATC-116,MTC-21
Boring/horning cylinder block(QR20DE•QR25DE) .......
EM-93
Brake booster .................................................... BR-17
Brake fluid change ............................................... BR-9
Brake fluid level ................................................. MA-39
Brake fluid level and line check ........................... BR-9
Brake hydraulic line ........................................... BR-11
Brake inspection ................................................ MA-39
Brake lines and cables inspection ..................... MA-39
Brake master cylinder ........................................ BR-13
Brake pedal ......................................................... BR-6
Brake switch .... EC-349,EC-625,EC-1068,EC-1301,
EC-1558
BRK/SW - Wiring diagram EC-351,EC-627,EC-1070,
EC-1303
,EC-1559
Bulb specifications .............................................. LT-67
Bumper, front ......................................................... EI-6
Bumper, rear .......................................................... EI-9
C
Camshaft inspection(QR20DE•QR25DE) .......... EM-51
Camshaft inspection(YD22DDTi) .................... EM-159
Camshaft position sensor (CMPS) ................ EC-1484
Camshaft position sensor (PHASE) . EC-233,EC-557,
EC-962
,EC-1246
Camshaft(QR20DE•QR25DE) ........................... EM-46
Camshaft(YD22DDTi) ...................................... EM-158
CAN - Wiring diagram ......... EC-123,EC-514,EC-855,
EC-1200
,EC-1449,LAN-6,LAN-13
CAN (Controller Area Network) LAN-3,LAN-5,LAN-12
CAN Communication .......................................... TF-53
CAN communication ........... EC-122,EC-513,EC-854,
EC-1199
,EC-1448,AT-109,AT-190,AT-309,AT-403,
BRC-54
,BRC-62,BRC-92,BRC-110,LAN-3,LAN-5,
LAN-12
Canister-See EVAP canister ............ EC-427,EC-748,
EC-1114
,EC-1388
CHARGE - Wiring diagram ................................ SC-13
Charging system ................................................ SC-12
Chassis and body maintenance ........................ MA-35
CHIME - Wiring diagram ..................................... DI-59
CIGAR - Wiring diagram .................................. WW-25
Cigarette lighter ............................................... WW-25
Circuit breaker ................................................... PG-12
CKPS - Wiring diagram ................................. EC-1481
Clearance lamp ........................................ LT-4,LT-40
Clock ................................................................... DI-70
CLOCK - Wiring diagram .................................... DI-70
Closed loop control EC-34,EC-444,EC-766,EC-1130
Clutch cover ....................................................... CL-15
Clutch disc ......................................................... CL-15
Clutch master cylinder ......................................... CL-9
Clutch operating cylinder ................................... CL-11
Clutch pedal ......................................................... CL-5
Clutch release bearing ....................................... CL-13
Clutch release mechanism ................................ CL-13
Clutch withdrawal lever ...................................... CL-13
CMPS - Wiring diagram ................................. EC-1486
Coil spring (rear) ............................................... RSU-8
Collision diagnosis .......................................... SRS-47
Combination meter .................................... DI-4,DI-24
Combination switch ................................. LT-24,LT-44
Common rail fuel pressure sensor ................. EC-1468
Component Location (auto A/C) ......... ATC-34,MTC-4
Compression pressure(QR20DE•QR25DE) ..... EM-59
Compression pressure(YD22DDTi) ................ EM-182
Compressor clutch removal and installation .. ATC-135
Compressor special service tool ...................... ATC-14
Condenser ..................................................... ATC-143
Connecting rod bearing clearance(QR20DE•QR25DE)
EM-91
Connecting rod bearing clearance(YD22DDTi) EM-216
Connecting rod bushing clearance(QR20DE•QR25DE)
EM-91
Connecting rod bushing clearance(YD22DDTi) EM-210
Connecting rod(QR20DE•QR25DE) ................. EM-91
Connecting rod(YD22DDTi) .............. EM-207,EM-212
Console box - See Instrument panel .......... IP-3,IP-10
CONSULT for engine ........... EC-94,EC-486,EC-826,
EC-1173
,EC-1431
CONSULT for VDC ......................................... BRC-80
Control lever (M/T) ............................................. MT-13
Control unit ..................................... ATC-111,MTC-20
Control units (terminal arrangement) ................. PG-71
Controller Area Network (CAN) LAN-3,LAN-5,LAN-12
Converter housing installation ........... AT-419,AT-514
COOL/F - Wiring diagram EC-327,EC-607,EC-1054,
EC-1291
,EC-1510
Coolant replacement(QR20DE•QR25DE) ........ MA-19
Coolant replacement(YD22DDTi) ..................... MA-27
Cooling circuit (engine)(QR20DE•QR25DE) ....... CO-7
Cooling circuit (engine)(YD22DDTi) ................. CO-27
Cooling fan control system(QR20DE•QR25DE) CO-12
Cooling fan motor EC-336,EC-616,EC-1063,EC-1300
Cooling fan relay EC-336,EC-616,EC-1063,EC-1300
Cooling fan(QR20DE•QR25DE) ....................... CO-12
Cooling fan(YD22DDTi) .................................... CO-33
Coupling sleeve (M/T) ........................... MT-18,MT-23
Cowl top .............................................................. EI-12
Cowl top cover .................................................... EI-12
Crankcase ventilation system ........................ EC-1402
Crankcase ventilation system - See Positive crankcase
ventilation .......... EC-428
,EC-749,EC-1115,EC-1389
Crankshaft position sensor (POS) .... EC-227,EC-551,
EC-956
,EC-1240
Crankshaft position sensor (TDC) ................. EC-1479
Crankshaft(QR20DE•QR25DE) ........................ EM-74
CRFPS - Wiring diagram ............................... EC-1469
Cylinder block boring(QR20DE•QR25DE) ........ EM-94
Cylinder block boring(YD22DDTi) ................... EM-214
Cylinder block(QR20DE•QR25DE) ................... EM-73
Cylinder block(YD22DDTi) .............................. EM-197
Cylinder head bolt tightening(QR20DE•QR25DE) ........
EM-61
Page 3828 of 3833
IDX-4

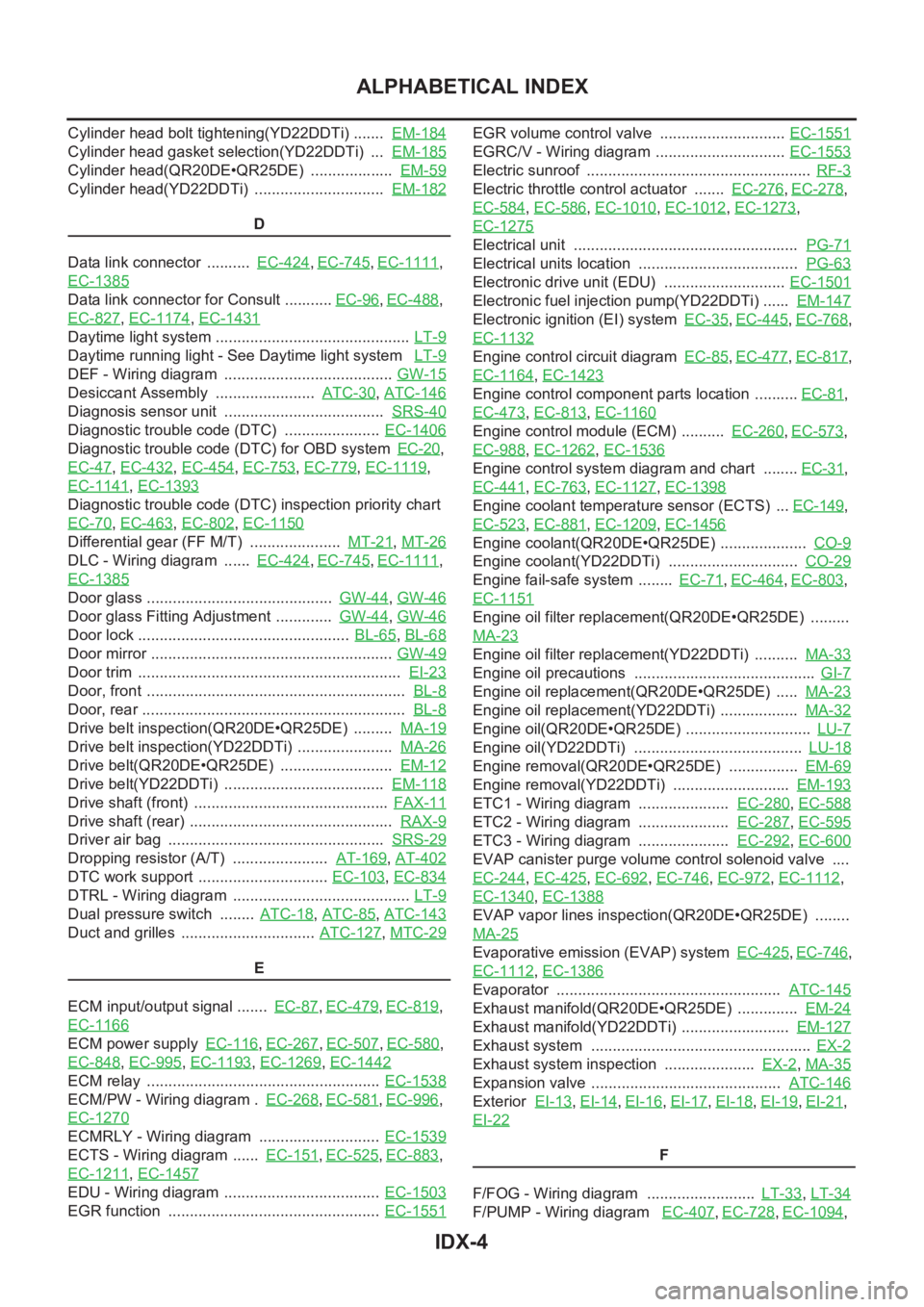

ALPHABETICAL INDEX
Cylinder head bolt tightening(YD22DDTi) ....... EM-184
Cylinder head gasket selection(YD22DDTi) ... EM-185
Cylinder head(QR20DE•QR25DE) ................... EM-59
Cylinder head(YD22DDTi) .............................. EM-182
D
Data link connector .......... EC-424
,EC-745,EC-1111,
EC-1385
Data link connector for Consult ........... EC-96,EC-488,
EC-827
,EC-1174,EC-1431
Daytime light system ............................................. LT-9
Daytime running light - See Daytime light system LT-9
DEF - Wiring diagram ....................................... GW-15
Desiccant Assembly ....................... ATC-30,ATC-146
Diagnosis sensor unit ..................................... SRS-40
Diagnostic trouble code (DTC) ...................... EC-1406
Diagnostic trouble code (DTC) for OBD system EC-20,
EC-47
,EC-432,EC-454,EC-753,EC-779,EC-1119,
EC-1141
,EC-1393
Diagnostic trouble code (DTC) inspection priority chart
EC-70
,EC-463,EC-802,EC-1150
Differential gear (FF M/T) ..................... MT-21,MT-26
DLC - Wiring diagram ...... EC-424,EC-745,EC-1111,
EC-1385
Door glass ........................................... GW-44,GW-46
Door glass Fitting Adjustment ............. GW-44,GW-46
Door lock ................................................. BL-65,BL-68
Door mirror ........................................................ GW-49
Door trim ............................................................. EI-23
Door, front ............................................................ BL-8
Door, rear ............................................................. BL-8
Drive belt inspection(QR20DE•QR25DE) ......... MA-19
Drive belt inspection(YD22DDTi) ...................... MA-26
Drive belt(QR20DE•QR25DE) .......................... EM-12
Drive belt(YD22DDTi) ..................................... EM-118
Drive shaft (front) ............................................. FAX-11
Drive shaft (rear) ............................................... RAX-9
Driver air bag .................................................. SRS-29
Dropping resistor (A/T) ...................... AT-169,AT-402
DTC work support .............................. EC-103,EC-834
DTRL - Wiring diagram ......................................... LT-9
Dual pressure switch ........ ATC-18,ATC-85,ATC-143
Duct and grilles ............................... ATC-127,MTC-29
E
ECM input/output signal ....... EC-87
,EC-479,EC-819,
EC-1166
ECM power supply EC-116,EC-267,EC-507,EC-580,
EC-848
,EC-995,EC-1193,EC-1269,EC-1442
ECM relay ...................................................... EC-1538
ECM/PW - Wiring diagram . EC-268,EC-581,EC-996,
EC-1270
ECMRLY - Wiring diagram ............................ EC-1539
ECTS - Wiring diagram ...... EC-151,EC-525,EC-883,
EC-1211
,EC-1457
EDU - Wiring diagram .................................... EC-1503
EGR function ................................................. EC-1551
EGR volume control valve ............................. EC-1551
EGRC/V - Wiring diagram .............................. EC-1553
Electric sunroof .................................................... RF-3
Electric throttle control actuator ....... EC-276,EC-278,
EC-584
,EC-586,EC-1010,EC-1012,EC-1273,
EC-1275
Electrical unit .................................................... PG-71
Electrical units location ..................................... PG-63
Electronic drive unit (EDU) ............................ EC-1501
Electronic fuel injection pump(YD22DDTi) ...... EM-147
Electronic ignition (EI) system EC-35,EC-445,EC-768,
EC-1132
Engine control circuit diagram EC-85,EC-477,EC-817,
EC-1164
,EC-1423
Engine control component parts location .......... EC-81,
EC-473
,EC-813,EC-1160
Engine control module (ECM) .......... EC-260,EC-573,
EC-988
,EC-1262,EC-1536
Engine control system diagram and chart ........ EC-31,
EC-441
,EC-763,EC-1127,EC-1398
Engine coolant temperature sensor (ECTS) ... EC-149,
EC-523
,EC-881,EC-1209,EC-1456
Engine coolant(QR20DE•QR25DE) .................... CO-9
Engine coolant(YD22DDTi) .............................. CO-29
Engine fail-safe system ........ EC-71,EC-464,EC-803,
EC-1151
Engine oil filter replacement(QR20DE•QR25DE) .........
MA-23
Engine oil filter replacement(YD22DDTi) .......... MA-33
Engine oil precautions .......................................... GI-7
Engine oil replacement(QR20DE•QR25DE) ..... MA-23
Engine oil replacement(YD22DDTi) .................. MA-32
Engine oil(QR20DE•QR25DE) ............................. LU-7
Engine oil(YD22DDTi) ....................................... LU-18
Engine removal(QR20DE•QR25DE) ................ EM-69
Engine removal(YD22DDTi) ........................... EM-193
ETC1 - Wiring diagram ..................... EC-280,EC-588
ETC2 - Wiring diagram ..................... EC-287,EC-595
ETC3 - Wiring diagram ..................... EC-292,EC-600
EVAP canister purge volume control solenoid valve ....
EC-244
,EC-425,EC-692,EC-746,EC-972,EC-1112,
EC-1340
,EC-1388
EVAP vapor lines inspection(QR20DE•QR25DE) ........
MA-25
Evaporative emission (EVAP) system EC-425,EC-746,
EC-1112
,EC-1386
Evaporator .................................................... ATC-145
Exhaust manifold(QR20DE•QR25DE) .............. EM-24
Exhaust manifold(YD22DDTi) ......................... EM-127
Exhaust system ................................................... EX-2
Exhaust system inspection ..................... EX-2,MA-35
Expansion valve ............................................ ATC-146
Exterior EI-13,EI-14,EI-16,EI-17,EI-18,EI-19,EI-21,
EI-22
F
F/FOG - Wiring diagram ......................... LT-33
,LT-34
F/PUMP - Wiring diagram EC-407,EC-728,EC-1094,
Page 3829 of 3833
IDX-5
A
C
D
E
F
G
H
I
J
K
L B
IDX

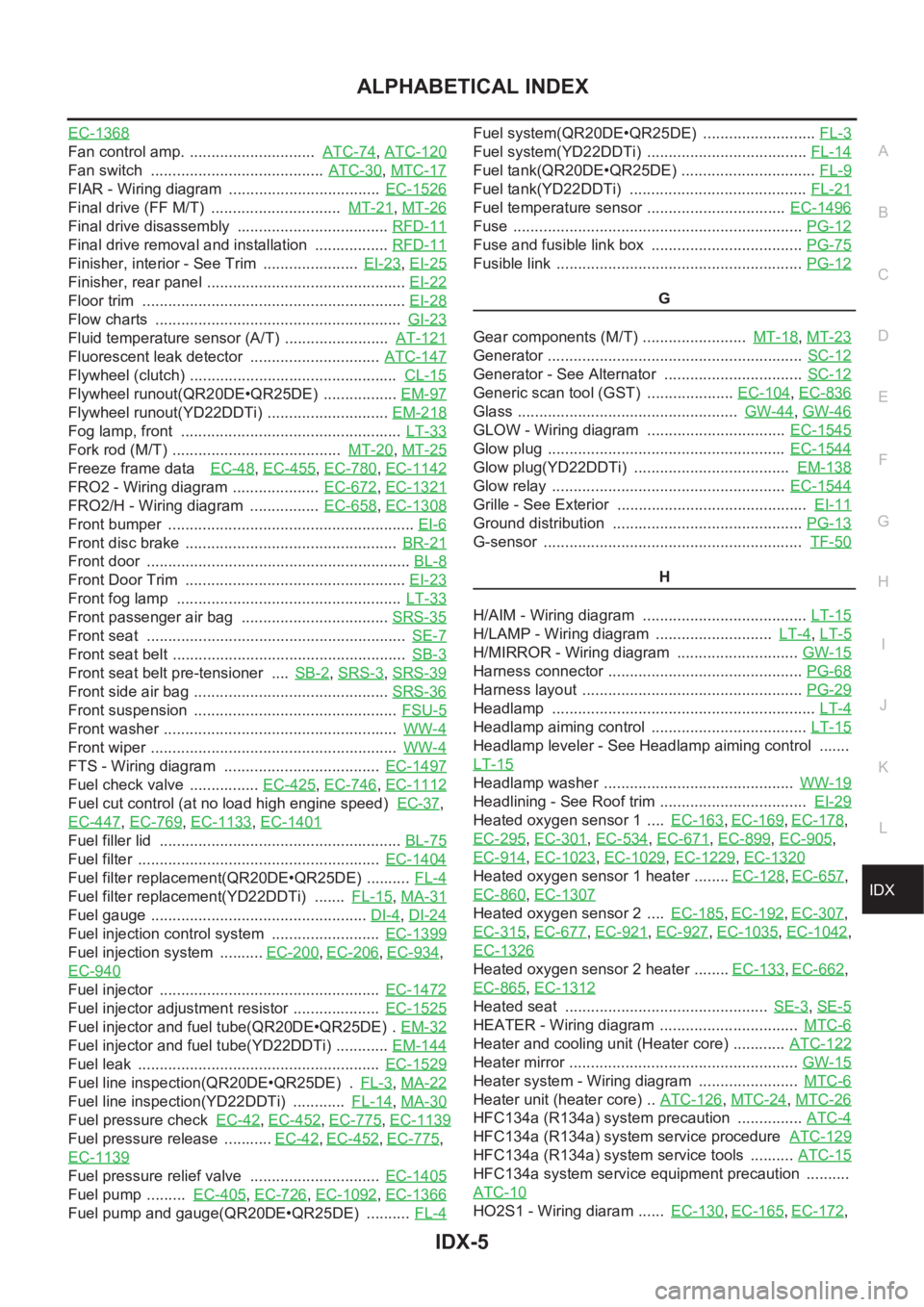

ALPHABETICAL INDEX
EC-1368
Fan control amp. ............................. ATC-74,ATC-120
Fan switch ........................................ ATC-30,MTC-17
FIAR - Wiring diagram ................................... EC-1526
Final drive (FF M/T) .............................. MT-21,MT-26
Final drive disassembly ................................... RFD-11
Final drive removal and installation ................. RFD-11
Finisher, interior - See Trim ...................... EI-23,EI-25
Finisher, rear panel .............................................. EI-22
Floor trim ............................................................. EI-28
Flow charts ......................................................... GI-23
Fluid temperature sensor (A/T) ........................ AT-121
Fluorescent leak detector .............................. ATC-147
Flywheel (clutch) ................................................ CL-15
Flywheel runout(QR20DE•QR25DE) ................. EM-97
Flywheel runout(YD22DDTi) ............................ EM-218
Fog lamp, front ................................................... LT-33
Fork rod (M/T) ....................................... MT-20,MT-25
Freeze frame data EC-48,EC-455,EC-780,EC-1142
FRO2 - Wiring diagram .................... EC-672,EC-1321
FRO2/H - Wiring diagram ................ EC-658,EC-1308
Front bumper ......................................................... EI-6
Front disc brake ................................................. BR-21
Front door ............................................................. BL-8
Front Door Trim ................................................... EI-23
Front fog lamp .................................................... LT-33
Front passenger air bag .................................. SRS-35
Front seat ............................................................ SE-7
Front seat belt ...................................................... SB-3
Front seat belt pre-tensioner .... SB-2,SRS-3,SRS-39
Front side air bag ............................................. SRS-36
Front suspension ............................................... FSU-5
Front washer ...................................................... WW-4
Front wiper ......................................................... WW-4
FTS - Wiring diagram .................................... EC-1497
Fuel check valve ................ EC-425,EC-746,EC-1112
Fuel cut control (at no load high engine speed) EC-37,
EC-447
,EC-769,EC-1133,EC-1401
Fuel filler lid ........................................................ BL-75
Fuel filter ........................................................ EC-1404
Fuel filter replacement(QR20DE•QR25DE) .......... FL-4
Fuel filter replacement(YD22DDTi) ....... FL-15,MA-31
Fuel gauge .................................................. DI-4,DI-24
Fuel injection control system ......................... EC-1399
Fuel injection system .......... EC-200,EC-206,EC-934,
EC-940
Fuel injector ................................................... EC-1472
Fuel injector adjustment resistor .................... EC-1525
Fuel injector and fuel tube(QR20DE•QR25DE) . EM-32
Fuel injector and fuel tube(YD22DDTi) ............ EM-144
Fuel leak ........................................................ EC-1529
Fuel line inspection(QR20DE•QR25DE) . FL-3,MA-22
Fuel line inspection(YD22DDTi) ............ FL-14,MA-30
Fuel pressure check EC-42,EC-452,EC-775,EC-1139
Fuel pressure release ........... EC-42,EC-452,EC-775,
EC-1139
Fuel pressure relief valve .............................. EC-1405
Fuel pump ......... EC-405,EC-726,EC-1092,EC-1366
Fuel pump and gauge(QR20DE•QR25DE) .......... FL-4
Fuel system(QR20DE•QR25DE) .......................... FL-3
Fuel system(YD22DDTi) ..................................... FL-14
Fuel tank(QR20DE•QR25DE) ............................... FL-9
Fuel tank(YD22DDTi) ......................................... FL-21
Fuel temperature sensor ................................ EC-1496
Fuse ................................................................... PG-12
Fuse and fusible link box ................................... PG-75
Fusible link ......................................................... PG-12
G
Gear components (M/T) ........................ MT-18
,MT-23
Generator ........................................................... SC-12
Generator - See Alternator ................................ SC-12
Generic scan tool (GST) .................... EC-104,EC-836
Glass ................................................... GW-44,GW-46
GLOW - Wiring diagram ................................ EC-1545
Glow plug ....................................................... EC-1544
Glow plug(YD22DDTi) .................................... EM-138
Glow relay ...................................................... EC-1544
Grille - See Exterior ............................................ EI-11
Ground distribution ............................................ PG-13
G-sensor ............................................................ TF-50
H
H/AIM - Wiring diagram ...................................... LT-15
H/LAMP - Wiring diagram ........................... LT-4,LT-5
H/MIRROR - Wiring diagram ............................ GW-15
Harness connector ............................................. PG-68
Harness layout ................................................... PG-29
Headlamp ............................................................. LT-4
Headlamp aiming control .................................... LT-15
Headlamp leveler - See Headlamp aiming control .......
LT-15
Headlamp washer ............................................ WW-19
Headlining - See Roof trim .................................. EI-29
Heated oxygen sensor 1 .... EC-163,EC-169,EC-178,
EC-295
,EC-301,EC-534,EC-671,EC-899,EC-905,
EC-914
,EC-1023,EC-1029,EC-1229,EC-1320
Heated oxygen sensor 1 heater ........ EC-128,EC-657,
EC-860
,EC-1307
Heated oxygen sensor 2 .... EC-185,EC-192,EC-307,
EC-315
,EC-677,EC-921,EC-927,EC-1035,EC-1042,
EC-1326
Heated oxygen sensor 2 heater ........ EC-133,EC-662,
EC-865
,EC-1312
Heated seat ............................................... SE-3,SE-5
HEATER - Wiring diagram ................................ MTC-6
Heater and cooling unit (Heater core) ............ ATC-122
Heater mirror ..................................................... GW-15
Heater system - Wiring diagram ....................... MTC-6
Heater unit (heater core) .. ATC-126,MTC-24,MTC-26
HFC134a (R134a) system precaution ............... ATC-4
HFC134a (R134a) system service procedure ATC-129
HFC134a (R134a) system service tools .......... ATC-15
HFC134a system service equipment precaution ..........
ATC-10
HO2S1 - Wiring diaram ...... EC-130,EC-165,EC-172,
Page 3830 of 3833

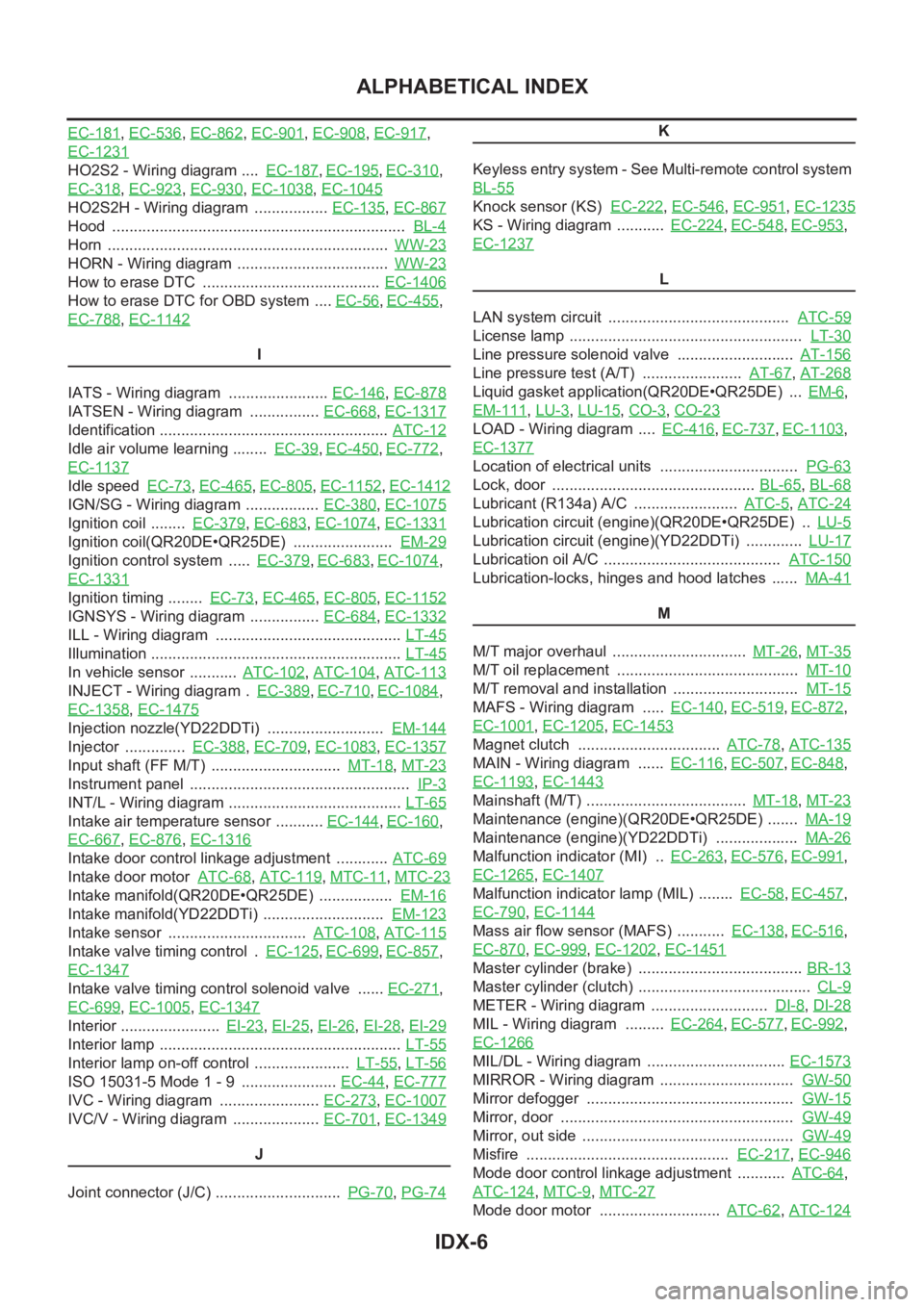

IDX-6
ALPHABETICAL INDEX
EC-181,EC-536,EC-862,EC-901,EC-908,EC-917,
EC-1231
HO2S2 - Wiring diagram .... EC-187,EC-195,EC-310,
EC-318
,EC-923,EC-930,EC-1038,EC-1045
HO2S2H - Wiring diagram ................. EC-135,EC-867
Hood .................................................................... BL-4
Horn ................................................................. WW-23
HORN - Wiring diagram ................................... WW-23
How to erase DTC ......................................... EC-1406
How to erase DTC for OBD system .... EC-56,EC-455,
EC-788
,EC-1142
I
IATS - Wiring diagram ....................... EC-146
,EC-878
IATSEN - Wiring diagram ................ EC-668,EC-1317
Identification ..................................................... ATC-12
Idle air volume learning ........ EC-39,EC-450,EC-772,
EC-1137
Idle speed EC-73,EC-465,EC-805,EC-1152,EC-1412
IGN/SG - Wiring diagram ................. EC-380,EC-1075
Ignition coil ........ EC-379,EC-683,EC-1074,EC-1331
Ignition coil(QR20DE•QR25DE) ....................... EM-29
Ignition control system ..... EC-379,EC-683,EC-1074,
EC-1331
Ignition timing ........ EC-73,EC-465,EC-805,EC-1152
IGNSYS - Wiring diagram ................ EC-684,EC-1332
ILL - Wiring diagram ........................................... LT-45
Illumination .......................................................... LT-45
In vehicle sensor ........... ATC-102,ATC-104,ATC-113
INJECT - Wiring diagram . EC-389,EC-710,EC-1084,
EC-1358
,EC-1475
Injection nozzle(YD22DDTi) ........................... EM-144
Injector .............. EC-388,EC-709,EC-1083,EC-1357
Input shaft (FF M/T) .............................. MT-18,MT-23
Instrument panel ................................................... IP-3
INT/L - Wiring diagram ........................................ LT-65
Intake air temperature sensor ........... EC-144,EC-160,
EC-667
,EC-876,EC-1316
Intake door control linkage adjustment ............ ATC-69
Intake door motor ATC-68,ATC-119,MTC-11,MTC-23
Intake manifold(QR20DE•QR25DE) ................. EM-16
Intake manifold(YD22DDTi) ............................ EM-123
Intake sensor ................................ ATC-108,ATC-115
Intake valve timing control . EC-125,EC-699,EC-857,
EC-1347
Intake valve timing control solenoid valve ...... EC-271,
EC-699
,EC-1005,EC-1347
Interior ....................... EI-23,EI-25,EI-26,EI-28,EI-29
Interior lamp ........................................................ LT-55
Interior lamp on-off control ...................... LT-55,LT-56
ISO 15031-5 Mode 1 - 9 ...................... EC-44,EC-777
IVC - Wiring diagram ....................... EC-273,EC-1007
IVC/V - Wiring diagram .................... EC-701,EC-1349
J
Joint connector (J/C) ............................. PG-70
,PG-74
K
Keyless entry system - See Multi-remote control system
BL-55
Knock sensor (KS) EC-222,EC-546,EC-951,EC-1235
KS - Wiring diagram ........... EC-224,EC-548,EC-953,
EC-1237
L
LAN system circuit .......................................... ATC-59
License lamp ...................................................... LT-30
Line pressure solenoid valve ........................... AT-156
Line pressure test (A/T) ....................... AT-67,AT-268
Liquid gasket application(QR20DE•QR25DE) ... EM-6,
EM-111
,LU-3,LU-15,CO-3,CO-23
LOAD - Wiring diagram .... EC-416,EC-737,EC-1103,
EC-1377
Location of electrical units ................................ PG-63
Lock, door ............................................... BL-65,BL-68
Lubricant (R134a) A/C ........................ ATC-5,ATC-24
Lubrication circuit (engine)(QR20DE•QR25DE) .. LU-5
Lubrication circuit (engine)(YD22DDTi) ............. LU-17
Lubrication oil A/C ......................................... ATC-150
Lubrication-locks, hinges and hood latches ...... MA-41
M
M/T major overhaul ............................... MT-26
,MT-35
M/T oil replacement .......................................... MT-10
M/T removal and installation ............................. MT-15
MAFS - Wiring diagram ..... EC-140,EC-519,EC-872,
EC-1001
,EC-1205,EC-1453
Magnet clutch ................................. ATC-78,ATC-135
MAIN - Wiring diagram ...... EC-116,EC-507,EC-848,
EC-1193
,EC-1443
Mainshaft (M/T) ..................................... MT-18,MT-23
Maintenance (engine)(QR20DE•QR25DE) ....... MA-19
Maintenance (engine)(YD22DDTi) ................... MA-26
Malfunction indicator (MI) .. EC-263,EC-576,EC-991,
EC-1265
,EC-1407
Malfunction indicator lamp (MIL) ........ EC-58,EC-457,
EC-790
,EC-1144
Mass air flow sensor (MAFS) ........... EC-138,EC-516,
EC-870
,EC-999,EC-1202,EC-1451
Master cylinder (brake) ...................................... BR-13
Master cylinder (clutch) ........................................ CL-9
METER - Wiring diagram ........................... DI-8,DI-28
MIL - Wiring diagram ......... EC-264,EC-577,EC-992,
EC-1266
MIL/DL - Wiring diagram ................................ EC-1573
MIRROR - Wiring diagram ............................... GW-50
Mirror defogger ................................................ GW-15
Mirror, door ...................................................... GW-49
Mirror, out side ................................................. GW-49
Misfire ............................................... EC-217,EC-946
Mode door control linkage adjustment ........... ATC-64,
ATC-124
,MTC-9,MTC-27
Mode door motor ............................ ATC-62,ATC-124
