POWER SUPPLY CIRCUIT FOR ECM
EC-457
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
6.DETECT MALFUNCTIONING PART
Check the following.
l10A fuse
l20A fuse
lHarness connectors E60, F36
lHarness connectors E61, F38
lHarness for open or short between ECM relay and battery
>> Repair open circuit or short to ground or short to power in harness or connectors.
7.CHECK OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal 20 and ECM relay terminal 2.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> Go toEC-592, "IGNITION SIGNAL".
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
8.CHECK ECM POWER SUPPLY CIRCUIT-III
1. Turn ignition switch “ON” and then “OFF”.
2. Check voltage between ECM terminals, 109, 111 and ground
with CONSULT-II or tester.
OK or NG
OK >> GO TO 13.
NG (Battery voltage does not exist.)>>GO TO 9.
NG (Battery voltage exists for more than a few seconds.)>>GO TO 11.Continuity should exist.
Voltage: After turning ignition switch "OFF", battery
voltage will exist for a few seconds, then
drop approximately 0V.
PBIB0536E

EC-458
[QR (WITHOUT EURO-OBD)]
POWER SUPPLY CIRCUIT FOR ECM
9.CHECK ECM POWER SUPPLY CIRCUIT-IV
1. Disconnect ECM relay.
2. Check voltage between ECM relay terminal 3 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 11.
NG >> GO TO 10.
10.DETECT MALFUNCTIONING PART
Check the following.
lHarness or connectors E60, F36
lHarness for open or short between ECM relay and 10A fuse
>> Repair open circuit or short to ground or short to power in harness or connectors.
11 .CHECK HARNESS CONTINUITY BETWEEN ECM RELAY AND ECM FOR OPEN AND SHORT
1. Check harness continuity between ECM terminals and ECM relay terminals as follows.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 12.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
12.CHECK ECM RELAY
Refer toEC-459, "
Component Inspection".
OK or NG
OK >> GO TO 13.
NG >> Replace ECM relay.
PBIB0493E
Voltage: Battery voltage
SEF860T
ECM terminal ECM relay terminal
12 7
109, 111 5
Continuity should exist.

POWER SUPPLY CIRCUIT FOR ECM
EC-459
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
13.CHECK ECM GROUND CIRCUIT FOR OPEN AND SHORT-II
1. Turn ignition switch “OFF”.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminals 59, 60, 106, 108 and engine ground.
Refer to Wiring Diagram.
4. Also check harness for short to power.
OK or NG
OK >> GO TO 14.
NG >> Repair open circuit or short to power in harness or connectors.
14.CHECK INTERMITTENT INCIDENT
Refer toEC-453, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT".
>>INSPECTION END
Component InspectionEBS00BFV
ECM RELAY
1. Apply 12V direct current between ECM relay terminals 1 and 2.
2. Check continuity between relay terminals 3 and 5, 6 and 7.
3. If NG, replace ECM relay.Continuity should exist.
Condition Continuity
12V direct current supply between
terminals 1 and 2Ye s
OFF No
PBIB0077E

EC-460
[QR (WITHOUT EURO-OBD)]
DTC U1000 CAN COMMUNICATION LINE
DTC U1000 CAN COMMUNICATION LINE
PFP:23710
DescriptionEBS00BFW
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
On Board Diagnosis LogicEBS00BFX
DTC Confirmation ProcedureEBS00BFY
1. Turn ignition switch “ON” and wait at least 3 seconds.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. If 1st trip DTC is detected, go toEC-462, "
Diagnostic Procedure".
DTC No.Trouble diagnosis
nameDTC detecting condition Possible cause
U1000
1000CAN communication
line
lECM can not communicate to other control
unit.
lECM can not communicate for more than the
specified time.
lHarness or connectors
(CAN communication line is open or
shorted)

DTC U1000 CAN COMMUNICATION LINE
EC-461
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

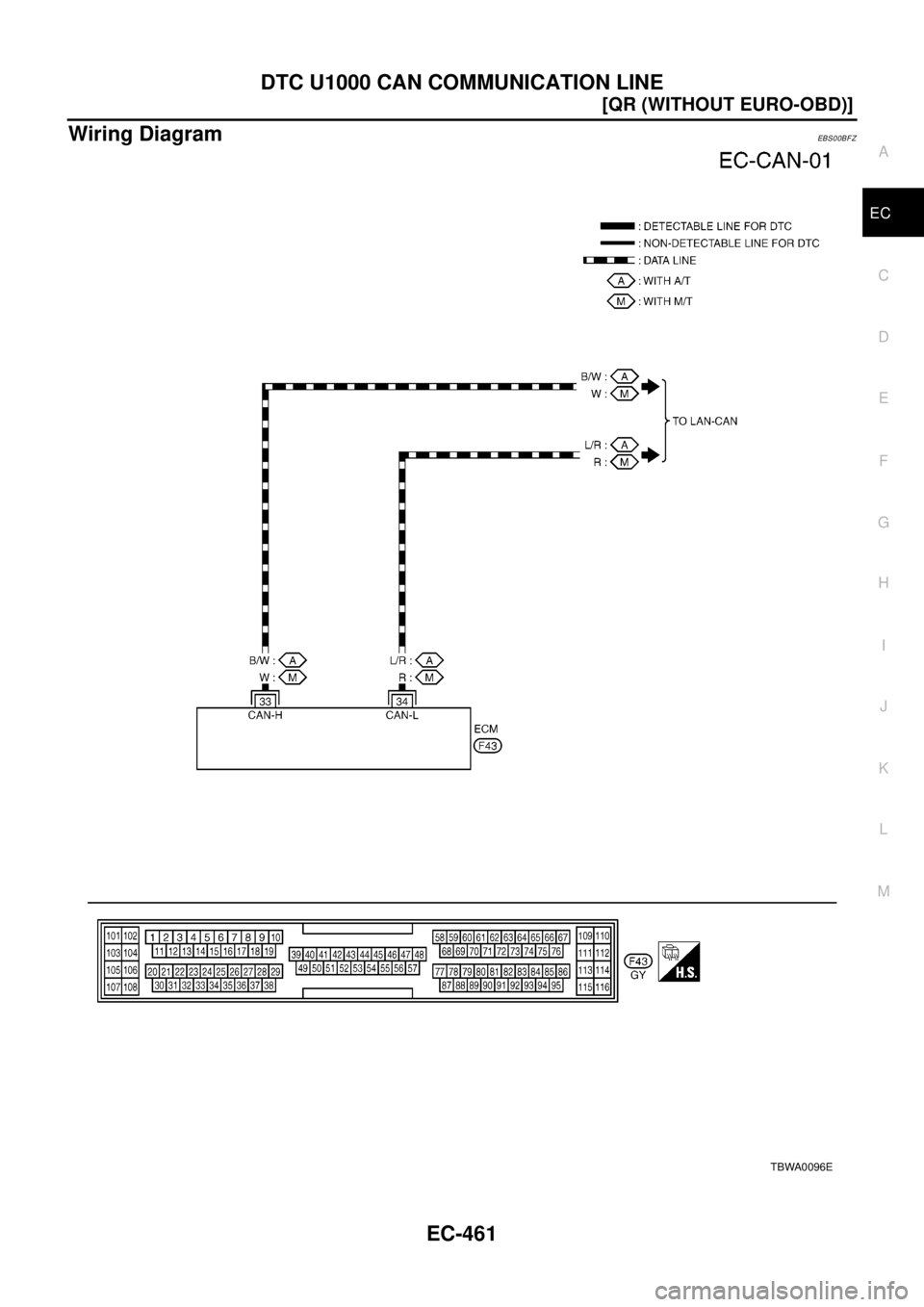

Wiring DiagramEBS00BFZ
TBWA0096E

EC-462
[QR (WITHOUT EURO-OBD)]
DTC U1000 CAN COMMUNICATION LINE
Diagnostic Procedure
EBS00BG0
1.INSPECTION START
1. Turn ignition switch “ON”.

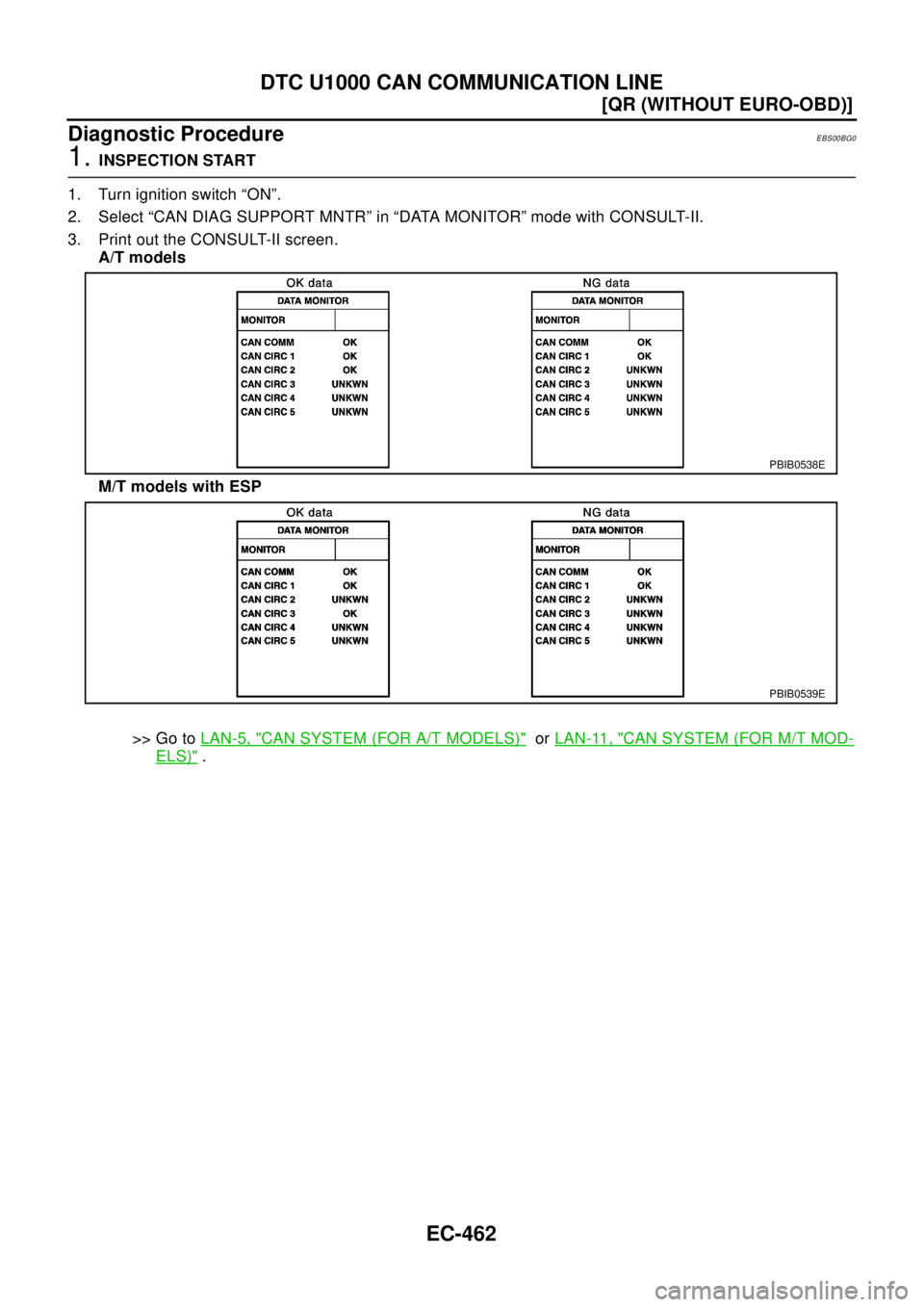

2. Select “CAN DIAG SUPPORT MNTR” in “DATA MONITOR” mode with CONSULT-II.
3. Print out the CONSULT-II screen.
A/T models
M/TmodelswithESP
>> Go toLAN-5, "
CAN SYSTEM (FOR A/T MODELS)"orLAN-11, "CAN SYSTEM (FOR M/T MOD-
ELS)".
PBIB0538E
PBIB0539E

DTC P0102, P0103 MAF SENSOR
EC-463
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P0102, P0103 MAF SENSORPFP:22680
Component DescriptionEBS00BG1
The mass air flow sensor is placed in the stream of intake air. It mea-
sures the intake flow rate by measuring a part of the entire intake
flow. It consists of a hot film that is supplied with electric current from
the ECM. The temperature of the hot film is controlled by the ECM a
certain amount. The heat generated by the hot film is reduced as the
intake air flows around it. The more air, the greater the heat loss.
Therefore, the ECM must supply more electric current to maintain
the temperature of the hot film as air flow increases. The ECM
detects the air flow by means of this current change.
CONSULT-II Reference Value in Data Monitor ModeEBS00BG2
Specification data are reference values.
ECM Terminals and Reference ValueEBS00BG3
Specification data are reference values and are measured between each terminal and body ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
SEC266C
MONITOR ITEM CONDITION SPECIFICATION
MAS A/F SE-B1
lEngine: After warming up
lAir conditioner switch: OFF
lShiftlever:N
lNo-loadIdle Approx. 1.0 - 1.5V
2,500 rpm Approx. 1.6 - 2.0V
CAL/LD VALUE
lEngine: After warming up
lShiftlever:N
lAir conditioner switch: OFF
lNo-loadIdle 10% - 35%
2,500 rpm 10% - 35%
MASS AIRFLOW
lEngine: After warming up
lShiftlever:N
lAir conditioner switch: OFF
lNo-loadIdle 1.0 - 4.0 g·m/s
2,500 rpm 4.0 - 10.0 g·m/s
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
72 OR Mass air flow sensor[Engineisrunning]
lWarm-up condition
lIdle speed1.1 - 1.5V
[Engineisrunning]
lWarm-up condition
lEngine speed is 2,500 rpm.1.6 - 2.0V
80 B/PMass air flow sensor
ground[Engineisrunning]
lWarm-up condition
lIdle speedApproximately 0V

EC-464
[QR (WITHOUT EURO-OBD)]
DTC P0102, P0103 MAF SENSOR
On Board Diagnosis Logic
EBS00BG4
FAIL -S AFE M OD E
When the malfunction is detected, the ECM enters fail-safe mode and the MI lights up.
DTC Confirmation ProcedureEBS00BG5
NOTE:
If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch “OFF” and wait at
least 10 seconds before conducting the next test.
PROCEDURE FOR DTC P0102
With CONSULT-II
1. Turn ignition switch “ON”.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine and wait 5 seconds at most.
4. If 1st trip DTC is detected, go toEC-467, "
Diagnostic Procedure"
.
Without CONSULT-II
1. Start engine and wait 5 seconds at most.
2. Turn ignition switch "OFF", wait at least 10 seconds and then turn "ON".
3. Perform "Diagnostic Test Mode II (Self-diagnostic results)" with ECM.
4. If 1st trip DTC is detected, go toEC-467, "
Diagnostic Procedure".
PROCEDURE FOR DTC P0103
With CONSULT-II
1. Turn ignition switch “ON”.
DTC No.Trouble diagnosis
nameDTC detecting condition Possible cause
P0102
0102Mass air flow sensor
circuit low inputAn excessively low voltage from the sensor is
sent to ECM.
lHarness or connectors
(The sensor circuit is open or shorted.)
lIntake air leaks
lMass air flow sensor
P0103
0103Mass air flow sensor
circuit high inputAn excessively high voltage from the sensor is
sent to ECM.
lHarness or connectors
(The sensor circuit is open or shorted.)
lMass air flow sensor
Detected items Engine operating condition in fail-safe mode
Mass air flow sensor circuit Engine speed will not rise more than 2,400 rpm due to the fuel cut.
SEF058Y

DTC P0102, P0103 MAF SENSOR
EC-465
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Wait at least 5 seconds.
4. If 1st trip DTC is detected, go toEC-467, "
Diagnostic Procedure"
.
If 1st trip DTC is not detected, go to next step.
5. Start engine and wait at least 5 seconds.
6. If 1st trip DTC is detected, go toEC-467, "
Diagnostic Procedure"
.
Without CONSULT-II
1. Turn ignition switch “ON” and wait at least 5 seconds.
2. Turn ignition switch "OFF", wait at least 10 seconds and then turn "ON".
3. Perform "Diagnostic Test Mode II (Self-diagnostic results)" with ECM.
4. If 1st trip DTC is detected, go toEC-467, "
Diagnostic Procedure".
If 1st trip DTC is not detected, go to next step.
5. Turn ignition switch "OFF", wait at least 10 seconds.
6. Start engine and wait at least 5 seconds.
7. Turn ignition switch "OFF", wait at least 10 seconds and then turn "ON".
8. Perform "Diagnostic Test Mode II (Self-diagnostic results)" with ECM.
9. If 1st trip DTC is detected, go toEC-467, "
Diagnostic Procedure".
SEF058Y

EC-466
[QR (WITHOUT EURO-OBD)]
DTC P0102, P0103 MAF SENSOR

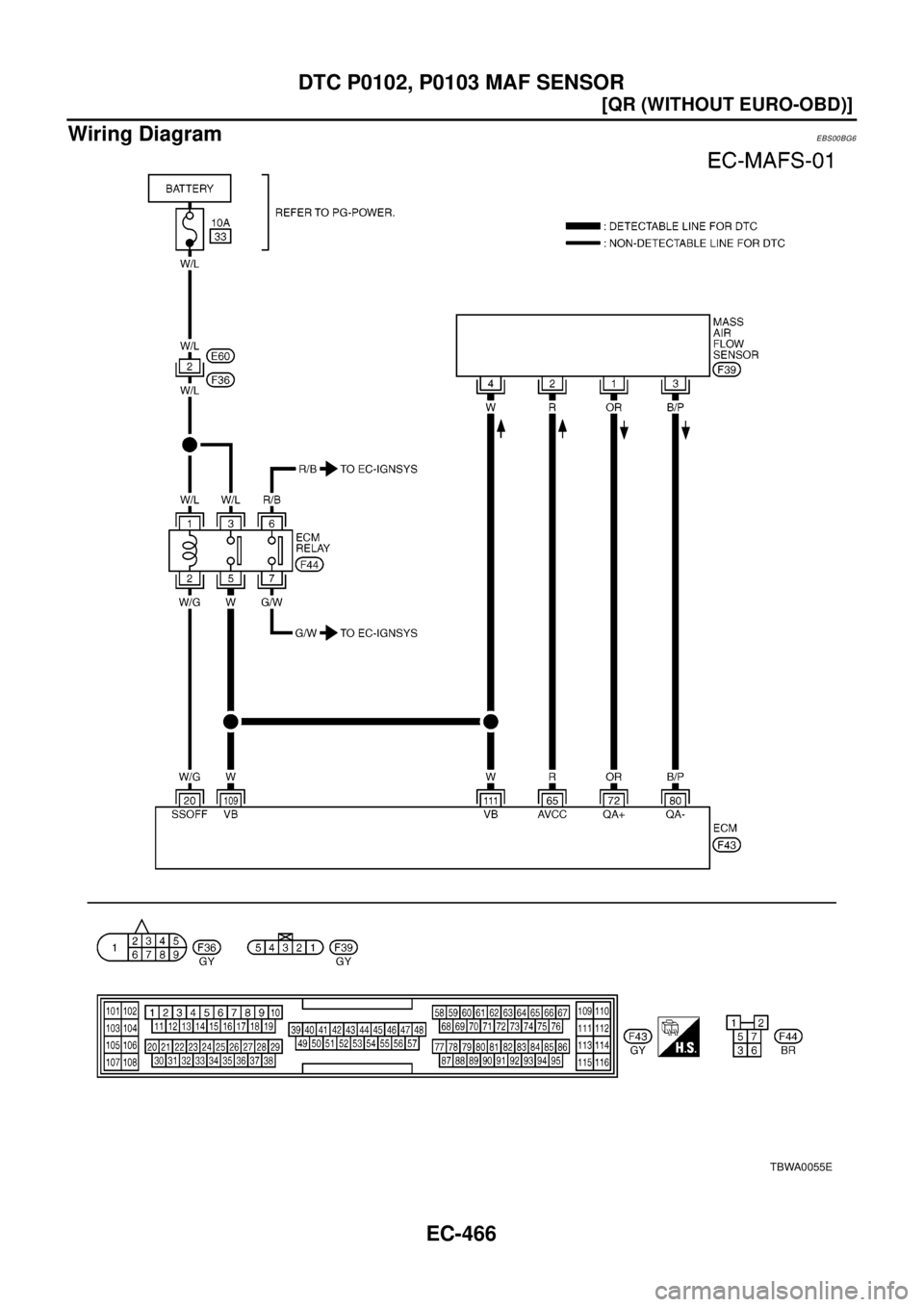

Wiring Diagram
EBS00BG6
TBWA0055E
