NISSAN X-TRAIL 2003 Electronic Repair Manual

HEATER UNIT
MTC-25
C
D
E
F
G
H
I
K
L
MA
B
MTC
22 Evaporator cover 23 Screw 24 Heater core
25 Heater core cover 26 Foot duct (left) 27 Screw

MTC-26
HEATER CORE
HEATER CORE
PFP:27140
Removal and InstallationEJS000XV
1. Remove the heater unit.
2. Remove the heater pipe support.
3. Remove the foot duct and heater core cover.
4. Remove the heater core from the heater unit.
RJIA0069E

MODE DOOR
MTC-27
C
D
E
F
G
H
I
K
L
MA
B
MTC
MODE DOORPFP:27181
Control Linkage adjustmentEJS001DA
MODE DOOR CONTROL CABLE
1. Turn the mode control dial to VENT position.
2. Move side link by hand and hold mode door in VENT position.
3. Pull on the cable cover in the direction of the arrow, then clamp
it.
NOTE:
After positioning control cable, check that it operates properly.
RJIA0095E
RJIA0641E

MTC-28
AIR MIX DOOR
AIR MIX DOOR
PFP:27180
Control Linkage AdjustmentEJS001DB
AIR MIX DOOR CONTROL CABLE
1. Turn the temperature control dial to full cold position.
2. Move air mix door lever by hand and hold it at the full cold posi-
tion.
3. Pull on the cable cover in the direction of the arrow, then clamp
it.
NOTE:
After positioning control cable, check that it operates properly.
RJIA0085E
RJIA0615E

DUCTS AND GRILLES
MTC-29
C
D
E
F
G
H
I
K
L
MA
B
MTC

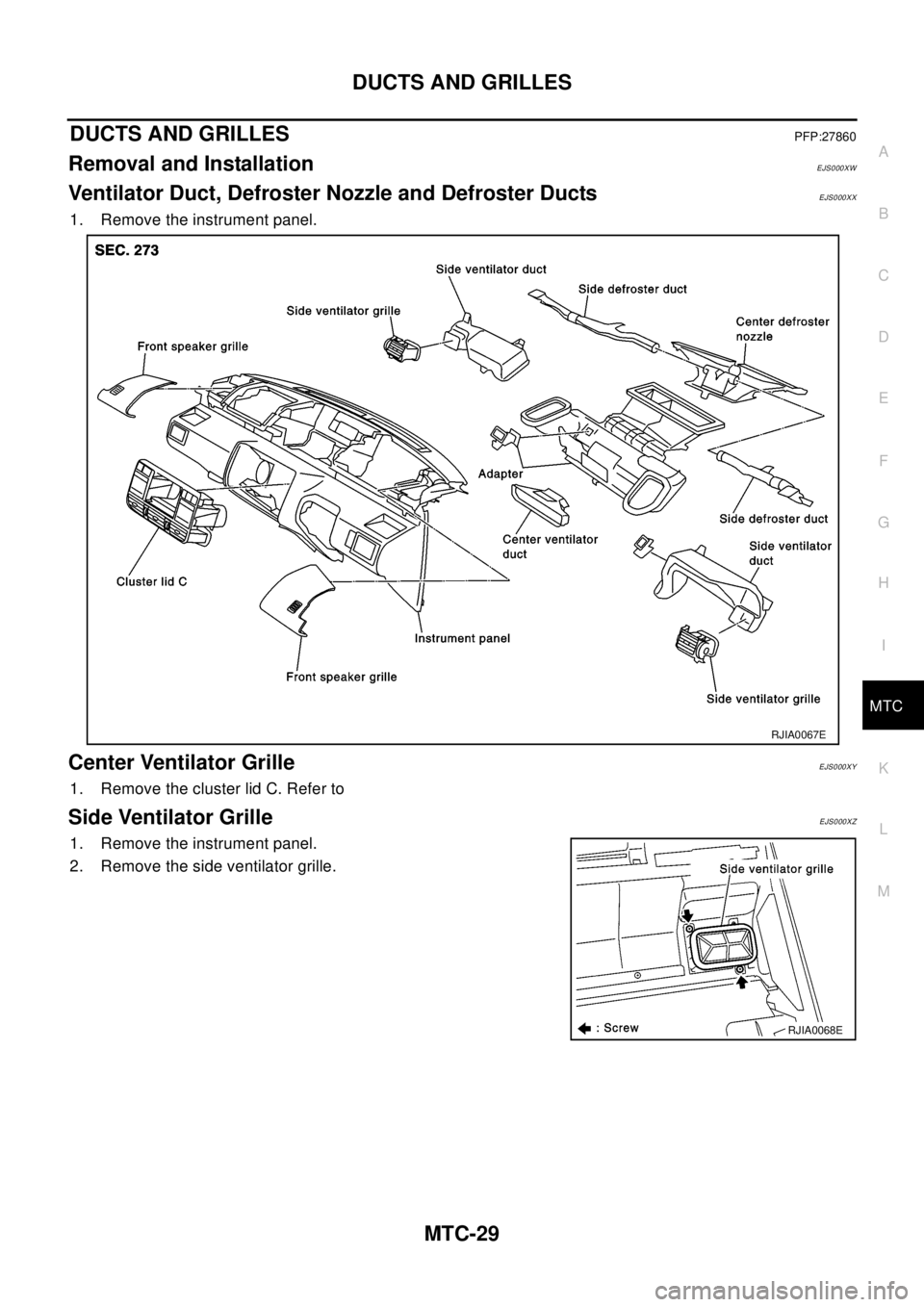

DUCTS AND GRILLESPFP:27860
Removal and InstallationEJS000XW
Ventilator Duct, Defroster Nozzle and Defroster DuctsEJS000XX
1. Remove the instrument panel.
Center Ventilator GrilleEJS000XY
1. Remove the cluster lid C. Refer to
Side Ventilator GrilleEJS000XZ
1. Remove the instrument panel.
2. Remove the side ventilator grille.
RJIA0067E
RJIA0068E

MTC-30
DUCTS AND GRILLES

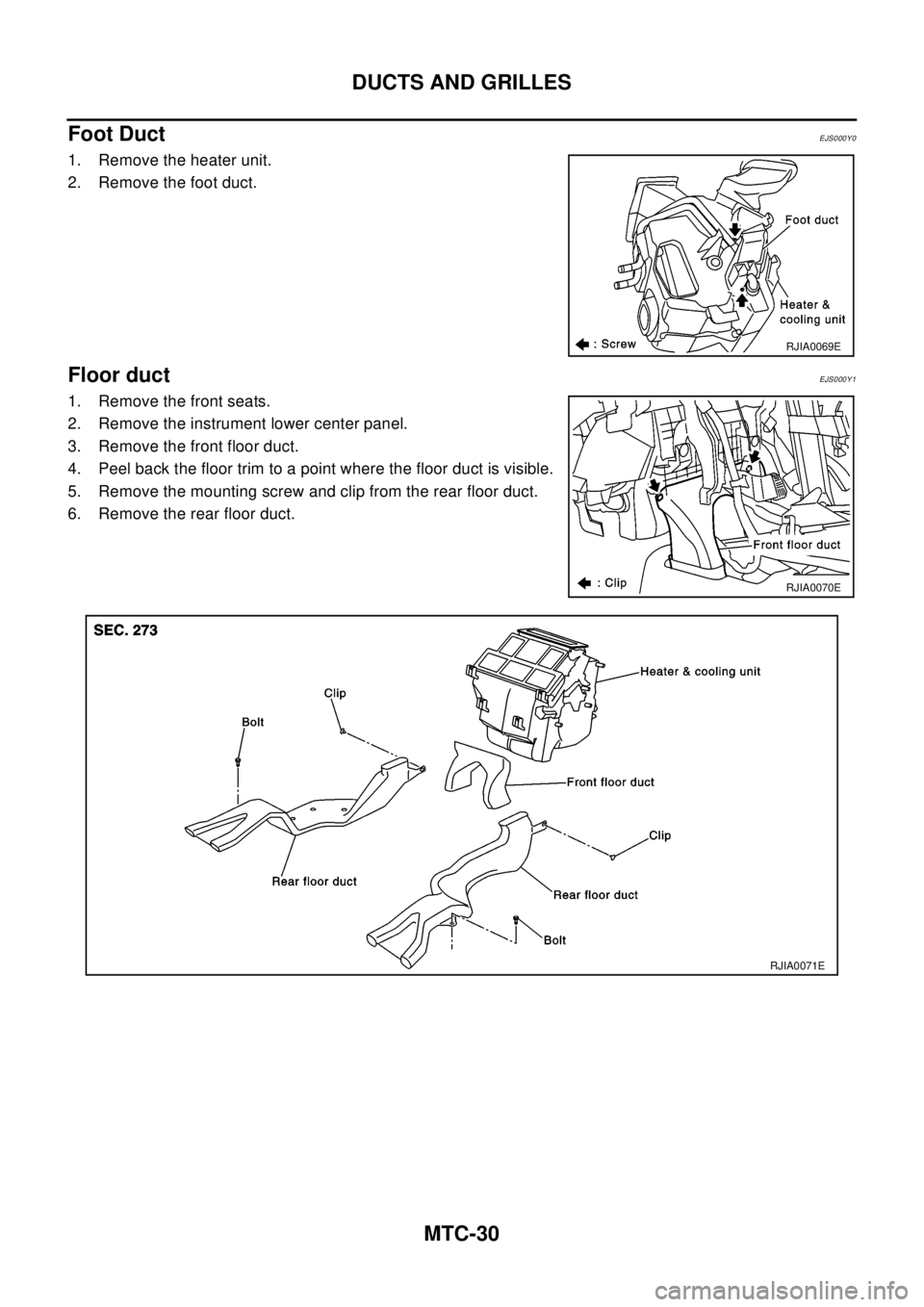

Foot Duct
EJS000Y0
1. Remove the heater unit.
2. Remove the foot duct.
Floor ductEJS000Y1
1. Remove the front seats.
2. Remove the instrument lower center panel.
3. Remove the front floor duct.
4. Peel back the floor trim to a point where the floor duct is visible.
5. Remove the mounting screw and clip from the rear floor duct.
6. Remove the rear floor duct.
RJIA0069E
RJIA0070E
RJIA0071E

PB-1
PARKING BRAKE SYSTEM
F BRAKES
CONTENTS
C
D
E
G
H
I
J
K
L
M
SECTION
A
B
PB
PARKING BRAKE SYSTEM
NOISE, VIBRATION, AND HARSHNESS (NVH)
TROUBLESHOOTING ................................................ 2
NVH Troubleshooting Chart ..................................... 2
PARKING BRAKE CONTROL ................................... 3
Components ............................................................. 3
Removal and Installation .......................................... 3
Inspection ................................................................. 3
Adjustment ............................................................... 4PARKING BRAKE SHOE ........................................... 5
Components ............................................................. 5
Removal and Installation .......................................... 5
REMOVAL ............................................................. 5
INSPECTION ........................................................ 7
INSTALLATION ..................................................... 7
SERVICE DATA AND SPECIFICATIONS (SDS) ...... 10
Parking Brake ......................................................... 10

PB-2
NOISE, VIBRATION, AND HARSHNESS (NVH) TROUBLESHOOTING
NOISE, VIBRATION, AND HARSHNESS (NVH) TROUBLESHOOTING
PFP:00003
NVH Troubleshooting ChartEFS000TJ
Use the chart below to help you find the cause of the symptom. If necessary, repair or replace these parts.
X: ApplicableReference page
Refer to BR section
Refer to BR section.
Refer to BR section
Refer to BR section
—
Refer to BR section
—
—
—
Refer to BR section
Refer to FAX AND RAX section
Refer to FAX AND RAX section
Refer to FSU AND RSU section
Refer to WT section
Refer to WT section
Refer to PS section
Possible cause and
SUSPECTED PARTS
Pads - damaged
Pads - uneven wear
Shims damaged
Rotor imbalance
Rotor damage
Rotor runout
Rotor deformation
Rotor deflection
Rotor rust
Rotor thickness variation
DRIVE SHAFT
AXLE
SUSPENSION
TIRES
ROAD WHEEL
STEERING
Symptom BRAKENoise XXX XXXXXX
Shake X XXXXXX
Shimmy,Judder XXXXXXX XXXXX

PARKING BRAKE CONTROL
PB-3
C
D
E
G
H
I
J
K
L
MA
B
PB
PARKING BRAKE CONTROLPFP:36010
ComponentsEFS0017I
Removal and InstallationEFS0017J
1. Remove center console.
2. Disconnect warning lamp switch connector.
3. Remove cable mounting bolt. Loosen cable and remove self-
locking nut.
4. Remove cable from toggle lever of disc brake.
InspectionEFS0017L
lOperate parking brake lever with a force of 196 N (20 kg,44 lb). Check stroke is within specified number of
notches. (Check it by hearing clicks of ratchet.)
lCheck parking lever assembly for bend, damage and cracks, and replace if necessary.
lCheck cables and equalizer for wear and damage. If a malfunction is detected, replace applicable part.
lCheck parking brake warning lamp switch. If a malfunction is detected, replace applicable part.
SFIA0050E
1 Control lever assembly 2 Cap 3 Parking brake warning lamp switch
4 Screw 5 Self-locking nut 6 Front cable
7 RH rear cable 8 LH rear cable
SFIA0200E
Leverstroke :6-7notches

PB-4
PARKING BRAKE CONTROL
lCheck each part for deformation, or damage by contact with other parts. If a malfunction is detected,
replace applicable part.
AdjustmentEFS0017M
1. Insert a deep-well socket wrench into opening of parking brake
lever. Rotate self-locking nut to fully loosen cable. Return park-
ing brake lever and adjust rear brake shoe clearance.
2. Rotate road wheels to be sure that there is no drag.
3. After adjusting clearance of rear shoes, with no drag on rear
brake, adjust cable as follows:
a. Pull parking brake lever up so that a deep-well socket wrench
can be inserted.
b. Insert a deep-well socket wrench into opening of parking brake
lever. Rotate self-locking nut to adjust lever stroke.
CAUTION:
Do not reuse self-locking nut after removing it.
c. Operate parking brake lever 3 to 4 times with a force of 196 N
(20 kg,44 lb). Be sure lever stroke is within the specified number
of notches.
d. Return parking brake lever completely. Be sure there is no drag on rear brake.
SFIA0200E
MAA0182D
