TROUBLE DIAGNOSES FOR SYMPTOMS
AT-255
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
Lock-up is not released when accelerator pedal is released.
1.CHECK THROTTLE POSITION SENSOR* CIRCUIT
*: This sensor means accelerator pedal position (app) senror.
With CONSULT-II
Does “TCM INPUT SIGNALS” in “DATA MONITOR” show damage throttle position sensor circuit?
Without CONSULT-II
Does self-diagnosis show damage to throttle position sensor circuit?
Ye s o r N o
Yes >> Check throttle position sensor circuit. Refer to “21. TCM
Self-diagnosis Does Not Activate (PNP & Overdrive
Control switches, and Throttle Position Sensor )”,AT-
260, "21. TCM Self-diagnosis Does Not Activate (PNP &
Overdrive Control Switches, and Throttle Position Sen-
sor Circuit Checks)".
No >> GOTO2
2.CHECK SYMPTOM
Check again.
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
15. Engine Speed Does Not Return To Idle (Light Braking D4®D3)ECS004T8
SYMPTOM:
lEngine speed does not smoothly return to idle when A/T shifts from D4to D3.
lVehicle does not decelerate by engine brake when turning overdrive control switch OFF.
lVehicle does not decelerate by engine brake when shifting A/T from “D” to “2” position.
1.CHECK SELF-DIAGNOSTIC RESULTS
Does self-diagnosis show damage to overrun clutch solenoid valve
circuit after cruise test?
Ye s o r N O
Yes >> Check overrun clutch solenoid valve circuit. Refer toAT-
416, "OVERRUN CLUTCH SOLENOID VALVE"
(Except for Euro-OBD)/AT - 2 0 8 , "DTC P1760 OVERRUN
CLUTCH SOLENOID VALVE"(Euro-OBD).
No >> GOTO2
SAT367J
SCIA0774E

AT-256
[EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS
2.CHECK THROTTLE POSITION SENSOR*
*: This sensor means accelerator pedal position (APP) senror.
Check throttle position sensor. Refer to "EC-´´", “DTC P0121
ACCELERATOR PEDAL POSITION(APP)SENSOR”. —Except for
Euro-OBD/Refer to "EC-´´", “DTC P0121 ACCELERATOR PEDAL
POSITION(APP)SENSOR”. — Euro-OBD
OK or NG
OK >> GOTO3
NG >> Repair or replace accelerator pedal position (app) sen-
sor. (AT- 4 0 1 , "
ACCELE RATOR PEDAL POSITION
(APP) SENSOR": Except for Euro-OBD/AT-203, "DTC
P1705 ACCELERATOR PEDAL POSITION (APP) SEN-
SOR": Euro-OBD)
3.CHECK A/T FLUID CONDITION
1. Remove oil pan.
2. Check A/T fluid condition.
OK or NG
OK >> GOTO4
NG >> GOTO6
4.DETECT MALFUNCTIONING ITEM
1. Remove control valve assembly. Refer toAT-453, "
Installation".
2. Check the following items:
–Overrunclutchcontrolvalve
–Overrun clutch reducing valve
–Overrun clutch solenoid valve (AT-416, "OVERRUN CLUTCH SOLENOID VALVE": Except for Euro-OBD/
AT-208, "
DTC P1760 OVERRUN CLUTCH SOLENOID VALVE":Euro-OBD)
OK or NG
OK >> GOTO5
NG >> Repair or replace damaged parts.
5.CHECK SYMPTOM
Check again.
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
PBIB0498E
SAT171B

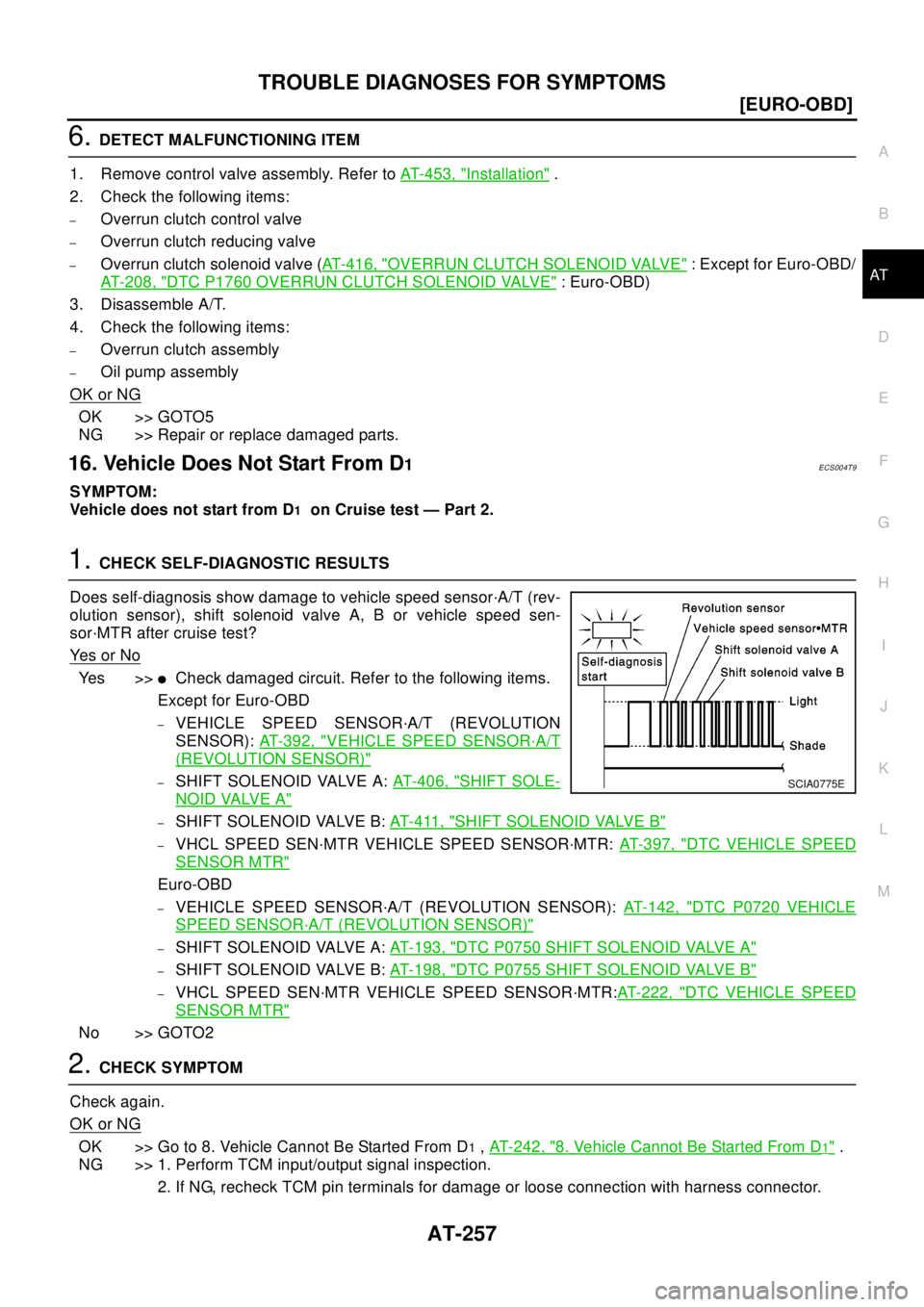

TROUBLE DIAGNOSES FOR SYMPTOMS
AT-257
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
6.DETECT MALFUNCTIONING ITEM
1. Remove control valve assembly. Refer toAT-453, "
Installation".
2. Check the following items:
–Overrun clutch control valve
–Overrun clutch reducing valve
–Overrun clutch solenoid valve (AT - 4 1 6 , "OVERRUN CLUTCH SOLENOID VALVE": Except for Euro-OBD/
AT-208, "
DTC P1760 OVERRUN CLUTCH SOLENOID VALVE": Euro-OBD)
3. Disassemble A/T.
4. Check the following items:
–Overrunclutchassembly
–Oil pump assembly
OK or NG
OK >> GOTO5
NG >> Repair or replace damaged parts.
16. Vehicle Does Not Start From D1ECS004T9
SYMPTOM:
Vehicle does not start from D
1on Cruise test — Part 2.
1.CHECK SELF-DIAGNOSTIC RESULTS
Does self-diagnosis show damage to vehicle speed sensor·A/T (rev-
olution sensor), shift solenoid valve A, B or vehicle speed sen-
sor·MTR after cruise test?
Ye s o r N o
Ye s > >lCheck damaged circuit. Refer to the following items.
Except for Euro-OBD
–VEHICLE SPEED SENSOR·A/T (REVOLUTION
SENSOR):AT - 3 9 2 , "
VEHICLE SPEED SENSOR·A/T
(REVOLUTION SENSOR)"
–SHIFT SOLENOID VALVE A:AT- 4 0 6 , "SHIFT SOLE-
NOID VALVE A"
–SHIFT SOLENOID VALVE B:AT- 4 11 , "SHIFT SOLENOID VALVE B"
–VHCL SPEED SEN·MTR VEHICLE SPEED SENSOR·MTR:AT-397, "DTC VEHICLE SPEED
SENSOR MTR"
Euro-OBD
–VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR):AT-142, "DTC P0720 VEHICLE
SPEED SENSOR·A/T (REVOLUTION SENSOR)"
–SHIFT SOLENOID VALVE A:AT-193, "DTC P0750 SHIFT SOLENOID VALVE A"
–SHIFT SOLENOID VALVE B:AT-198, "DTC P0755 SHIFT SOLENOID VALVE B"
–VHCL SPEED SEN·MTR VEHICLE SPEED SENSOR·MTR:AT-222, "DTC VEHICLE SPEED
SENSOR MTR"
No >> GOTO2
2.CHECK SYMPTOM
Check again.
OK or NG
OK >> Go to 8. Vehicle Cannot Be Started From D1,AT-242, "8. Vehicle Cannot Be Started From D1".
NG >> 1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
SCIA0775E

AT-258
[EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS
17. A/T Does Not Shift: D
4®D3, When Overdrive Control Switch “ON”®
“OFF”
ECS004TA
SYMPTOM:
A/T does not shift from D
4to D3when changing overdrive control switch to “OFF” position.
1.CHECK OVERDRIVE CONTROL SWITCH CIRCUIT
With CONSULT-II
Does “TCM INPUT SIGNALS” in “DATA MONITOR” show damage to overdrive control switch circuit?
Without CONSULT-II
Does self-diagnosis show damage to overdrive control switch cir-
cuit?
Ye s o r N o
Yes >> Check overdrive control switch circuit. Refer toAT-261,
"DIAGNOSTIC PROCEDURE".
No >> Go to 10. A/T Does Not Shift: D
2®D3,AT-246, "10. A/
T Does Not Shift: D2®D3".
18. A/T Does Not Shift: D3®22, When Selector Lever “D”®“2” PositionECS004TB
SYMPTOM:
A/T does not shift from D
3to 22when changing selector lever from “D” to “2” position.
1.CHECK PNP SWITCH CIRCUIT
With CONSULT-II
Does “TCM INPUT SIGNALS” in “DATA MONITOR” show damage to PNP switch circuit?
Without CONSULT-II
Does self-diagnosis show damage to PNP switch circuit?
Ye s o r N o
Yes >> Check PNP switch circuit. Refer toAT-260, "21. TCM
Self-diagnosis Does Not Activate (PNP & Overdrive
Control Switches, and Throttle Position Sensor Circuit
Checks)".
No >> Go to 9. A/T Does Not Shift: D
1®D2or Does Not
Kickdown: D
4®D2,AT-244, "9. A/T Does Not Shift: D1
®D2Or Does Not Kickdown: D4®D2".
SCIA0706E
SCIA0706E

TROUBLE DIAGNOSES FOR SYMPTOMS
AT-259
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
19.A/TDoesNotShift:22®11, When Selector Lever “2”®“1” PositionECS004TC
SYMPTOM:
A/T does not shift from 2
2to 11when changing selector lever from “2” to “1” position.
1.CHECK PNP SWITCH CIRCUIT
With CONSULT-II
Does “TCM INPUT SIGNALS” in “DATA MONITOR” show damage to PNP switch circuit?
Without CONSULT-II
Does self-diagnosis show damage to PNP switch circuit?
Ye s o r N o
Yes >> Check PNP switch circuit. Refer to “21. TCM Self-diag-
nosis Does Not Activate (PNP & Overdrive Control
switches, and Throttle Position Sensor Circuit Checks)”,
AT-260, "
21. TCM Self-diagnosis Does Not Activate
(PNP & Overdrive Control Switches, and Throttle Posi-
tion Sensor Circuit Checks)".
No >> GOTO2
2.CHECK SYMPTOM
Check again.
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose
connection with harness connector.
20. Vehicle Does Not Decelerate By Engine BrakeECS004TD
SYMPTOM:
Vehicle does not decelerate by engine brake when shifting from 2
2(12)to11.
1.CHECK SYMPTOM
Is 6. Vehicle Does Not Creep Backward In “R” Position OK?
Ye s o r N o
Yes >> Go to 15. Engine Speed Does Not Return To Idle (Light Braking D4®D3),AT - 2 5 5 , "15. Engine
Speed Does Not Return To Idle (Light Braking D4®D3)".
No >> Go to 6. Vehicle Does Not Creep Backward In “R” Position,AT-237, "
6. Vehicle Does Not Creep
Backward In“R”Position".
SCIA0706E
SAT778B

AT-260
[EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS
21. TCM Self-diagnosis Does Not Activate (PNP & Overdrive Control Switches,
and Throttle Position Sensor Circuit Checks)
ECS0 04 T E
SYMPTOM:
O/D OFF indicator lamp does not come on in TCM self-diagnostic procedure even if the lamp circuit is
good.
DESCRIPTION
lPNP switch
The PNP switch assembly includes a transmission position switch. The transmission position switch
detects the selector lever position and sends a signal to the TCM.
lOverdrive control switch
Detects the overdrive control switch position (ON or OFF) and sends a signal to the TCM.
lThrottle position sensor *
*: This sensor means accelerator pedal position (APP) senror.
Electric throttle control actuator consists of throttle control motor, acceleration pedal position sensor, throt-
tle position sensor, etc. The actuator sends a signal to the TCM.
SCIA0752E
SCIA0776E
PBIB0498E

TROUBLE DIAGNOSES FOR SYMPTOMS
AT-261
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
DIAGNOSTIC PROCEDURE
1.CHECK PNP SWITCH CIRCUIT (WITH CONSULT-II)
With CONSULT-II
1. Turn ignition switch to “ON” position.
(Do not start engine.)
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Read out “P/N”, “R”, “D”, “2” and “1” position switches moving selector lever to each position.
Check that the signal of the selector lever position is indicated
properly.
OK or NG
OK >> GOTO3
NG >> Check the following items:
lPNP switch (Refer to “Component Inspection”,AT-
265, "COMPONENT INSPECTION".)
lHarness for short or open between ignition switch and
PNP switch (Main harness)
lHarness for short or open between PNP switch and
TCM (Main harness)
lDiode (P, N positions)
2.CHECK PNP SWITCH CIRCUIT (WITHOUT CONSULT-II)
Without CONSULT-II
1. Turn ignition switch to “ON” position. (Do not start engine.)
2. Check voltage between TCM terminals 26, 27, 34, 35, 36 and
ground while moving selector lever through each position.
OK or NG
OK >> GOTO4
NG >> Check the following items:
lPNP switch (Refer to “Component Inspection”,AT-
265, "COMPONENT INSPECTION".)
lHarness for short or open between ignition switch and
PNP switch (Main harness)
lHarness for short or open between PNP switch and TCM (Main harness)
lDiode (P, N positions)
SAT701J
Vo l ta g e :
B : Battery voltage
0:0V
Lever
positionTe r m i n a l N o .
36 35 34 27 26
P, N B 0 0 0 0
R0 B000
D0 0 B00
2000B0
10000B
SCIA0777E

AT-262
[EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS
3.CHECK OVERDRIVE CONTROL SWITCH CIRCUIT (WITH CONSULT-II)
With CONSULT-II
1. Turn ignition switch to “ON” position.
(Do not start engine.)
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Read out “OVERDRIVE SWITCH”.
Check the signal of the overdrive control switch is indicated properly.
(Overdrive control switch “ON” displayed on CONSULT-II means
overdrive “OFF”.)
OK or NG
OK >> GOTO5
NG >> Check the following items:
lOverdrive control switch (Refer to “Component
Inspection”,AT-265, "
COMPONENT INSPECTION".)
lHarness for short or open between TCM and over-
drive control switch (Main harness)
lHarness of ground circuit for overdrive control switch
(Main harness) for short or openSAT645J

TROUBLE DIAGNOSES FOR SYMPTOMS
AT-263
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
4.CHECK OVERDRIVE CONTROL SWITCH CIRCUIT (WITHOUT CONSULT-II)
Without CONSULT-II
1. Turn ignition switch to “ON” position.
(Do not start engine.)
2. Check voltage between TCM terminal 22 and ground when overdrive control switch is “ON” and “OFF”.
OK or NG
OK >> GOTO6
NG >> Check the following items:
lOverdrive control switch (Refer to “Component Inspection”,AT-265, "COMPONENT INSPEC-
TION".)
lHarness for short or open between TCM and overdrive control switch (Main harness)
lHarness of ground circuit for overdrive control switch (Main harness) for short or open Vo l ta g e :
Switch position “ON” :
Battery voltage
Switch position “OFF” :
1V or less
SCIA0778E

AT-264
[EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS
5.CHECK THROTTLE POSITION SENSOR* CIRCUIT (WITH CONSULT-II)
*:This sensor meaus accelerator pedal position (app) sensor.
With CONSULT-II
1. Refer to "SELF-DIAGNOSTIC PROCEDURE (With CONSULT-II)",AT-273, "
Diagnostic Procedure Without
CONSULT-II".—Except for Euro-OBD/Refer to "TCM SELF-DIAGNOSTIC PROCEDURE (With CON-
SULT-II)",AT - 5 1 , "
TCM SELF-DIAGNOSTIC PROCEDURE (NO TOOLS)"—Euro-OBD
2. Turn ignition switch to "ON" position.
(Do not start engine.)
3. Select "TCM INPUT SIGNALS" in "DATA MONITOR "mode for "A/T with CONSULT-II.
4. Read out "THRTL POS SEN" sensor" depressing and releasing acclerator pedal.
Check the signal of throttle position sensor is indicated properly.
OK or NG
OK >> GOTO7
NG >> Check the following items:
lThrottle position sensor — Refer to “Component Inspection”,AT-453, "Installation".
lHarness for short or open between ignition switch and throttle position sensor (Main harness)
lHarness for short or open between throttle position sensor and TCM (Main harness)
SAT014K
SAT614J
