NISSAN X-TRAIL 2003 Service Repair Manual

HO2S2
EC-793
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

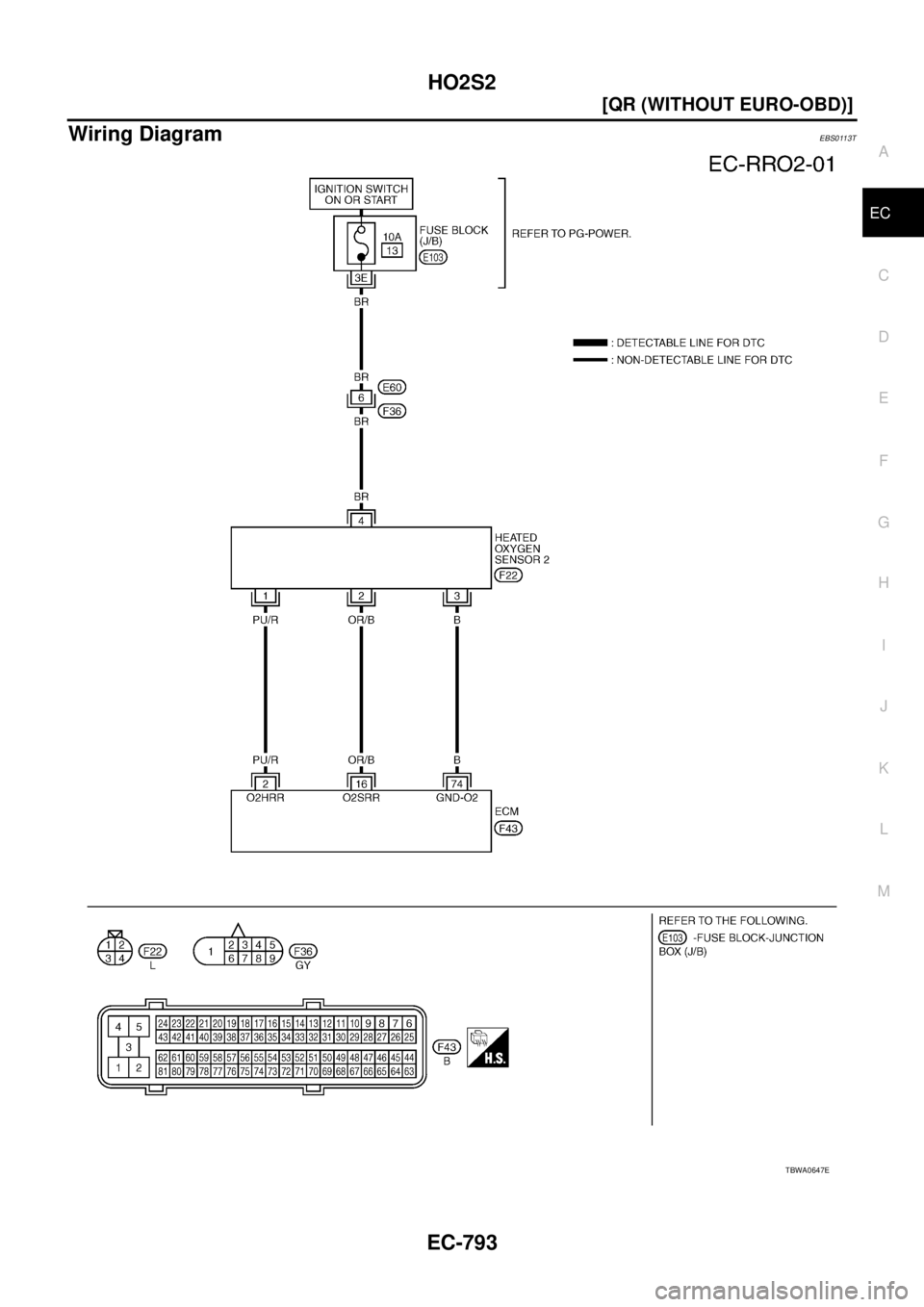

Wiring DiagramEBS0113T
TBWA0647E

EC-794
[QR (WITHOUT EURO-OBD)]
HO2S2

Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureEBS0113U
1. CHECK OVERALL FUNCTION-I
1. Start engine and warm it up to the normal operating temperature.
2. Turn ignition switch OFF and wait at least 10 seconds.
3. Start engine and keep the engine speed between 3,500 and 4,000 rpm for at least 1 minute under no load.
4. Let engine idle for 1 minute.
5. Set voltmeter probes between ECM terminal 16 (HO2S2 signal) and ground.
6. Check the voltage while revving up to 4,000 rpm under no load
at least 10 times. (Depress and release the accelerator pedal as
quickly as possible.)
OK or NG
OK >>INSPECTION END
NG >> GO TO 2.
2. CHECK OVERALL FUNCTION-II
Keep engine at idle for 10 minutes, then check the voltage between ECM terminal 16 (HO2S2 signal) and
ground, or check voltage when coasting 80 km/h (50 MPH) in 3rd gear (M/T) or D position (A/T) with “OD”
OFF.
OK or NG
OK >>INSPECTION END
NG >> GO TO 3.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
16 OR/B Heated oxygen sensor 2[Engine is running]

Warm-up condition

Revving engine from idle to 3,000 rpm quickly
after the following conditions are met
–Keeping the engine speed between 3,500 and
4,000 rpm for 1 minute and at idle for 1 minute
under no load0 - Approximately 1.0V
74 BSensor ground
(Heated oxygen sensor)[Engine is running]

Warm-up condition

Idle speedApproximately 0V
The voltage does not remain in the range of 0.2 - 0.4V
MBIB0020E
The voltage does not remain in the range of 0.2 - 0.4V

HO2S2
EC-795
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

3. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten ground three screws on the body.
Refer to EC-578, "
Ground Inspection" .
OK or NG
OK >> GO TO 4.
NG >> Repair or replace ground connections.
4. CHECK HO2S2 GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect heated oxygen sensor 2 harness connector.
3. Disconnect ECM harness connector.
4. Check harness continuity between ECM terminal 74 and HO2S2
terminal 3.
Refer to Wiring Diagram.
5. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors.
PBIB2021E
Continuity should exist.
PBIB0500E

EC-796
[QR (WITHOUT EURO-OBD)]
HO2S2

5. CHECK HO2S2 INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal 16 and HO2S2 terminal 2.
Refer to Wiring Diagram.
2. Check harness continuity between ECM terminal 16 or HO2S2 terminal 2 and ground.
Refer to Wiring Diagram.
3. Also check harness for short to power.
OK or NG
OK >> GO TO 6.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
6. CHECK HEATED OXYGEN SENSOR 2
Refer to EC-796, "
Component Inspection" .
OK or NG
OK >> GO TO 7.
NG >> Replace heated oxygen sensor 2.
7. CHECK INTERMITTENT INCIDENT
Refer to EC-570, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Component InspectionEBS0113V
HEATED OXYGEN SENSOR 2
With CONSULT-II
1. Start engine and warm it up to the normal operating temperature.
2. Turn ignition switch OFF and wait at least 10 seconds.
3. Start engine and keep the engine speed between 3,500 and 4,000 rpm for at least 1 minute under no load.
4. Let engine idle for 1 minute.
5. Select “FUEL INJECTION” in “ACTIVE TEST” mode, and select
“HO2S2 (B1)” as the monitor item with CONSULT-II.Continuity should exist.
Continuity should not exist.
SEF662Y

HO2S2
EC-797
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

6. Check “HO2S2 (B1)” at idle speed when adjusting “FUEL INJECTION” to ±25%.
“HO2S2 (B1)” should be above 0.68V at least once when the “FUEL INJECTION” is +25%.
“HO2S2 (B1)” should be below 0.50V at least once when the “FUEL INJECTION” is −25%.
CAUTION:

Discard any heated oxygen sensor which has been dropped from a height of more than 0.5 m (19.7
in) onto a hard surface such as a concrete floor; use a new one.

Before installing new oxygen sensor, clean exhaust system threads using Oxygen Sensor Thread
Cleaner tool J-43897-18 or J-43897-12 and approved anti-seize lubricant.
Without CONSULT-II
1. Start engine and warm it up to the normal operating temperature.
2. Turn ignition switch OFF and wait at least 10 seconds.
3. Start engine and keep the engine speed at between 3,500 and 4,000 rpm for at least 1 minute under no
load.
4. Let engine idle for 1 minute.
5. Set voltmeter probes between ECM terminal 16 (HO2S2 signal) and ground.
6. Check the voltage when revving up to 4,000 rpm under no load
at least 10 times.
(Depress and release accelerator pedal as soon as possible.)
The voltage should be above 0.68V at least once during this
procedure.
If the voltage is above 0.68V at step 6, step 7 is not neces-
sary.
7. Keep vehicle idling for 10 minutes, then check voltage. Or check
the voltage when coasting from 80 km/h (50 MPH) in D position
with “OD” OFF (A/T). 3rd gear position (M/T).
The voltage should be below 0.50V at least once during this
procedure.
8. If NG, replace heated oxygen sensor 2.
CAUTION:

Discard any heated oxygen sensor which has been dropped from a height of more than 0.5 m (19.7
in) onto a hard surface such as a concrete floor; use a new one.

Before installing new oxygen sensor, clean exhaust system threads using Oxygen Sensor Thread
Cleaner tool J-43897-18 or J-43897-12 and approved anti-seize lubricant.
Removal and InstallationEBS0113W
HEATED OXYGEN SENSOR 2
Refer to EX-2, "EXHAUST SYSTEM" .
PBIB0551E
MBIB0020E

EC-798
[QR (WITHOUT EURO-OBD)]
IGNITION SIGNAL

IGNITION SIGNALPFP:22448
Component DescriptionEBS0113X
IGNITION COIL & POWER TRANSISTOR
The ignition signal from the ECM is sent to and amplified by the
power transistor. The power transistor turns ON and OFF the ignition
coil primary circuit. This ON/OFF operation induces the proper high
voltage in the coil secondary circuit.
PBIB1969E

IGNITION SIGNAL
EC-799
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

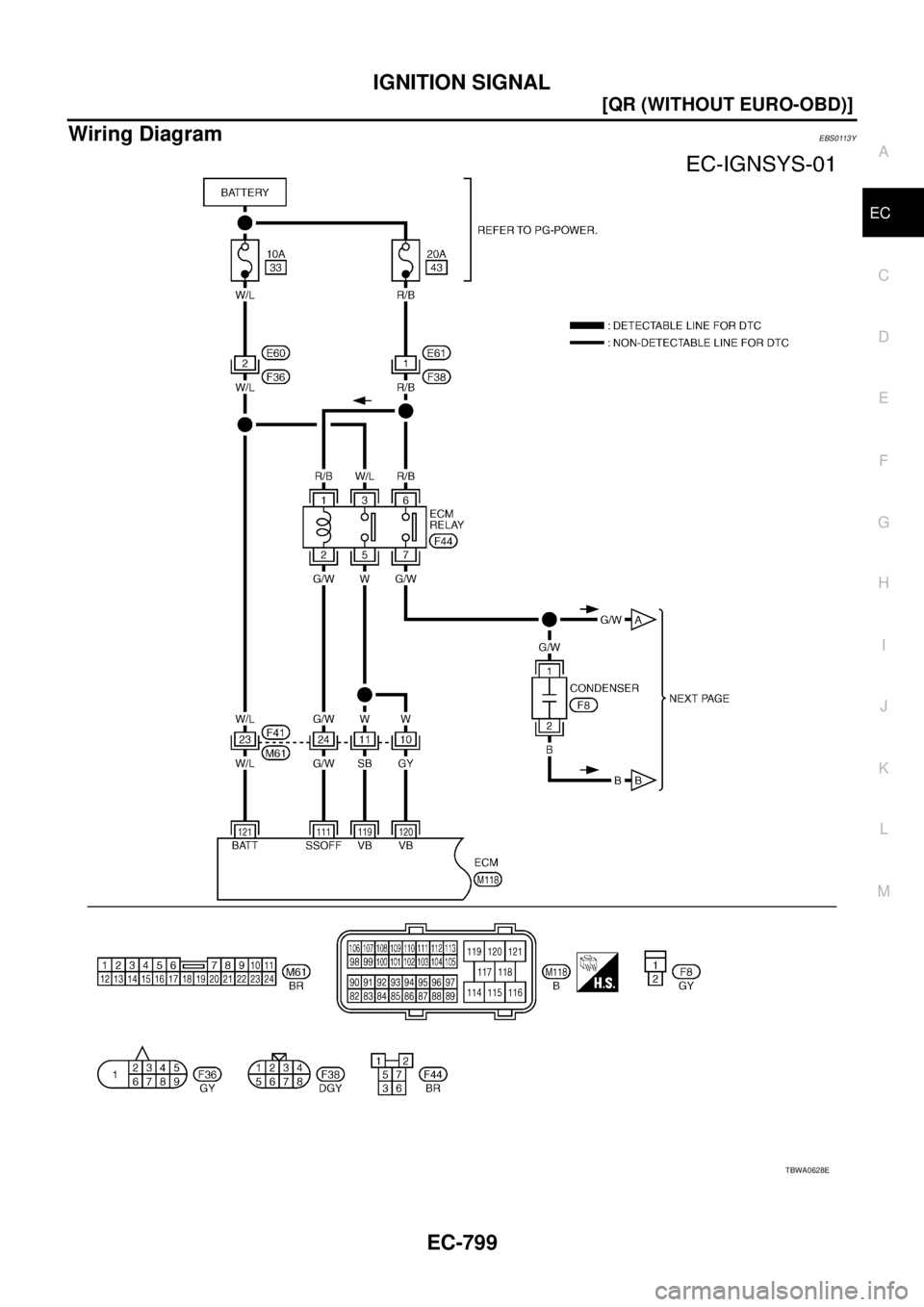

Wiring DiagramEBS0113Y
TBWA0628E

EC-800
[QR (WITHOUT EURO-OBD)]
IGNITION SIGNAL

Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
TERMI-
NAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
111 G / WECM relay
(Self shut-off)[Engine is running]
[Ignition switch: OFF]

For a few seconds after turning ignition
switch OFF0 - 1.0V
[Ignition switch: OFF]

More than a few seconds after turning igni-
tion switch OFFBATTERY VOLTAGE
(11 - 14V)
11 9
120SB
GYPower supply for ECM[Ignition switch: ON]BATTERY VOLTAGE
(11 - 14V)
121 W/LPower supply for ECM
(Back-up)[Ignition switch: OFF]BATTERY VOLTAGE
(11 - 14V)

IGNITION SIGNAL
EC-801
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

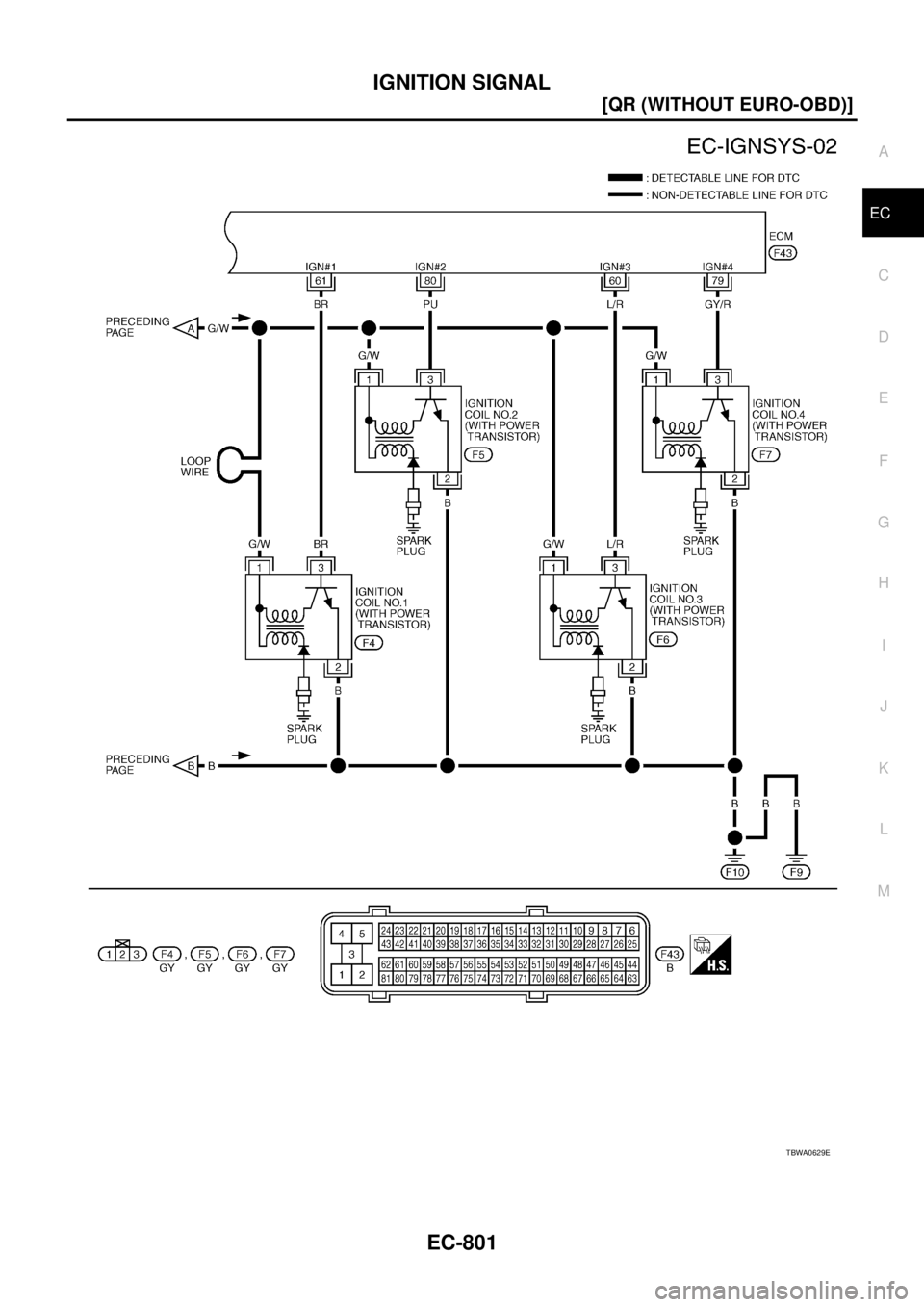

TBWA0629E

EC-802
[QR (WITHOUT EURO-OBD)]
IGNITION SIGNAL

Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
Diagnostic ProcedureEBS0113Z
1. CHECK ENGINE START
Turn ignition switch OFF, and restart engine.
Is engine running?
Ye s o r N o
Yes (With CONSULT-II)>>GO TO 2.
Yes (Without CONSULT-II)>>GO TO 3.
No >> GO TO 4.
2. CHECK OVERALL FUNCTION
With CONSULT-II
1. Perform “POWER BALANCE” in “ACTIVE TEST” mode with
CONSULT-II.
2. Make sure that each circuit produces a momentary engine
speed drop.
OK or NG
OK >>INSPECTION END
NG >> GO TO 12.
TERMI-
NAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
60
61
79
80L/R
B/R
GY/R
PUIgnition signal No. 3
Ignition signal No. 1
Ignition signal No. 4
Ignition signal No. 2[Engine is running]

Warm-up condition

Idle speed
NOTE:
The pulse cycle changes depending on rpm at
idle0 - 0.1V
[Engine is running]

Warm-up condition

Engine speed is 2,000 rpm0 - 0.2V
PBIB0521E
PBIB0522E
PBIB0133E
