Weights, payload and roof load
The payload is the difference between the
permissible Gross Vehicle Weight (see
vehicle identification plate on page 215)
and the EC kerb weight.
To calculate the EC kerb weight, enter the
data from your vehicle below:
is the EC kerb weight.
Optional equipmen t and accessories
increase the kerb weight and in some cases
also the permissible Gross Vehicle Weight,
which means that the payload will also
change slightly.
Note the weights given on the vehicle
identification plate. The combined total of front and rear axle
loads must not exceed the permissible
Gross Vehicle Weight. For example, if the
front axle load is being fully utilized, the
rear axle can only bear a load that is equal
to the Gross Vehicle Weight minus the front
axle load.
See the vehicle identi
fication plate on
page 215 or the vehicle documents for
permissible axle loads. Roof load
The maximum permissible roof load
is 100 kg.
The roof load is the combined weight of the
roof rack and the load.
Driving hints – page 127.
Roof racks, caravan and trailer towing -
see page 153, 167.
z
Kerb weight from
page 222 + ............. kg
z Weight of heavy
accessories + ............. kg
The total = ............. kg
Page 222 of 234
222 Technical data
Weights
(kg), Kerb weights
ModelEngine1)
1)Sales designation - see page 217.
Kerb weight2)3)
Manual transmission
2)The Gross Train Weight (GTW), along with the Gross Vehicle Weight (GVW) are shown on the VIN plate - see page 215.3)With driver (75kg) and all fluids (tank 90% full).
Kerb weight3)
Automatic transmission
Enjoy/Edition Z 24 XE 1805 -
Z 32 SE - 1845
Z 20 DMH 1845 1865
Z 20 DM 1845 -
Cosmo Z 24 XE 1805 -
Z 32 SE - 1845
Z 20 DMH 1845 1865
Z 20 DM 1845 -
Page 223 of 234
Technical data223
Tyres
Restrictions
Not all tyres available on the market
currently meet the structural requirements.
We recommend that you consult an Opel
Partner concerning su itable tyre makes.
These tyres have undergone special tests
to establish their reliability, safety and
specific suitability for Opel vehicles.
Despite continuous market monitoring, we
are unable to assess these attributes for
other tyres, even if they have been granted
approval by the relevant authorities or in
some other form.
Further information - see page 149.
Winter tyres 3
Tyres of size 235/55 R 18 are not to be used
as winter tyres. Tyres of size 215/70 R 16,
235/60 R 17 and 235/65 R 17 may be used
as winter tyres.
Use of the spare wheel may alter vehicle
handling. Obtain a replacement for the
faulty tyre as soon as possible, and have
the wheel balanced and fitted to the
vehicle.
Further information - see page 152.
Tyre chains
Restrictions
We recommend the use of Opel-tested
fine-mesh tyre chains that add no more
than 15 mm to the tyre tread and the
inboard sides (including chain lock).
Tyre chains are permitted only on tyres of
size 215/70 R 16. We recommend you
consult your Opel Partner.
Further information - see page 152.
Wheels
Wheel nut tightening torque: 125 Nm.
Page 224 of 234
224 Technical data
Tyre pressures in kPa/bar
The tyre pressures given are valid for cold
tyres. The increased tyre pressure resulting
from extensive driving must not be
reduced.
The tyre pressures specified apply to both
summer and winter tyres.
Always inflate the spare wheel to the tyre
pressure for full load.
Further information - see pages 149 to 153. Tyre pressure for load of
up to 4 persons
Tyre pressure for full load
Engine
1)
1)Sales designation - see page 217.
Tyres Front Rear Front Rear
Z 24 XE,
Z 20 DMH,
Z 20 DM 215/70 R 16,
235/60 R 17,
235/65 R 17,
235/55 R 18 210/2.1 210/2.1 230/2.3 240/2.4
Z 32 SE 215/70 R 16
2),
235/60 R 17,
235/65 R 17,
235/55 R 18
2)Only permitted as winter tyres.
210/2.1 210/2.1 230/2.3 240/2.4
All T 155/90 R 16 (temporary
spare)
3)
3)For notes on the temporary spare wheel - see pages 153, 178.
410/4.1 410/4.1 410/4.1 410/4.1
Page 225 of 234
Technical data 225
Electrical system
Capacities
(approx. in litres) Engine
1)
1)Sales designation - see page 217.
Z 24 XE Z 32 SE Z 20 DMH Z 20 DM
B a tte ry V olt a g e1 2 V1 2 V1 2 V1 2 V
Amp hours 60 Ah70 Ah90 Ah90 Ah
Battery for radio frequency
remote control CR 2032 or
equivalentCR 2032 or
equivalentCR 2032 or
equivalentCR 2032 or
equivalent
Engine
1)
1)Sales designation - see page 217.
Z 24 XE Z 32 SE Z 20 DMH Z 20 DM
Engine coolant 9.010.09.09.0
Fuel tank 65656565
Engine oil with filter change 4.77.4 6.26.2
Engine oil between MIN and MAX on dipstick 1.0 1.01.01.0
Washer fluid reservoir for windscreen and tailgate
washer system 4.0
4.04.04.0
Washer fluid reservoir for windscreen, headlamp
and tailgate washer system 6.7
6.76.76.7
Page 226 of 234
226 Technical data
Dimensions
Overall length (mm)4576
Width (mm) 1850
Overall height with roof rails (mm) 1747
Wheelbase (mm) 2707
Track width (mm): Front
Rear 1562
1572
Turning circle diameter, wall to wall (m) 12.78
Maximum wading depth (mm)
(at 5 km/h (3 mph)) 450
Approach angle 24°
Ramp angle 17.6°
Departure angle 23°
Page 227 of 234
Technical data 227

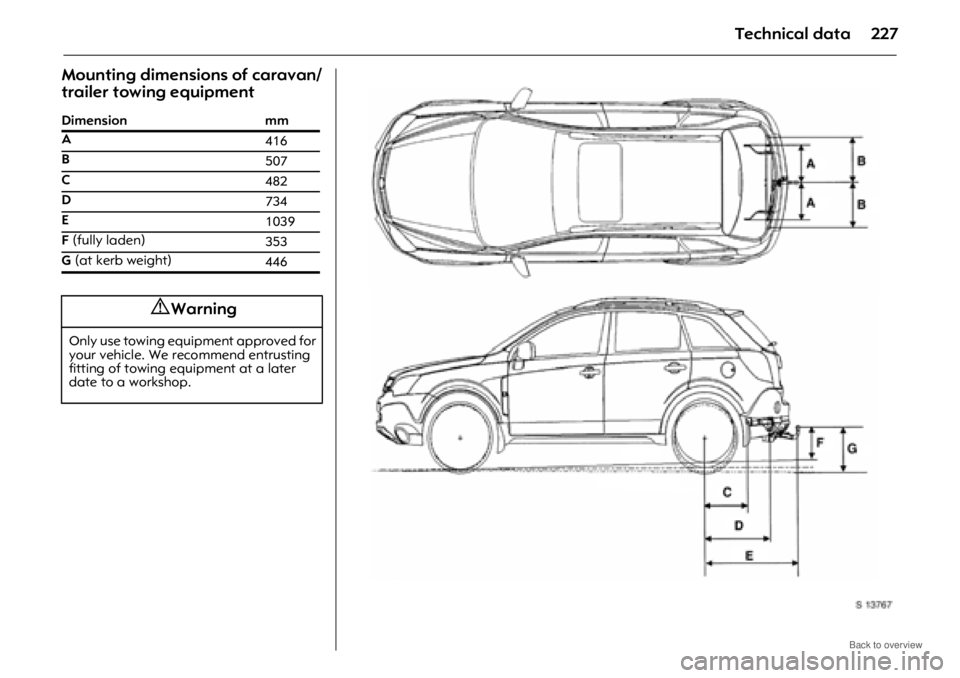

Mounting dimensions of caravan/
trailer towing equipment
Dimension mm
A 416
B 507
C 482
D 734
E 1039
F (fully laden)
353
G (at kerb weight)
446
9 Warning
Only use towing equipment approved for
your vehicle. We recommend entrusting
fitting of towing equipment at a later
date to a workshop.
Page 228 of 234
