technical data PEUGEOT 206 2002 Owners Manual

TECHNICAL DATA
138
PETROL
Models2CHFX 2CK6D 2CKFW 2CNFU 2ANFU 2CRFN
Model codes 2AHFX 2AK6D 2AKFW 2HNFU 2ENFU 2ARFN
2SHFX 2EKFW 2KNFU 2ERFN 2EHFX
ENGINES 1.1 litre 1.4 litre 1.4 litre 1.6 litre 16V 2 litre 16V Cubic capacity (cm 3
) 1 124 1 360 1 360 1 587 1 997
Bore x stroke (mm) 72 x 69 75 x 77 75 x 77 78,5 x 82 85 x 88
EU standard maximum power (kW) 44,1 55 55 80 100
Maximum power at engine speed (rpm) 5 500 5500 5500 5 800 6 000
EU standard maximum torque (Nm) 94 118 120 147 190
Maximum torque at engine speed (rpm) 2 700 2 800 2 800 4000 4 100Fuel Unleaded Leaded Unleaded Unleaded Unleaded
Catalytic converter Yes No Yes Yes Yes Gearbox Manual Manual Manual Automatic Manual Automatic Manual
(5 speed) (5 speed) (5 speed) (4 speed) (5 speed) (4 speed) (5 speed)
Oil capacity (in litres) Engine (with cartridge replacement) 3,2 (2) - 3,4 (3) 3 (2) - 3,25 (3) 3 (2) - 3,25 (3) 3 (2) - 3,25 (3)3,2 (2) - 3,4 (3) 3,2 (2) - 3,4 (3) 4,25
Gearbox-Final drive 2 2 2 _ 2 _ 1,9
ENGINES AND GEARBOXES
(2) Draining by gravity - (3) Draining by suction
17-06-2002

TECHNICAL DATA139
DIESEL
2C8HX 2CWJY
Models 2A8HX 2AWJY 2CRHY 2ERHY 2CRHYU
Model codes 2S8HX 2SWJY 2ARHY 2KRHY 2ARHYU 2E8HX 2TWJY 2HRHY
ENGINES 1.4 litre Turbo HDI1.9 litre 2 litre Turbo HDI
2 litre Turbo HDI (ECO)
Cubic capacity (cm3
) 1 398 1 867 1 997 1 997
Bore x stroke (mm) 73,7 x 82 82,2 x 88 85 x 88 85 x 88
EU standard maximum power (kW) 50 51 66 66
Maximum power at engine speed (rpm) 4 000 4 600 4 000 4 000
EU standard maximum torque (Nm) 150 125 205 205
Maximum torque at engine speed (rpm) 1 750 2 500 1 900 1 900Fuel Diesel Diesel Diesel Diesel
Catalytic converter Yes Yes Yes Yes Gearbox Manual Manual Manual Manual
(5 speed) (5 speed) (5 speed) (5 speed)
Oil capacity (in litres)
Engine (with cartridge replacement) 3,8 4,8 4,5 4,5
Gearbox-Final drive 2 1,9 1,9 1,9
ENGINES AND GEARBOXES
17-06-2002

TECHNICAL DATA
140
SALOON CONSUMPTION
Fuel consumption values correct at time of printing.
In accordance with directive 99/100 in M.P.G. (litres/100 km)
Engine Gearbox Model Urban driving Inter- Mixed Emission of codes urban CO 2 by weight
g/Km
1.1 litre Manual HFXF 8,2 5 6,2 148
1.1 litre Manual HFXU / A 8,4 5,2 6,3 151
1.4 litre Manual K6D2 9,4 5,5 7 162
1.4 litre Manual KFWF 8,4 5 6,3 149 KFWA 8,5 5,2 6,3 151
1.4 litre Automatic KFWR 9,5 5,4 6,9 165
1.6 litre 16V Manual NFUF 8,6 5,1 6,4 153 HNFUF 8,7 5,7 6,8 161
1.6 litre 16V Automatic NFUR 9,9 5,5 7,1 171 HNFUR 10,2 5,8 7,5 179
2 litre 16V Manual RFNF 10,7 6,1 7,7 185
1.4 litre Turbo HDI Manual 8HXF 5,5 3,6 4,3 113
1.9 litre Diesel Manual WJYF 7,4 4,4 5,5 144 WJYU 7,8 4,6 5,8 153
2 litre Turbo HDI Manual RHYF 6,6 4,1 5 136 HRHYF 6,9 4,4 5,3 144
2 litre Turbo HDI (ECO)Manual RHYU 5,8 3,8 4,5 120
17-06-2002

TECHNICAL DATA141
206 SW CONSUMPTION
In accordance with directive 99/100 In M.P.G. (litres/100 km)
Engine Gearbox Model Urban Inter- Mixed Emission of codes driving urban CO 2 by weight
g/Km
1.1 litre Manual 2EHFXF Ñ Ñ Ñ Ñ
1.4 litre Manual 2EKFWF 8,5 5,2 6,4 153 2EKFWA 8,5 5,2 6,4 153
1.6 litre 16V Manual 2ENFUF 8,6 5,1 6,4 153 2KNFUF 8,7 5,5 6,7 159
1.6 litre 16V Automatic 2ENFUR 9,9 5,5 7,1 171 2KNFUR 10,2 5,8 7,5 179
2 litre 16V Manual 2ERFNF Ñ Ñ Ñ Ñ
1.4 litre Turbo HDI Manual 2E8HXF 5,6 3,8 4,4 117
2 litre Turbo HDI Manual 2ERHYF 6,8 4,1 5,1 138 2KRHYF 6,9 4,4 5,3 144
Fuel consumption values correct at time of printing.17-06-2002

TECHNICAL DATA
142
3 and 5 DOOR
Engine
1.1 litre 1.4 litre 1.4 litre 1.6 litre 16V 1.6 litre 16V 2 litre 16V
GearboxManual Manual Automatic Manual Automatic Manual
Model codes: HFX KFWF / A KFWR NFUF NFUR RFN K6D
¥ Kerb weight 985 1 025 1 055 1 100 1 055 1 125
¥ Gross vehicle weight (GVW) 1 405 1 450 1 480 1 567 1 614 1 560
¥ Gross train weight (GTW)* 1 920 2 365 2 395 2 467 2 504 2 475
¥ Unbraked trailer 485 510 525 550 550 560
¥ Braked trailer (within GTW) 700 1100 1 100 1 100 1 100 1 100
WEIGHTS AND TOWING LOADS (IN KG) * In the case of a towing vehicle, the speed is limited to 60 mph (100 km/h).
3 and 5 DOOR VANS
Engine
1.4 litre HDI 1.9 litre D 2 litre HDI2 l. HDI (ECO)1.1 litre 1.4 litre HDI 1.9 litre D
GearboxManual Manual Manual Manual Manual Manual Manual
Model codes: 8HX WJY RHY RHYU HFXU 2S8HXF WJYU 2SHFX 2SWJY
¥ Kerb weight 1 061 1 084 1 145 1 145 900 1 049 1 000
¥ Gross vehicle weight (GVW) 1 525 1 525 1 585 1 585 1 405 1 525 1 525
¥ Gross train weight (GTW)* 2 425 2 440 2 500 2 500 1 920 2 425 2 440
¥ Unbraked trailer 530 540 570 500 485 524 540
¥ Braked trailer (within GTW) 1 100 1 100 1 100 1 100 700 1 100 1 100
17-06-2002

TECHNICAL DATA143

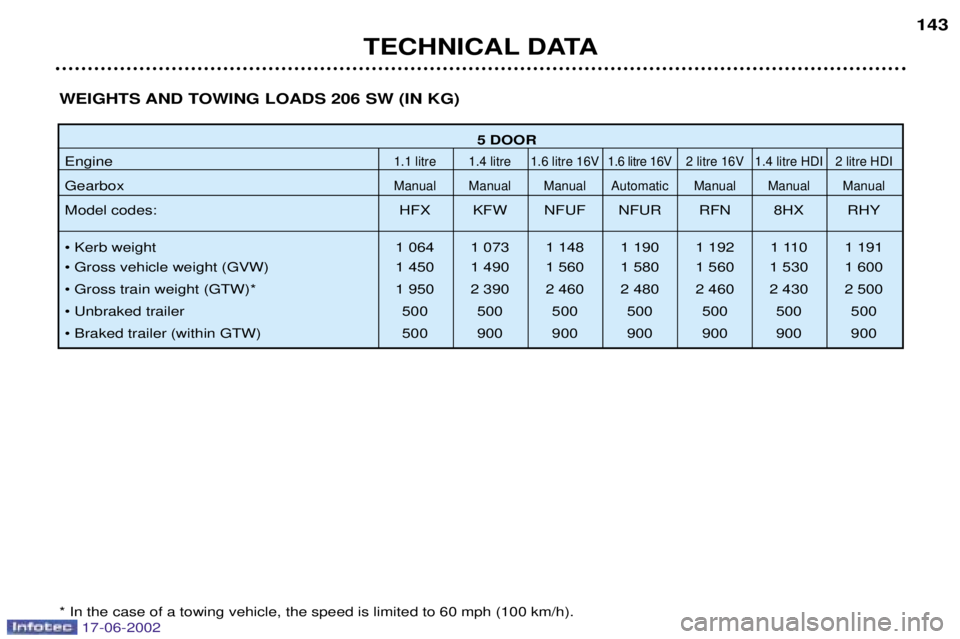

5 DOOR
Engine
1.1 litre 1.4 litre 1.6 litre 16V 1.6 litre 16V 2 litre 16V 1.4 litre HDI 2 litre HDI
GearboxManual Manual Manual Automatic Manual Manual Manual
Model codes: HFX KFW NFUF NFUR RFN 8HX RHY
¥ Kerb weight 1 064 1 073 1 148 1 190 1 192 1 110 1 191
¥ Gross vehicle weight (GVW) 1 450 1 490 1 560 1 580 1 560 1 530 1 600
¥ Gross train weight (GTW)* 1 950 2 390 2 460 2 480 2 460 2 430 2 500
¥ Unbraked trailer 500 500 500 500 500 500 500
¥ Braked trailer (within GTW) 500 900 900 900 900 900 900
WEIGHTS AND TOWING LOADS 206 SW (IN KG) * In the case of a towing vehicle, the speed is limited to 60 mph (100 km/h).
17-06-2002

TECHNICAL DATA
144
SALOON DIMENSIONS (3 AND 5 DOOR VERSIONS) 206 SW DIMENSIONS
17-06-2002

TECHNICAL DATA145
THE IDENTIFICATION FEATURES OF YOUR 206
A. Manufacturer's plate
B. Serial number on the bodywork.
C. Serial number on the fascia.
D. Tyres and paint reference. The label Don the driver's centre door pillar, near the hinges, gives:
Ð the wheel and tyre sizes,
Ð the brands of tyres approved by the manufacturer,
Ð the tyre pressures: (checking of the tyre pressure must be carried out cold, at least every month).
Ð the paint colour reference.
E. Engine settings* under the bonnet.
F. Fuel consumption* in the corner of the windscreen. * According to destination.
Saloon206 SW
17-06-2002
