Peugeot 206 CC 2003 Owner's Guide

30-06-2003
INSTRUMENTS AND CONTROLS31
HAZARD WARNING LIGHTS
Press the button, the direction indi- cators flash. They can operate with the ignition
off. Automatic lighting of hazard warning lights*
When braking in an emergency, depending on the force of decelera-tion, the hazard warning lights come
on automatically. They switch offautomatically the first time youaccelerate.
It is also possible to switch them off by pressing the button.
* According to destination.
Total distance recorder Briefly pressing button
1alternates
between the total distance and trip distance displays.
To reset the trip recorder to zero, when it is displayed press and holdthe reset button for just over 3 sec-onds. Lighting rheostat With the lights on, press the button to vary the intensity of the lighting ofthe instruments and controls. Whenthe lighting reaches the minimum (ormaximum) setting, release the but-ton then press it again to increase(or reduce) the brightness. As soon as the lighting is of the required brightness, release the but-ton.

30-06-2003
YOUR 206 CC IN DETAIL
32Setting the parameters Press button 1for two seconds to access the settings. The information flashes
to show it is ready to be modified.Then, individual presses on button 1allow you to scroll through the various data
in the following sequence:
Ð language in which the information is displayed,
Ð unit of distance (kms or miles),
Ð unit of temperature (degrees Celsius or Fahrenheit),
Ð time format (12 then 24 hour mode),
Ð hour,
Ð minutes,
Ð year,
Ð month,
Ð day.Pressing button 2allows you to change the information selected. Maintain the
pressure for rapid scrolling.After 7 seconds without operation, the screen returns to the main display and the modified data is recorded.
DISPLAY B This enables the following informa- tion to be displayed:
Ð the time,
Ð the date,
Ð the outside temperature (this flashes when there is a risk of ice),
Ð the radio displays,
Ð the status of the doors. The dis- play shows you, by means of a graphic, whether a door is open.
Ð the warning messages (e.g. ''bat-
tery charge low'') or information
messages (e.g. "fuel tank low''),
displayed temporarily, can becleared by pressing button 1or 2,
Ð the trip computer.

30-06-2003
YOUR 206 CC IN DETAIL
33
DISPLAY C This enables the following informa- tion to be displayed:
Ð the time,
Ð the date,
Ð the outside temperature (thisflashes when there is a risk of ice),
Ð the radio displays,
Ð the status of the doors. The dis- play shows you, by means of a graphic, whether a door is open, Ð the warning messages are displayed temporarily (e.g. "low fuel level") and can
be cleared using the remote control,
Ð the trip computer (see corresponding section),
Ð the satellite navigation system (see corresponding section). Setting the parameters
The remote control allows you to access the settings. Accessing the different menus is described in the section "Satellite Navigation System".

30-06-2003
YOUR 206 CC IN DETAIL
34

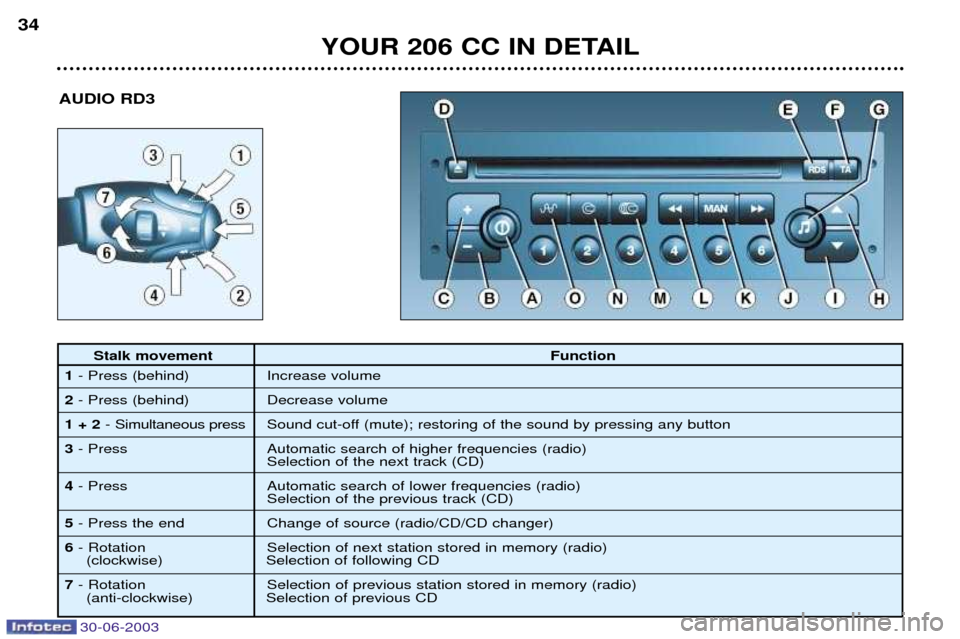

AUDIO RD3
Stalk movementFunction
1 - Press (behind) Increase volume
2 - Press (behind) Decrease volume
1 + 2 - Simultaneous press Sound cut-off (mute); restoring of the sound by pressing any button
3 - Press Automatic search of higher frequencies (radio)
Selection of the next track (CD)
4 - Press Automatic search of lower frequencies (radio)
Selection of the previous track (CD)
5 - Press the end Change of source (radio/CD/CD changer)
6 - Rotation Selection of next station stored in memory (radio)
(clockwise) Selection of following CD
7 - Rotation Selection of previous station stored in memory (radio)
(anti-clockwise) Selection of previous CD

30-06-2003
YOUR 206 CC IN DETAIL
35

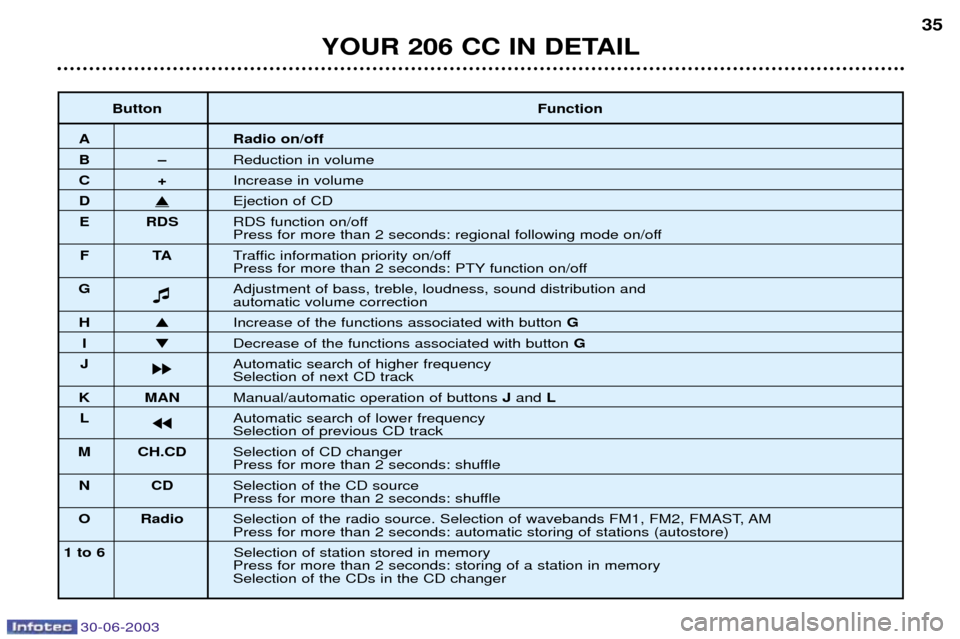

ButtonFunction
A Radio on/off
BÐReduction in volume
C+Increase in volume
DEjection of CD
E RDS RDS function on/off
Press for more than 2 seconds: regional following mode on/off
FT ATraffic information priority on/off
Press for more than 2 seconds: PTY function on/off
G Adjustment of bass, treble, loudness, sound distribution and
automatic volume correction
H
Increase of the functions associated with button G
I Decrease of the functions associated with button G
J kk Automatic search of higher frequency
Selection of next CD track
K MAN
Manual/automatic operation of buttons Jand L
L jj Automatic search of lower frequency
Selection of previous CD track
M CH.CD Selection of CD changer
Press for more than 2 seconds: shuffle
NC DSelection of the CD source
Press for more than 2 seconds: shuffle
O Radio Selection of the radio source. Selection of wavebands FM1, FM2, FMAST, AM
Press for more than 2 seconds: automatic storing of stations (autostore)
1 to 6 Selection of station stored in memory
Press for more than 2 seconds: storing of a station in memory Selection of the CDs in the CD changer

30-06-2003
YOUR 206 CC IN DETAIL
36
GENERAL FUNCTIONS On/off With the ignition key in the accessories or ignition position, press button Ato switch the set on or off.
The set can operate for 30 minutes without the vehicle ignition being switched on.
Anti-theft systemThe audio system is coded in such a way that it can operate only on your vehicle. It would not function if fitted to anoth- er vehicle. The anti-theft system is automatic and requires no action on your part. ADJUSTING THE VOLUME Press the button Cto increase the volume, or button Bto decrease it.
Continuous pressure on buttons Band Callows a gradual adjustment of the volume.
AUDIO SETTINGS Press button Gseveral times in succession to access the bass (BASS), treble (TREB), loudness (LOUD),
fader (FAD) , balance (BAL)and automatic volume correction settings.
Exit from audio mode is automatic after a few seconds without pressing any button, or by pressing button G
after configuration of the automatic volume correction. Note: bass and treble settings are specific to each source. It is possible to set them differently for radio, CD
or CD changer.

30-06-2003
YOUR 206 CC IN DETAIL37

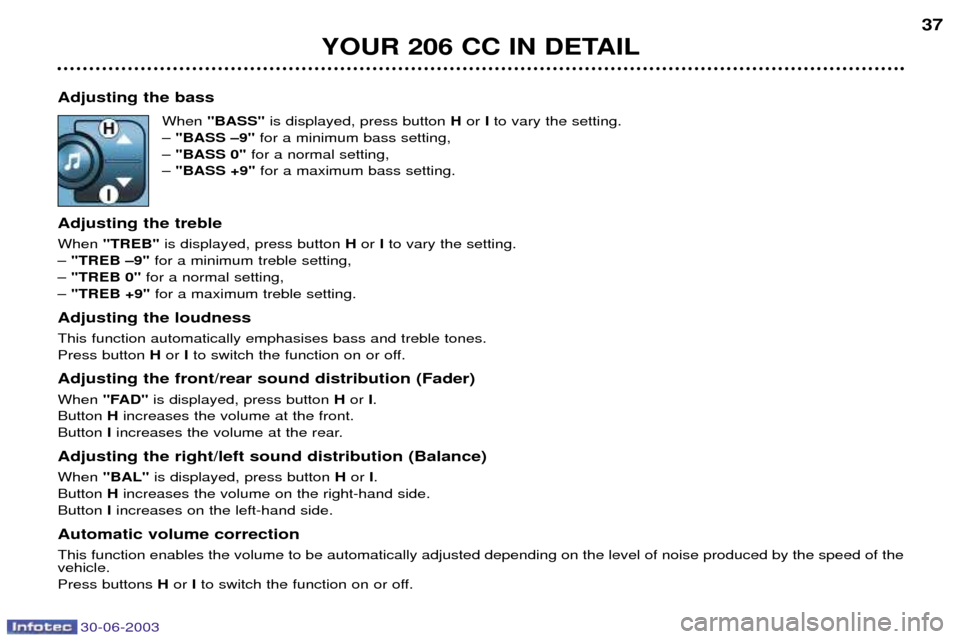

Adjusting the bass When "BASS" is displayed, press button Hor Ito vary the setting.
Ð "BASS Ð9" for a minimum bass setting,
Ð "BASS 0" for a normal setting,
Ð "BASS +9" for a maximum bass setting.
Adjusting the treble When "TREB" is displayed, press button Hor Ito vary the setting.
Ð "TREB Ð9" for a minimum treble setting,
Ð "TREB 0" for a normal setting,
Ð "TREB +9" for a maximum treble setting.
Adjusting the loudnessThis function automatically emphasises bass and treble tones. Press button Hor Ito switch the function on or off.
Adjusting the front/rear sound distribution (Fader) When "FAD" is displayed, press button Hor I.
Button Hincreases the volume at the front.
Button Iincreases the volume at the rear.
Adjusting the right/left sound distribution (Balance)When "BAL" is displayed, press button Hor I.
Button Hincreases the volume on the right-hand side.
Button Iincreases on the left-hand side.
Automatic volume correctionThis function enables the volume to be automatically adjusted depending on the level of noise produced by the speed of the vehicle. Press buttons Hor Ito switch the function on or off.

30-06-2003
YOUR 206 CC IN DETAIL
38
RADIO Notes on radio reception
Your car radio is subject to phenomena which do not affect domestic radio sets. Both AM (MW/LW) and FM reception are
subject to various forms of interference. This is no reflection on the quality of the equipment, but is due to the nature of th e
signals and the way in which they are transmitted.
On MW/LW, interference may be noticed when passing under high voltage power lines or bridges, or in tunnels.
On FM, interference may be the result of increasing distance from the transmitter, deflection of the signals by obstacles
(mountains, hills, buildings etc.), or of being in an area which is not covered by a transmitter. Selecting radio mode

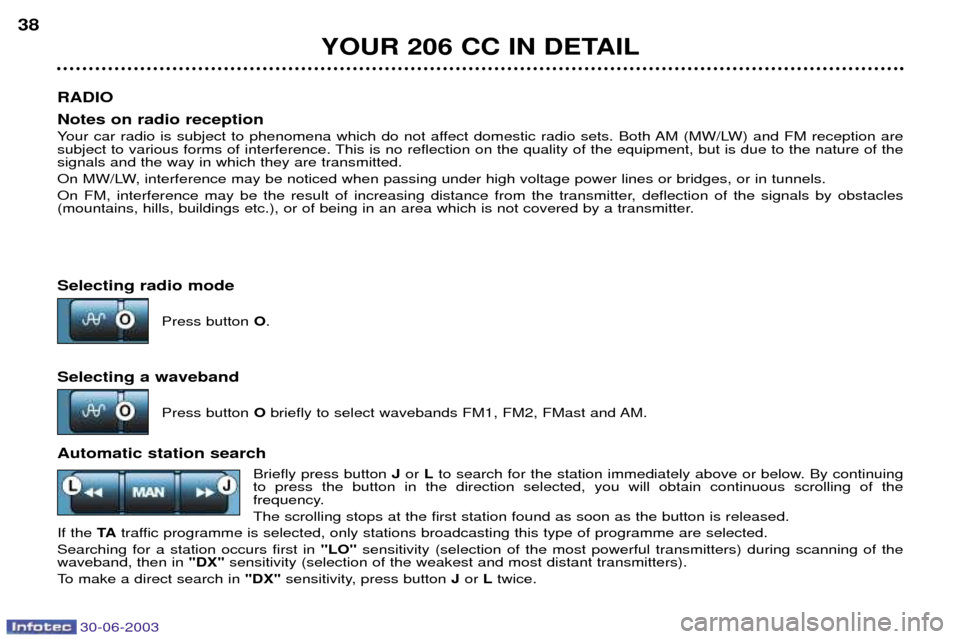

Press button O.
Selecting a waveband Press button Obriefly to select wavebands FM1, FM2, FMast and AM.
Automatic station search Briefly press button Jor Lto search for the station immediately above or below. By continuing
to press the button in the direction selected, you will obtain continuous scrolling of the
frequency. The scrolling stops at the first station found as soon as the button is released.
If the TAtraffic programme is selected, only stations broadcasting this type of programme are selected.
Searching for a station occurs first in "LO"sensitivity (selection of the most powerful transmitters) during scanning of the
waveband, then in "DX"sensitivity (selection of the weakest and most distant transmitters).
To make a direct search in "DX"sensitivity, press button Jor Ltwice.

30-06-2003
YOUR 206 CC IN DETAIL39
Manual station search Press the "MAN" button.
Briefly press button Jor Lto increase or decrease the frequency displayed.
By continuing to press the button in the direction selected, you will obtain continuous scrolling of the frequency. The scrolling stops at the first station found as soon as the button is released.Pressing the "MAN"button again returns you to automatic station search.
Manual storing of stations in the memory Select the station required. Press one of the buttons "1"to "6" for more than two seconds.
The sound stops then becomes audible again, confirming that the station has been stored in the memory. Automatic storing of FM stations in the memory (autostore)

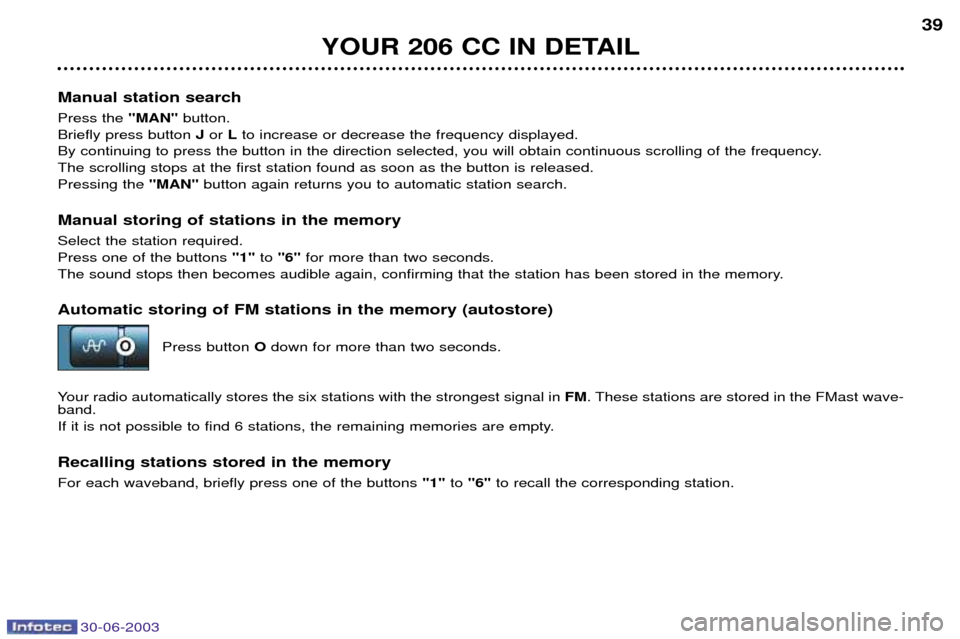

Press button Odown for more than two seconds.
Your radio automatically stores the six stations with the strongest signal in FM. These stations are stored in the FMast wave-
band.
If it is not possible to find 6 stations, the remaining memories are empty. Recalling stations stored in the memory For each waveband, briefly press one of the buttons "1"to "6" to recall the corresponding station.

30-06-2003
YOUR 206 CC IN DETAIL
40

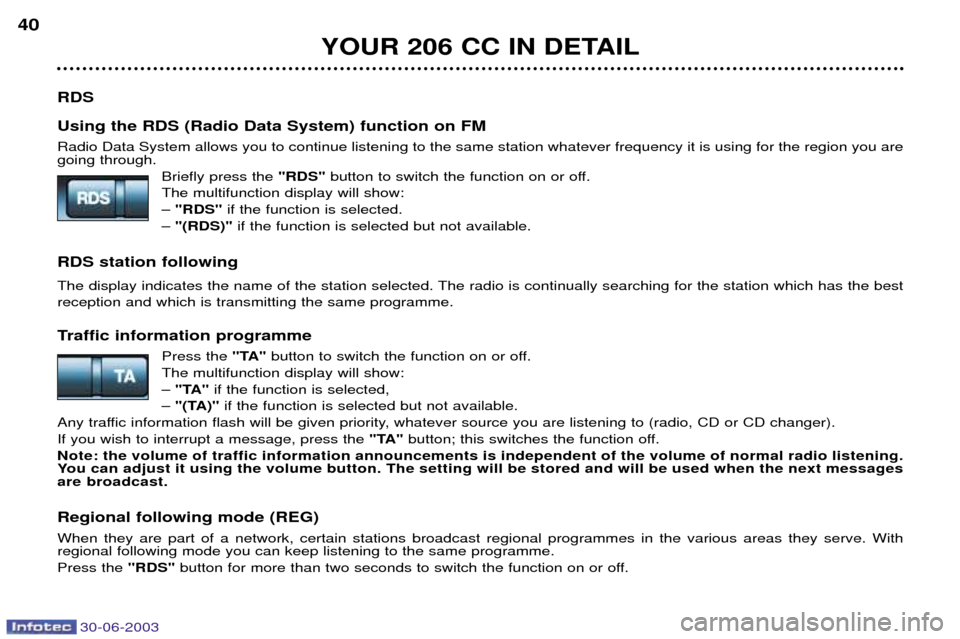

RDS Using the RDS (Radio Data System) function on FM Radio Data System allows you to continue listening to the same station whatever frequency it is using for the region you are going through. Briefly press the "RDS"button to switch the function on or off.
The multifunction display will show: Ð "RDS" if the function is selected.
Ð "(RDS)" if the function is selected but not available.
RDS station following
The display indicates the name of the station selected. The radio is continually searching for the station which has the best reception and which is transmitting the same programme.
Traffic information programme Press the "TA"button to switch the function on or off.
The multifunction display will show: Ð "TA" if the function is selected,
Ð "(TA)" if the function is selected but not available.
Any traffic information flash will be given priority, whatever source you are listening to (radio, CD or CD changer).If you wish to interrupt a message, press the "TA"button; this switches the function off.
Note: the volume of traffic information announcements is independent of the volume of normal radio listening.
You can adjust it using the volume button. The setting will be stored and will be used when the next messagesare broadcast.
Regional following mode (REG) When they are part of a network, certain stations broadcast regional programmes in the various areas they serve. With regional following mode you can keep listening to the same programme. Press the "RDS"button for more than two seconds to switch the function on or off.
