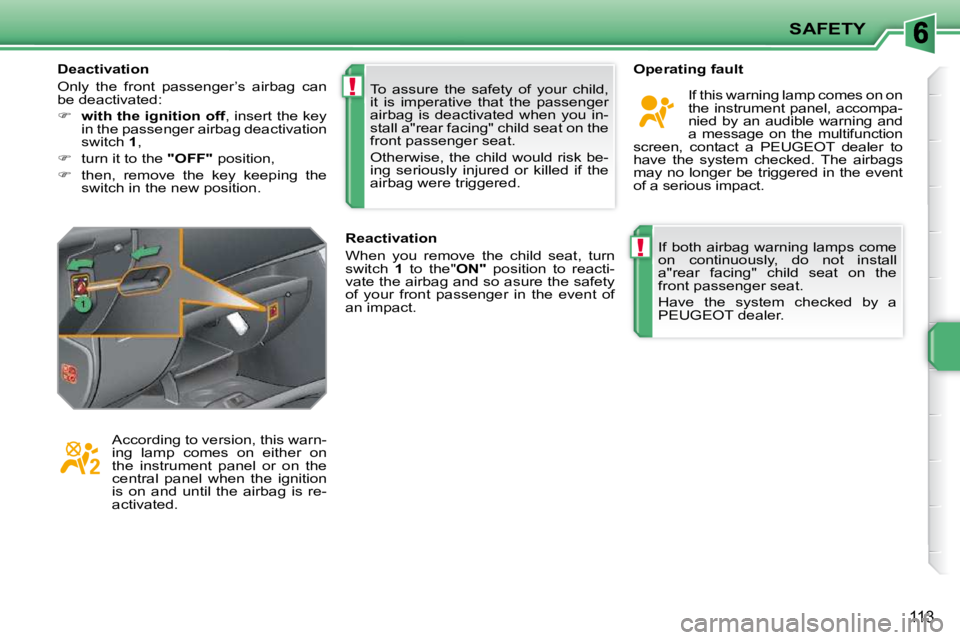

SAFETY
1 1 3
If both airbag warning lamps come
on continuously, do not install
a"rear facing" child seat on the
front passenger seat.
Have the system checked by a
PEUGEOT dealer.
Operating fault
If this warning lamp comes on on
the instrument panel, accompa-
nied by an audible warning and
a message on the multifunction
screen, contact a PEUGEOT dealer to
have the system checked. The airbags
may no longer be triggered in the event
of a serious impact.
To assure the safety of your child,
it is imperative that the passenger
airbag is deactivated when you in-
stall a"rear facing" child seat on the
front passenger seat.
Otherwise, the child would risk be-
i n g s e r i o u s l y i n j u r e d o r k i l l e d i f t h e
airbag were triggered.
According to version, this warn-
ing lamp comes on either on
the instrument panel or on the
central panel when the ignition
is on and until the airbag is re-
activated. Reactivation
When you remove the child seat, turn
switch
1 to the" ON" position to reacti-
vate the airbag and so asure the safety
of your front passenger in the event of
an impact.
Deactivation
Only the front passenger’s airbag can
be deactivated:
with the ignition off , insert the key
in the passenger airbag deactivation
switch 1 ,
turn it to the "OFF" position,
then, remove the key keeping the
switch in the new position.
Page 122 of 279
!
SAFETY
114

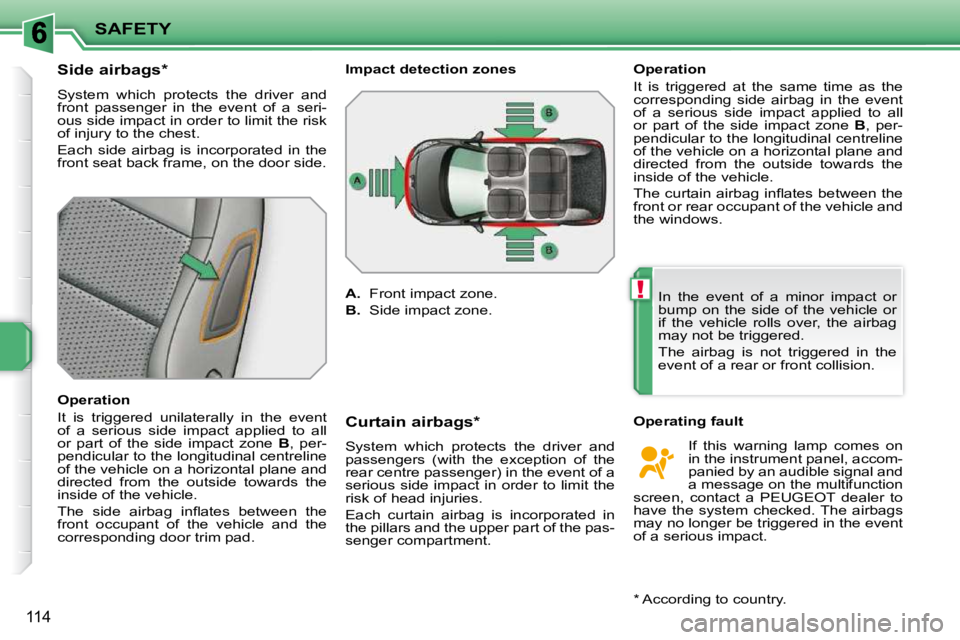

Side airbags *
System which protects the driver and
front passenger in the event of a seri-
ous side impact in order to limit the risk
o f i n j u r y t o t h e c h e s t .
Each side airbag is incorporated in the
front seat back frame, on the door side.
Operation
It is triggered unilaterally in the event
of a serious side impact applied to all
or part of the side impact zone B , per-
pendicular to the longitudinal centreline
of the vehicle on a horizontal plane and
directed from the outside towards the
inside of the vehicle.
T h e s i d e a i r b a g i n fl a t e s b e t w e e n t h e
front occupant of the vehicle and the
corresponding door trim pad. Curtain airbags *
System which protects the driver and
passengers (with the exception of the
rear centre passenger) in the event of a
serious side impact in order to limit the
r i s k o f h e a d i n j u r i e s .
Each curtain airbag is incorporated in
the pillars and the upper part of the pas-
senger compartment.
If this warning lamp comes on
in the instrument panel, accom-
panied by an audible signal and
a message on the multifunction
screen, contact a PEUGEOT dealer to
have the system checked. The airbags
may no longer be triggered in the event
of a serious impact.
* According to country.
Operating fault
Operation
It is triggered at the same time as the
corresponding side airbag in the event
of a serious side impact applied to all
or part of the side impact zone
B , per-
pendicular to the longitudinal centreline
of the vehicle on a horizontal plane and
directed from the outside towards the
inside of the vehicle.
T h e c u r t a i n a i r b a g i n fl a t e s b e t w e e n t h e
front or rear occupant of the vehicle and
the windows.
In the event of a minor impact or
bump on the side of the vehicle or
if the vehicle rolls over, the airbag
may not be triggered.
The airbag is not triggered in the
event of a rear or front collision.
Impact detection zones
A. Front impact zone.
B. Side impact zone.
Page 123 of 279
!
SAFETY
115

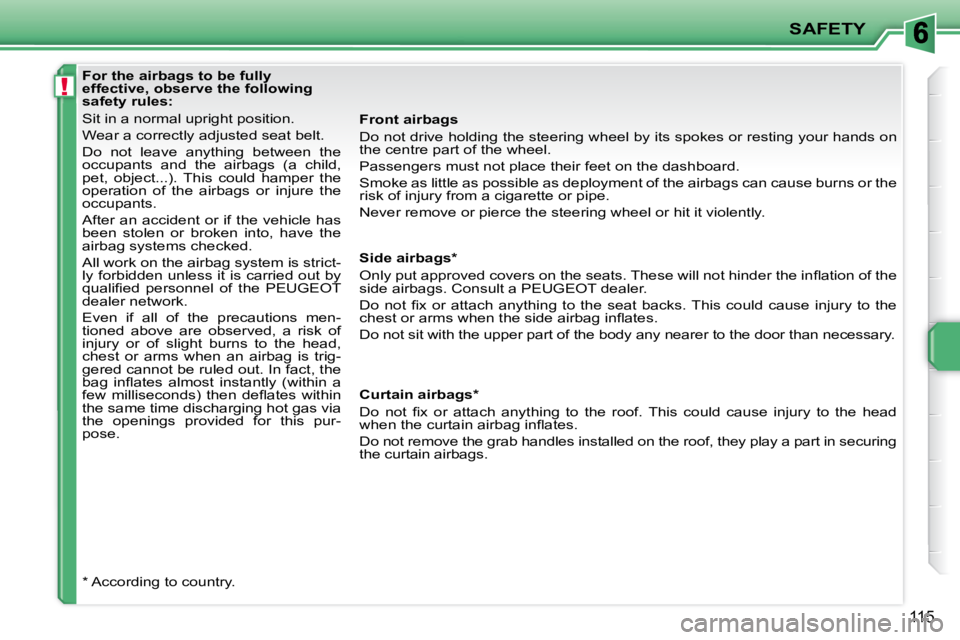

For the airbags to be fully
effective, observe the following
safety rules:
Sit in a normal upright position.
W e a r a c o r r e c t l y a d j u s t e d s e a t b e l t .
Do not leave anything between the
occupants and the airbags (a child,
p e t , o b j e c t . . . ) . T h i s c o u l d h a m p e r t h e
o p e r a t i o n o f t h e a i r b a g s o r i n j u r e t h e
occupants.
After an accident or if the vehicle has
been stolen or broken into, have the
airbag systems checked.
All work on the airbag system is strict-
ly forbidden unless it is carried out by
q u a l i fi e d p e r s o n n e l o f t h e P E U G E O T
dealer network.
Even if all of the precautions men-
tioned above are observed, a risk of
i n j u r y o r o f s l i g h t b u r n s t o t h e h e a d ,
chest or arms when an airbag is trig-
gered cannot be ruled out. In fact, the
b a g i n fl a t e s a l m o s t i n s t a n t l y ( w i t h i n a
f e w m i l l i s e c o n d s ) t h e n d e fl a t e s w i t h i n
the same time discharging hot gas via
the openings provided for this pur-
pose. Front airbags
Do not drive holding the steering wheel by its spokes or resti
ng your hands on
the centre part of the wheel.
Passengers must not place their feet on the dashboard.
Smoke as little as possible as deployment of the airbags can cau se burns or the
r i s k o f i n j u r y f r o m a c i g a r e t t e o r p i p e .
Never remove or pierce the steering wheel or hit it violently.
Side airbags *
O n l y p u t a p p r o v e d c o v e r s o n t h e s e a t s . T h e s e w i l l n o t h i n d e r t h e i n fl a t i o n o f t h e
side airbags. Consult a PEUGEOT dealer.
D o n o t fi x o r a t t a c h a n y t h i n g t o t h e s e a t b a c k s . T h i s c o u l d c a u s e i n j u r y t o t h e
c h e s t o r a r m s w h e n t h e s i d e a i r b a g i n fl a t e s .
Do not sit with the upper part of the body any nea rer to the door than necessary.
Curtain airbags *
D o n o t fi x o r a t t a c h a n y t h i n g t o t h e r o o f . T h i s c o u l d c a u s e i n j u r y t o t h e h e a d
w h e n t h e c u r t a i n a i r b a g i n fl a t e s .
Do not remove the grab handles installed on the ro of, they play a part in securing
the curtain airbags.
* According to country.
Page 124 of 279
!
116
When parking on a slope, direct
your wheels against the pavement,
pull the parking brake on and en-
gage a gear.

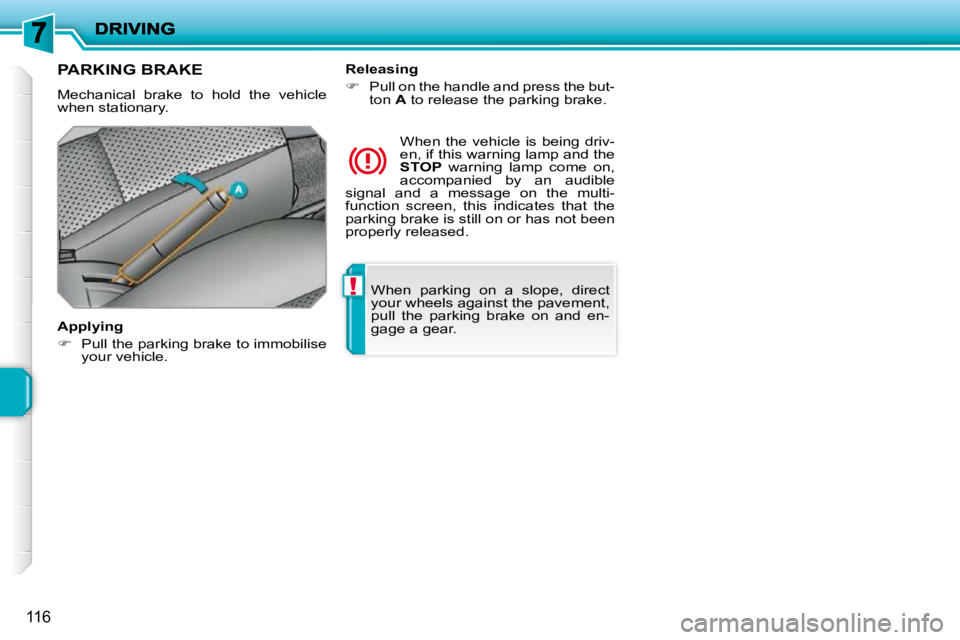

PARKING BRAKE
Mechanical brake to hold the vehicle when stationary.
Applying
Pull the parking brake to immobilise
your vehicle. When the vehicle is being driv-
en, if this warning lamp and the
STOP warning lamp come on,
accompanied by an audible
signal and a message on the multi-
function screen, this indicates that the
parking brake is still on or has not been
properly released.
Releasing
Pull on the handle and press the but-
ton A to release the parking brake.
Page 125 of 279
i
117
* According to engine.

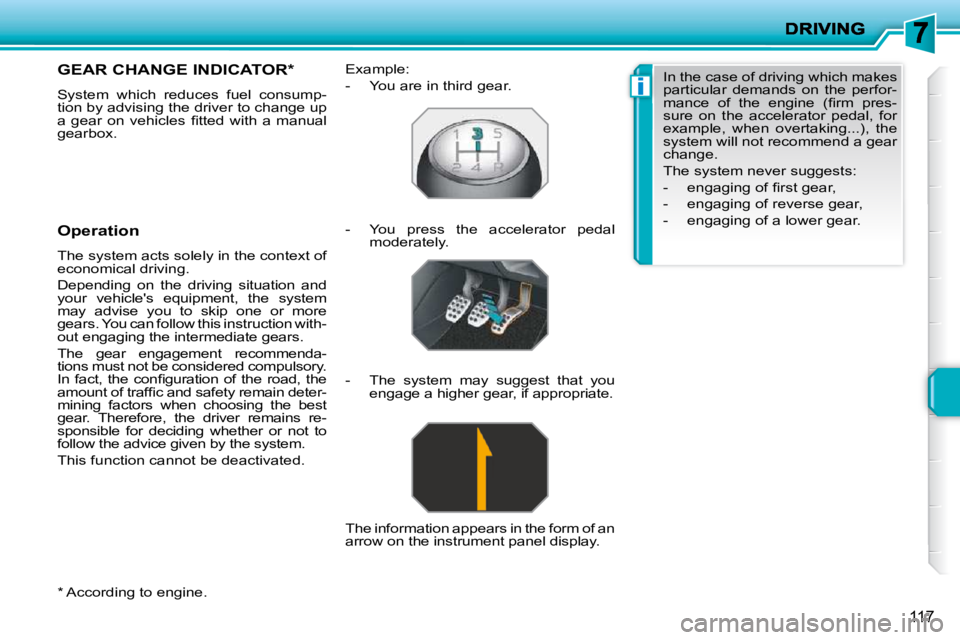

GEAR CHANGE INDICATOR *
System which reduces fuel consump-
tion by advising the driver to change up
a g e a r o n v e h i c l e s fi t t e d w i t h a m a n u a l
gearbox.
Operation
The system acts solely in the context of
economical driving.
Depending on the driving situation and
your vehicle's equipment, the system
may advise you to skip one or more
gears. You can follow this instruction with-
out engaging the intermediate gears.
The gear engagement recommenda-
tions must not be considered compulsory.
I n f a c t , t h e c o n fi g u r a t i o n o f t h e r o a d , t h e
a m o u n t o f t r a f fi c a n d s a f e t y r e m a i n d e t e r -
mining factors when choosing the best
gear. Therefore, the driver remains re-
sponsible for deciding whether or not to
follow the advice given by the system.
This function cannot be deactivated. Example:
- You are in third gear.
The information appears in the form of an
arrow on the instrument panel display. In the case of driving which makes
particular demands on the perfor-
m a n c e o f t h e e n g i n e ( fi r m p r e s -
sure on the accelerator pedal, for
example, when overtaking...), the
system will not recommend a gear
change.
The system never suggests:
- e n g a g i n g o f fi r s t g e a r ,
- engaging of reverse gear,
- engaging of a lower gear.
- You press the accelerator pedal
moderately.
- The system may suggest that you engage a higher gear, if appropriate.
Page 126 of 279
i
118

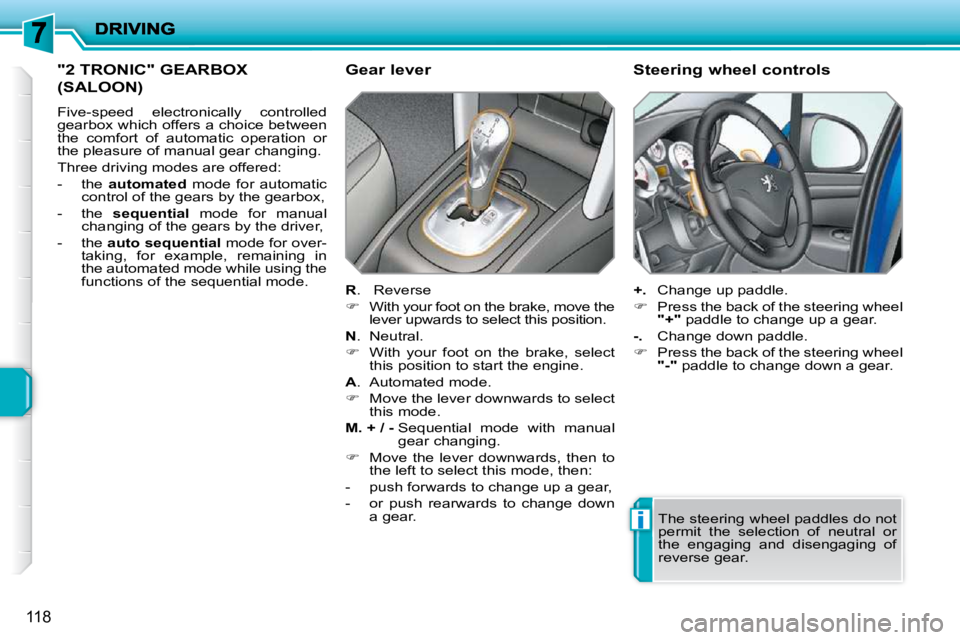

"2 TRONIC" GEARBOX
(SALOON)
Five-speed electronically controlled
gearbox which offers a choice between
the comfort of automatic operation or
the pleasure of manual gear changing.
Three driving modes are offered:
- the automated mode for automatic
control of the gears by the gearbox,
- the sequential mode for manual
changing of the gears by the driver,
- the auto sequential mode for over-
taking, for example, remaining in
the automated mode while using the
functions of the sequential mode.
R . Reverse
With your foot on the brake, move the
lever upwards to select this position.
N . Neutral.
With your foot on the brake, select
this position to start the engine.
A . Automated mode.
Move the lever downwards to select
this mode.
M
.
+ / - Sequential mode with manual
gear changing.
Move the lever downwards, then to
the left to select this mode, then:
- push forwards to change up a gear,
- or push rearwards to change down a gear.
Gear lever
+
. Change up paddle.
Press the back of the steering wheel
"+" paddle to change up a gear.
-
. Change down paddle.
Press the back of the steering wheel
"-" paddle to change down a gear.
Steering wheel controls
The steering wheel paddles do not
permit the selection of neutral or
the engaging and disengaging of
reverse gear.
Page 127 of 279
i
i
i
119

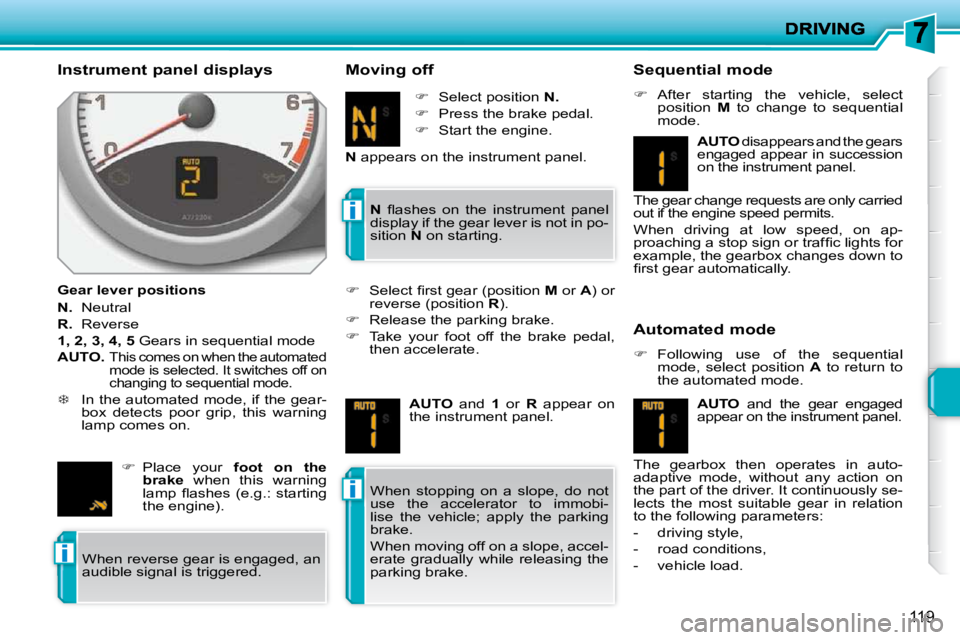

Instrument panel displays
Gear lever positions
N
. Neutral
R
. Reverse
1, 2, 3, 4, 5 Gears in sequential mode
AUTO.
This comes on when the automated
mode is selected. It switches off on
changing to sequential mode.
In the automated mode, if the gear-
box detects poor grip, this warning
lamp comes on. Moving off Sequential mode
After starting the vehicle, select
position M to change to sequential
mode.
Automated mode
Following use of the sequential
mode, select position A to return to
the automated mode.
When stopping on a slope, do not
use the accelerator to immobi-
lise the vehicle; apply the parking
brake.
When moving off on a slope, accel-
erate gradually while releasing the
parking brake.
Place your foot on the
brake when this warning
l a m p fl a s h e s ( e . g . : s t a r t i n g
the engine).
Select position N
.
Press the brake pedal.
Start the engine.
N appears on the instrument panel.
N fl a s h e s o n t h e i n s t r u m e n t p a n e l
display if the gear lever is not in po-
sition N on starting.
S e l e c t fi r s t g e a r ( p o s i t i o n M or A ) or
reverse (position R ).
Release the parking brake.
Take your foot off the brake pedal,
then accelerate.
AUTO and 1 or R appear on
the instrument panel.
AUTO disappears and the gears
engaged appear in succession
on the instrument panel.
The gear change requests are only carried
out if the engine speed permits.
When driving at low speed, on ap-
p r o a c h i n g a s t o p s i g n o r t r a f fi c l i g h t s f o r
example, the gearbox changes down to
fi r s t g e a r a u t o m a t i c a l l y .
AUTO and the gear engaged
appear on the instrument panel.
The gearbox then operates in auto-
adaptive mode, without any action on
the part of the driver. It continuously se-
lects the most suitable gear in relation
to the following parameters:
- driving style,
- road conditions,
- vehicle load.
When reverse gear is engaged, an
audible signal is triggered.
Page 128 of 279
!
i
120

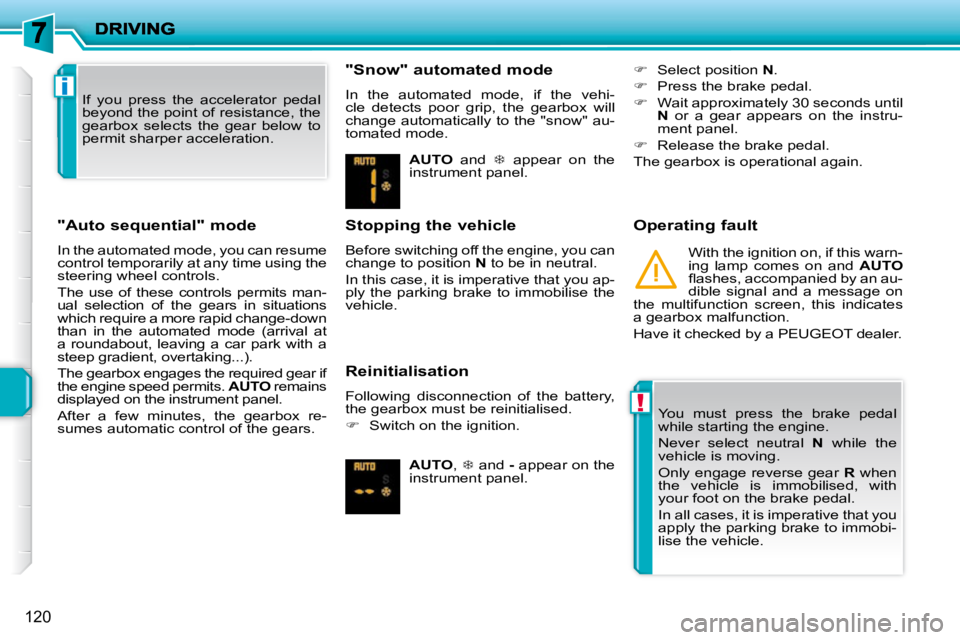

"Auto sequential" mode
In the automated mode, you can resume
control temporarily at any time using the
steering wheel controls.
The use of these controls permits man-
ual selection of the gears in situations
which require a more rapid change-down
than in the automated mode (arrival at
a roundabout, leaving a car park with a
steep gradient, overtaking...).
The gearbox engages the required gear if
the engine speed permits. AUTO remains
displayed on the instrument panel.
After a few minutes, the gearbox re-
sumes automatic control of the gears. "Snow" automated mode
In the automated mode, if the vehi-
cle detects poor grip, the gearbox will
change automatically to the "snow" au-
tomated mode.
Stopping the vehicle
Before switching off the engine, you can
change to position
N to be in neutral.
In this case, it is imperative that you ap-
ply the parking brake to immobilise the
vehicle.
Reinitialisation
Following disconnection of the battery,
the gearbox must be reinitialised.
Switch on the ignition. Operating fault
With the ignition on, if this warn-
ing lamp comes on and AUTO
fl a s h e s , a c c o m p a n i e d b y a n a u -
dible signal and a message on
the multifunction screen, this indicates
a gearbox malfunction.
Have it checked by a PEUGEOT dealer.
You must press the brake pedal
while starting the engine.
Never select neutral N while the
vehicle is moving.
Only engage reverse gear R when
the vehicle is immobilised, with
your foot on the brake pedal.
In all cases, it is imperative that you
apply the parking brake to immobi-
lise the vehicle.
If you press the accelerator pedal
beyond the point of resistance, the
gearbox selects the gear below to
permit sharper acceleration.
AUTO and appear on the
instrument panel.
AUTO , and - appear on the
instrument panel.
Select position N .
Press the brake pedal.
Wait approximately 30 seconds until
N or a gear appears on the instru-
ment panel.
Release the brake pedal.
The gearbox is operational again.
Page 129 of 279
121

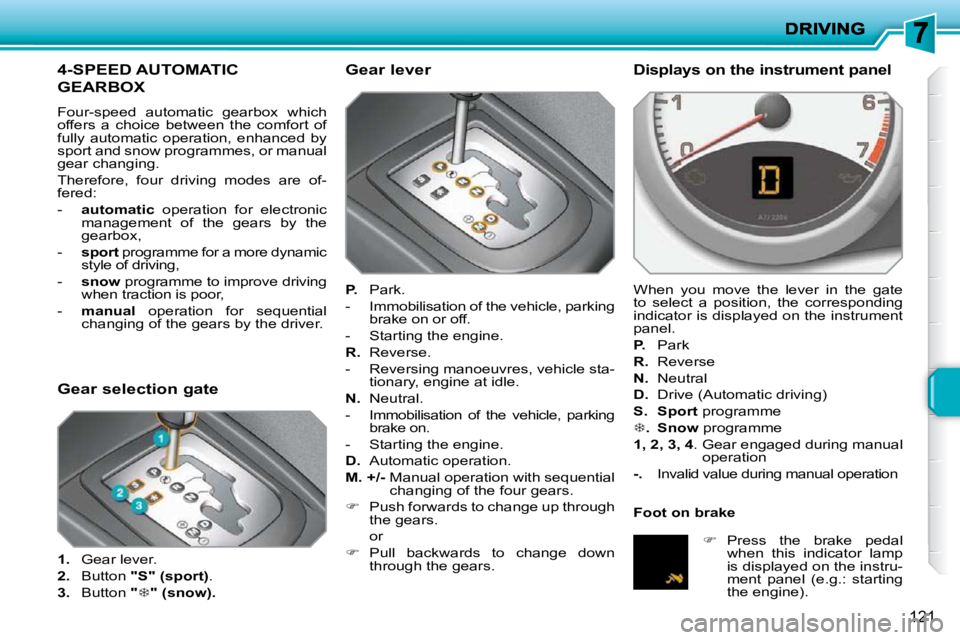

4-SPEED AUTOMATIC
GEARBOX
Four-speed automatic gearbox which
offers a choice between the comfort of
fully automatic operation, enhanced by
sport and snow programmes, or manual
gear changing.
Therefore, four driving modes are of-
fered:
- automatic operation for electronic
management of the gears by the
gearbox,
- sport programme for a more dynamic
style of driving,
- snow programme to improve driving
when traction is poor,
- manual operation for sequential
changing of the gears by the driver. Gear lever
P. Park.
- Immobilisation of the vehicle, parking brake on or off.
- Starting the engine.
R. Reverse.
- Reversing manoeuvres, vehicle sta- tionary, engine at idle.
N. Neutral.
- Immobilisation of the vehicle, parking brake on.
- Starting the engine.
D. Automatic operation.
M. +/- Manual operation with sequential
changing of the four gears.
Push forwards to change up through
the gears.
or
Pull backwards to change down
through the gears.
Displays on the instrument panel
When you move the lever in the gate
to select a position, the corresponding
indicator is displayed on the instrument
panel.
P. Park
R. Reverse
N. Neutral
D. Drive (Automatic driving)
S.
Sport programme
. Snow programme
1, 2, 3, 4 . Gear engaged during manual
operation
-. Invalid value during manual operation
Gear selection gate
1. Gear lever.
2. Button "S" (sport) .
3. Button "
" (snow). Foot on brake
Press the brake pedal
when this indicator lamp
is displayed on the instru-
ment panel (e.g.: starting
the engine).
Page 130 of 279
!
!
i
122

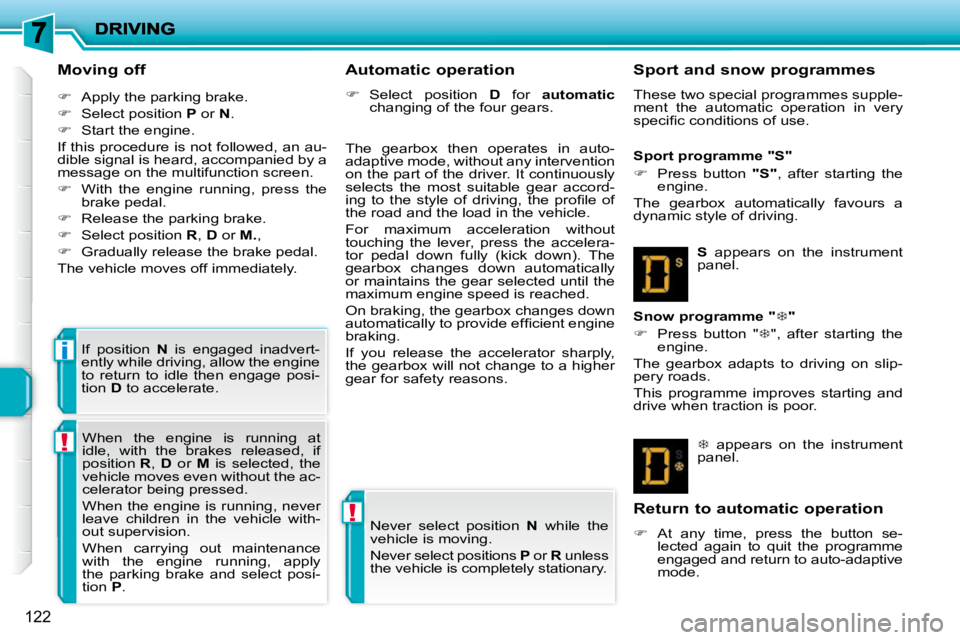

Moving off
Apply the parking brake.
Select position P or N .
Start the engine.
If this procedure is not followed, an au-
dible signal is heard, accompanied by a
message on the multifunction screen.
With the engine running, press the
brake pedal.
Release the parking brake.
Select position R , D or M. ,
Gradually release the brake pedal.
The vehicle moves off immediately.
If position N is engaged inadvert-
ently while driving, allow the engine
to return to idle then engage posi-
tion D to accelerate. The gearbox then operates in auto-
adaptive mode, without any intervention
on the part of the driver. It continuously
selects the most suitable gear accord-
i n g t o t h e s t y l e o f d r i v i n g , t h e p r o fi l e o f
the road and the load in the vehicle.
For maximum acceleration without
touching the lever, press the accelera-
tor pedal down fully (kick down). The
gearbox changes down automatically
or maintains the gear selected until the
maximum engine speed is reached.
On braking, the gearbox changes down
a u t o m a t i c a l l y t o p r o v i d e e f fi c i e n t e n g i n e
braking.
If you release the accelerator sharply,
the gearbox will not change to a higher
gear for safety reasons.
Automatic operation
Select position D for automatic
changing of the four gears.
appears on the instrument
panel.
Snow programme "
"
Press button " ", after starting the
engine.
The gearbox adapts to driving on slip-
pery roads.
This programme improves starting and
drive when traction is poor.
S appears on the instrument
panel.
Sport programme "S"
Press button "S" , after starting the
engine.
The gearbox automatically favours a
dynamic style of driving.
Never select position N while the
vehicle is moving.
Never select positions P or R unless
the vehicle is completely stationary.
When the engine is running at
idle, with the brakes released, if
position
R , D or M is selected, the
vehicle moves even without the ac-
celerator being pressed.
When the engine is running, never
leave children in the vehicle with-
out supervision.
When carrying out maintenance
with the engine running, apply
the parking brake and select posi-
tion P . Sport and snow programmes
These two special programmes supple-
ment the automatic operation in very
s p e c i fi c c o n d i t i o n s o f u s e .
Return to automatic operation
At any time, press the button se-
lected again to quit the programme
engaged and return to auto-adaptive
mode.
