After changing a wheel
To store the punctured wheel in the
b o o t c o r r e c t l y , fi r s t r e m o v e t h e c e n -
tral cover.
Have the tightening of the bolts and
the pressure of the spare wheel
checked by a PEUGEOT dealer
without delay.
Have the punctured wheel repaired
and replace it on the vehicle as
soon as possible.

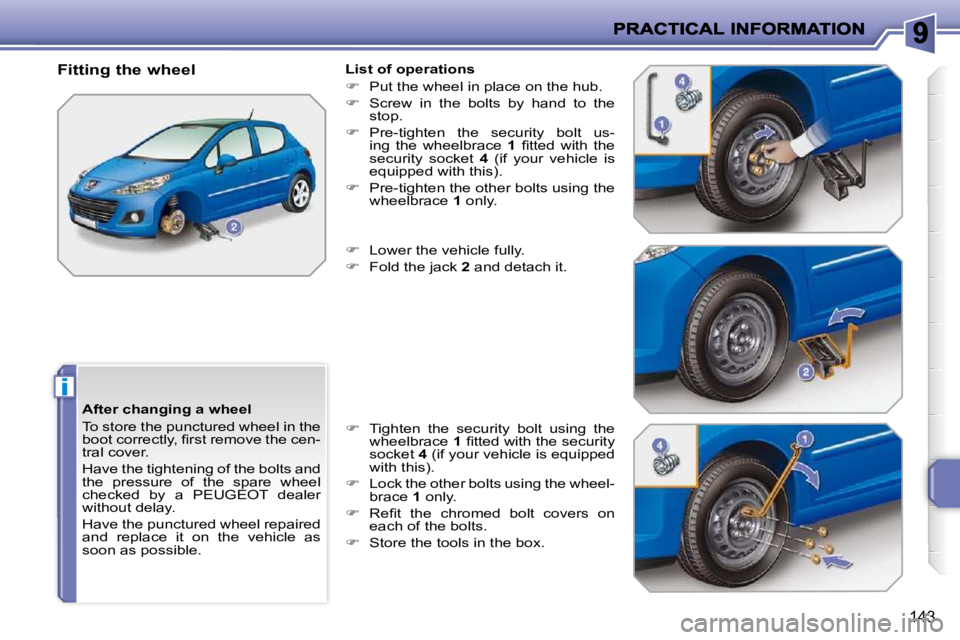

Fitting the wheel
List of operations
Put the wheel in place on the hub.
Screw in the bolts by hand to the
stop.
Pre-tighten the security bolt us-
ing the wheelbrace 1 fi t t e d w i t h t h e
security socket 4 (if your vehicle is
e q u i p p e d w i t h t h i s ) .
Pre-tighten the other bolts using the
wheelbrace 1 only.
Lower the vehicle fully.
Fold the jack 2 and detach it.
Tighten the security bolt using the
wheelbrace 1 fi t t e d w i t h t h e s e c u r i t y
socket 4 (if your vehicle is equipped
w i t h t h i s ) .
Lock the other bolts using the wheel-
brace 1 only.
R e fi t t h e c h r o m e d b o l t c o v e r s o n
each of the bolts.
S t o r e t h e t o o l s i n t h e b o x .
Page 152 of 279
!
i
i
144
CHANGING A BULB

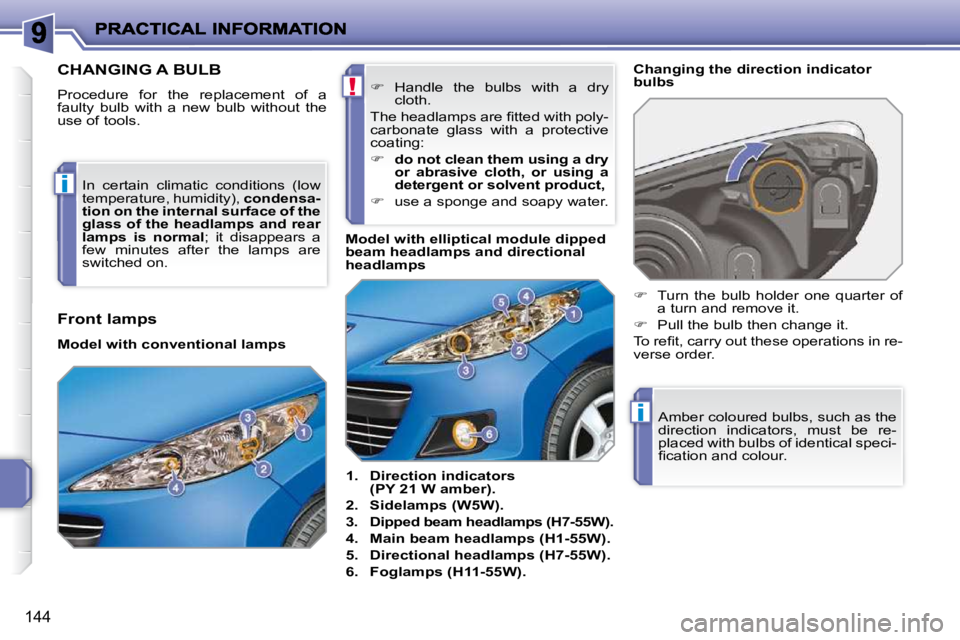

Procedure for the replacement of a
faulty bulb with a new bulb without the
use of tools.
1. Direction indicators
(PY 21 W amber).
2. Sidelamps
(W5W).
3. Dipped
beam
headlamps (H7-55W).
4. Main beam headlamps (H1-55W).
5. Directional headlamps (H7-55W).
6. Foglamps
(H11-55W). Changing the direction indicator
bulbs
Handle the bulbs with a dry
cloth.
T h e h e a d l a m p s a r e fi t t e d w i t h p o l y -
carbonate glass with a protective
c o a t i n g :
do not clean them using a dry
or abrasive cloth, or using a
detergent or solvent product,
use a sponge and soapy water.
In certain climatic conditions (low
t e m p e r a t u r e , h u m i d i t y ) ,
condensa-
tion on the internal surface of the
glass of the headlamps and rear
lamps
is normal ; it disappears a
few minutes after the lamps are
switched on . Model with elliptical module dipped
beam headlamps and directional
headlamps
Amber coloured bulbs, such as the
direction indicators, must be re-
placed with bulbs of identical speci-
fi c a t i o n a n d c o l o u r .
Turn the bulb holder one quarter of
a turn and remove it.
Pull the bulb then change it.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
verse order.
Front lamps
Model with conventional lamps
Page 153 of 279
145

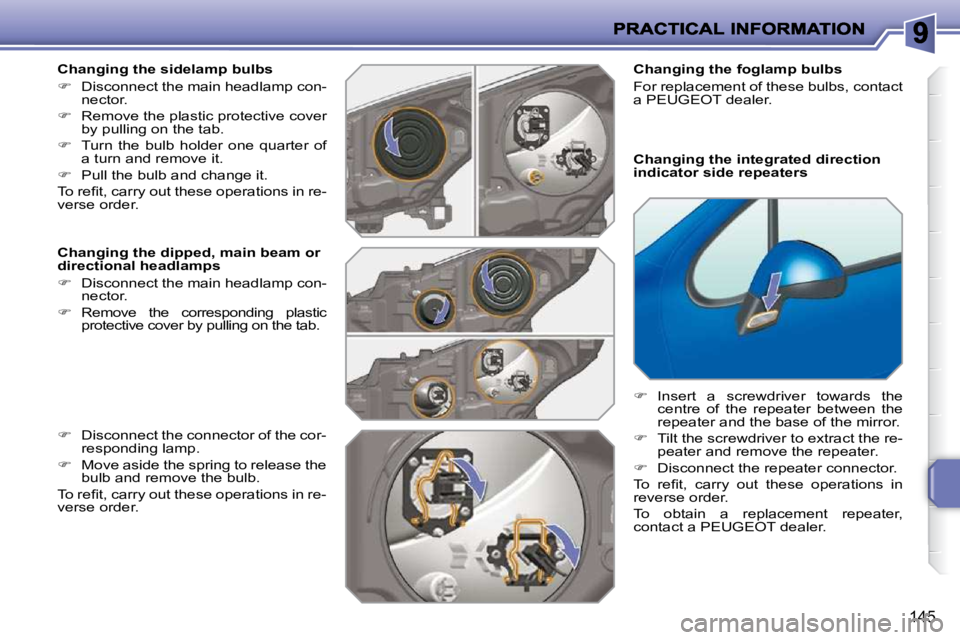

Changing the sidelamp bulbs
Disconnect the main headlamp con-
nector.
Remove the plastic protective cover
by pulling on the tab.
Turn the bulb holder one quarter of
a turn and remove it.
Pull the bulb and change it.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
verse order.
Changing the dipped, main beam or
directional headlamps
Disconnect the main headlamp con-
nector.
Remove the corresponding plastic
protective cover by pulling on the tab.
Disconnect the connector of the cor-
responding lamp.
Move aside the spring to release the
bulb and remove the bulb.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
verse order. Changing the integrated direction
indicator side repeaters
Insert a screwdriver towards the
centre of the repeater between the
repeater and the base of the mirror.
T i l t t h e s c r e w d r i v e r t o e x t r a c t t h e r e -
peater and remove the repeater.
Disconnect the repeater connector.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n
reverse order.
To obtain a replacement repeater,
contact a PEUGEOT dealer.
Changing the foglamp bulbs
For replacement of these bulbs, contact
a PEUGEOT dealer.
Page 154 of 279
i
i
146

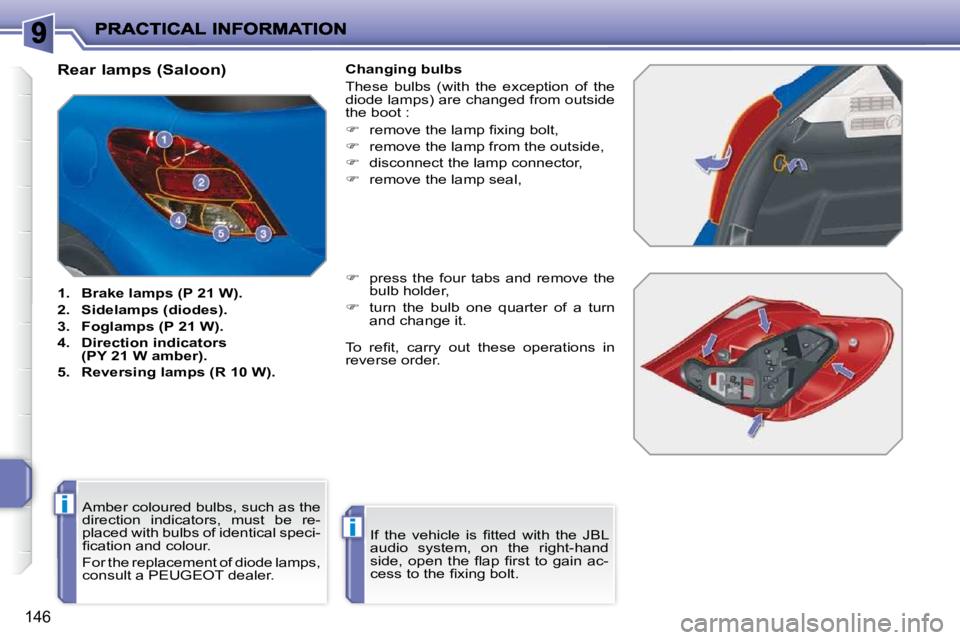

Rear lamps (Saloon)
1. Brake
lamps
(P 21 W).
2. Sidelamps
(diodes).
3. Foglamps
(P 21 W).
4. Direction indicators
(PY 21 W amber).
5. Reversing
lamps
(R 10 W). Changing bulbs
T h e s e b u l b s ( w i t h t h e e x c e p t i o n o f t h e
d i o d e l a m p s ) a r e c h a n g e d f r o m o u t s i d e
t h e b o o t :
r e m o v e t h e l a m p fi x i n g b o l t ,
remove the lamp from the outside,
disconnect the lamp connector,
remove the lamp seal,
press the four tabs and remove the
bulb holder,
turn the bulb one quarter of a turn
and change it.
I f t h e v e h i c l e i s fi t t e d w i t h t h e J B L
audio system, on the right-hand
s i d e , o p e n t h e fl a p fi r s t t o g a i n a c -
c e s s t o t h e fi x i n g b o l t .
Amber coloured bulbs, such as the
direction indicators, must be re-
placed with bulbs of identical speci-
fi c a t i o n a n d c o l o u r .
For the replacement of diode lamps,
consult a PEUGEOT dealer. T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n
reverse order.
Page 155 of 279
!
147

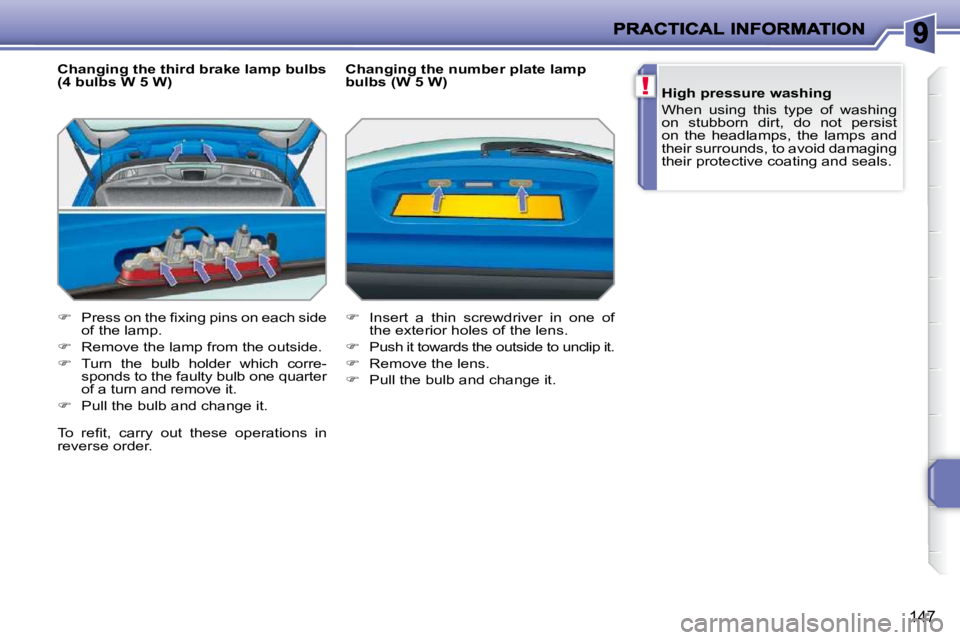

Changing the third brake lamp bulbs
(4 bulbs W 5 W)
P r e s s o n t h e fi x i n g p i n s o n e a c h s i d e
of the lamp.
Remove the lamp from the outside.
Turn the bulb holder which corre-
sponds to the faulty bulb one quarter
of a turn and remove it.
Pull the bulb and change it. Changing the number plate lamp
bulbs (W 5 W)
Insert a thin screwdriver in one of
t h e e x t e r i o r h o l e s o f t h e l e n s .
Push it towards the outside to unclip it.
Remove the lens.
Pull the bulb and change it.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n
reverse order.
High pressure washing
When using this type of washing
on stubborn dirt, do not persist
on the headlamps, the lamps and
their surrounds, to avoid damaging
their protective coating and seals.
Page 156 of 279
i
148

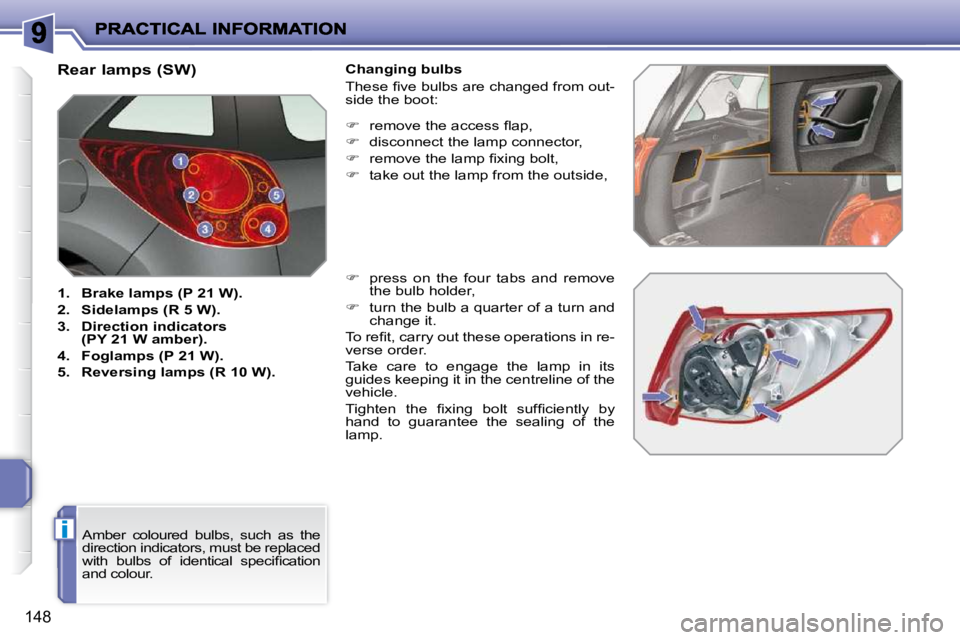

Rear lamps (SW)
1. Brake
lamps
(P 21 W).
2. Sidelamps
(R 5 W).
3. Direction indicators
(PY 21 W amber).
4. Foglamps
(P 21 W).
5. Reversing
lamps
(R 10 W). Changing bulbs
T h e s e fi v e b u l b s a r e c h a n g e d f r o m o u t -
s i d e t h e b o o t :
r e m o v e t h e a c c e s s fl a p ,
disconnect the lamp connector,
r e m o v e t h e l a m p fi x i n g b o l t ,
take out the lamp from the outside,
press on the four tabs and remove
the bulb holder,
turn the bulb a quarter of a turn and
change it.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
verse order.
Take care to engage the lamp in its
guides keeping it in the centreline of the
vehicle.
T i g h t e n t h e fi x i n g b o l t s u f fi c i e n t l y b y
hand to guarantee the sealing of the
lamp.
Amber coloured bulbs, such as the
direction indicators, must be replaced
w i t h b u l b s o f i d e n t i c a l s p e c i fi c a t i o n
and colour.
Page 157 of 279
!
149
Changing the third brake lamp bulbs
(4 bulbs W 5 W)
R e m o v e t h e t w o l a m p fi x i n g n u t s .
Remove the lamp from the outside.
Press on the two tabs and remove
the bulb holder
Pull the bulb and change it.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
verse order.
T i g h t e n t h e fi x i n g b o l t s u f fi c i e n t l y b y
hand to guarantee the sealing of the
lamp. Changing the number plate bulbs
(W 5 W)
Insert a thin screwdriver into one of
t h e e x t e r i o r h o l e s o f t h e l e n s .
Push it towards the outside to unclip it
Remove the lens.
Pull the bulb and change it.
High pressure washing
When using this type of washing
on stubborn dirt, do not persist
on the headlamps, the lamps and
their surrounds, to avoid damag-
ing their protective coating and
seals.
Page 158 of 279
!
i
150
PEUGEOT does not accept any
responsibility for the costs incurred
in repairing your vehicle or for the
malfunctions resulting from the in-
stallation of additional accessories
which are not supplied or recom-
mended by PEUGEOT and which
are not installed in accordance with
its instructions, particularly when
the combined consumption of all of
the additional equipment connect-
e d e x c e e d s 1 0 m i l l i a m p e r e s .
Installation of electrical
accessories
Your vehicle’s electrical circuit is
designed to operate with the stand-
ard or optional equipment.
Before installing other electrical
equipment or accessories in your ve-
hicle, contact a PEUGEOT dealer.

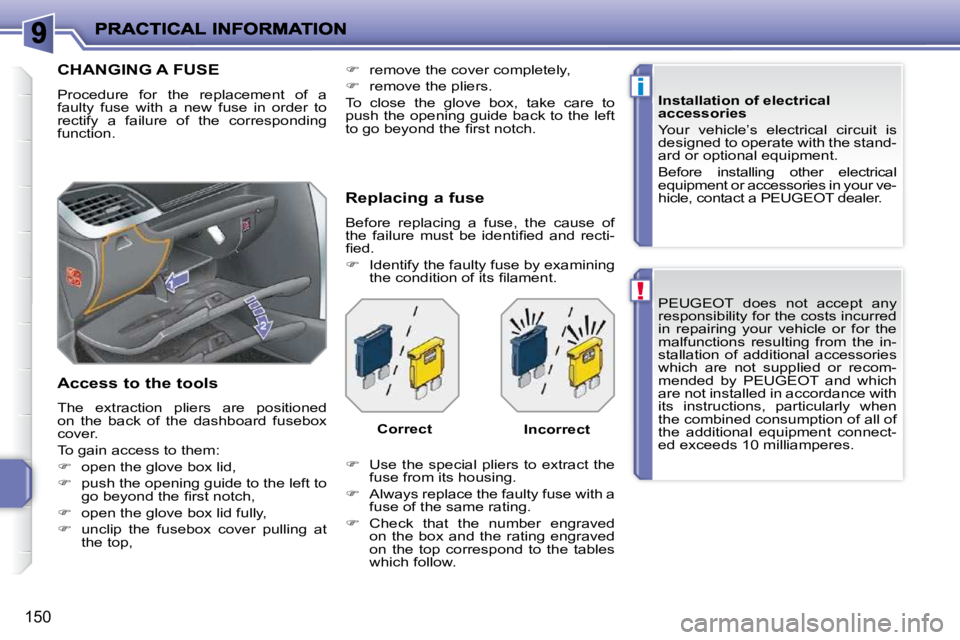

CHANGING A FUSE
Procedure for the replacement of a
faulty fuse with a new fuse in order to
rectify a failure of the corresponding
function.
Access to the tools
T h e e x t r a c t i o n p l i e r s a r e p o s i t i o n e d
o n t h e b a c k o f t h e d a s h b o a r d f u s e b o x
cover.
T o g a i n a c c e s s t o t h e m :
o p e n t h e g l o v e b o x l i d ,
push the opening guide to the left to
g o b e y o n d t h e fi r s t n o t c h ,
o p e n t h e g l o v e b o x l i d f u l l y ,
u n c l i p t h e f u s e b o x c o v e r p u l l i n g a t
the top, Replacing a fuse
Before replacing a fuse, the cause of
t h e f a i l u r e m u s t b e i d e n t i fi e d a n d r e c t i -
fi e d .
I d e n t i f y t h e f a u l t y f u s e b y e x a m i n i n g
t h e c o n d i t i o n o f i t s fi l a m e n t .
U s e t h e s p e c i a l p l i e r s t o e x t r a c t t h e
fuse from its housing.
Always replace the faulty fuse with a
fuse of the same rating.
Check that the number engraved
o n t h e b o x a n d t h e r a t i n g e n g r a v e d
on the top correspond to the tables
which follow.
Correct
Incorrect
remove the cover completely,
remove the pliers.
T o c l o s e t h e g l o v e b o x , t a k e c a r e t o
push the opening guide back to the left
t o g o b e y o n d t h e fi r s t n o t c h .
Page 159 of 279
151

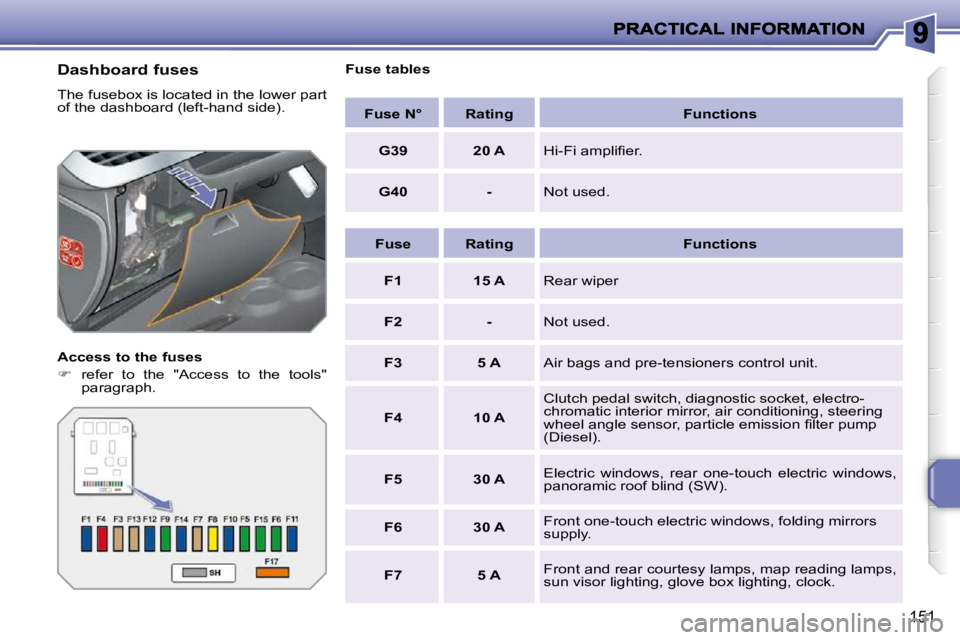

Dashboard fuses
T h e f u s e b o x i s l o c a t e d i n t h e l o w e r p a r t
o f t h e d a s h b o a r d ( l e f t - h a n d s i d e ) .
Access to the fuses
refer to the "Access to the tools"
paragraph. Fuse tables
Fuse N° Rating Functions
G39 20 A H i - F i a m p l i fi e r .
G40 - Not used.
Fuse Rating Functions
F1 15 A Rear wiper
F2 - Not used.
F3 5 A Air bags and pre-tensioners control unit.
F4 10 A Clutch pedal switch, diagnostic socket, electro-
chromatic interior mirror, air conditioning, steering
w h e e l a n g l e s e n s o r , p a r t i c l e e m i s s i o n fi l t e r p u m p
( D i e s e l ) .
F5 30 A Electric windows, rear one-touch electric windows,
p a n o r a m i c r o o f b l i n d ( S W ) .
F6 30 A Front one-touch electric windows, folding mirrors
supply.
F7 5 A Front and rear courtesy lamps, map reading lamps,
s u n v i s o r l i g h t i n g , g l o v e b o x l i g h t i n g , c l o c k .
Page 160 of 279
152

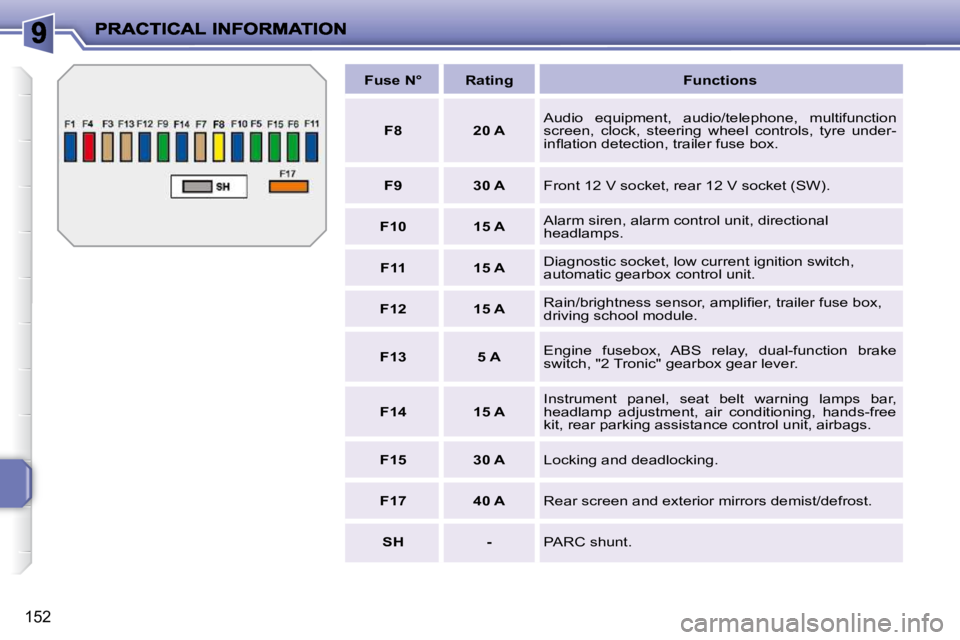

Fuse N° Rating Functions
F8 20 A Audio equipment, audio/telephone, multifunction
screen, clock, steering wheel controls, tyre under-
i n fl a t i o n d e t e c t i o n , t r a i l e r f u s e b o x .
F9 30 A F r o n t 1 2 V s o c k e t , r e a r 1 2 V s o c k e t ( S W ) .
F10 15 A Alarm siren, alarm control unit, directional
headlamps.
F11 15 A Diagnostic socket, low current ignition switch,
a u t o m a t i c g e a r b o x c o n t r o l u n i t .
F12 15 A R a i n / b r i g h t n e s s s e n s o r , a m p l i fi e r , t r a i l e r f u s e b o x ,
driving school module.
F13 5 A E n g i n e f u s e b o x , A B S r e l a y , d u a l - f u n c t i o n b r a k e
s w i t c h , " 2 T r o n i c " g e a r b o x g e a r l e v e r .
F14 15 A Instrument panel, seat belt warning lamps bar,
headlamp adjustment, air conditioning, hands-free
kit, rear parking assistance control unit, airbags.
F15 30 A Locking and deadlocking.
F17 40 A R e a r s c r e e n a n d e x t e r i o r m i r r o r s d e m i s t / d e f r o s t .
SH - PARC shunt.
