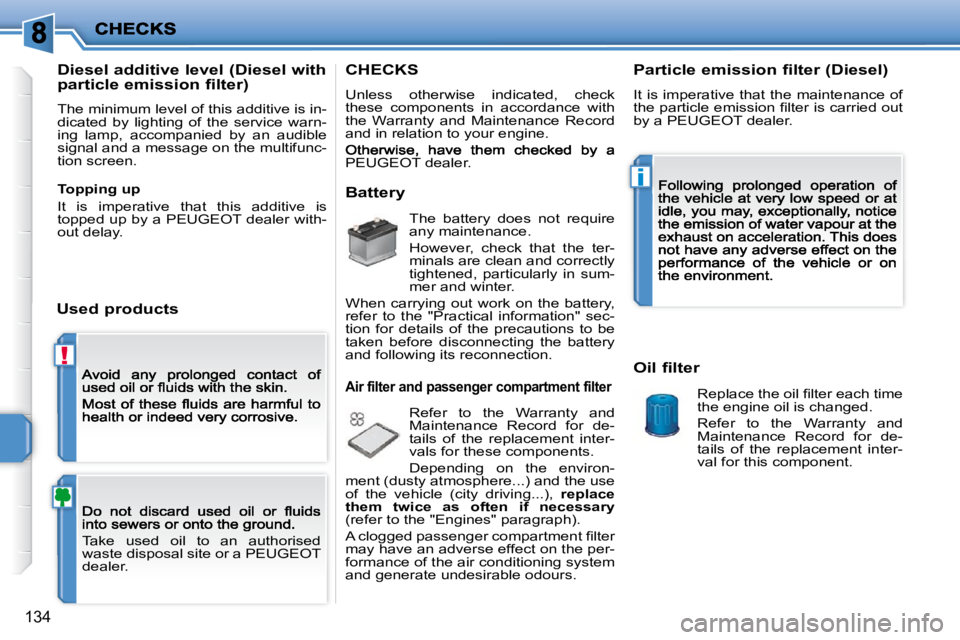

Page 141 of 279
!
i
1 3 4
Take used oil to an authorised
waste disposal site or a PEUGEOT
dealer.
Diesel additive level (Diesel with
particle emission filter)
The minimum level of this additive is in-
dicated by lighting of the service warn-
ing lamp, accompanied by an audible
signal and a message on the multifunc-
tion screen.
Used products
CHECKS
Unless otherwise indicated, check
these components in accordance with
the Warranty and Maintenance Record
and in relation to your engine.
PEUGEOT dealer.
B a t t e r y
The battery does not require any maintenance.
H o w e v e r , c h e c k t h a t t h e t e r -minals are clean and correctly tightened, particularly in sum-mer and winter.
When carrying out work on the battery, refer to the "Practical information" sec-tion for details of the precautions to be taken before disconnecting the battery and following its reconnection.
Air filter and passenger compartment filter
Refer to the Warranty and
Maintenance Record for de-
tails of the replacement inter-
vals for these components.
Depending on the environ-ment (dusty atmosphere...) and the use of the vehicle (city driving...), replace t h e m t w i c e a s o f t e n i f n e c e s s a r y(refer to the "Engines" paragraph).
A c l o g g e d p a s s e n g e r c o m p a r t m e n t fi l t e r may have an adverse effect on the per-formance of the air conditioning system and generate undesirable odours.
Particle emission filter (Diesel)
It is imperative that the maintenance of t h e p a r t i c l e e m i s s i o n fi l t e r i s c a r r i e d o u t by a PEUGEOT dealer.
Oil filter
R e p l a c e t h e o i l fi l t e r e a c h t i m e the engine oil is changed.
Refer to the Warranty and
Maintenance Record for de-
tails of the replacement inter-
val for this component.
Topping up
It is imperative that this additive is topped up by a PEUGEOT dealer with-out delay.
Page 142 of 279
!
i
1 3 4
Take used oil to an authorised
waste disposal site or a PEUGEOT
dealer.
Diesel additive level (Diesel with
particle emission filter)
The minimum level of this additive is in-
dicated by lighting of the service warn-
ing lamp, accompanied by an audible
signal and a message on the multifunc-
tion screen.
Used products
CHECKS
Unless otherwise indicated, check
these components in accordance with
the Warranty and Maintenance Record
and in relation to your engine.
PEUGEOT dealer.
B a t t e r y
The battery does not require any maintenance.
H o w e v e r , c h e c k t h a t t h e t e r -minals are clean and correctly tightened, particularly in sum-mer and winter.
When carrying out work on the battery, refer to the "Practical information" sec-tion for details of the precautions to be taken before disconnecting the battery and following its reconnection.
Air filter and passenger compartment filter
Refer to the Warranty and
Maintenance Record for de-
tails of the replacement inter-
vals for these components.
Depending on the environ-ment (dusty atmosphere...) and the use of the vehicle (city driving...), replace t h e m t w i c e a s o f t e n i f n e c e s s a r y(refer to the "Engines" paragraph).
A c l o g g e d p a s s e n g e r c o m p a r t m e n t fi l t e r may have an adverse effect on the per-formance of the air conditioning system and generate undesirable odours.
Particle emission filter (Diesel)
It is imperative that the maintenance of t h e p a r t i c l e e m i s s i o n fi l t e r i s c a r r i e d o u t by a PEUGEOT dealer.
Oil filter
R e p l a c e t h e o i l fi l t e r e a c h t i m e the engine oil is changed.
Refer to the Warranty and
Maintenance Record for de-
tails of the replacement inter-
val for this component.
Topping up
It is imperative that this additive is topped up by a PEUGEOT dealer with-out delay.

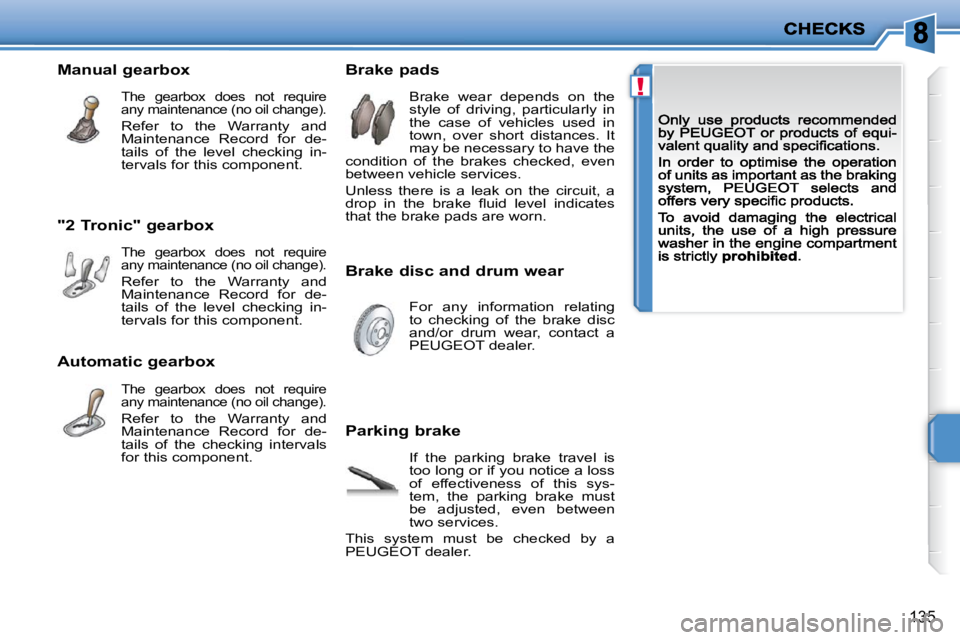

Page 143 of 279
!
135
"2 Tronic" gearbox
The gearbox does not require any maintenance (no oil change).
Refer to the Warranty and
Maintenance Record for de-
tails of the level checking in-
tervals for this component. Brake disc and drum wear
For any information relating
to checking of the brake disc
and/or drum wear, contact a
PEUGEOT dealer.
Manual gearbox
The gearbox does not require any maintenance (no oil change).
Refer to the Warranty and
Maintenance Record for de-
tails of the level checking in-
tervals for this component.
Brake pads
Brake wear depends on the style of driving, particularly in the case of vehicles used in town, over short distances. It may be necessary to have the condition of the brakes checked, even between vehicle services.
Unless there is a leak on the circuit, a d r o p i n t h e b r a k e fl u i d l e v e l i n d i c a t e s that the brake pads are worn.
Parking brake
If the parking brake travel is
too long or if you notice a loss
of effectiveness of this sys-
tem, the parking brake must
be adjusted, even between
two services.
This system must be checked by a PEUGEOT dealer.
Automatic gearbox
The gearbox does not require any maintenance (no oil change).
Refer to the Warranty and
Maintenance Record for de-
tails of the checking intervals
for this component.

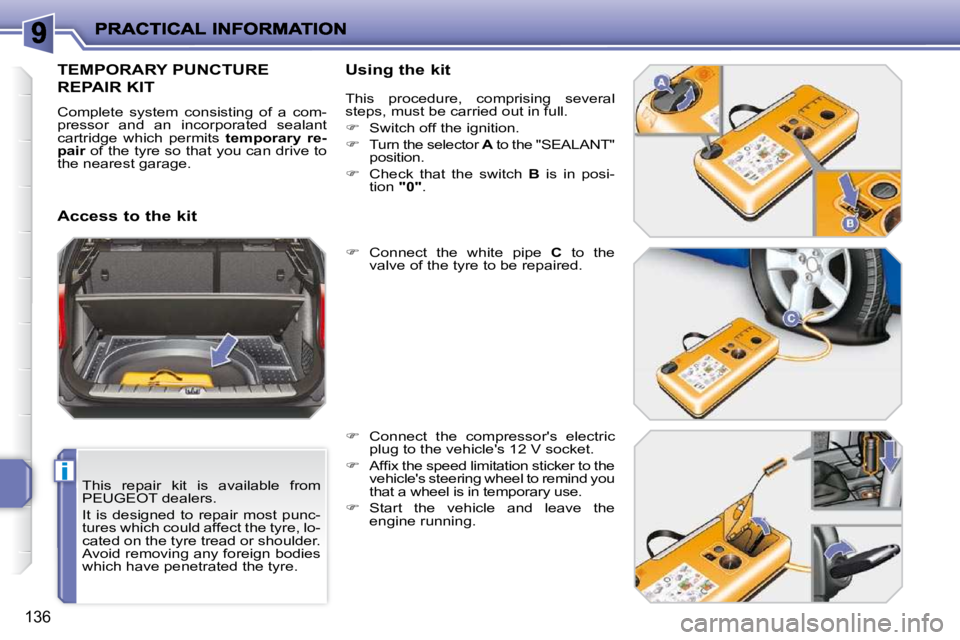

Page 144 of 279
i
136
This repair kit is available from
PEUGEOT dealers.
It is designed to repair most punc-
tures which could affect the tyre, lo-
cated on the tyre tread or shoulder.
Avoid removing any foreign bodies
which have penetrated the tyre.
TEMPORARY PUNCTURE
REPAIR KIT
Complete system consisting of a com-
pressor and an incorporated sealant
cartridge which permits temporary re-
pair of the tyre so that you can drive to
the nearest garage. Using the kit
This procedure, comprising several
steps, must be carried out in full.
Switch off the ignition.
Turn the selector A to the "SEALANT"
position.
Check that the switch B is in posi-
tion "0" .
Connect the white pipe C to the
valve of the tyre to be repaired.
Connect the compressor's electric
plug to the vehicle's 12 V socket.
A f fi x t h e s p e e d l i m i t a t i o n s t i c k e r t o t h e
vehicle's steering wheel to remind you
that a wheel is in temporary use.
Start the vehicle and leave the
engine running.
Access to the kit

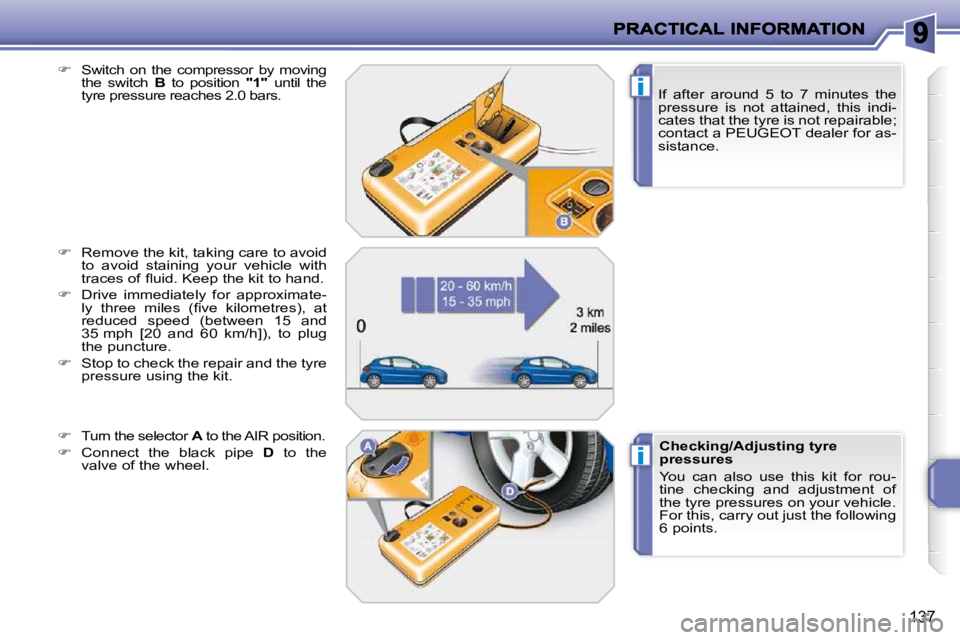

Page 145 of 279
i
i
137
If after around 5 to 7 minutes the
pressure is not attained, this indi-
cates that the tyre is not repairable;
contact a PEUGEOT dealer for as-
sistance.
Switch on the compressor by moving
the switch B to position "1" until the
tyre pressure reaches 2.0 bars.
Remove the kit, taking care to avoid
to avoid staining your vehicle with
t r a c e s o f fl u i d . K e e p t h e k i t t o h a n d .
D r i v e i m m e d i a t e l y f o r a p p r o x i m a t e -
l y t h r e e m i l e s ( fi v e k i l o m e t r e s ) , a t
reduced speed (between 15 and
3 5 m p h [ 2 0 a n d 6 0 k m / h ] ) , t o p l u g
the puncture.
Stop to check the repair and the tyre
pressure using the kit.
Turn the selector A to the AIR position.
Connect the black pipe D to the
valve of the wheel. Checking/Adjusting tyre
pressures
You can also use this kit for rou-
tine checking and adjustment of
the tyre pressures on your vehicle.
For this, carry out just the following
6 points.

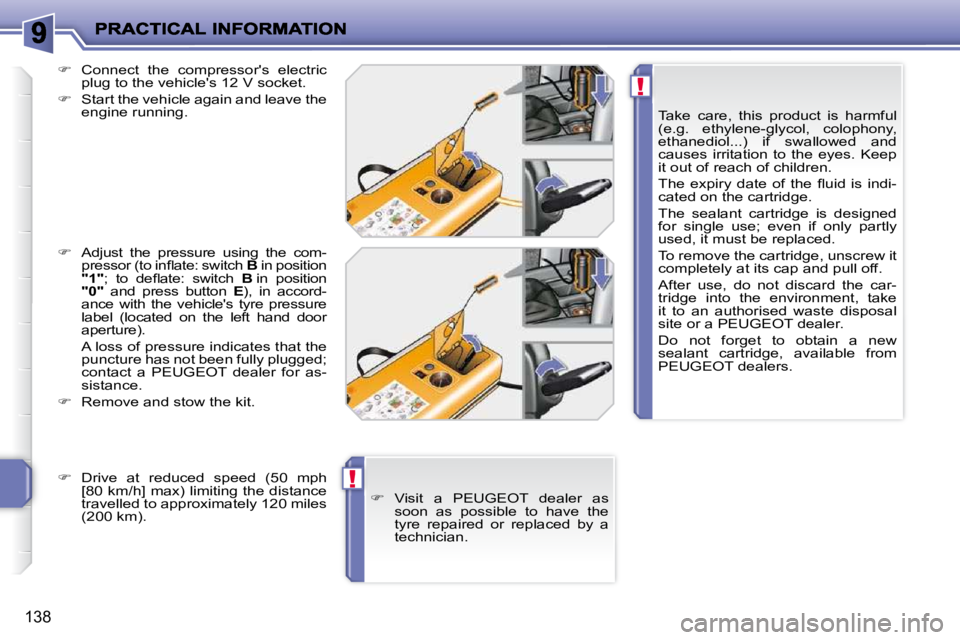

Page 146 of 279
!
!
138
Take care, this product is harmful
(e.g. ethylene-glycol, colophony,
e t h a n e d i o l . . . ) i f s w a l l o w e d a n d
c a u s e s i r r i t a t i o n t o t h e e y e s . K e e p
it out of reach of children.
T h e e x p i r y d a t e o f t h e fl u i d i s i n d i -
cated on the cartridge.
The sealant cartridge is designed
for single use; even if only partly
used, it must be replaced.
To remove the cartridge, unscrew it
completely at its cap and pull off.
After use, do not discard the car-
tridge into the environment, take
it to an authorised waste disposal
site or a PEUGEOT dealer.
Do not forget to obtain a new
sealant cartridge, available from
PEUGEOT dealers.
Connect the compressor's electric
plug to the vehicle's 12 V socket.
Start the vehicle again and leave the
engine running.
Adjust the pressure using the com-
p r e s s o r ( t o i n fl a t e : s w i t c h B in position
"1" ; t o d e fl a t e : s w i t c h B in position
"0" and press button E ) , i n a c c o r d -
ance with the vehicle's tyre pressure
label (located on the left hand door
a p e r t u r e ) .
A loss of pressure indicates that the puncture has not been fully plugged;
contact a PEUGEOT dealer for as-
sistance.
Remove and stow the kit.
Visit a PEUGEOT dealer as
soon as possible to have the
tyre repaired or replaced by a
technician.
Drive at reduced speed (50 mph
[ 8 0 k m / h ] m a x ) l i m i t i n g t h e d i s t a n c e
t r a v e l l e d t o a p p r o x i m a t e l y 1 2 0 m i l e s
( 2 0 0 k m ) .

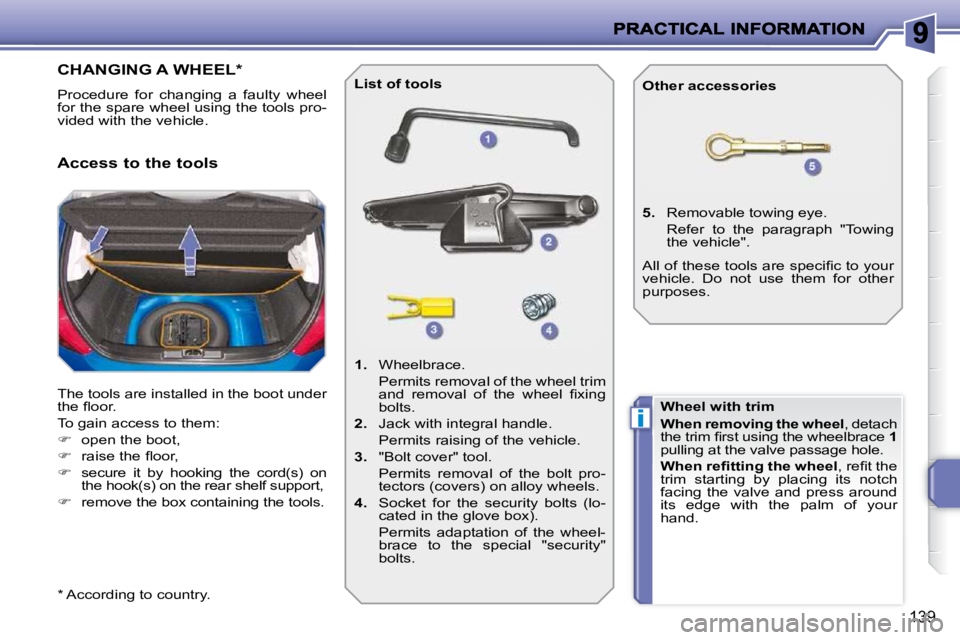

Page 147 of 279
i
139
CHANGING A WHEEL *
Procedure for changing a faulty wheel
for the spare wheel using the tools pro-
vided with the vehicle.
The tools are installed in the boot under
t h e fl o o r .
T o g a i n a c c e s s t o t h e m :
open the boot,
r a i s e t h e fl o o r ,
s e c u r e i t b y h o o k i n g t h e c o r d ( s ) o n
t h e h o o k ( s ) o n t h e r e a r s h e l f s u p p o r t ,
r e m o v e t h e b o x c o n t a i n i n g t h e t o o l s .
Access to the tools
List of tools
1. Wheelbrace.
Permits removal of the wheel trim a n d r e m o v a l o f t h e w h e e l fi x i n g
bolts.
2. Jack with integral handle.
Permits raising of the vehicle.
3. "Bolt cover" tool.
Permits removal of the bolt pro- t e c t o r s ( c o v e r s ) o n a l l o y w h e e l s .
4. Socket for the security bolts (lo-
c a t e d i n t h e g l o v e b o x ) .
Permits adaptation of the wheel- brace to the special "security"
bolts.
5. Removable towing eye.
Refer to the paragraph "Towing
the vehicle".
Other accessories
Wheel with trim
When removing the wheel , detach
t h e t r i m fi r s t u s i n g t h e w h e e l b r a c e 1
pulling at the valve passage hole.
W h e n r e fi t t i n g t h e w h e e l , r e fi t t h e
trim starting by placing its notch
facing the valve and press around
its edge with the palm of your
hand.
A l l o f t h e s e t o o l s a r e s p e c i fi c t o y o u r
vehicle. Do not use them for other
purposes.
* According to country.
Page 148 of 279
i
i
140
Access to the spare wheel
(Saloon)
The spare wheel is installed in the boot
u n d e r t h e fl o o r .
To gain access to it, refer to the paragraph
"Access to the tools" on the previous
page. Fitting the steel spare wheel
I f y o u r v e h i c l e i s fi t t e d w i t h a l -
loy wheels, it is normal to notice,
w h e n t i g h t e n i n g t h e b o l t s o n fi t t i n g ,
that the washers do not come into
contact with the steel spare wheel.
The wheel is secured by the coni-
cal contact of each bolt. Taking out the wheel
Unscrew the yellow central bolt.
Raise the spare wheel towards you
from the rear.
Take the wheel out of the boot.
Putting the wheel back in place
Put the wheel back in its housing.
Unscrew the yellow central bolt by a
few turns then put it in place in the
centre of the wheel.
Tighten fully until the central bolt
clicks to retain the wheel correctly.
P u t t h e b o x b a c k i n p l a c e i n t h e c e n t r e
of the wheel.
P u t t h e b o o t fl o o r b a c k i n p l a c e .
T y r e u n d e r - i n fl a t i o n d e t e c t i o n
T h e s p a r e w h e e l i s n o t fi t t e d w i t h
a sensor. The punctured wheel
must be repaired by a PEUGEOT
dealer.
Page 149 of 279
i
i
141
Access to the spare wheel (SW)
The spare wheel is installed in the boot
u n d e r t h e fl o o r .
To gain access to it, refer to the para-
graph "Access to the tools". Fitting the steel spare wheel
I f y o u r v e h i c l e i s fi t t e d w i t h a l -
loy wheels, it is normal to notice,
w h e n t i g h t e n i n g t h e b o l t s o n fi t t i n g ,
that the washers do not come into
contact with the steel spare wheel.
The wheel is secured by the coni-
cal contact of each bolt. Taking out the wheel
Unscrew the yellow central bolt.
Raise the spare wheel towards you
from the rear.
Take the wheel out of the boot.
Putting the wheel back in place
Put the wheel back in its housing.
Unscrew the yellow central bolt by a
few turns then put it in place in the
centre of the wheel.
Tighten fully until the central bolt
clicks to retain the wheel correctly.
P u t t h e b o x b a c k i n p l a c e i n t h e c e n t r e
of the wheel.
P u t t h e b o o t fl o o r b a c k i n p l a c e .
T y r e u n d e r - i n fl a t i o n d e t e c t i o n
T h e s p a r e w h e e l i s n o t fi t t e d w i t h
a sensor. The punctured wheel
must be repaired by a PEUGEOT
dealer.
Page 150 of 279
i
142
Parking the vehicle
Immobilise the vehicle where it
d o e s n o t b l o c k t r a f fi c : t h e g r o u n d
must be level, stable and non-slip-
pery.
Apply the handbrake, switch off the
i g n i t i o n a n d e n g a g e fi r s t g e a r * t o
lock the wheels.
If necessary, place a chock under
the wheel diagonally opposite the
wheel to be changed.
It is imperative that you ensure that
the occupants get out of the vehicle
and wait where they are safe.
Never go underneath a vehicle
r a i s e d u s i n g a j a c k ; u s e a n a x l e
stand.

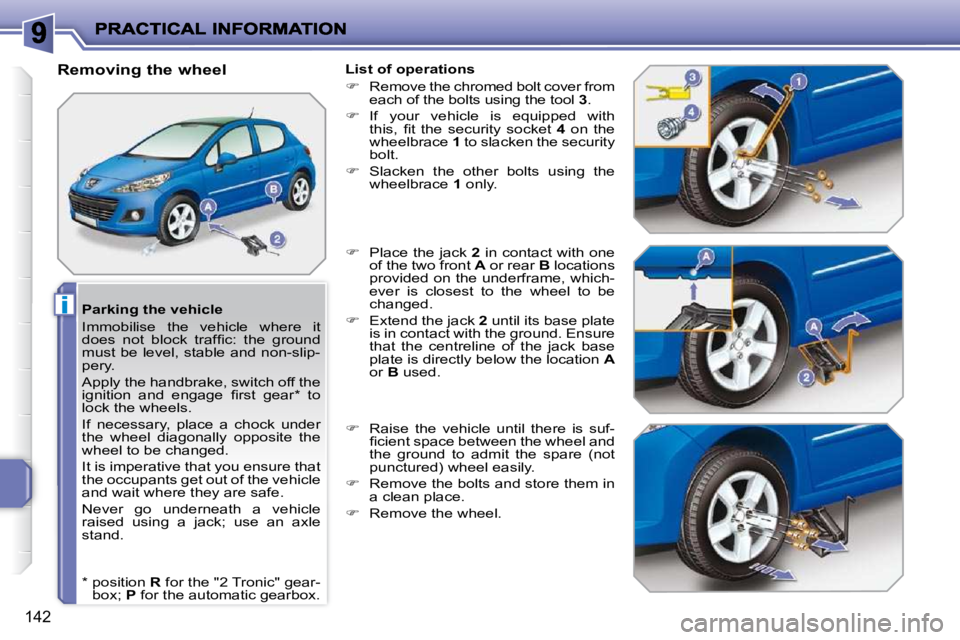

Removing the wheel
List of operations
Remove the chromed bolt cover from
each of the bolts using the tool 3 .
If your vehicle is equipped with
t h i s , fi t t h e s e c u r i t y s o c k e t 4 on the
wheelbrace 1 to slacken the security
bolt.
Slacken the other bolts using the
wheelbrace 1 only.
Place the jack 2 in contact with one
of the two front A or rear B locations
provided on the underframe, which-
ever is closest to the wheel to be
changed.
E x t e n d t h e j a c k 2 until its base plate
is in contact with the ground. Ensure
that the centreline of the jack base
plate is directly below the location A
or B used.
Raise the vehicle until there is suf-
fi c i e n t s p a c e b e t w e e n t h e w h e e l a n d
the ground to admit the spare (not
p u n c t u r e d ) w h e e l e a s i l y .
Remove the bolts and store them in
a clean place.
Remove the wheel.
* position R for the "2 Tronic" gear-
b o x ; P f o r t h e a u t o m a t i c g e a r b o x .
