Stopping the vehicle
Before switching off the engine, you
can engage position P or N to place the
gearbox in neutral.
In both cases, apply the parking brake
to immobilise the vehicle. Operating fault
When the ignition is on, the light-
ing of this warning lamp, accom-
panied by an audible signal and
a message on the multifunction
screen, indicates a gearbox mal-
function.
In this case, the gearbox switches to
back-up mode and is locked in 3rd gear.
You may feel a substantial knock when
changing from P to R and from N to R .
This will not cause any damage to the
gearbox.
Do not exceed 60 mph (100 km/h), local
speed restrictions permitting.
Contact a PEUGEOT dealer as soon as
possible.
There is a risk of damage to the
gearbox:
- if you press the accelerator and brake pedals at the same time,
- if you force the movement of the gear lever from the P posi-
tion to another position when
t h e b a t t e r y i s fl a t .

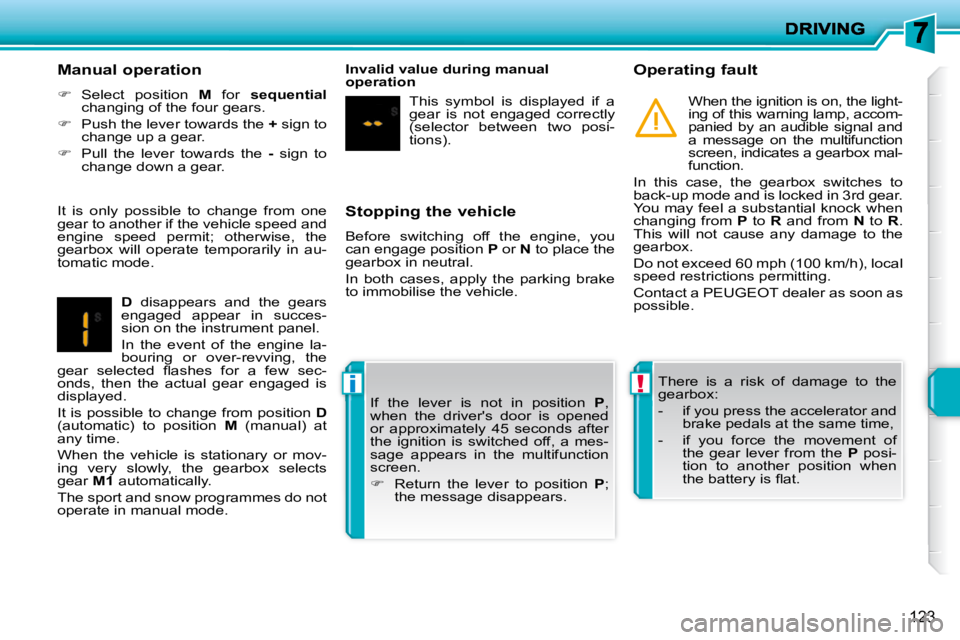

Manual operation
Select position M for sequential
changing of the four gears.
Push the lever towards the + sign to
change up a gear.
Pull the lever towards the - sign to
change down a gear.
D disappears and the gears
engaged appear in succes-
sion on the instrument panel.
In the event of the engine la-
bouring or over-revving, the
g e a r s e l e c t e d fl a s h e s f o r a f e w s e c -
onds, then the actual gear engaged is
displayed.
It is possible to change from position D
(automatic) to position M (manual) at
any time.
When the vehicle is stationary or mov-
ing very slowly, the gearbox selects
gear M1 automatically.
The sport and snow programmes do not
operate in manual mode. If the lever is not in position
P ,
when the driver's door is opened
or approximately 45 seconds after
the ignition is switched off, a mes-
sage appears in the multifunction
screen.
Return the lever to position P ;
the message disappears.
It is only possible to change from one
gear to another if the vehicle speed and
engine speed permit; otherwise, the
gearbox will operate temporarily in au-
tomatic mode.
Invalid value during manual
operation
This symbol is displayed if a
gear is not engaged correctly
(selector between two posi-
tions).
Page 132 of 279
i
124

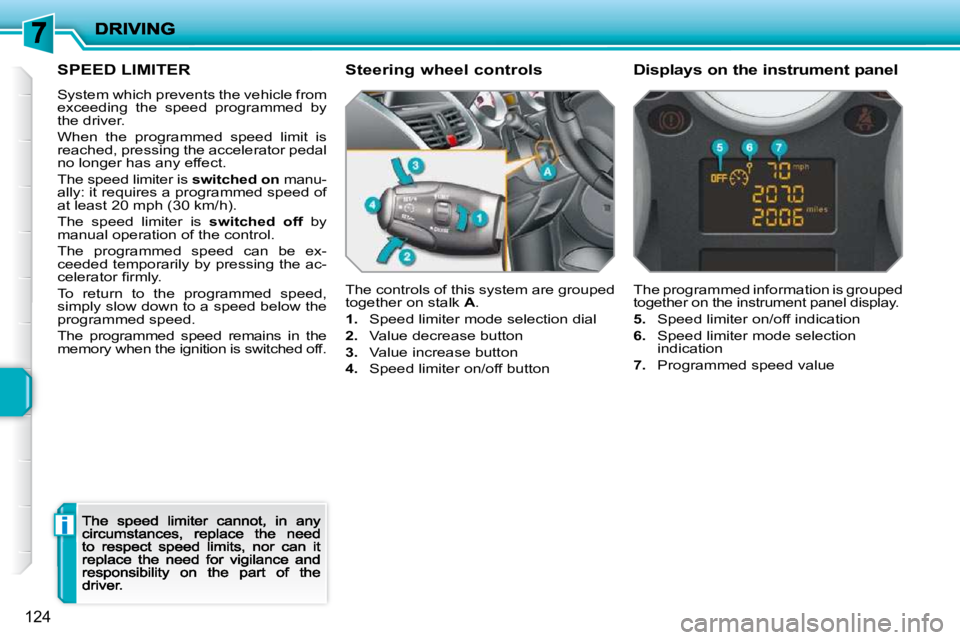

SPEED LIMITER
System which prevents the vehicle from exceeding the speed programmed by the driver.
When the programmed speed limit is reached, pressing the accelerator pedal no longer has any effect.
The speed limiter is switched on manu-ally: it requires a programmed speed of at least 20 mph (30 km/h).
The speed limiter is switched off by switched offmanual operation of the control.
The programmed speed can be ex-ceeded temporarily by pressing the ac- c e l e r a t o r fi r m l y .
To return to the programmed speed, simply slow down to a speed below the programmed speed.
The programmed speed remains in the memory when the ignition is switched off.
The controls of this system are grouped together on stalk A .
1. Speed limiter mode selection dial
2. Value decrease button
3. Value increase button
4. Speed limiter on/off button
The programmed information is grouped together on the instrument panel display.
5. Speed limiter on/off indication
6. Speed limiter mode selection indication
7. Programmed speed value
Steering wheel controls Displays on the instrument panel
Page 133 of 279
!
125

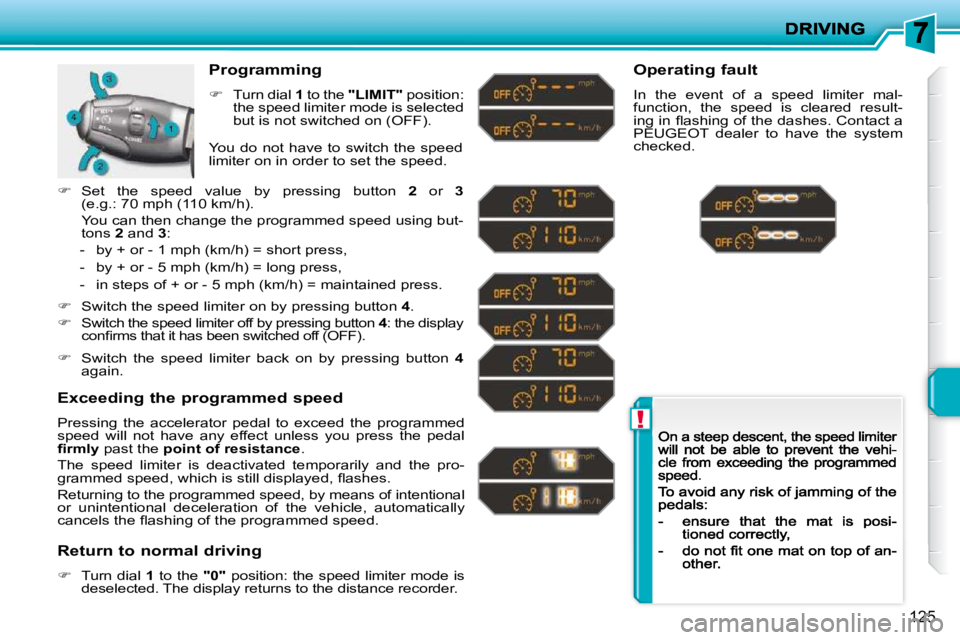

Programming
Turn dial 1 to the "LIMIT" position: the speed limiter mode is selected but is not switched on (OFF).
Exceeding the programmed speed
Pressing the accelerator pedal to exceed the programmed speed will not have any effect unless you press the pedal fi r m l y past the point of resistance .
The speed limiter is deactivated temporarily and the pro- g r a m m e d s p e e d , w h i c h i s s t i l l d i s p l a y e d , fl a s h e s .
Returning to the programmed speed, by means of intentional or unintentional deceleration of the vehicle, automaticall y c a n c e l s t h e fl a s h i n g o f t h e p r o g r a m m e d s p e e d .
Return to normal driving
Turn dial 1 to the "0" position: the speed limiter mode is deselected. The display returns to the distance recorder.
Operating fault
In the event of a speed limiter mal-function, the speed is cleared result- i n g i n fl a s h i n g o f t h e d a s h e s . C o n t a c t a PEUGEOT dealer to have the system checked. You do not have to switch the speed limiter on in order to set the speed.
Switch the speed limiter on by pressing button 4 .
Switch the speed limiter off by pressing button 4 : the display 4 c o n fi r m s t h a t i t h a s b e e n s w i t c h e d o f f ( O F F ) .
Switch the speed limiter back on by pressing button 4again.
Set the speed value by pressing button 2 or 3(e.g.: 70 mph (110 km/h).
You can then change the programmed speed using but-tons 2 and 3 :
- by + or - 1 mph (km/h) = short press,
- by + or - 5 mph (km/h) = long press,
- in steps of + or - 5 mph (km/h) = maintained press.
Page 134 of 279
i
126

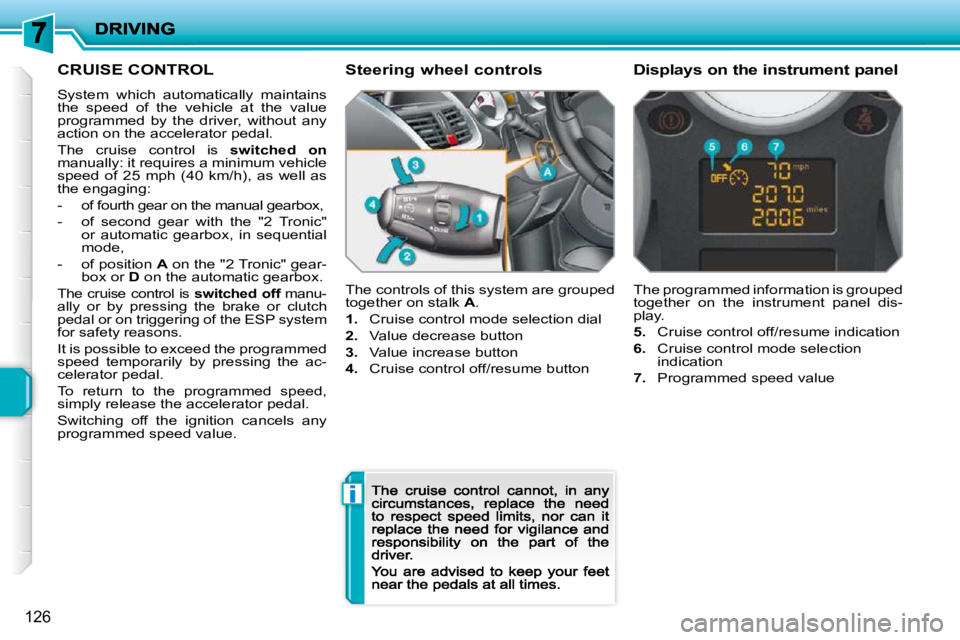

CRUISE CONTROL
System which automatically maintains the speed of the vehicle at the value programmed by the driver, without any action on the accelerator pedal.
The cruise control is switched onmanually: it requires a minimum vehicle speed of 25 mph (40 km/h), as well as the engaging:
-of fourth gear on the manual gearbox,
- of second gear with the "2 Tronic" or automatic gearbox, in sequential mode,
- of position A on the "2 Tronic" gear-box or D on the automatic gearbox.
The cruise control is switched off manu- offally or by pressing the brake or clutch pedal or on triggering of the ESP system for safety reasons.
It is possible to exceed the programmed speed temporarily by pressing the ac-celerator pedal.
To return to the programmed speed, simply release the accelerator pedal.
Switching off the ignition cancels any programmed speed value.
The controls of this system are grouped
together on stalk A .
1. Cruise control mode selection dial
2. Value decrease button
3. Value increase button
4. Cruise control off/resume button
The programmed information is grouped together on the instrument panel dis-play.
5. Cruise control off/resume indication
6. Cruise control mode selection indication
7. Programmed speed value
Steering wheel controls Displays on the instrument panel
Page 135 of 279
!
127

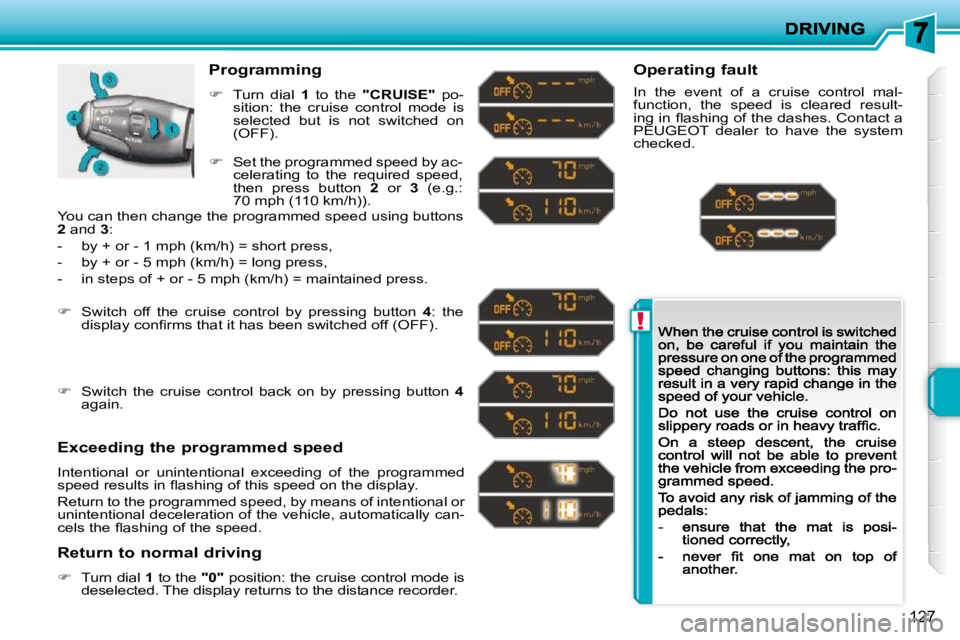

Programming
Turn dial 1 to the "CRUISE" po-sition: the cruise control mode is selected but is not switched on (OFF).
Exceeding the programmed speed
Intentional or unintentional exceeding of the programmed s p e e d r e s u l t s i n fl a s h i n g o f t h i s s p e e d o n t h e d i s p l a y .
Return to the programmed speed, by means of intentional or unintentional deceleration of the vehicle, automatically can- c e l s t h e fl a s h i n g o f t h e s p e e d .
Return to normal driving
Turn dial 1 to the "0" position: the cruise control mode is deselected. The display returns to the distance recorder.
Operating fault
In the event of a cruise control mal-function, the speed is cleared result- i n g i n fl a s h i n g o f t h e d a s h e s . C o n t a c t a PEUGEOT dealer to have the system checked.
Set the programmed speed by ac-celerating to the required speed, then press button 2 or 3 (e.g.: 70 mph (110 km/h)).
Switch off the cruise control by pressing button 4 : the d i s p l a y c o n fi r m s t h a t i t h a s b e e n s w i t c h e d o f f ( O F F ) .
Switch the cruise control back on by pressing button 4again.
You can then change the programmed speed using buttons 2 and 3 :
- by + or - 1 mph (km/h) = short press,
- by + or - 5 mph (km/h) = long press,
- in steps of + or - 5 mph (km/h) = maintained press.
Page 136 of 279
i
i
i
128
VISUAL AND AUDIBLE REAR
PARKING ASSISTANCE
System consisting of four proximity sen-
sors, installed in the rear bumper.
It detects any obstacle (person, vehicle,
tree, barrier...) located behind the vehi-
cle, however, it will not be able to detect
obstacles located immediately below
the bumper. The parking assistance is
switched on
by engaging reverse gear.
This is accompanied by an audible signal.
* According to version.
An object, such as a stake, a road-
works cone or any other similar ob-
ject may be detected at the start of
the manoeuvre but may no longer
be detected when the vehicle moves
nearer to it. When the distance between the rear of
the vehicle and the obstacle is less than
approximately thirty centimetres, the
audible signal becomes continuous and
the "Danger" symbol appears, depend-
ing on the multifunction screen version.
The parking assistance is
switched off
by moving the gear lever to neutral.
The parking assistance system
cannot, in any circumstances, re-
place the need for vigilance and
responsibility on the part of the
driver.
The proximity information is indicated by:
- an audible signal which becomes more rapid as the vehicle approach-
es the obstacle,
- a diagram on the multifunction screen * , with blocks which move
closer to the vehicle. Operating fault
In bad weather or in winter, ensure
that the sensors are not covered
with mud, ice or snow. When re-
verse gear is engaged, an audible
signal (long beep) indicates that
the sensors may be dirty. If an operating fault occurs, this
warning lamp comes on, when
reverse gear is engaged, ac-
companied by an audible signal
(short beep) and a message on the mul-
tifunction screen.
Have it checked by a PEUGEOT dealer.
Page 137 of 279
i
130

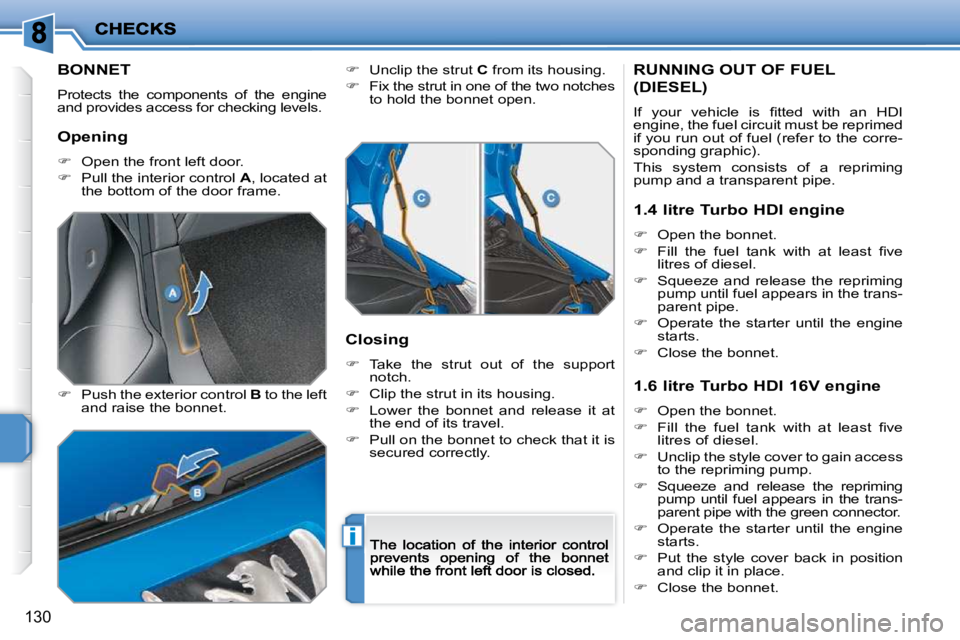

BONNET
Protects the components of the engine and provides access for checking levels.
Push the exterior control B to the left and raise the bonnet.
Unclip the strut C from its housing.
Fix the strut in one of the two notchesto hold the bonnet open.
Closing
Take the strut out of the support notch.
Clip the strut in its housing.
Lower the bonnet and release it at the end of its travel.
Pull on the bonnet to check that it is secured correctly.
RUNNING OUT OF FUEL
(DIESEL)
I f y o u r v e h i c l e i s fi t t e d w i t h a n H D I engine, the fuel circuit must be reprimed if you run out of fuel (refer to the corre-sponding graphic).
This system consists of a repriming pump and a transparent pipe.
Opening
Open the front left door.
Pull the interior control A , located at the bottom of the door frame.
1.4 litre Turbo HDI engine
Open the bonnet.
F i l l t h e f u e l t a n k w i t h a t l e a s t fi v e litres of diesel.
Squeeze and release the repriming pump until fuel appears in the trans-parent pipe.
Operate the starter until the engine starts.
Close the bonnet.
1.6 litre Turbo HDI 16V engine
Open the bonnet.
F i l l t h e f u e l t a n k w i t h a t l e a s t fi v e litres of diesel.
Unclip the style cover to gain access to the repriming pump.
Squeeze and release the repriming pump until fuel appears in the trans-parent pipe with the green connector.
Operate the starter until the engine starts.
Put the style cover back in position and clip it in place.
Close the bonnet.
Page 138 of 279
131

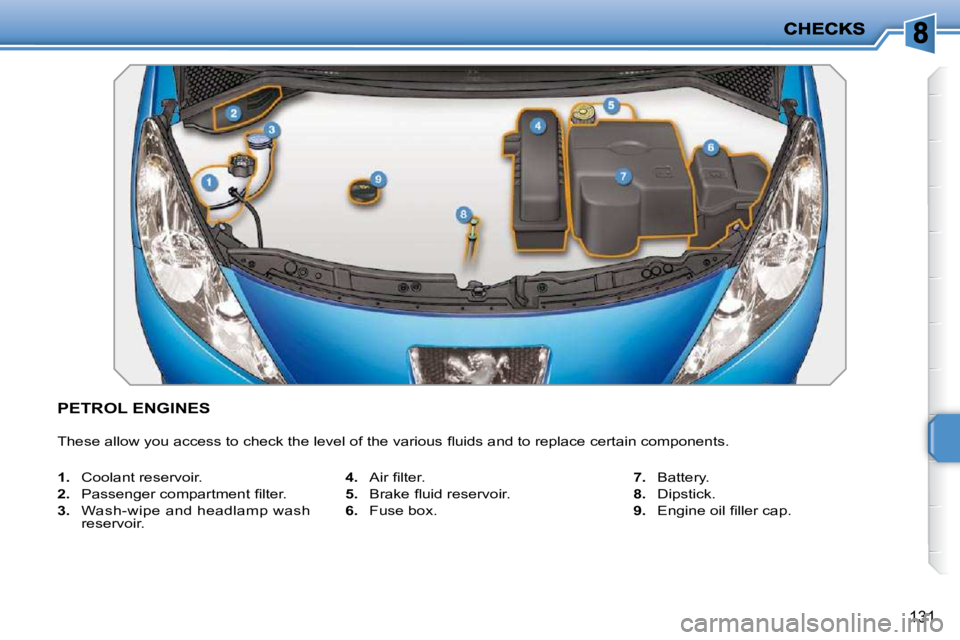

PETROL ENGINES
T h e s e a l l o w y o u a c c e s s t o c h e c k t h e l e v e l o f t h e v a r i o u s fl u i d s a n d t o r e p l a c e c e r t a i n c o m p o n e n t s .
1. Coolant reservoir.
2. P a s s e n g e r c o m p a r t m e n t fi l t e r .
3.Wash-wipe and headlamp washreservoir.
4. A i r fi l t e r .
5. B r a k e fl u i d r e s e r v o i r .
6. Fuse box.
7. Battery.
8. Dipstick.
9. E n g i n e o i l fi l l e r c a p .
Page 139 of 279
132

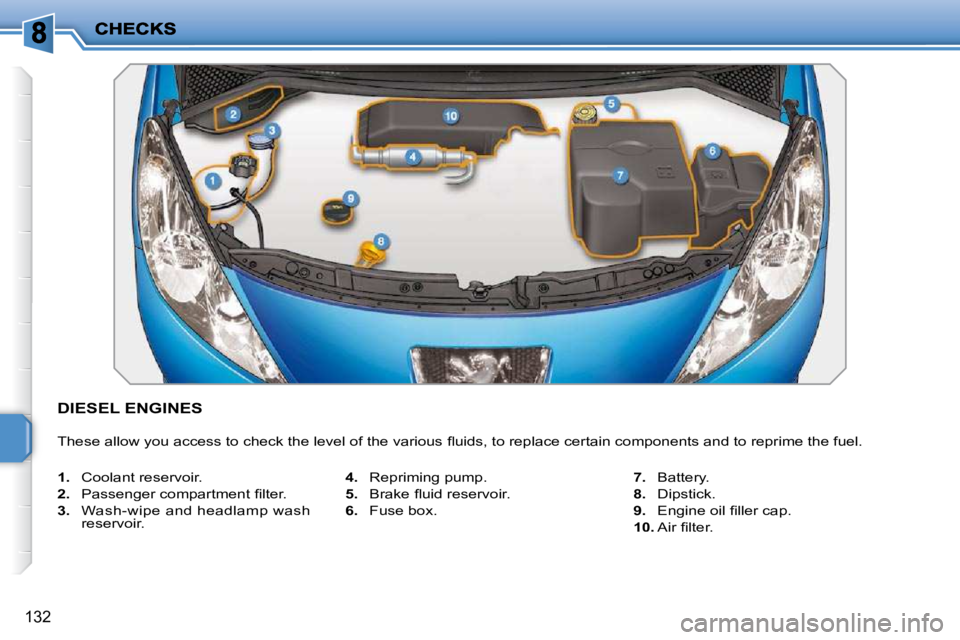

DIESEL ENGINES
T h e s e a l l o w y o u a c c e s s t o c h e c k t h e l e v e l o f t h e v a r i o u s fl u i d s , t o r e p l a c e c e r t a i n c o m p o n e n t s a n d t o r e p r i m e t h e f u e l .
1. Coolant reservoir.
2. P a s s e n g e r c o m p a r t m e n t fi l t e r .
3.Wash-wipe and headlamp washreservoir.
4. Repriming pump.
5. B r a k e fl u i d r e s e r v o i r .
6. Fuse box.
7. Battery.
8. Dipstick.
9. E n g i n e o i l fi l l e r c a p .
10. A i r fi l t e r .
Page 140 of 279
133

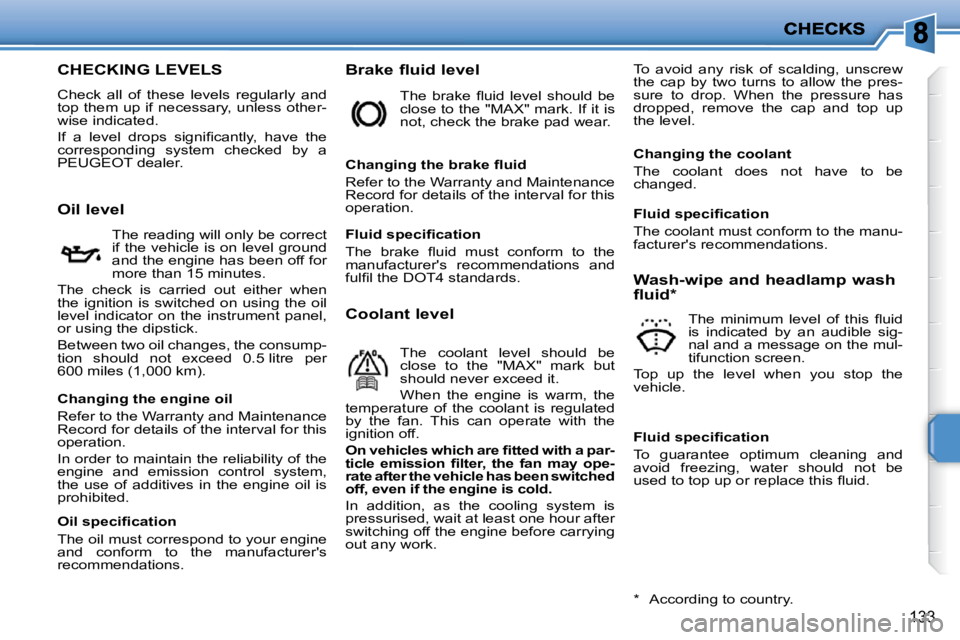

CHECKING LEVELS
Check all of these levels regularly and top them up if necessary, unless other-wise indicated.
I f a l e v e l d r o p s s i g n i fi c a n t l y , h a v e t h e
corresponding system checked by a
PEUGEOT dealer. Brake fluid level
To avoid any risk of scalding, unscrew the cap by two turns to allow the pres-sure to drop. When the pressure has dropped, remove the cap and top up the level.
Oil level
The reading will only be correct if the vehicle is on level ground and the engine has been off for more than 15 minutes.
The check is carried out either when the ignition is switched on using the oil level indicator on the instrument panel, or using the dipstick.
Between two oil changes, the consump-tion should not exceed 0.5 litre per 600 miles (1,000 km).
T h e b r a k e fl u i d l e v e l s h o u l d b e close to the "MAX" mark. If it is not, check the brake pad wear.
C h a n g i n g t h e b r a k e fl u i d
Refer to the Warranty and Maintenance
Record for details of the interval for this
operation.
Coolant level
The coolant level should be close to the "MAX" mark but should never exceed it.
When the engine is warm, the temperature of the coolant is regulated by the fan. This can operate with the ignition off.
O n v e h i c l e s w h i c h a r e fi t t e d w i t h a p a r - t i c l e e m i s s i o n fi l t e r , t h e f a n m a y o p e -rate after the vehicle has been switched o f f , e v e n i f t h e e n g i n e i s c o l d .
In addition, as the cooling system is pressurised, wait at least one hour after switching off the engine before carrying out any work.
W a s h - w i p e a n d h e a d l a m p w a s h
fluid*
T h e m i n i m u m l e v e l o f t h i s fl u i d
is indicated by an audible sig-
nal and a message on the mul-
tifunction screen.
Top up the level when you stop the vehicle.
* According to country.
Changing the engine oil
Refer to the Warranty and Maintenance
Record for details of the interval for this
operation.
In order to maintain the reliability of the engine and emission control system, the use of additives in the engine oil is prohibited.
O i l s p e c i fi c a t i o n
The oil must correspond to your engine and conform to the manufacturer's recommendations.
F l u i d s p e c i fi c a t i o n
T h e b r a k e fl u i d m u s t c o n f o r m t o t h e manufacturer's recommendations and f u l fi l t h e D O T 4 s t a n d a r d s .
Changing the coolant
The coolant does not have to be changed.
F l u i d s p e c i fi c a t i o n
The coolant must conform to the manu-facturer's recommendations.
F l u i d s p e c i fi c a t i o n
To guarantee optimum cleaning and avoid freezing, water should not be u s e d t o t o p u p o r r e p l a c e t h i s fl u i d .
