PEUGEOT 207 2009 Owners Manual
Manufacturer: PEUGEOT, Model Year: 2009, Model line: 207, Model: PEUGEOT 207 2009Pages: 279, PDF Size: 19.5 MB
Page 161 of 279
153

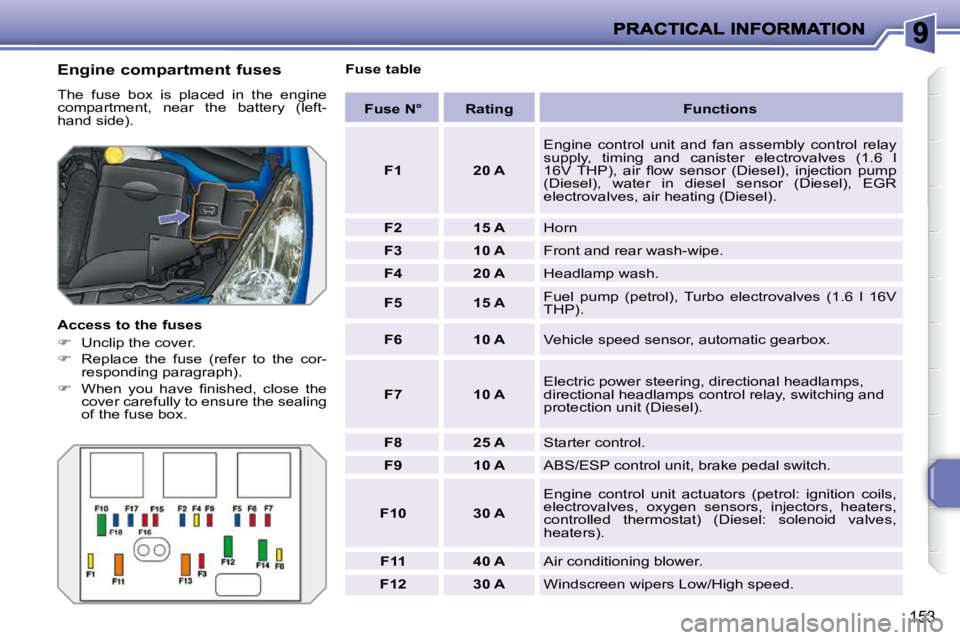

Engine compartment fuses
T h e f u s e b o x i s p l a c e d i n t h e e n g i n e
compartment, near the battery (left-
h a n d s i d e ) .
Access to the fuses
Unclip the cover.
Replace the fuse (refer to the cor-
r e s p o n d i n g p a r a g r a p h ) .
W h e n y o u h a v e fi n i s h e d , c l o s e t h e
cover carefully to ensure the sealing
o f t h e f u s e b o x . Fuse table
Fuse N° Rating Functions
F1 20 A Engine control unit and fan assembly control relay
supply, timing and canister electrovalves (1.6 l
1 6 V T H P ) , a i r fl o w s e n s o r ( D i e s e l ) , i n j e c t i o n p u m p
( D i e s e l ) , w a t e r i n d i e s e l s e n s o r ( D i e s e l ) , E G R
e l e c t r o v a l v e s , a i r h e a t i n g ( D i e s e l ) .
F2 15 A Horn
F3 10 A Front and rear wash-wipe.
F4 20 A Headlamp wash.
F5 15 A F u e l p u m p ( p e t r o l ) , T u r b o e l e c t r o v a l v e s ( 1 . 6 l 1 6 V
T H P ) .
F6 10 A V e h i c l e s p e e d s e n s o r , a u t o m a t i c g e a r b o x .
F7 10 A Electric power steering, directional headlamps,
directional headlamps control relay, switching and
p r o t e c t i o n u n i t ( D i e s e l ) .
F8 25 A Starter control.
F9 10 A ABS/ESP control unit, brake pedal switch.
F10 30 A E n g i n e c o n t r o l u n i t a c t u a t o r s ( p e t r o l : i g n i t i o n c o i l s ,
e l e c t r o v a l v e s , o x y g e n s e n s o r s , i n j e c t o r s , h e a t e r s ,
c o n t r o l l e d t h e r m o s t a t ) ( D i e s e l : s o l e n o i d v a l v e s ,
h e a t e r s ) .
F11 40 A Air conditioning blower.
F12 30 A Windscreen wipers Low/High speed.

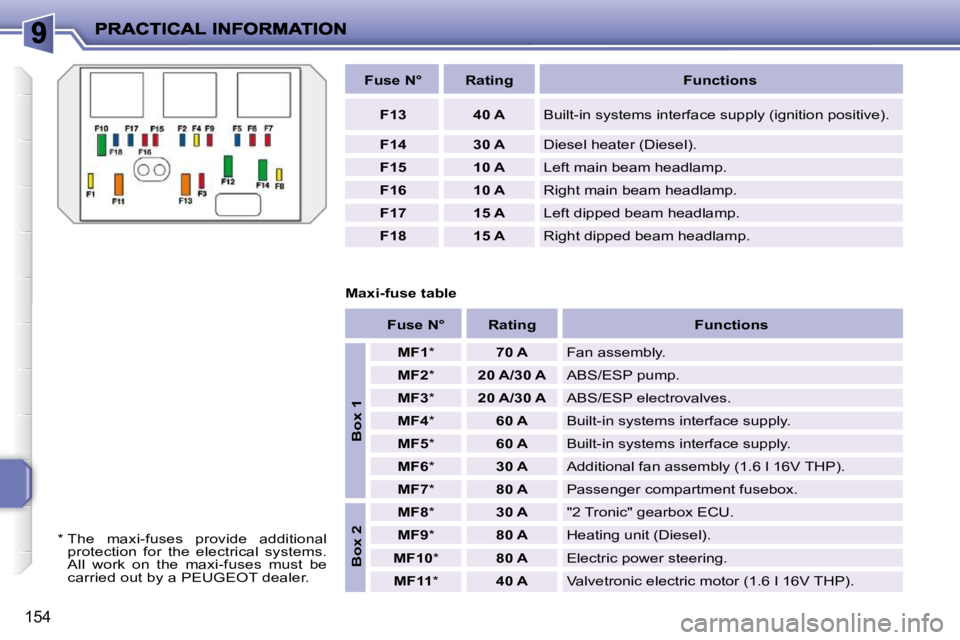

Page 162 of 279
154
Fuse N° Rating Functions
F13 40 A B u i l t - i n s y s t e m s i n t e r f a c e s u p p l y ( i g n i t i o n p o s i t i v e ) .
F14 30 A D i e s e l h e a t e r ( D i e s e l ) .
F15 10 A Left main beam headlamp.
F16 10 A Right main beam headlamp.
F17 15 A Left dipped beam headlamp.
F18 15 A Right dipped beam headlamp.
* T h e m a x i - f u s e s p r o v i d e a d d i t i o n a l protection for the electrical systems.
A l l w o r k o n t h e m a x i - f u s e s m u s t b e
carried out by a PEUGEOT dealer. Maxi-fuse table
Fuse N° Rating Functions
Box 1
MF1 * 70 A Fan assembly.
MF2 * 20 A/30 A ABS/ESP pump.
MF3 * 20 A/30 A ABS/ESP electrovalves.
MF4 * 60 A Built-in systems interface supply.
MF5 * 60 A Built-in systems interface supply.
MF6 * 30 A A d d i t i o n a l f a n a s s e m b l y ( 1 . 6 l 1 6 V T H P ) .
MF7 * 80 A P a s s e n g e r c o m p a r t m e n t f u s e b o x .
Box 2
MF8 * 30 A " 2 T r o n i c " g e a r b o x E C U .
MF9 * 80 A H e a t i n g u n i t ( D i e s e l ) .
MF10 * 80 A Electric power steering.
MF11 * 40 A V a l v e t r o n i c e l e c t r i c m o t o r ( 1 . 6 l 1 6 V T H P ) .
Page 163 of 279
155

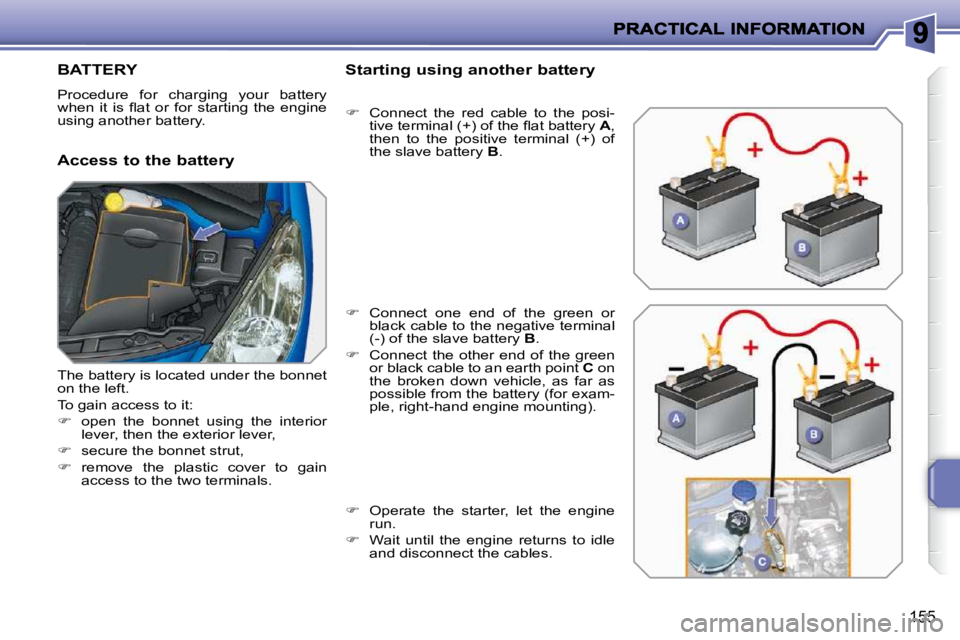

BATTERY
Procedure for charging your battery
w h e n i t i s fl a t o r f o r s t a r t i n g t h e e n g i n e
using another battery.
Access to the battery Starting using another battery
Connect the red cable to the posi-
t i v e t e r m i n a l ( + ) o f t h e fl a t b a t t e r y A ,
t h e n t o t h e p o s i t i v e t e r m i n a l ( + ) o f
the slave battery B .
Connect one end of the green or
black cable to the negative terminal
( - ) o f t h e s l a v e b a t t e r y B .
Connect the other end of the green
or black cable to an earth point C on
the broken down vehicle, as far as
p o s s i b l e f r o m t h e b a t t e r y ( f o r e x a m -
p l e , r i g h t - h a n d e n g i n e m o u n t i n g ) .
Operate the starter, let the engine
run.
Wait until the engine returns to idle
and disconnect the cables.
The battery is located under the bonnet
on the left.
T o g a i n a c c e s s t o i t :
open the bonnet using the interior
l e v e r , t h e n t h e e x t e r i o r l e v e r ,
secure the bonnet strut,
remove the plastic cover to gain
access to the two terminals.
Page 164 of 279
!
!
i
156
Do not disconnect the terminals
while the engine is running.
Do not charge the batteries without
d i s c o n n e c t i n g t h e t e r m i n a l s fi r s t .
Do not push the vehicle to start the
e n g i n e i f i t i s fi t t e d w i t h a " 2 T r o n i c "
g e a r b o x .
The batteries contain harmful sub-
stances such as sulphuric acid and
lead. They must be disposed of in
accordance with regulations and
must not, in any circumstances, be
discarded with household waste.
Take used remote control batteries
and vehicle batteries to a special
collection point.

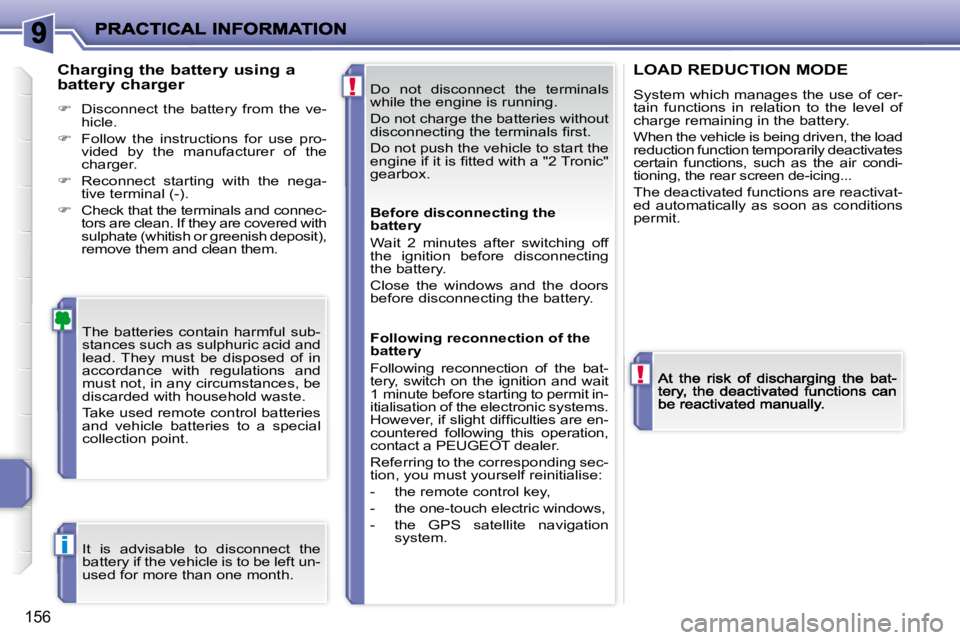

Charging the battery using a
battery charger
Disconnect the battery from the ve-
hicle.
Follow the instructions for use pro-
vided by the manufacturer of the
charger.
Reconnect starting with the nega-
t i v e t e r m i n a l ( - ) .
Check that the terminals and connec-
tors are clean. If they are covered with
s u l p h a t e ( w h i t i s h o r g r e e n i s h d e p o s i t ) ,
remove them and clean them.
LOAD REDUCTION MODE
System which manages the use of cer-tain functions in relation to the level of charge remaining in the battery.
When the vehicle is being driven, the load reduction function temporarily deactivates certain functions, such as the air condi-tioning, the rear screen de-icing...
The deactivated functions are reactivat-ed automatically as soon as conditions permit.
It is advisable to disconnect the
battery if the vehicle is to be left un-
used for more than one month. Before disconnecting the
battery
Wait 2 minutes after switching off
the ignition before disconnecting
the battery.
Close the windows and the doors
before disconnecting the battery.
Following reconnection of the
battery
Following reconnection of the bat-
tery, switch on the ignition and wait
1 minute before starting to permit in-
itialisation of the electronic systems.
H o w e v e r , i f s l i g h t d i f fi c u l t i e s a r e e n -
countered following this operation,
contact a PEUGEOT dealer.
Referring to the corresponding sec-
t i o n , y o u m u s t y o u r s e l f r e i n i t i a l i s e :
- the remote control key,
- the one-touch electric windows,
- the GPS satellite navigation
system.
Page 165 of 279
!
!
i
156
Do not disconnect the terminals
while the engine is running.
Do not charge the batteries without
d i s c o n n e c t i n g t h e t e r m i n a l s fi r s t .
Do not push the vehicle to start the
e n g i n e i f i t i s fi t t e d w i t h a " 2 T r o n i c "
g e a r b o x .
The batteries contain harmful sub-
stances such as sulphuric acid and
lead. They must be disposed of in
accordance with regulations and
must not, in any circumstances, be
discarded with household waste.
Take used remote control batteries
and vehicle batteries to a special
collection point.
Charging the battery using a
battery charger
Disconnect the battery from the ve-
hicle.
Follow the instructions for use pro-
vided by the manufacturer of the
charger.
Reconnect starting with the nega-
t i v e t e r m i n a l ( - ) .
Check that the terminals and connec-
tors are clean. If they are covered with
s u l p h a t e ( w h i t i s h o r g r e e n i s h d e p o s i t ) ,
remove them and clean them.
LOAD REDUCTION MODE
System which manages the use of cer-tain functions in relation to the level of charge remaining in the battery.
When the vehicle is being driven, the load reduction function temporarily deactivates certain functions, such as the air condi-tioning, the rear screen de-icing...
The deactivated functions are reactivat-ed automatically as soon as conditions permit.
It is advisable to disconnect the
battery if the vehicle is to be left un-
used for more than one month. Before disconnecting the
battery
Wait 2 minutes after switching off
the ignition before disconnecting
the battery.
Close the windows and the doors
before disconnecting the battery.
Following reconnection of the
battery
Following reconnection of the bat-
tery, switch on the ignition and wait
1 minute before starting to permit in-
itialisation of the electronic systems.
H o w e v e r , i f s l i g h t d i f fi c u l t i e s a r e e n -
countered following this operation,
contact a PEUGEOT dealer.
Referring to the corresponding sec-
t i o n , y o u m u s t y o u r s e l f r e i n i t i a l i s e :
- the remote control key,
- the one-touch electric windows,
- the GPS satellite navigation
system.
Page 166 of 279
!
i
157
A fl a t b a t t e r y p r e v e n t s t h e e n g i n e
from starting (refer to the corre-
s p o n d i n g p a r a g r a p h ) .
If the telephone is being used at
t h i s t i m e :
-
it will be maintained for 5 minutes
with your PC Sound hands-free kit,
- i t w i l l s t i l l b e p o s s i b l e t o fi n i s h the call with the PC Com.

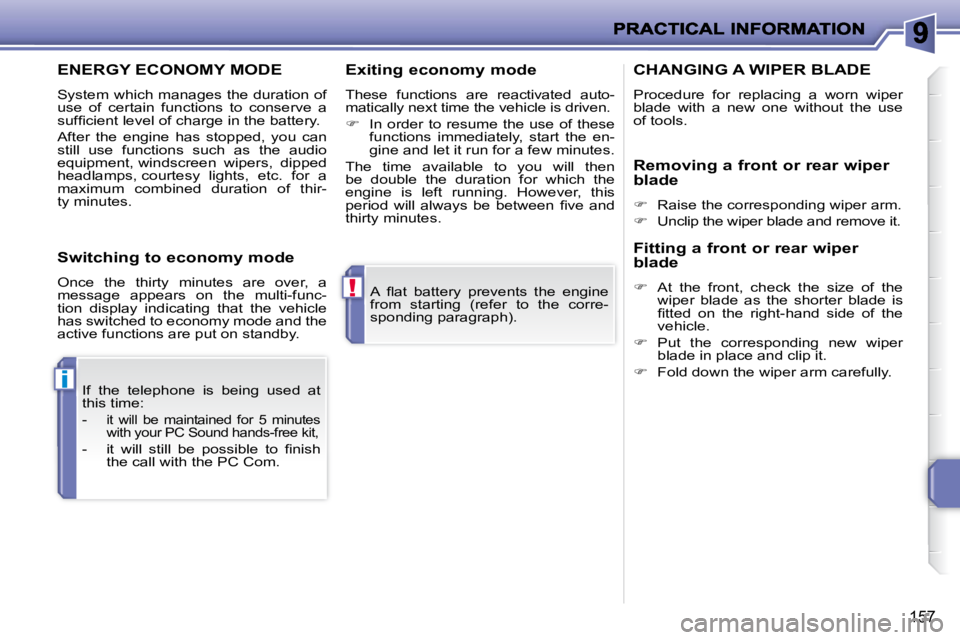

ENERGY ECONOMY MODE
System which manages the duration of
use of certain functions to conserve a
s u f fi c i e n t l e v e l o f c h a r g e i n t h e b a t t e r y .
After the engine has stopped, you can
still use functions such as the audio
equipment, windscreen wipers, dipped
headlamps, courtesy lights, etc. for a
m a x i m u m c o m b i n e d d u r a t i o n o f t h i r -
ty minutes. Exiting economy mode
These functions are reactivated auto-
m a t i c a l l y n e x t t i m e t h e v e h i c l e i s d r i v e n .
In order to resume the use of these
functions immediately, start the en-
gine and let it run for a few minutes.
The time available to you will then
be double the duration for which the
engine is left running. However, this
p e r i o d w i l l a l w a y s b e b e t w e e n fi v e a n d
thirty minutes.
Switching to economy mode
Once the thirty minutes are over, a
message appears on the multi-func-
tion display indicating that the vehicle
has switched to economy mode and the
active functions are put on standby. CHANGING A WIPER BLADE Procedure for replacing a worn wiper blade with a new one without the use of tools.
Removing a front or rear wiper
blade
Raise the corresponding wiper arm.
Unclip the wiper blade and remove it.
Fitting a front or rear wiper
blade
At the front, check the size of the wiper blade as the shorter blade is fi t t e d o n t h e r i g h t - h a n d s i d e o f t h e vehicle.
Put the corresponding new wiper blade in place and clip it.
Fold down the wiper arm carefully.
Page 167 of 279
!i
158

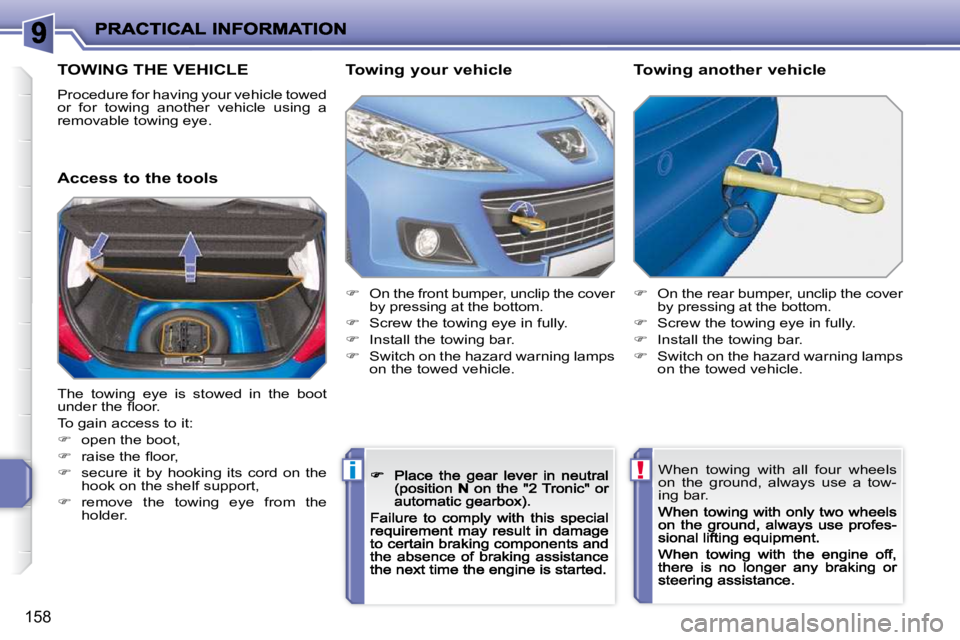

TOWING THE VEHICLE
Procedure for having your vehicle towed or for towing another vehicle using a removable towing eye.
Access to the tools Towing your vehicle
On the front bumper, unclip the cover by pressing at the bottom.
Screw the towing eye in fully.
Install the towing bar.
Switch on the hazard warning lamps
on the towed vehicle.
On the rear bumper, unclip the cover by pressing at the bottom.
Screw the towing eye in fully.
Install the towing bar.
Switch on the hazard warning lamps
on the towed vehicle.
Towing another vehicle
The towing eye is stowed in the boot
u n d e r t h e fl o o r .
T o g a i n a c c e s s t o i t :
open the boot,
r a i s e t h e fl o o r ,
secure it by hooking its cord on the hook on the shelf support,
remove the towing eye from the holder.
When towing with all four wheels
on the ground, always use a tow-
ing bar.
Page 168 of 279
i
i
159

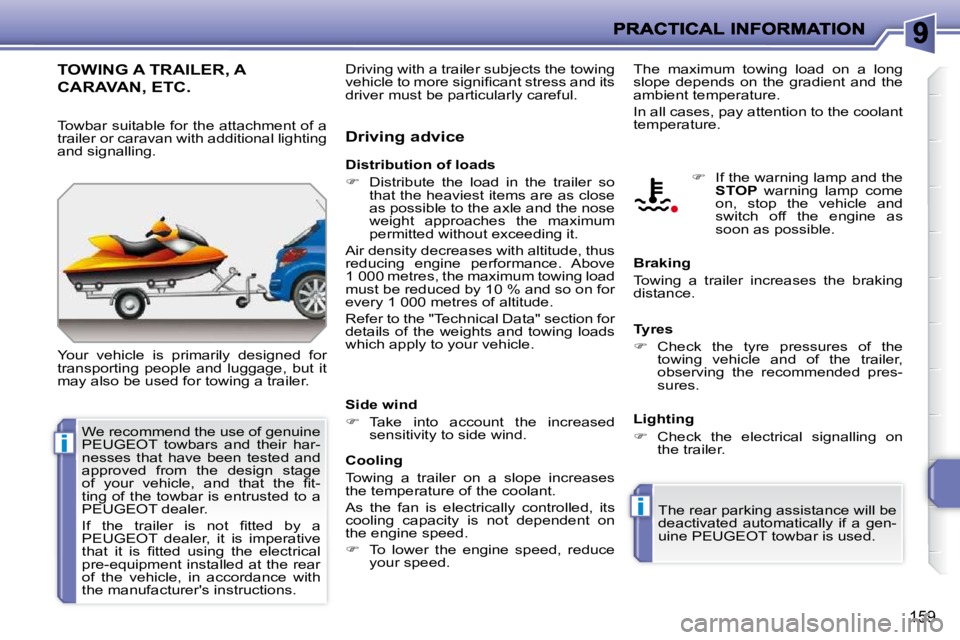

TOWING A TRAILER, A
CARAVAN, ETC.
Your vehicle is primarily designed for
transporting people and luggage, but it
may also be used for towing a trailer. Driving advice
T h e m a x i m u m t o w i n g l o a d o n a l o n g
slope depends on the gradient and the
ambient temperature.
In all cases, pay attention to the coolant
temperature.
Distribution of loads
Distribute the load in the trailer so
that the heaviest items are as close
a s p o s s i b l e t o t h e a x l e a n d t h e n o s e
w e i g h t a p p r o a c h e s t h e m a x i m u m
p e r m i t t e d w i t h o u t e x c e e d i n g i t .
Air density decreases with altitude, thus
reducing engine performance. Above
1 0 0 0 m e t r e s , t h e m a x i m u m t o w i n g l o a d
must be reduced by 10 % and so on for
every 1 000 metres of altitude.
Refer to the "Technical Data" section for
details of the weights and towing loads
which apply to your vehicle.
Side wind
Take into account the increased
sensitivity to side wind. Braking
Towing a trailer increases the braking
distance.
Tyres
Check the tyre pressures of the
towing vehicle and of the trailer,
observing the recommended pres-
sures.
Lighting
Check the electrical signalling on
the trailer.
The rear parking assistance will be
deactivated automatically if a gen-
uine PEUGEOT towbar is used.
If the warning lamp and the
STOP warning lamp come
on, stop the vehicle and
switch off the engine as
soon as possible.
Towbar suitable for the attachment of a
trailer or caravan with additional lighting
and signalling.
Cooling
Towing a trailer on a slope increases
the temperature of the coolant.
As the fan is electrically controlled, its
cooling capacity is not dependent on
the engine speed.
To lower the engine speed, reduce
your speed.
We recommend the use of genuine
PEUGEOT towbars and their har-
nesses that have been tested and
approved from the design stage
o f y o u r v e h i c l e , a n d t h a t t h e fi t -
ting of the towbar is entrusted to a
PEUGEOT dealer.
I f t h e t r a i l e r i s n o t fi t t e d b y a
PEUGEOT dealer, it is imperative
t h a t i t i s fi t t e d u s i n g t h e e l e c t r i c a l
pre-equipment installed at the rear
of the vehicle, in accordance with
the manufacturer's instructions. Driving with a trailer subjects the towing
v e h i c l e t o m o r e s i g n i fi c a n t s t r e s s a n d i t s
driver must be particularly careful.
Page 169 of 279
i
i
!
160

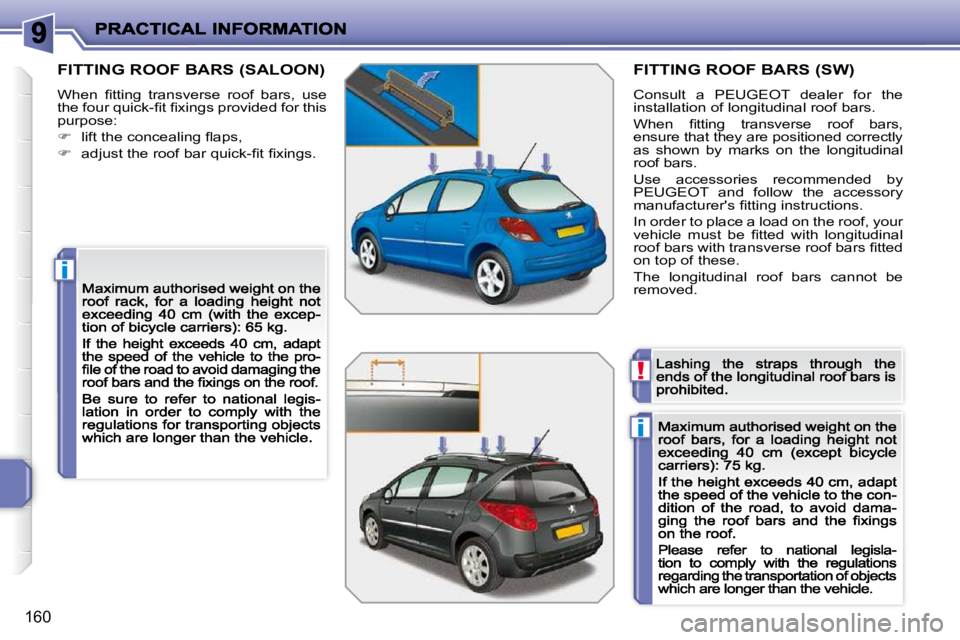

FITTING ROOF BARS (SALOON)
W h e n fi t t i n g t r a n s v e r s e r o o f b a r s , u s e t h e f o u r q u i c k - fi t fi x i n g s p r o v i d e d f o r t h i s p u r p o s e :
l i f t t h e c o n c e a l i n g fl a p s ,
a d j u s t t h e r o o f b a r q u i c k - fi t fi x i n g s .
FITTING ROOF BARS (SW)
Consult a PEUGEOT dealer for the installation of longitudinal roof bars.
W h e n fi t t i n g t r a n s v e r s e r o o f b a r s , ensure that they are positioned correctly as shown by marks on the longitudinal roof bars.
Use accessories recommended by PEUGEOT and follow the accessory m a n u f a c t u r e r ' s fi t t i n g i n s t r u c t i o n s .
In order to place a load on the roof, your v e h i c l e m u s t b e fi t t e d w i t h l o n g i t u d i n a l r o o f b a r s w i t h t r a n s v e r s e r o o f b a r s fi t t e d on top of these.
The longitudinal roof bars cannot be removed.
Page 170 of 279
!
i
161
T h e fi t t i n g o f e l e c t r i c a l e q u i p m e n t
or accessories which are not re-
commended by PEUGEOT may
result in a failure of your vehicle's
electronic system.
P l e a s e n o t e t h i s s p e c i fi c w a r n i n g .
You are advised to contact a rep-
resentative of the Marque to be
shown the range of recommended
equipment and accessories.

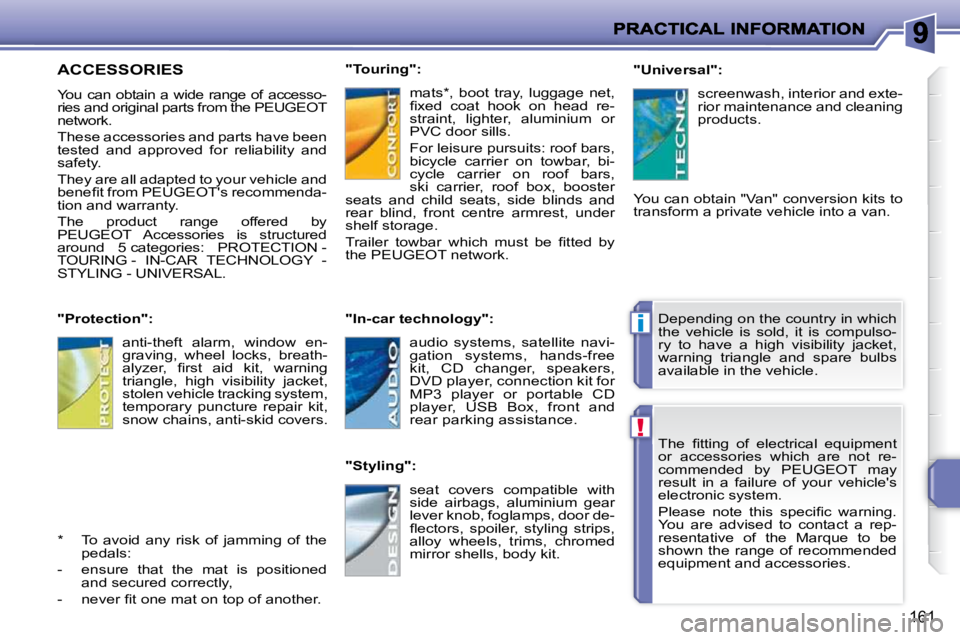

ACCESSORIES
You can obtain a wide range of accesso-
ries and original parts from the PEUGEOT
network.
These accessories and parts have been
tested and approved for reliability and
safety.
They are all adapted to your vehicle and
b e n e fi t f r o m P E U G E O T ' s r e c o m m e n d a -
tion and warranty.
The product range offered by
PEUGEOT Accessories is structured
a r o u n d 5 c a t e g o r i e s : P R O T E C T I O N -
TOURING - IN-CAR TECHNOLOGY -
STYLING - UNIVERSAL.
"Protection":
"Touring":
"In-car technology":
"Styling":
"Universal":
You can obtain "Van" conversion kits to
transform a private vehicle into a van.
* To avoid any risk of jamming of the p e d a l s :
- ensure that the mat is positioned and secured correctly,
- n e v e r fi t o n e m a t o n t o p o f a n o t h e r . Depending on the country in which
the vehicle is sold, it is compulso-
ry to have a high visibility jacket,
warning triangle and spare bulbs
available in the vehicle.
anti-theft alarm, window en-
graving, wheel locks, breath-
a l y z e r , fi r s t a i d k i t , w a r n i n g
triangle, high visibility jacket,
stolen vehicle tracking system,
temporary puncture repair kit,
snow chains, anti-skid covers. mats * , boot tray, luggage net,
fi x e d c o a t h o o k o n h e a d r e -
straint, lighter, aluminium or
PVC door sills.
F o r l e i s u r e p u r s u i t s : r o o f b a r s ,
bicycle carrier on towbar, bi-
cycle carrier on roof bars,
s k i c a r r i e r , r o o f b o x , b o o s t e r
seats and child seats, side blinds and
rear blind, front centre armrest, under
shelf storage.
T r a i l e r t o w b a r w h i c h m u s t b e fi t t e d b y
the PEUGEOT network.
audio systems, satellite navi-
gation systems, hands-free
kit, CD changer, speakers,
DVD player, connection kit for
MP3 player or portable CD
p l a y e r , U S B B o x , f r o n t a n d
rear parking assistance.
seat covers compatible with
side airbags, aluminium gear
lever knob, foglamps, door de-
fl e c t o r s , s p o i l e r , s t y l i n g s t r i p s ,
alloy wheels, trims, chromed
mirror shells, body kit. s c r e e n w a s h , i n t e r i o r a n d e x t e -
rior maintenance and cleaning
products.
