PEUGEOT 207 2009 Owners Manual
Manufacturer: PEUGEOT, Model Year: 2009, Model line: 207, Model: PEUGEOT 207 2009Pages: 279, PDF Size: 19.5 MB
Page 171 of 279
10
162

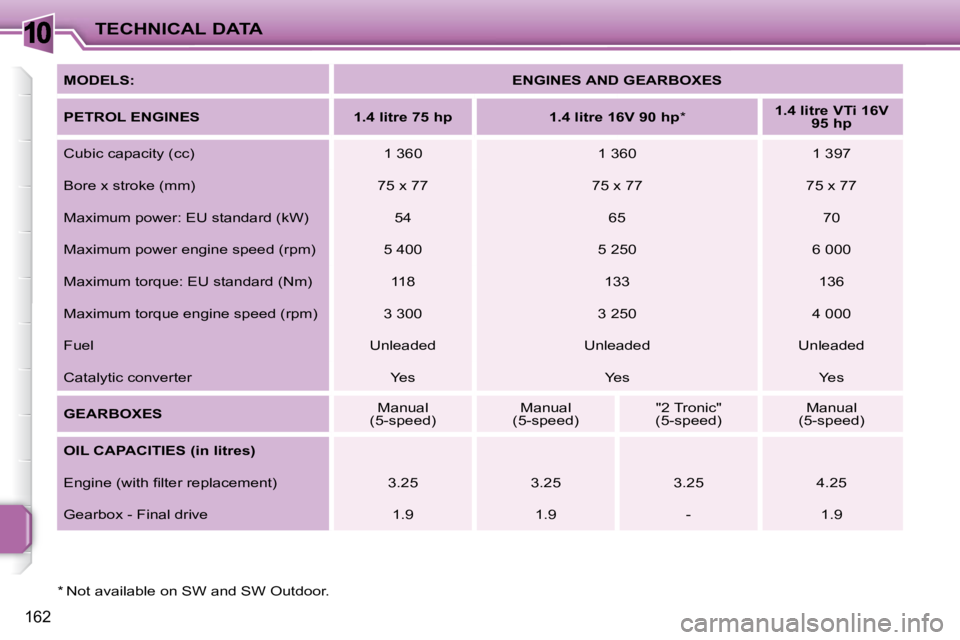

TECHNICAL DATA
* Not available on SW and SW Outdoor. MODELS:
ENGINES AND GEARBOXES
PETROL ENGINES 1.4 litre 75
hp 1.4 litre 16V
90
hp *
1.4 litre VTi 16V
95
hp
Cubic capacity (cc) 1 360 1 360 1 397
Bore x stroke (mm) 75 x 77 75 x 77 75 x 77
Maximum power: EU standard (kW) 54 65 70
Maximum power engine speed (rpm) 5 400 5 250 6 000
Maximum torque: EU standard (Nm) 118 133 136
Maximum torque engine speed (rpm) 3 300 3 250 4 000
Fuel Unleaded Unleaded Unleaded
Catalytic converter Yes Yes Yes
GEARBOXES Manual
(5-speed) Manual
(5-speed) "2 Tronic"
(5-speed) Manual
(5-speed)
OIL CAPACITIES (in litres)
E n g i n e ( w i t h fi l t e r r e p l a c e m e n t ) 3.25 3.25 3.25 4.25
Gearbox - Final drive 1.9 1.9 - 1.9
Page 172 of 279
10
163

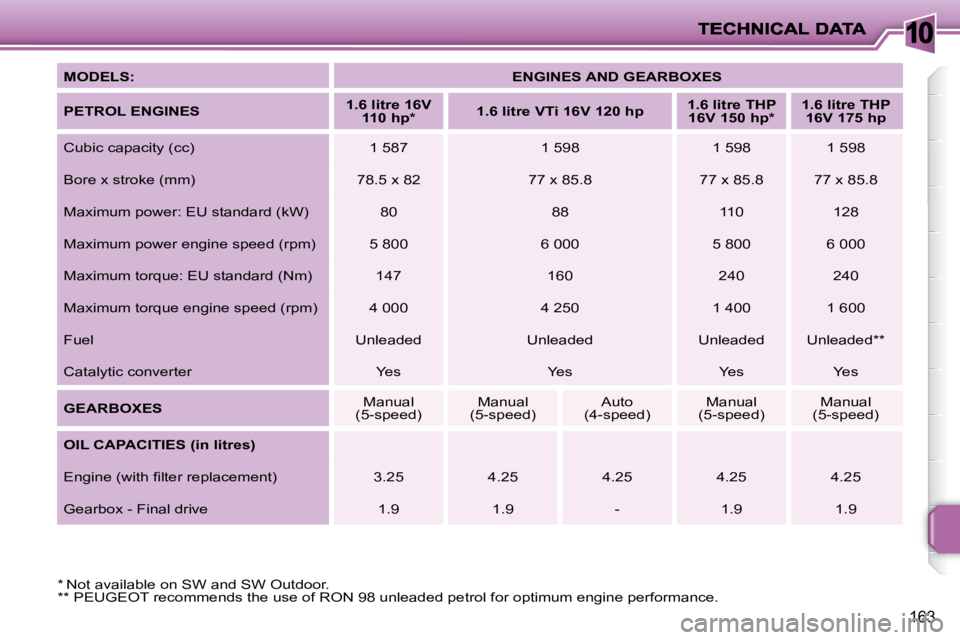

MODELS: ENGINES AND GEARBOXES
PETROL ENGINES
1.6 litre 16V
110
hp
*
1.6 litre VTi 16V 120
hp
1.6 litre THP
16V 150
hp
*
1.6 litre THP
16V 175
hp
Cubic capacity (cc) 1 587 1 598 1 598 1 598
Bore x stroke (mm) 78.5 x 82 77 x 85.8 77 x 85.8 77 x 85.8
Maximum power: EU standard (kW) 80 88 110 128
Maximum power engine speed (rpm) 5 800 6 000 5 800 6 000
Maximum torque: EU standard (Nm) 147 160 240 240
Maximum torque engine speed (rpm) 4 000 4 250 1 400 1 600
Fuel Unleaded Unleaded Unleaded Unleaded **
Catalytic converter Yes Yes Yes Yes
GEARBOXES Manual
(5-speed) Manual
(5-speed) Auto
(4-speed) Manual
(5-speed) Manual
(5-speed)
OIL CAPACITIES (in litres)
E n g i n e ( w i t h fi l t e r r e p l a c e m e n t ) 3.25 4.25 4.25 4.25 4.25
Gearbox - Final drive 1.9 1.9 - 1.9 1.9
* Not available on SW and SW Outdoor.
** PEUGEOT recommends the use of RON 98 unleaded petrol for optimum engine performance.
Page 173 of 279
10
174

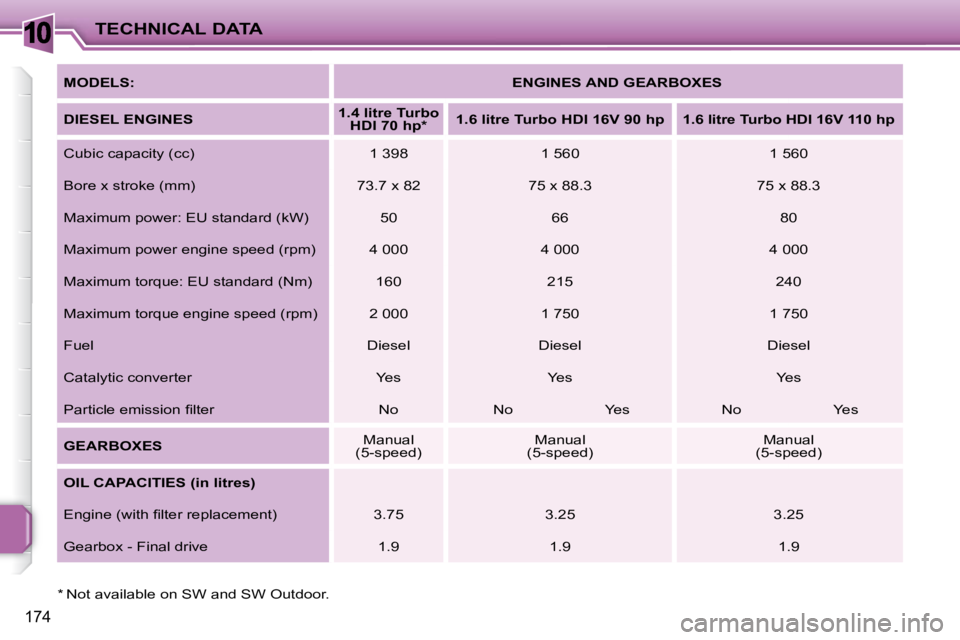

TECHNICAL DATA
MODELS:
ENGINES AND GEARBOXES
DIESEL ENGINES
1.4 litre Turbo
HDI 70
hp
*
1.6 litre Turbo HDI 16V 90
hp 1.6 litre Turbo HDI 16V 110
hp
Cubic capacity (cc) 1 398 1 560 1 560
Bore x stroke (mm) 73.7 x 82 75 x 88.3 75 x 88.3
Maximum power: EU standard (kW) 50 66 80
Maximum power engine speed (rpm) 4 000 4 000 4 000
Maximum torque: EU standard (Nm) 160 215 240
Maximum torque engine speed (rpm) 2 000 1 750 1 750
Fuel Diesel Diesel Diesel
Catalytic converter Yes Yes Yes
P a r t i c l e e m i s s i o n fi l t e r No No Yes No Yes
GEARBOXES Manual
(5-speed) Manual
(5-speed) Manual
(5-speed)
OIL CAPACITIES (in litres)
E n g i n e ( w i t h fi l t e r r e p l a c e m e n t ) 3.75 3.25 3.25
Gearbox - Final drive 1.9 1.9 1.9
* Not available on SW and SW Outdoor.
Page 174 of 279
10
164
TECHNICAL DATA

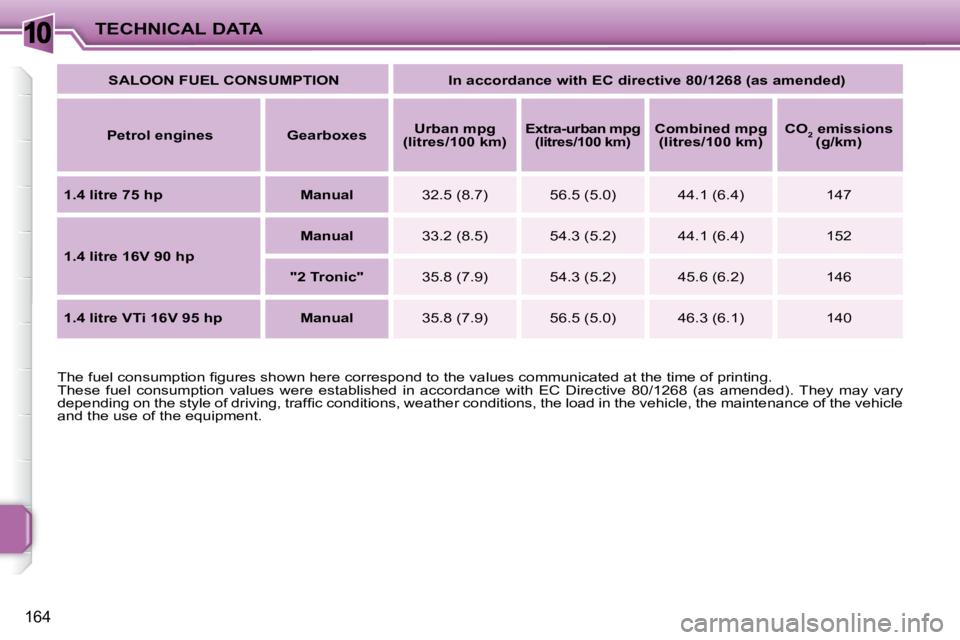

SALOON
FUEL
CONSUMPTION In accordance with EC directive 80/1268 (as amended)
Petrol engines Gearboxes
Urban
mpg
(litres/100 km)
Extra
-urban
mpg
(litres/100 km)
Combined
mpg
(litres/100 km)
CO
2
emissions
(g/km)
1.4 litre 75
hp Manual 32.5 (8.7) 56.5 (5.0) 44.1 (6.4) 147
1.4 litre 16V 90
hp
Manual 33.2 (8.5) 54.3 (5.2) 44.1 (6.4) 152
"2 Tronic" 35.8 (7.9) 54.3 (5.2) 45.6 (6.2) 146
1.4 litre VTi 16V 95
hp Manual 35.8 (7.9) 56.5 (5.0) 46.3 (6.1) 140
T h e f u e l c o n s u m p t i o n fi g u r e s s h o w n h e r e c o r r e s p o n d t o t h e v a l u e s c o m m u n i c a t e d a t t h e t i m e o f p r i n t i n g .
These fuel consumption values were established in accordance wi th EC Directive 80/1268 (as amended). They may vary
d e p e n d i n g o n t h e s t y l e o f d r i v i n g , t r a f fi c c o n d i t i o n s , w e a t h e r c o n d i t i o n s , t h e l o a d i n t h e v e h i c l e , t h e m a i n t e n a n c e o f t h e v e h i c l e
and the use of the equipment.
Page 175 of 279
10
165

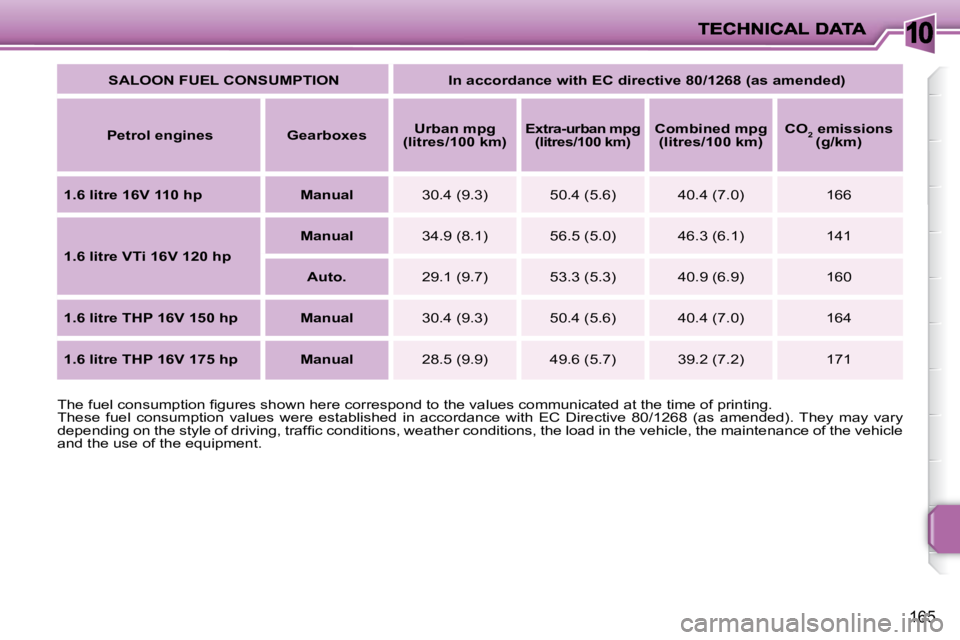

SALOON
FUEL
CONSUMPTION In accordance with EC directive 80/1268 (as amended )
Petrol engines Gearboxes
Urban
mpg
(litres/100 km)
Extra
-urban
mpg
(litres/100 km)
Combined
mpg
(litres/100 km)
CO
2
emissions
(g/km)
1.6 litre 16V 110
hp Manual 30.4 (9.3) 50.4 (5.6) 40.4 (7.0) 166
1.6 litre VTi 16V 120
hp
Manual 34.9 (8.1) 56.5 (5.0) 46.3 (6.1) 141
Auto. 29.1 (9.7) 53.3 (5.3) 40.9 (6.9) 160
1.6 litre THP 16V 150
hp Manual 30.4 (9.3) 50.4 (5.6) 40.4 (7.0) 164
1.6 litre THP 16V 175
hp Manual 28.5 (9.9) 49.6 (5.7) 39.2 (7.2) 171
T h e f u e l c o n s u m p t i o n fi g u r e s s h o w n h e r e c o r r e s p o n d t o t h e v a l u e s c o m m u n i c a t e d a t t h e t i m e o f p r i n t i n g .
These fuel consumption values were established in accordance wi th EC Directive 80/1268 (as amended). They may vary
d e p e n d i n g o n t h e s t y l e o f d r i v i n g , t r a f fi c c o n d i t i o n s , w e a t h e r c o n d i t i o n s , t h e l o a d i n t h e v e h i c l e , t h e m a i n t e n a n c e o f t h e v e h i c l e
and the use of the equipment.
Page 176 of 279
10
175
T h e f u e l c o n s u m p t i o n fi g u r e s s h o w n h e r e c o r r e s p o n d t o t h e v a l u e s c o m m u n i c a t e d a t t h e t i m e o f p r i n t i n g .
These fuel consumption values were established in accordance wi th EC Directive 80/1268 (as amended). They may vary
d e p e n d i n g o n t h e s t y l e o f d r i v i n g , t r a f fi c c o n d i t i o n s , w e a t h e r c o n d i t i o n s , t h e l o a d i n t h e v e h i c l e , t h e m a i n t e n a n c e o f t h e v e h i c l e
and the use of the equipment.

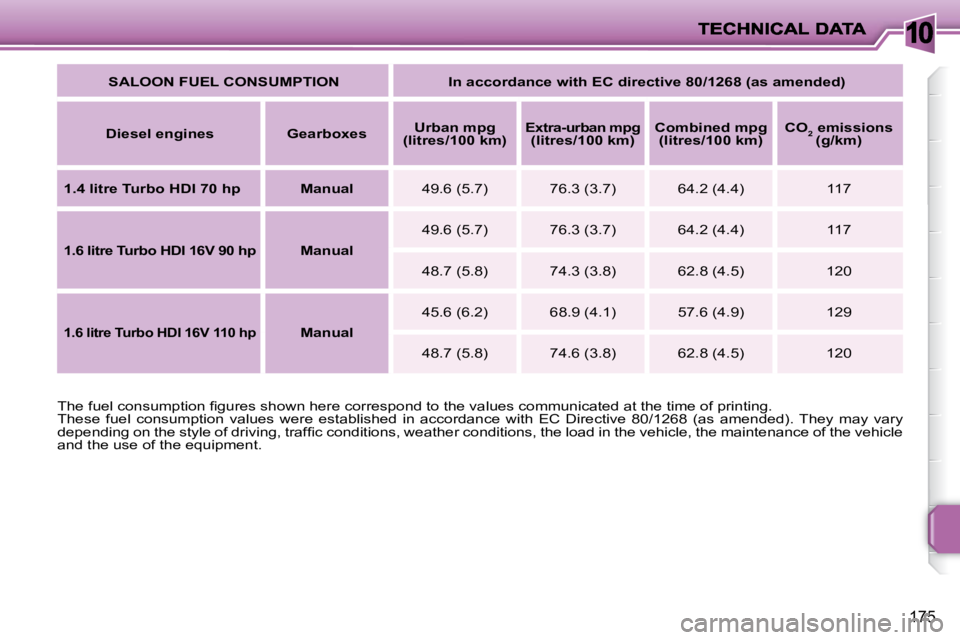

SALOON
FUEL
CONSUMPTION In accordance with EC directive 80/1268 (as amended)
Diesel engines Gearboxes
Urban
mpg
(litres/100 km)
Extra
-urban
mpg (litres/100 km)
Combined
mpg
(litres/100 km)
CO
2
emissions
(g/km)
1.4 litre Turbo HDI 70
hp Manual 49.6 (5.7) 76.3 (3.7) 64.2 (4.4) 117
1.6 litre Turbo HDI 16V 90
hp
Manual 49.6 (5.7) 76.3 (3.7) 64.2 (4.4) 117
48.7 (5.8) 74.3 (3.8) 62.8 (4.5) 120
1.6 litre Turbo HDI 16V 110
hp
Manual 45.6 (6.2) 68.9 (4.1) 57.6 (4.9) 129
48.7 (5.8) 74.6 (3.8) 62.8 (4.5) 120
Page 177 of 279
10
166
TECHNICAL DATA
T h e f u e l c o n s u m p t i o n fi g u r e s s h o w n h e r e c o r r e s p o n d t o t h e v a l u e s c o m m u n i c a t e d a t t h e t i m e o f p r i n t i n g .
These fuel consumption values were established in accordance wi th EC Directive 80/1268 (as amended). They may vary
d e p e n d i n g o n t h e s t y l e o f d r i v i n g , t r a f fi c c o n d i t i o n s , w e a t h e r c o n d i t i o n s , t h e l o a d i n t h e v e h i c l e , t h e m a i n t e n a n c e o f t h e v e h i c l e
and the use of the equipment.

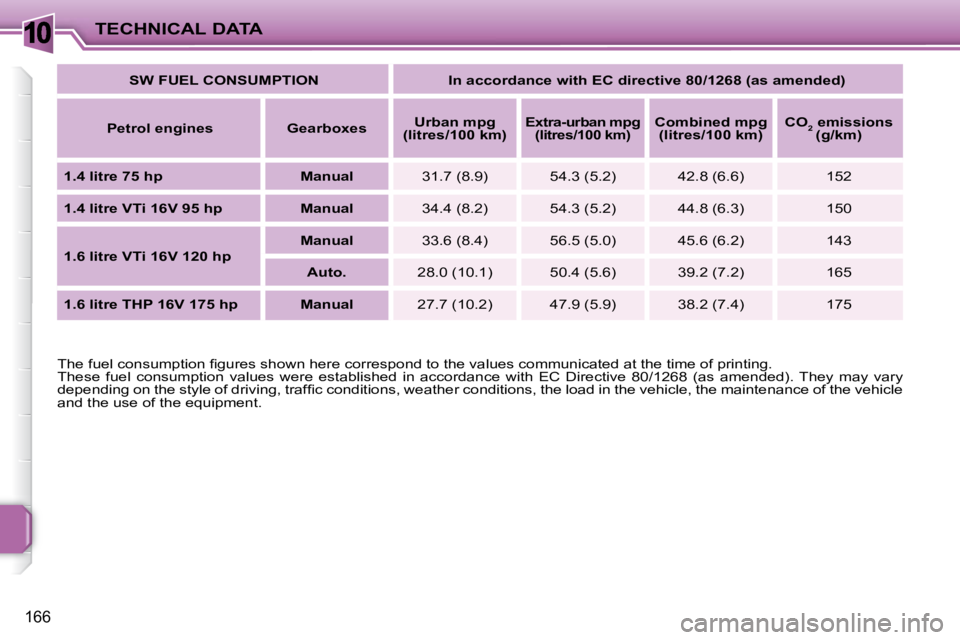

SW
FUEL
CONSUMPTION In accordance with EC directive 80/1268 (as amended)
Petrol engines Gearboxes
Urban
mpg
(litres/100 km)
Extra
-urban
mpg
(litres/100 km)
Combined
mpg
(litres/100 km)
CO
2
emissions
(g/km)
1.4 litre 75
hp Manual 31.7 (8.9) 54.3 (5.2) 42.8 (6.6) 152
1.4 litre VTi 16V 95
hp Manual 34.4 (8.2) 54.3 (5.2) 44.8 (6.3) 150
1.6 litre VTi 16V 120
hp
Manual 33.6 (8.4) 56.5 (5.0) 45.6 (6.2) 143
Auto. 28.0 (10.1) 50.4 (5.6) 39.2 (7.2) 165
1.6 litre THP 16V 175
hp Manual 27.7 (10.2) 47.9 (5.9) 38.2 (7.4) 175
Page 178 of 279
10
176
TECHNICAL DATA
T h e f u e l c o n s u m p t i o n fi g u r e s s h o w n h e r e c o r r e s p o n d t o t h e v a l u e s c o m m u n i c a t e d a t t h e t i m e o f p r i n t i n g .
These fuel consumption values were established in accordance wi th EC Directive 80/1268 (as amended). They may vary
d e p e n d i n g o n t h e s t y l e o f d r i v i n g , t r a f fi c c o n d i t i o n s , w e a t h e r c o n d i t i o n s , t h e l o a d i n t h e v e h i c l e , t h e m a i n t e n a n c e o f t h e v e h i c l e
and the use of the equipment.

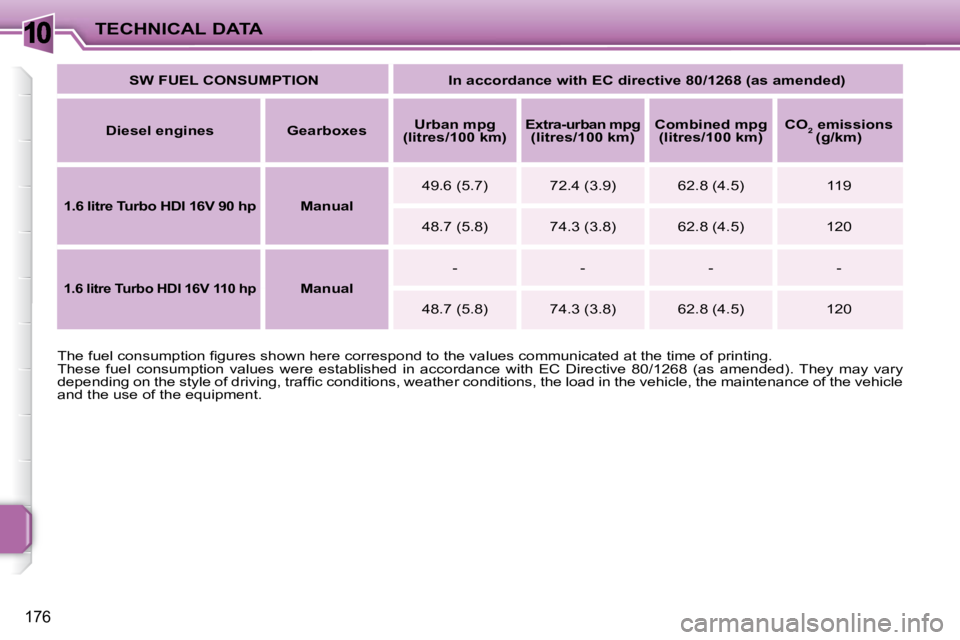

SW
FUEL
CONSUMPTION In accordance with EC directive 80/1268 (as amended)
Diesel engines Gearboxes
Urban
mpg
(litres/100 km)
Extra
-urban
mpg (litres/100 km)
Combined
mpg
(litres/100 km)
CO
2
emissions
(g/km)
1.6 litre Turbo HDI 16V 90
hp
Manual 49.6 (5.7) 72.4 (3.9) 62.8 (4.5) 119
48.7 (5.8) 74.3 (3.8) 62.8 (4.5) 120
1.6 litre Turbo HDI 16V 110
hp
Manual - - - -
48.7 (5.8) 74.3 (3.8) 62.8 (4.5) 120
Page 179 of 279
10
167

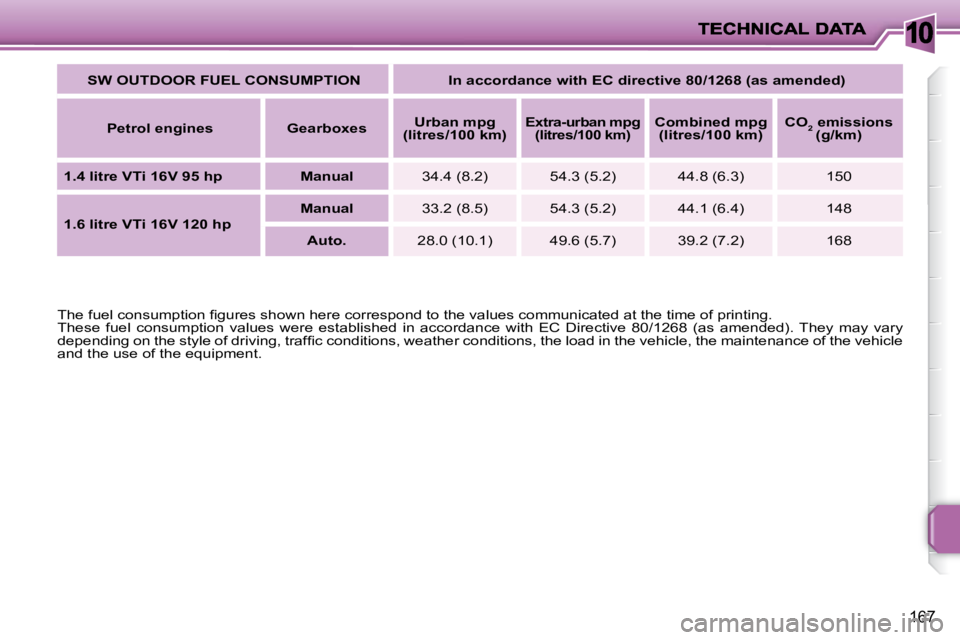

SW OUTDOOR
FUEL
CONSUMPTION In accordance with EC directive 80/1268 (as amended)
Petrol engines Gearboxes
Urban
mpg
(litres/100 km)
Extra
-urban
mpg
(litres/100 km)
Combined
mpg
(litres/100 km)
CO
2
emissions
(g/km)
1.4 litre VTi 16V 95
hp Manual 34.4 (8.2) 54.3 (5.2) 44.8 (6.3) 150
1.6 litre VTi 16V 120
hp
Manual 33.2 (8.5) 54.3 (5.2) 44.1 (6.4) 148
Auto. 28.0 (10.1) 49.6 (5.7) 39.2 (7.2) 168
T h e f u e l c o n s u m p t i o n fi g u r e s s h o w n h e r e c o r r e s p o n d t o t h e v a l u e s c o m m u n i c a t e d a t t h e t i m e o f p r i n t i n g .
These fuel consumption values were established in accordance wi th EC Directive 80/1268 (as amended). They may vary
d e p e n d i n g o n t h e s t y l e o f d r i v i n g , t r a f fi c c o n d i t i o n s , w e a t h e r c o n d i t i o n s , t h e l o a d i n t h e v e h i c l e , t h e m a i n t e n a n c e o f t h e v e h i c l e
and the use of the equipment.
Page 180 of 279
10
177

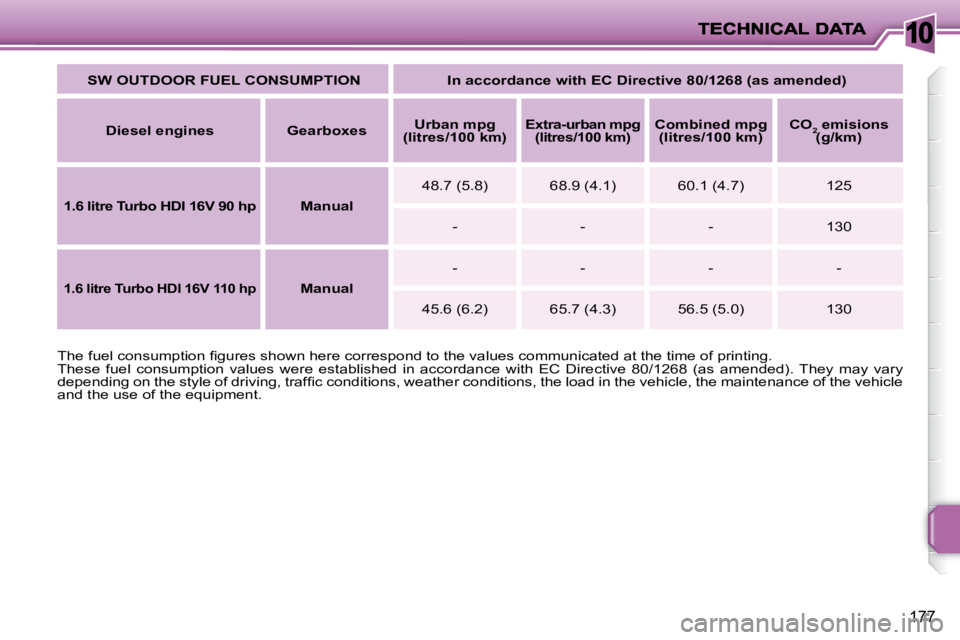

SW OUTDOOR
FUEL
CONSUMPTION In accordance with EC Directive 80/1268 (as amended)
Diesel engines Gearboxes
Urban
mpg
(litres/100 km)
Extra
-urban
mpg
(litres/100 km)
Combined
mpg
(litres/100 km)
CO
2
emisions
(g/km)
1.6 litre Turbo HDI 16V 90
hp
Manual 48.7 (5.8) 68.9 (4.1) 60.1 (4.7) 125
- - - 130
1.6 litre Turbo HDI 16V 110
hp
Manual - - - -
45.6 (6.2) 65.7 (4.3) 56.5 (5.0) 130
T h e f u e l c o n s u m p t i o n fi g u r e s s h o w n h e r e c o r r e s p o n d t o t h e v a l u e s c o m m u n i c a t e d a t t h e t i m e o f p r i n t i n g .
These fuel consumption values were established in accordance wi th EC Directive 80/1268 (as amended). They may vary
d e p e n d i n g o n t h e s t y l e o f d r i v i n g , t r a f fi c c o n d i t i o n s , w e a t h e r c o n d i t i o n s , t h e l o a d i n t h e v e h i c l e , t h e m a i n t e n a n c e o f t h e v e h i c l e
and the use of the equipment.
