PEUGEOT 207 2009 Owners Manual

10TECHNICAL DATA
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned must
be reduced by 10 % for each additional 1 000 metres of alti tude.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the pe rformance of the vehicle in order to protect the engine; when
the ambient temperature is higher than 37 °C, limit the we ight towed.

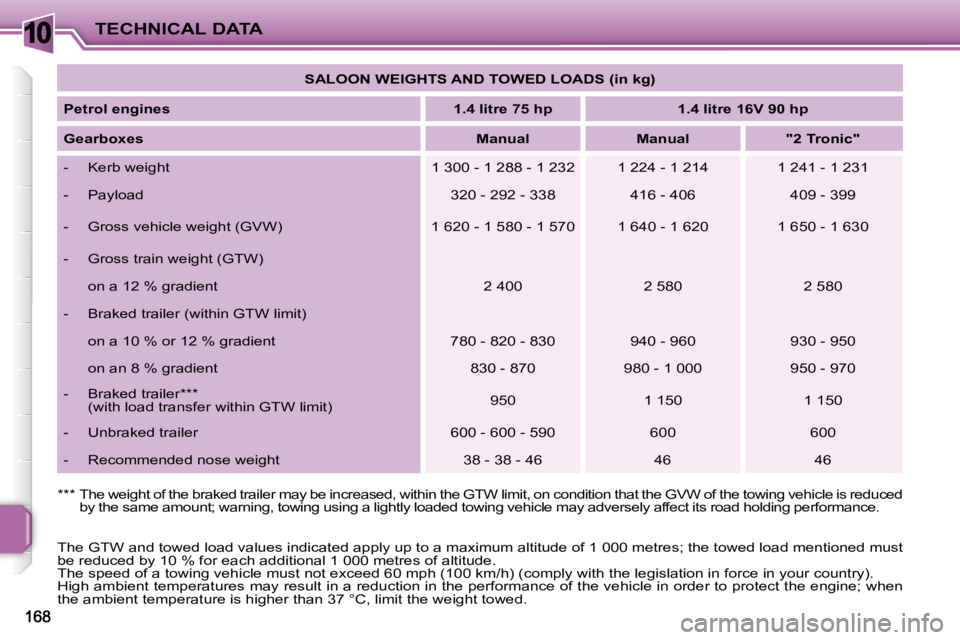

SALOON WEIGHTS AND TOWED LOADS (in kg)

Petrol engines
1.4 litre 75
hp 1.4 litre 16V 90
hp

Gearboxes
Manual Manual "2 Tronic"
- Kerb weight 1 300 - 1 288 - 1 232 1 224 - 1 214 1 241 - 1 2 31
- Payload 320 - 292 - 338 416 - 406 409 - 399
- Gross vehicle weight (GVW) 1 620 - 1 580 - 1 570 1 640 - 1 620 1 650 - 1 630
- Gross train weight (GTW) on a 12 % gradient 2 400 2 580 2 580
- Braked trailer (within GTW limit) on a 10 % or 12 % gradient 780 - 820 - 830 940 - 9 60 930 - 950
on an 8 % gradient 830 - 870 980 - 1 000 950 - 970
- Braked trailer *** (with load transfer within GTW limit) 950 1 150 1 150
- Unbraked trailer 600 - 600 - 590 600 600
- Recommended nose weight 38 - 38 - 46 46 46
*** The weight of the braked trailer may be in creased, within the GTW limit, on condition that th e GVW of the towing vehicle is reduced
by the same amount; warning, towing using a lightly loaded towing vehicle may adversely affect its road holding performance.

10
169

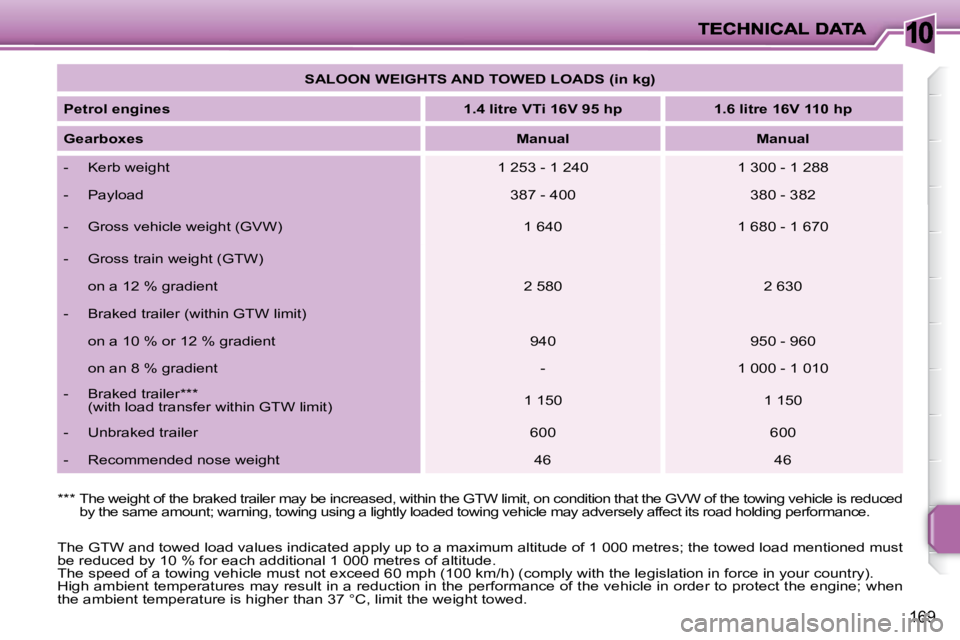

SALOON WEIGHTS AND TOWED LOADS (in kg)

Petrol engines
1.4 litre VTi 16V 95
hp 1.6 litre 16V 110
hp

Gearboxes
Manual Manual
- Kerb weight 1 253 - 1 240 1 300 - 1 288
- Payload 387 - 400 380 - 382
- Gross vehicle weight (GVW) 1 640 1 680 - 1 670
- Gross train weight (GTW) on a 12 % gradient 2 580 2 630
- Braked trailer (within GTW limit) on a 10 % or 12 % gradient 940 950 - 960
on an 8 % gradient - 1 000 - 1 010
- Braked trailer *** (with load transfer within GTW limit) 1 150 1 150
- Unbraked trailer 600 600
- Recommended nose weight 46 46
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned must
be reduced by 10 % for each additional 1 000 metres of alti tude.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the pe rformance of the vehicle in order to protect the engine; when
the ambient temperature is higher than 37 °C, limit the we ight towed.
*** The weight of the braked trailer may be increased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced
by the same amount; warning, towing using a lightly loaded towing vehicle may adversely affect its road holding performance.

10
170
TECHNICAL DATA

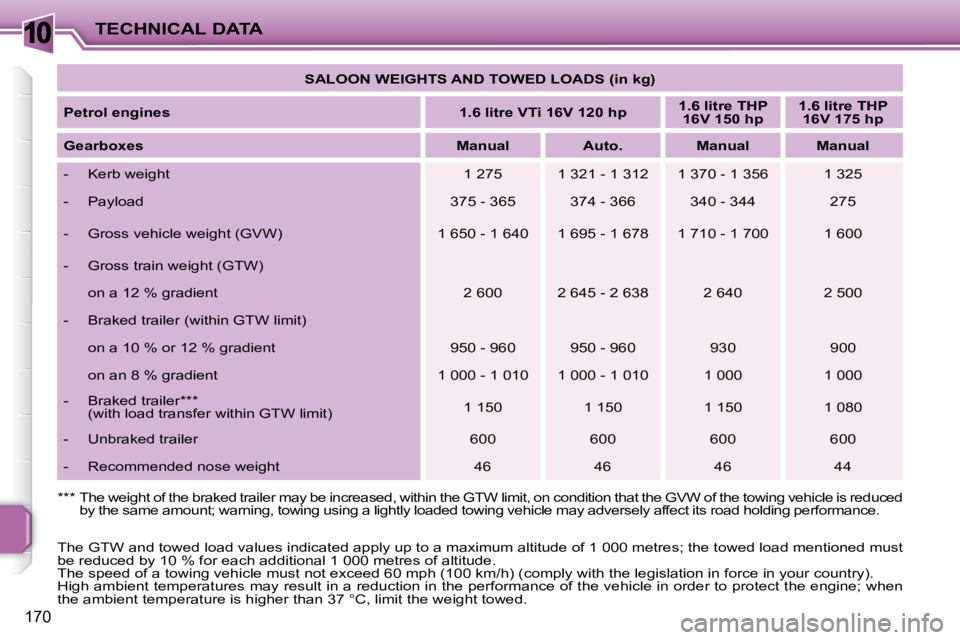

SALOON WEIGHTS AND TOWED LOADS (in kg)

Petrol engines
1.6 litre VTi 16V 120
hp
1.6 litre THP
16V 150
hp
1.6 litre THP
16V 175
hp

Gearboxes
Manual Auto. Manual Manual
- Kerb weight 1 275 1 321 - 1 312 1 370 - 1 356 1 325
- Payload 375 - 365 374 - 366 340 - 344 275
- Gross vehicle weight (GVW) 1 650 - 1 640 1 695 - 1 678 1 710 - 1 700 1 600
- Gross train weight (GTW) on a 12 % gradient 2 600 2 645 - 2 638 2 640 2 500
- Braked trailer (within GTW limit) on a 10 % or 12 % gradient 950 - 960 950 - 960 930 900
on an 8 % gradient 1 000 - 1 010 1 000 - 1 010 1 000 1 000
- Braked trailer *** (with load transfer within GTW limit) 1 150 1 150 1 150 1 080
- Unbraked trailer 600 600 600 600
- Recommended nose weight 46 46 46 44
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned must
be reduced by 10 % for each additional 1 000 metres of alti tude.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the pe rformance of the vehicle in order to protect the engine; when
the ambient temperature is higher than 37 °C, limit the we ight towed.
*** The weight of the braked trailer may be increased, within the GTW limit, on condition that the GVW o f the towing vehicle is reduced
by the same amount; warning, towing using a lightly loaded towing vehicle may adversely affect its road holding performance.

10TECHNICAL DATA

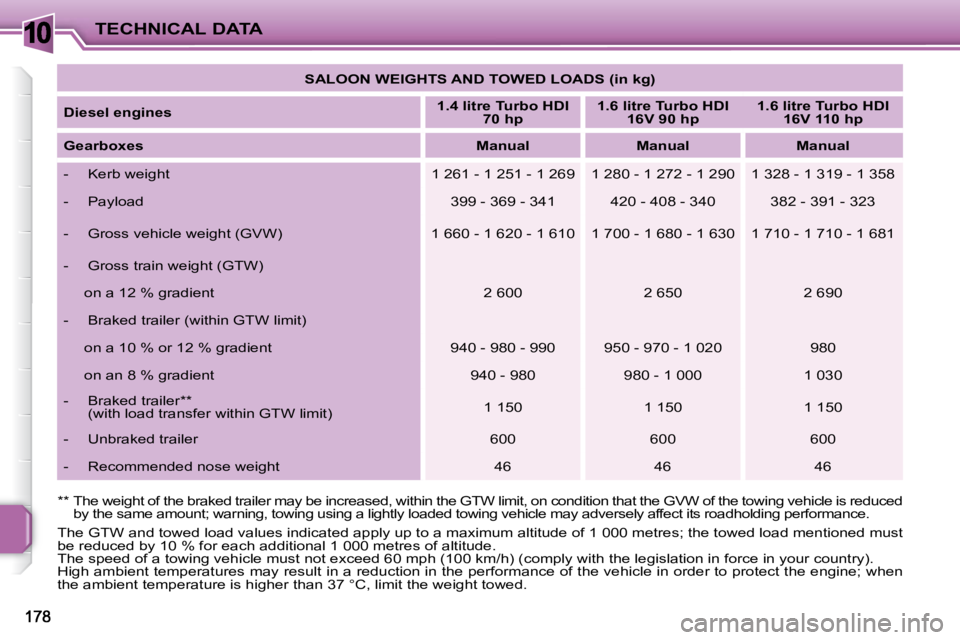

SALOON WEIGHTS AND TOWED LOADS (in kg)

Diesel engines
1.4 litre Turbo HDI
70
hp
1.6 litre Turbo HDI
16V 90
hp
1.6 litre Turbo HDI
16V 110
hp

Gearboxes
Manual Manual Manual
- Kerb weight 1 261 - 1 251 - 1 269 1 280 - 1 272 - 1 290 1 328 - 1 319 - 1 358
- Payload 399 - 369 - 341 420 - 408 - 340 382 - 391 - 323
- Gross vehicle weight (GVW) 1 660 - 1 620 - 1 610 1 700 - 1 680 - 1 630 1 710 - 1 710 - 1 681
- Gross train weight (GTW) on a 12 % gradient 2 600 2 650 2 690
- Braked trailer (within GTW limit) on a 10 % or 12 % gradient 940 - 980 - 990 950 - 9 70 - 1 020 980
on an 8 % gradient 940 - 980 980 - 1 000 1 03 0
- Braked trailer ** (with load transfer within GTW limit) 1 150 1 150 1 150
- Unbraked trailer 600 600 600
- Recommended nose weight 46 46 46
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned must
be reduced by 10 % for each additional 1 000 metres of alti tude.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the pe rformance of the vehicle in order to protect the engine; when
the ambient temperature is higher than 37 °C, limit the we ight towed.
** The weight of the braked trailer may be inc
reased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced
by the same amount; warning, towing using a lightly loaded towing vehicle may adversely affect its roadholding performance.

10
171

SW WEIGHTS AND TOWED LOADS (in kg)

Petrol engines
1.4 litre 75
hp 1.4 litre VTi 16V 95
hp

Gearboxes
Manual Manual
- Kerb weight 1 271 1 290
- Payload 371 401
- Gross vehicle weight (GVW) 1 642 1 691
- Gross train weight (GTW) on a 12 % gradient 2 422 2 591
- Braked trailer (within GTW limit) on a 10 % or 12 % gradient 780 900
on an 8 % gradient 800 900
- Braked trailer *** (with load transfer within GTW limit) 1 045 1 150
- Unbraked trailer 600 600
- Recommended nose weight 42 46
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned must
be reduced by 10 % for each additional 1 000 metres of alti tude.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the pe rformance of the vehicle in order to protect the engine; when
the ambient temperature is higher than 37 °C, limit the we ight towed.
*** The weight of the braked trailer may be increased, within the GTW limit, on condition that the GVW o f the towing vehicle is reduced
by the same amount; warning, towing using a lightly loaded towing vehicle may adversely affect its road holding performance.

10TECHNICAL DATA

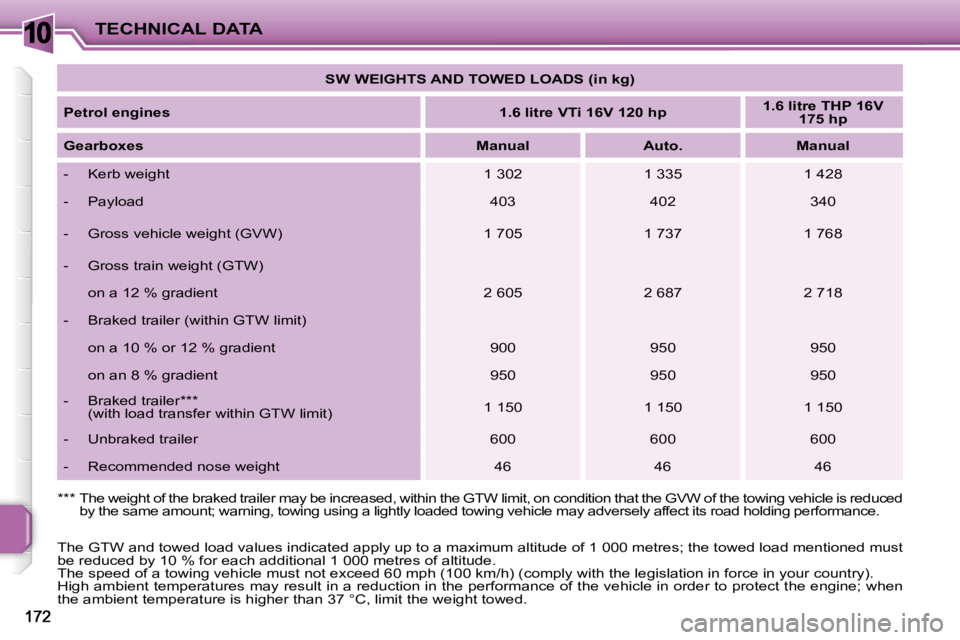

SW WEIGHTS AND TOWED LOADS (in kg)

Petrol engines
1.6 litre VTi 16V 120
hp
1.6 litre THP 16V
175
hp

Gearboxes
Manual Auto. Manual
- Kerb weight 1 302 1 335 1 428
- Payload 403 402 340
- Gross vehicle weight (GVW) 1 705 1 737 1 768
- Gross train weight (GTW) on a 12 % gradient 2 605 2 687 2 718
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 900 950 950 on an 8 % gradient 950 950 950
- Braked trailer *** (with load transfer within GTW limit) 1 150 1 150 1 150
- Unbraked trailer 600 600 600
- Recommended nose weight 46 46 46
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned must
be reduced by 10 % for each additional 1 000 metres of alti tude.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the pe rformance of the vehicle in order to protect the engine; when
the ambient temperature is higher than 37 °C, limit the we ight towed.
*** The weight of the braked trailer may be increased, within the GTW limit, on condition that the GVW o f the towing vehicle is reduced
by the same amount; warning, towing using a lightly loaded towing vehicle may adversely affect its road holding performance.

10
179
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned must
be reduced by 10 % for each additional 1 000 metres of alti tude.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the pe rformance of the vehicle in order to protect the engine; when
the ambient temperature is higher than 37 °C, limit the we ight towed.

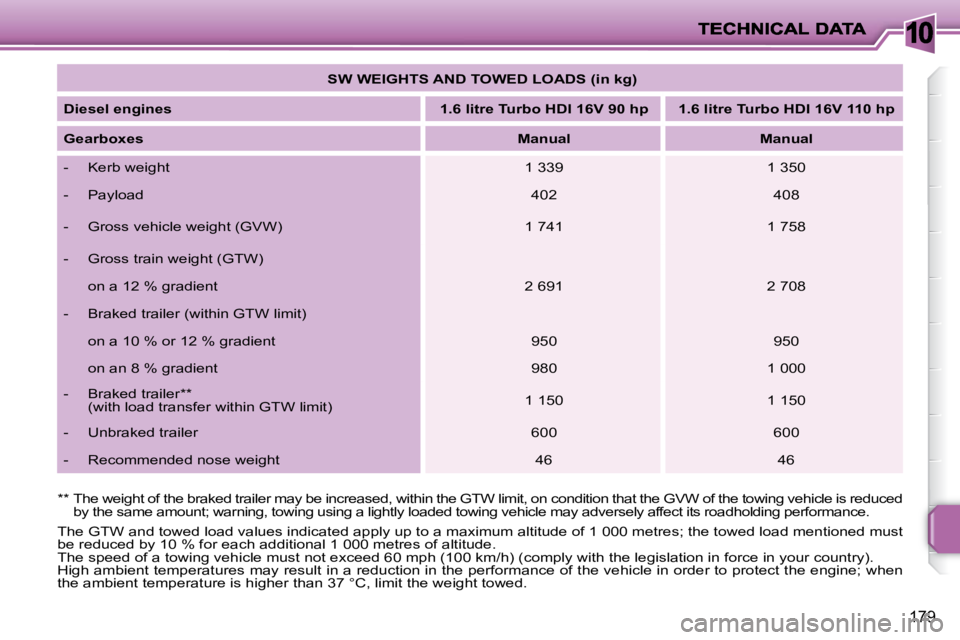

SW WEIGHTS AND TOWED LOADS (in kg)

Diesel engines
1.6 litre Turbo HDI 16V 90
hp 1.6 litre Turbo HDI 16V 110
hp

Gearboxes
Manual Manual
- Kerb weight 1 339 1 350
- Payload 402 408
- Gross vehicle weight (GVW) 1 741 1 758
- Gross train weight (GTW) on a 12 % gradient 2 691 2 708
- Braked trailer (within GTW limit) on a 10 % or 12 % gradient 950 950
on an 8 % gradient 980 1 000
- Braked trailer ** (with load transfer within GTW limit) 1 150 1 150
- Unbraked trailer 600 600
- Recommended nose weight 46 46
** The weight of the braked trailer may be increase d, within the GTW limit, on condition that the GVW of the towing vehicle is reduced
by the same amount; warning, towing using a lightly loaded towing vehicle may adversely affect its roadholding performance.

10
173

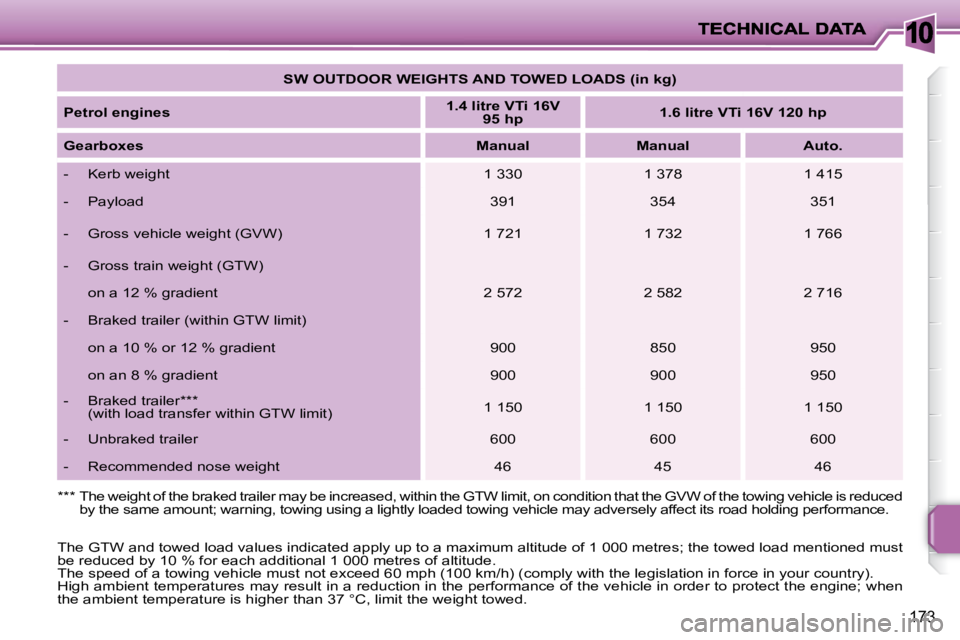

SW OUTDOOR WEIGHTS AND TOWED LOADS (in kg)

Petrol engines
1.4 litre VTi 16V
95
hp
1.6 litre VTi 16V 120
hp

Gearboxes
Manual Manual Auto.
- Kerb weight 1 330 1 378 1 415
- Payload 391 354 351
- Gross vehicle weight (GVW) 1 721 1 732 1 766
- Gross train weight (GTW) on a 12 % gradient 2 572 2 582 2 716
- Braked trailer (within GTW limit) on a 10 % or 12 % gradient 900 850 950
on an 8 % gradient 900 900 950
- Braked trailer *** (with load transfer within GTW limit) 1 150 1 150 1 150
- Unbraked trailer 600 600 600
- Recommended nose weight 46 45 46
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned must
be reduced by 10 % for each additional 1 000 metres of alti tude.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the pe rformance of the vehicle in order to protect the engine; when
the ambient temperature is higher than 37 °C, limit the we ight towed.
*** The weight of the braked trailer may be increased, within the GTW limit, on condition that the GVW o f the towing vehicle is reduced
by the same amount; warning, towing using a lightly loaded towing vehicle may adversely affect its road holding performance.

10
180
TECHNICAL DATA

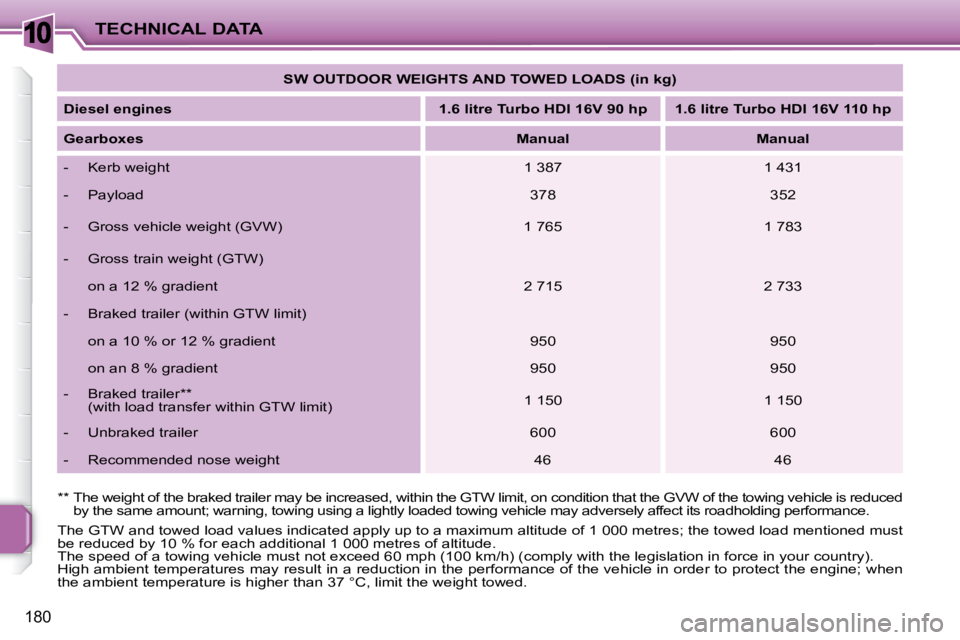

SW OUTDOOR WEIGHTS AND TOWED LOADS (in kg)

Diesel engines
1.6 litre Turbo HDI 16V 90
hp 1.6 litre Turbo HDI 16V 110
hp

Gearboxes
Manual Manual
- Kerb weight 1 387 1 431
- Payload 378 352
- Gross vehicle weight (GVW) 1 765 1 783
- Gross train weight (GTW) on a 12 % gradient 2 715 2 733
- Braked trailer (within GTW limit) on a 10 % or 12 % gradient 950 950
on an 8 % gradient 950 950
- Braked trailer ** (with load transfer within GTW limit) 1 150 1 150
- Unbraked trailer 600 600
- Recommended nose weight 46 46
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned must
be reduced by 10 % for each additional 1 000 metres of alti tude.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the pe rformance of the vehicle in order to protect the engine; when
the ambient temperature is higher than 37 °C, limit the we ight towed.
** The weight of the braked trailer may be increased, within the GTW limit, on condition that the GVW o f the towing vehicle is reduced
by the same amount; warning, towing using a lightly loaded towing vehicle may adversely affect its roadholding performance.

10
181

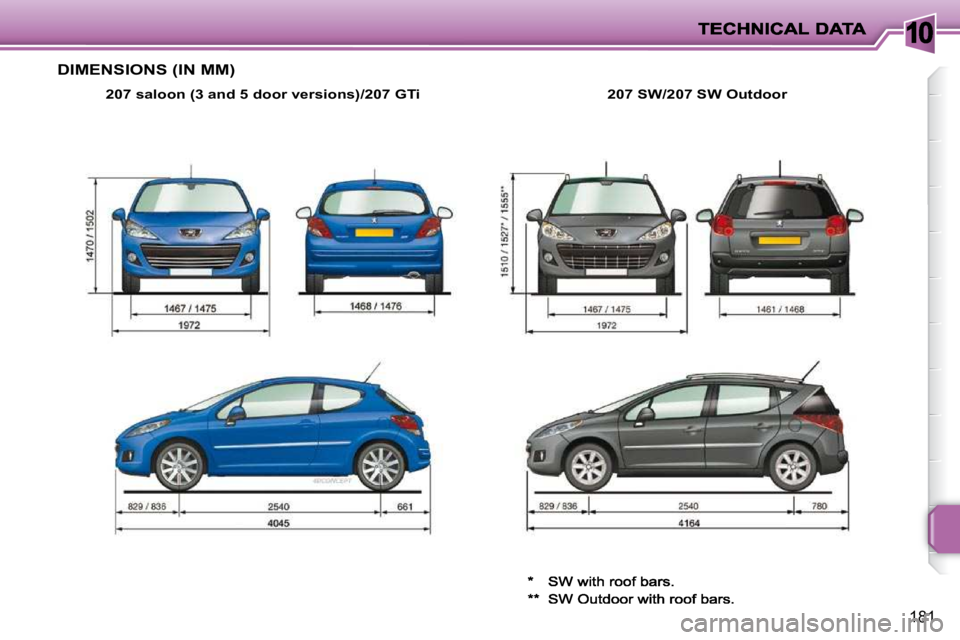

DIMENSIONS (IN MM)
207 saloon (3 and 5 door versions)/207 GTi207 SW/207 SW Outdoor
** SW Outdoor with roof bars.
