Peugeot 307 CC 2003 Service Manual

22-09-2003
YOUR 307 CC IN DETAIL41
Adjusting the bass When "BASS" is displayed, press button Hor Ito vary the setting.
Ð "BASS Ð9" for a minimum bass setting,
Ð "BASS 0" for a normal setting,
Ð "BASS +9" for a maximum bass setting.
Adjusting the treble When "TREB" is displayed, press button Hor Ito vary the setting.
Ð "TREB Ð9" for a minimum treble setting,
Ð "TREB 0" for a normal setting,
Ð "TREB +9" for a maximum treble setting.
Adjusting the loudnessThis function automatically emphasises bass and treble tones. Press button Hor Ito switch the function on or off.
Adjusting the front/rear sound distribution (Fader) When "FAD" is displayed, press button Hor I.
Button Hincreases the volume at the front.
Button Iincreases the volume at the rear.
Adjusting the right/left sound distribution (Balance)When "BAL" is displayed, press button Hor I.
Button Hincreases the volume on the right-hand side.
Button Iincreases the volume on the left-hand side.
Automatic volume correctionThis function enables the volume to be automatically adjusted depending on the level of noise produced by the speed of the vehicle. Press buttons Hor Ito switch the function on or off.

22-09-2003
YOUR 307 CC IN DETAIL
42
RADIO Notes on radio reception
Your car radio is subject to phenomena which do not affect domestic radio sets. Both AM (MW/LW) and FM reception are
subject to various forms of interference. This is no reflection on the quality of the equipment, but is due to the nature of th e
signals and the way in which they are transmitted.
On MW/LW, interference may be noticed when passing under high voltage power lines or bridges, or in tunnels.
On FM, interference may be the result of increasing distance from the transmitter, deflection of the signals by obstacles
(mountains, hills, buildings etc.), or of being in an area which is not covered by a transmitter. Selecting radio mode
Press button O.
Selecting a waveband Press button Obriefly to select wavebands FM1, FM2, FMast and AM.
Automatic station search Briefly press button Jor Lto search for the station immediately above or below. By conti-
nuing to press the button in the direction selected, you will obtain continuous scrolling of the
frequency. The scrolling stops at the first station found as soon as the button is released.
If the TAtraffic programme is selected, only stations broadcasting this type of programme are selected.
Searching for a station occurs first in "LO"sensitivity (selection of the most powerful transmitters) during scanning of the
waveband, then in "DX"sensitivity (selection of the weakest and most distant transmitters).
To make a direct search in "DX"sensitivity, press button Jor Ltwice.

22-09-2003
YOUR 307 CC IN DETAIL43
Manual station search Press the "MAN" button.
Briefly press button Jor Lto increase or decrease the frequency displayed.
By continuing to press the button in the direction selected, you will obtain continuous scrolling of the frequency. The scrolling stops at the first station found as soon as the button is released.Pressing the "MAN"button again returns you to automatic station search.
Manual storing of stations in the memory Select the station required. Press one of the buttons "1"to "6" for more than two seconds.
The sound stops then becomes audible again, confirming that the station has been stored in the memory. Automatic storing of FM stations in the memory (autostore)
Press button Odown for more than two seconds.
Your radio automatically stores the six stations with the strongest signal in FM. These stations are stored in the FMast wave-
band.
If it is not possible to find 6 stations, the remaining memories are empty. Recalling stations stored in the memory For each waveband, briefly press one of the buttons "1" to"6" to recall the corresponding station.

22-09-2003
YOUR 307 CC IN DETAIL
44
RDS Using the RDS (Radio Data System) function on FM Radio Data System allows you to continue listening to the same station whatever frequency it is using for the region you are going through. Briefly press the "RDS" button to switch the function on or off.
The multifunction display will show: Ð "RDS" if the function is selected,
Ð "(RDS)" if the function is selected but not available.
RDS station following The display indicates the name of the station selected. When the RDS function is active, the radio continually searches for the transmitter which transmits the station selected with the best reception.
Traffic information programme Press the "TA"button to switch the function on or off.
The multifunction display will show: Ð "TA" if the function is selected,
Ð "(TA)" if the function is selected but not available.
Any traffic information flash will be given priority, whatever source you are listening to (radio, CD or CD changer).If you wish to interrupt a message, press the "TA"button; this switches the function off.
Note: the volume of traffic information announcements is independent of the volume of normal radio listening.
You can adjust it using the volume button. The setting will be stored and will be used when the next messages arebroadcast.
Regional following mode (REG) When they are part of a network, certain stations broadcast regional programmes in the various areas they serve. With regio- nal following mode you can keep listening to the same programme. Press the "RDS"button for more than two seconds to switch the function on or off.

22-09-2003
YOUR 307 CC IN DETAIL45
PTY function This allows you to listen to stations broadcasting a specific type of programme (news, culture, sport, rock etc.). With FMselected, press the "TA" button for more than two seconds to switch this function on or off.
To search for a PTYprogramme:
Ð select the PTYfunction,
Ð briefly press button Jor Lto scroll down the list of the various types of programmes offered.
Ð when the programme of your choice is displayed, keep button Jor Lpressed for more than
two seconds to carry out an automatic search (after an automatic search the PTYfunction is
switched off).
In PTY mode the different types of programmes can be stored in memory. To do this, press the preselection buttons "1" to "6"
for more than two seconds. Briefly press the corresponding button to recall the type of programme stored in the memory.
EON system
This connects stations which are part of the same network. It enables the broadcasting of traffic information or a PTYpro-
gramme by a station that is part of the same network as the station to which you are listening. This service is available when you have selected the TAtraffic information programme or the PTYfunction.

22-09-2003
YOUR 307 CC IN DETAIL
46
COMPACT DISC Selecting CD mode After insertion of a disc, printed face upwards, the player starts automatically. If a disc is already inserted, press button N.
Ejection of a disc Press button Dto eject the disc from the player.
Selecting a track Press button Jto select the next track.
Press button Lto return to the start of the current track or to select the previous track.
Accelerated play Keep button Jor Lpressed for forwards or backwards accelerated play.
Accelerated play stops as soon as the button is released. Shuffle (RDM) When the CD player is selected, keep button Npressed for two seconds. The tracks will be played in random sequence.
Pressing the button again for two seconds returns you to normal play.
Shuffle mode is de-activated each time the audio is switched off.
The use of copied compact discs may cause malfunctions.
Insert circular compact discs only.

22-09-2003
YOUR 307 CC IN DETAIL47
CD CHANGER Selecting CD changer mode Press button M.
Selecting a disc Press one of the buttons "1" to"5" on the radio to select the corresponding disc.
Selecting a track Press button Jto select the next track.
Press button Lto return to the start of the current track or to select the previous track.
Accelerated playKeep button Jor Lpressed for forwards or backwards accelerated play.
Accelerated play stops as soon as the button is released. Shuffle (RDM) When the CD changer is selected, keep button Mpressed down for two seconds. The tracks will be played in random sequen-
ce. Pressing the button again for two seconds returns you to normal play.
The use of copied compact discs may cause malfunctions.
Insert circular compact discs only.

22-09-2003
YOUR 307 CC IN DETAIL49

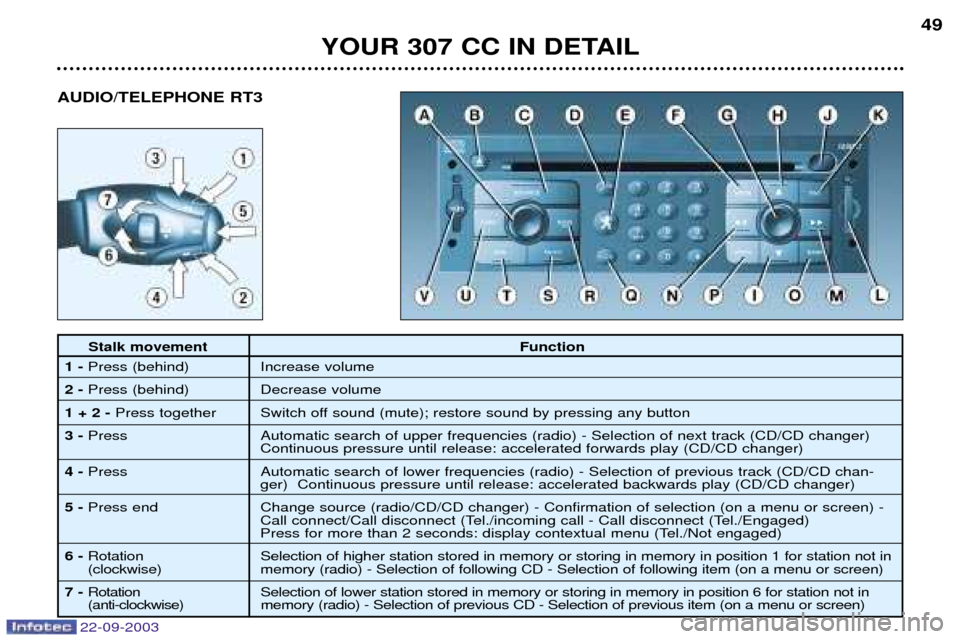

Stalk movement
Function
1- Press (behind) Increase volume
2- Press (behind) Decrease volume
1 + 2 - Press together Switch off sound (mute); restore sound by pressing any button
3- Press Automatic search of upper frequencies (radio) - Selection of next track (CD/CD changer)
Continuous pressure until release: accelerated forwards play (CD/CD changer)
4- Press Automatic search of lower frequencies (radio) - Selection of previous track (CD/CD chan-
ger) Continuous pressure until release: accelerated backwards play (CD/CD changer)
5- Press end Change source (radio/CD/CD changer) - Confirmation of selection (on a menu or screen) -
Call connect/Call disconnect (Tel./incoming call - Call disconnect (Tel./Engaged)
Press for more than 2 seconds: display contextual menu (Tel./Not engaged)
6- Rotation Selection of higher station stored in memory or storing in memory in position 1 for station not in
(clockwise) memory (radio) - Selection of following CD - Selection of following item (on a menu or screen)
7- Rotation Selection of lower station stored in memory or storing in memory in position 6 for station not in
(anti-clockwise) memory (radio) - Selection of previous CD - Selection of previous item (on a menu or screen)
AUDIO/TELEPHONE RT3

22-09-2003
YOUR 307 CC IN DETAIL
50
Stalk movement Function
A Press: audio//telephone on/off. Rotation: volume adjustment - Audio settings: bass, treble, loudness, fader (front/rear balance),
balance (left/right balance), automatic volume.
BEjection of CD.
C SOURCE Selection of source : radio, CD or CD changer.
D Call connect (Tel/Incoming call) -
Display contextual menu (Tel/Not engaged).
E Access "PEUGEOT" services menu.
Press for between 2 and 8 seconds: call "PEUGEOT Assistance" direct.
Press for more than 8 seconds: cancellation of the call made.
F MODE Change display.
Press for more than 2 seconds: display general information.
G Press: display contextual menu of display - Confirm inputting or adjustment.
Rotation: move within a menu - Select function/parameter - Adjust.
H Adjust higher frequency, step by step or continuous (long press).
Select previous CD (CD changer) - Movement on map (navigation).
I Adjust lower frequency, step by step or continuous (long press).
Select following CD (CD changer) - Movement on map (navigation).
J Infra-red window (IrDA)*.
K ESC Cancel current operation.
Press for more than 2 seconds: clear all superimposed displays and return to permanent application.
LSIM card cover.
M kkAutomatic search of higher frequency - Selection of following CD track. Movement on map (navigation).Double press: change from LO mode to DX mode.
Press for more than 2 seconds: CD accelerated forwards play.

22-09-2003
YOUR 307 CC IN DETAIL51

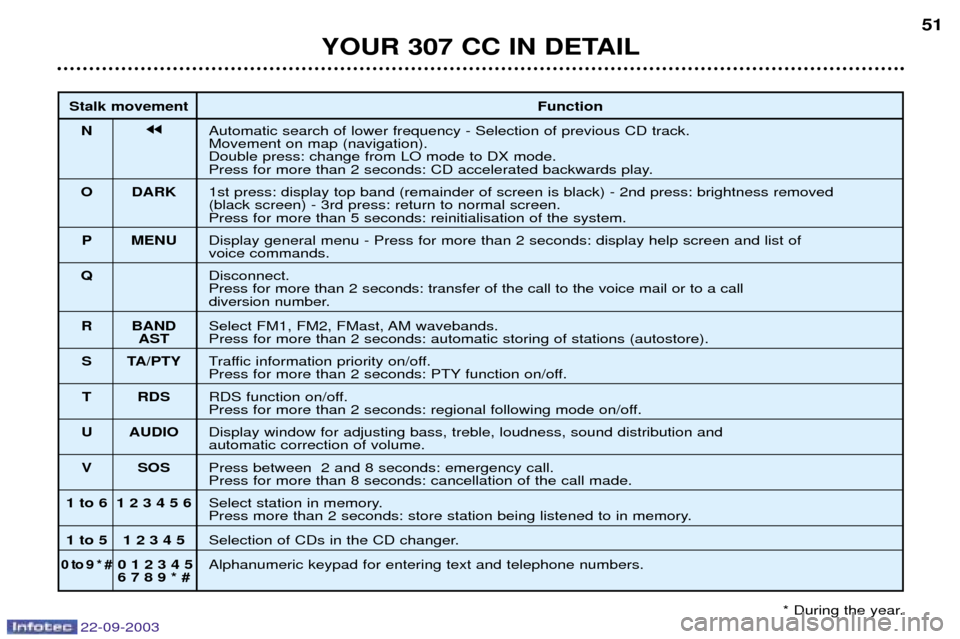

Stalk movement Function
N jjAutomatic search of lower frequency - Selection of previous CD track. Movement on map (navigation).Double press: change from LO mode to DX mode.
Press for more than 2 seconds: CD accelerated backwards play.
O DARK 1st press: display top band (remainder of screen is black) - 2nd press: brightness removed (black screen) - 3rd press: return to normal screen.
Press for more than 5 seconds: reinitialisation of the system.
P MENU Display general menu - Press for more than 2 seconds: display help screen and list of
voice commands.
Q Disconnect.
Press for more than 2 seconds: transfer of the call to the voice mail or to a call
diversion number.
R BAND Select FM1, FM2, FMast, AM wavebands.
ASTPress for more than 2 seconds: automatic storing of stations (autostore).
S TA/PTY Traffic information priority on/off.
Press for more than 2 seconds: PTY function on/off.
T RDS RDS function on/off.
Press for more than 2 seconds: regional following mode on/off.
U AUDIO Display window for adjusting bass, treble, loudness, sound distribution and
automatic correction of volume.
V SOS Press between 2 and 8 seconds: emergency call.
Press for more than 8 seconds: cancellation of the call made.
1 to 6 1 2 3 4 5 6 Select station in memory.
Press more than 2 seconds: store station being listened to in memory.
1 to 5 1 2 3 4 5 Selection of CDs in the CD changer.
0 to 9 * #0 1 2 3 4 5Alphanumeric keypad for entering text and telephone numbers.
6 7 8 9 * #
* During the year.
