Page 2 of 166
11 -Driver’s air bag. Horn.
12 - Windscreen wash-wipe stalk.
Trip computer stalk.
13 - Radio remote control stalk.
14 - Steering lock and ignition.
15 - Electric mirror controls.Window controls.Rear window locking control.
16 - Electronic Stability Program-me (ASR/ESP) switch.
17 - Headlamp height adjust-ment.
18 - Fuse box.
19 - Steering wheel adjustment.
20 - Cruise control 21 -
Rear ashtray.
22 - Cup-holder.
23 - Handbrake.
24 - Heated seat switches.
25 - Lighter. Passenger air bag disarming switch. Alarm button
26 - Rear footwell heating vent.
27 - Front ashtray.
28 - Gear lever.
29 - Radio.
30 - Heating/ventilation controls.
31 - Multi-function display.
YOUR 406 AT A GLANCE
3
1 - Speaker (tweeter) location.
2 - Window demisting vent.
3 - Side adjustable heating/ ventilation vent and air flowregulation.
4 - Glove box.
5 - Passenger air bag.
6 - Windscreen demistingvents.
7 - Central adjustable heating/ventilation vents and airflow regulation.
8 - Hazard warning lights switch.
9 - Lights and direction indica-tors stalk. Arming/disarming of auto- matic switching on of lights.
10 - Instrument dials.
Page 4 of 166
124

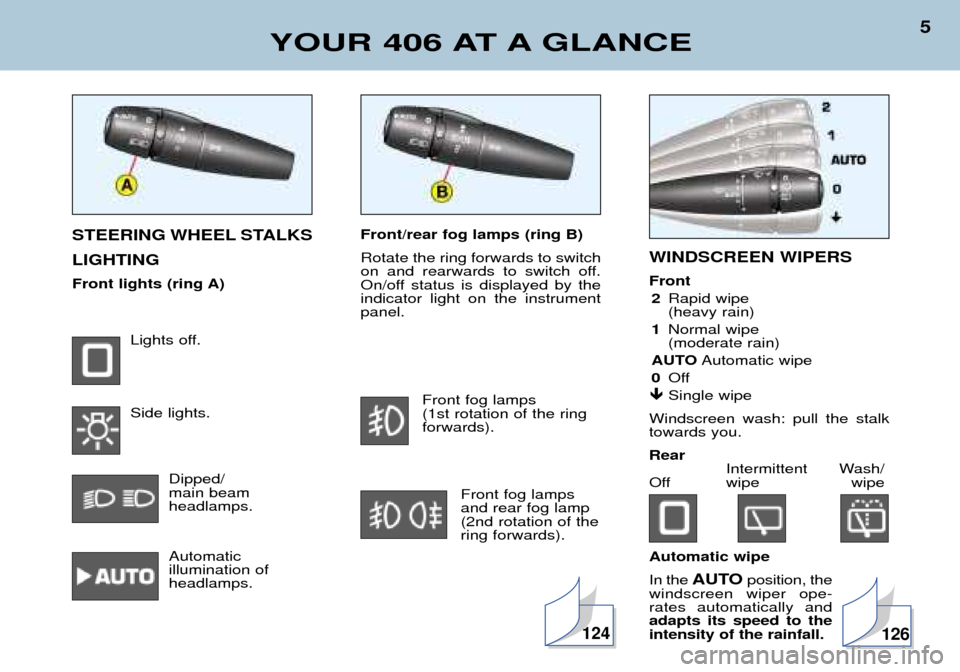

Front/rear fog lamps (ring B) Rotate the ring forwards to switch
on and rearwards to switch off.
On/off status is displayed by theindicator light on the instrumentpanel.Front fog lamps (1st rotation of the ringforwards).Front fog lampsand rear fog lamp(2nd rotation of thering forwards).
STEERING WHEEL STALKS LIGHTING
Front lights (ring A)
Lights off. Side lights.
Dipped/ main beam headlamps. Automatic illumination ofheadlamps. WINDSCREEN WIPERS Front
2 Rapid wipe (heavy rain)
1 Normal wipe (moderate rain)
AUTO Automatic wipe
0 Off
∀Single wipe
Windscreen wash: pull the stalk towards you. Rear Intermittent Wash/
Off wipe wipe
YOUR 406 AT A GLANCE
5
Automatic wipeIn the AUTO position, the
windscreen wiper ope- rates automatically andadapts its speed to theintensity of the rainfall.
126
Page 6 of 166
YOUR 406 AT A GLANCE
8SIDE AIR BAGS*
Side air bags are incorporated into the backs of the front seats,on the door side.
They are triggered individually, on whichever side the collisionoccurs.
Operating check
This is by means of the warninglight on the instrument panel. It comes on for 6 seconds when the ignition is switched on. If the warning light:
- does not come on when the
ignition is switched on or,
- does not go out after six seconds, contact a Peugeot
dealer.
* According to country.
Passenger air bag precautions For a vehicle fitted with a disar- ming switch:
- disarm the airbag if you install a rear-facing childseat.
- arm the air bag for anadult
passenger.
For a vehicle not fitted with adisarming switch:
-do not install rear-
facing child seats on the front pas-senger seat.
Never place your feet or anyobject on the fascia.
FRONT AIR BAGS Disarming the passenger air bag
Insert the ignition key in swit-ch 1and turn it:
- to the " ON" position, the pas-
senger air bag is armed
- to the " OFF" position, the
passenger air bag is disar- med.
Operating check
This symbol lights for approxima-tely six seconds when the igni-tion is switched on. With the ignition on (2nd notch), illumination of this warning lightaccompanied by an audible signaland the message "Passenger air
bag disarmed" on the multi–func-
tion display indicates that the pas-senger air bag is disarmed (switchin the "OFF" position).
The warning light remains onthroughout the disarming process.
153
Page 10 of 166
12YOUR 406 AT A GLANCE

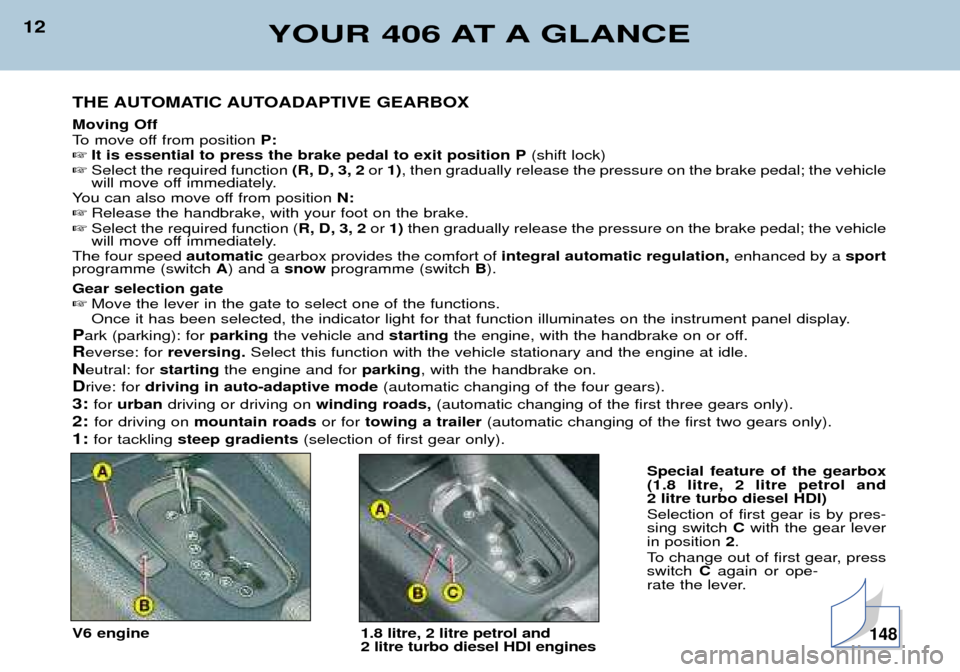

THE AUTOMATIC AUTOADAPTIVE GEARBOX Moving Off
To move off from position P:
It is essential to press the brake pedal to exit position P (shift lock)
Select the required function (R, D, 3, 2or1), then gradually release the pressure on the brake pedal; the vehicle
will move off immediately.
You can also move off from position N:
Release the handbrake, with your foot on the brake.
Select the required function ( R, D, 3, 2 or 1) then gradually release the pressure on the brake pedal; the vehicle
will move off immediately.
The four speed automaticgearbox provides the comfort of integral automatic regulation, enhanced by a sport
programme (switch A) and a snow programme (switch B).
Gear selection gate Move the lever in the gate to select one of the functions.
Once it has been selected, the indicator light for that function illuminates on the instrument panel display.
P ark (parking): for parkingthe vehicle and startingthe engine, with the handbrake on or off.
R everse: for reversing. Select this function with the vehicle stationary and the engine at idle.
N eutral: for startingthe engine and for parking, with the handbrake on.
D rive: for driving in auto-adaptive mode (automatic changing of the four gears).
3: for urban driving or driving on winding roads,(automatic changing of the first three gears only).
2: for driving on mountain roads or fortowing a trailer (automatic changing of the first two gears only).
1: for tackling steep gradients (selection of first gear only).
Special feature of the gearbox (1.8 litre, 2 litre petrol and 2 litre turbo diesel HDI) Selection of first gear is by pres- sing switch Cwith the gear lever
in position 2.
To change out of first gear, pressswitch C again or ope-
rate the lever.
V6 engine 1.8 litre, 2 litre petrol and
2 litre turbo diesel HDI engines
148
Page 16 of 166
SERVICE INDICATOR This is a visual reminder of when the
next service is due. This service is tobe carried out according to the man-ufacturer's servicing schedule. Operation As soon as the ignition is switched on and for 5 seconds, the spannersymbolising ''service operation'' is lit.The trip recorder display shows youthe distance remaining (in round fig-ures) before the next service. Example:4,800 miles remain before
the next service is due. When the ignition comes on and for 5 secondsthe display indicates: 5 seconds after the ignition is switched on, the total distancerecorder resumes normal operationand the display shows the total or tripdistances. The distance remaining before thenext service is less than 1,000 miles. Example:
900 miles remain before
the next service is due. When switching on the ignition and for 5 seconds, the display shows: 5 seconds after the ignition is switched on, the total distancerecorder resumes normal operationand the symbol remains lit. This indicates that a service should
be carried out shortly. The displayshows the total or trip distances. The service is overdue Each time the ignition is switched on and for 5 seconds, the symbol andthe excess distance flash. Example:
the service is overdue by
300 miles. The service should be
carried out very shortly. When the ignition is switched on and for 5 seconds, the display shows: 5 seconds after the ignition is switched on, the total distancerecorder resumes normal operation
and the symbol remains lit. The dis-play shows the total or trip distances.
YOUR 406 IN DETAIL
135
Page 17 of 166
Resetting the service indicator
Your PEUGEOT dealer carries out this operation after each service.
However, if you carry out the serviceyourself, the reset procedure is asfollows: – Switch off the ignition.
– Press and hold button 1.
– Switch on the ignition.
The display begins a 10 second countdown. – Keep button 1pressed for
10 seconds.
The display shows [= 0] and the ser-
vice symbol disappears.
YOUR 406 IN DETAIL
136
Page 27 of 166
WARNING LIGHTS AND INDICATORS
A permanently lit warning light, or flashing with the engine running, is an indication of a malfunction in the relevant unit. Some warning lights may
be linked to buzzers and a message on the multi–function display. Do notignore this warning: contact a PEUGEOT dealer as quickly as possible.
If the Central (STOP) warning light comes on when you are driving, stop your vehicle immediately where it is safe to do so.Central (STOP) warning light
Linked to the "engine oil pressure", ''the low brake fluid level'', '' the coolant temperature gauge'' and ''electronic brake force distribu-tion system fault'' warning lights. It comes on each time the igni-
tion is switched on.
Stop immediately if it flashes with the engine running.
Contact a PEUGEOT dealer.
Engine oil pressure warning light
Linked to the central (STOP) warning light.Stop immediately if it comes on with the engine running.
It indicates either:
– insufficient oil pressure,
– lack of oil in the lubrication circuit. Top up the oil level.
Contact a PEUGEOT dealer as soon as possible. Low coolant level warning light
Stop immediately. Allow the engine to cool before top- ping up. The cooling system is pressurised.In case of overheating, to prevent the risk of scalding, turn the cap tothe first notch to allow the pressureto drop. Once the pressure has dropped, remove the cap and top up the level.
Contact a PEUGEOT dealer.
Fuel filler cap warning light This comes on if the fuel cap is not correctly screwed
on or is missing.
YOUR 406 IN DETAIL
130
Page 28 of 166
Handbrake, low brake fluid level and electronic brake force distribution warning light. This comes on each time the ignition is switched on.
It indicates either:
– that the handbrake is on or has not been released correctly,
and when coupled with the central (STOP) warning light:
– an excessive drop in the brake fluid level (if the light remains on even with the handbrake released),
– lit at the same time as the ABS warning light, a malfunction of the electronic brake force distribution system.
Stop immediately.
Contact a PEUGEOT dealer.
Anti-lock braking system (ABS) warning lightThis comes on for 3 seconds each time the ignition is switched on.If it comes on at over 8 m.p.h. (12 km/h.), it indicates a malfunction of the ABS.
However, the vehicle retains conventional servo-assisted braking.
Contact a PEUGEOT dealer.
Clogging of the particulate emissionfilter warning light(diesel engine)
Display of this warning light is accompanied by an audible signal. The flashing of this light while the engine is running is caused either bythe particulate emission filter being
overloaded or by the engine runningtoo long at idle (white smoke at
exhaust). There is a risk of the filterclogging if the same conditions ofoperation are maintained. As soon as possible, drive for at least three minutes at a speedexceeding 37 m.p.h. (60 km/h), if dri-ving conditions allow this. If the light comes on, drive to a
PEUGEOT dealer as soon as possi-ble. Front brake pad wear warning light
For your safety, have the pads replaced as soon as this light comes on.
YOUR 406 IN DETAIL
131
ESP Electronic Stability Programme
operation indicatorlight
This flashes when the system is operating. It is lit continuously if disarmed or if there is a fault.
Page 29 of 166
Passenger air bag disarming warninglight Lighting of this warning light
is accompanied by an audible signal and a message on the multi–function
display. If the passenger air bag isdisarmed, the indicator light comeson when the ignition is switched onand remains on. In all cases, if the warning light flashes,
contact a PEUGEOT dealer.
Air bag warning light The warning light comes on for 6 seconds when the igni-tion is switched on.
This warning light comes on whenthe vehicle is running and is accom-panied by an audible signal and amessage on the multi–function dis-play indicating the cause of the front,side or curtain air bag fault.
Contact a PEUGEOT dealer.
Water in diesel filter warning light (depending on destination)
Contact a PEUGEOT dealer as soon as possible.
There is a risk of damage to the injection system. Diesel pre-heating indicator lightIf the engine is warm enough, the light will not come on, and you can start the engine without waiting.
If the light comes on, wait until it goes out before trying the starter. Engine diagnostics warning light This comes on each time the ignition is switched on.If it is lit continuously with the engine runnning, this indicates a fault in
the emission control system.If it flashes with the engine running, this indicates a malfunction in the injection
or ignition system. There is a risk of damage to the catalytic converter (petrol
engine only). Contact a PEUGEOT dealer as soon as possible. Battery charge warning light This comes on each time the ignition is switched on.If it comes on with the engine running it can indicate:
– faulty operation of the charging circuit,
– loose battery or starter terminals,
– a cut or slack alternator belt,
– an alternator fault.
Contact a PEUGEOT dealer. YOUR 406 IN DETAIL
132
Page 32 of 166
Lighting rheostat
With the lights on, press the button to vary the intensity of the lighting of theinstruments and controls. When thelighting reaches the minimum (ormaximum) setting, release the but-ton then press it again to increase (orreduce) the brightness. As soon as the lighting is of the required brightness, release the button.
Trip recorder zero reset With the ignition on, press the button. Instrument panel display After switching on the ignition, three functions are shown in succession:
- engine oil level indicator,
- service indicator,
- total distance recorder. Engine oil level
When the ignition is switched on, the engine oil level indicator is displayed for approximately five seconds, then the service indicator is displayed for five seconds.
Maximum Use the dipstick to confirm the level on the indicator; a surplus of oil can cause damage to the engine.
Contact a PEUGEOT dealer as soon as possible. Minimum
Check the level with the dipstick and top it up. The figure shown is only correct if the vehicle has been on stable, level ground, withthe engine stopped, for 10 minutes. No oil It is essential to top up the oil to the correct level, otherwise the engine will be damaged.
YOUR 406 IN DETAIL
134
