PEUGEOT 5008 2018 Owners Manual

99

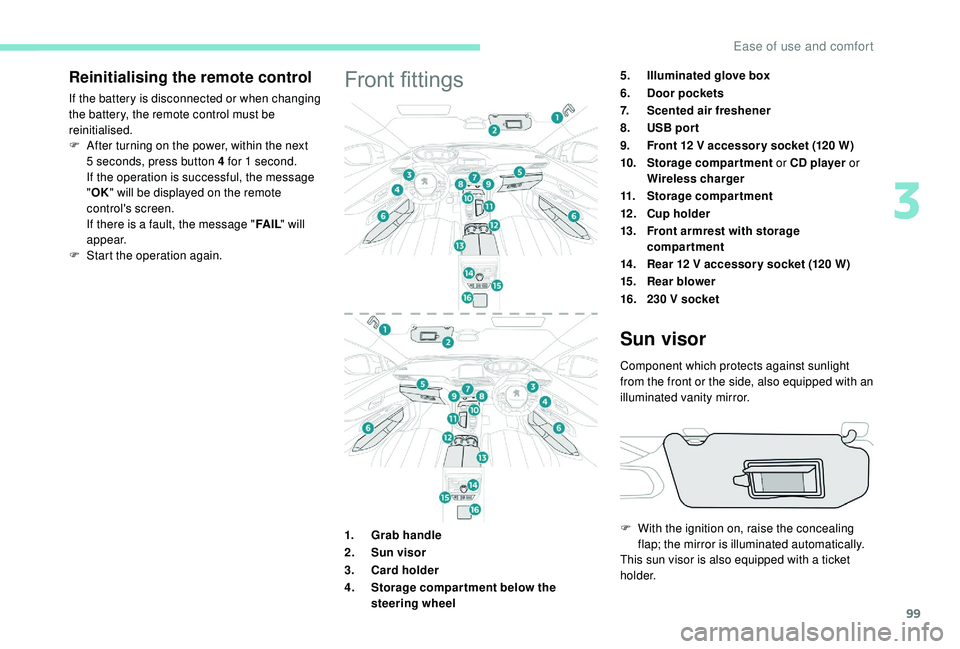

Reinitialising the remote control
If the battery is disconnected or when changing
the battery, the remote control must be
reinitialised.
F
A
fter turning on the power, within the next
5
seconds, press button 4 for 1 second.
If the operation is successful, the message
" OK " will be displayed on the remote
control's screen.
If there is a
fault, the message " FA I L" will
appear.
F

St
art the operation again.Front fittings5.Illuminated glove box
6. Door pockets
7. Scented air freshener
8. USB por t
9. Front 12
V accessor y socket (120 W)
10. Storage compartment or CD player or
Wireless charger
11. Storage compartment
12 . Cup holder
13. Front armrest with storage
compartment
14 . Rear 12
V accessor y socket (120 W)
15. Rear blower
16. 230
V socket
1. Grab handle
2. Sun visor
3. Card holder
4. Storage compar tment below the
steering wheel
Sun visor
Component which protects against sunlight
from the front or the side, also equipped with an
illuminated vanity mirror.
F

W
ith the ignition on, raise the concealing
flap; the mirror is illuminated automatically.
This sun visor is also equipped with a
ticket
h o l d e r.
3
Ease of use and comfort

100

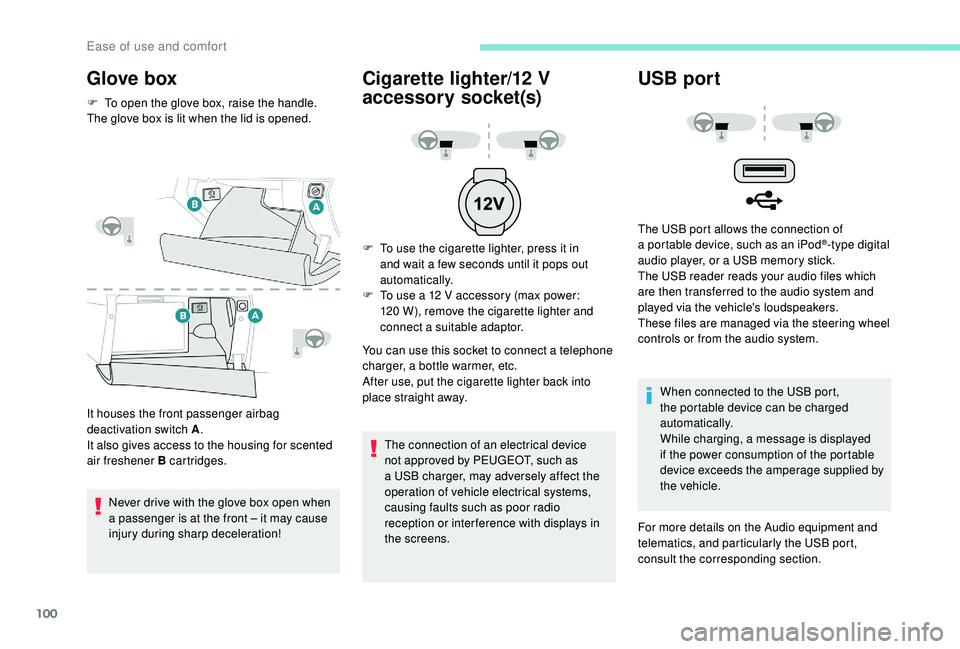

Glove box
F To open the glove box, raise the handle.
The glove box is lit when the lid is opened.
It houses the front passenger airbag
deactivation switch A .
It also gives access to the housing for scented
air freshener B cartridges.
Never drive with the glove box open when
a
passenger is at the front – it may cause
injury during sharp deceleration!
Cigarette lighter/12 V
a ccessory socket(s)
F To use the cigarette lighter, press it in
and wait a few seconds until it pops out
automatically.
F

T
o use a 12 V accessory (max power:
120
W), remove the cigarette lighter and
connect a
suitable adaptor.
You can use this socket to connect a
telephone
charger, a bottle warmer, etc.
After use, put the cigarette lighter back into
place straight away.
The connection of an electrical device
not approved by PEUGEOT, such as
a
USB charger, may adversely affect the
operation of vehicle electrical systems,
causing faults such as poor radio
reception or inter ference with displays in
the screens.
USB port
The USB port allows the connection of
a portable device, such as an iPod®-type digital
audio player, or a

USB memory stick.
The USB reader reads your audio files which
are then transferred to the audio system and
played via the vehicle's loudspeakers.
These files are managed via the steering wheel
controls or from the audio system.
When connected to the USB port,
the portable device can be charged
automatically.
While charging, a message is displayed
if the power consumption of the portable
device exceeds the amperage supplied by
the vehicle.
For more details on the Audio equipment and
telematics, and particularly the USB port,
consult the corresponding section.
Ease of use and comfort

101

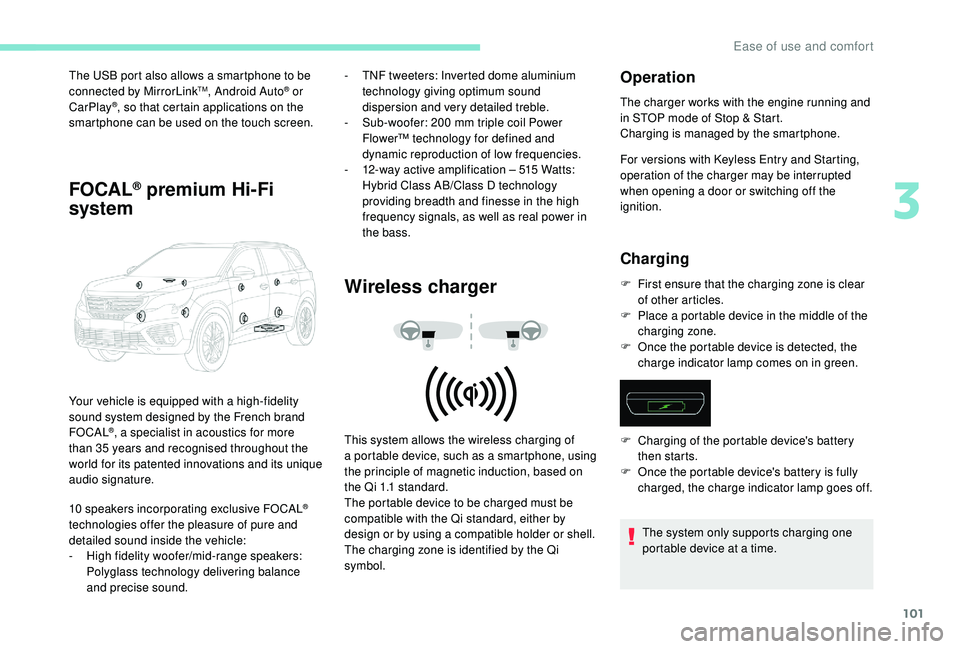

The USB port also allows a smartphone to be
c onnected by MirrorLinkTM, Android Auto® or
CarPlay®, so that certain applications on the
smartphone can be used on the touch screen.
FOCAL® premium Hi-Fi
system
- TNF tweeters: Inverted dome aluminium
technology giving optimum sound
dispersion and very detailed treble.
-

S
ub-woofer: 200 mm triple coil Power
Flower™ technology for defined and
dynamic reproduction of low frequencies.
-

1
2-way active amplification – 515 Watts:
Hybrid Class AB/Class D technology
providing breadth and finesse in the high
frequency signals, as well as real power in
the bass.
Wireless charger
Your vehicle is equipped with a high-fidelity
s ound system designed by the French brand
FOCAL
®, a specialist in acoustics for more
than 35

years and recognised throughout the
world for its patented innovations and its unique
audio signature.
10


speakers incorporating exclusive FOCAL
®
technologies offer the pleasure of pure and
detailed sound inside the vehicle:
-

H

igh fidelity woofer/mid-range speakers:
Polyglass technology delivering balance
and precise sound. This system allows the wireless charging of
a
portable device, such as a smartphone, using
the principle of magnetic induction, based on
the Qi 1.1 standard.
The portable device to be charged must be
compatible with the Qi standard, either by
design or by using a
compatible holder or shell.
The charging zone is identified by the Qi
symbol.
Operation
The charger works with the engine running and
in STOP mode of Stop & Start.
Charging is managed by the smartphone.
For versions with

K
eyless Entry and Starting,
operation of the charger may be interrupted
when opening a
door or switching off the
ignition.
Charging
F First ensure that the charging zone is clear of other articles.
F

P
lace a portable device in the middle of the
charging zone.
F

O
nce the portable device is detected, the
charge indicator lamp comes on in green.
The system only supports charging one
portable device at a


time.
F

C
harging of the portable device's battery
then starts.
F

O
nce the portable device's battery is fully
charged, the charge indicator lamp goes off.
3
Ease of use and comfort

102

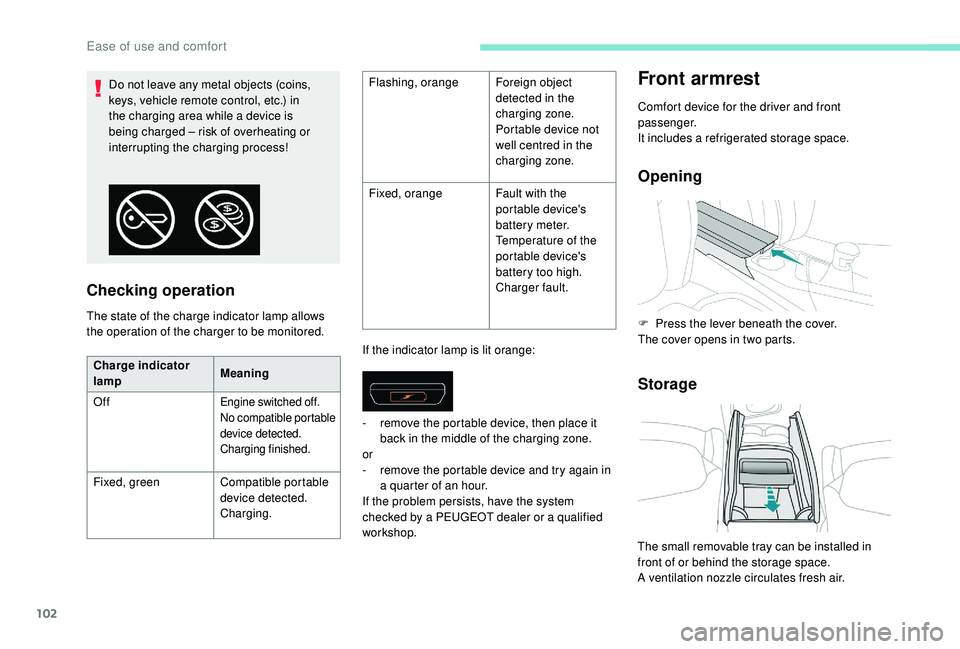

Checking operation
The state of the charge indicator lamp allows
the operation of the charger to be monitored.If the indicator lamp is lit orange:
Front armrest
Comfort device for the driver and front
passenger.
It includes a
refrigerated storage space.
Opening
Storage
Do not leave any metal objects (coins,
keys, vehicle remote control, etc.) in
the charging area while a device is
being charged – risk of overheating or
interrupting the charging process! Flashing, orange
Foreign object
detected in the
charging zone.
Portable device not
well centred in the
charging zone.
Fixed, orange Fault with the
portable device's
battery meter.
Temperature of the
portable device's
battery too high.
Charger fault.
Charge indicator
lamp Meaning
Off
Engine switched off.
No compatible portable
device detected.
Charging finished.
Fixed, green Compatible portable
device detected.
Charging. -

r
emove the portable device, then place it
back in the middle of the charging zone.
or
- r emove the portable device and try again in
a quarter of an hour.
If the problem persists, have the system
checked by a
PEUGEOT dealer or a qualified
workshop. F

P
ress the lever beneath the cover.
The cover opens in two parts.
The small removable tray can be installed in
front of or behind the storage space.
A ventilation nozzle circulates fresh air.
Ease of use and comfort

103

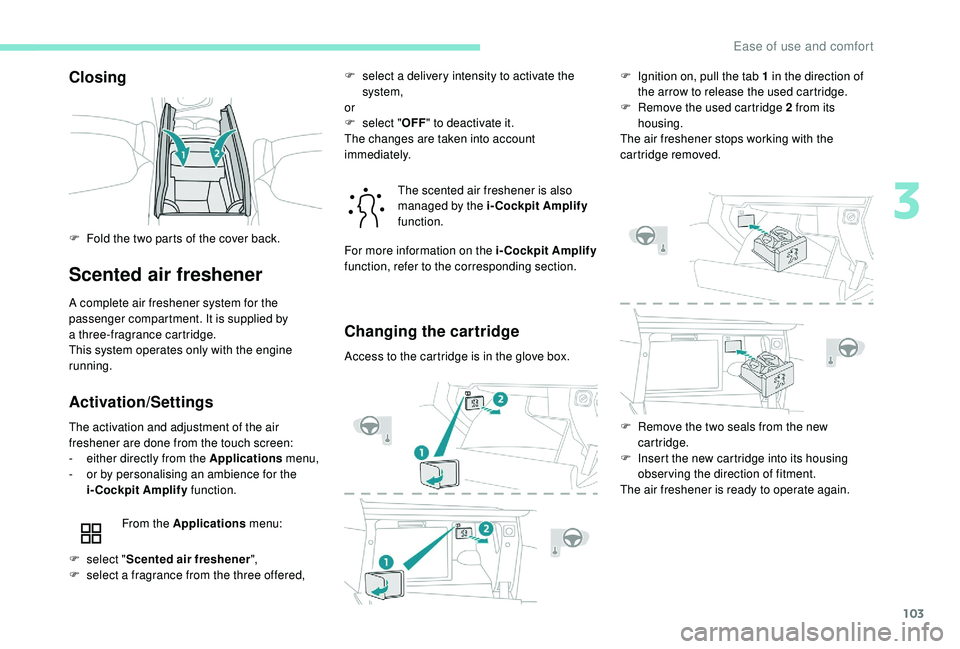

Closing
Scented air freshener
A complete air freshener system for the
passenger compartment. It is supplied by
a

three-fragrance cartridge.
This system operates only with the engine
running.
Activation/Settings
The activation and adjustment of the air
freshener are done from the touch screen:
-

e
ither directly from the Applications menu,
-

o
r by personalising an ambience for the
i-Cockpit Amplify function.
F

F
old the two parts of the cover back.
From the Applications menu: The scented air freshener is also
managed by the i-Cockpit Amplify

function.
Changing the cartridge
Access to the cartridge is in the glove box. F
I
gnition on, pull the tab 1 in the direction of
the arrow to release the used cartridge.
F
R
emove the used cartridge 2 from its
housing.
The air freshener stops working with the
cartridge removed.
F

s

elect " Scented air freshener ",
F

s

elect a

fragrance from the three offered, F

s
elect a delivery intensity to activate the
system,
or
F
s
elect "
OFF" to deactivate it.
The changes are taken into account
immediately.
For more information on the i-Cockpit Amplify
function, refer to the corresponding section.
F
R
emove the two seals from the new
cartridge.
F

I
nsert the new cartridge into its housing
observing the direction of fitment.
The air freshener is ready to operate again.
3
Ease of use and comfort

104

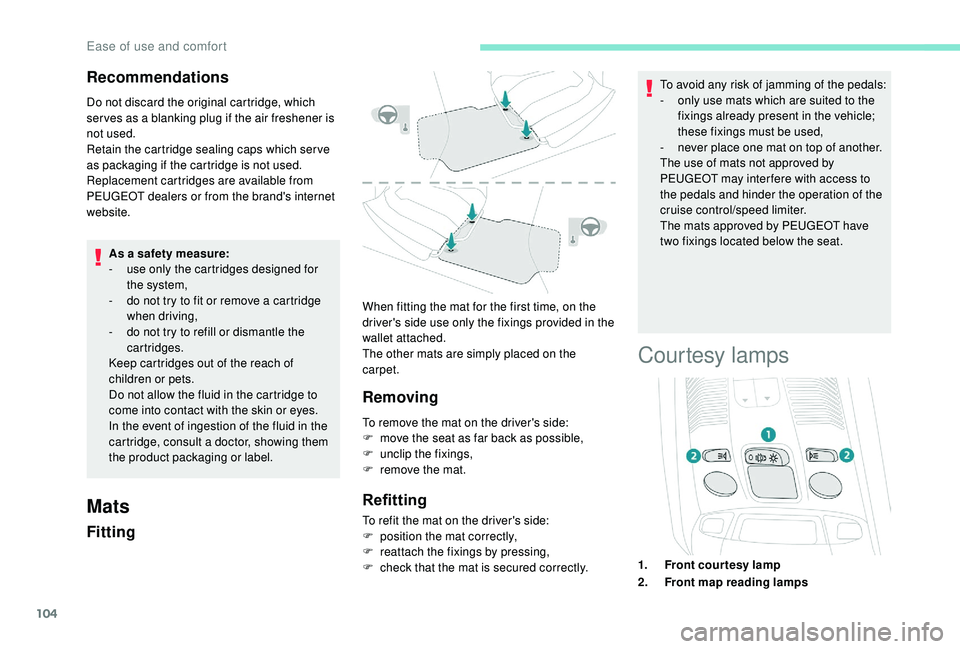

Recommendations
Do not discard the original cartridge, which
ser ves as a blanking plug if the air freshener is
not used.
Retain the cartridge sealing caps which ser ve
as packaging if the cartridge is not used.
Replacement cartridges are available from
PEUGEOT dealers or from the brand's internet
website.
As a
safety measure:
-

u
se only the cartridges designed for
the system,
-

d
o not try to fit or remove a cartridge
when driving,
-

d
o not try to refill or dismantle the
cartridges.
Keep cartridges out of the reach of
children or pets.
Do not allow the fluid in the cartridge to
come into contact with the skin or eyes.
In the event of ingestion of the fluid in the
cartridge, consult a
doctor, showing them
the product packaging or label.
Mats
Fitting
When fitting the mat for the first time, on the
driver's side use only the fixings provided in the
wallet attached.
The other mats are simply placed on the
carpet.
Removing
To remove the mat on the driver's side:
F m ove the seat as far back as possible,
F

un
clip the fixings,
F

r
emove the mat.
Refitting
To refit the mat on the driver's side:
F p osition the mat correctly,
F

r
eattach the fixings by pressing,
F

c
heck that the mat is secured correctly. To avoid any risk of jamming of the pedals:
-

o
nly use mats which are suited to the
fixings already present in the vehicle;
these fixings must be used,
-
n
ever place one mat on top of another.
The use of mats not approved by
PEUGEOT may inter fere with access to
the pedals and hinder the operation of the
cruise control/speed limiter.
The mats approved by PEUGEOT have
two fixings located below the seat.
Courtesy lamps
1. Front courtesy lamp
2. Front map reading lamps
Ease of use and comfort

105

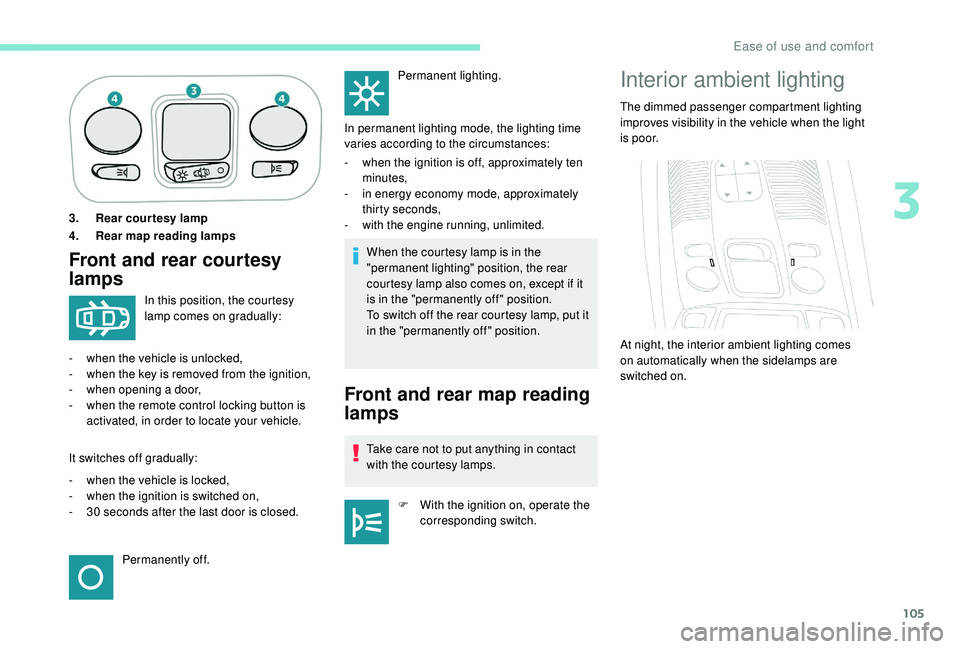

3. Rear courtesy lamp
4. Rear map reading lamps
Front and rear courtesy
lampsWhen the courtesy lamp is in the
"permanent lighting" position, the rear
courtesy lamp also comes on, except if it
is in the "permanently off " position.
To switch off the rear courtesy lamp, put it
in the "permanently off " position.
In this position, the courtesy
lamp comes on gradually:
-

w

hen the vehicle is unlocked,
-

w

hen the key is removed from the ignition,
-
w

hen opening a


door,
-

w

hen the remote control locking button is
activated, in order to locate your vehicle.
It switches off gradually:
-

w

hen the vehicle is locked,
-

w

hen the ignition is switched on,
-

3

0

seconds after the last door is closed. Permanently off. Permanent lighting.
In permanent lighting mode, the lighting time
varies according to the circumstances:
-

w
hen the ignition is off, approximately ten
minutes,
-

i

n energy economy mode, approximately
thirty seconds,
-
w
ith the engine running, unlimited.
Front and rear map reading
lamps
Take care not to put anything in contact
with the courtesy lamps.
F

W
ith the ignition on, operate the
corresponding switch.
Interior ambient lighting
The dimmed passenger compartment lighting
improves visibility in the vehicle when the light
i s p o o r.
At night, the interior ambient lighting comes
on automatically when the sidelamps are
switched on.
3
Ease of use and comfort

106
- illuminated bezels for the front cup holders,
- a l ight source for each of the front door
pockets,
-
i

lluminated rails along the panoramic
sunroof blind.
The ambient lighting switches off automatically
when the sidelamps are switched off.
The interior ambient lighting can
be activated or deactivated and its
brightness adjusted in the Vehicle/
Driving menu of the touch screen.
The interior ambient lighting is also
managed by the i- Cockpit Amplify
function.
For more information on the
i-Cockpit Amplify function , refer
to the corresponding section.
Depending on the version, the ambient lighting
includes:
-

t

wo LEDs located in the front courtesy lamp,
-

a l

ight source in the storage compartment at
the front of the centre console,
-

a l

ight source for each of the front footwells,
-

i

lluminated guides on the front door panels
and on the sides of the centre console,Rear fittings
230 V/50 Hz power socket
In the event of a fault, the green warning lamp
f lashes.
Have it checked by a
PEUGEOT dealer or
a


qualified workshop.
It is located at the back of the centre console
beneath a
protective cover.
This socket (max. power: 150 W) operates with
the engine running, as well as in STOP mode of
Stop & Start.
F
Ra
ise the protective cover.
F
C
heck that the green indicator lamp is on.
F
C
onnect your multimedia or other electrical
device (telephone charger, laptop computer,
CD-DVD player, bottle warmer, etc.).
Ease of use and comfort

107

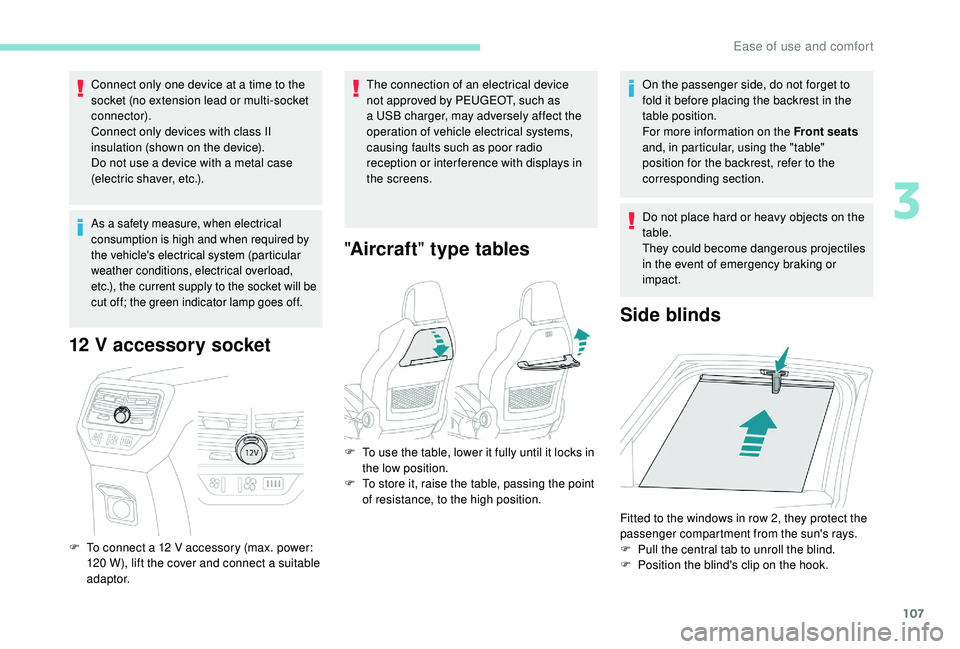

Connect only one device at a time to the
s ocket (no extension lead or multi-socket
connector).
Connect only devices with class II
insulation (shown on the device).
Do not use a
device with a metal case
(electric shaver, etc.).
12 V accessory socket
The connection of an electrical device
not approved by PEUGEOT, such as
a
USB charger, may adversely affect the
operation of vehicle electrical systems,
causing faults such as poor radio
reception or inter ference with displays in
the screens.
As a safety measure, when electrical
c onsumption is high and when required by
the vehicle's electrical system (particular
weather conditions, electrical overload,
etc.), the current supply to the socket will be
cut off; the green indicator lamp goes off.
F To connect a 12 V accessory (max. power:
120 W), lift the cover and connect a suitable
adaptor.
" Aircraft " type tables
On the passenger side, do not forget to
fold it before placing the backrest in the
table position.
For more information on the Front seats
and, in particular, using the "table"
position for the backrest, refer to the
corresponding section.
Do not place hard or heavy objects on the
table.
They could become dangerous projectiles
in the event of emergency braking or
impact.
Side blinds
F To use the table, lower it fully until it locks in the low position.
F

T
o store it, raise the table, passing the point
of resistance, to the high position.
Fitted to the windows in row 2, they protect the
passenger compartment from the sun's rays.
F

P
ull the central tab to unroll the blind.
F

P
osition the blind's clip on the hook.
3
Ease of use and comfort

108
Always guide the blind slowly using the
tab, both up and down.

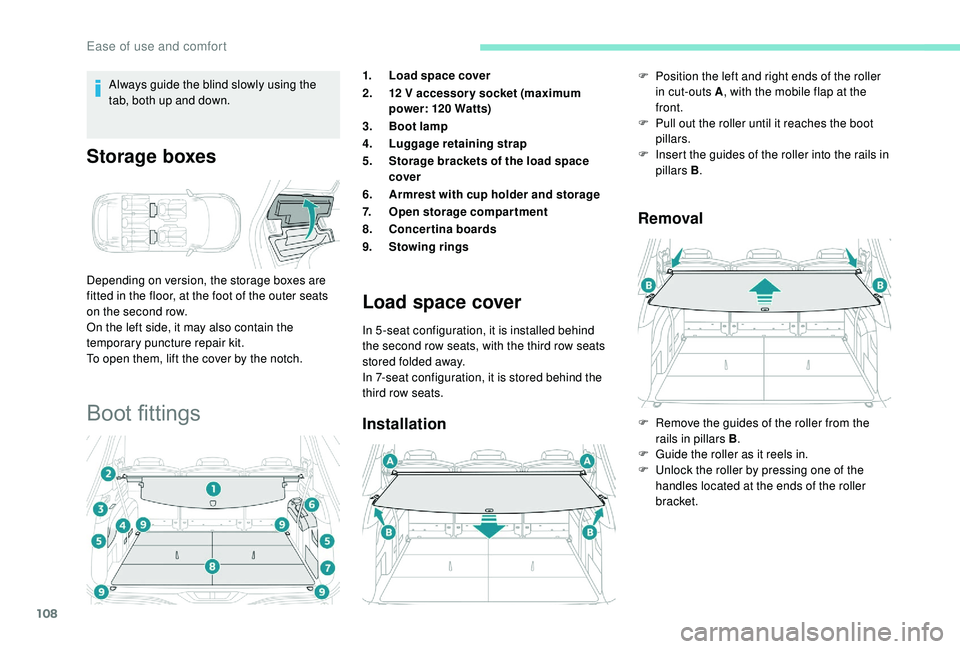

Storage boxes
Depending on version, the storage boxes are
fitted in the floor, at the foot of the outer seats
on the second row.
On the left side, it may also contain the
temporary puncture repair kit.
To open them, lift the cover by the notch.
Boot fittings
1.Load space cover
2. 12
V accessor y socket (maximum
power: 120
Watts)
3. Boot lamp
4. Luggage retaining strap
5. Storage brackets of the load space
cover
6. Armrest with cup holder and storage
7. Open storage compartment
8. Concertina boards
9. Stowing rings
Load space cover
In 5 -seat configuration, it is installed behind
the second row seats, with the third row seats
stored folded away.
In 7-seat configuration, it is stored behind the
third row seats.
Installation Removal
F Position the left and right ends of the roller
in cut-outs A , with the mobile flap at the
front.
F

P
ull out the roller until it reaches the boot
pillars.
F

I
nsert the guides of the roller into the rails in
pillars B .
F

R
emove the guides of the roller from the
rails in pillars B .
F

G
uide the roller as it reels in.
F

U
nlock the roller by pressing one of the
handles located at the ends of the roller
bracket.
Ease of use and comfort
