Peugeot 508 RXH 2013 Workshop Manual
Manufacturer: PEUGEOT, Model Year: 2013, Model line: 508 RXH, Model: Peugeot 508 RXH 2013Pages: 308, PDF Size: 8.95 MB

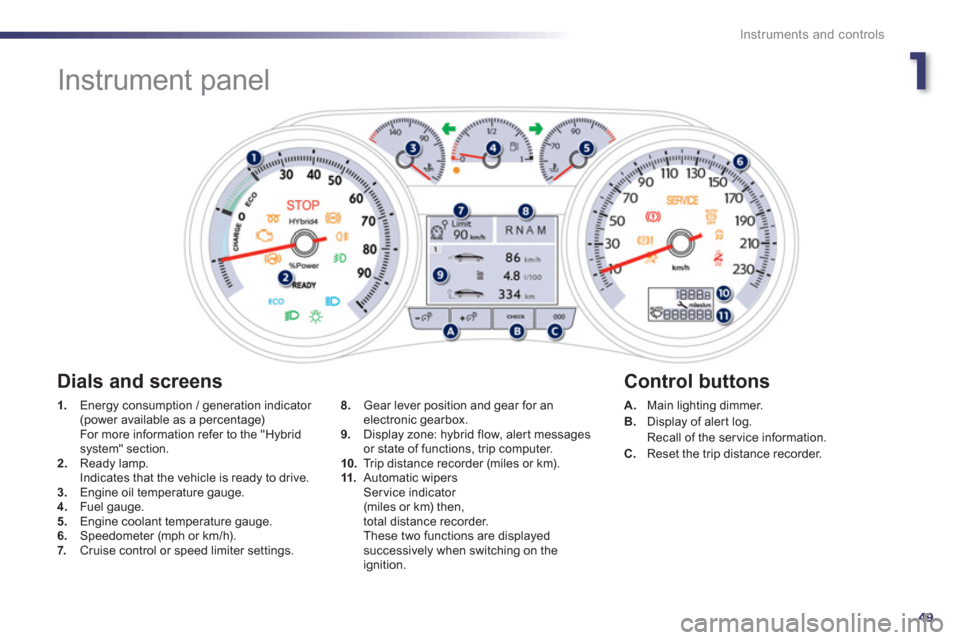

Page 51 of 308
1
49
Instruments and controls
Instrument panel
1.
Energy consumption / generation indicator (power available as a percentage) For more information refer to the "Hybrid system" section. 2.Ready lamp.
Indicates that the vehicle is ready to drive. 3.Engine oil temperature gauge. 4. Fuel gauge.
5. Engine coolant temperature gauge.
6.Speedometer (mph or km/h).7. Cruise control or speed limiter settings.
A.Main lighting dimmer. B.
Display of aler t log.
Recall of the service information.
C. Reset the trip distance recorder.
8.
Gear lever position and gear for anelectronic gearbox.
9. Display zone: hybrid flow, alert messages
or state of functions, trip computer.
10.Trip distance recorder (miles or km). 11.Automatic wipersSer vice indicator (miles or km) then,
total distance recorder.
These two functions are displayedsuccessively when switching on the ignition.
Dials and screens
Control buttons

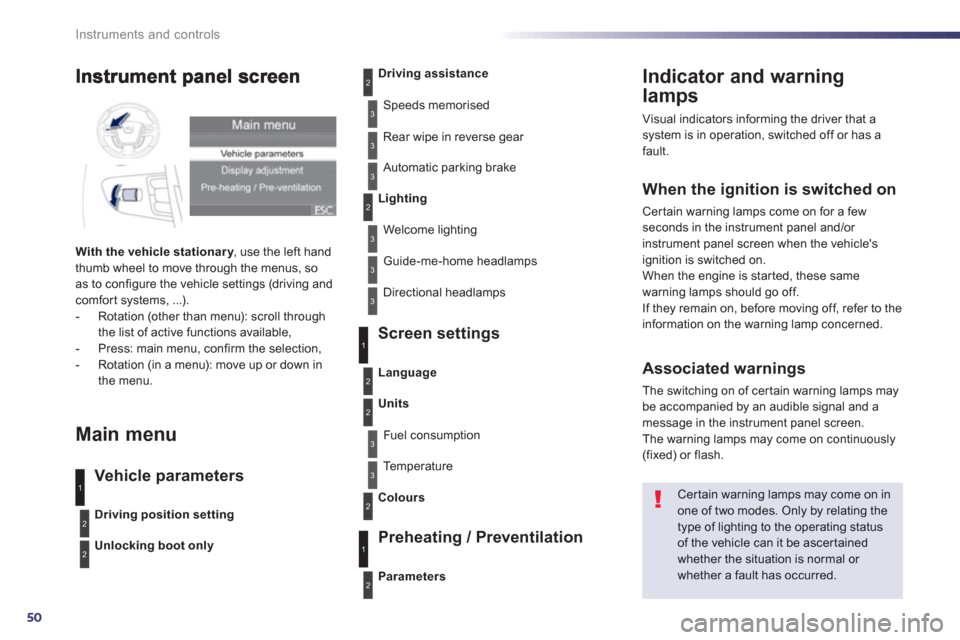

Page 52 of 308
50
Instruments and controls
Indicator and warning
lamps
Visual indicators informing the driver that a system is in operation, switched off or has a
fault.
When the ignition is switched on
Certain warning lamps come on for a few seconds in the instrument panel and/or
instrument panel screen when the vehicle's
ignition is switched on.
When the engine is started, these same
warning lamps should go off.
If they remain on, before moving off, refer to the
information on the warning lamp concerned.
Associated warnings
The switching on of cer tain warning lamps maybe accompanied by an audible signal and a message in the instrument panel screen.
The warning lamps may come on continuously(fixed) or flash.
Certain warning lamps may come on inone of two modes. Only by relating thetype of lighting to the operating status
of the vehicle can it be ascertainedwhether the situation is normal or whether a fault has occurred.
1
2
2
2
3
3
3
2
3
3
With the vehicle stationar y
, use the left handythumb wheel to move through the menus, so as to configure the vehicle settings (driving andcomfort systems, ...).
- Rotation (other than menu): scroll through
the list of active functions available,
- Press: main menu, confirm the selection,
- Rotation (in a menu): move up or down in
the menu.
Main menu
Vehicle parameters Screen settin
gs
Preheatin
g / Preventilation
Driving position setting
Unlocking boot only
Driving assistance
Speeds memorised
Rear wipe in reverse
gear
Automatic parkin
g brake
Lighting
Welcome lighting
Guide-me-home headlamps
Directional headlamps
Parameters
Language
Units
Fuel consumption
Te m p e r a t u r e
Colours
3
1
2
2
3
2
3
1
2

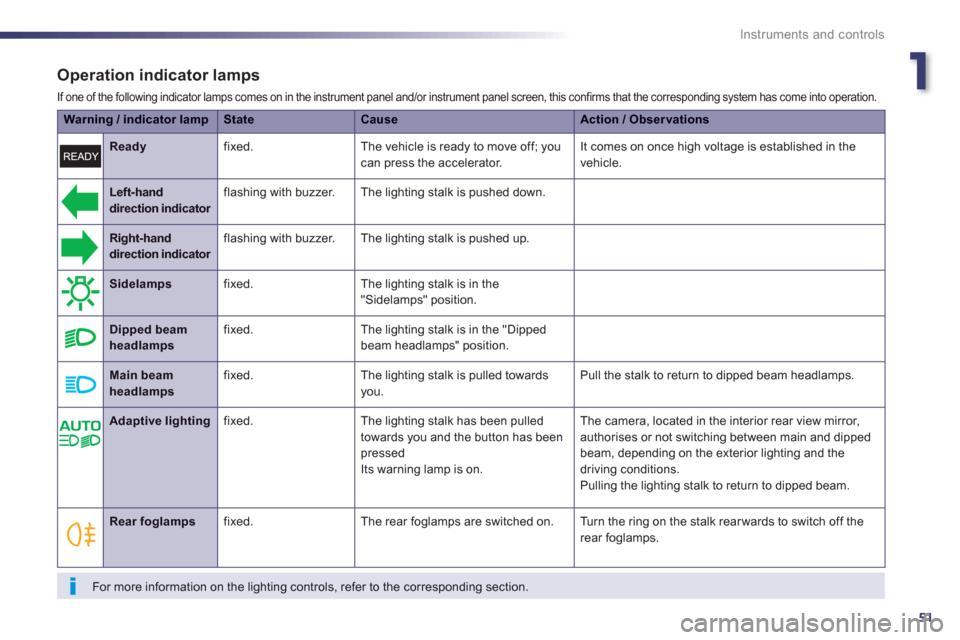

Page 53 of 308
1
51
Instruments and controls
Operation indicator lamps
If one of the following indicator lamps comes on in the instrument panel and/or instrument panel screen, this confirms that the corresponding system has come into operation.
Warning / indicator lampStateCauseAction / Observations
Left-handdirection indicator
flashing with buzzer. The lighting stalk is pushed down.
Right-handdirection indicator flashing with buzzer. The lighting stalk is pushed up.
Sidelamps
fixed. The lighting stalk is in the
"Sidelamps" position.
Dipped beamheadlamps
fixed. The lighting stalk is in the "Dipped
beam headlamps" position.
Main beam headlamps fixed. The lighting stalk is pulled towards
you. Pull the stalk to return to dipped beam headlamps.
Ready fixed. The vehicle is ready to move off; you can press the accelerator. It comes on once high voltage is established in the
vehicle.
Rear foglamps
fixed. The rear foglamps are switched on. Turn the ring on the stalk rear wards to switch off the
rear foglamps.
For more information on the lighting controls, refer to the corresponding section.
Adaptive lighting
fixed. The lighting stalk has been pulled
towar
ds you and the button has been pressedIts warning lamp is on. The camera
, located in the interior rear view mirror,
authorises or not switching between main and dippedbeam, depending on the exterior lighting and thedriving conditions.
Pulling the lighting stalk to return to dipped beam.

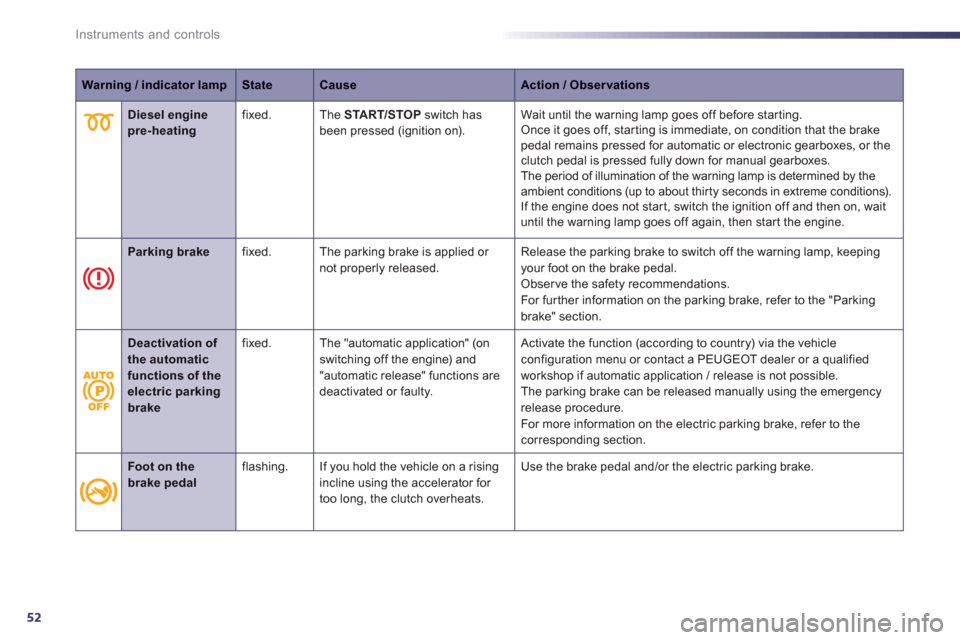

Page 54 of 308
52
Instruments and controls
Warning / indicator lampStateCauseAction / Observations
Diesel engine pre-heatingfixed. The START/STOPswitch hasbeen pressed (ignition on).Wait until the warning lamp goes off before star ting.Once it goes off, star ting is immediate, on condition that the brakepedal remains pressed for automatic or electronic gearboxes, or theclutch pedal is pressed fully down for manual gearboxes.
The period of illumination of the warning lamp is determined by theambient conditions (up to about thir ty seconds in extreme conditions).
If the engine does not star t, switch the ignition off and then on, waituntil the warning lamp goes off again, then start the engine.
Parking brakefixed. The parking brake is applied or
not properly released.Release the parking brake to switch off the warning lamp, keepingyour foot on the brake pedal. Observe the safety recommendations.
For fur ther information on the parking brake, refer to the "Parkingbrake" section.
Deactivation of the automatic functions of the electric parkingbrake
fixed. The "automatic application" (on switching off the engine) and"automatic release" functions are
deactivated or faulty. Activate the function
(according to country) via the vehicle configuration menu or contact a PEUGEOT dealer or a qualified workshop if automatic application / release is not possible.
The parking brake can be released manually using the emergencyrelease procedure.
For more information on the electric parking brake, refer to the corresponding section.
Foot on thebrake pedalflashing. If you hold the vehicle on a risingincline using the accelerator for
too long, the clutch overheats.Use the brake pedal and
/or the electric parking brake.

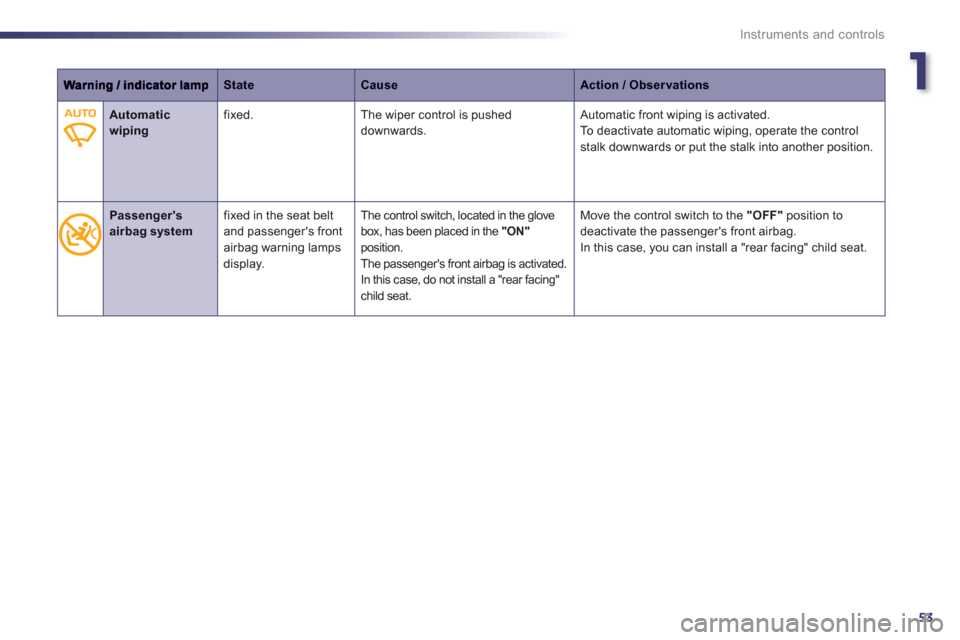

Page 55 of 308
1
53
Instruments and controls
StateCauseAction / Observations
Automatic wiping
fixed. The wiper control is pushed downwards. Automatic front wiping is activated.
To deactivate automatic wiping, operate the controlstalk downwards or put the stalk into another position.
Passenger's airbag system fixed in the seat belt
and passenger's front
airbag warning lampsdisplay.
The control switch, located in the glove box, has been placed in the "ON" position.
The passenger's front airbag is activated. In this case, do not install a "rear facing"child seat.
Move the control switch to the "OFF"
position to
deactivate the passenger's front airbag.
In this case, you can install a "rear facing" child seat.

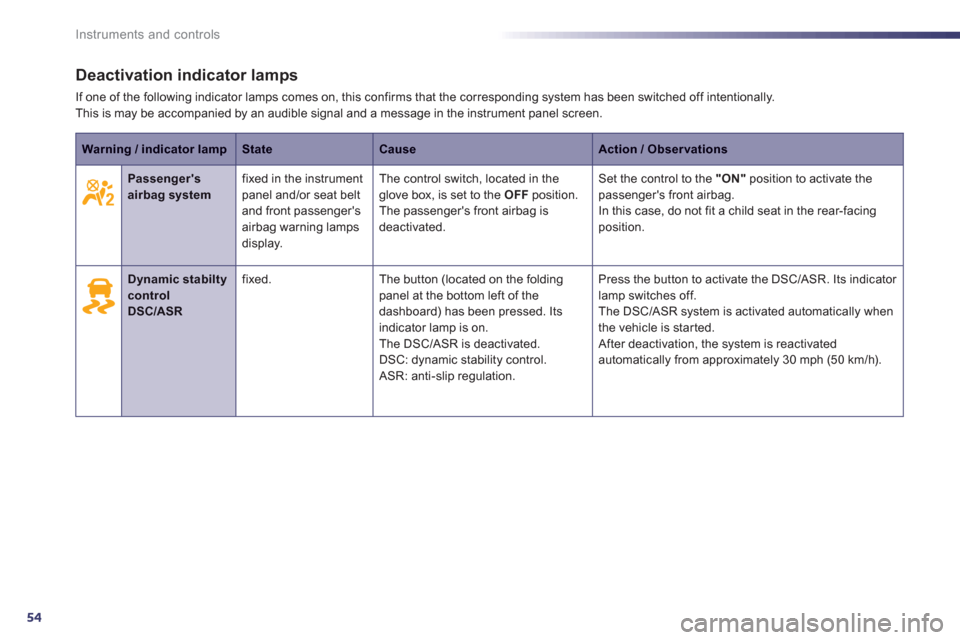

Page 56 of 308
54
Instruments and controls
Deactivation indicator lamps
If one of the following indicator lamps comes on, this confirms that the corresponding system has been switched off intentionally.This is may be accompanied by an audible signal and a message in the instrument panel screen.
Warning / indicator lampStateCauseAction / Observations
Passenger's airbag systemfixed in the instrumentpanel and/or seat beltand front passenger's airbag warning lamps
display.
The control switch, located in the glove box, is set to the OFF
position.
The passenger's front airbag is deactivated.
Set the control to the "ON"
position to activate the passenger's front airbag.
In this case, do not fit a child seat in the rear-facing position.
Dynamic stabilty controlDSC/ASR
fixed. The button (located on the foldingpanel at the bottom left of the
dashboard) has been pressed. Its
indicator lamp is on.
The DSC/ASR is deactivated.
DSC: d
ynamic stability control.
ASR: anti-slip regulation.Pr
ess the button to activate the DSC/ASR. Its indicator
lamp switches off.
The DSC/ASR system is activated automatically when
the vehicle is started.
After deactivation, the system is reactivated
automatically from approximately 30 mph (50 km/h).

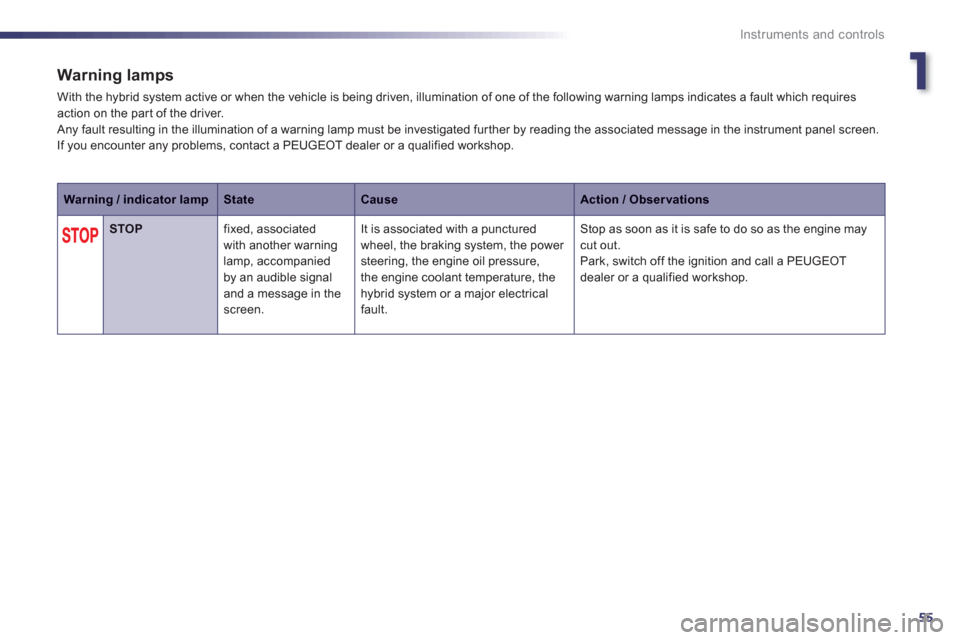

Page 57 of 308
1
55
Instruments and controls
Warning lamps
With the hybrid system active or when the vehicle is being driven, illumination of one of the following warning lamps indicates a fault which requires
action on the par t of the driver.
Any fault resulting in the illumination of a warning lamp must be investigated fur ther by reading the associated message in the instrument panel screen.
If you encounter any problems, contact a PEUGEOT dealer or a qualified workshop.
Warning / indicator lampStateCauseAction / Observations
STOP
fixed, associated
with another warning
lamp, accompanied
b
y an audible signal
and a message in thescreen. It is associated with a punctured
wheel, the brakin
g system, the power steering, the engine oil pressure,
the engine coolant temperature, thehybrid system or a major electrical fault. Stop as soon as it is safe to do so as the en
gine maycut out.
Park, switch off the ignition and call a PEUGEOT
dealer or a qualified workshop.

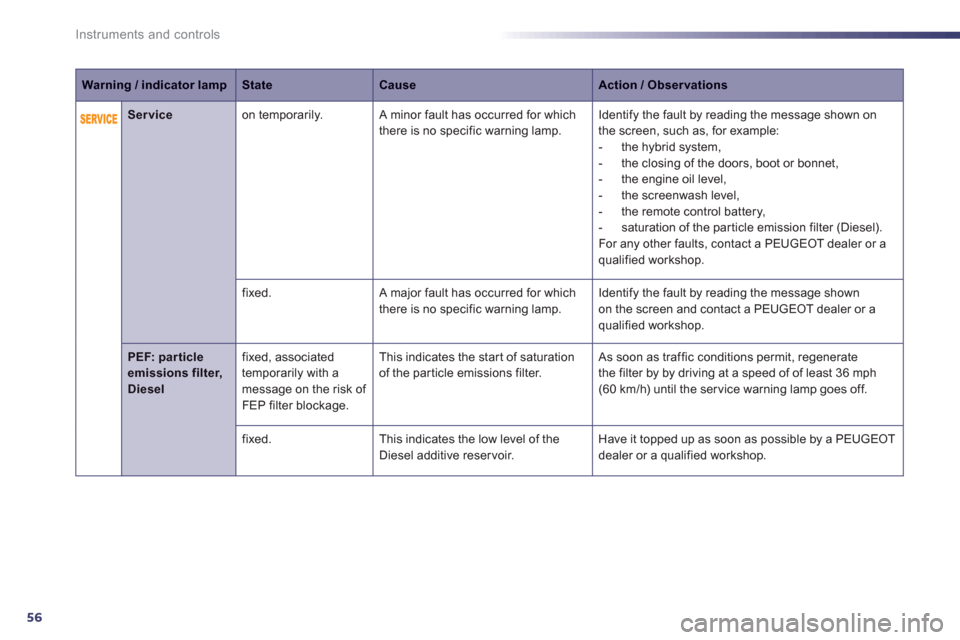

Page 58 of 308
56
Instruments and controls
Serviceon temporarily. A minor fault has occurred for which
there is no specific warning lamp. Identify the fault by reading the message shown on
the screen, such as, for example:
- the h
ybrid system,
- the closin
g of the doors, boot or bonnet,
- the engine oil level,
- the screenwash level,
- the remote control battery,
- saturation of the par ticle emission filter (Diesel).
For any other faults, contact a PEUGEOT dealer or a
qualified workshop.
fixed. A major fault has occurred for which
there is no specific warning lamp. Identify the fault by reading the message shown on the screen and contact a PEUGEOT dealer or aqualified workshop.
PEF: particle emissions filter,Diesel
fixed, associated
temporarily with a message on the risk of
FEP filter blockage.Thi
s indicates the start of saturation
of the par ticle emissions filter. As soon as traffic conditions permit, regenerate
the filter by by driving at a speed of of least 36 mph(60 km/h) until the ser vice warning lamp goes off.
fix
ed.This indicates the low level of theDiesel additive reservoir. Have it topped up as soon as possible by a PEUGEOT
dealer or a qualified workshop.
Warning / indicator lampStateCauseAction / Observations
Page 59 of 308
1
57
Instruments and controls
Warning / indicator lampStateCauseAction / Observations
Electric parkingbrakeflashing. The electric parking brake is not
applied automatically.
The application/release is faulty. You must stop as soon as it is safe to do so.
Park on flat level ground, switch off the ignition andcontact a PEUGEOT dealer or a qualified workshop.
Electric parkingbrake faultfixed. The electric parking brake has a fault. Contact a PEUGEOT dealer or a qualified workshop without delay.
The parking brake can be released manually using theemergency release procedure.
For more information on the electric parking brake,refer to the corresponding section.
Braking
fixed. The braking system fluid level has
dropped significantly. You must stop as soon as it is safe to do so.
Top up with brake fluid listed by PEUGEOT.
If the problem persists, have the system checked by a
PEUGEOT dealer or a qualified workshop.
+
fixed, associated
with the ABS warninglamp. Th
e electronic brake force distribution(EBFD) system has a fault. You must stop as soon as it is safe to do so.
Have it checked by a PEUGEOT dealer or a qualified
workshop.
Deactivation of the automaticfunctions of theelectric parking brake
fixed. The "automatic application" (onswitching off the engine) and "automatic release" functions are
deactivated or faulty. Activate the
function (according to country) via the
vehicle configuration menu or contact a PEUGEOT
dealer or a qualified workshop if automatic
application / release is not possible.
The parking brake can be released manually using theemergency release procedure.
For more information on the electric parking brake,refer to the corresponding section.
Page 60 of 308
58

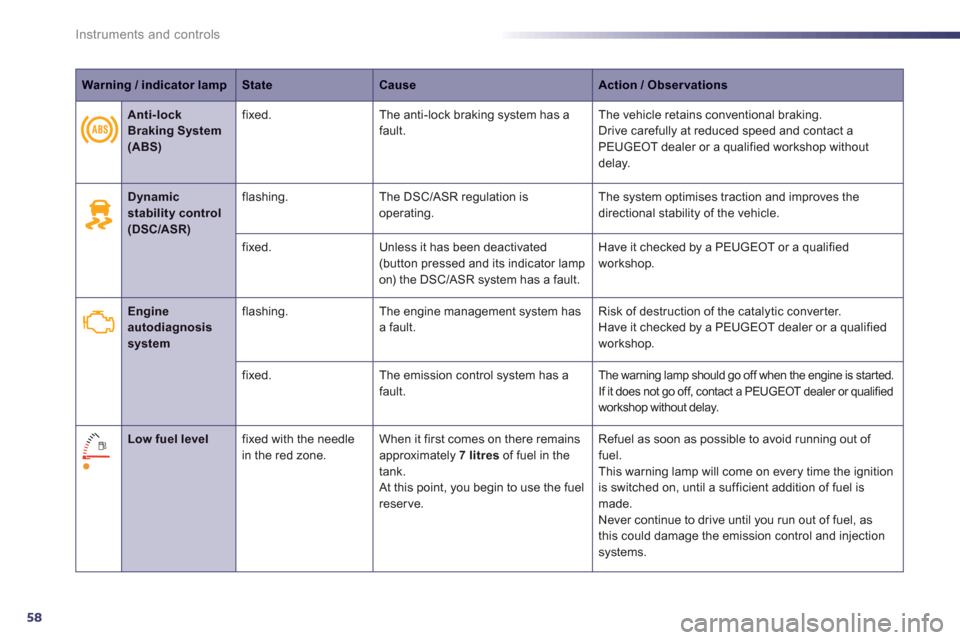

Instruments and controls
Warning / indicator lampStateCauseAction / Observations
Dynamic stability control(DSC/ASR)
flashing. The DSC/ASR regulation is
operating. The system optimises traction and improves the
directional stability of the vehicle.
fixed. Unless it has been deactivated(button pressed and its indicator lamp
on) the DSC/ASR system has a fault.Have it checked b
y a PEUGEOT or a qualified
workshop.
Engine autodiagnosis system
flashing.The engine management system hasa fault. Risk of destruction of the catalytic conver ter.
Have it checked by a PEUGEOT dealer or a qualified
workshop.
fixed.The emission control system has afault. The warning lamp should go off when the engine is started.
If it does not go off, contact a PEUGEOT dealer or qualified
workshop without delay.
Low fuel levelfixed with the needle
in the red zone. When it first comes on there remainsapproximately 7 litresof fuel in the
tank.
At this point, you begin to use the fuel reserve.Refuel as soon as possible to avoid runnin
g out of
fuel.This warning lamp will come on every time the ignition
is switched on, until a sufficient addition of fuel is made.
Never continue to drive until you run out of fuel, as
this could damage the emission control and injectionsystems.
Anti-lockBraking System(ABS)
fixed. The anti-lock braking system has a
fault. The vehicle retains conventional braking.
Drive carefully at reduced speed and contact a
PEUGEOT dealer or a qualified workshop without
dela
y.
