Access

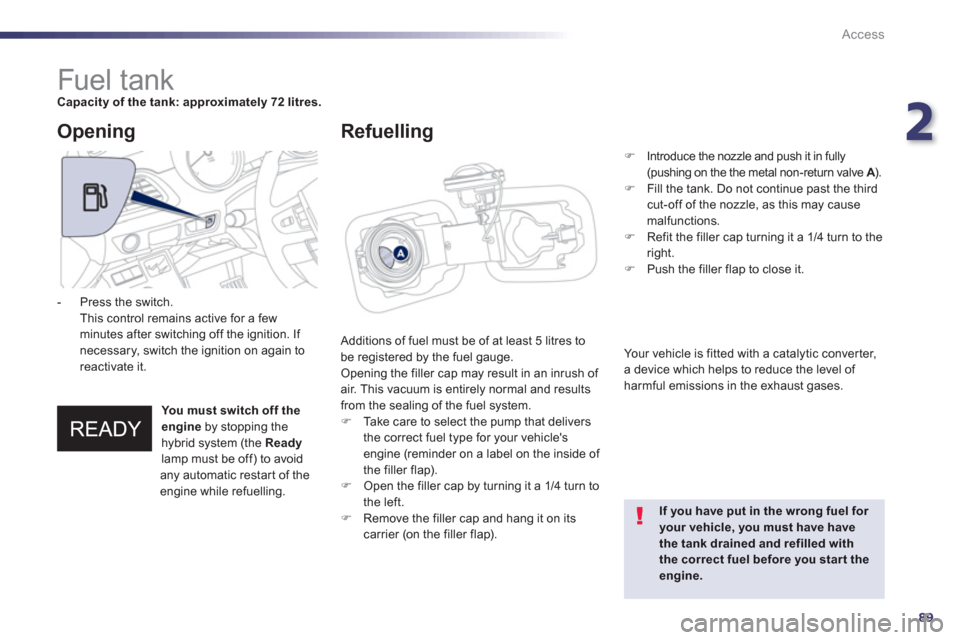

Fuel tank Capacity of the tank: approximately 72 litres.

Additions of fuel must be of at least 5 litres to
be registered by the fuel gauge.Opening the filler cap may result in an inrush of air. This vacuum is entirely normal and results from the sealing of the fuel system.) Take care to select the pump that delivers
the correct fuel t
ype for your vehicle'sengine (reminder on a label on the inside of
the filler flap).) Open the filler cap by turning it a 1/4 turn to
the left. ) Remove the filler cap and hang it on its carrier (on the filler flap).


Opening
If you have put in the wrong fuel for your vehicle, you must have havethe tank drained and refilled with the correct fuel before you start theengine.



- Press the switch.
This control remains active for a fewminutes after switching off the ignition. If necessary, switch the ignition on again toreactivate it.

Refuelling
)
Introduce the nozzle and push it in fully(pushing on the the metal non-return valve A
). AA)
Fill the tank. Do not continue past the thirdcut-off of the nozzle, as this may cause malfunctions. )
Refit the filler cap turning it a 1/4 turn to the
right. ) Push the filler flap to close it.

Your vehicle is
fitted with a catalytic converter,
a device which helps to reduce the level of
harmful emissions in the exhaust gases.
You must switch off theengine by stopping the
hybrid system (the Readylamp must be off) to avoid any automatic restar t of the
engine while refuelling.

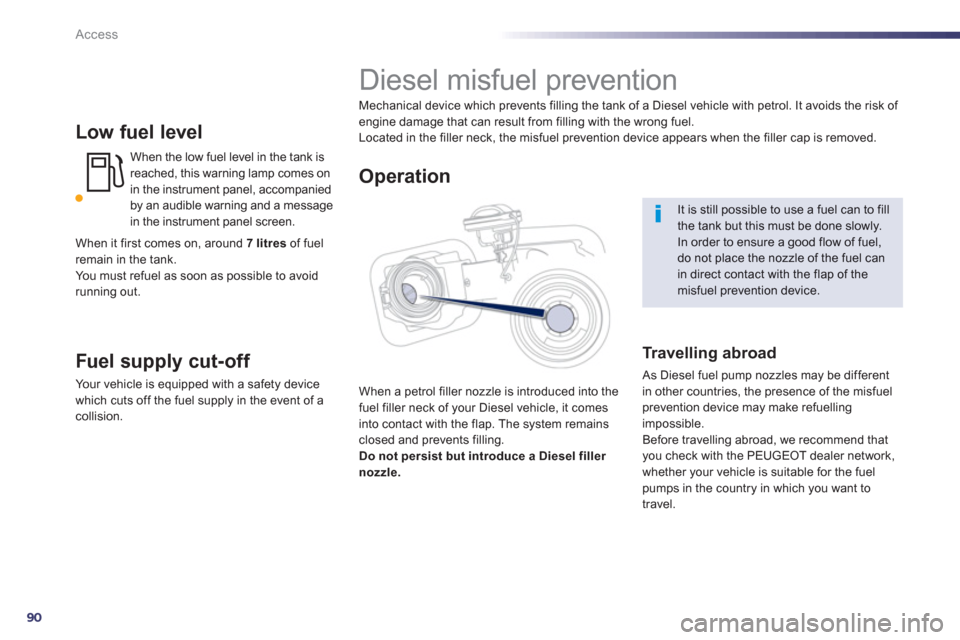

90
Access
Low fuel level
When the low fuel level in the tank isreached, this warning lamp comes on in the instrument panel, accompanied by an audible warning and a message
in the instrument panel screen.
Fuel supply cut-off
Your vehicle is equipped with a safety device
which cuts off the fuel supply in the event of a collision.


It is still possible to use a fuel can to fill
the tank but this must be done slowly. In order to ensure a good flow of fuel, do not place the nozzle of the fuel canin direct contact with the flap of themisfuel prevention device.


Diesel misfuel prevention

Mechanical device which prevents filling the tank of a Diesel vehicle with petrol. It avoids the risk of engine damage that can result from filling with the wrong fuel.
Located in the filler neck, the misfuel prevention device appears when the filler cap is removed.
When a petrol
filler nozzle is introduced into the fuel filler neck of your Diesel vehicle, it comes
into contact with the flap. The system remains
closed and prevents filling. Do not persist but introduce a Diesel filler
nozzle.

Operation



Tr a v e l l i ng abroad
As Diesel fuel pump nozzles may be different
in other countries, the presence of the misfuel prevention device may make refuellingimpossible.
Before travelling abroad, we recommend that you check with the PEUGEOT dealer network,
whether your vehicle is suitable for the fuelpumps in the country in which you want to
travel.
When it
first comes on, around 7 litresof fuelremain in the tank.
You must refuel as soon as possible to avoid
running out.

2
91
DIESEL
Access

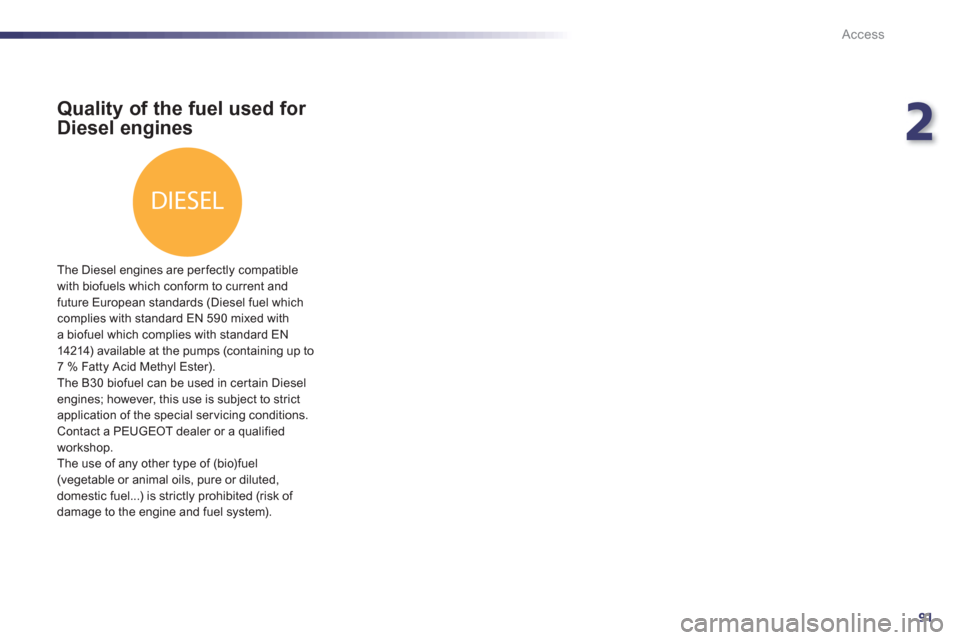

Quality of the fuel used for
Diesel engines

The Diesel engines are perfectly compatible
with biofuels which conform to current andfuture European standards (Diesel fuel which complies with standard EN 590 mixed with
a biofuel which complies with standard EN
14214
) available at the pumps (containing up to
7 % Fatty Acid Methyl Ester).
The B30 biofuel can be used in cer tain Diesel engines; however, this use is subject to strict
application of the special ser vicing conditions. Contact a PEUGEOT dealer or a qualified
workshop.
The use of an
y other type of (bio)fuel(vegetable or animal oils, pure or diluted,
domestic fuel...) is strictly prohibited (risk of
damage to the engine and fuel system).

92
Comfort

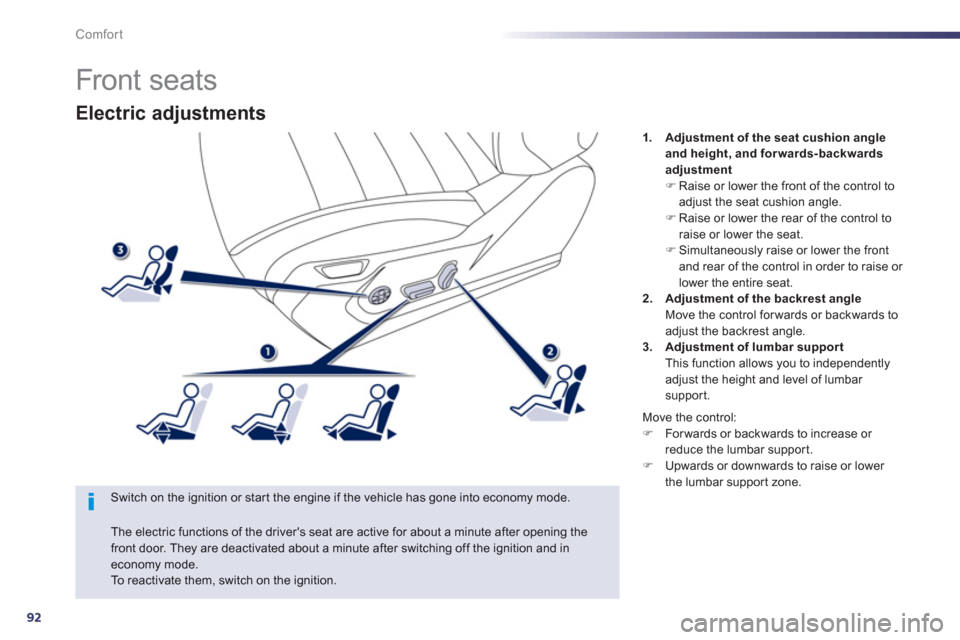

Electric adjustments
Switch on the ignition or star t the engine if the vehicle has gone into economy mode.
1.Adjustment of the seat cushion angleand height, and forwards-backwards
adjustment)Raise or lower the front of the control to adjust the seat cushion angle. )Raise or lower the rear of the control to raise or lower the seat.)Simultaneously raise or lower the frontand rear of the control in order to raise or lower the entire seat. 2.Adjustment of the backrest angle Move the control forwards or backwards to adjust the backrest angle. 3. Adjustment of lumbar support This function allows you to independentlyadjust the height and level of lumbar support.
The electric functions of the driver's seat are active for about a minute after opening the
front door. They are deactivated about a minute after switching off the ignition and in economy mode. To reactivate them, switch on the ignition.
M
ove the control:)Forwards or backwards to increase or reduce the lumbar suppor t. )Upwards or downwards to raise or lower
the lumbar suppor t zone.





Front seats

3
93
Comfort

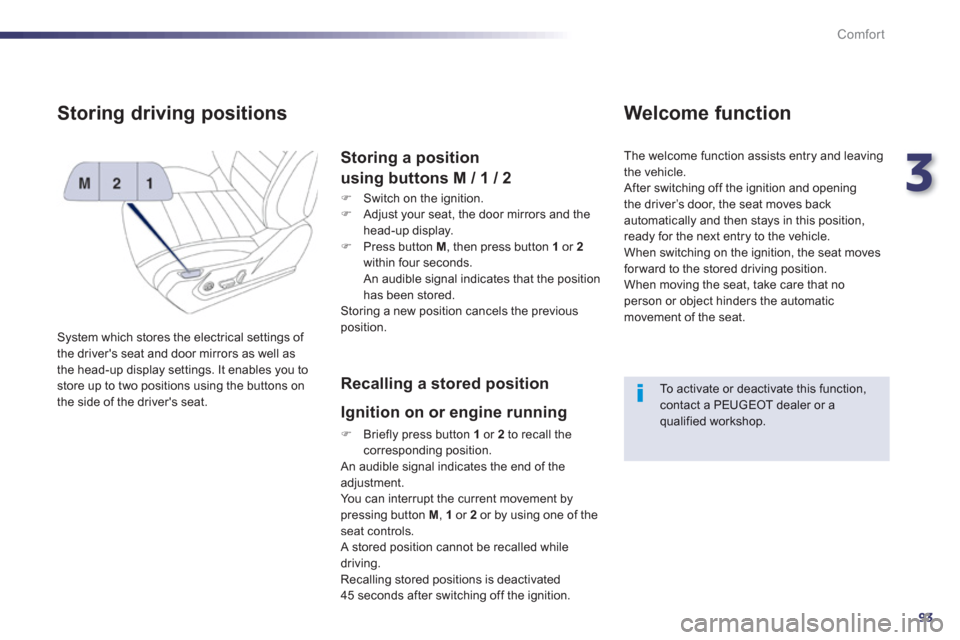

Storing driving positions
System which stores the electrical settings of
the driver's seat and door mirrors as well as
the head-up display settings. It enables you to store up to two positions using the buttons on
the side of the driver's seat.
Storing a position
using buttons M / 1 / 2
)
Switch on the ignition. )
Adjust your seat, the door mirrors and the
head-up display.
) Press button M
, then press button 1or 2
within four seconds.
An audible signal indicates that the position
has been stored.
Storing a new position cancels the previousposition.
Recalling a stored position
I
gnition on or engine running
) Briefly press button 1
or 2
to recall thecorresponding position.
An audible signal indicates the end of the adjustment. You can interrupt the current movement by pressing button M , 1or 2or by using one of the seat controls.
A stored position cannot be recalled while
driving.
Recalling stored positions is deactivated
45 seconds after switching off the ignition.

Welcome function

The welcome function assists entry and leaving
th
e vehicle.
After switching off the ignition and openingthe driver’s door, the seat moves back
automatically and then stays in this position,
ready for the next entry to the vehicle.
When switching on the ignition, the seat movesfor ward to the stored driving position.
When moving the seat, take care that no
person or object hinders the automatic
movement of the seat.
To activate or deactivate this function, contact a PEUGEOT dealer or a qualified workshop.

94
Comfort

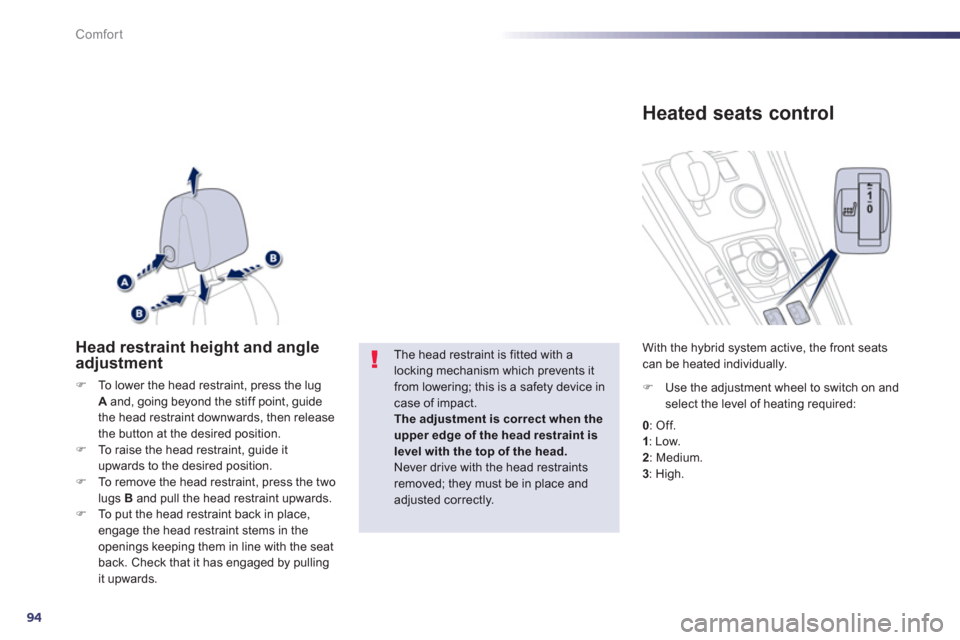

Head restraint height and angle adjustment
)To lower the head restraint, press the lugA and, going beyond the stiff point, guide
the head restraint downwards, then release
the button at the desired position.
)To raise the head restraint, guide it upwards to the desired position.)To remove the head restraint, press the two lugs B and pull the head restraint upwards. )To put the head restraint back in place,
engage the head restraint stems in the
openings keeping them in line with the seat
back. Check that it has engaged by pulling it upwards.

The head restraint is fitted with a locking mechanism which prevents itfrom lowering; this is a safety device incase of impact.The adjustment is correct when theupper edge of the head restraint is level with the top of the head.Never drive with the head restraintsremoved; they must be in place andadjusted correctly.

)Use the adjustment wheel to switch on and select the level of heating required:
With the h
ybrid system active, the front seatscan be heated individually.
0
:
Off.1:
Low.2
:
Medium. 3
:
High.









Heated seats control

3
95
Comfort

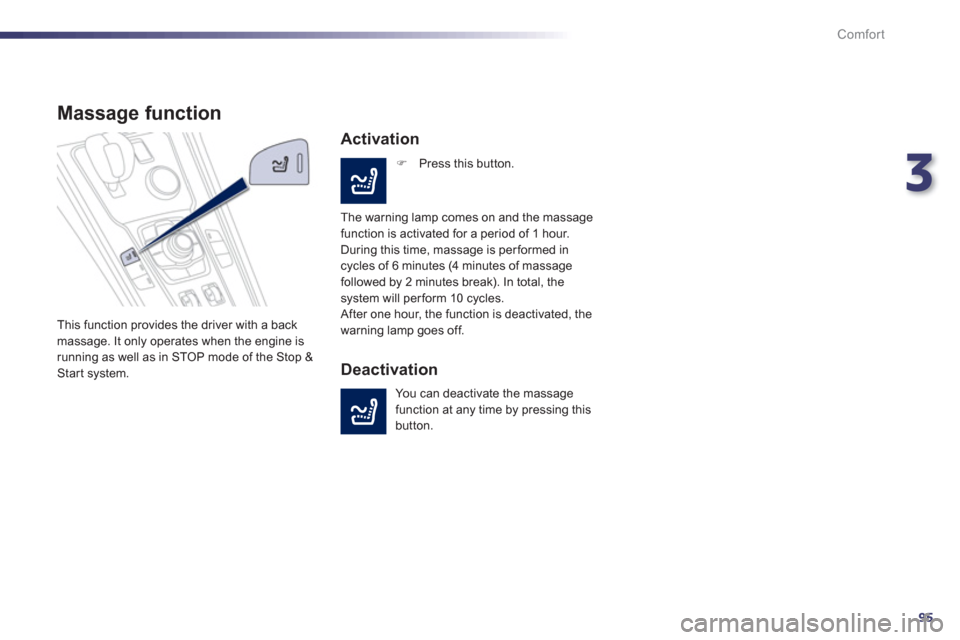

Massage function
This function provides the driver with a back massage. It only operates when the engine is
running as well as in STOP mode of the Stop &Start system.
Activation
) Press this button.
The warning lamp comes on and the massage function is activated for a period of 1 hour. During this time, massage is performed incycles of 6 minutes (4 minutes of massage
followed by 2 minutes break). In total, the
system will per form 10 cycles.
After one hour, the function is deactivated, thewarning lamp goes off.
Deactivation
You can deactivate the massage function at any time by pressing thisbutton.

96
Comfort

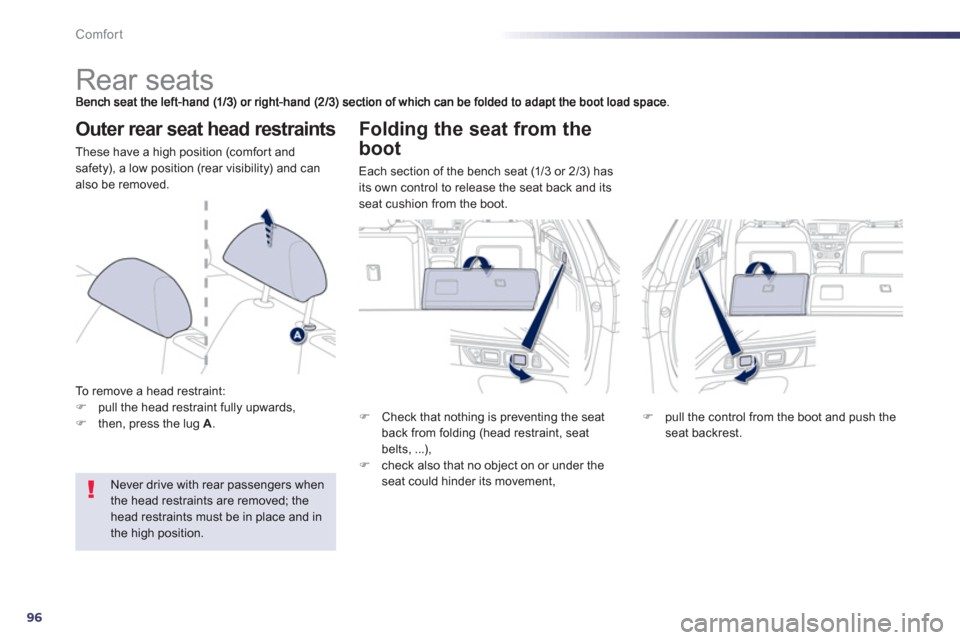

Rear seats
Outer rear seat head restraints
These have a high position (comfor t and safety), a low position (rear visibility) and canalso be removed.
T
o remove a head restraint:)pull the head restraint fully upwards, )then, press the lug A.
Never drive with rear passengers whenthe head restraints are removed; thehead restraints must be in place and in
the high position.


Folding the seat from the
boot
Each section of the bench seat (1/3 or 2/3) has
its own control to release the seat back and its seat cushion from the boot.
) Check that nothing is preventing the seat
back from foldin
g (head restraint, seat
belts, ...),) check also that no object on or under theseat could hinder its movement,
)pull the control from the boot and push the
seat backrest.

3
97
Comfort

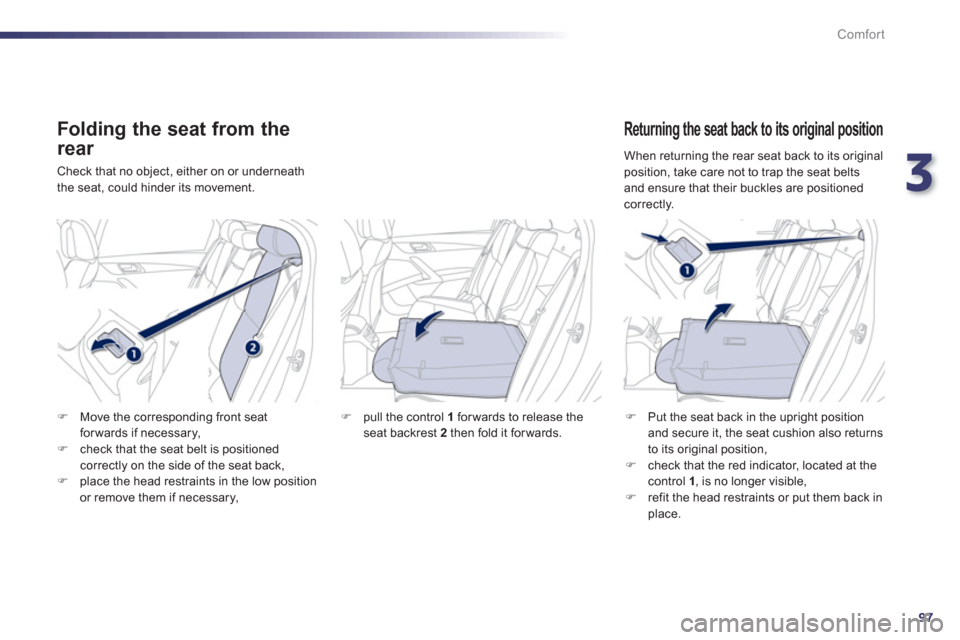

Folding the seat from the
rear
Check that no object, either on or underneath
the seat, could hinder its movement.
Returning the seat back to its original position
)Put the seat back in the upright position
and secure it, the seat cushion also returns
to its original position, )check that the red indicator, located at thecontrol 1 , is no longer visible,)refit the head restraints or put them back in place.
)Move the corresponding front seat
forwards if necessar
y, )check that the seat belt is positionedcorrectly on the side of the seat back, )place the head restraints in the low position
or remove them if necessary,
) pull the control 1forwards to release the
seat backrest 2then fold it forwards.
When returning the rear seat back to its original
position, take care not to trap the seat belts
and ensure that their buckles are positioned correctly.

98
Comfort

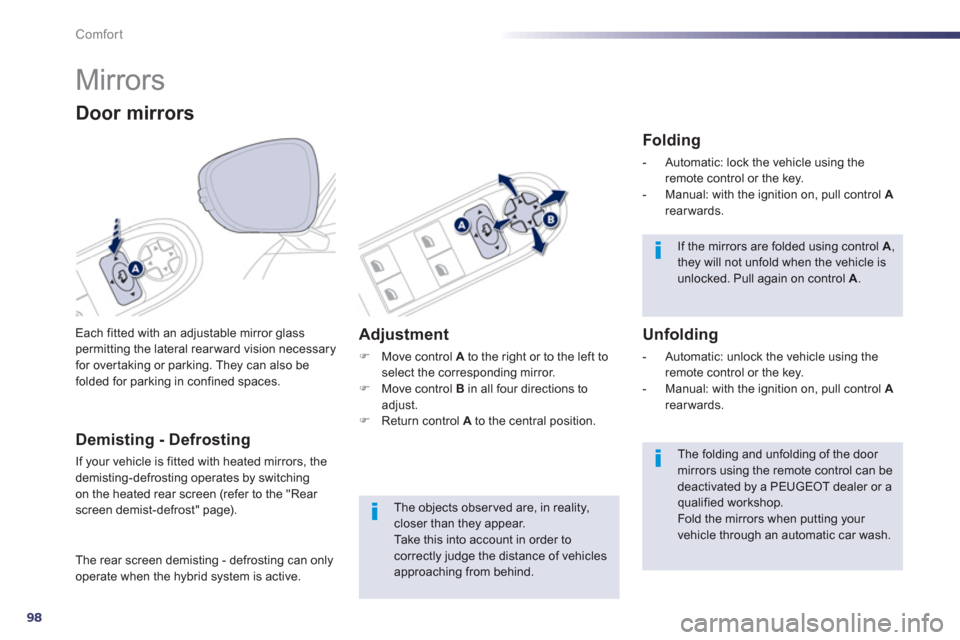

Mirrors
Each fitted with an adjustable mirror glasspermitting the lateral rearward vision necessary for overtaking or parking. They can also befolded for parking in confined spaces.
Door mirrors

If the mirrors are folded using control A
,they will not unfold when the vehicle is unlocked. Pull again on control A.


The folding and unfolding of the door mirrors using the remote control can bedeactivated by a PEUGEOT dealer or a qualified workshop.
Fold the mirrors when putting your vehicle through an automatic car wash.
The objects obser ved are, in reality, closer than they appear.
Take this into account in order to correctly judge the distance of vehicles approaching from behind.

Demisting - Defrosting
If your vehicle is fitted with heated mirrors, the
demisting-defrosting operates by switching
on the heated rear screen (refer to the "Rear screen demist-defrost" page).

Adjustment
)
Move control Ato the right or to the left to select the corresponding mirror. )
Move control Bin all four directions toadjust. )
Return control Ato the central position.



Folding



- Automatic: lock the vehicle using the remote control or the key.

- Manual: with the ignition on, pull control Arearwards.


Unfolding



- Automatic: unlock the vehicle using the remote control or the key.

- Manual: with the ignition on, pull control Arearwards.

The rear screen demistin
g - defrosting can onlyoperate when the hybrid system is active.
