Peugeot 508 RXH 2013 Repair Manual

1
59
Instruments and controls
Warning or indicator lamp in the instrument panelStateCauseAction / Observations


Engine oilpressure
fixed. There is a fault with the engine
lubrication system. You must stop as soon it is safe to do so.
Park, switch off the ignition and contact a PEUGEOT
dealer or a qualified workshop.


Battery charge

*


fixed. The battery charging circuit has a
fault. The warning lamp should go off when the engine is started.
If it does not go off, contact a PEUGEOT dealer or a
quali
fied workshop.


Door(s) open
fixed, associated with
a message identifying
the door, if the speed is
below 6 mph (10 km/h).
A door or the boot is still open. Close the door or boot.

fixed, associated with a
message identifying the
door, and accompanied
b
y an audible signal
if the speed is above
6 mph (10 km/h).

*
According to destination country.

60
Instruments and controls

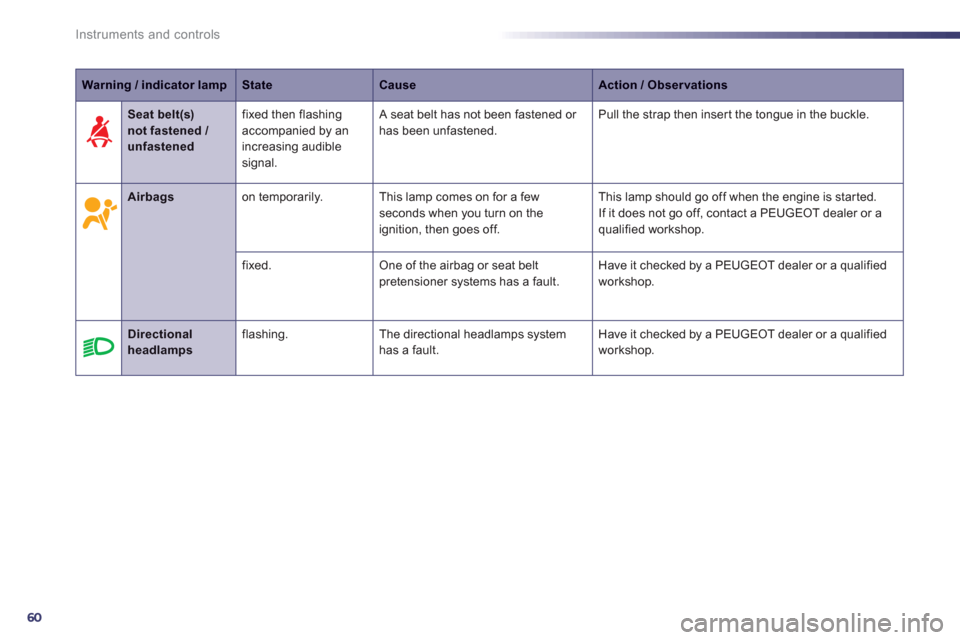

Warning / indicator lampStateCauseAction / Observations


Airbagson temporarily. This lamp comes on for a fewseconds when you turn on the
ignition, then goes off. This lamp should
go off when the engine is started.
If it does not go off, contact a PEUGEOT dealer or a
qualified workshop.
fixed.One of the airbag or seat beltpretensioner systems has a fault.Have it checked by a PEUGEOT dealer or a qualified
workshop.


Directionalheadlampsflashing. The directional headlamps systemhas a fault.Have it checked by a PEUGEOT dealer or a qualified
workshop.


Seat belt(s) not fastened / unfastenedfixed then flashin
gaccompanied by anincreasing audible
signal. A
seat belt has not been fastened or has been unfastened.Pull the strap then inser t the tongue in the buckle.

1
61
Instruments and controls

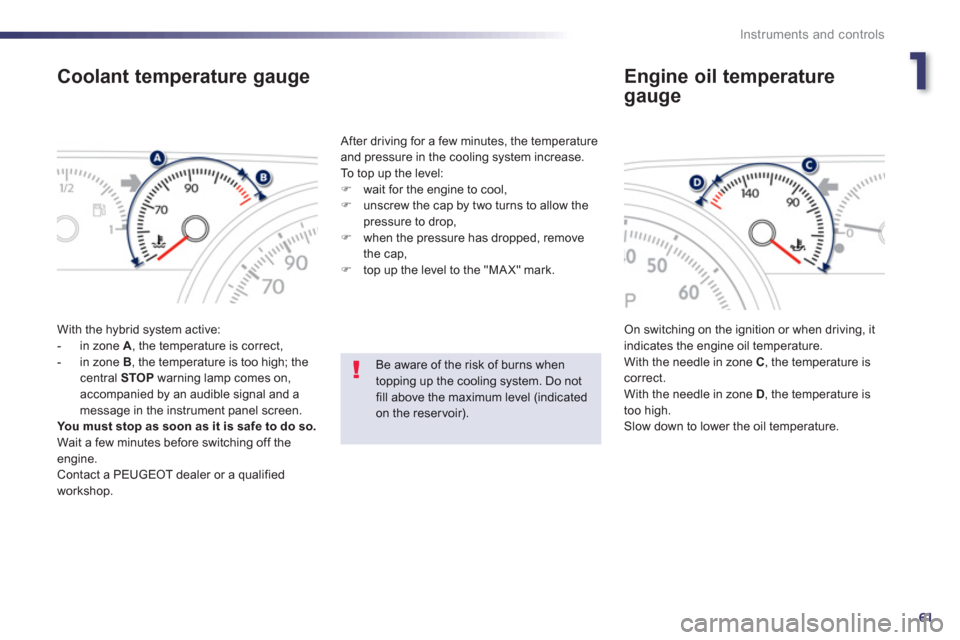

Coolant temperature gauge
With the hybrid system active:


- in zone A
, the temperature is correct,

- in zone B, the temperature is too high; the central STOP
warning lamp comes on,accompanied by an audible signal and amessage in the instrument panel screen.You must stop as soon as it is safe to do so.
Wait a few minutes before switching off theengine.
Contact a PEUGEOT dealer or a qualified
workshop.
After drivin
g for a few minutes, the temperatureand pressure in the cooling system increase.
To top up the level:
) wait for the engine to cool, )
unscrew the cap by two turns to allow the
pressure to drop,
) when the pressure has dropped, remove
the cap,) top up the level to the "MA X" mark.


On switching on the ignition or when driving, it
indicates the engine oil temperature.
With the needle in zone C
, the temperature is correct.
With the needle in zone D , the temperature is
too high.
Slow down to lower the oil temperature.


Engine oil temperature
gauge
Be aware of the risk of burns whentopping up the cooling system. Do not fill above the maximum level (indicatedon the reservoir).

62
Instruments and controls

* According to country.

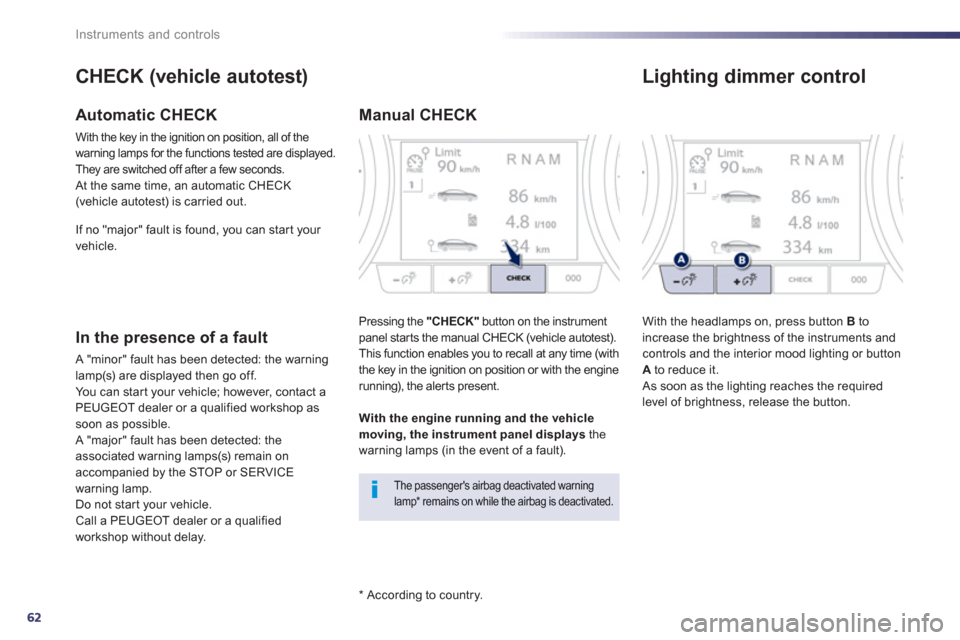

CHECK (vehicle autotest)
Automatic CHECK
With the key in the ignition on position, all of the
warning lamps for the functions tested are displayed.They are switched off after a few seconds. At the same time, an automatic CHECK(vehicle autotest) is carried out.
In the presence of a fault
A "minor" fault has been detected: the warning
lamp(s) are displayed then go off.You can star t your vehicle; however, contact a
PEUGEOT dealer or a qualified workshop assoon as possible.
A "major" fault has been detected: theassociated warning lamps(s) remain onaccompanied by the STOP or SERVICE
warning lamp.
Do not star t your vehicle. Call a PEUGEOT dealer or a qualified
wor
kshop without delay.

Manual CHECK

Pressing the "CHECK"
button on the instrument
panel star ts the manual CHECK (vehicle autotest).
This function enables you to recall at any time (with
the key in the ignition on position or with the enginerunning), the aler ts present.
The passenger's airbag deactivated warning lamp * remains on while the airbag is deactivated.

With the engine running and the vehiclemoving, the instrument panel displays
the
warning lamps (in the event of a fault). I
f no "major" fault is found, you can star t your
vehicle.

Lighting dimmer control

With the headlamps on, press button Bto
increase the brightness of the instruments and controls and the interior mood lighting or button Ato reduce it.
As soon as the lighting reaches the required
level of brightness, release the button.

1
63
Instruments and controls
Service indicator
More than 1 800 miles (3 000 km)remain before the next service is due
When the ignition is switched on, no ser vice information appears in the screen. S
ystem which informs the driver when the next ser vice is due, in accordance with themanufacturer's servicing schedule.
The point at which the ser vice is due is calculated from the last indicator zero reset. It
is determined by two parameters:


- the distance travelled,

- the time elapsed since the last ser vice. Between 600 miles (1 000 km)and 1 800 miles (3 000 km) remainbefore the next service is due
For 5 seconds after the ignition is switched on, the
spanner symbolising the ser vice operations comes
on. The distance recorder display line indicates the
distance remaining before the next ser vice is due.
Example:
1 700 miles (2 800 km) remain before the next service is due.
For 5 seconds after the ignition is switched on,
the screen indicates:
5 seconds a
fter the ignition is switched on,the spanner goes off; the distance recorder fresumes its normal operation. The screen thenindicates the total and trip distances.


Less than 600 miles (1 000 km)remain before the next service is due
Example:560 miles (900 km) remain before
the next service is due.
For 5 seconds after the i
gnition is switched on,
the screen indicates:
5 seconds after the i
gnition is switched on,
the distance recorder resumes its normal operation. The spanner remains on
toindicate that a service must be carried out soon.


Illumination of the key is accompaniedby a message in the instrument panel screen.

64
Instruments and controls

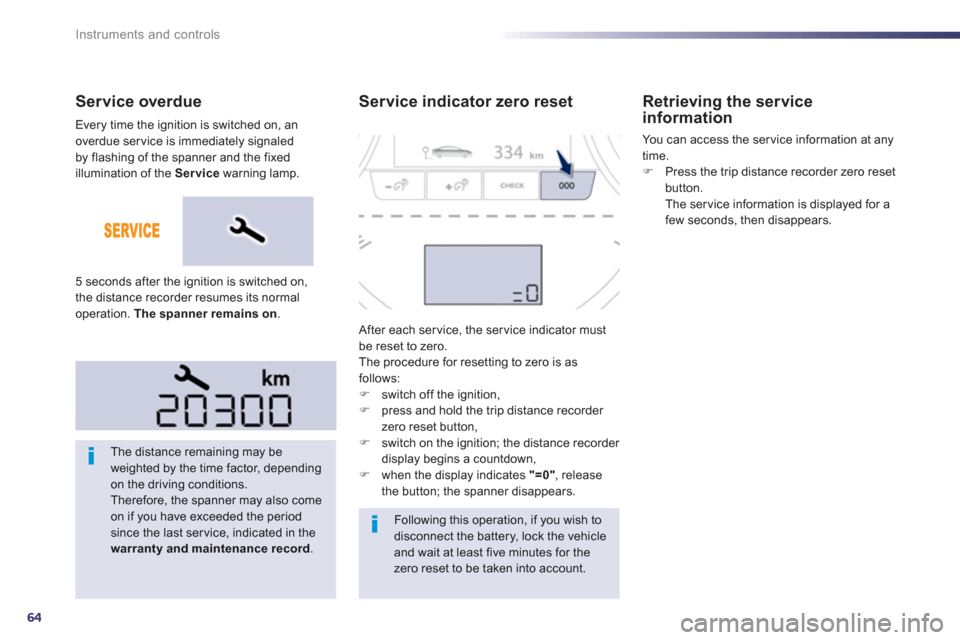

Service overdue
The distance remaining may be weighted by the time factor, dependingon the driving conditions.
Therefore, the spanner may also comeon if you have exceeded the period since the last service, indicated in the warranty and maintenance record.
Following this operation, if you wish to disconnect the battery, lock the vehicle and wait at least five minutes for the zero reset to be taken into account. 5 seconds after the i
gnition is switched on,
the distance recorder resumes its normal
operation. The spanner remains on.
Service indicator zero reset
After each ser vice, the ser vice indicator mustbe reset to zero.
The procedure for resetting to zero is as
follows: ) switch off the ignition,)
press and hold the trip distance recorder
zero reset button,
) switch on the ignition; the distance recorder
display begins a countdown,
) when the display indicates "=0", release
the button; the spanner disappears.

Retrieving the serviceinformation

You can access the ser vice information at any
time.
)Press the trip distance recorder zero reset button.
The ser vice information is displayed for a
few seconds, then disappears.
Every time the ignition is switched on, an
overdue ser vice is immediately signaled
b
y flashing of the spanner and the fixed
ill
umination of the Service
warning lamp.

1
65
Instruments and controls

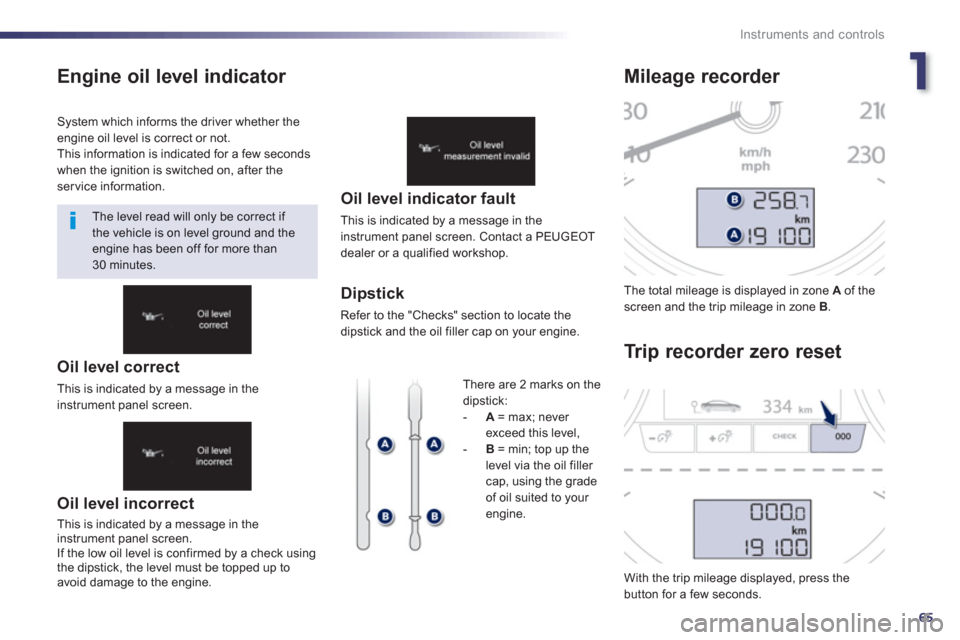

Engine oil level indicator

Oil level incorrect

This is indicated by a message in the
instrument panel screen.
If the low oil level is confirmed b
y a check usingthe dipstick, the level must be topped up to
avoid damage to the engine.
Oil level indicator fault
This is indicated by a message in the instrument panel screen. Contact a PEUGEOT
dealer or a qualified workshop.
Dipstick
Refer to the "Checks" section to locate the
dipstick and the oil filler cap on your engine. The total milea
ge is displayed in zone Aof thescreen and the trip mileage in zone B.

With the trip mileage displayed, press the button for a few seconds.


Mileage recorder

Tr i
p recorder zero reset
System which informs the driver whether theengine oil level is correct or not.
This information is indicated for a few secondswhen the ignition is switched on, after theservice information.

The level read will only be correct if
the vehicle is on level ground and the engine has been off for more than30 minutes.
Th
ere are 2 marks on thedipstick:-A = max; never
exceed this level, -B = min; top up the level via the oil filler cap, using the grade
of oil suited to your
engine.




Oil level correct

This is indicated by a message in theinstrument panel screen.

66
Instruments and controls
System which provides current information concerning the trip (range, fuel consumption…).








Tr i p c o m p u t e r
Instrument panel screen
Information displa
y
)
Press the steering mounted control
todisplay the various trip computer tabs in succession.


- Th
e current information tab with:


●
the range,

●
the current fuel consumption,

●
the Stop & Start time counter.



-
The trip "1"tab with:


●
the average speed,
for the first trip,

●
the average fuel consumption,

●
the distance travelled.





- The trip
"2"
tab with:


●
the average speed,
for the second trip,

●
the average fuel consumption,

●
the distance travelled.



)
Or on the end of the wiper stalk.

1
67
Instruments and controls

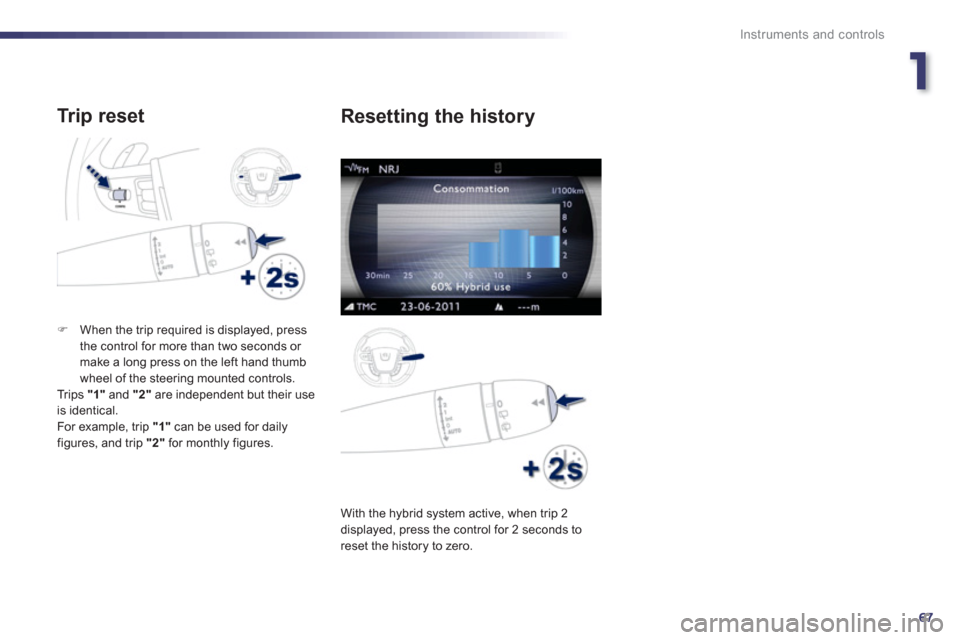

Tr ip reset
)When the trip required is displayed, press
the control for more than two seconds or make a long press on the left hand thumb
wheel of the steering mounted controls.
Trips "1"
and "2"are independent but their useis identical.
For example, trip "1"
can be used for daily figures, and trip "2"
for monthly figures.

With the h
ybrid system active, when trip 2
displayed, press the control for 2 seconds to reset the history to zero.
Resetting the history

68
Instruments and controls
If dashes are displayed continuously while driving in place of the digits,contact a PEUGEOT dealer or aqualified workshop.
This function is only displayed from 20 mph (30 km/h).

This value may vary following a changein the style of driving or the relief,resulting in a significant change in thecurrent fuel consumption.
Trip computer, a few definitions…

Range
(miles or km)
This indicates the distancewhich can still be travelled with
the fuel remaining in the tank
in relation to the average fuelconsumption over the last few
miles (kilometres) travelled.
When the ran
ge falls below 20 miles (30 km),
dashes are displayed. After filling with at least 5 litres of fuel, the range is recalculated and is
displayed when it exceeds 60 miles (10 0 km).
Current fuel consumption
(mpg or l/100 km or km/l)
This is the average fuel consumption
during the last few seconds.
Average fuelconsumption
(mpg or l/100 km or km/l)This is the average fuel
consumption since the last tripcomputer zero reset.

Average speed
(mph or km/h)
This is the average speed calculated
since the last trip computer zero reset
(ignition on).


The hybrid system and its electric motor do not provide additional range; followthe indications of the trip computer.
