Engine coolant level
Only use the fluid recommended by the
manufacturer. Otherwise, you risk seriously
damaging your engine. When the engine
is warm, the temperature of the coolant is
controlled by the engine cooling fan. As this fan
can operate with the ignition key removed and
because the cooling system is pressurised,
wait for at least one hour after the engine has
stopped before carrying out any work.
Topping up
t
he level must be between the MIN and
MAX marks on the header tank. If more than
1 litre of fluid is required to top up the level,
have the system checked by a P
euge O t

dealer or a qualified workshop.
Power steering fluid level
the vehicle must be parked on level ground
with the engine cold. u nscrew the cap with
integral gauge and check the level which
must be between the MIN and MAX marks.
Screenwash fluid level
For optimum cleaning and to avoid freezing,
topping up or replacement of this fluid
should never be with plain water; we
recommend the use of products available
from P
euge O t
dealers.
Capacity of the reservoir: approximately


3
litres.
Slacken the cap by two turns to release the
pressure to prevent any risk of scalding.
When the pressure has dropped, remove the
cap and top up the level with coolant.
If fluid has to be added frequently, this
indicates a fault which must be checked by a
P
euge
O
t
dealer or a qualified workshop as


soon as possible.
Used products
Avoid prolonged contact of used oil with the
skin.
Brake fluid is harmful to health and very
corrosive.
Do not dispose of used oil, brake fluid or
coolant into drains or into the ground, but
into the containers provided for this purpose
at P
euge O t
dealers (France) or at an

authorised waste disposal site.
Levels

149
Bipper_en_Chap08_verifications_ed02-2014
CHECKS
Bleeding water from the Diesel filter
If this warning lamp comes
on, you must bleed the filter;
otherwise bleed the filter
regularly, every time the engine
oil is changed.
to remove the water
, unscrew the bleed
screw or the water in Diesel sensor, located
at the base of the filter. Operate until all of
the water has flowed out.
t

hen tighten the
bleed screw or the water sensor.
Battery
At the start of winter, have your battery
checked by a P euge O t
dealer or a

qualified workshop.
Air filter and passenger compartment
filter
A blocked passenger compartment filter
may reduce the performance of the
air conditioning system and generate
undesirable odours.
t

he replacement
intervals for these components are indicated
in the warranty and maintenance record.
Depending on the environment (dusty
atmosphere...) and the use of the vehicle
(urban driving...), change them twice as
often if necessary.
Brake pads
Brake pad wear depends on the type of
driving, in particular for vehicles which are
used in town, over short distances. It may
be necessary to check the brake pad wear,
even between services.
u

nless there is a leak on the system, a drop
in the brake fluid level indicates that the
brake pads are worn.
Brake disc / drum wear
For all information on checking the brake
disc / drum wear, contact a P euge O t

dealer or a qualified workshop.
Parking brake
Where the parking brake travel is too great
or there is a reduction in the performance
of the system, the parking brake should be
adjusted, even between services.
Have the system checked by a P
euge O t

dealer or a qualified workshop.
Oil filter
Change the filter regularly, in accordance
with the manufacturer's servicing schedule.
t

he presence of this label, in particular
with the Stop & Start system, indicates the
use of a specific 12 V lead-acid battery
with special technology and specification.
t

he involvement of a P
euge
O
t
dealer


or a qualified workshop is essential when
replacing or disconnecting the battery.
Refer to the "Checks -
u
nder the
bonnet" section.
HDi engines use advanced
technology. All work requires
specialist knowledge, which all P
euge
O
t

dealers have.
8
CHECKS
Checks

150
Bipper_en_Chap08_verifications_ed02-2014
Manual gearbox
the gearbox does not require any
maintenance (no oil change).
Refer to the warranty and maintenance

record for the checking interval for this
component.
Good practice
to check the main levels and certain
components, in accordance with the
manufacturer's servicing schedule, refer to
the pages of the warranty and maintenance
record which correspond to your vehicle's
engine.
Electronic gearbox
the gearbox does not require any
maintenance (no oil change).
Refer to the warranty and maintenance

record for details of the checking interval
for this component.
Only use products recommended by


P
euge O t
or products of equivalent

quality and specification.
In order to optimise the operation of units as
important as the braking system, P
euge O t

selects and of

fers specific products.
In order to avoid damaging the electrical
units, high pressure washing to clean the
engine compartment is strictly prohibited.
After washing the vehicle dampness, or in
winter, ice may form on the brake discs and
pads: braking efficiency may be reduced.
Make some light brake applications to dry
and de-ice the brakes.
Checks

151
Bipper_en_Chap08_verifications_ed02-2014
Particle filter (1.3 HDi 75)
An addition to the catalytic converter, this
filter makes an active contribution to the
preservation of air quality by the retaining
of the unburnt pollutant particles. Black
exhaust fumes are thus no longer emitted.
t
his filter, fitted to the exhaust system,
accumulates particles of soot.
t

he engine
control unit manages the automatic
periodic elimination of the soot particles
(regeneration).
the regeneration procedure is invoked
according to the quantity of particles
accumulated and the driving conditions
of the vehicle. During this phase, you
may notice some unusual phenomena -
increased idling speed, cooling fan running,
increase in smoke and higher exhaust gas
temperature
- which does not affect the
operation of the vehicle or the environment.
After prolonged idling or driving at very low
speeds, you may occasionally notice water
vapour being emitted from the exhaust when
accelerating.
t

his is of no consequence
to the running of the vehicle or to the
environment. Saturation / Regeneration
If there is risk of blockage of the
filter, this warning lamp comes on
in the instrument panel.
t

his alert tells you that the
particle filter is starting to fill up (in
conditions of urban driving of exceptionally
long duration: low speeds, traffic jams etc.)
to regenerate the filter

, it is advised to drive
as soon as possible, when traffic conditions
and the law permit, at a speed of at least
40 mph (around 60 km/h), with an engine
speed above 2 000 rpm for about fifteen
minutes (until the warning lamp and/or the
message disappears). Operating fault
If this alert persists, do not ignore the
warning; it indicates that a fault has occurred
in the exhaust / particle filter system.
Have it checked by a P
euge O t
dealer or a

qualified workshop.
Because of the higher exhaust
gas temperature resulting from the
normal operation of the particle filter, it is
recommended that you do not park the
vehicle over inflammable materials (grass,
dry leaves, pine needles,
...) so as to avoid
any risk of fire. If possible, avoid switching off the
engine before the end of regeneration
of the filter, repeated interruptions could
cause premature deterioration of the
engine oil. It is not recommended to end
regeneration of the filter with the vehicle
stationary.
8
CHECKS
Checks

152
Bipper_en_Chap09_aide-rapide_ed02-2014
BATTERY
Models
without Stop & Start
A. Positive battery terminal on your vehicle.
B.
Slave battery
.
C.
e arth point on your vehicle.
D.

Negative battery terminal on your vehicle. Charging the battery using a battery charger Starting using another battery
-

Connect the red cable to the positive

battery terminal A on your vehicle then
to the positive (+) terminal of the slave
battery B.
-
Connect one end of the green or black

cable to the negative (-) terminal of the
slave battery B .
-
Connect the other end of the green

or black cable to the earth point C on
your vehicle (not to the negative battery
terminal D on your vehicle).
-
Operate the starter
, let the engine run.
-
W
ait for the engine to return to idle, then
disconnect the cables.
Never charge a battery without first
disconnecting the terminals.
- Disconnect the two quick-release battery
terminals.
- Follow the instructions for use provided by
the battery charger manufacturer.
- Check that the battery posts and terminals
are clean. If they are covered with sulphate
(white or greenish deposit), disconnect
them and clean them.
- Reconnect the two quick-release terminals,
starting with the negative (-) terminal.
Some functions are not available if
the battery is not sufficiently charged.
Battery

153
Bipper_en_Chap09_aide-rapide_ed02-2014
Models with Stop & Start
A. Protective cover.
B.
Positive battery terminal on your vehicle.
C.


Slave battery
.
D.
e arth point on your vehicle.
E.

Connector release button.
F.
Check sensor connector

.
G.

State of charge sensor
.
H.

Negative battery terminal on your vehicle. Charging the battery using a battery charger -

Follow the instructions for use provided

by the battery charger manufacturer.
-
Check that the battery posts and

terminals are clean. If they are covered
with sulphate (white or greenish deposit),
disconnect them and clean them.
-
Reconnect connector
F
of the check
sensor G.
-
Refit the protective cover
A
to the
positive battery terminal B .
Starting using another battery
-
Remove the protective cover
A
from the
positive battery terminal B .
-
Connect the red cable to positive battery

terminal B, then to the (+) terminal of the
slave battery C .
- Connect one end of the green or black
cable to the (-) terminal of the slave
battery C.
-

Connect the other end of the green or

black cable to the earth point D of your
vehicle (not to the negative battery
terminal H of your vehicle).
-

Operate the starter
, let the engine run.
-

W
ait for the engine to return to idle, then
disconnect the cables.
-

Refit the protective cover
A to the
positive battery terminal B .
Do not disconnect the battery to
charge
it.
-

Press the release button
E to disconnect
the connector F .
-

Disconnect the connector
F from the
check sensor G .
-

Remove the protective cover
A from the
positive battery terminal B .
-

Connect the charger cables: (+) to the

positive battery terminal B ; (-) to the
negative battery terminal H .Never remove the check sensor G
from the negative battery terminal H
,
except when replacing the battery.
9
QUICK HELP
Battery

154
Bipper_en_Chap09_aide-rapide_ed02-2014
Batteries contain harmful substances
such as sulphuric acid and lead.
t
hey
must be disposed of in accordance with the
law and must not, in any circumstances be
discarded with household waste.
take used batteries to an authorised waste


disposal site.
It is advisable to disconnect the battery
if the vehicle is not to be used for a
period of more than one month.
to do


this on models with Stop & Start:
-

press the release button

E
to
disconnect connector F ,
-
disconnect connector

F
of check
sensor G.
t

he presence of this label, in particular
with the Stop & Start system, indicates
the use of a 12 V lead-acid battery with
special technology and specification; the
involvement of a P
euge
O
t
dealer or


a qualified workshop is essential when
replacing or disconnecting the battery.
Failure to observe this recommendation may
cause premature wear of the battery.
After refitting the battery by a
P
euge
O
t
dealer or a qualified


workshop, the Stop & Start system will
only be active after a continuous period of
immobilisation of the vehicle, a period which
depends on the climatic conditions and the
state of charge of the battery (up to about
8

hours). Before charging
t

he charging operation must be carried out in
a ventilated area away from naked flames or
any possible sources of sparks to eliminate the
risks of explosion and fire.
Do not attempt to charge a frozen battery: it
must first be thawed to eliminate the risks of
explosion. If the battery has frozen, before
charging it have it checked by a specialist who
will check that the internal components have
not been damaged and that the container is
not cracked, which could mean that there is a
risk of a leak of toxic and corrosive acid.
Before disconnecting
Never disconnect a terminal when the
engine is running.
Before disconnecting the battery, you must
wait for 2 minutes after switching off the
ignition.
Close the windows and doors before
disconnecting the battery. After reconnecting
After every reconnection of the battery,
switch on the ignition and wait 1 minute
before starting to allow the electronic
systems to be initialised. If difficulties are
experienced after this, contact a P
euge O t

dealer or a qualified workshop.
If the battery has been disconnected

for some time, it may be necessary to
reinitialise the following functions:
-

the display screen settings (date, time,

language, distance and temperature
units),
-

the radio stations,
-


the central locking.
Some settings are cleared and must be

reprogrammed. Contact a P euge O t
dealer

or a qualified workshop.
Never remove the check sensor G
from the
negative battery terminal H , except when
replacing the battery.
Battery

158
Bipper_en_Chap09_aide-rapide_ed02-2014

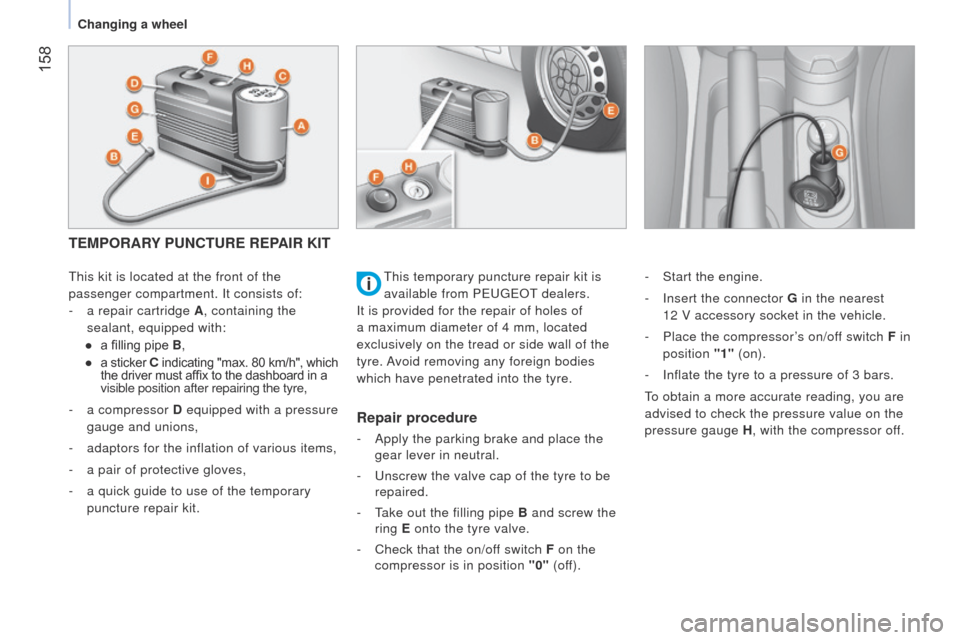

TEMPORARY PUNCTURE REPAIR KIT
this kit is located at the front of the
passenger compartment. It consists of:
-

a repair cartridge
A, containing the
sealant, equipped with:
●

a filling
pipe B,
●

a
sticker C


indicating "max. 80 km/h", which
the driver must affix to the dashboard in a
visible position after repairing the tyre,
-

a compressor
D equipped with a pressure
gauge and unions,
-

adaptors for the inflation of various items,
-


a pair of protective gloves,
-


a quick guide to use of the temporary

puncture repair kit.
Repair procedure
- Apply the parking brake and place the
gear lever in neutral.
-
u nscrew the valve cap of the tyre to be
repaired.
-
t
ake out the filling pipe
B and screw the
ring E onto the tyre valve.
-

Check that the on/of
f switch F on the
compressor is in position "0" (off). -

Start the engine.
-

Insert the connector
G
in the nearest
12 V accessory socket in the vehicle.
-
Place the compressor
’s on/off switch F
in
position "1" (on).
-
Inflate the tyre to a pressure of 3 bars.
to obtain a more accurate reading, you are


advised to check the pressure value on the
pressure gauge H , with the compressor off.
t
his temporary puncture repair kit is
available from P euge O t
dealers.
It is provided for the repair of holes of

a maximum diameter of 4 mm, located
exclusively on the tread or side wall of the
tyre. Avoid removing any foreign bodies
which have penetrated into the tyre.
Changing a wheel

167
Bipper_en_Chap09_aide-rapide_ed02-2014
CHANGING A FUSE
the two fuseboxes are placed on the
dashboard on the driver ’s side and under
the bonnet.
Removing and fitting a fuse
Before changing a fuse, the cause of the
fault must be found and rectified.
t
he fuse
numbers are indicated on the fusebox.
Always use the special tweezer to extract
the fuse from its housing and check the
condition of its filament.
Always replace a faulty fuse with a fuse
of the same rating.
If a fuse fails again soon after replacement,
have the electrical system of your vehicle
checked by a P
euge O t
dealer or a

qualified workshop. Access to fuses in the dashboard
-
t
o gain access to the dashboard fuses,

remove the 2 screws using the ignition
key and tilt the housing.
P
euge
O
t
will not accept responsibility


for the cost incurred in repairing your
vehicle or for rectifying the malfunctions
resulting from the installation of accessories
not supplied and not recommended by
P
euge
O
t
dealers and not installed in


accordance with its instructions, in particular
when the combined consumption of all of
the additional equipment connected exceeds
10

milliamperes.
A.
Good.
B.

Failed.
C.

T
weezer.
Access to fuses in the engine
compartment
-
For access to the fuses in the engine

compartment, remove the left hand front
headlamp connector, then unclip the
fusebox cover.
9
QUICK HELP
Changing a fuse
