display Peugeot Boxer 2002.5 User Guide

16-09-2002
YOUR BOXER IN DETAIL49
Searching for a station occurs first in "SENS LO"sensitivity (selection of the most powerful transmitters) during scanning of
the waveband, then in "SENS DX"sensitivity (selection of the weakest and most distant transmitters).
To make a direct search in "SENS DX"sensitivity, press button "MENU PS"to access the menu. Then press
button J or Ltwiceto display "SENS LO", the button Kor Mto change the sensitivity.
Manual station search Deactivate the PTYand RDS functions by pressing their respective buttons Dand E, if they are active.
Briefly press button Kor Mrespectively to increase or decrease the frequency displayed.
By continuing to press the button in the direction selected, you will obtain continuous scrolling of the frequency. The scrolling stops at the first station found as soon as the button is released. Manual storing of stations in the memory
Select the station required. Press one of the buttons "1"to "6" for more than two seconds.
The sound stops then becomes audible again, confirming that the station has been stored in the memory.
Automatic storing of FM stations in the memory (autostore)
Press and hold button "BN-AS"for more than two seconds.
Y our radio automatically stores the 6 stations with the strongest signal in FM. These stations are stored in the FMT wave-
band.
If it is not possible to find 6 stations, the remaining memories are empty. Recalling stations stored in the memory For each waveband, briefly press buttons "1"to"6" to recall the corresponding station.

16-09-2002
YOUR BOXER IN DETAIL
50

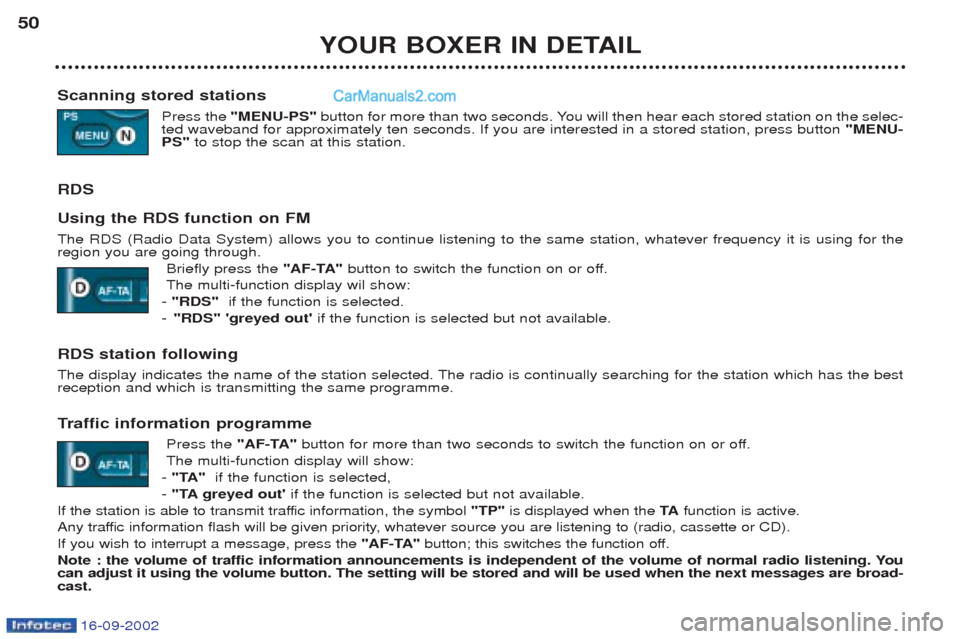

Scanning stored stations Press the "MENU-PS" button for more than two seconds. You will then hear each stored station on the selec-
ted waveband for approximately ten seconds. If you are interested in a stored station, press button "MENU-
PS" to stop the scan at this station.
RDS Using the RDS function on FM The RDS (Radio Data System) allows you to continue listening to the same station, whatever frequency it is using for the region you are going through. Briefly press the "AF-TA"button to switch the function on or off.
The multi-function display wil show:
- "RDS" if the function is selected.
- "RDS" 'greyed out' if the function is selected but not available.
RDS station following
The display indicates the name of the station selected. The radio is continually searching for the station which has the best reception and which is transmitting the same programme. T raffic information programme
Press the "AF-TA"button for more than two seconds to switch the function on or off.
The multi-function display will show:
- "TA" if the function is selected,
- "TA greyed out' if the function is selected but not available.
If the station is able to transmit traffic information, the symbol "TP"is displayed when the TAfunction is active.
Any traffic information flash will be given priority, whatever source you are listening to (radio, cassette or CD). If you wish to interrupt a message, press the "AF-TA"button; this switches the function off.
Note : the volume of traffic information announcements is independent of the volume of normal radio listening. You can adjust it using the volume button. The setting will be stored and will be used when the next messages are broad-cast.

16-09-2002
YOUR BOXER IN DETAIL51
Regional following mode (REG) When they are part of a network, certain stations broadcast regional programmes in the various areas they serve. With regio- nal following mode you can keep listening to the same programme. Press the "MENU-PS" button gain access to the menu. Press button J or Lto display "REG OFF" , then button Kor Mto
switch the function on or off.
PTY function This allows you to listen to stations broadcasting a specific type of programme (news, culture, sport, rock etc.). With FMselected, press the "PTY"button to switch this function on or off.
To search for a PTYprogramme:
- select the PTYfunction,
- briefly press button Kor Mto scroll down the list of the various types of programmes offered,
- when the programme of your choice is displayed, keep button Kor Mpressed for two seconds to carry
out an automatic search (after an automatic search the PTYfunction is switched off).
In PTY mode the different types of programmes can be stored in the memory. To do this, press the preselection buttons "1"
to "6" for two seconds.
Press the "PTY"button to recall the type of programme stored in the memory.
EON system
This connects stations which are part of the same network. It enables the broadcast of traffic information or of a PTYpro-
gramme, by a station that is part of the same network as the station to which you are listening. This service is available when you have selected the TAtraffic information programme or the PTYfunction.
Press the "PTY"button for more than two seconds to switch this function on or off.

16-09-2002
YOUR BOXER IN DETAIL
52
AUDIO EQUIPMENT MENU FUNCTIONS Press button Nto gain access to the menu.
The word "MENU"appears on the display, then the message "MENU REG-ON" appears.
Press buttons Jand Lto scroll through the menu functions:
- REG (Access to the regional programmes), - EQ SET* (Personalised programming of the equalizer),
- PRESET / USER / CLASSIC / ROCK / JAZZ* (Activation / Deactivation of the equalizer, selection of the equalizer's pre- defined settings),
-H ICUT (Treble decrease),
- PHONE (Telephone volume adjustment),
- RM** (Radio play during cassette winding),
- CD NAME * (Naming of the CD inserted),
- SVC* (Automatique volume adjustment in relation to the vehicle speed),
- SENS DX/LO (Automatic station search sensitivity),
- CD* (Programming of data displayed for a CD).
Then, press buttons Kand Mto apply, cancel or modifiy the setting of the selected function.
* Radio CD only.
** Radio cassette only.

16-09-2002
YOUR BOXER IN DETAIL
58

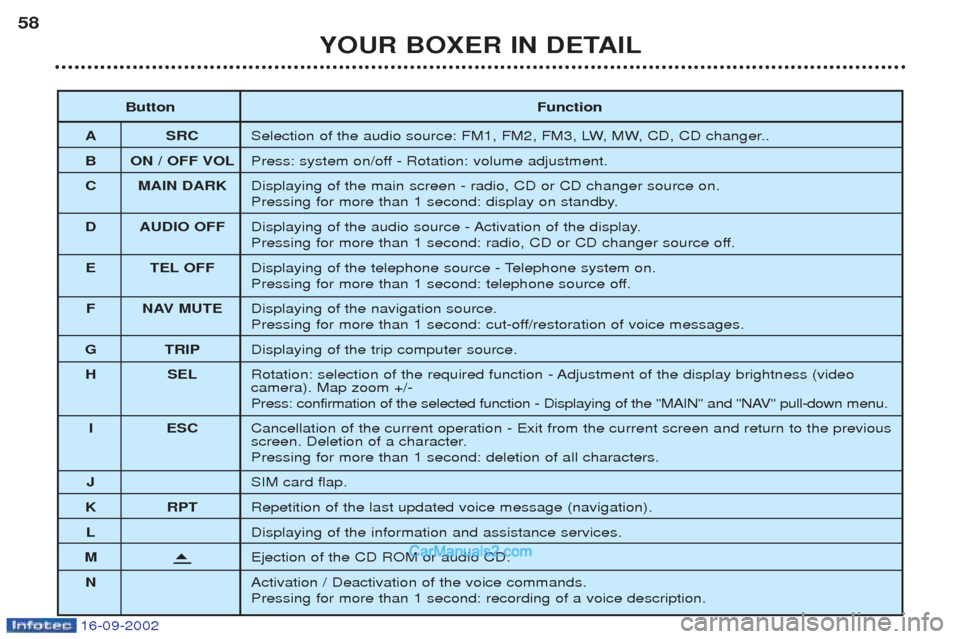

Button Function
A SRC Selection of the audio source: FM1, FM2, FM3, LW, MW, CD, CD changer..
B ON / OFF VOL Press: system on/off - Rotation: volume adjustment.
C MAIN DARK Displaying of the main screen - radio, CD or CD changer source on.
Pressing for more than 1 second: display on standby.
D AUDIO OFF Displaying of the audio source - Activation of the display.
Pressing for more than 1 second: radio, CD or CD changer source off.
E TEL OFF Displaying of the telephone source - Telephone system on.
Pressing for more than 1 second: telephone source off.
FN AV MUTE Displaying of the navigation source.
Pressing for more than 1 second: cut-off/restoration of voice messages.
G TRIP Displaying of the trip computer source.
H SEL Rotation: selection of the required function - Adjustment of the display brightness (video camera). Map zoom +/-
Press: confirmation of the selected function - Displaying of the "MAIN" and "NAV" pull-down menu.
I ESC Cancellation of the current operation - Exit from the current screen and return to the previous
screen. Deletion of a character. Pressing for more than 1 second: deletion of all characters.
J SIM card flap.
K RPT Repetition of the last updated voice message (navigation).
L Displaying of the information and assistance services.
M

Ejection of the CD ROM or audio CD.
N Activation / Deactivation of the voice commands. Pressing for more than 1 second: recording of a voice description.

16-09-2002
YOUR BOXER IN DETAIL63

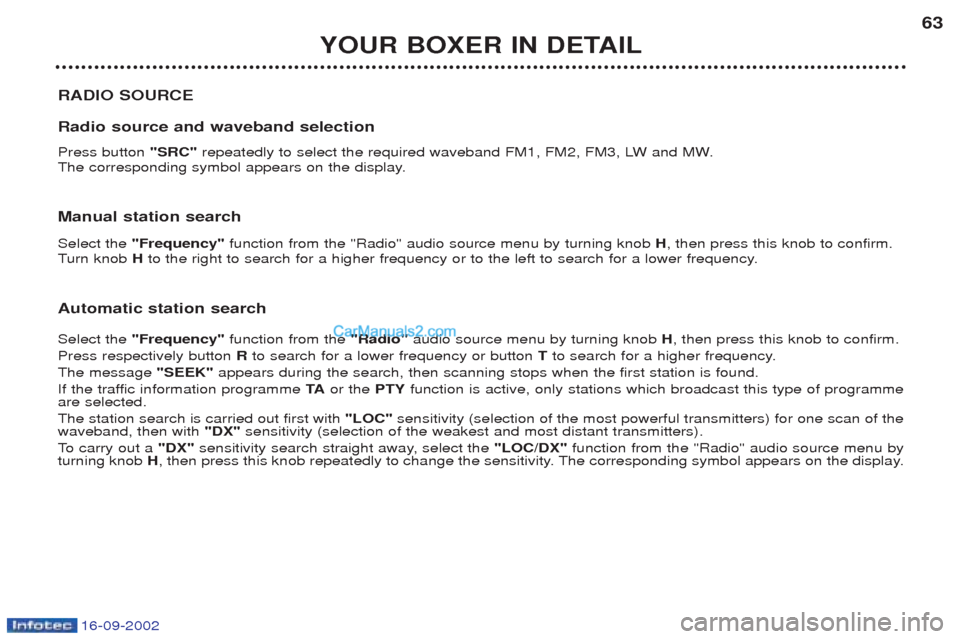

RADIO SOURCE Radio source and waveband selection Press button "SRC" repeatedly to select the required waveband FM1, FM2, FM3, LW and MW.
The corresponding symbol appears on the display. Manual station search Select the "Frequency" function from the "Radio" audio source menu by turning knob H, then press this knob to confirm.
T urn knob Hto the right to search for a higher frequency or to the left to search for a lower frequency.
Automatic station search Select the "Frequency" function from the "Radio"audio source menu by turning knob H, then press this knob to confirm.
Press respectively button Rto search for a lower frequency or button Tto search for a higher frequency.
The message "SEEK"appears during the search, then scanning stops when the first station is found.
If the traffic information programme TAor the PTYfunction is active, only stations which broadcast this type of programme
are selected. The station search is carried out first with "LOC"sensitivity (selection of the most powerful transmitters) for one scan of the
waveband, then with "DX"sensitivity (selection of the weakest and most distant transmitters).
To carry out a "DX"sensitivity search straight away, select the "LOC/DX"function from the "Radio" audio source menu by
turning knob H, then press this knob repeatedly to change the sensitivity. The corresponding symbol appears on the display.

16-09-2002
YOUR BOXER IN DETAIL65

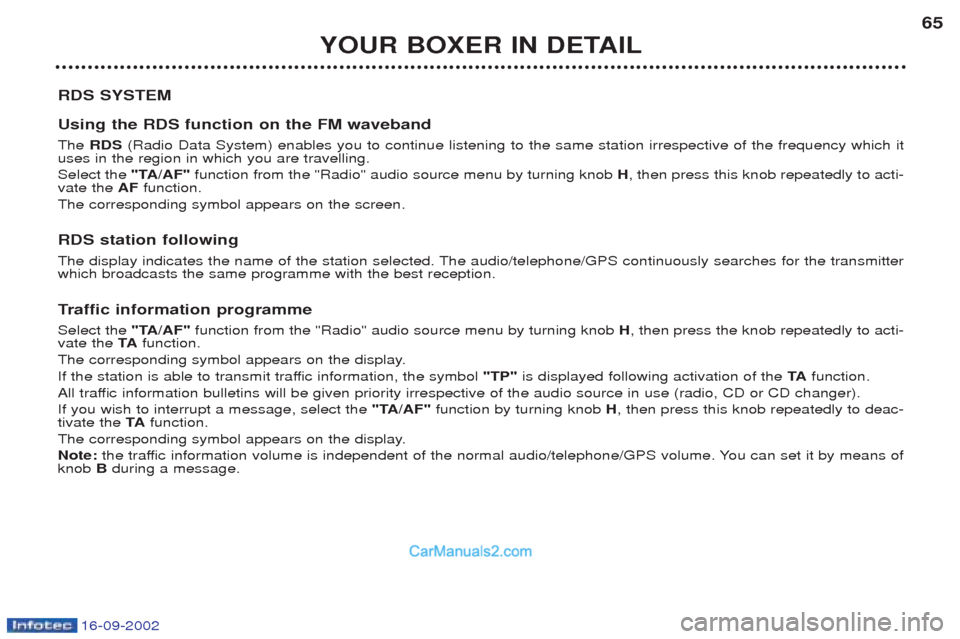

RDS SYSTEM Using the RDS function on the FM waveband The RDS (Radio Data System) enables you to continue listening to the same station irrespective of the frequency which it
uses in the region in which you are travelling. Select the "TA/AF"function from the "Radio" audio source menu by turning knob H, then press this knob repeatedly to acti-
vate the AF function.
The corresponding symbol appears on the screen. RDS station following
The display indicates the name of the station selected. The audio/telephone/GPS continuously searches for the transmitter which broadcasts the same programme with the best reception. T raffic information programme
Select the "TA/AF"function from the "Radio" audio source menu by turning knob H, then press the knob repeatedly to acti-
vate the TAfunction.
The corresponding symbol appears on the display.
If the station is able to transmit traffic information, the symbol "TP"is displayed following activation of the TAfunction.
All traffic information bulletins will be given priority irrespective of the audio source in use (radio, CD or CD changer).If you wish to interrupt a message, select the "TA/AF"function by turning knob H, then press this knob repeatedly to deac-
tivate the TAfunction.
The corresponding symbol appears on the display.Note: the traffic information volume is independent of the normal audio/telephone/GPS volume. You can set it by means of
knob Bduring a message.

16-09-2002
YOUR BOXER IN DETAIL
66

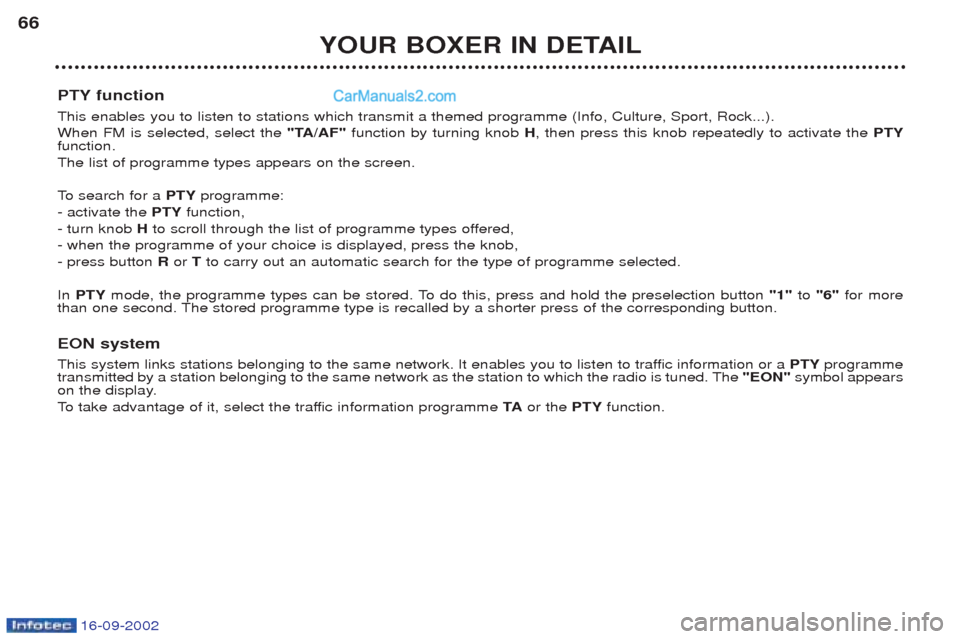

PTY function This enables you to listen to stations which transmit a themed programme (Info, Culture, Sport, Rock...). When FM is selected, select the "TA/AF"function by turning knob H, then press this knob repeatedly to activate the PTY
function.The list of programme types appears on the screen.
To search for a PTYprogramme:
- activate the PTYfunction,
- turn knob Hto scroll through the list of programme types offered,
- when the programme of your choice is displayed, press the knob, - press button Ror Tto carry out an automatic search for the type of programme selected.
In PTY mode, the programme types can be stored. To do this, press and hold the preselection button "1"to "6" for more
than one second. The stored programme type is recalled by a shorter press of the corresponding button.
EON system
This system links stations belonging to the same network. It enables you to listen to traffic information or a PTYprogramme
transmitted by a station belonging to the same network as the station to which the radio is tuned. The "EON"symbol appears
on the display.
To take advantage of it, select the traffic information programme TAor the PTYfunction.

16-09-2002
YOUR BOXER IN DETAIL67

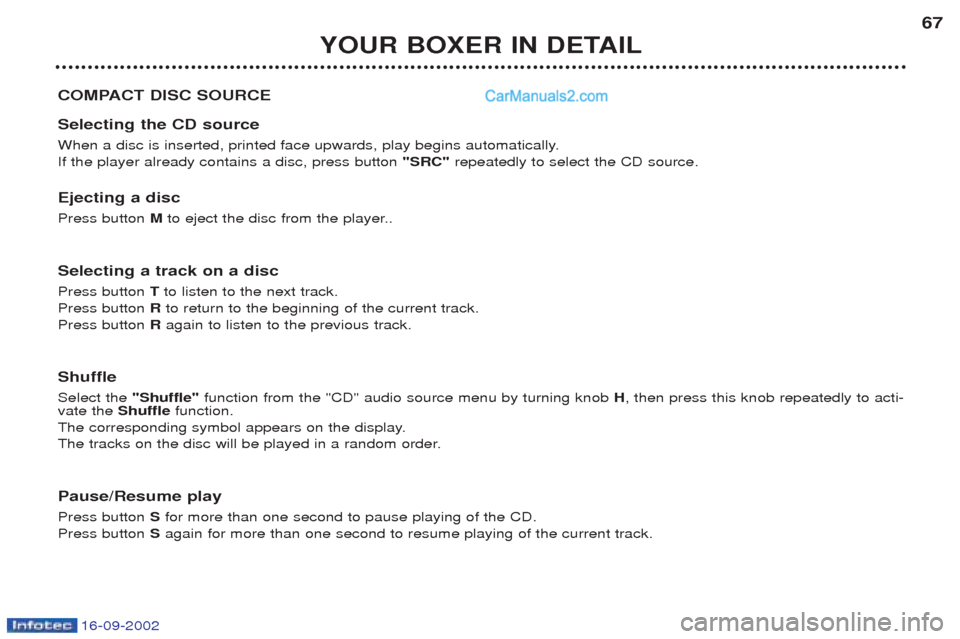

COMPACT DISC SOURCE Selecting the CD source
When a disc is inserted, printed face upwards, play begins automatically. If the player already contains a disc, press button "SRC"repeatedly to select the CD source.
Ejecting a disc Press button Mto eject the disc from the player..
Selecting a track on a discPress button Tto listen to the next track.
Press button Rto return to the beginning of the current track.
Press button Ragain to listen to the previous track.
ShuffleSelect the "Shuffle" function from the "CD" audio source menu by turning knob H, then press this knob repeatedly to acti-
vate the Shufflefunction.
The corresponding symbol appears on the display.
The tracks on the disc will be played in a random order.
Pause/Resume play Press button Sfor more than one second to pause playing of the CD.
Press button Sagain for more than one second to resume playing of the current track.

16-09-2002
YOUR BOXER IN DETAIL
68

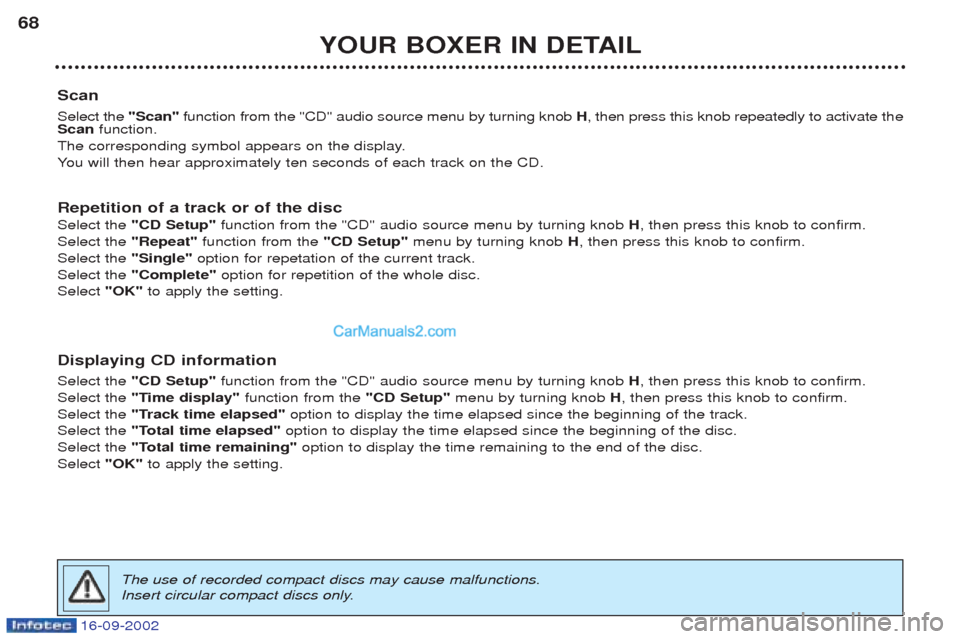

Scan Select the "Scan"function from the "CD" audio source menu by turning knob H, then press this knob repeatedly to activate the
Scan function.
The corresponding symbol appears on the display. Y ou will then hear approximately ten seconds of each track on the CD.
Repetition of a track or of the discSelect the "CD Setup" function from the "CD" audio source menu by turning knob H, then press this knob to confirm.
Select the "Repeat"function from the "CD Setup"menu by turning knob H, then press this knob to confirm.
Select the "Single" option for repetation of the current track.
Select the "Complete" option for repetition of the whole disc.
Select "OK"to apply the setting.
Displaying CD information Select the "CD Setup" function from the "CD" audio source menu by turning knob H, then press this knob to confirm.
Select the "Time display" function from the "CD Setup"menu by turning knob H, then press this knob to confirm.
Select the "Track time elapsed" option to display the time elapsed since the beginning of the track.
Select the "Total time elapsed" option to display the time elapsed since the beginning of the disc.
Select the "Total time remaining" option to display the time remaining to the end of the disc.
Select "OK" to apply the setting.
The use of recorded compact discs may cause malfunctions.
Insert circular compact discs only.
