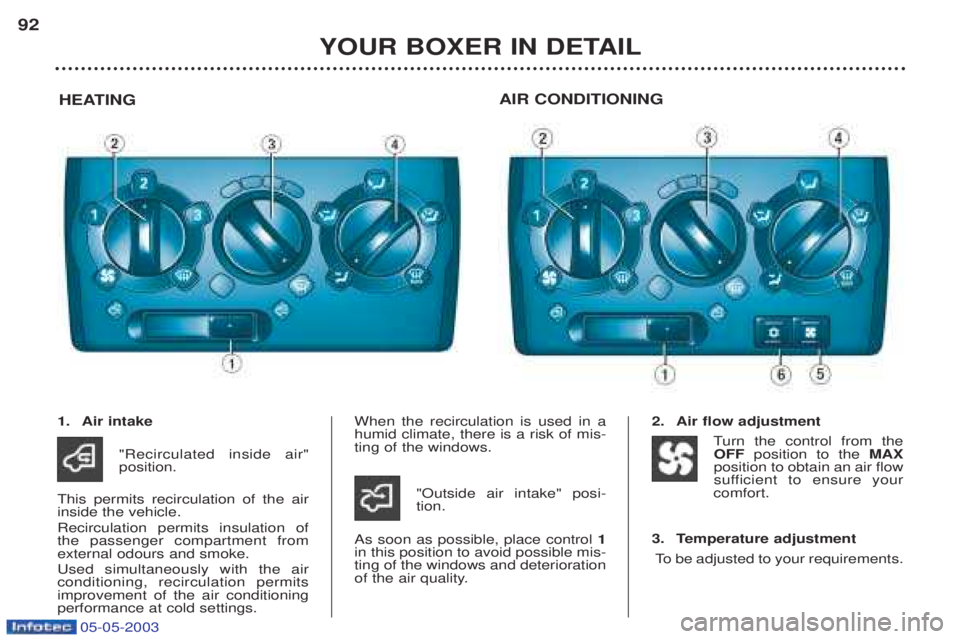

HEATING AIR CONDITIONING
1. Air intake
"Recirculated inside air" position.
This permits recirculation of the airinside the vehicle. Recirculation permits insulation of the passenger compartment fromexternal odours and smoke. Used simultaneously with the air conditioning, recirculation permitsimprovement of the air conditioningperformance at cold settings. When the recirculation is used in ahumid climate, there is a risk of mis-ting of the windows.
"Outside air intake" posi-tion.
As soon as possible, place control 1
in this position to avoid possible mis-ting of the windows and deterioration
of the air quality. 2. Air flow adjustment
Turn the control from the
OFF position to the MAX
position to obtain an air flow
sufficient to ensure your
comfort.
3. Temperature adjustment To be adjusted to your requirements.

05-05-2003
YOUR BOXER IN DETAIL93

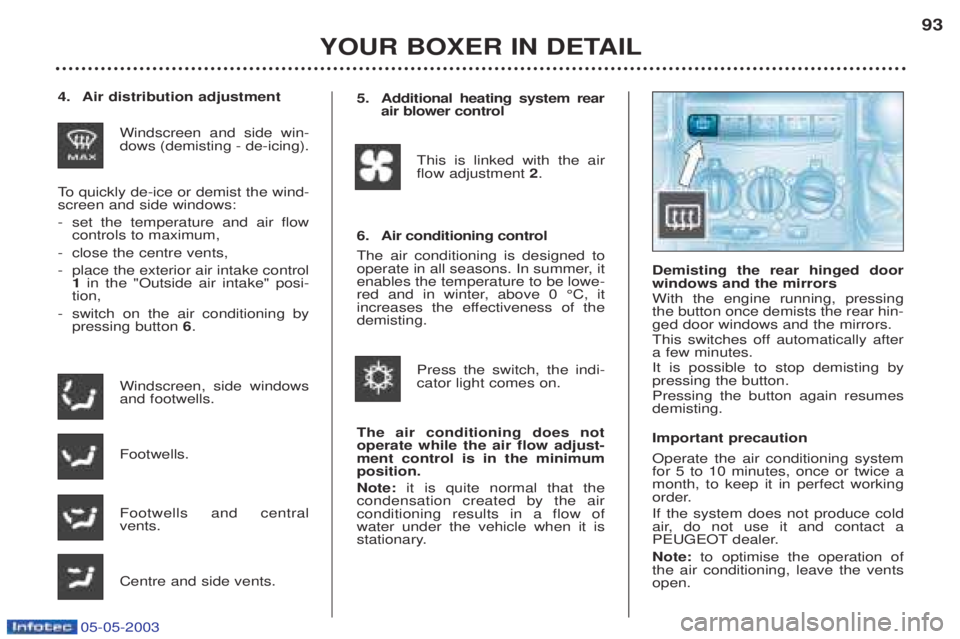

4. Air distribution adjustment
Windscreen and side win- dows (demisting - de-icing).
To quickly de-ice or demist the wind-
screen and side windows:
- set the temperature and air flowcontrols to maximum,
- close the centre vents,
- place the exterior air intake control1 in the "Outside air intake" posi-
tion,
- switch on the air conditioning bypressing button 6.
Windscreen, side windowsand footwells. Footwells. Footwells and central vents. Centre and side vents. Demisting the rear hinged door windows and the mirrors With the engine running, pressing the button once demists the rear hin-ged door windows and the mirrors.
This switches off automatically after a few minutes. It is possible to stop demisting by pressing the button. Pressing the button again resumes demisting. Important precaution Operate the air conditioning system for 5 to 10 minutes, once or twice amonth, to keep it in perfect working
order. If the system does not produce cold
air, do not use it and contact a
PEUGEOT dealer. Note:
to optimise the operation of
the air conditioning, leave the vents open. 5. Additional heating system rear air blower control
This is linked with the airflow adjustment 2.
6. Air conditioning control
The air conditioning is designed to
operate in all seasons. In summer, itenables the temperature to be lowe-
red and in winter, above 0 ¡C, it
increases the effectiveness of thedemisting.
Press the switch, the indi-cator light comes on.
The air conditioning does notoperate while the air flow adjust-ment control is in the minimumposition. Note: it is quite normal that the
condensation created by the air conditioning results in a flow ofwater under the vehicle when it is
stationary.

05-05-2003
YOUR BOXER IN DETAIL
94
PROGRAMMABLE HEATING
(WEBASTO)* The programmable heating is provided to operate with the engine
off. It permits heating of the passen-ger compartment, de-icing of thewindows and pre-heating of thecoolant circuit to provide an optimumoperating temperature when theengine is switched on.

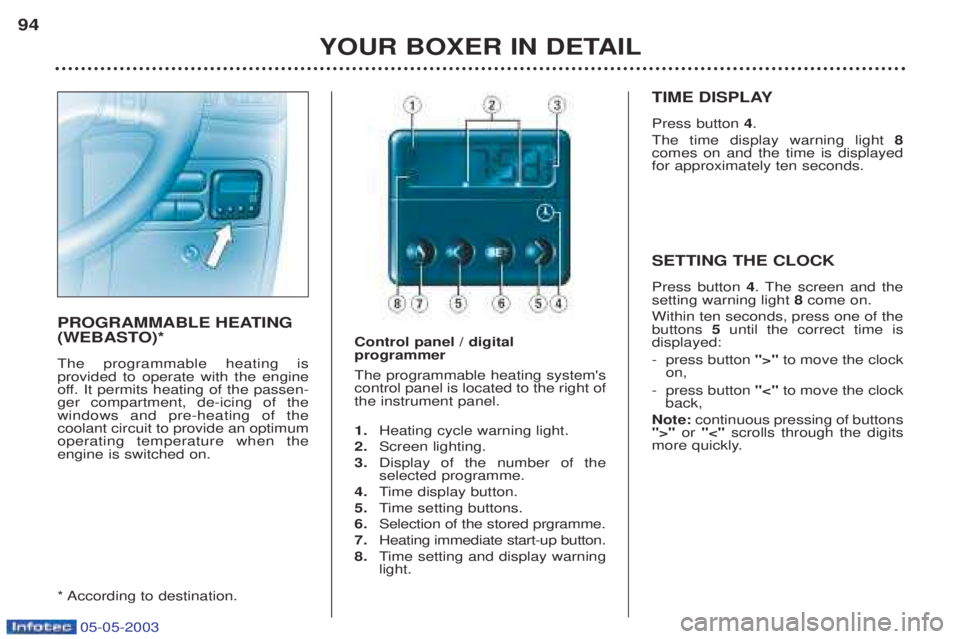

* According to destination. Control panel / digital programmer The programmable heating system's control panel is located to the right ofthe instrument panel. 1.
Heating cycle warning light.
2. Screen lighting.
3. Display of the number of the selected programme.
4. Time display button.
5. Time setting buttons.
6. Selection of the stored prgramme.
7. Heating immediate start-up button.
8. Time setting and display warning
light.
TIME DISPLAY Press button 4.
The time display warning light 8
comes on and the time is displayed for approximately ten seconds. SETTING THE CLOCK Press button 4. The screen and the
setting warning light 8come on.
Within ten seconds, press one of the buttons 5until the correct time is
displayed: - press button ">"to move the clock
on,
- press button "<"to move the clock
back,
Note: continuous pressing of buttons
">" or "<" scrolls through the digits
more quickly.

05-05-2003
YOUR BOXER IN DETAIL95

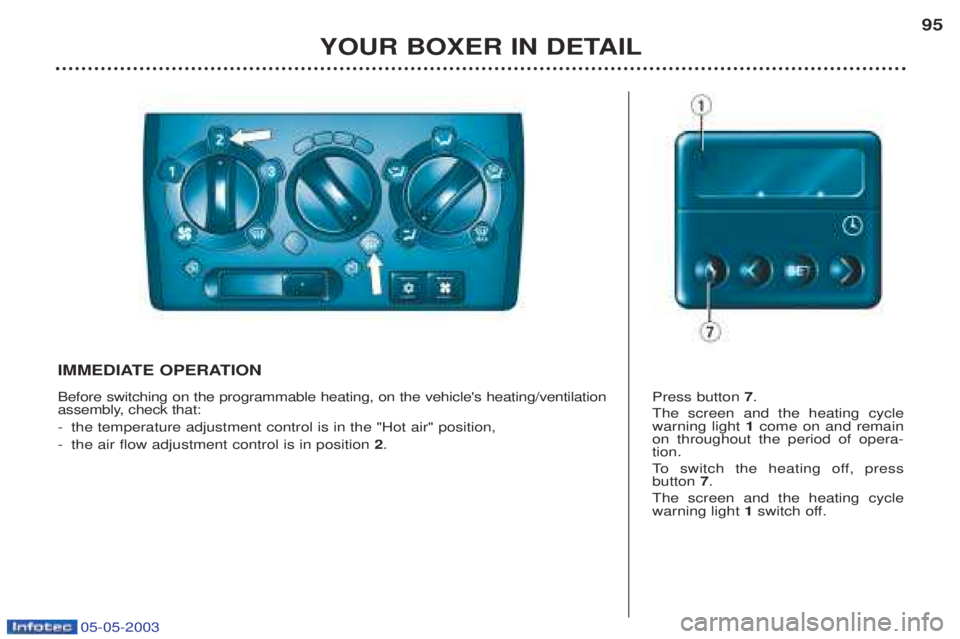

IMMEDIATE OPERATION Before switching on the programmable heating, on the vehicle's heating/ventilation
assembly, check that: -
the temperature adjustment control is in the "Hot air" position,
- the air flow adjustment control is in position 2. Press button
7.
The screen and the heating cycle warning light 1come on and remain
on throughout the period of opera-tion.
To switch the heating off, press
button 7.
The screen and the heating cycle warning light 1switch off.

05-05-2003
YOUR BOXER IN DETAIL
96

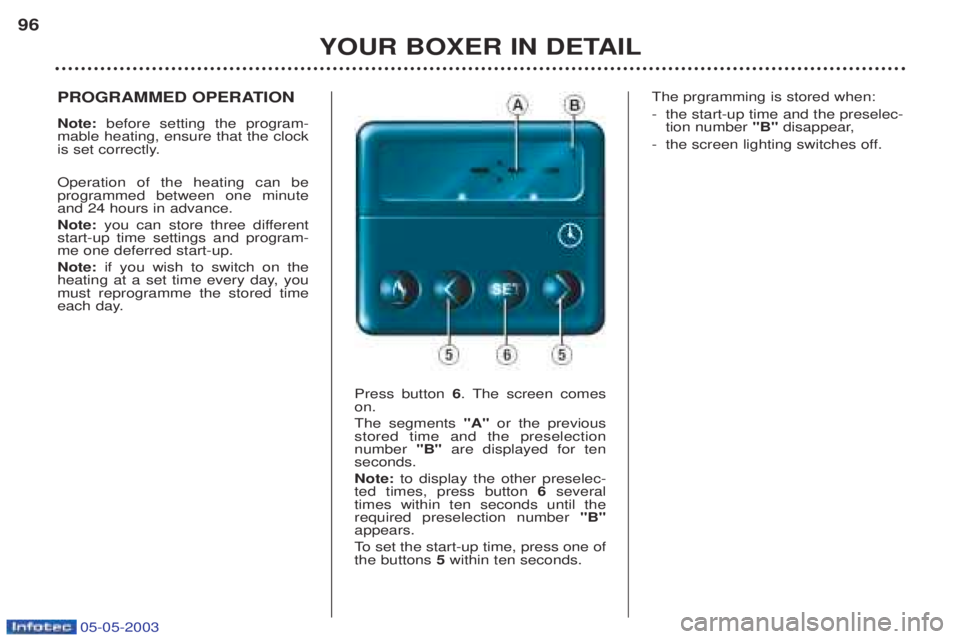

PROGRAMMED OPERATION Note:
before setting the program-
mable heating, ensure that the clock
is set correctly. Operation of the heating can be programmed between one minuteand 24 hours in advance. Note: you can store three different
start-up time settings and program- me one deferred start-up. Note: if you wish to switch on the
heating at a set time every day, you must reprogramme the stored time
each day.
Press button 6. The screen comes
on. The segments "A"or the previous
stored time and the preselection number "B"are displayed for ten
seconds. Note: to display the other preselec-
ted times, press button 6several
times within ten seconds until the required preselection number "B"
appears. To set the start-up time, press one of
the buttons 5within ten seconds. The prgramming is stored when: -
the start-up time and the preselec- tion number "B"disappear,
- the screen lighting switches off.

05-05-2003
YOUR BOXER IN DETAIL97

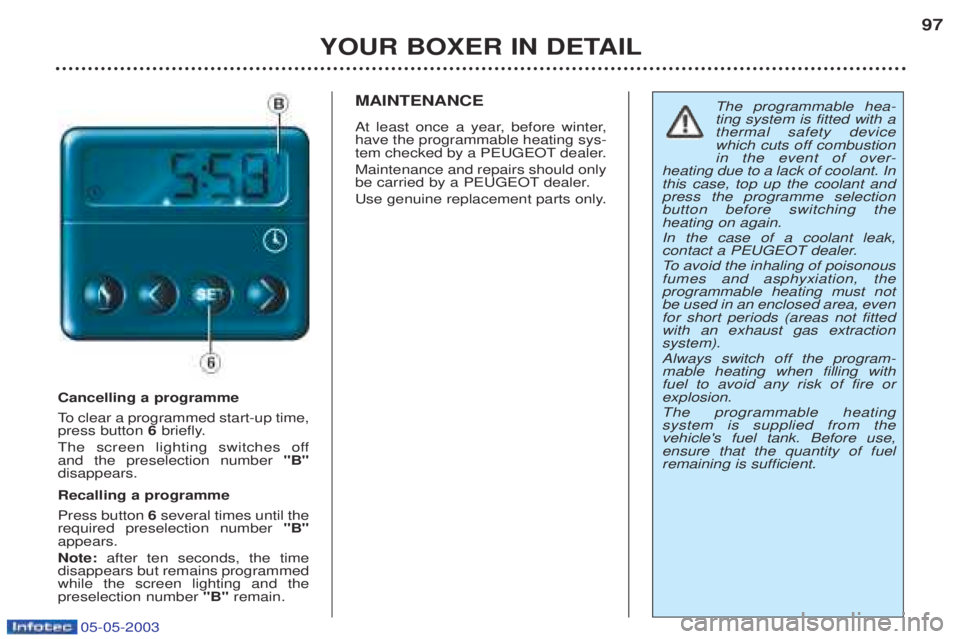

Cancelling a programme
To
clear a programmed start-up time,
press button 6briefly.
The screen lighting switches off and the preselection number "B"
disappears. Recalling a programme Press button 6several times until the
required preselection number "B"
appears. Note: after ten seconds, the time
disappears but remains programmed while the screen lighting and the preselection number "B"remain. MAINTENANCE
At least once a year, before winter, have the programmable heating sys-
tem checked by a PEUGEOT dealer. Maintenance and repairs should only
be carried by a PEUGEOT dealer.
Use genuine replacement parts only.
The programmable hea- ting system is fitted with athermal safety devicewhich cuts off combustion
in the event of over-
heating due to a lack of coolant. Inthis case, top up the coolant andpress the programme selectionbutton before switching the heating on again. In the case of a coolant leak,
contact a PEUGEOT dealer. To avoid the inhaling of poisonous
fumes and asphyxiation, the programmable heating must notbe used in an enclosed area, evenfor short periods (areas not fittedwith an exhaust gas extractionsystem). Always switch off the program- mable heating when filling withfuel to avoid any risk of fire orexplosion. The programmable heating system is supplied from the vehicle's fuel tank. Before use,ensure that the quantity of fuelremaining is sufficient.

05-05-2003

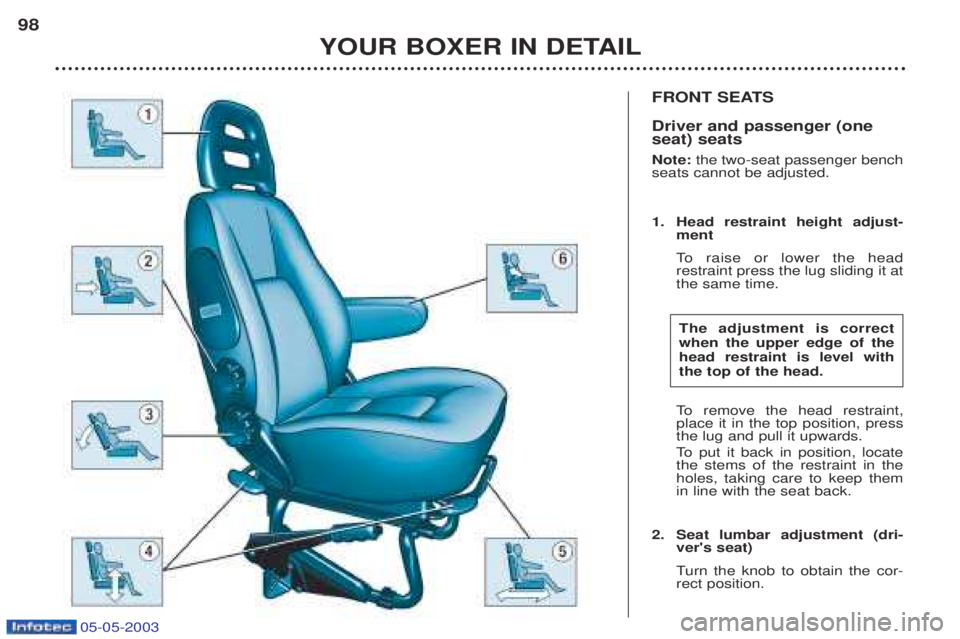

FRONT SEATS Driver and passenger (one seat) seats Note: the two-seat passenger bench
seats cannot be adjusted.
1. Head restraint height adjust- ment
To raise or lower the head
restraint press the lug sliding it at the same time.
To remove the head restraint,
place it in the top position, press the lug and pull it upwards.
To put it back in position, locate
the stems of the restraint in the holes, taking care to keep themin line with the seat back.
2. Seat lumbar adjustment (dri- ver's seat) Turn the knob to obtain the cor-
rect position.
YOUR BOXER IN DETAIL
98
The adjustment is correct when the upper edge of thehead restraint is level withthe top of the head.

05-05-2003

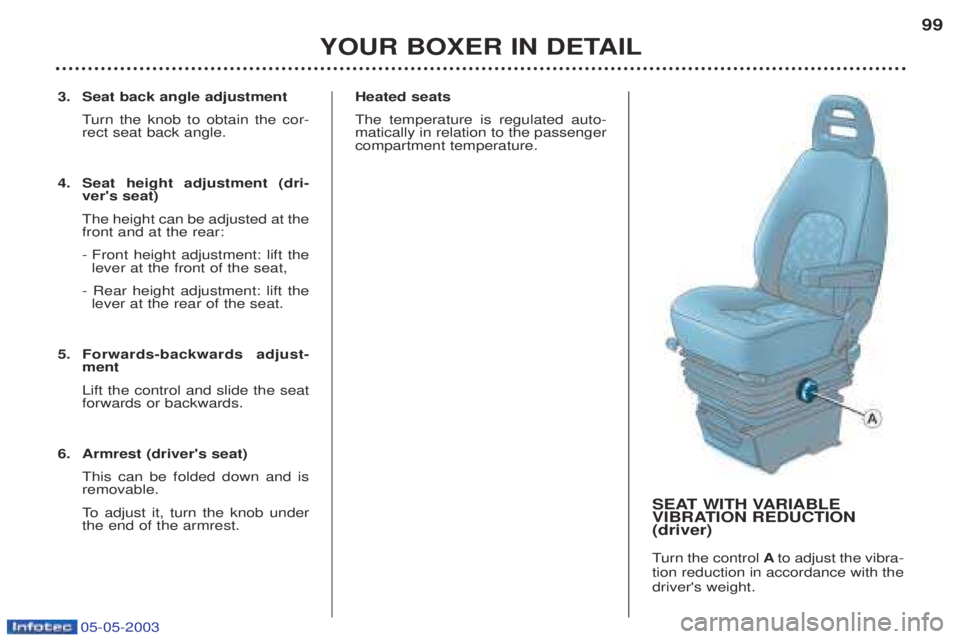

3. Seat back angle adjustmentTurn the knob to obtain the cor-
rect seat back angle.
4. Seat height adjustment (dri- ver's seat) The height can be adjusted at the front and at the rear:
- Front height adjustment: lift the
lever at the front of the seat,
- Rear height adjustment: lift the lever at the rear of the seat.
5. Forwards-backwards adjust- ment Lift the control and slide the seat forwards or backwards.
6. Armrest (driver's seat) This can be folded down and isremovable.
To adjust it, turn the knob under
the end of the armrest. Heated seatsThe temperature is regulated auto- matically in relation to the passengercompartment temperature.
YOUR BOXER IN DETAIL
99
SEAT WITH VARIABLE
VIBRATION REDUCTION(driver) T urn the control Ato adjust the vibra-
tion reduction in accordance with the driver's weight.

05-05-2003

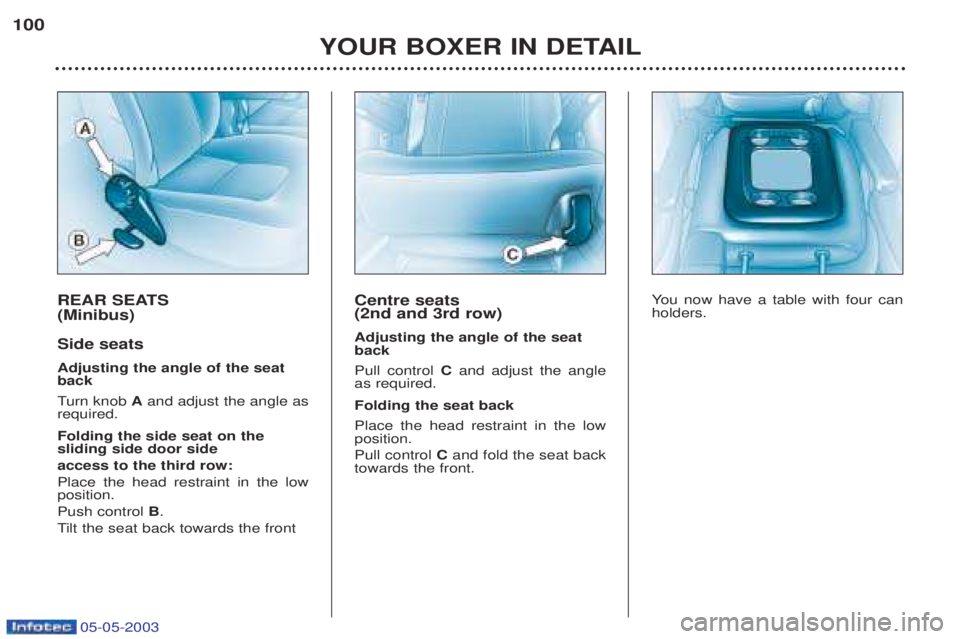

REAR SEATS (Minibus) Side seats Adjusting the angle of the seat back Turn knob Aand adjust the angle as
required. Folding the side seat on the sliding side door side access to the third row:Place the head restraint in the low position. Push control B.
T ilt the seat back towards the front Centre seats (2nd and 3rd row) Adjusting the angle of the seat back Pull control
Cand adjust the angle
as required. Folding the seat back Place the head restraint in the low position. Pull control Cand fold the seat back
towards the front.
YOUR BOXER IN DETAIL
100
You now have a table with four can
holders.

05-05-2003
YOUR BOXER IN DETAIL101
Rules for transporting children on the front passenger seat** Children under the age of 10 must not travel in the forwards facingposition, unless the rear seats arealready occupied by other childrenor the rear seats cannot be used(absent or folded). In this case,adjust the front passenger seat tothe most rearward position and armthe passenger air bag. The rearwards facing position is per- mitted from birth to 13 kg or 18 kg. Inthis position, it is essential to disarmthe passenger air bag.

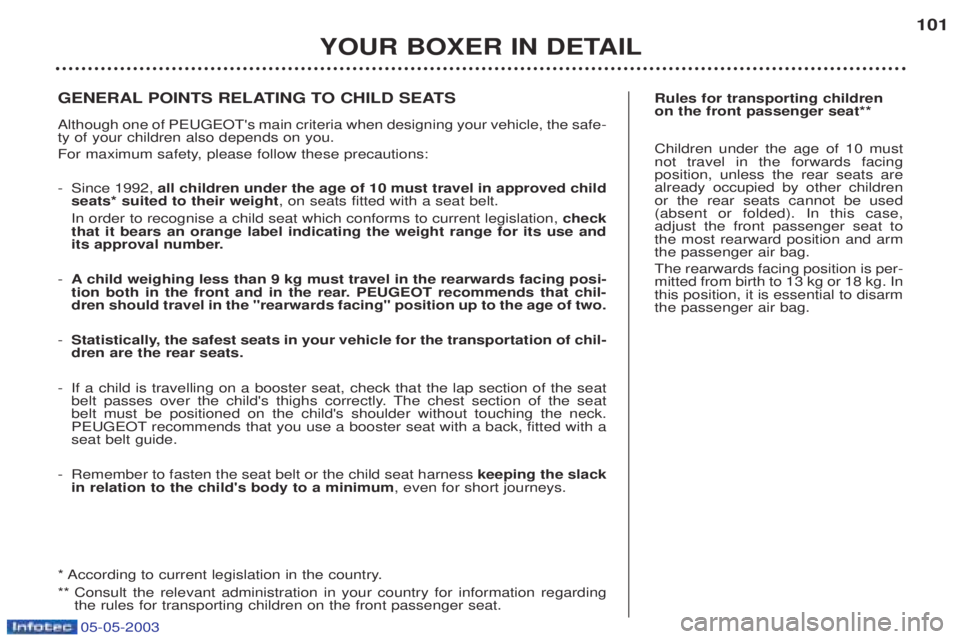

GENERAL POINTS RELATING TO CHILD SEATS Although one of PEUGEOT's main criteria when designing your vehicle, the safe- ty of your children also depends on you.
For maximum safety, please follow these precautions: -
Since 1992, all children under the age of 10 must travel in approved child
seats* suited to their weight , on seats fitted with a seat belt.
In order to recognise a child seat which conforms to current legislation, check
that it bears an orange label indicating the weight range for its use and
its approval number.
- A child weighing less than 9 kg must travel in the rearwards facing posi-
tion both in the front and in the rear. PEUGEOT recommends that chil-dren should travel in the "rearwards facing" position up to the age of two.
- Statistically, the safest seats in your vehicle for the transportation of chil-dren are the rear seats.
- If a child is travelling on a booster seat, check that the lap section of the seat
belt passes over the child's thighs correctly. The chest section of the seat belt must be positioned on the child's shoulder without touching the neck.
PEUGEOT recommends that you use a booster seat with a back, fitted with aseat belt guide.
- Remember to fasten the seat belt or the child seat harness keeping the slack
in relation to the child's body to a minimum , even for short journeys.
* According to current legislation in the country.
** Consult the relevant administration in your country for information regarding the rules for transporting children on the front passenger seat.
