PEUGEOT BOXER 2003 Owners Manual

05-05-2003
REAR DOORS Opening the doors from outside
To open, pull the rear right door
handle towards you and open the rear left door by pulling the lever onthe inside.
YOUR BOXER IN DETAIL
110

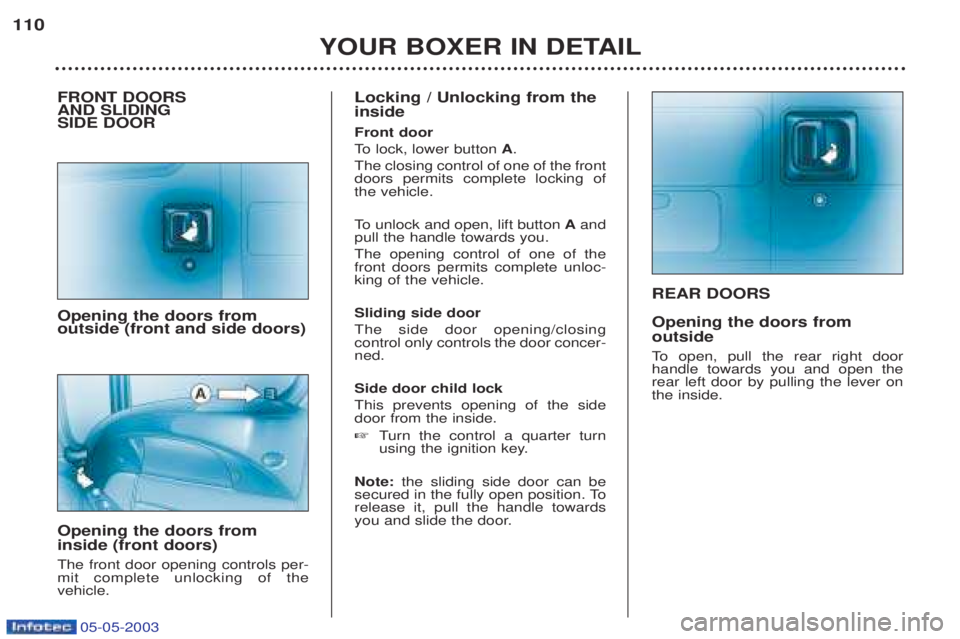

FRONT DOORS AND SLIDING SIDE DOOR Opening the doors from outside (front and side doors) Opening the doors from inside (front doors) The front door opening controls per- mit complete unlocking of thevehicle. Locking / Unlocking from the inside Front door
To
lock, lower button A.
The closing control of one of the front doors permits complete locking ofthe vehicle. To unlock and open, lift button Aand
pull the handle towards you. The opening control of one of the front doors permits complete unloc-king of the vehicle. Sliding side door The side door opening/closing control only controls the door concer-ned. Side door child lock This prevents opening of the side door from the inside. ☞ Turn the control a quarter turn
using the ignition key.
Note: the sliding side door can be
secured in the fully open position. To release it, pull the handle towards
you and slide the door.

05-05-2003
REAR DOORS Opening the doors from outside
To open, pull the rear right door
handle towards you and open the rear left door by pulling the lever onthe inside.
YOUR BOXER IN DETAIL
110
FRONT DOORS AND SLIDING SIDE DOOR Opening the doors from outside (front and side doors) Opening the doors from inside (front doors) The front door opening controls per- mit complete unlocking of thevehicle. Locking / Unlocking from the inside Front door
To
lock, lower button A.
The closing control of one of the front doors permits complete locking ofthe vehicle. To unlock and open, lift button Aand
pull the handle towards you. The opening control of one of the front doors permits complete unloc-king of the vehicle. Sliding side door The side door opening/closing control only controls the door concer-ned. Side door child lock This prevents opening of the side door from the inside. ☞ Turn the control a quarter turn
using the ignition key.
Note: the sliding side door can be
secured in the fully open position. To release it, pull the handle towards
you and slide the door.

05-05-2003
YOUR BOXER IN DETAIL111

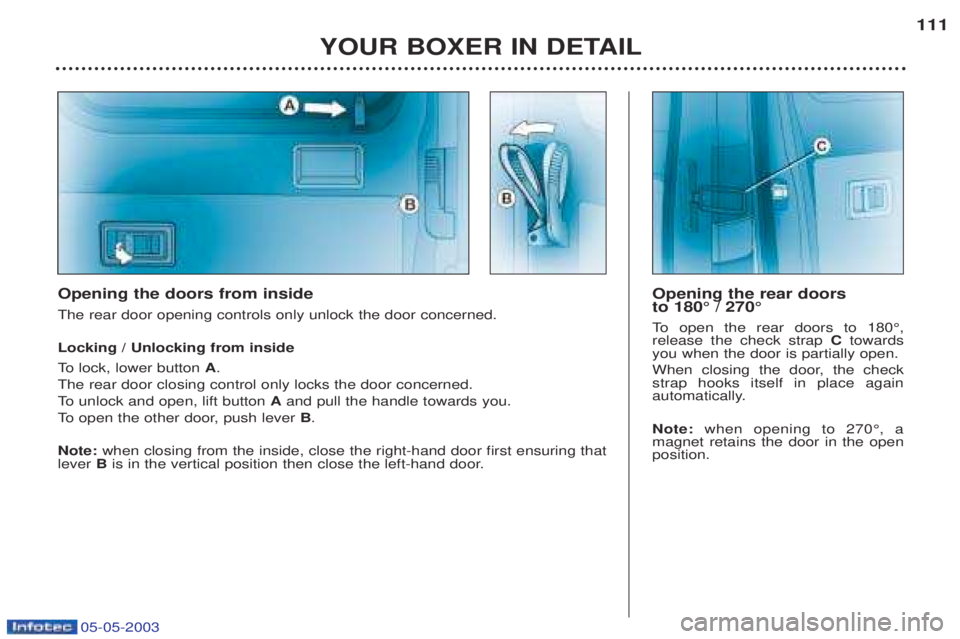

Opening the doors from inside The rear door opening controls only unlock the door concerned. Locking / Unlocking from inside
To
lock, lower button A.
The rear door closing control only locks the door concerned.
To unlock and open, lift button Aand pull the handle towards you.
To open the other door, push lever B.
Note: when closing from the inside, close the right-hand door first ensuring that
lever Bis in the vertical position then close the left-hand door.Opening the rear doors
to 180¡ / 270¡
To open the rear doors to 180¡,
release the check strap Ctowards
you when the door is partially open.
When closing the door, the check strap hooks itself in place again
automatically. Note: when opening to 270¡, a
magnet retains the door in the open position.

05-05-2003

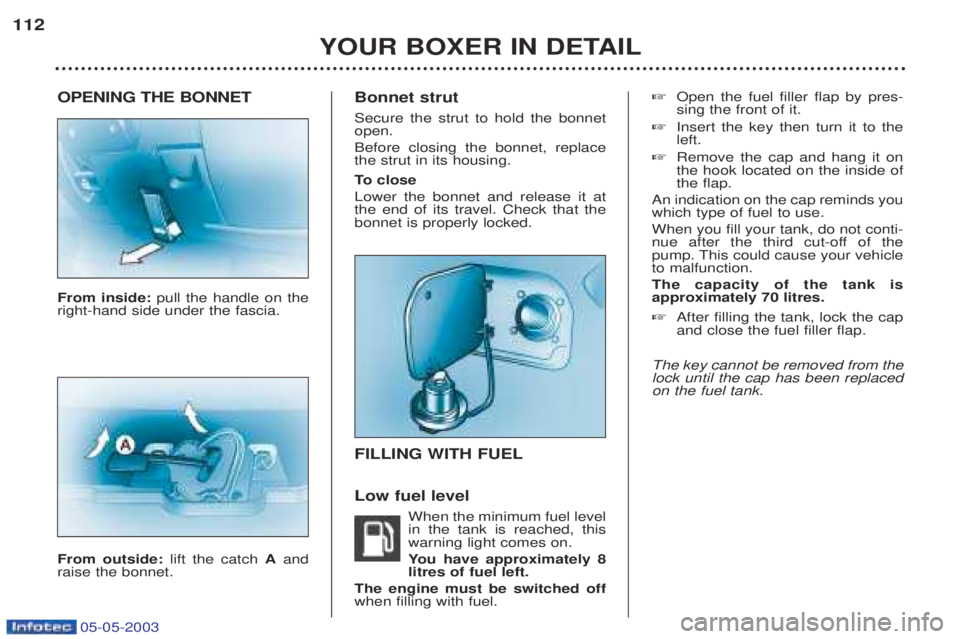

OPENING THE BONNET From inside: pull the handle on the
right-hand side under the fascia. From outside: lift the catch Aand
raise the bonnet. Bonnet strut Secure the strut to hold the bonnet open. Before closing the bonnet, replace the strut in its housing.
To
close
Lower the bonnet and release it at the end of its travel. Check that thebonnet is properly locked. FILLING WITH FUEL Low fuel level
When the minimum fuel level in the tank is reached, thiswarning light comes on. You have approximately 8
litres of fuel left.
The engine must be switched off when filling with fuel. ☞
Open the fuel filler flap by pres-sing the front of it.
☞ Insert the key then turn it to theleft.
☞ Remove the cap and hang it onthe hook located on the inside ofthe flap.
An indication on the cap reminds youwhich type of fuel to use. When you fill your tank, do not conti-
nue after the third cut-off of the
pump. This could cause your vehicleto malfunction. The capacity of the tank is approximately 70 litres. ☞ After filling the tank, lock the cap and close the fuel filler flap.
The key cannot be removed from thelock until the cap has been replacedon the fuel tank.
YOUR BOXER IN DETAIL
112

05-05-2003
YOUR BOXER IN DETAIL113

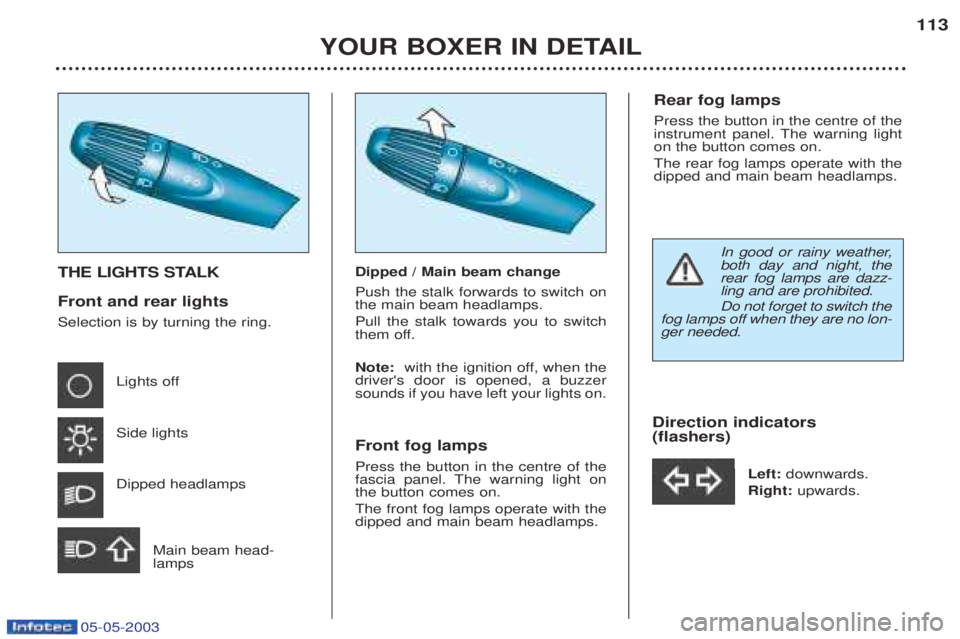

THE LIGHTS STALK Front and rear lights Selection is by turning the ring.
Lights off Side lights Dipped headlamps
Main beam head- lamps Dipped / Main beam change Push the stalk forwards to switch on the main beam headlamps. Pull the stalk towards you to switch
them off. Note:
with the ignition off, when the
driver's door is opened, a buzzer sounds if you have left your lights on. Front fog lamps Press the button in the centre of the
fascia panel. The warning light onthe button comes on. The front fog lamps operate with the dipped and main beam headlamps. Direction indicators (flashers)
Left: downwards.
Right: upwards.
Rear fog lamps Press the button in the centre of the
instrument panel. The warning lighton the button comes on. The rear fog lamps operate with the dipped and main beam headlamps.
In good or rainy weather, both day and night, therear fog lamps are dazz-ling and are prohibited. Do not forget to switch the
fog lamps off when they are no lon- ger needed.

05-05-2003
YOUR BOXER IN DETAIL
114

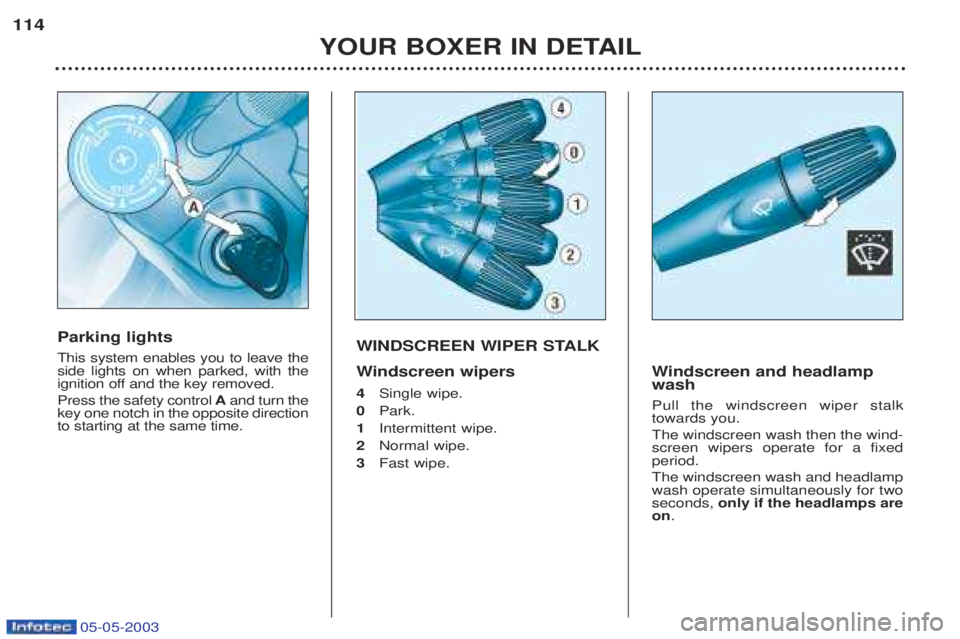

WINDSCREEN WIPER STALK W
indscreen wipers
4 Single wipe.
0 Park.
1 Intermittent wipe.
2 Normal wipe.
3 Fast wipe.
Windscreen and headlamp
wash Pull the windscreen wiper stalk towards you. The windscreen wash then the wind- screen wipers operate for a fixedperiod. The windscreen wash and headlamp wash operate simultaneously for twoseconds, only if the headlamps are
on .
Parking lights This system enables you to leave the side lights on when parked, with the
ignition off and the key removed. Press the safety control Aand turn the
key one notch in the opposite direction to starting at the same time.

05-05-2003
YOUR BOXER IN DETAIL
114
WINDSCREEN WIPER STALK W
indscreen wipers
4 Single wipe.
0 Park.
1 Intermittent wipe.
2 Normal wipe.
3 Fast wipe.
Windscreen and headlamp
wash Pull the windscreen wiper stalk towards you. The windscreen wash then the wind- screen wipers operate for a fixedperiod. The windscreen wash and headlamp wash operate simultaneously for twoseconds, only if the headlamps are
on .
Parking lights This system enables you to leave the side lights on when parked, with the
ignition off and the key removed. Press the safety control Aand turn the
key one notch in the opposite direction to starting at the same time.

YOUR BOXER IN DETAIL115

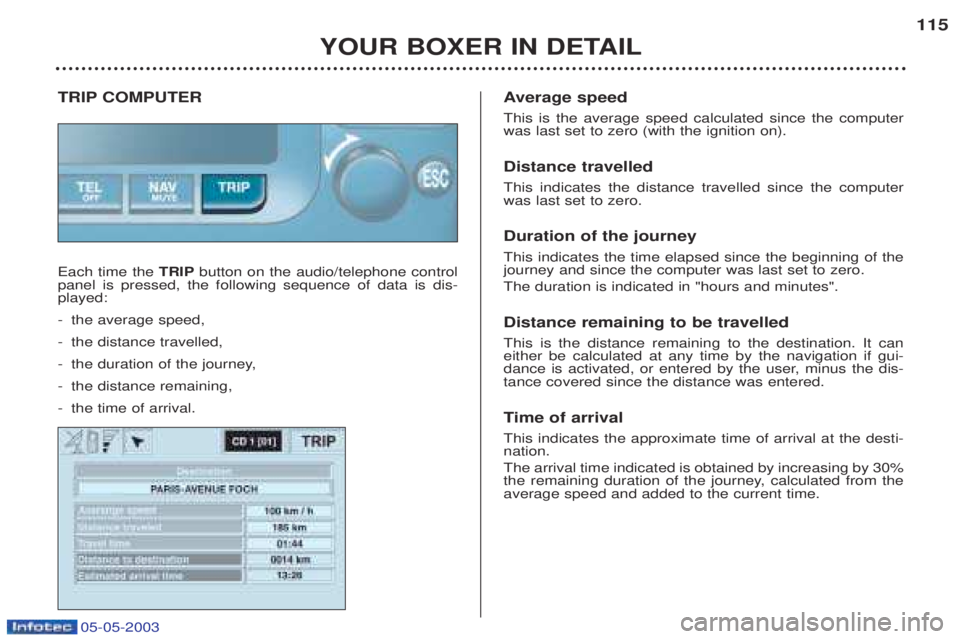

TRIP COMPUTER Each time the
TRIPbutton on the audio/telephone control
panel is pressed, the following sequence of data is dis- played: - the average speed,
- the distance travelled,
- the duration of the journey,
- the distance remaining,
- the time of arrival. A
verage speed
This is the average speed calculated since the computer was last set to zero (with the ignition on). Distance travelled This indicates the distance travelled since the computer was last set to zero. Duration of the journey This indicates the time elapsed since the beginning of the journey and since the computer was last set to zero. The duration is indicated in "hours and minutes". Distance remaining to be travelled This is the distance remaining to the destination. It can either be calculated at any time by the navigation if gui-
dance is activated, or entered by the user, minus the dis-tance covered since the distance was entered. Ti me of arrival
This indicates the approximate time of arrival at the desti- nation. The arrival time indicated is obtained by increasing by 30%
the remaining duration of the journey, calculated from theaverage speed and added to the current time.
05-05-2003

05-05-2003
YOUR BOXER IN DETAIL
116

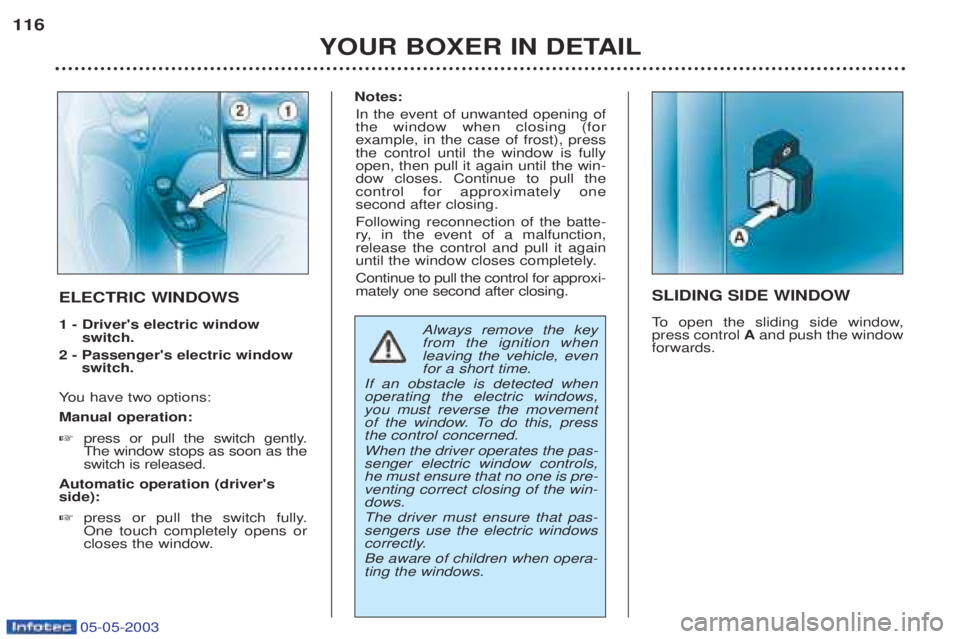

SLIDING SIDE WINDOW
To
open the sliding side window,
press control Aand push the window
forwards.ELECTRIC WINDOWS 1 - Driver's electric window switch.
2 - Passenger's electric window switch.
Y ou have two options:
Manual operation: ☞ press or pull the switch gently. The window stops as soon as theswitch is released.
Automatic operation (driver'sside): ☞ press or pull the switch fully. One touch completely opens or
closes the window.
Notes:
In the event of unwanted opening of the window when closing (forexample, in the case of frost), pressthe control until the window is fullyopen, then pull it again until the win-dow closes. Continue to pull thecontrol for approximately onesecond after closing. Following reconnection of the batte-
ry, in the event of a malfunction,release the control and pull it again
until the window closes completely. Continue to pull the control for approxi- mately one second after closing.
Always remove the key from the ignition whenleaving the vehicle, evenfor a short time.
If an obstacle is detected whenoperating the electric windows,you must reverse the movement
of the window. To do this, pressthe control concerned. When the driver operates the pas- senger electric window controls,he must ensure that no one is pre-venting correct closing of the win-dows. The driver must ensure that pas- sengers use the electric windows
correctly. Be aware of children when opera- ting the windows.

05-05-2003
YOUR BOXER IN DETAIL117
EXTERIOR MIRRORS The exterior mirrors are divided into two zones: -
Upper mirror: zoneA.
- Lower mirror: zoneB.
Manual exterior mirrors Each mirror can be adjusted in all four directions. Press the edges of the mirror to adjust it. Electric exterior mirrors Driver's mirror: -
Upper mirror: zoneA.
- Lower mirror: zoneB.
Passenger mirror:- Upper mirror: zone C.
- Lower mirror: zone D.
☞ Turn the control to the right or to
the left to select the correspon-
ding mirror.
☞ Move the control in all four direc-tions to adjust.
☞ Return the control to the centreposition 0. MANUAL INTERIOR MIRROR
The interior mirror has two positions:
- day (normal), - night (anti-dazzle).
To change from one to the other,
push or pull the lever on the lower
edge of the mirror.
