YOUR BOXER IN DETAIL
118

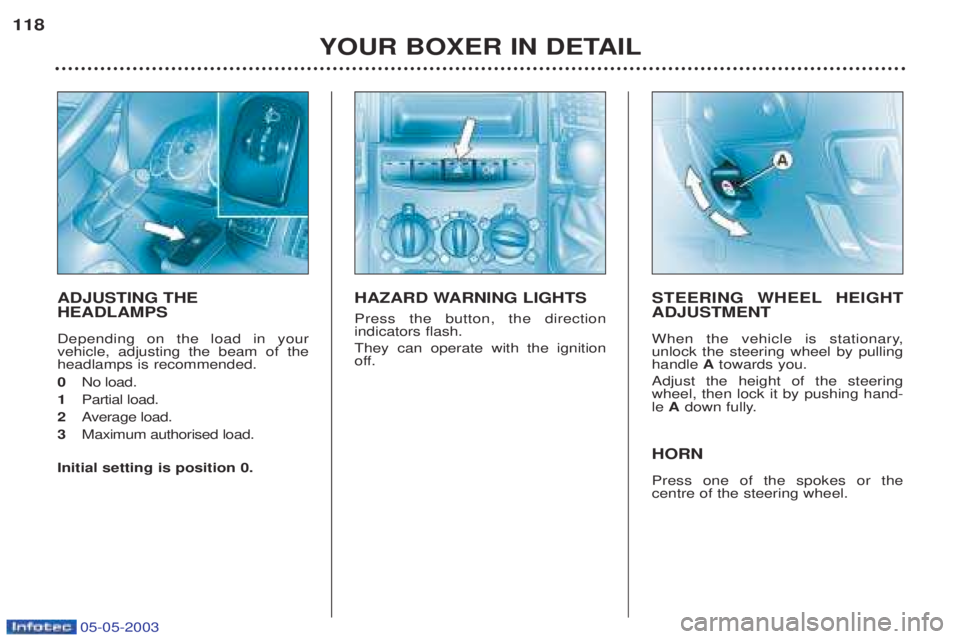

ADJUSTING THE HEADLAMPS Depending on the load in your vehicle, adjusting the beam of theheadlamps is recommended. 0
No load.
1 Partial load.
2 Average load.
3 Maximum authorised load.
Initial setting is position 0. HAZARD WARNING LIGHTS Press the button, the direction indicators flash. They can operate with the ignition
off.
STEERING WHEEL HEIGHT ADJUSTMENT
When the vehicle is stationary, unlock the steering wheel by pullinghandle
Atowards you.
Adjust the height of the steeringwheel, then lock it by pushing hand-le Adown fully.
HORN Press one of the spokes or the centre of the steering wheel.

05-05-2003
YOUR BOXER IN DETAIL119

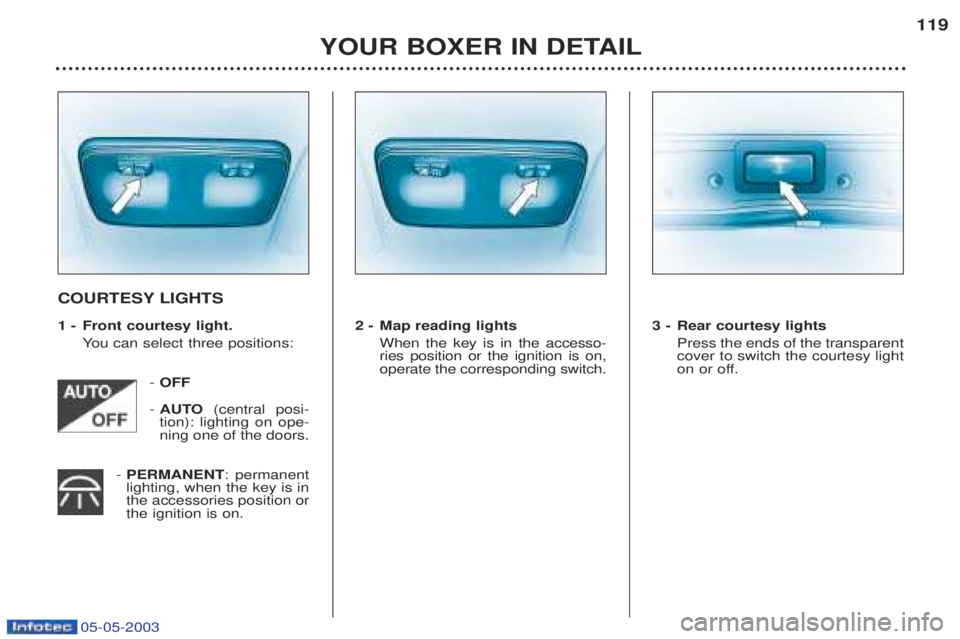

COURTESY LIGHTS
1 - Front courtesy light.
You can select three positions:
- OFF
- AUTO (central posi-
tion): lighting on ope- ning one of the doors.
- PERMANENT : permanent
lighting, when the key is inthe accessories position orthe ignition is on. 2 - Map reading lights
When the key is in the accesso-ries position or the ignition is on,operate the corresponding switch. 3 - Rear courtesy lights
Press the ends of the transparentcover to switch the courtesy light
on or off.

05-05-2003
YOUR BOXER IN DETAIL
120

05-05-2003
YOUR BOXER IN DETAIL121

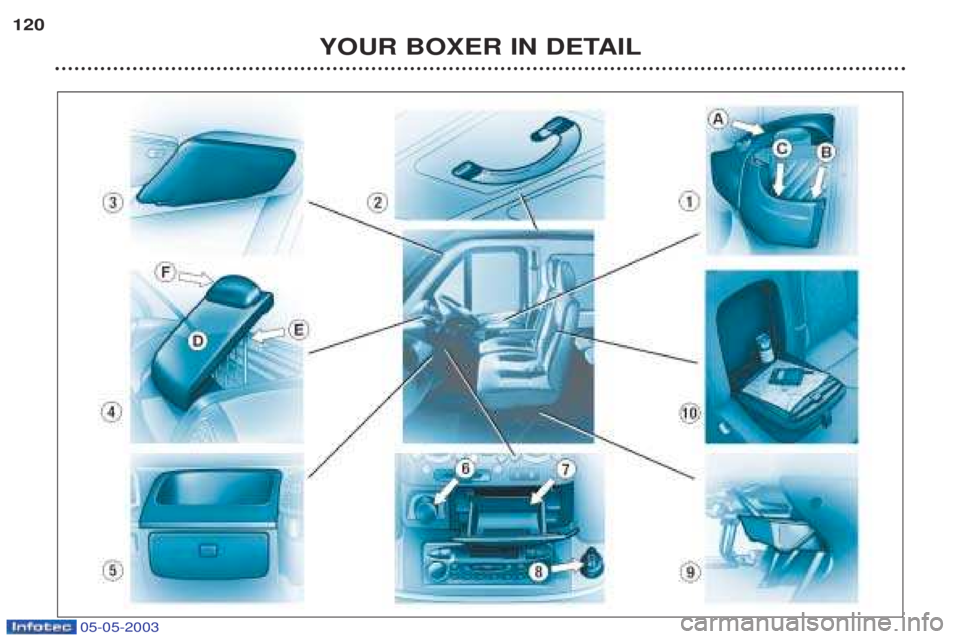

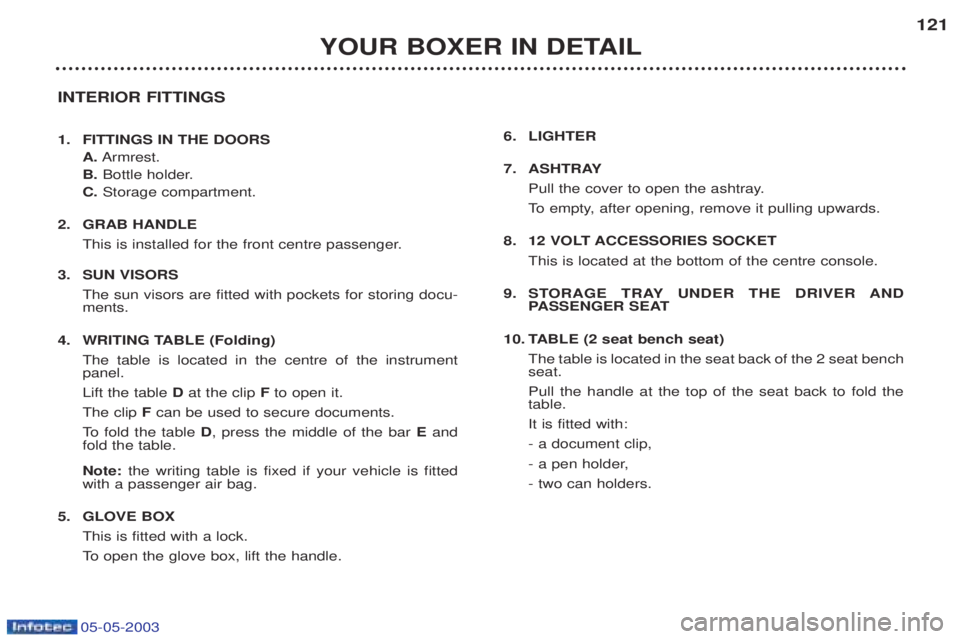

INTERIOR FITTINGS
1. FITTINGS IN THE DOORS A.Armrest.
B. Bottle holder.
C. Storage compartment.
2. GRAB HANDLE This is installed for the front centre passenger.
3. SUN VISORS The sun visors are fitted with pockets for storing docu- ments.
4. WRITING TABLE (Folding) The table is located in the centre of the instrumentpanel. Lift the table Dat the clip Fto open it.
The clip Fcan be used to secure documents.
To fold the table D, press the middle of the bar Eand
fold the table. Note: the writing table is fixed if your vehicle is fitted
with a passenger air bag.
5. GLOVE BOX This is fitted with a lock.
To open the glove box, lift the handle. 6. LIGHTER
7. ASHTRAY
Pull the cover to open the ashtray.
To empty, after opening, remove it pulling upwards.
8. 12 VOLT ACCESSORIES SOCKET This is located at the bottom of the centre console.
9. STORAGE TRAY UNDER THE DRIVER AND PASSENGER SEAT
10. TABLE (2 seat bench seat) The table is located in the seat back of the 2 seat benchseat. Pull the handle at the top of the seat back to fold the table. It is fitted with:- a document clip,
- a pen holder,- two can holders.

05-05-2003
W: snow programme.
P ark: to immobilise the vehicle or start the engine ,
with the handbrake on or off.
R everse: to reverse(select this function with the
vehicle stationary, engine at idle). N eutral: to start the engine and to park, with the
handbrake on.
Note: if function N is engaged inadvertently while dri-
ving, allow the engine to return to idle before engaging function Dto accelerate.
D rive: for drivingin automatic mode.
M anual: for drivingin manual mode.
YOUR BOXER IN DETAIL
122
Moving off
With the engine running, to move off from position P:
☞ it is essential to press the
brake pedal to exit position P,
☞ select function R, D or M, then
gradually release the pressureon the brake pedal; the vehicle
moves off immediately.
Y ou can also move off from position N:
☞ release the handbrake, with yourfoot on the brake
☞ select function R, D or M, then
gradually release the pressureon the brake pedal; the vehicle
moves off immediately.
W ARNING
When the engine is at idle, brakesnot applied, if function R, D or Mis
selected the vehicle moves evenwithout the accelerator being pres-sed. For this reason, do not leave chil- dren unsupervised inside thevehicle, with the engine running. When maintenance operations need to be carried out with the engine run-ning, apply the handbrake and selectposition P.

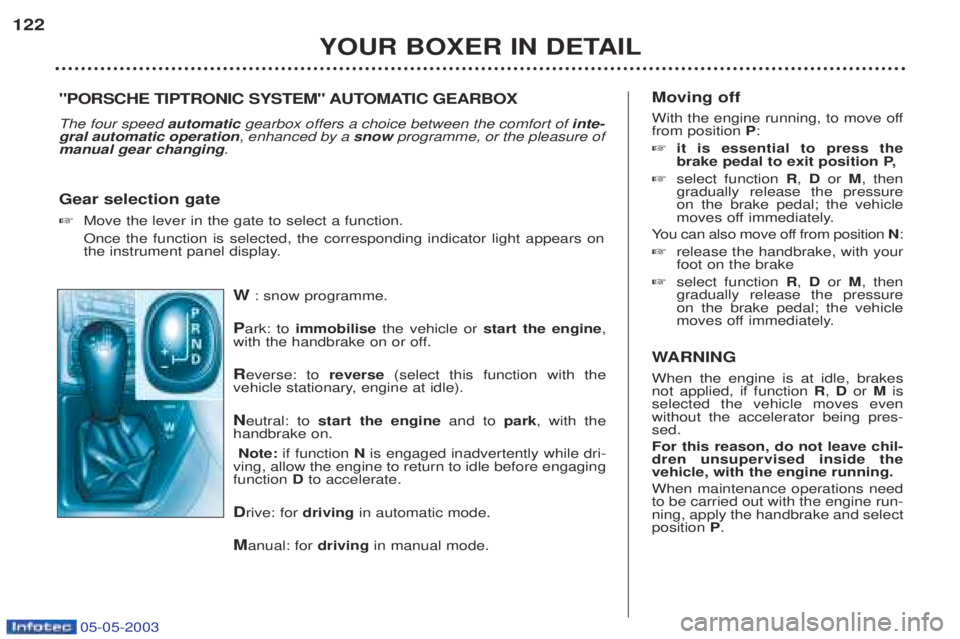

"PORSCHE TIPTRONIC SYSTEM" AUTOMATIC GEARBOX The four speed automaticgearbox offers a choice between the comfort of inte-
gral automatic operation , enhanced by a snowprogramme, or the pleasure of
manual gear changing .
Gear selection gate ☞ Move the lever in the gate to select a function. Once the function is selected, the corresponding indicator light appears on
the instrument panel display.

05-05-2003

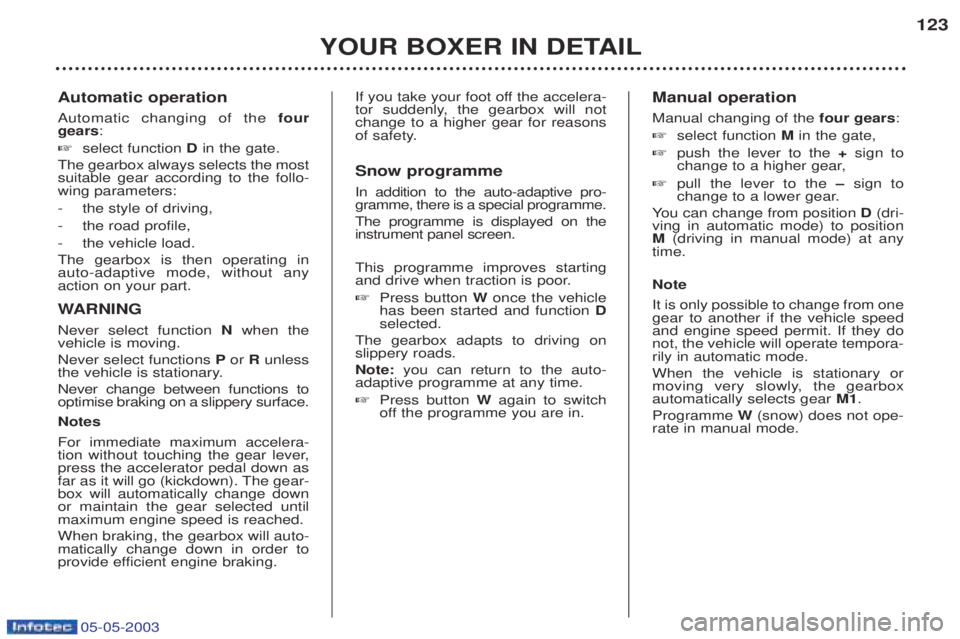

Automatic operation Automatic changing of the four
gears :
☞ select function Din the gate.
The gearbox always selects the most suitable gear according to the follo-wing parameters: - the style of driving,
- the road profile,
- the vehicle load.
The gearbox is then operating in auto-adaptive mode, without anyaction on your part.
W ARNING
Never select function Nwhen the
vehicle is moving. Never select functions Por Runless
the vehicle is stationary.Never change between functions to optimise braking on a slippery surface. Notes For immediate maximum accelera-
tion without touching the gear lever,press the accelerator pedal down as
far as it will go (kickdown). The gear-box will automatically change downor maintain the gear selected untilmaximum engine speed is reached. When braking, the gearbox will auto- matically change down in order to
provide efficient engine braking. If you take your foot off the accelera-
tor suddenly, the gearbox will notchange to a higher gear for reasons
of safety.
Snow programme In addition to the auto-adaptive pro- gramme, there is a special programme. The programme is displayed on the instrument panel screen. This programme improves starting
and drive when traction is poor. ☞ Press button Wonce the vehicle
has been started and function D
selected.
The gearbox adapts to driving on slippery roads. Note: you can return to the auto-
adaptive programme at any time. ☞ Press button Wagain to switch
off the programme you are in. Manual operation Manual changing of the
four gears:
☞ select function Min the gate,
☞ push the lever to the +sign to
change to a higher gear,
☞ pull the lever to the Ðsign to
change to a lower gear.
Y ou can change from position D(dri-
ving in automatic mode) to position M (driving in manual mode) at any
time. Note It is only possible to change from one gear to another if the vehicle speedand engine speed permit. If they donot, the vehicle will operate tempora-rily in automatic mode. When the vehicle is stationary or
moving very slowly, the gearboxautomatically selects gear M1.
Programme W(snow) does not ope-
rate in manual mode.
YOUR BOXER IN DETAIL 123

05-05-2003

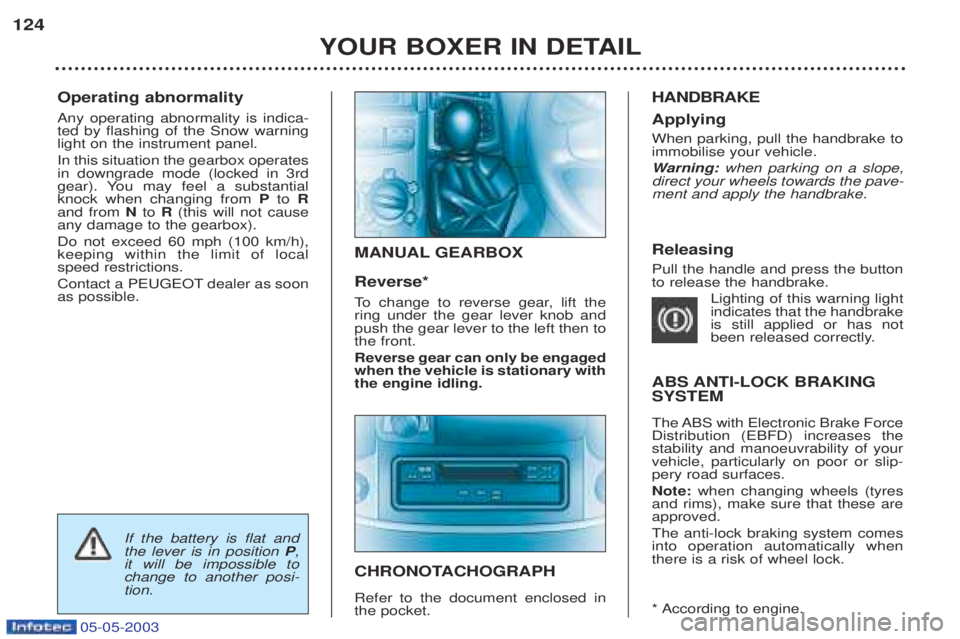

Operating abnormality Any operating abnormality is indica- ted by flashing of the Snow warninglight on the instrument panel. In this situation the gearbox operates in downgrade mode (locked in 3rd
gear). You may feel a substantialknock when changing from Pto R
and from Nto R(this will not cause
any damage to the gearbox). Do not exceed 60 mph (100 km/h), keeping within the limit of localspeed restrictions.
Contact a PEUGEOT dealer as soon as possible. MANUAL GEARBOX Reverse*
To
change to reverse gear, lift the
ring under the gear lever knob and push the gear lever to the left then tothe front. Reverse gear can only be engaged when the vehicle is stationary withthe engine idling. HANDBRAKE Applying When parking, pull the handbrake to immobilise your vehicle. W
arning: when parking on a slope,
direct your wheels towards the pave- ment and apply the handbrake.
Releasing Pull the handle and press the button to release the handbrake. Lighting of this warning lightindicates that the handbrakeis still applied or has not
been released correctly.
CHRONOTACHOGRAPH Refer to the document enclosed in the pocket.
YOUR BOXER IN DETAIL
124
If the battery is flat and the lever is in position
P,
it will be impossible tochange to another posi-tion.
ABS ANTI-LOCK BRAKING SYSTEM
The ABS with Electronic Brake Force Distribution (EBFD) increases thestability and manoeuvrability of yourvehicle, particularly on poor or slip-pery road surfaces. Note: when changing wheels (tyres
and rims), make sure that these are approved. The anti-lock braking system comes into operation automatically whenthere is a risk of wheel lock.
* According to engine.

05-05-2003
Operating abnormality Any operating abnormality is indica- ted by flashing of the Snow warninglight on the instrument panel. In this situation the gearbox operates in downgrade mode (locked in 3rd
gear). You may feel a substantialknock when changing from Pto R
and from Nto R(this will not cause
any damage to the gearbox). Do not exceed 60 mph (100 km/h), keeping within the limit of localspeed restrictions.
Contact a PEUGEOT dealer as soon as possible. MANUAL GEARBOX Reverse*
To
change to reverse gear, lift the
ring under the gear lever knob and push the gear lever to the left then tothe front. Reverse gear can only be engaged when the vehicle is stationary withthe engine idling. HANDBRAKE Applying When parking, pull the handbrake to immobilise your vehicle. W
arning: when parking on a slope,
direct your wheels towards the pave- ment and apply the handbrake.
Releasing Pull the handle and press the button to release the handbrake. Lighting of this warning lightindicates that the handbrakeis still applied or has not
been released correctly.
CHRONOTACHOGRAPH Refer to the document enclosed in the pocket.
YOUR BOXER IN DETAIL
124
If the battery is flat and the lever is in position
P,
it will be impossible tochange to another posi-tion.
ABS ANTI-LOCK BRAKING SYSTEM
The ABS with Electronic Brake Force Distribution (EBFD) increases thestability and manoeuvrability of yourvehicle, particularly on poor or slip-pery road surfaces. Note: when changing wheels (tyres
and rims), make sure that these are approved. The anti-lock braking system comes into operation automatically whenthere is a risk of wheel lock.
* According to engine.

05-05-2003
Operating abnormality Any operating abnormality is indica- ted by flashing of the Snow warninglight on the instrument panel. In this situation the gearbox operates in downgrade mode (locked in 3rd
gear). You may feel a substantialknock when changing from Pto R
and from Nto R(this will not cause
any damage to the gearbox). Do not exceed 60 mph (100 km/h), keeping within the limit of localspeed restrictions.
Contact a PEUGEOT dealer as soon as possible. MANUAL GEARBOX Reverse*
To
change to reverse gear, lift the
ring under the gear lever knob and push the gear lever to the left then tothe front. Reverse gear can only be engaged when the vehicle is stationary withthe engine idling. HANDBRAKE Applying When parking, pull the handbrake to immobilise your vehicle. W
arning: when parking on a slope,
direct your wheels towards the pave- ment and apply the handbrake.
Releasing Pull the handle and press the button to release the handbrake. Lighting of this warning lightindicates that the handbrakeis still applied or has not
been released correctly.
CHRONOTACHOGRAPH Refer to the document enclosed in the pocket.
YOUR BOXER IN DETAIL
124
If the battery is flat and the lever is in position
P,
it will be impossible tochange to another posi-tion.
ABS ANTI-LOCK BRAKING SYSTEM
The ABS with Electronic Brake Force Distribution (EBFD) increases thestability and manoeuvrability of yourvehicle, particularly on poor or slip-pery road surfaces. Note: when changing wheels (tyres
and rims), make sure that these are approved. The anti-lock braking system comes into operation automatically whenthere is a risk of wheel lock.
* According to engine.

05-05-2003

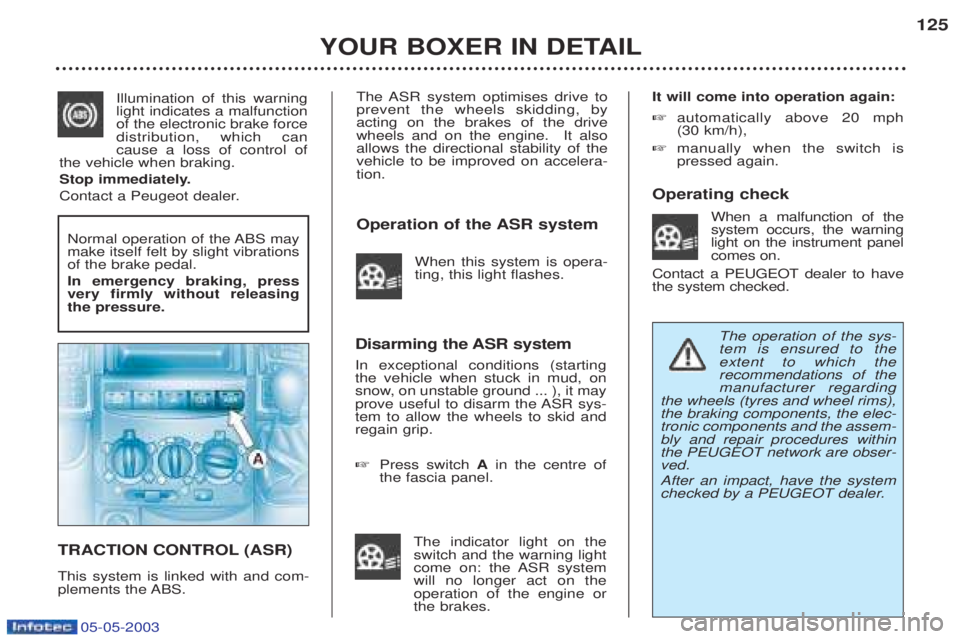

The ASR system optimises drive to prevent the wheels skidding, byacting on the brakes of the drivewheels and on the engine. It alsoallows the directional stability of thevehicle to be improved on accelera-tion.
Operation of the ASR systemWhen this system is opera- ting, this light flashes.
TRACTION CONTROL (ASR) This system is linked with and com-
plements the ABS. Disarming the ASR system In exceptional conditions (starting the vehicle when stuck in mud, on
snow, on unstable ground ... ), it may
prove useful to disarm the ASR sys-tem to allow the wheels to skid andregain grip. ☞
Press switch Ain the centre of
the fascia panel.
The indicator light on the switch and the warning light
come on: the ASR systemwill no longer act on theoperation of the engine orthe brakes. It will come into operation again: ☞
automatically above 20 mph (30 km/h),
☞ manually when the switch ispressed again.
Operating check When a malfunction of thesystem occurs, the warninglight on the instrument panelcomes on.
Contact a PEUGEOT dealer to havethe system checked.
YOUR BOXER IN DETAIL 125
Normal operation of the ABS may make itself felt by slight vibrationsof the brake pedal. In emergency braking, press very firmly without releasingthe pressure.
The operation of the sys- tem is ensured to theextent to which therecommendations of themanufacturer regarding
the wheels (tyres and wheel rims),the braking components, the elec-tronic components and the assem-bly and repair procedures withinthe PEUGEOT network are obser-ved. After an impact, have the system
checked by a PEUGEOT dealer.
Illumination of this warning light indicates a malfunctionof the electronic brake forcedistribution, which cancause a loss of control of
the vehicle when braking.
Stop immediately.
Contact a Peugeot dealer.
