Beware: When working under the bonnet, the cooling fan could operate if the engi-
ne is hot (even when switched off).

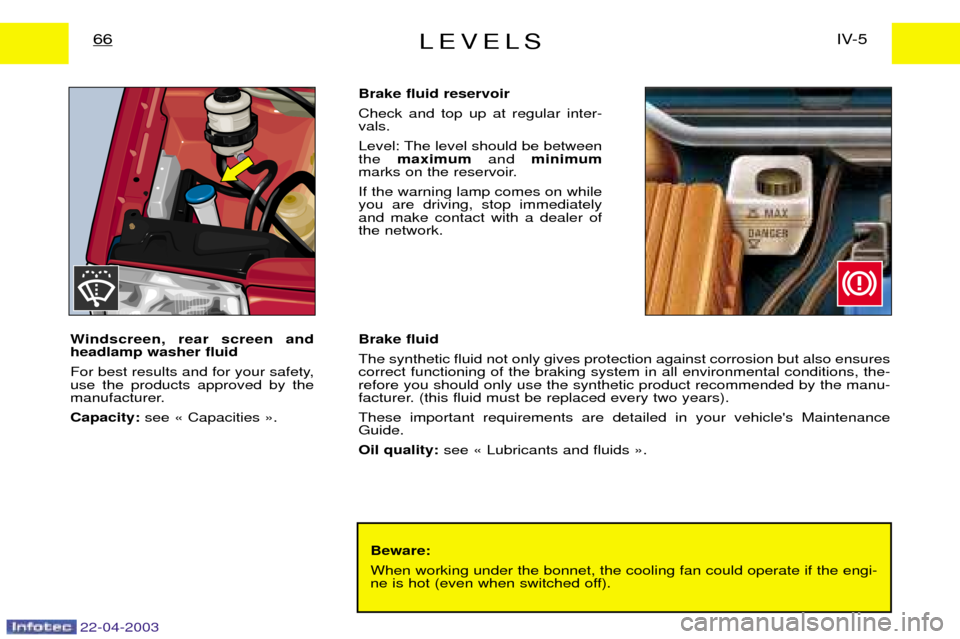

Windscreen, rear screen andheadlamp washer fluid
For best results and for your safety, use the products approved by the
manufacturer. Capacity:
see Ç Capacities È.
22-04-2003
Brake fluid The synthetic fluid not only gives protection against corrosion but also ensures correct functioning of the braking system in all environmental conditions, the-refore you should only use the synthetic product recommended by the manu-
facturer. (this fluid must be replaced every two years). These important requirements are detailed in your vehicle's Maintenance Guide. Oil quality: see Ç Lubricants and fluids È.
Brake fluid reservoirCheck and top up at regular inter- vals.
Level: The level should be between the
maximum and minimum
marks on the reservoir. If the warning lamp comes on while you are driving, stop immediatelyand make contact with a dealer ofthe network.

22-04-2003
CAPACITIES*67IV-6
* According to model or country ** With air conditioning

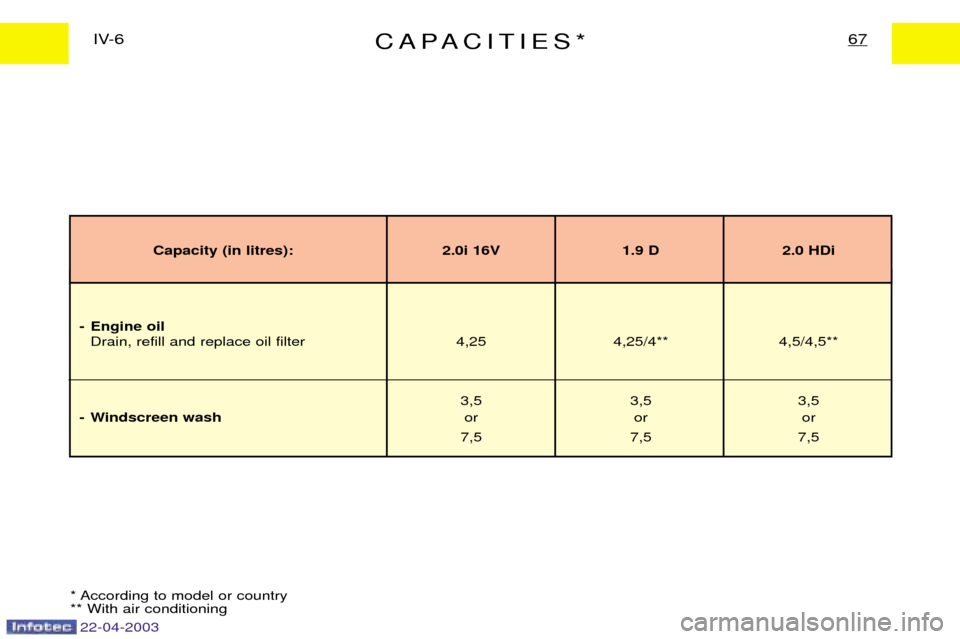

Capacity (in litres): 2.0i 16V 1.9 D 2.0 HDi
- Engine oil Drain, refill and replace oil filter 4,25 4,25/4** 4,5/4,5**
3,5 3,5 3,5
- Windscreen wash or or or
7,5 7,5 7,5

22-04-2003
STEERING LOCK - IGNITION - STARTERII-1
40
¥ S : Steering lock

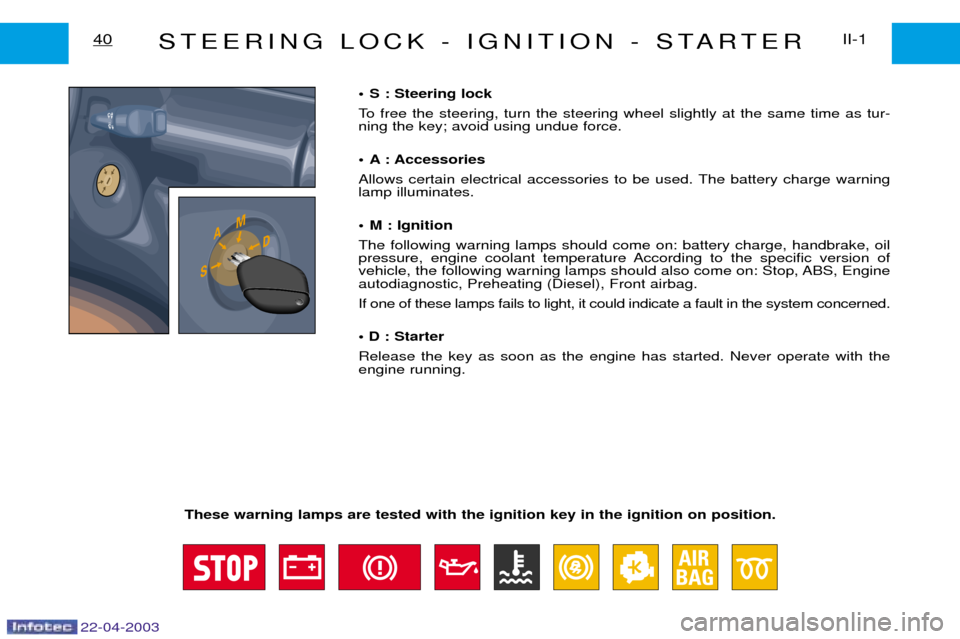

To free the steering, turn the steering wheel slightly at the same time as tur- ning the key; avoid using undue force.
¥ A : Accessories
Allows certain electrical accessories to be used. The battery charge warning lamp illuminates.
¥ M : Ignition The following warning lamps should come on: battery charge, handbrake, oil
pressure, engine coolant temperature According to the specific version of
vehicle, the following warning lamps should also come on: Stop, ABS, Engineautodiagnostic, Preheating (Diesel), Front airbag. If one of these lamps fails to light, it could indicate a fault in the system concerned. ¥ D : Starter Release the key as soon as the engine has started. Never operate with the engine running.
These warning lamps are tested with the ignition key in the ignition on position.

STEERING LOCK - IGNITION - STARTER41II-1

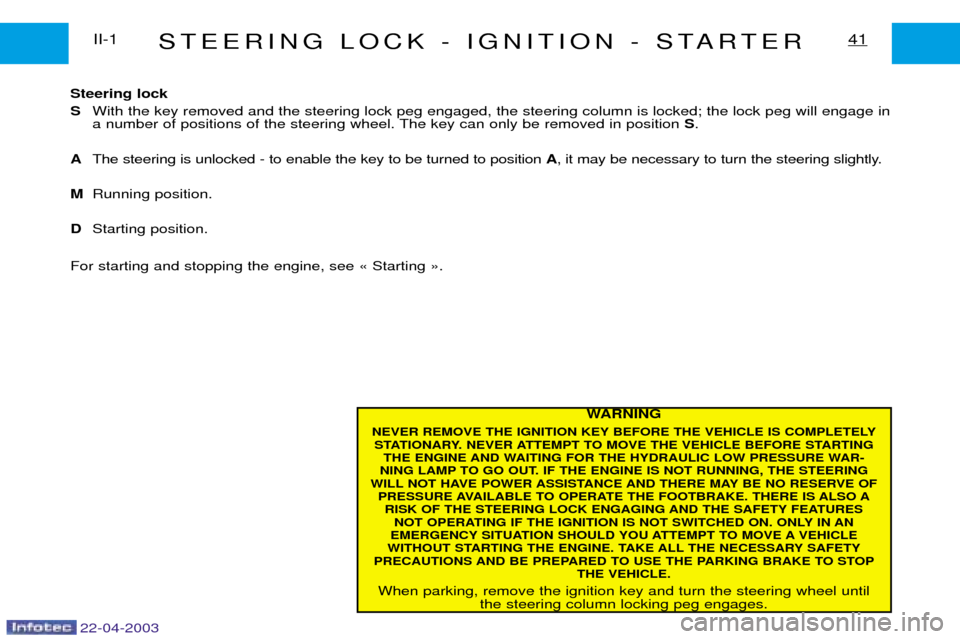

WARNING
NEVER REMOVE THE IGNITION KEY BEFORE THE VEHICLE IS COMPLETELY STATIONARY. NEVER ATTEMPT TO MOVE THE VEHICLE BEFORE STARTING THE ENGINE AND WAITING FOR THE HYDRAULIC LOW PRESSURE WAR-
NING LAMP TO GO OUT. IF THE ENGINE IS NOT RUNNING, THE STEERING
WILL NOT HAVE POWER ASSISTANCE AND THERE MAY BE NO RESERVE OF PRESSURE AVAILABLE TO OPERATE THE FOOTBRAKE. THERE IS ALSO ARISK OF THE STEERING LOCK ENGAGING AND THE SAFETY FEATURES NOT OPERATING IF THE IGNITION IS NOT SWITCHED ON. ONLY IN AN
EMERGENCY SITUATION SHOULD YOU ATTEMPT TO MOVE A VEHICLE
WITHOUT STARTING THE ENGINE. TAKE ALL THE NECESSARY SAFETY
PRECAUTIONS AND BE PREPARED TO USE THE PARKING BRAKE TO STOP THE VEHICLE.
When parking, remove the ignition key and turn the steering wheel until the steering column locking peg engages.
Steering lock
S With the key removed and the steering lock peg engaged, the steering column is locked; the lock peg will engage in
a number of positions of the steering wheel. The key can only be removed in position S.
A The steering is unlocked - to enable the key to be turned to position A, it may be necessary to turn the steering slightly.
M Running position.
D Starting position.
For starting and stopping the engine, see Ç Starting È.
22-04-2003

22-04-2003
STARTINGII-2
42
Ensure that the gear lever is in the neutral position.
PETROL Starting the engine Do not depress the accelerator pedal. Operate the starter motor (maximum 10 seconds) until the engine starts.
At temperatures below 0¡C, depress the clutch pedal to ease starting, then release it slowly. Release the key as soon as the engine starts. Note: If it does not work at first, switch off the ignition, wait for ten seconds, then operate the starter again as described
above.

STARTING43II-2
WARNING
DO NOT RUN THE ENGINE IN AN ENCLOSED OR POORLY VENTILATED AREA
DIESEL Starting the engine
Turn the ignition key to the ignition position. Wait for the preheater lamp to go out, then operate the starter motor until the engine starts.
If the engine does not start, switch off the ignition and start again.At temperatures below 0¡C, depress the clutch pedal to ease starting. Release the pedal slowly when the engine has started. Note:
Do not depress the accelerator pedal while operating the starter.
22-04-2003
Advice
Vehicles equipped with a Turbo:
Turbo equipped engines MUST be allowed to return to idle for several seconds before switching off the ignition. Failure to do so could cause serious damage to the turbo unit.
Flicking the throttle pedal as the ignition is turned off can lead to severe damage to the turbo unit.

22-04-2003
BRAKESII-3
44

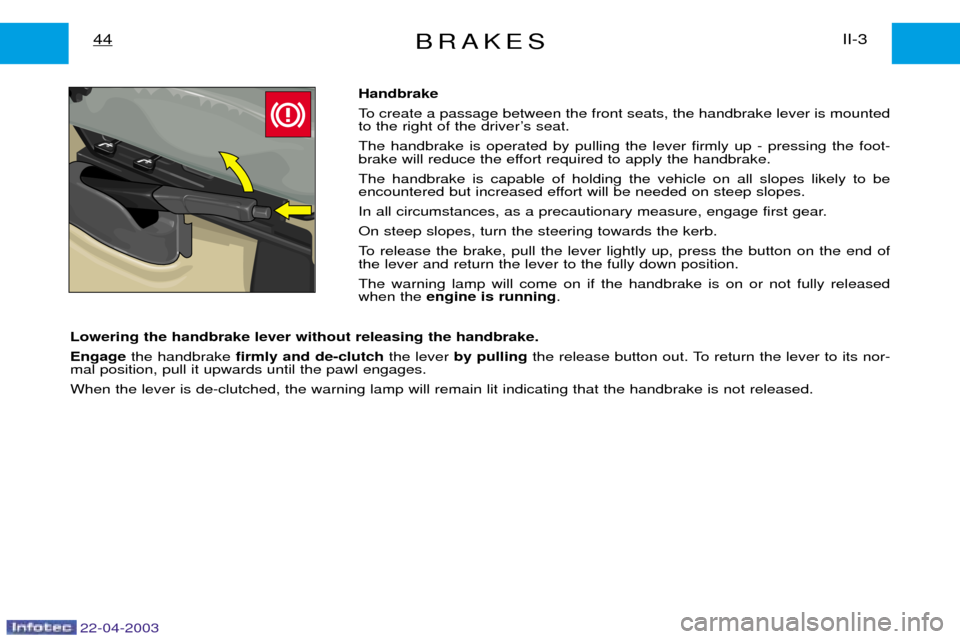

Lowering the handbrake lever without releasing the handbrake. Engage the handbrake firmly and de-clutch the lever by pulling the release button out. To return the lever to its nor-
mal position, pull it upwards until the pawl engages.When the lever is de-clutched, the warning lamp will remain lit indicating that the handbrake is not released. Handbrake
To create a passage between the front seats, the handbrake lever is mounted
to the right of the driverÕs seat. The handbrake is operated by pulling the lever firmly up - pressing the foot-
brake will reduce the effort required to apply the handbrake. The handbrake is capable of holding the vehicle on all slopes likely to be
encountered but increased effort will be needed on steep slopes.
In all circumstances, as a precautionary measure, engage first gear.On steep slopes, turn the steering towards the kerb.
To release the brake, pull the lever lightly up, press the button on the end of the lever and return the lever to the fully down position. The warning lamp will come on if the handbrake is on or not fully released when the
engine is running .

22-04-2003
BRAKES45II-4ABS - Anti-lock Braking System* This system improves vehicle safety by preventing the wheels from locking under emergency braking or when
braking on surfaces offering poor adhesion.
It thus also allows control of the steering to be retained. The operation of the various electronic components of the system is continuously monitored, both before and during your
journey. On switching on the ignition, the ABS lamp will light for approximately two seconds. If it stays on or lights when
driving, the ABS computer has detected a fault and has disconnected the ABS system. If the lamp lights whilst driving, it
again indicates that a fault has been detected and that the ABS system is inactive. In both situations, the normal braking
system is not affected and will continue to function as a conventional braking system without ABS. Nevertheless, to re-
establish the full safety features of the ABS system, It is recommended that the vehicle be examined by a dealer as soonas possible.
On slippery roads (loose stones, snow, ice, etc.), it is imperative to drive with caution.
* According to model or country
Protection fuses under the dashboardF12
(under the bonnet)
MF4 (with ABS)

22-04-2003
GEAR LEVERII-6
46
Reverse gear*

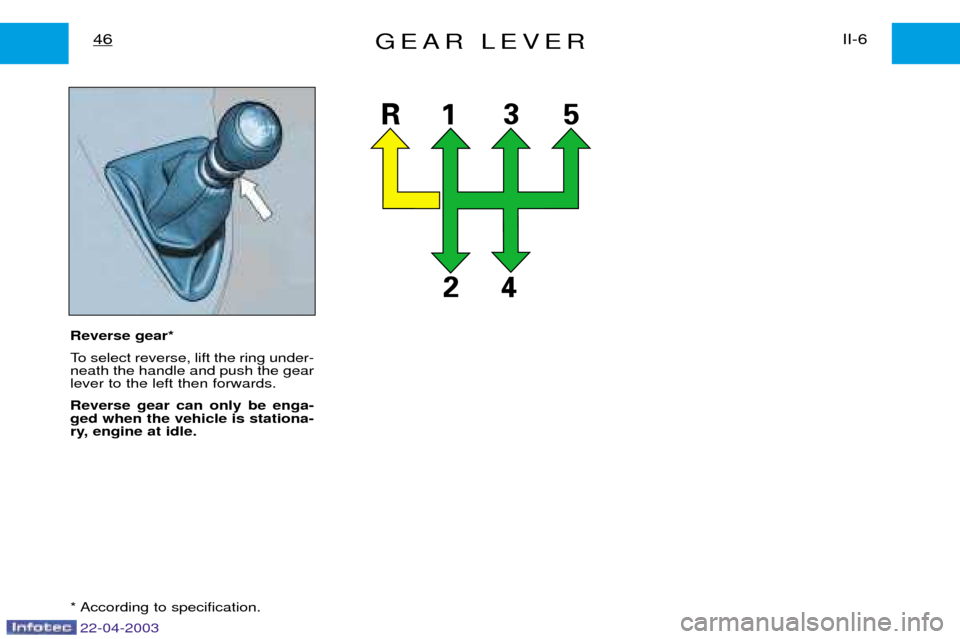

To select reverse, lift the ring under- neath the handle and push the gearlever to the left then forwards. Reverse gear can only be enga- ged when the vehicle is stationa-
ry, engine at idle.
* According to specification.

SEAT BELTS114

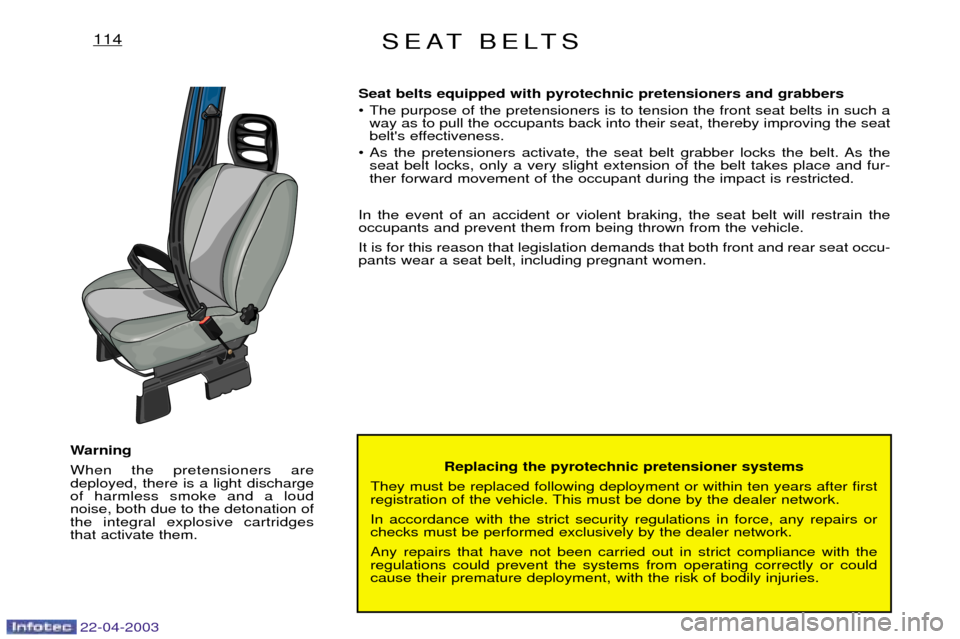

Replacing the pyrotechnic pretensioner systems
They must be replaced following deployment or within ten years after first
registration of the vehicle. This must be done by the dealer network. In accordance with the strict security regulations in force, any repairs or checks must be performed exclusively by the dealer network. Any repairs that have not been carried out in strict compliance with the regulations could prevent the systems from operating correctly or couldcause their premature deployment, with the risk of bodily injuries.
Warning When the pretensioners are deployed, there is a light dischargeof harmless smoke and a loudnoise, both due to the detonation ofthe integral explosive cartridgesthat activate them.
22-04-2003
Seat belts equipped with pyrotechnic pretensioners and grabbers
¥ The purpose of the pretensioners is to tension the front seat belts in such a
way as to pull the occupants back into their seat, thereby improving the seat
belt's effectiveness.
¥ As the pretensioners activate, the seat belt grabber locks the belt. As the seat belt locks, only a very slight extension of the belt takes place and fur-ther forward movement of the occupant during the impact is restricted.
In the event of an accident or violent braking, the seat belt will restrain theoccupants and prevent them from being thrown from the vehicle. It is for this reason that legislation demands that both front and rear seat occu- pants wear a seat belt, including pregnant women.
