WIRING
Airbags and seat belt pretensioners
88
DESTRUCTION PROCEDURE
In order to avoid any risk of an accident, the pyro-
technic gas generators must be triggered before
the vehicle is scrapped or the part is scrapped.
Tool Elé. 1287 must be used for this.
96832R
PRETENSIONERS
96438R
Carry out the same operation for the 2nd preten-
sioner.
NOTE : if the pretensioner cannot be triggered
(ignition module faulty), return the part in the
packaging from the new component to ITG
(Service 0428).
IMPORTANT: Do not trigger pretensioners which
must be returned under warranty for a stalk pro-
blem. This makes analysis by the supplier impossi-
ble.
Return the part in the packaging of the new part.
Destruction of the part fitted to the vehicle
Move the vehicle outside the workshop.
Connect the destruction tool to the connector (1)
under the front seat using the appropriate lead.
Unroll the wiring of the tool so you are
sufficiently far away from the vehicle
(approximately 10 metres) when the device is
triggered.
Connect the two feed wires on the tool to a
battery.
After checking that there is no-one nearby, carry
out the destruction of the pretensioner by pres-
sing the two buttons on the tool at the same time.
88-27

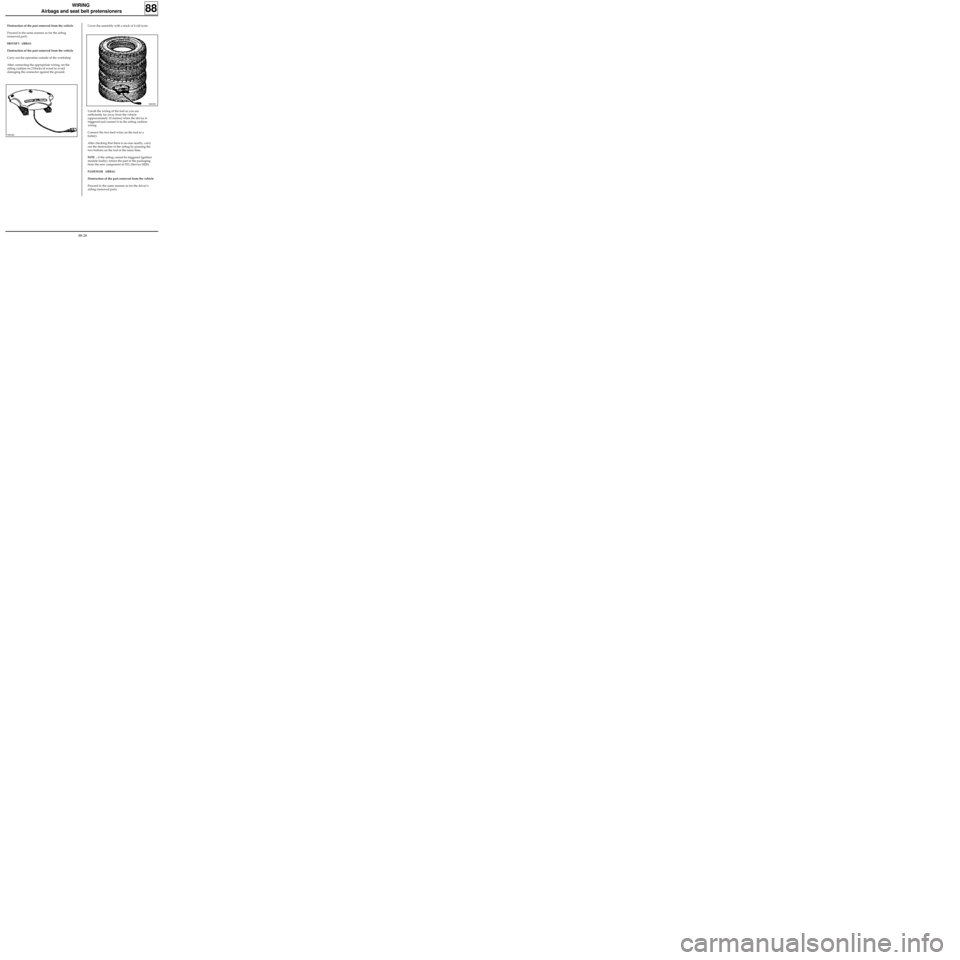

Page 83 of 83
WIRING
Airbags and seat belt pretensioners
88
96834S
Cover the assembly with a stack of 4 old tyres.
96835S
Unroll the wiring of the tool so you are
sufficiently far away from the vehicle
(approximately 10 metres) when the device is
triggered and connect it to the airbag cushion
wiring.
Connect the two feed wires on the tool to a
battery.
After checking that there is no-one nearby, carry
out the destruction of the airbag by pressing the
two buttons on the tool at the same time.
NOTE : if the airbag cannot be triggered (ignition
module faulty), return the part in the packaging
from the new component to ITG (Service 0428).
PASSENGER AIRBAG
Destruction of the part removed from the vehicle
Proceed in the same manner as for the driver’s
airbag (removed part).
Destruction of the part removed from the vehicle
Proceed in the same manner as for the airbag
(removed part).
DRIVER’S AIRBAG
Destruction of the part removed from the vehicle
Carry out the operation outside of the workshop.
After connecting the appropriate wiring, set the
airbag cushion on 2 blocks of wood to avoid
damaging the connector against the ground.
88-28
