RENAULT KANGOO 1997 KC / 1.G Foult Finding - Injection Owner's Manual

DPCF01 1.0
LUCAS DIESEL INJECTION
Fault finding - Interpretation of XR25 bargraphs13
AFTER REPAIRErase the computer memory (G0**), switch the ignition off, then carry out a road
test.
Finish the operation by checking using the XR25.
1.dEF
This fault indicates that the advance corrector is seized, the injection pump has been incorrectly set or
there is a fuel supply fault.
It is taken into account when the advance noted by the needle lift sensor differs by more than 5° from the
advance value requested by the computer.
NOTE : If there is a fault where the advance corrector is seized, there will be a characteristic noise when
the ignition is switched on (irregular clicking of the corrector).
The fault is present if the bargraph is illuminated when the engine is
running.NOTES
6
CONT
- Check the condition of the fuel supply to the pump and the injectors (filter blocked, pipe kinked, air
leak, ...).
Check the type of diesel fuel used in extreme cold weather (a "summer " type diesel fuel may cause
this fault at -15 °C).
- Check the pump timing and check the tightness of the pump pulley.
- If the fuel supply and the pump timing are correct, replace the advance corrector.
13-17

DPCF01 1.0
LUCAS DIESEL INJECTION
Fault finding - Interpretation of XR25 bargraphs13
AFTER REPAIRErase the computer memory (G0**), switch the ignition off, then carry out a road
test.
Finish the operation by checking using the XR25.
Bargraph 6 RH illuminated (co.0) or flashing (cc.1)
Fast idle solenoid valve circuit
XR25 aid:*26 :co.0 : Open circuit or short circuit to earth
cc.1 : Short circuit to 12 volts
6
Use bornier Elé. 1332 for any operations on the computer connector.NOTES
Fiche n° 60 1/2
co.0None NOTES
If the fault persists after these tests, replace the fast idle solenoid valve.
If the "fast idle solenoid valve circuit" fault reappears, replace the computer (consult the "Aid" section for
this operation).
cc.1
Measure the resistance of the fast idle solenoid valve at its connector. Replace the fast idle solenoid valve
if the resistance is not approximately 45 ohms.
Ensure insulation from +12 volts of the connection between track 16 on the computer connector and
track 1 on the fast idle solenoid valve connector.
Even if present at the moment of testing, this fault is still declared
by a flashing BG 6RH side. To confirm its presence and the necessity
of following the fault finding below, erase the computer memory
then start command mode G16*.
The fault is present if the bargraph flashes again.
NOTES
If the fault persists after these tests, replace the fast idle solenoid valve.
If the "fast idle solenoid valve circuit" fault reappears, replace the computer (consult the "Aid" section for
this operation).
Measure the resistance of the fast idle solenoid valve at its connector. Replace the fast idle solenoid valve
if the resistance is not approximately 45 ohms.
Ensure continuity of the connection between track 16 on the computer connector and track 1 on the fast
idle solenoid valve connector.
Ensure the presence of + after ignition feed on track 2 on the fast idle solenoid valve connector, wiring side.
Ensure the insulation from earth of the connection between track 16 on the computer connector and track 1
on the fast idle solenoid valve connector.
Test the connections on the 2 connectors.
13-18

DPCF01 1.0
LUCAS DIESEL INJECTION
Fault finding - Interpretation of XR25 bargraphs13
AFTER REPAIRErase the computer memory (G0**), switch the ignition off, then carry out a road
test.
Finish the operation by checking using the XR25.
Bargraph 7 RH illuminated (co.0) or flashing (cc.1)
EGR solenoid valve circuit
XR25 aid:*27 :co.0 : Open circuit or short circuit to earth
cc.1 : Short circuit to 12 volts
7
Use bornier Elé. 1332 for any operations on the computer connector.NOTES
Fiche n° 60 1/2
co.0
Measure the resistance of the EGR solenoid valve at its connector. Replace the EGR solenoid valve if the
resistance is not approximately 45 ohms.
Ensure continuity of the connection between track 5 on the computer connector and track 1 of the EGR
solenoid valve connector.
Ensure the presence of + after ignition feed on track 2 of the EGR solenoid valve connector, wiring side.
Ensure the insulation from earth of the connection between track 5 on the computer connector and track 1
of the EGR solenoid valve connector.
Test the connections on the 2 connectors.
None NOTES
If the fault persists after these tests, replace the EGR solenoid valve.
If the "EGR solenoid valve circuit" fault reappears, replace the computer (consult the "Aid" section for this
operation).
cc.1
Measure the resistance of the EGR solenoid valve at its connector. Replace the EGR solenoid valve if the
resistance is not approximately 45 ohms.
Ensure insulation in relation to +12 volts of the connection between track 5 on the computer connector and
track 2 of the EGR solenoid valve connector.
Even if present at the moment of testing, this fault is still declared
by a flashing BG 7RH side. To confirm its presence and the necessity
of following the fault finding below, start the engine.
The fault is present if the bargraph illuminates when the engine is
running.
NOTES
If the fault persists after these tests, replace the EGR solenoid valve.
If the "EGR solenoid valve circuit" fault reappears, replace the computer (consult the "Aid" section for this
operation).
13-19

DPCF01 1.0
LUCAS DIESEL INJECTION
Fault finding - Interpretation of XR25 bargraphs13
AFTER REPAIRErase the computer memory (G0**), switch the ignition off, then carry out a road
test.
Finish the operation by checking using the XR25.
Bargraph 8 LH illuminated (co.0) or flashing (cc.1)
Preheating relay N° 1 control circuit
XR25 aid:*08 :co.0 : Open circuit or short circuit to earth
cc.1 : Short circuit to 12 volts
8
Use bornier Elé. 1332 for any operations on the computer connector.NOTES
co.0
Ensure the continuity and insulation in relation to earth of the connection between track 14 on the
computer connector and track B1 on the relay unit connector.
Ensure the presence of + after ignition feed on track A1 on the relay unit connector.
Test the connections on the 2 connectors.
None NOTES
If the fault persists after these tests, replace the relay unit.
If the "preheating relay No. 1 control circuit" fault reappears, replace the computer (consult the "Aid"
section for this operation).
cc.1
Ensure insulation in relation to 12 volts of the connection between track 14 on the computer connector
and track B1 on the relay unit connector.
Test the connections on the 2 connectors.
Even if present at the moment of testing, this fault is still declared
by a flashing BG 8LH side. To confirm its presence and the necessity
of following the fault finding below, erase the computer memory
then start command mode G10*1*.
The fault is present if the bargraph flashes again.
NOTES
If the fault persists after these tests, replace the relay unit.
If the "preheating relay No. 1 control circuit" fault reappears, replace the computer (consult the "Aid"
section for this operation).
Fiche n° 60 1/2
13-20

DPCF01 1.0
LUCAS DIESEL INJECTION
Fault finding - Interpretation of XR25 bargraphs13
AFTER REPAIRErase the computer memory (G0**), switch the ignition off, then carry out a road
test.
Finish the operation by checking using the XR25.
Bargraph 9 RH illuminated (co.0) or flashing (cc.1)
PAS pump assembly relay control circuit
XR25 aid:*29 :co.0 : Open circuit or short circuit to earth
cc.1 : Short circuit to 12 volts
9
Use bornier Elé. 1332 for any operations on the computer connector.NOTES
co.0
Measure the resistance of the PAS pump assembly relay coil (position C on the engine connection unit).
Replace the relay if its resistance is not approximately 65 ohms.
Ensure the continuity and insulation from earth of the connection between track 20 on the computer
connector and terminal 2 on the pump assembly relay mounting.
Ensure the presence of + after ignition feed at terminal 1 of the pump assembly relay mounting.
Check the connections on the computer connector and the relay mounting.
None NOTES
If the fault persists after these tests, replace the PAS pump assembly relay.
If the "PAS pump assembly relay control circuit" fault reappears, replace the injection computer (consult
the "Aid" section for this operation).
cc.1
Measure the resistance of the PAS pump assembly relay coil (position C on the engine connection unit).
Replace the relay if its resistance is not approximately 65 ohms.
Ensure the insulation from + 12 Volts of the connection between track 20 of the computer connector
and terminal 2 on the pump assembly relay mounting.
Even if present at the moment of testing, this fault is still declared
by a flashing BG 9RH side. To confirm its presence and the necessity
of following the fault finding below, erase the computer memory
then start command mode G36*.
The fault is present if the bargraph flashes again.
NOTES
If the fault persists after these tests, replace the PAS pump assembly relay.
If the "PAS pump assembly relay control circuit" fault reappears, replace the injection computer (consult
the "Aid" section for this operation).
Fiche n° 60 1/2
13-21

DPCF01 1.0
LUCAS DIESEL INJECTION
Fault finding - Interpretation of XR25 bargraphs13
AFTER REPAIRErase the computer memory (G0**), switch the ignition off, then carry out a road
test.
Finish the operation by checking using the XR25.
Bargraph 10 LH flashing
Fault warning light circuit
XR25 aid:*10 : cc.1 : Short circuit to 12 volts
10
Even if present at the moment of testing, this fault is still declared by a flashing
BG 10LH side. To confirm its presence and the necessity of following the fault fin-
ding below, erase the computer memory then start command mode G21*1*.
The fault is present if the bargraph flashes again.
Use bornier Elé. 1332 for any operations on the computer connector.
NOTES
Fiche n° 60 1/2
cc.1
Ensure insulation in relation to 12 volts of the connection between track 18 of the computer connector
and the instrument panel warning light (track 6 on connector MA).
Test at the warning light bulb (bulb in short circuit).
None NOTES
13-22

DPCF01 1.0
LUCAS DIESEL INJECTION
Fault finding - Interpretation of XR25 bargraphs13
AFTER REPAIRErase the computer memory (G0**), switch the ignition off, then carry out a road
test.
Finish the operation by checking using the XR25.
Bargraph 10 RH illuminated (Co.0) or flashing (cc.1)
Preheating warning light circuit
XR25 aid:*30 :cc.0 : Open circuit or short circuit to earth
cc.1 : Short circuit to 12 volts
10Fiche n° 60 1/2
co.0
Check the condition of the preheating warning light bulb then the presence of +after ignition feed at
the warning light.
Ensure the continuity and insulation in relation to earth of the connection between track 9 of the
computer connector and the instrument panel preheating warning light (track 5 on CY connector).
Test the connections on the computer connector.
None NOTES
cc.1
Ensure insulation in relation to 12 volts of the connection between track 9 of the computer connector
and the instrument panel preheating warning light (track 5 on connector CY).
Test at the preheating warning light bulb (bulb in short circuit).
Use bornier Elé. 1332 for any operations on the computer connector.NOTES
Even if present at the moment of testing, this fault is still declared
by a flashing BG 10RH side. To confirm its presence and the necessity
of following the fault finding below, erase the computer memory
then start command mode G21*2*.
The fault is present if the bargraph flashes again.
NOTES
13-23

DPCF01 1.0
LUCAS DIESEL INJECTION
Fault finding - Interpretation of XR25 bargraphs13
AFTER REPAIRErase the computer memory (G0**), switch the ignition off, then carry out a road
test.
Finish the operation by checking using the XR25.
Bargraph 12 LH illuminated
Battery voltage
XR25 aid:*12 :1.dEF : Battery voltage low
2.dEF : Battery voltage too high
12
Carry out a complete check of the charging circuit using the Optima 5800 dia-
gnostic station.NOTES
Carry out the operations required to ensure correct voltage feed to the computer:
8 volts < correct voltage< 16 volts.
- Check the battery charge.
- Check the charging circuit.
- Check the tightness and condition of the battery terminals.
- Check the computer earth.
Ensure the presence of + after ignition feed on track 1 of the computer connector.
Fiche n° 60 1/2
13-24

DPCF01 1.0
LUCAS DIESEL INJECTION
Fault finding - Interpretation of XR25 bargraphs13
AFTER REPAIRErase the computer memory (G0**), switch the ignition off, then carry out a road
test.
Finish the operation by checking using the XR25.
Bargraph 12 RH illuminated
Full load or no load not programmed12
None NOTES
Programme the full load position of the accelerator pedal using command G31* (do not adjust the load
lever directly).
Enter code G31* on the XR25 (engine speed zero).
- Press the accelerator pedal when the display flashes "PF".
The display then shows "bon", "Fin" then "6/7.dIE" when the procedure has been completed correct-
ly. Bargraph 12 RH side must be extinguished.
- Switch off the ignition.
Fiche n° 60 1/2
13-25

DPCF01 1.0

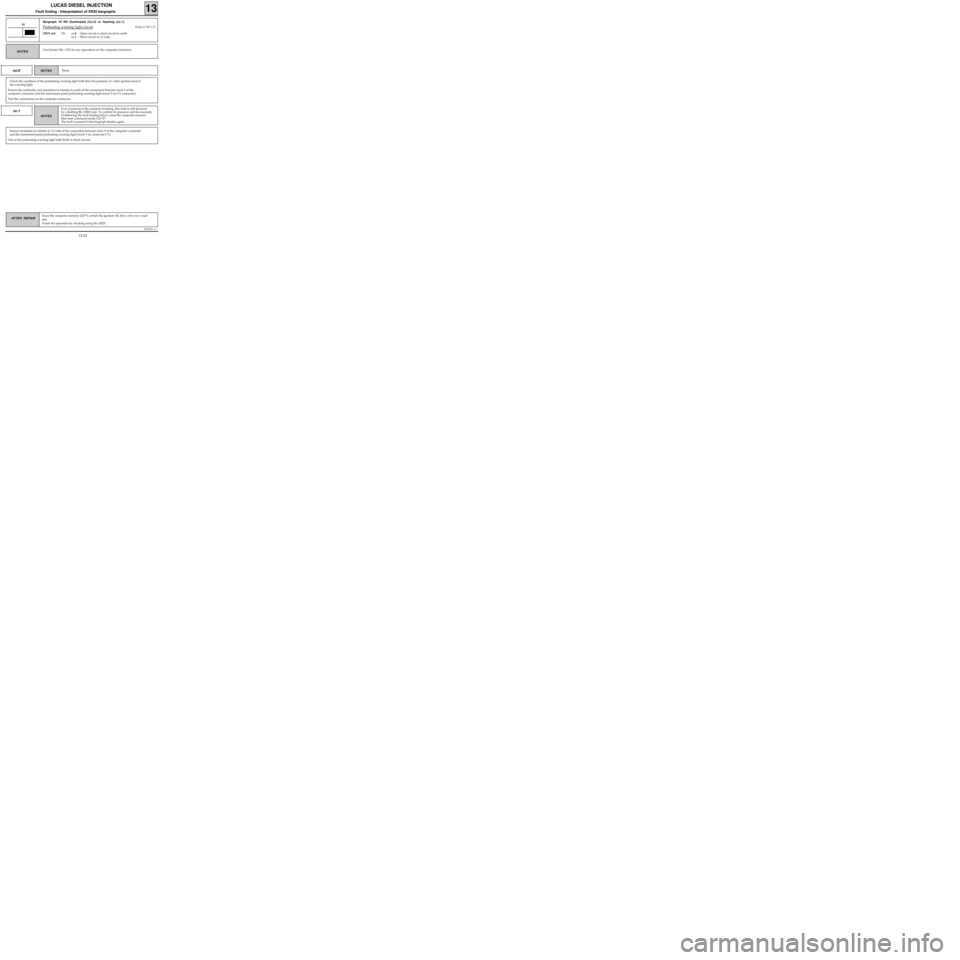

LUCAS DIESEL INJECTION
Fault finding - Interpretation of XR25 bargraphs13
AFTER REPAIRErase the computer memory (G0**), switch the ignition off, then carry out a road
test.
Finish the operation by checking using the XR25.
Bargraph 13 LH flashing (cc.1)
Air conditioning cut out information circuit
XR25 aid:*13 :cc.1 : Short circuit to 12 volts
13
None NOTES
Fiche n° 60 1/2
cc.1
Ensure insulation in relation to 12 volts of the connection between track 19 on the computer connector
and track 18 on the air conditioning computer connector.
Test the connections on the 2 connectors (+ intermediate connection engine / dashboard).
Even if present at the moment of testing, this fault is still declared
by a flashing BG 13LH side. To confirm its presence and the necessity
of following the fault finding below, erase the computer memory
then start the engine. The fault is present if the bargraph flashes
when the engine is running.
NOTES
If the fault persists after these tests, replace the air conditioning control module.
If the "air conditioning cut out information "fault reappears, replace the diesel injection computer (consult
the "Aid" section for this operation).
13-26
