RENAULT KANGOO 2013 X61 / 2.G Diesel DCM 1.2 Injection Workshop Manual

13B-201V1 MR-376-X76-13B000$160.mif
DIESEL INJECTION
Fault finding – Tests13B
DCM 1.2 Injection
Program no.: 4C
Vdiag No.: 08
TEST 11
CONTINUED
High pressure circuit check
Note:
Depending on the vehicle type, the best visual access will be either
from above or from below.
Visually inspect the condition of the following components:
– the compressor outlet pipe to the turbocharging air cooler (the
turbocharging air cooler does not exist for all engines),
– outlet pipe of the turbocharging air cooler to the inlet manifold,
– inlet manifold,
– temperature and pressure sensors.
Is one of these components incorrect (disconnected, cut, bent,
pierced or kinked pipes)?Replace the faulty parts
(see MR 388 (Logan/
Sandero), MR 451
(Duster), MR 423 (Thalia
2/Symbol 2) or MR 374
(Kangoo VLL),
Mechanical, 12B,
Turbocharging). Exhaust system check
– Visually inspect the condition of the following engine sections:
– from the exhaust manifold circuit to the turbocharger turbine,
– from the turbine outlet pipe to the end of the exhaust pipe,
– from the inlet manifold to the EGR valve
– check that the temperature and pressure sensors are connected.
Do some of these components have black or white marks on
them?
Run TEST 10 Turbocharger solenoid valve check.
A
YES
NO
YES
NO

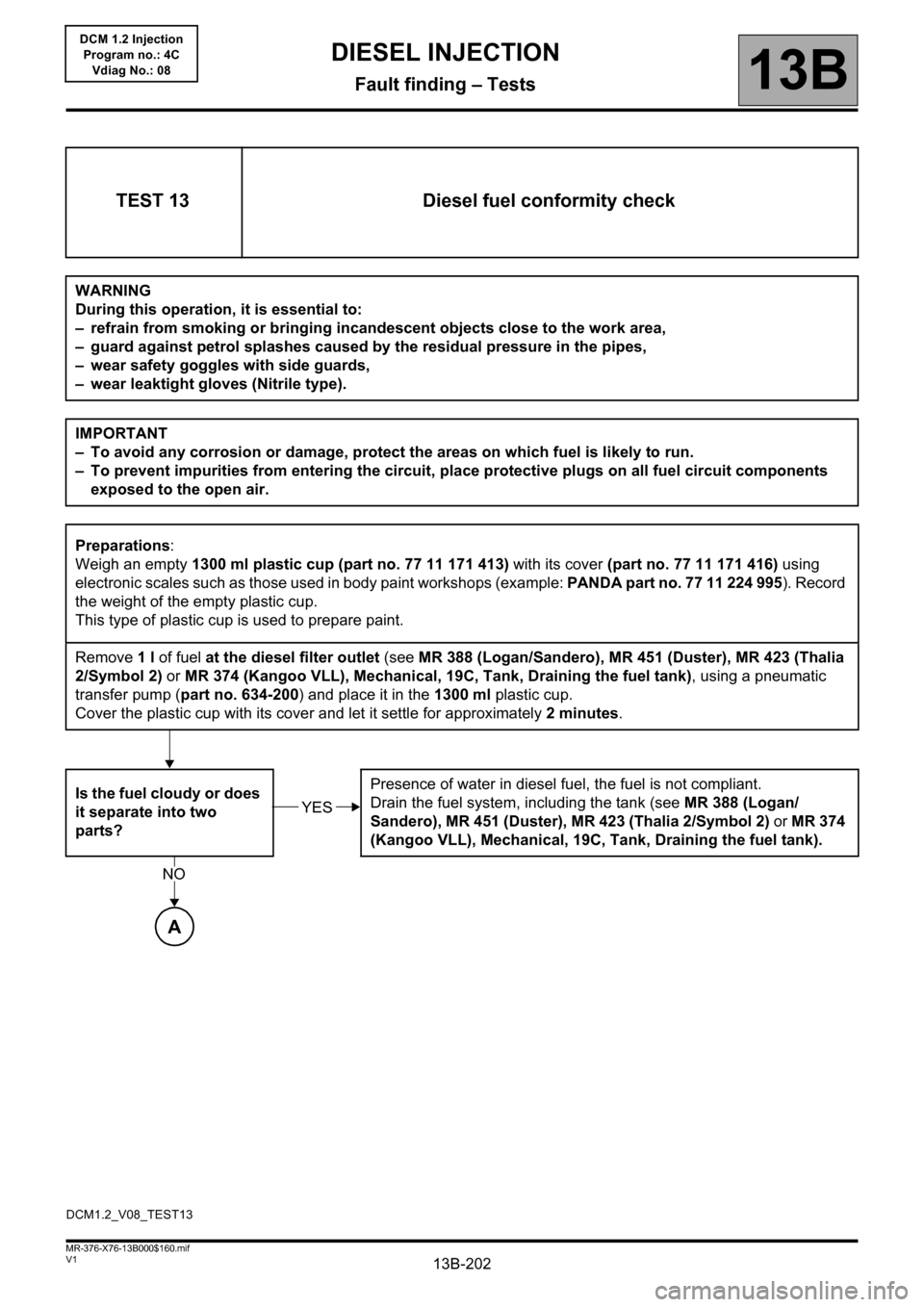

13B-202V1 MR-376-X76-13B000$160.mif
DIESEL INJECTION
Fault finding – Tests13B
DCM 1.2 Injection
Program no.: 4C
Vdiag No.: 08
TEST 13 Diesel fuel conformity check
WARNING
During this operation, it is essential to:
– refrain from smoking or bringing incandescent objects close to the work area,
– guard against petrol splashes caused by the residual pressure in the pipes,
– wear safety goggles with side guards,
– wear leaktight gloves (Nitrile type).
IMPORTANT
– To avoid any corrosion or damage, protect the areas on which fuel is likely to run.
– To prevent impurities from entering the circuit, place protective plugs on all fuel circuit components
exposed to the open air.
Preparations:
Weigh an empty 1300 ml plastic cup (part no. 77 11 171 413) with its cover (part no. 77 11 171 416) using
electronic scales such as those used in body paint workshops (example: PANDA part no. 77 11 224 995). Record
the weight of the empty plastic cup.
This type of plastic cup is used to prepare paint.
Remove 1 l of fuel at the diesel filter outlet (see MR 388 (Logan/Sandero), MR 451 (Duster), MR 423 (Thalia
2/Symbol 2) or MR 374 (Kangoo VLL), Mechanical, 19C, Tank, Draining the fuel tank), using a pneumatic
transfer pump (part no. 634-200) and place it in the 1300 ml plastic cup.
Cover the plastic cup with its cover and let it settle for approximately 2 minutes.
Is the fuel cloudy or does
it separate into two
parts?Presence of water in diesel fuel, the fuel is not compliant.
Drain the fuel system, including the tank (see MR 388 (Logan/
Sandero), MR 451 (Duster), MR 423 (Thalia 2/Symbol 2) or MR 374
(Kangoo VLL), Mechanical, 19C, Tank, Draining the fuel tank).
YES
A
NO
DCM1.2_V08_TEST13

13B-203V1 MR-376-X76-13B000$160.mif
DIESEL INJECTION
Fault finding – Tests13B
DCM 1.2 Injection
Program no.: 4C
Vdiag No.: 08
TEST 13
CONTINUED 1
Weigh the diesel fuel and note the fuel weight after subtracting the weight of the empty plastic cup and its cover.
Does the fuel weight fall between the minimum and maximum weights given in the table below?
Calculated weight (g.)
Fuel temperature (°C)
Min. weight Max. weight
821 846 13
821 846 14
820 845 15
819 844 16
819 844 17
818 843 18
817 842 19
816 841 20
816 841 21
815 840 22
814 839 23
814 839 24
813 838 25
Check the fuel temperature by immersing a thermometer in the plastic cup.
A
YESNO
BC

13B-204V1 MR-376-X76-13B000$160.mif
DIESEL INJECTION
Fault finding – Tests13B
DCM 1.2 Injection
Program no.: 4C
Vdiag No.: 08
TEST 13
CONTINUED 2
End of TEST 13The fuel is not correct.
If the fuel weight is less than the minimum value then there is petrol in the
diesel fuel.
If the fuel weight is greater than the minimum value then there is oil in the
diesel fuel.
Drain the fuel system, including the tank (see MR 388 (Logan/Sandero),
MR 451 (Duster), MR 423 (Thalia 2/Symbol 2) or MR 374 (Kangoo
VLL), Mechanical, 19C, Tank, Draining the fuel tank).
Note:
If the weight measured reaches the limit values, the measurement can be performed with a 2230 ml plastic cup
(part no. 77 11 171 414) and its cover (part no. 77 11 171 417):
– Carry out a quick test drive in order to mix the fuel, then remove 2 l of fuel.
– Perform the test again and check the results by multiplying the limit values by 2.
Contact the Techline if you have doubts or problems with the customer.
BC
YESNO
