air conditioning ..................................... (up to the end of the DU)
ventilation ............................................. (up to the end of the DU) 3.7
ENG_UD7290_1
Air conditionné (X76 - Renault)
ENG_NU_854-2_X76LL_Renault_3
Air conditioning
yAdjusting the quantity
of air
Turn control C to the desired position.
Turning the control to the right increases
the amount of air supplied.
If you wish to close the inlet fully and
s
top the function, move control C to 0
and control
D to 0.
t emperature of air entering
Turn button B.
Turning the control to the right increases
the temperature.
Controls
A Air distribution control.
B
Air temperature adjustment con-
trol.
C
Air flow control.
D
Heating and ventilation controls.
i
nformation and advice for use:
Refer to information on “Air condition-
ing: information and advice on use”.
HeA tinG - Air COnDitiOninG (1/4)
ABCD
Prolonged use of this position can
lead to condensation forming on the
side windows and windscreen and
problems due to the use of non-re-
newed air in the passenger com-
partment.
We therefore advise you to return to
normal mode (outside air) as soon
as the air recirculation function is no
longer
required, by turning control D
again.
Page 82 of 173
3.8
ENG_UD7290_1
Air conditionné (X76 - Renault)
ENG_NU_854-2_X76LL_Renault_3
Jaune NoirNoir texte
iThe air flow is distributed be-
tween the air vents, the wind-
screen demisting vents and the foot
wells.
WFor more effective demist-
ing, close the central dash-
board vents and direct the side air
vents towards the side windows.
All the air flow is then directed to the
windscreen demisting vents and the
front side windows.
To obtain maximum efficiency, position
control
C to the right.
Distribution of air in the
passenger compartment
Turn control A.
JAll the air flow is directed to
the dashboard vents.
HeA tinG - Air COnDitiOninG (2/4)
FThe air flow is distributed be-
tween the dashboard vents
and the front and rear foot wells.
Close the dashboard vents to direct all
the air to the foot wells.
AC
Page 83 of 173
JauneNoirNoir texte
3.9
ENG_UD7290_1
Air conditionné (X76 - Renault)
ENG_NU_854-2_X76LL_Renault_3
HeA tinG - Air COnDitiOninG (3/4)
Position 0
The air conditioning is not operating.
In this position, ventilation is the same
as for a vehicle without air condition-
ing.
Ñthe air conditioning is in
normal operating mode.
Air is taken from outside the vehicle,
providing a continuous supply of fresh
air.
if no cold air is produced
Check that the controls are set cor-
rectly and that the fuses are sound. If
not, stop the heating and air condition-
ing
system (control D at 0) and consult
an approved Dealer.Air conditioning controls
Control D switches the air conditioning
on or off.
Switching on is only possible if the air
flow control
C is not at 0.
Using the air conditioning system ena-
bles you to:
–
lowering the temperature inside the
passenger compartment;
–
e l i m i n a t e c o n d e n s a t i o n m o r e
quickly.
In very hot weather or when the vehicle
has been parked in the sun, open the
doors for a few moments to let the hot
air escape before starting the engine.
CD
Page 84 of 173
3.10
ENG_UD7290_1
Air conditionné (X76 - Renault)
ENG_NU_854-2_X76LL_Renault_3
Prolonged use of the air recirculation
mode may cause the windows to mist
up or lead to odours, as the air is not
renewed.
It is therefore advisable to move con-
t
rol D to normal mode position
Ñ,
as soon as the desired temperature
is reached inside the passenger com-
partment or if isolation of the passen-
ger compartment from the outside is no
longer required.
BThe air conditioning is at max-
imum operation.
In this position, air is taken from the pas-
senger compartment and recirculated
without taking in air from the outside.
When the system is set in this position,
it allows you to lower the temperature
in the passenger compartment more
quickly and to isolate yourself from the
external atmosphere (driving in polluted
areas, etc.).
HeA tinG - Air COnDitiOninG (4/4)
D
Do not open the refriger-
ant fluid circuit. The fluid
may damage eyes or skin.
Page 85 of 173
air conditioning ..................................... (up to the end of the DU)
heating system ..................................... (up to the end of the DU)
air conditioning ..................................... (up to the end of the DU)
temperature regulation ......................... (up to the end of the DU)
ventilation ............................................. (up to the end of the DU)
heating and air conditioning system ...................... (current page) 3.11
ENG_UD11524_2
Air conditionné : informations et conseils d’utilisation (X77 ph2\
- Renault)
ENG_NU_854-2_X76LL_Renault_3

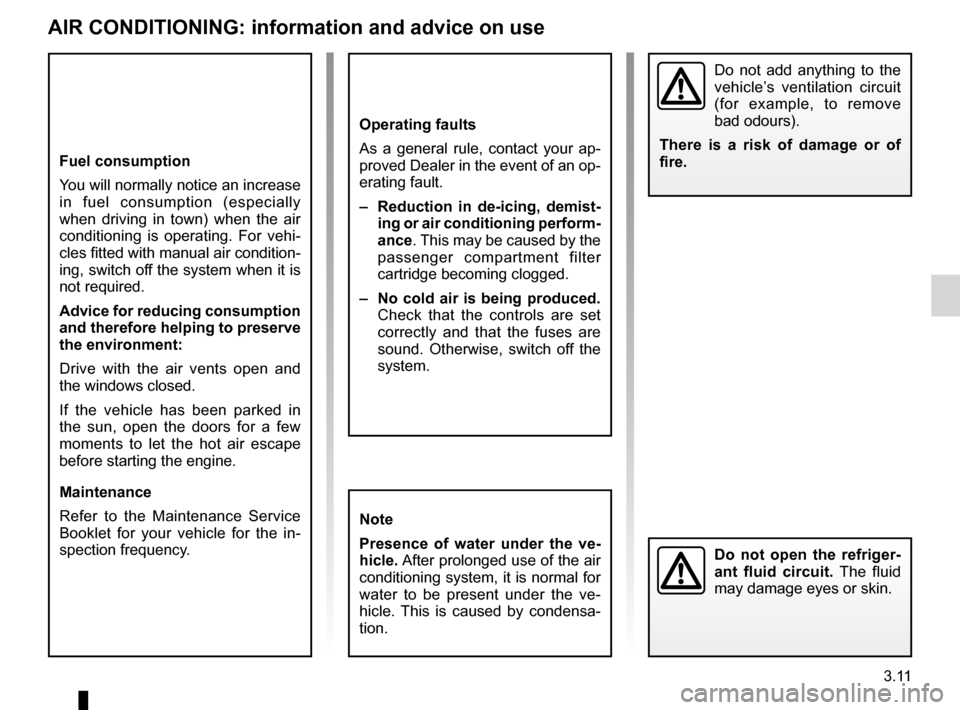

Air COnDitiOninG: information and advice on use
Fuel consumption
You will normally notice an increase
in fuel consumption (especially
when driving in town) when the air
conditioning is operating. For vehi-
cles fitted with manual air condition-
ing, switch off the system when it is
not required.
Advice for reducing consumption
and therefore helping to preserve
the environment:
Drive with the air vents open and
the windows closed.
If the vehicle has been parked in
the sun, open the doors for a few
moments to let the hot air escape
before starting the engine.
Maintenance
Refer to the Maintenance Service
Booklet for your vehicle for the in-
spection frequency.
Do not open the refriger-
ant fluid circuit. The fluid
may damage eyes or skin.
note
Presence of water under the ve-
hicle. After prolonged use of the air
conditioning system, it is normal for
water to be present under the ve-
hicle. This is caused by condensa-
tion.
Operating faults
As a general rule, contact your ap-
proved Dealer in the event of an op-
erating fault.
–
r eduction in de-icing, demist -
ing or air conditioning perform-
ance. This may be caused by the
passenger compartment filter
cartridge becoming clogged.
–
no cold air is being produced.
Check that the controls are set
correctly and that the fuses are
sound. Otherwise, switch off the
system.
Do not add anything to the
vehicle’s ventilation circuit
(for example, to remove
bad odours).
t h
ere is a risk of damage or of
fire.
Page 86 of 173
lighting:interior ............................................. (up to the end of the DU)
courtesy light ........................................ (up to the end of the DU)
map reading lights ................................ (up to the end of the DU)
3.12
ENG_UD7292_1
Eclairage intérieur (X76 - Renault)
ENG_NU_854-2_X76LL_Renault_3
Interior lighting
special features
Depending on the vehicle, remote un-
locking of the doors triggers timed light-
ing of the passenger compartment. If
one of the front or rear doors is opened,
the period for which the light is switched
on will start again.
Then the courtesy light and the luggage
compartment light dim and go out.
The lighting timer will cut out for vari-
ous reasons:
–
if a door has been open for 15 min -
utes;
–
if all the doors have been closed for
15 seconds:
–
when the ignition is switched on.Courtesy light 5
To switch on or off move switch 6 to the
desired side.
Light
7
By tilting the switch you can obtain:
–
continuous lighting of the passenger
compartment;
–
lighting controlled by one of the
doors.
The light only goes out when the door
concerned is correctly closed.
–
forced extinguishing.
Courtesy light 1
To switch on or off move switch 2 to the
desired side.
Light
3
Pressing switch
4 gives:
–
continuous lighting of the passenger
compartment;
–
lighting controlled by one of the
doors.
The light only goes out when the door
concerned is correctly closed.
–
forced extinguishing.
interiOr LiGHtinG
432
1
5
6
7
Page 87 of 173
courtesy mirrors .................................... (up to the end of the DU)
sun visor ............................................... (up to the end of the DU)
windscreen ........................................... (up to the end of the DU) 3.13
ENG_UD7293_1
Pare-soleil (X76 - Renault)
ENG_NU_854-2_X76LL_Renault_3
Sun visor/Mirror/Windscreen
Courtesy mirrors 2
special features on driver’s side
If the sun visor is fitted with a courtesy
mirror, it has a cover.
sun visor
Lower sun visor 1.
sun visOr/MirrOr/WinDsCreen
1
2
When driving, ensure the
courtesy mirror cover is
closed. Risk of injury.
Heat reflecting windscreen
This windscreen reflects the sun and
limits the infrared rays entering the pas-
senger compartment.
T
here are two areas 3 for affixing
passes to the windscreen (motorway
permits, car park season tickets, etc.).
23
Page 88 of 173
children .................................................................. (current page)
electric windows ................................... (up to the end of the DU)
child safety............................................................. (current page)
3.14
ENG_UD14027_2
Vitres (X76 - Renault)ENG_NU_854-2_X76LL_Renault_3
Jaune NoirNoir texte
Windows
Manual window winders
Turn handle 3.
Front electric windows
Driver’s side electric window
With the ignition on,
press switch 1
t
o lower the window or lift switch 1 to
raise it.
Passenger side electric window
With the ignition on ,
press switch 2
t
o lower the window or lift switch 2 to
raise it.
WinDOWs (1/2)
1
2
3
Driver’s responsibility
Never leave your vehi-
cle with the key inside and
never leave a child (or a
pet) unsupervised, even for a short
while.
They may pose a risk to themselves
or to others by starting the engine,
activating equipment such as the
electric windows or by locking the
doors. If any part of the body be-
comes trapped, reverse the direc-
tion of the window immediately by
pressing the relevant switch. Risk of
serious injury.
s
liding doors and windows.
Before moving them , ensure that
no passenger has part of their body
outside the window or door.
Page 89 of 173
side windows ........................................ (up to the end of the DU)
Jaune NoirNoir texte
3.15
ENG_UD14027_2
Vitres (X76 - Renault)ENG_NU_854-2_X76LL_Renault_3
Opening the sliding side
window
Press catches 6 and slide the window
open.
To lock it in an open or closed position,
p
ress button 5 and move the window
from the front to the rear until it latches
into position.
Opening the window on the
sliding side door
To half-open the window, turn handle 4
in the direction of the arrow then lock
it by pushing the handle to the right.
Make sure it is properly latched into po-
sition when it is closed.
WinDOWs (2/2)
4
5
66
Page 90 of 173
cigar lighter ........................................... (up to the end of the DU)
ashtrays ................................................ (up to the end of the DU)
3.16
ENG_UD14028_2
Cendriers - Allume-cigares (X76 - Renault)
ENG_NU_854-2_X76LL_Renault_3
Ashtrays/cigar lighter/accessories socket
Cigar lighter
With the ignition on, push in the cigar
lighter
1.
It will spring back with a click when it is
ready. Pull it out to use. After use, re-
place it without pushing it all the way
in.
AsHtrA ys/CiGAr LiGHter/ACCessOries sOCket
2
1
3
removable ashtray(depending on vehicle)
This is a removable ashtray which can
be placed in the cup holders
2.
Ashtray in rear panel
To empty the ashtray, lift cover 3 and
pull it up to release it from the armrest.
Accessories socket
You can use the cigar lighter socket 1.
It is designed for connecting acces-
sories with a maximum power rating
of 120 watts (voltage: 12V) which
have been approved by our Technical
Department.
Depending on the battery charge, the
accessories socket may stop working.
Only connect accessories
with a maximum power of
120 Watts.
Fire hazard.
