RENAULT KANGOO 2016 X61 / 2.G Owners Manual

3.17
ENG_UD14468_2
Rangements / Aménagements habitacle (X76 - Renault)
ENG_NU_854-2_X76LL_Renault_3
Passenger side storage
compartment
To open the glove box, lift catch 1.
1
Ensure that no hard, heavy
or pointed objects are
placed in the “open” storage
compartments in such a
way that they may fall onto passen-
gers during sudden turning, braking
or in the event of an accident.
Cup holder 2
Designed to accommodate cups, cans
or the ashtray.
Central storage
compartment
3
W h e n t u r n i n g c o r n e r s ,
accelerating or braking,
ensure that the recepta-
cle being held by the cup
holder is not dislodged.
There is a risk of injury if hot liquid
escapes.
2
3
P AssenGer COMPArtMent st OrAGe sPACe AnD FittinGs (1/3)

storage compartments .......................... (up to the end of the DU)
storage compartment............................................. (current page)
3.18
ENG_UD14468_2
Rangements / Aménagements habitacle (X76 - Renault)
ENG_NU_854-2_X76LL_Renault_3
Jaune NoirNoir texte
Nothing should be placed
on the floor area in front of
the driver as such objects
may slide under the pedal
during braking manoeuvres, thus
obstructing its use.
side panel storage
compartment
6
s

liding side door storage

compartment

5
Front door storage
compartment
4
P AssenGer COMPArtMent st OrAGe sPACe AnD FittinGs (2/3)
4
5
6
Ensure that no hard, heavy
or pointed objects are
placed in the “open” stor-
age compartments in such
a way that they may fall onto pas-
sengers during sudden turning or
braking.

JauneNoirNoir texte
3.19
ENG_UD14468_2
Rangements / Aménagements habitacle (X76 - Renault)
ENG_NU_854-2_X76LL_Renault_3
A rail 10 on the right-hand side, fitted
with
two rings 8, enables objects to be
secured in the luggage compartment
(refer to the information on “Transporting
objects in the luggage compartment”).
The rings can be slid along the rail. To
do

this, press button 9 and slide the ring
at the same time, then release it.
upper cab storage
compartment
7
7
11
A
Clothes hooks 11
Depending on the vehicle, hooks may
be
located in loading area A or on the
partitions above the passenger seat.
For safety reasons, these hooks may
only be used to hang clothes.
n o

te: the maximum permitted load is
4 kg.
8
10
9
P AssenGer COMPArtMent st OrAGe sPACe AnD FittinGs (3/3)

rear bench seat..................................... (up to the end of the DU)
rear seatsfunctions ......................................... (up to the end of the DU)
3.20
ENG_UD7301_1
Banquette arrière : fonctionnalité (X76 - Renault)
ENG_NU_854-2_X76LL_Renault_3
Jaune NoirNoir texte
Rear bench seat
We would advise you to move the front
seats forward slightly to make it easier
to fold the seatback with the headrests
in position.
Make sure the headrests are in the cor-
rect position when the seat is returned
to its upright position.
For the split bench seat and seatback,
place the headrests in the storage po-
sition, then fold back the smaller sec-
tion of the seatback first followed by the
larger section.
Lift the bench seat base forwards by
p

ulling the two rings 2 , one after the
other.
Fold the seat base and the seatback
into a vertical position.
t o fold down the bench seat
Move one of the two levers 1 on the
right or left-hand side of the bench seat
forwards.
For a single section bench seat and
seatback, arrange the central belt
flat on the seat base before folding the
seatback.
reAr BenCH seA t: functions (1/2)
1
2
For safety reasons, carry
out any adjustments when
the vehicle is not being
driven.
When moving the bench
seat, ensure that the seat
belt catches are correctly
locked in position.
When the bench seat has been put
back in place, make sure that it is
correctly locked and the seat belts
are correctly repositioned.
When moving the rear bench
seat, make sure the bench
seat anchorage points are
clean (they should be free
from grit, cloths etc.).
When refitting the seatback,
make sure it is correctly
locked.
If using seat covers, make
sure they do not prevent the seat-
back and seat base latches from
locking in. Ensure that the seat belts
and seat belt fasteners are correctly
positioned.
Reposition the headrests.

JauneNoirNoir texte
3.21
ENG_UD7301_1
Banquette arrière : fonctionnalité (X76 - Renault)
ENG_NU_854-2_X76LL_Renault_3
To maintain the rear bench seat in the
r
aised position, attach retainer 4 to
rod
3 of the passenger headrest.
t ransporting bulky objects
The small section may be folded down
completely and yet still leave space to
accommodate a maximum of two pas-
sengers on the large section.
Conversely, you can use the small sec-
tion to accommodate one passenger
providing that only the seatback of the
large section is folded down. The seat
belts are only guaranteed to operate
correctly when the seat base is latched
in position.
reAr BenCH seA t: functions (2/2)
3
4
For safety reasons, carry
out any adjustments when
the vehicle is not being
driven.

transporting objectsin the luggage compartment ........... (up to the end of the DU)
3.22
ENG_UD7302_1
Transports d objets dans le coffre (X76 - Renault)
ENG_NU_854-2_X76LL_Renault_3
Always position the objects trans-
ported so that the largest surface is
against:
–

The rear bench seatbacks, for
normal loads.
– The folded bench seat, for maxi-
mum loads.
Always position the heaviest items di-
rectly on the floor.

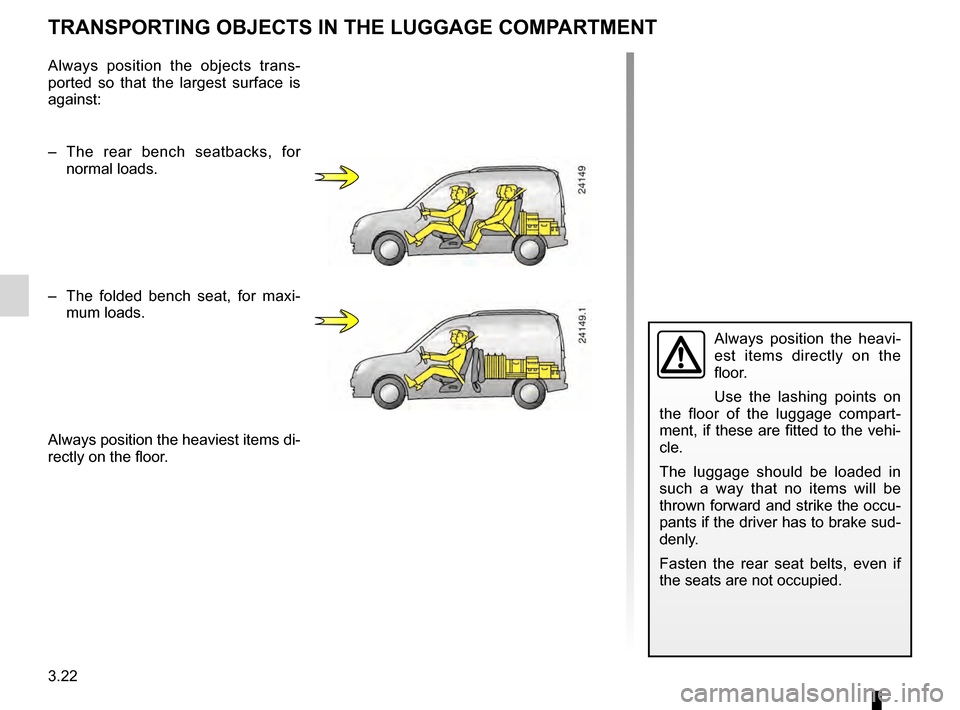

Transporting objects in the luggage compartment
trAnsPOrtinG OBjeCts in tHe LuGGAGe COMPArtMent
Always position the heavi-
est items directly on the
floor.
Use the lashing points on
the floor of the luggage compart-
ment, if these are fitted to the vehi-
cle.
The luggage should be loaded in
such a way that no items will be
thrown forward and strike the occu-
pants if the driver has to brake sud-
denly.
Fasten the rear seat belts, even if
the seats are not occupied.

luggage compartment cover ................. (up to the end of the DU) 3.23
ENG_UD7303_1
Cache-bagages (X76 - Renault)
ENG_NU_854-2_X76LL_Renault_3
The luggage compartment cover is
made up of two rigid sections.
It can be used in one of three ways:
A luggage cover in unfolded position.
Luggage cover
Do not place any objects,
especially heavy or solid ob-
jects on the luggage cover.
These may pose a risk to
the vehicle occupants if the driver
has to brake suddenly or if the vehi-
cle is involved in an accident.
C luggage cover removed.
To remove the luggage compartment
cover, place it in the semi-folded posi-
tion, take hold of the end and pull it to-
wards you.
B
luggage cover in semi-folded posi-
tion.
LuGGAGe COver
ABC

luggage retaining net ............................ (up to the end of the DU)
3.24
ENG_UD14906_2
Filet de retenue de bagages (X76 - Renault)
ENG_NU_854-2_X76LL_Renault_3
Luggage net
– lower section (behind the front seats,
rear bench seat raised): attach the
belts
2 in the holes 8 located on the
rear bench seat hinges;
Tighten the straps as shown previ-
ously.
Fitting the net
– Upper section: attach the hooks 7 to
the front or rear retractable mount-
ings
6 in the low position.
–
lower section (behind the rear bench
seat):

attach the belts 2 to the lash-
ing rings
5 on the floor;
P
ull on securing straps 3 to tighten
the

belts, and lift and lock retainers 4
to tighten fully.
Luggage net 1(depending on equipment level) can be
placed behind the front seats or behind
the rear bench seat.
no

te: when the net is placed behind
the rear bench seat, the unused front
retractable

mountings 6 should be kept
in the upper position so that passen-
gers do not strike their heads when get-
ting into or out of the vehicle or when
the vehicle is being driven.
LuGGAGe net
12
3
4
5
6
2
8
7

The luggage net must not
be used to retain or hold
objects.
Risk of injury.

4.1
ENG_UD14021_2
Sommaire 4 (X76 - Renault)
ENG_NU_854-2_X76LL_Renault_4
Section 4: Maintenance
Bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.2
Engine oil level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.3
general information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . 4.3
topping up/filling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . 4.5
Engine oil change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . 4.6
Level, filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.7
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.10
Bodywork maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . 4.1
1
Interior trim maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . 4.13

bonnet................................................... (up to the end of the DU)
maintenance:mechanical ...................................... (up to the end of the DU)
4.2
ENG_UD7306_1
Capot moteur (X76 - Renault)
ENG_NU_854-2_X76LL_Renault_4
Bonnet
Closing
Check that nothing has been left in the
engine compartment.
Release the stay and replace it in its
holder

2.
Lower the bonnet and release it when
it is approximately 20 cm from the
closed position. It will lock under its own
weight.
Opening
Pull control 1 towards you.
L
ift the bonnet, release stay 3 from its
holder

2 and, for your safety, it is very
important to fix it at
4.
BOnnet
1
2
3
4
The engine may be hot
when carrying out opera-
tions in close proximity. In
addition, the engine cooling
fan can come on at any moment.
Risk of injury.
In the event of an impact,
even slight, against the ra-
diator grille or bonnet, have
the bonnet catch checked
by an approved dealer as soon as
possible.
Make sure the bonnet is
properly locked.
