RENAULT SCENIC 2000 J64 / 1.G Technical Note 3426A Manual PDF Downloaded from www.Manualslib.com manuals search engine DIESEL EQUIPMENT
Thermal plunger
13
13-20
If the battery voltage is > 13.5 volts
if not then
Thermal plungers
not suppliedOne thermal plunger

Page 72 of 118

RENAULT SCENIC 2000 J64 / 1.G Technical Note 3426A Manual PDF Downloaded from www.Manualslib.com manuals search engine DIESEL EQUIPMENT
Low pressure pump (supercharging pump)
13
13-21
Low pressure pump (supercharging pump)
The supercharging pump is an electric p

Page 73 of 118

RENAULT SCENIC 2000 J64 / 1.G Technical Note 3426A Manual PDF Downloaded from www.Manualslib.com manuals search engine DIESEL EQUIPMENT
Fuel filter
13
13-22
Fuel filter
The fuel filter is located in the engine compartment. It is contained in an unremovable cartr

Page 74 of 118

RENAULT SCENIC 2000 J64 / 1.G Technical Note 3426A Manual PDF Downloaded from www.Manualslib.com manuals search engine DIESEL EQUIPMENT
High pressure pump
13
13-23
High pressure pump
IT IS PROHIBITED TO REMOVE THE INTERIOR OF
THE PUMP.
IMPORTANT: before any i

Page 75 of 118

RENAULT SCENIC 2000 J64 / 1.G Technical Note 3426A Manual PDF Downloaded from www.Manualslib.com manuals search engine DIESEL EQUIPMENT
High pressure pump
13
13-24

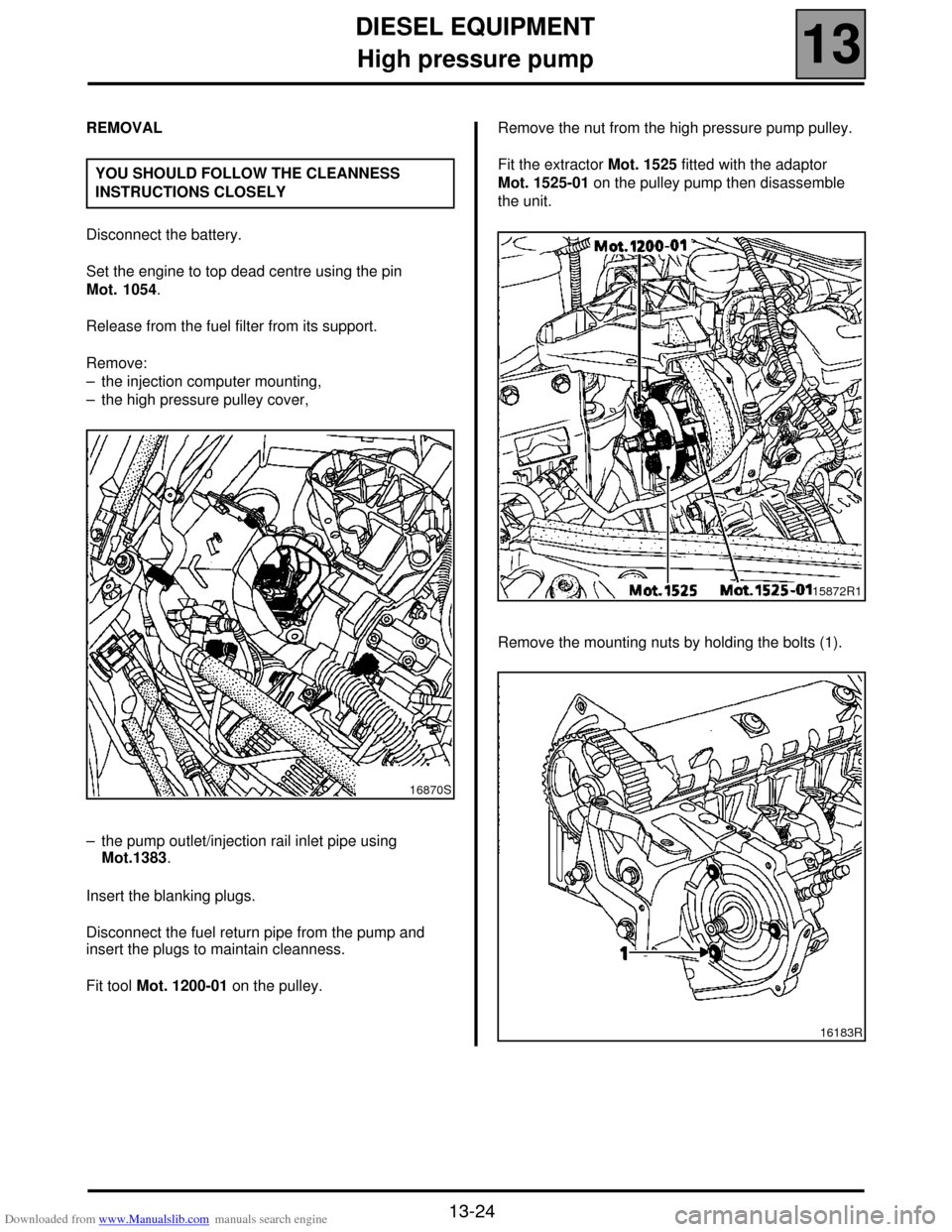

REMOVAL
Disconnect the battery.
Set the engine to top dead centre using the pin
Mot. 1054.
Releas

Page 76 of 118

RENAULT SCENIC 2000 J64 / 1.G Technical Note 3426A Manual PDF Downloaded from www.Manualslib.com manuals search engine DIESEL EQUIPMENT
High pressure pump
13
13-25
REFITTING
Refitting is the reverse of removal.
NOTE: be careful not to place the high pressure pip

Page 77 of 118

RENAULT SCENIC 2000 J64 / 1.G Technical Note 3426A Manual PDF Downloaded from www.Manualslib.com manuals search engine DIESEL EQUIPMENT
High pressure pump
13
13-26
Reprime the circuit:
– close the fuel cock (R),
– start the low pressure pump while switching

Page 78 of 118

RENAULT SCENIC 2000 J64 / 1.G Technical Note 3426A Manual PDF Downloaded from www.Manualslib.com manuals search engine DIESEL EQUIPMENT
Injector rail
13
13-27
Injector rail
IMPORTANT: before any intervention, connect the
after-sales diagnostic tool, query the i

Page 79 of 118

RENAULT SCENIC 2000 J64 / 1.G Technical Note 3426A Manual PDF Downloaded from www.Manualslib.com manuals search engine DIESEL EQUIPMENT
Injector rail
13
13-28
REMOVAL
Disconnect:
– the battery,
– the pressure sensor (1),
– the injectors,
– the cylinder m

Page 80 of 118

RENAULT SCENIC 2000 J64 / 1.G Technical Note 3426A Manual PDF Downloaded from www.Manualslib.com manuals search engine DIESEL EQUIPMENT
Injector rail
13
13-29
REFITTING
Position the injection rail and finger-tighten the mounting bolts (the rail should
be floati
