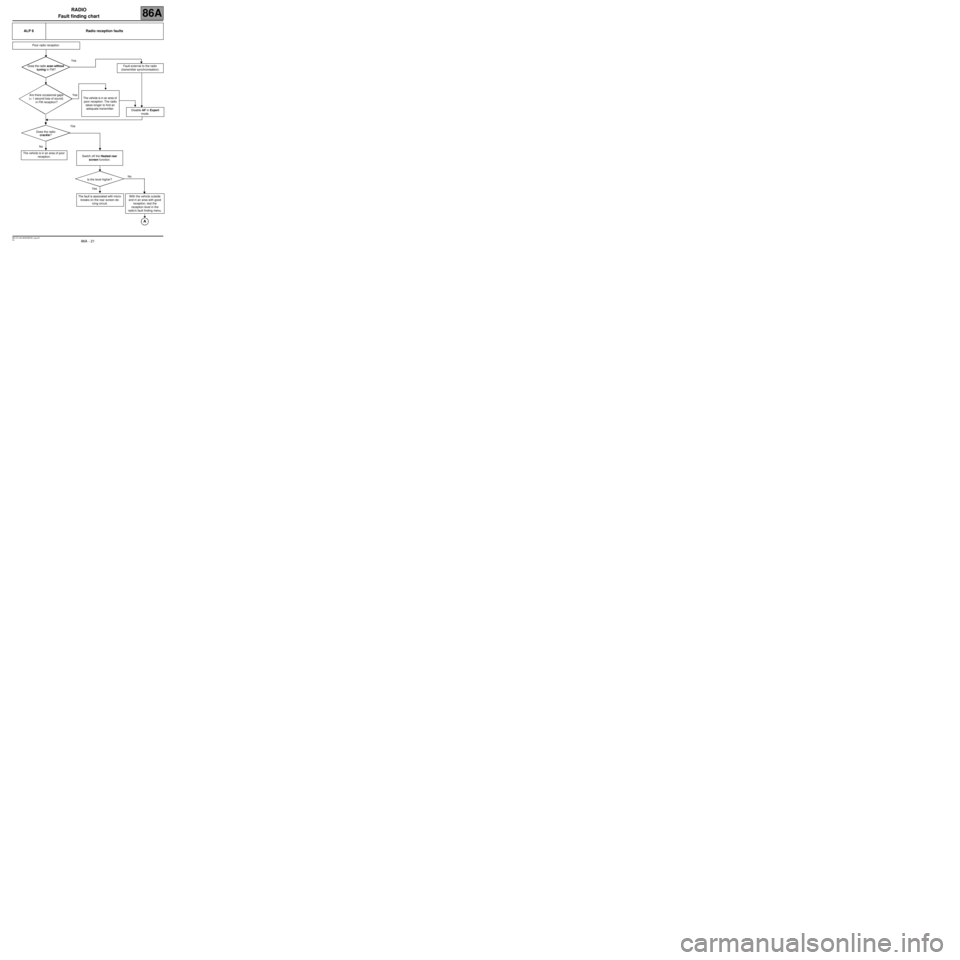

RADIO
Fault finding chart
86A
86A - 21V2 MR-372-J84-86A000$792_eng.mif
ALP 6 Radio reception faults
Poor radio reception.
Yes
Does the radio scan without
tuning in FM?Fault external to the radio
(transmitter synchronisation).
Are there occasional gaps
(< 1 second loss of sound)
in FM reception? Yes
The vehicle is in an area of
poor reception. The radio
takes longer to find an
adequate transmitter.
Disable AF in Expert
mode.
Yes
Does the radio
crackle?
No
The vehicle is in an area of poor
reception.Switch off the Heated rear
screen function.
Is the level higher?No
Yes
The fault is associated with micro-
breaks on the rear screen de-
icing circuit.With the vehicle outside
and in an area with good
reception, test the
reception level in the
radio's fault finding menu.
Page 22 of 34

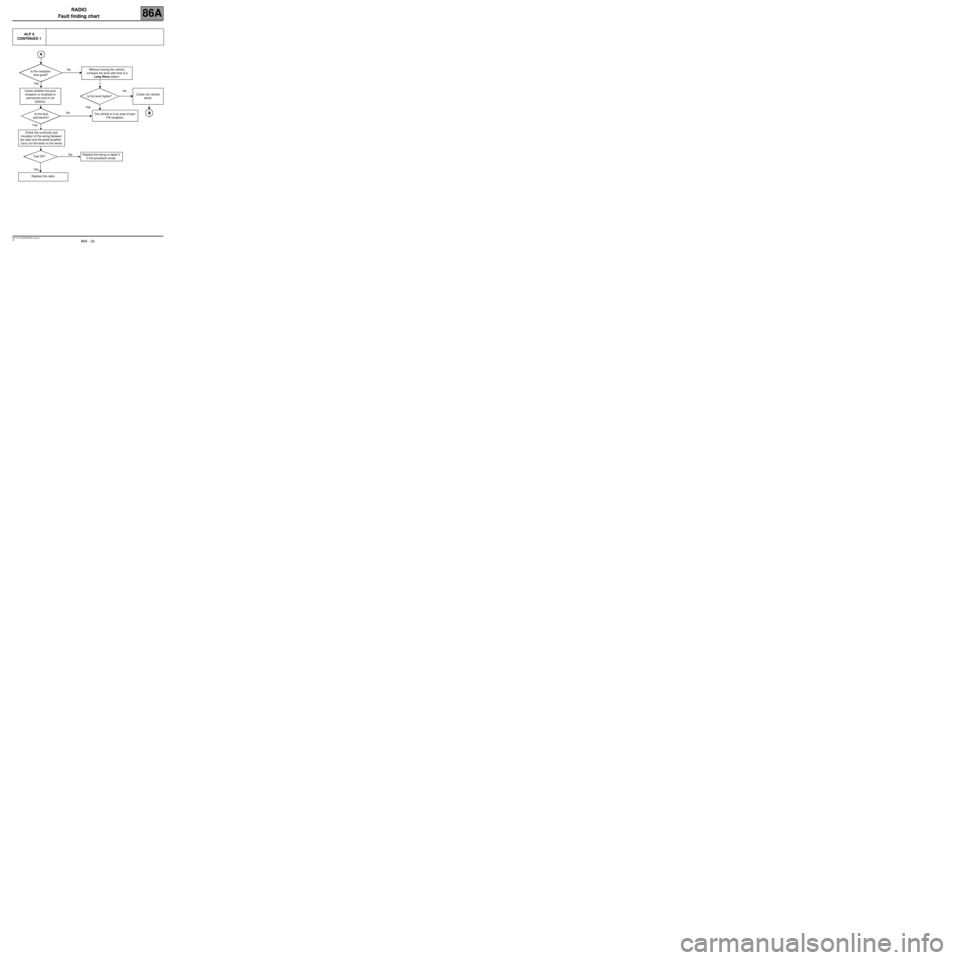

RADIO
Fault finding chart
86A
86A - 22V2 MR-372-J84-86A000$792_eng.mif
ALP 6
CONTINUED 1
Is the reception
leve good?No Without moving the vehicle,
compare the level with that of a
Long Wave station.
Yes
Check whether the poor
reception is localised or
permanent and on all
stations.Is the level higher?No
Check the vehicle
aerial.
Yes
Is the fault
permanent?No
The vehicle is in an area of poor
FM reception.
Yes
Check the continuity and
insulation of the wiring between
the radio and the aerial amplifier.
Carry out the tests on the aerial.
Test OK?NoReplace the wiring or repair it
if the procedure exists.
Yes
Replace the radio
Page 23 of 34

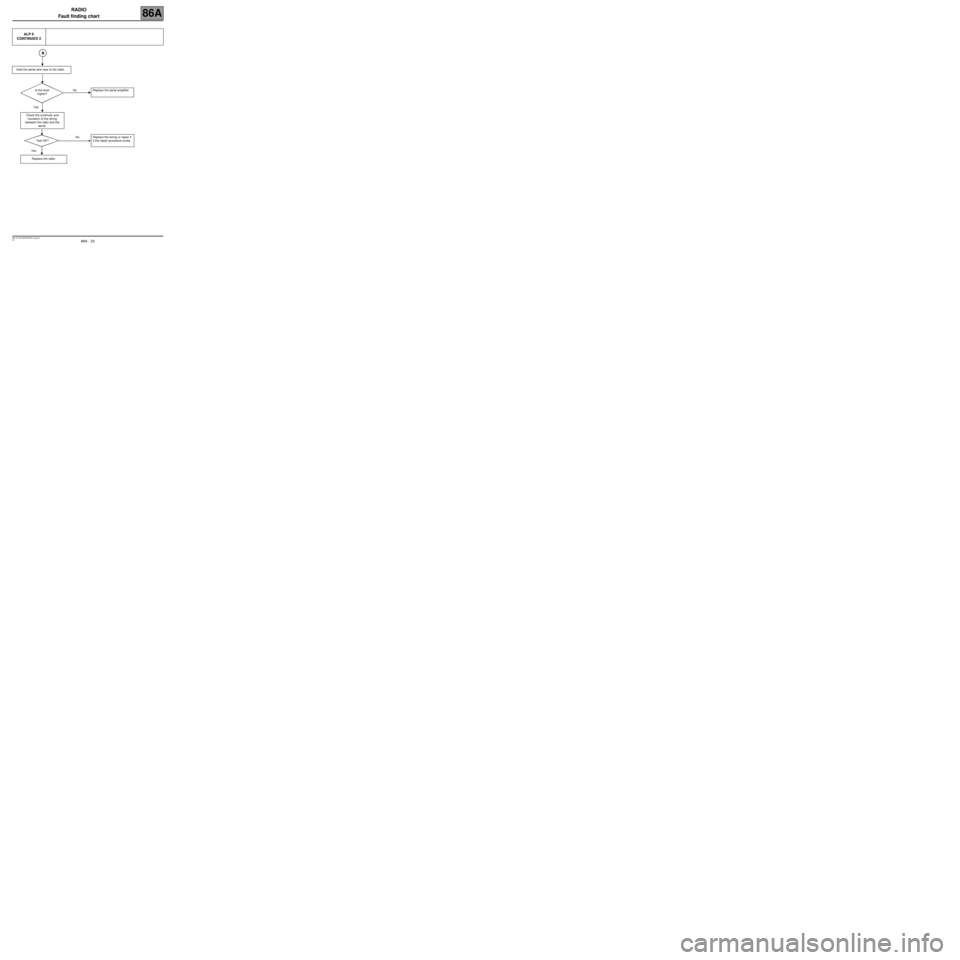

RADIO
Fault finding chart
86A
86A - 23V2 MR-372-J84-86A000$792_eng.mif
ALP 6
CONTINUED 2
Hold the aerial wire near to the radio.
Is the level
higher?No Replace the aerial amplifier.
Yes
Check the continuity and
insulation of the wiring
between the radio and the
aerial.
Test OK?No Replace the wiring or repair it
if the repair procedure exists.
Yes
Replace the radio.
Page 24 of 34
RADIO
Fault finding chart
86A
86A - 24V2 MR-372-J84-86A000$792_eng.mif
ALP 7 The volume does not increase with the vehicle speed.
The SDVC (speed-dependent volume
control) function does not work.
Check the audio equipment
configuration (Expert mode). Set the
SPEED curve to 5 and run a test when
driving at a speed greater than 48 mph
(80 km/h).
No
Does the volume change?
Yes
The fault has been rectified. Check the signal on
connection 47F (see wiring
diagrams Technical Note,
vehicle, code 261) using a
multimeter. The voltage should
vary depending on vehicle
speed. Reset the control to: CURVE 2.
Yes
No
Does the signal increase?
YES
The fault is not associated with
the audio equipment. See MR
Fault finding corresponding to
vehicle, 38C, ABS, Conformity
check.Replace the radio with the
approval of your Techline.
Page 25 of 34

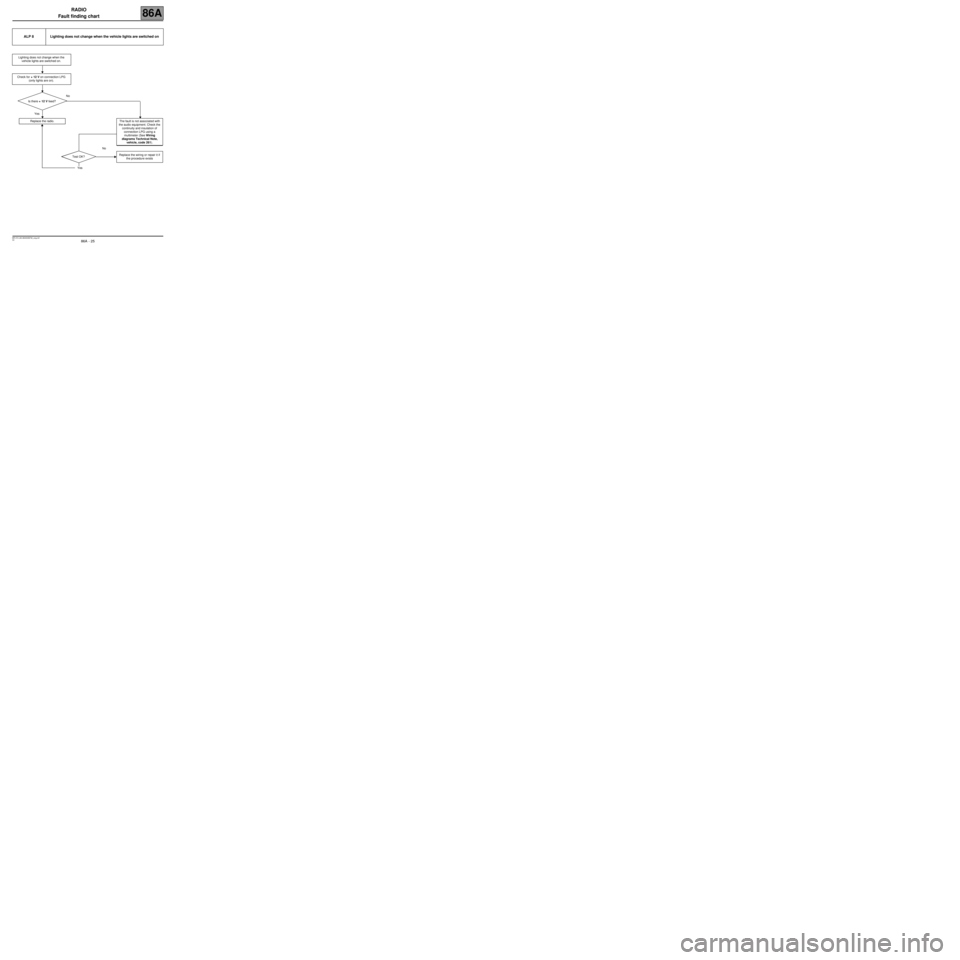

RADIO
Fault finding chart
86A
86A - 25V2 MR-372-J84-86A000$792_eng.mif
ALP 8Lighting does not change when the vehicle lights are switched on
Lighting does not change when the
vehicle lights are switched on.
Check for + 12 V on connection LPG
(only lights are on).
No
Is there + 12 V feed?
Yes
Replace the radio. The fault is not associated with
the audio equipment. Check the
continuity and insulation of
connection LPG using a
multimeter (See Wiring
diagrams Technical Note,
vehicle, code 261).
No
Test OK?Replace the wiring or repair it if
the procedure exists
Yes
Page 26 of 34

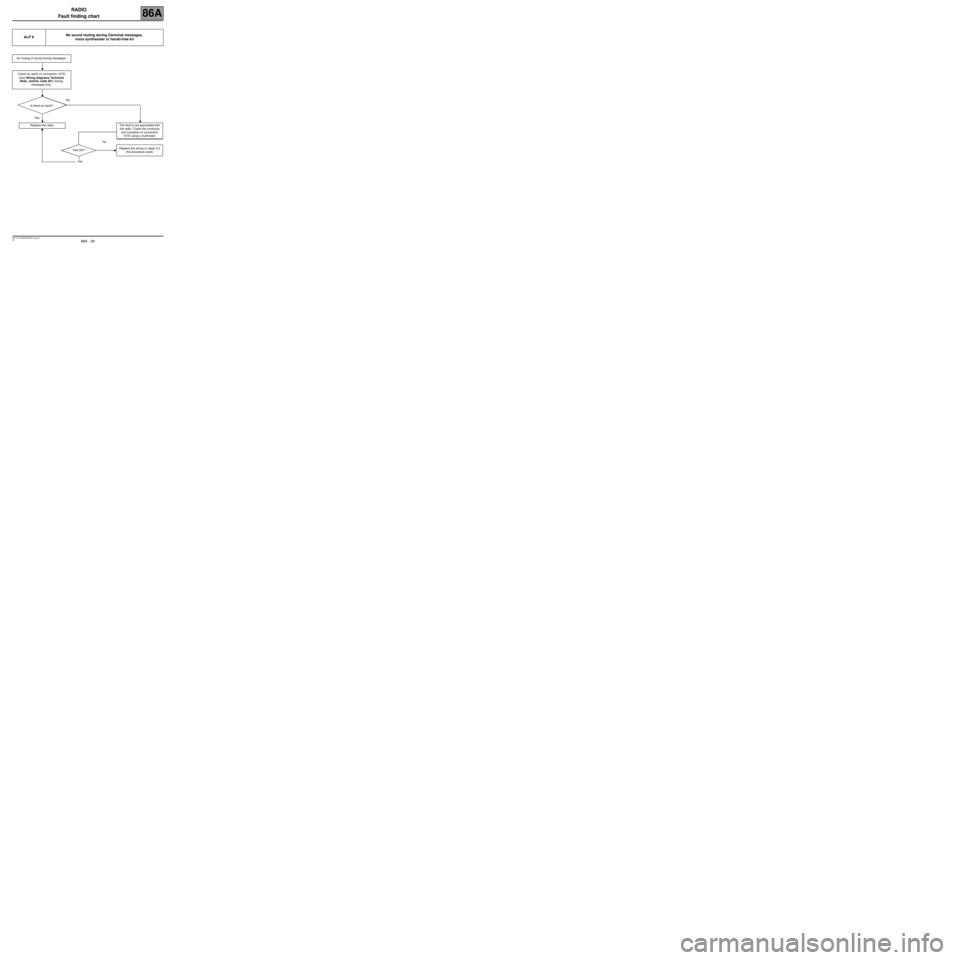

RADIO
Fault finding chart
86A
86A - 26V2 MR-372-J84-86A000$792_eng.mif
ALP 9No sound muting during Carminat messages,
voice synthesiser or hands-free kit
No muting of sound during messages.
Check for earth on connection 107D
(See Wiring diagrams Technical
Note, vehicle, code 261) during
messages only.
No
Is there an earth?
Yes
Replace the radio. The fault is not associated with
the radio. Check the continuity
and insulation of connection
107D using a multimeter.
No
Test OK?Replace the wiring or repair it if
the procedure exists
Yes
Page 27 of 34
RADIO
Fault finding chart
86A
86A - 27V2 MR-372-J84-86A000$792_eng.mif
ALP 10 The infrared remote control does not operate (PN6)
The infrared remote control does not
work. Check the continuity and
insulation of connections 34GH and
34GK (between the radio and
instrument panel see wiring
diagrams Technical Note, vehicle,
code 261).
No
Are the connections
sound?Replace the wiring or repair it if
the procedure exists.
Yes
Connect a multimeter to connection 34GH
and check that a voltage change occurs
when pressing the remote control.
Test OK?No Check that the battery
is sound.
Yes
Replace the radio. Test OK?No
Replace the
battery.
Yes
Replace the remote control. Connect a multimeter to
connection 34GH and check for 0V on the connection
when pressing the remote control.
Test OK?No Replace the
instrument
panel.
Yes
Replace the remote control.
Page 28 of 34
RADIO
Recovering a jammed CD
86A
86A - 28V2 MR-372-J84-86A000$891_eng.mif
RADIO
Recovering a jammed CD
First solution
If the electric ejector motor is operational, eject the CD
using a 4.5 V battery to supply the electric motor (B)
(attach the + wire to contact (1) and the - wire to
contact (2) when ejecting the CD).
RADIO
MR-372-J84-86A000$891_eng.mif
Page 29 of 34

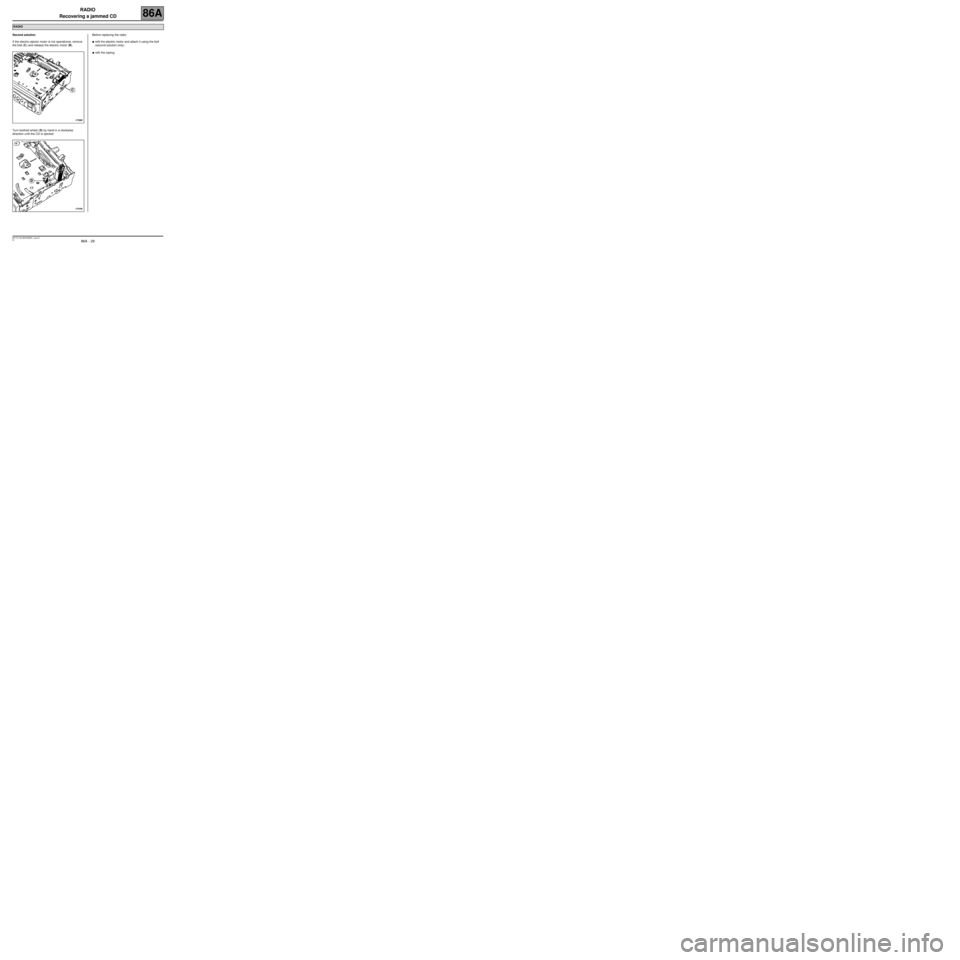

RADIO
Recovering a jammed CD
86A
86A - 29V2 MR-372-J84-86A000$891_eng.mif
Second solution
If the electric ejector motor is not operational, remove
the bolt (C) and release the electric motor (B).
Turn toothed wheel (D) by hand in a clockwise
direction until the CD is ejected.Before replacing the radio:
●refit the electric motor and attach it using the bolt
(second solution only),
●refit the casing.
RADIO
Page 30 of 34
RADIO
Recovering a jammed CD
86A
86A - 30V2 MR-372-J84-86A000$891_eng.mif
REMOVAL
Remove the two bolts (A).
Turn the CD changer upside down.
Remove the 6 bolts (B).Turn the CD changer upside down.
Remove the cover.
Remove the mechanism from its housing.
CHANGER IN THE DASHBOARD
