RENAULT SCENIC 2007 J84 / 2.G Electrical Equipment - Radio User Guide
Manufacturer: RENAULT, Model Year: 2007, Model line: SCENIC, Model: RENAULT SCENIC 2007 J84 / 2.GPages: 34, PDF Size: 0.23 MB
Page 11 of 34
RADIO
Connections
86A
86A - 11V2 MR-372-J84-86A000$495_eng.mif

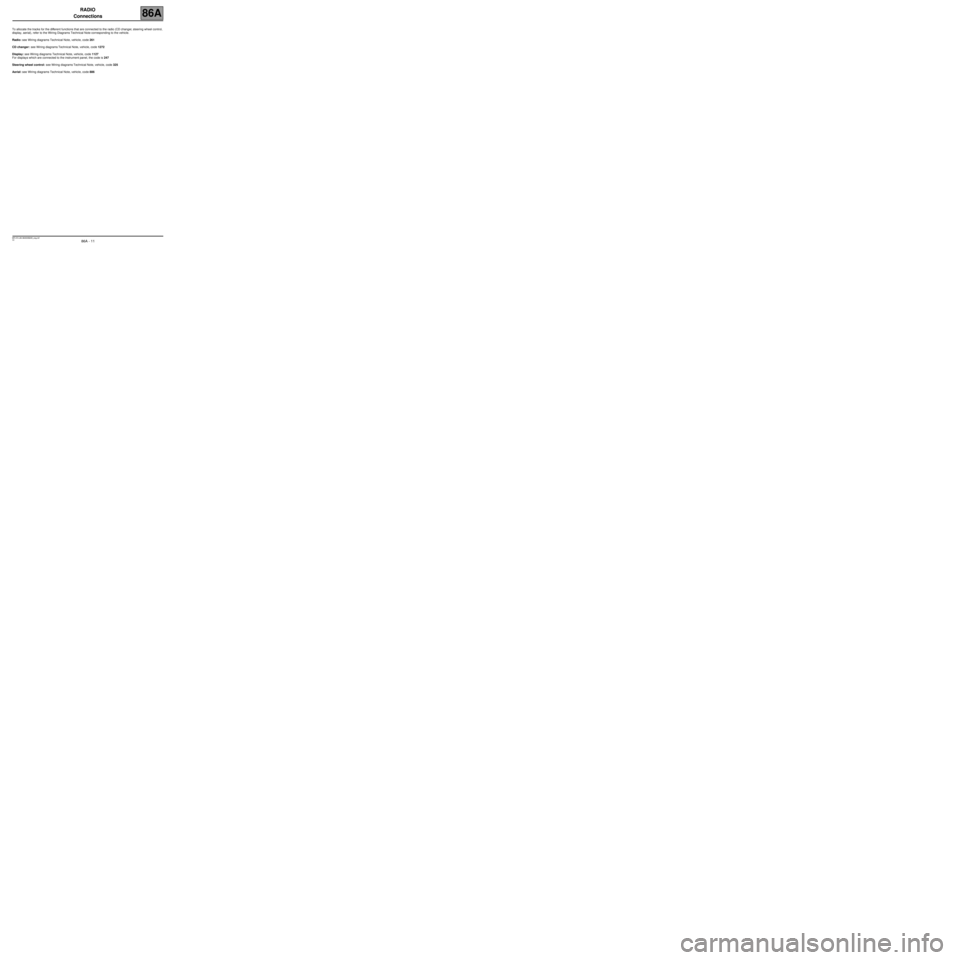

RADIO
Connections
To allocate the tracks for the different functions that are connected to the radio (CD changer, steering wheel control,
display, aerial), refer to the Wiring Diagrams Technical Note corresponding to the vehicle.
Radio: see Wiring diagrams Technical Note, vehicle, code 261
CD changer: see Wiring diagrams Technical Note, vehicle, code 1272
Display: see Wiring diagrams Technical Note, vehicle, code 1127
For displays which are connected to the instrument panel, the code is 247
Steering wheel control: see Wiring diagrams Technical Note, vehicle, code 325
Aerial: see Wiring diagrams Technical Note, vehicle, code 886
MR-372-J84-86A000$495_eng.mif
Page 12 of 34
RADIO
Self-test procedure
86A
86A - 12V2 MR-372-J84-86A000$594_eng.mif
RADIO
Self-test procedure
The self-test procedure mode of the previous generation radios (PN0-6) allows certain main functions to be tested:
●by pressing buttons 2 and 4 at the same time, the speakers can be tested. They are supplied one by one; the
display enables the connections and signals from each speaker to be checked,
●by pressing buttons 1 and 6 at the same time, the reception level can be tested (after frequency is displayed),
–9 or letter: good reception,
–less than 3: poor reception,
–if 2: total loss of stereo.
The self-test procedure mode of the new generation radios (NR4/5) enables certain main functions to be tested
using the combination of buttons 1, 6 and i. The messages will be displayed in the following way:
●Radio pre-code displays one letter and 3 digits to avoid removal of the radio,
●speaker test with two bleeps (bass - treble) from the speakers, with the tested speakers shown on the display
(front left-hand H01, front right-hand H02, rear right-hand H03, rear left-hand H04),
●displays the frequencies and levels of the tuner sensors,
●software version displayed, displays fault finding for the connected aerial if the aerial is supplied by a coaxial
cable; in this case, the display shows H15 with X = 0, 1 or 2 depending on the aerial status (0: open circuit, 1:
short circuit to earth, 2: power consumption),
●audio test loudness OFF (H08), cuts any loudness for an audio test.
Note:
Also displays source use time and total time in 10 minute slots (Tuner (H09)/CD (H10)/cassette (H11)/CD changer
(H12)/auxiliary (13)/MP (H14)/Total (H15)).
MR-372-J84-86A000$594_eng.mif
Page 13 of 34
RADIO
Radio fault finding: Customer complaints
86A
86A - 13V2 MR-372-J84-86A000$693_eng.mif
RADIO
Radio fault finding: Customer complaints
THE RADIO BEEPS APPROXIMATELY EVERY 2 SECONDS ALP 1
THE RADIO DOES NOT WORK (NO SOUND) WHEN THE RADIO ON
BUTTON IS PRESSEDALP 2
THE RADIO DOES NOT SWITCH ON AUTOMATICALLY WHEN +
ACCESSORIES FEED IS SWITCHED ON OR SWITCHES OFF AFTER 20
MINUTESALP 3
THE RADIO IS SWITCHED ON, BUT THE DISPLAY AND SATELLITE
CONTROLS DO NOT WORKALP 4
THE PLANET WHEEL CONTROLS DO NOT WORK ALP 5
RADIO RECEPTION FAULTSALP 6
THE VOLUME DOES NOT INCREASE WITH THE VEHICLE SPEED ALP 7
LIGHTING DOES NOT CHANGE WHEN THE VEHICLE LIGHTS ARE
SWITCHED ONALP 8
NO SOUND CUT-OUT DURING CARMINAT OR HANDS-FREE KIT
MESSAGESALP 9
THE INFRARED REMOTE CONTROL DOES NOT WORK ALP 10
MR-372-J84-86A000$693_eng.mif
Page 14 of 34
RADIO
Fault finding chart
86A
86A - 14V2 MR-372-J84-86A000$792_eng.mif
RADIO
Fault finding chart

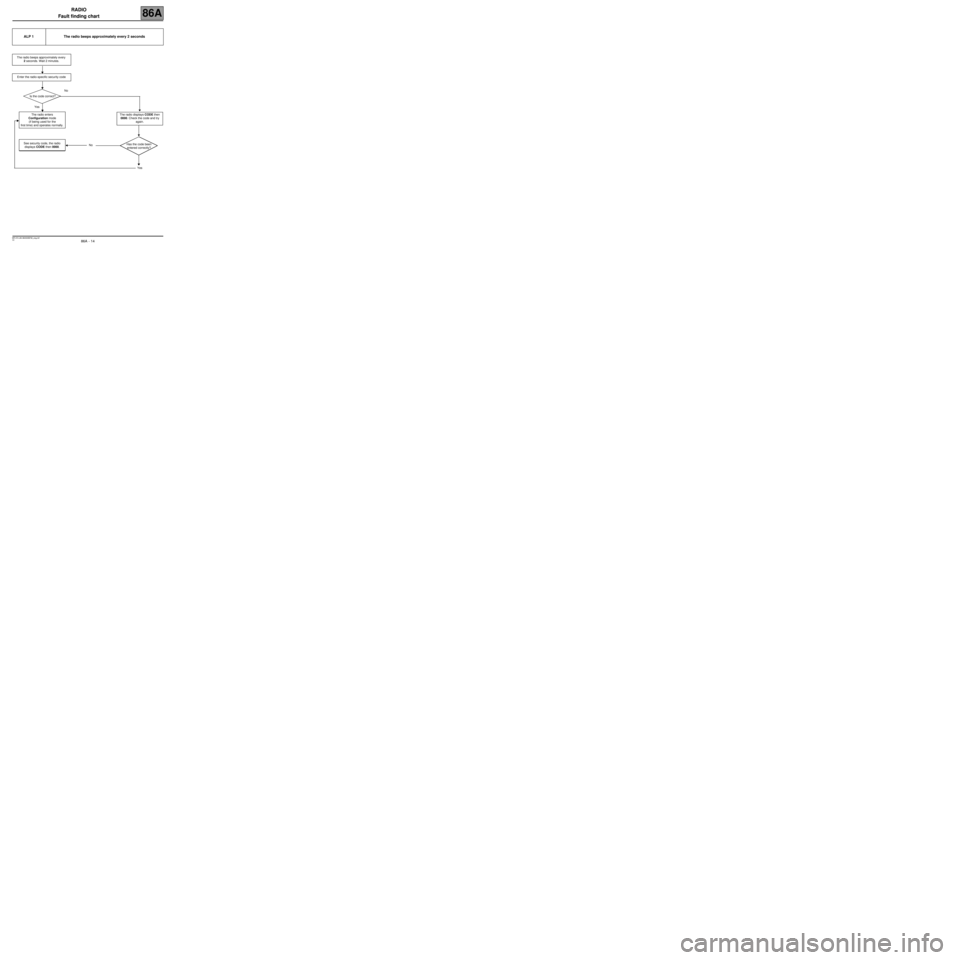

ALP 1 The radio beeps approximately every 2 seconds
The radio beeps approximately every
2 seconds. Wait 2 minutes.
Enter the radio-specific security code
No
Is the code correct?
Yes
The radio enters
Configuration mode
(if being used for the
first time) and operates normally.
See security code, the radio
displays CODE then 0000.No
Yes
The radio displays CODE then
0000. Check the code and try
again.
Has the code been
entered correctly?
MR-372-J84-86A000$792_eng.mif
Page 15 of 34
RADIO
Fault finding chart
86A
86A - 15V2 MR-372-J84-86A000$792_eng.mif

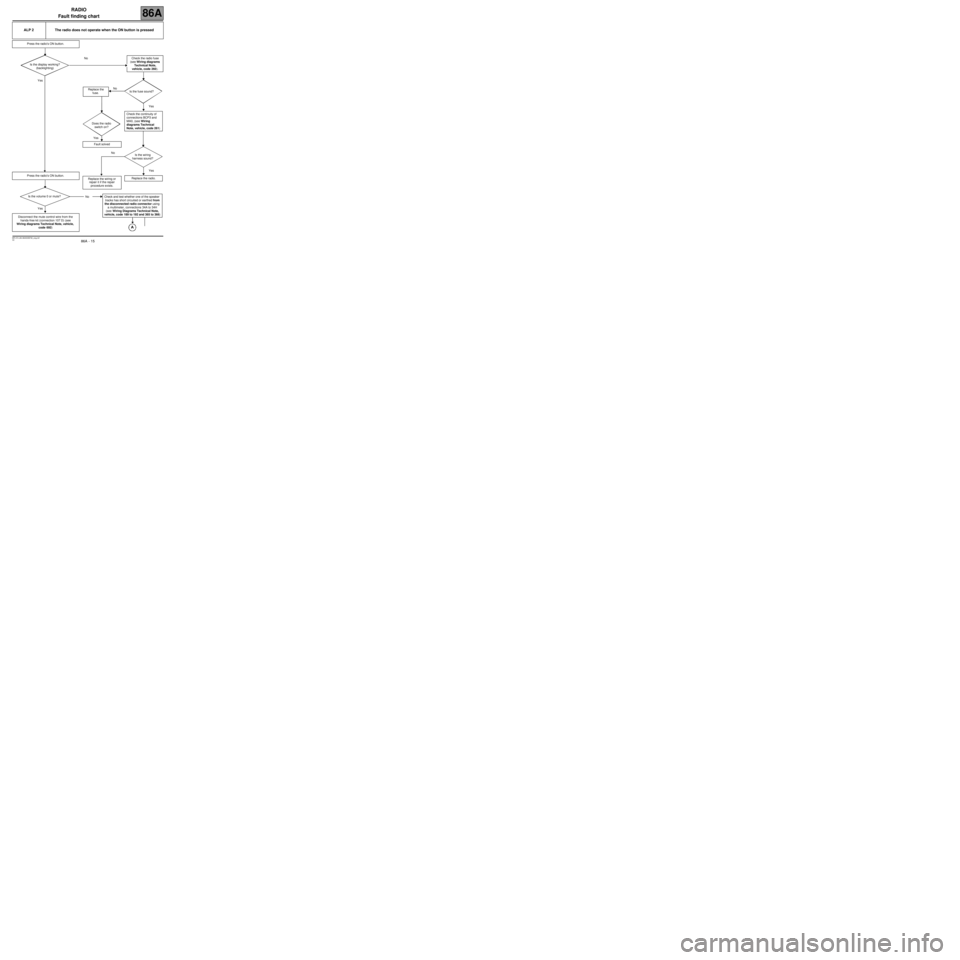

ALP 2 The radio does not operate when the ON button is pressed
Press the radio's ON button.
Is the display working?
(backlighting)
Yes
Press the radio's ON button.
Is the volume 0 or mute?
Yes
Disconnect the mute control wire from the
hands-free kit (connection 107 D) (see
Wiring diagrams Technical Note, vehicle,
code 692)
No Check the radio fuse
(see Wiring diagrams
Technical Note,
vehicle, code 260).
No
Is the fuse sound?
Yes
Check the continuity of
connections BCP3 and
MA0, (see Wiring
diagrams Technical
Note, vehicle, code 261)
Yes
No
Is the wiring
harness sound?
Yes
Replace the radio.
NoCheck and test whether one of the speaker
tracks has short circuited or earthed from
the disconnected radio connector using
a multimeter, connections 34A to 34H
(see Wiring Diagrams Technical Note,
vehicle, code 189 to 192 and 365 to 366)
Replace the
fuse.
Does the radio
switch on?
Fault solved
Replace the wiring or
repair it if the repair
procedure exists.
Page 16 of 34
RADIO
Fault finding chart
86A
86A - 16V2 MR-372-J84-86A000$792_eng.mif
ALP 2
CONTINUED
No
Is there a short circuit on
one of the lines?
Yes
Check the speaker concerned
using a multimeter.Replace the radio.
No
Is the speaker
short circuited?
Yes
Replace the faulty speaker. Using a multimeter, check the
continuity and insulation of the
wiring.
Test OK?No
Replace the wiring or repair
it if the procedure exists
Yes
Replace the radio
Page 17 of 34
RADIO
Fault finding chart
86A
86A - 17V2 MR-372-J84-86A000$792_eng.mif

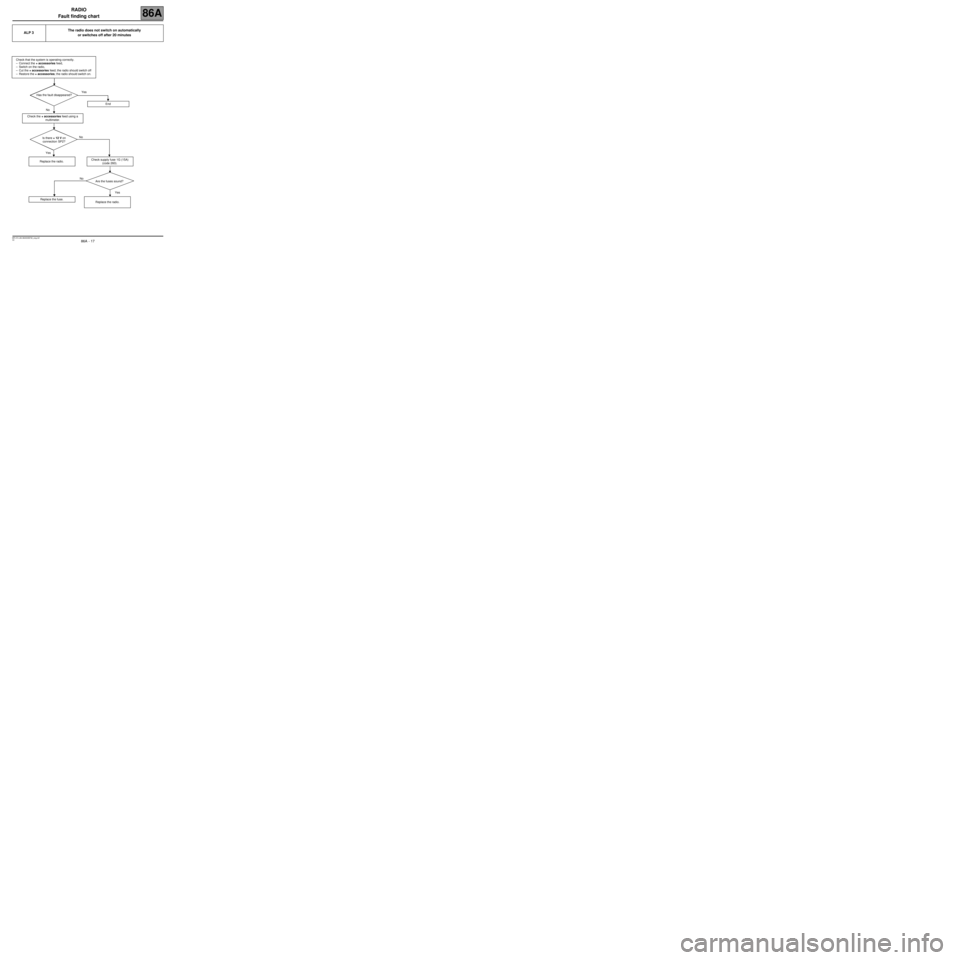

ALP 3The radio does not switch on automatically
or switches off after 20 minutes
Check that the system is operating correctly.
–Connect the + accessories feed,
–Switch on the radio,
–Cut the + accessories feed; the radio should switch off
–Restore the + accessories; the radio should switch on.
Yes
Has the fault disappeared?
End
No
Check the + accessories feed using a
multimeter.
No
Is there + 12 V on
connection SP2?
Yes
Replace the radio.Check supply fuse 1G (15A)
(code 260).
No
Are the fuses sound?
Yes
Replace the fuse.
Replace the radio.
Page 18 of 34
RADIO
Fault finding chart
86A
86A - 18V2 MR-372-J84-86A000$792_eng.mif

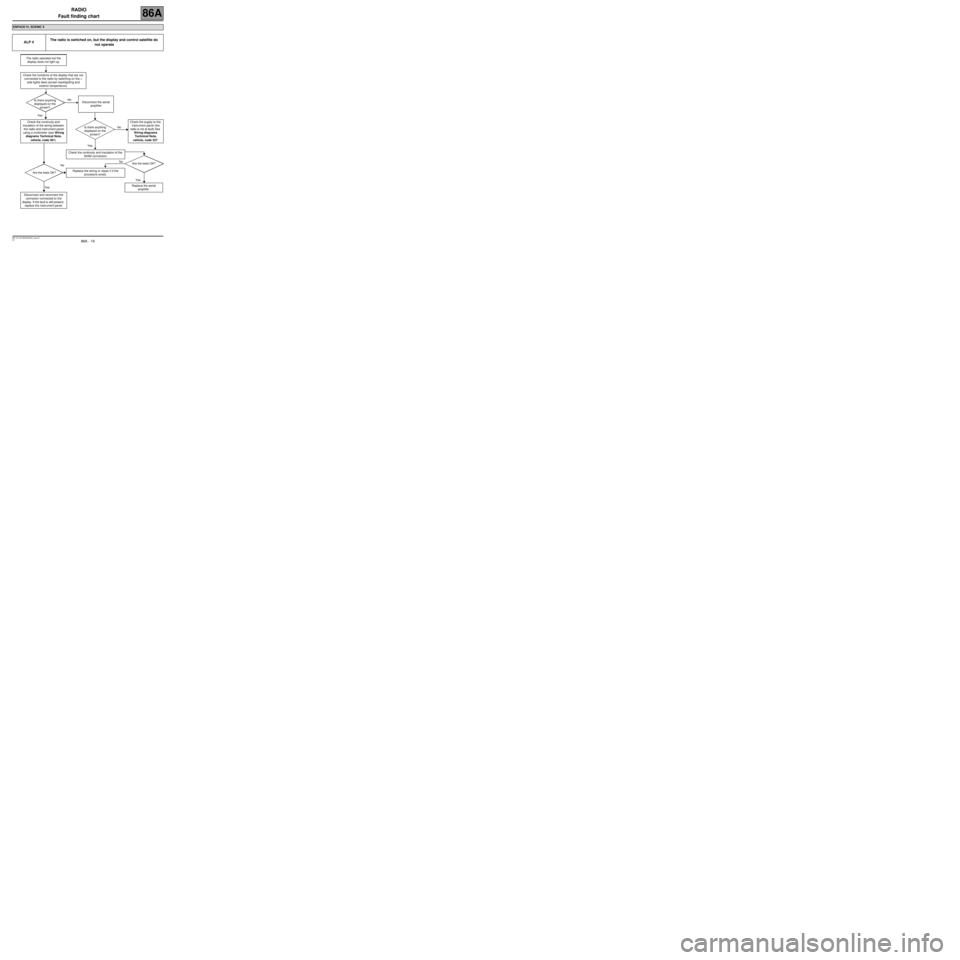

EXCEPT ESPACE IV, SCENIC II
ALP 4The radio is switched on, but the display and control satellite do
not operate
The radio operates but the
display does not light up.
Check the functions of the display that are not
connected to the radio by switching on the +
side lights feed (screen backlighting and
exterior temperature).
Is there anything
displayed on the
screen?No
Disconnect the aerial
amplifier
Yes
Check the continuity and
insulation of the wiring between
the radio and display using a
multimeter (see Wiring
diagrams Technical Note,
vehicle, code 261).Is there anything
displayed on the
screen?No
Check the display supply
(the fault is not associated
with the radio)
Yes
Check the continuity and insulation of the
34AM connection
NoNo
Are the tests OK?
Are the tests OK?Replace the wiring or repair it if the
procedure exists.
Yes
YesReplace the aerial
amplifier.
Disconnect then reconnect the
display. If the fault is still present,
replace the display.
Page 19 of 34
RADIO
Fault finding chart
86A
86A - 19V2 MR-372-J84-86A000$792_eng.mif
The radio operates but the
display does not light up.
Check the functions of the display that are not
connected to the radio by switching on the +
side lights feed (screen backlighting and
exterior temperature).
Is there anything
displayed on the
screen?No
Disconnect the aerial
amplifier
Yes
Check the continuity and
insulation of the wiring between
the radio and instrument panel
using a multimeter (see Wiring
diagrams Technical Note,
vehicle, code 261).Is there anything
displayed on the
screen?No
Check the supply to the
instrument panel (the
radio is not at fault) See
Wiring diagrams
Technical Note,
vehicle, code 227.
Yes
Check the continuity and insulation of the
34AM connection
NoNo
Are the tests OK?
Are the tests OK?Replace the wiring or repair it if the
procedure exists.
Yes
YesReplace the aerial
amplifier.
Disconnect and reconnect the
connector connected to the
display. If the fault is still present,
replace the instrument panel.
ESPACE IV, SCENIC II
ALP 4The radio is switched on, but the display and control satellite do
not operate
Page 20 of 34
RADIO
Fault finding chart
86A
86A - 20V2 MR-372-J84-86A000$792_eng.mif

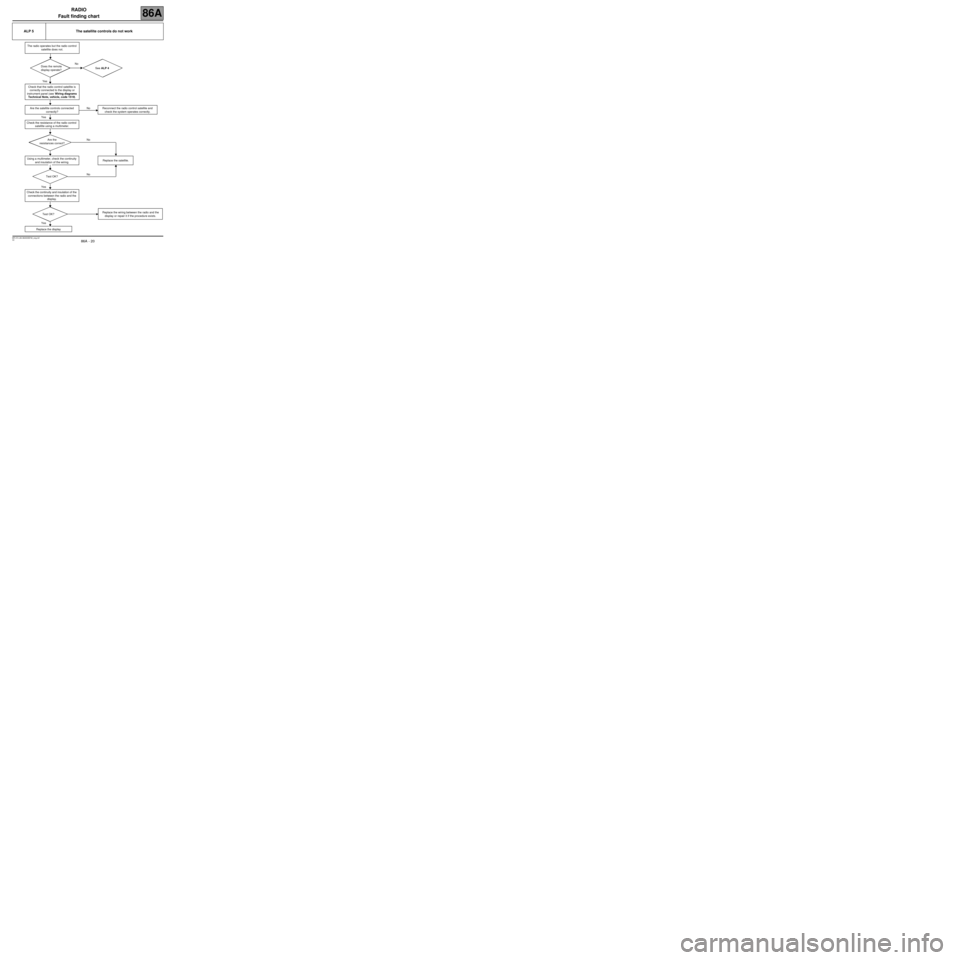

The radio operates but the radio control
satellite does not.
No
Does the remote
display operate?See ALP 4
Yes
Check that the radio control satellite is
correctly connected to the display or
instrument panel (see Wiring diagrams
Technical Note, vehicle, code 1519).
Are the satellite controls connected
correctly?No Reconnect the radio control satellite and
check the system operates correctly.
Yes
Check the resistance of the radio control
satellite using a multimeter.
Are the
resistances correct?No
Using a multimeter, check the continuity
and insulation of the wiring.Replace the satellite.
Test OK?No
Yes
Check the continuity and insulation of the
connections between the radio and the
display.
Test OK?Replace the wiring between the radio and the
display or repair it if the procedure exists.
Yes
Replace the display
ALP 5 The satellite controls do not work
