RENAULT TWINGO 2009 2.G Chasiss Workshop Manual

37A-52
MECHANICAL COMPONENT CONTROLS
Clutch pedal switch: Removal - Refitting
CRUISE CONTROL, and 5-SPEED MANUAL GEARBOX
37A
REMOVAL
I - REMOVAL PREPARATION OPERATION
aRemove the dashboard glovebox.
aDisconnect the connector (2) from the clutch pedal
switch.II - OPERATION FOR REMOVAL OF PART
CONCERNED
aTurn the clutch pedal switch (3) a quarter of a turn
anti-clockwise
aRemove the clutch pedal switch from the pedal. Equipment required
Diagnostic tool
119506
119507
121349

37A-53
MECHANICAL COMPONENT CONTROLS
Clutch pedal switch: Removal - Refitting
CRUISE CONTROL, and 5-SPEED MANUAL GEARBOX
37A
REFITTING
I - REFITTING PREPARATIONS OPERATION
a
aMeasure dimension of the piston (4) . If the dimen-
sion (x) is less than 15 mm, carefully pull the end of
the piston (4) to adjust the dimension to between 15
mm minimum and 17 mm maximum.
II - REFITTING OPERATION FOR PART
CONCERNED
aDepress the clutch pedal by hand.
aFit the clutch pedal switch to the pedal.
aLock the clutch pedal switch by turning it a quarter of
a turn clockwise.
aAt the same time, carefully return the clutch pedal.
III - FINAL OPERATION.
aConnect the clutch pedal switch connector.aBe sure to carry out a repair check using Diagnostic
tool.
aRefit the dashboard glovebox.
108436
WARNING
Whenever the clutch pedal switch piston is com-
pletely removed, the switch must be replaced.
WARNING
The switch must be replaced if handling of the
piston results in three adjustments being made.
Note:
The clutch pedal switch has an automatic adjust-
ment feature, adapting to the pedal position.
The automatic adjustment makes a clicking noise
when in operation.

37A-54
MECHANICAL COMPONENT CONTROLS
Clutch circuit: Bleed
JH3 or JR5
37A
Bleed in the event of:
-dead travel,
-pedal at mid-travel,
-pedal to the floor,
-poor gear changing.
I - PRECAUTIONS DURING REPAIR
Risks relating to contamination.
aThe hydraulic clutch system is very sensitive to con-
tamination. The risks caused by contamination are:
-impossible to change gears,
-damage to or destruction of the clutch system,
-leaks on the hydraulic circuit.
All the operations on the hydraulic clutch circuit sys-
tem must be carried out under excellent cleanliness
conditions. This ensures that no impurities enter the
hydraulic circuit during the operation.
The cleanliness principles apply to all components
of the hydraulic clutch circuit.
Items causing contamination are:
-metal or plastic swarf,
-fibres:
•cardboard,
•brushes,
•paper,
•clothing,
•cloth,
•dust and particles in the air,
•etc.
Cleaning cloths.
aUse lint-free cleaning cloths (see Products recom-
mended for the repair) (04B, Consumables - Prod-
ucts).
Each cloth must only be used once.There are two types of equipment used to bleed the
clutch circuit:
aARC50 via the brake fluid reservoir.
aSyringe via the bleed hole located on the clutch
slave cylinder.
There are two procedures used to bleed the clutch
circuit:
aIf no parts of the hydraulic clutch circuit are remo-
ved:
-Carry out the bleed operation using the ARC50 via
the brake fluid reservoir or using a new syringe via
the bleed hole located on the clutch slave cylinder.
aIf no parts of the hydraulic clutch circuit are remo-
ved:
-Only carry out the bleed operation using a new sy-
ringe by injecting the brake fluid via the bleed hole
on the clutch slave cylinder.
Consumables required for the repair:
aBleed the clutch circuit using approved (see Vehi-
cle: Parts and consumables for the repair) brake
fluid (04B, consumables - products).
II - PREPARATION OPERATION
aPosition the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
aRemove the engine undertray. Equipment required
brake circuit bleeding device
hydraulic circuit bleed syringe
Note:
-Even the tiniest air bubble in the circuit can
cause faulty operation (pedal failing to return
properly, crunching sound when changing gear,
etc.).
-Incorrect bleeding can lead to incorrect detec-
tion of faults and unnecessary part replace-
ments.

37A-55
MECHANICAL COMPONENT CONTROLS
Clutch circuit: Bleed
JH3 or JR5
37A
There are several versions of bleed screw:
Screw type bleed screw.
aTo open the bleed screw, hold the plastic union (1)
using a ring spanner and undo the bleed screw (2) .
Half-turn bleed screw.
aTo open the bleed screw, fully turn the bleed screw
(3) by hand.Bleed screw with a clip.
aTo open the bleed screw, press and hold the clip (4)
while pulling by one notch.
Bleed screw with a clip.
aTo open the bleed screw, lift the clip (5) while pulling
by one notch.
113919
114335
112868
107280

37A-56
MECHANICAL COMPONENT CONTROLS
Clutch circuit: Bleed
JH3 or JR5
37A
Bleed screw with two clips.
aTo open the bleed screw, lower the clip (6) and lift
the clip (7) while pulling by one notch.
III - BLEED PROCEDURE IF NO PARTS OF THE
HYDRAULIC CIRCUIT ARE REMOVED
1 - Bleed using the ARC50.
aKeep the clutch pedal in the upper position using a
strap attached to the steering wheel to ensure conti-
nuity of the hydraulic circuit during the bleed opera-
tion.aConnect the brake circuit bleeding device (after
having received Renault approval) to the master cyl-
inder reservoir (see the instructions for the equip-
ment).
aRemove the bleed plug from the clutch slave cylin-
der.
aConnect a transparent pipe to the bleed hole running
to an empty container placed under the bleed hole.
aOpen the bleed screw.
aOpen the circuit between the bleeding device and
the brake fluid reservoir.
aLet the brake fluid run until all air bubbles have been
released.
aStop the bleeding device to dump the pressure in the
clutch circuit.
aClose the bleed screw.
aRemove the transparent pipe from the bleed hole.
aRefit the bleed plug.
aTop up the brake fluid level in the master cylinder
reservoir after disconnecting the bleed device.
aDisengage and engage the clutch quickly around
twenty times.
aCheck that the clutch system is operating correctly.
aRepeat the bleed operation if necessary.
aCheck the adjustment of the switch. (see 37A, Me-
chanical component controls, Clutch pedal
switch: Removal - Refitting, page 37A-52) (37A,
mechanical control elements).
113732
Note:
Ta k e c are not to disrupt the adjustment of the
clutch start of travel switch.

37A-57
MECHANICAL COMPONENT CONTROLS
Clutch circuit: Bleed
JH3 or JR5
37A
2 - Bleed using a new syringe.
aKeep the clutch pedal in the upper position using a
strap attached to the steering wheel to ensure conti-
nuity of the hydraulic circuit during the bleed opera-
tion.
aRemove the bleed plug from the clutch slave cylin-
der.
aConnect a transparent pipe of sufficient length to the
bleed hole (at least thirty centimetres) in order to
place it at the same height as the reservoir.
aOpen the bleed screw.
aFill the brake fluid master cylinder reservoir until
brake fluid flows out of the bleed screw.
aConnect a new hydraulic circuit bleed syringe
filled with a useful volume of 60 ml of approved
brake fluid to the end of the transparent pipe.
aSlowly inject the entire contents of the syringe into
the hydraulic clutch circuit without injecting any of
the air from the top section of the syringe.
aClose the bleed screw.
aRemove the transparent pipe from the bleed hole.
aRefit the bleed plug.
aTop up the brake fluid level in the master cylinder
reservoir.
aDisengage and engage the clutch quickly around
twenty times.
aCheck that the clutch system is operating correctly.
aRepeat the bleed operation if necessary.
aCheck the adjustment of the switch. (see 37A, Me-
chanical component controls, Clutch pedal
switch: Removal - Refitting, page 37A-52) (37A,
mechanical control elements).IV - BLEED PROCEDURE IF PARTS OF THE
HYDRAULIC CIRCUIT ARE REMOVED.
a
Note:
Take care not to disrupt the adjustment of the
clutch start of travel switch.
Note:
The transparent pipe must remain at the same
height as the master cylinder reservoir to prevent
air from entering inside the clutch circuit.
WARNING
The master cylinder pipe must be disconnected
from its take-off point on the br ake fluid reservoir,
to avoid any foreign matter penetrating inside the
hydraulic brake circuit.
WARNING
Prepare for the fl ow of fluid and protect the sur-
rounding components.
Note:
Prefill the hydraulic circuit pipe equipped with a
filter.
Position the filter head facing downwards to
ensure that it fills.

37A-58
MECHANICAL COMPONENT CONTROLS
Clutch circuit: Bleed
JH3 or JR5
37A
There are several versions of pipe with and without
a filter:
Pipe without filter.
Filling position for pipe with filter.Filling position for pipe with filter.
Filling position for pipe with filter.
aPrefill the clutch pipe using the syringe.
aPlug the prefilled pipe on the master cylinder end to
stop any brake fluid from escaping.
141812
141811
141810
141813

37A-59
MECHANICAL COMPONENT CONTROLS
Clutch circuit: Bleed
JH3 or JR5
37A
aPrefill the hydraulic tappet using the new syringe (by
gravity).
aRefit the part(s) concerned.V - BLEED PROCEDURE AFTER A REMOVING A
COMPONENT OF THE HYDRAULIC CIRCUIT.
aKeep the clutch pedal in the upper position using a
strap attached to the steering wheel to ensure conti-
nuity of the hydraulic circuit during the bleed opera-
tion.
aRemove the bleed plug from the clutch slave cylin-
der.
aConnect a transparent pipe of sufficient length to the
bleed hole (at least thirty centimetres) in order to
place it at the same height as the reservoir.
aOpen the bleed screw.
aFill the brake fluid master cylinder reservoir until
brake fluid flows out of the bleed screw.
aConnect a new syringe containing 60 ml of ap-
proved brake fluid to the end of the transparent pipe.
aSlowly inject the entire contents of the syringe into
the hydraulic clutch circuit without injecting any of
the air from the top section of the syringe.
aClose the bleed screw.
aRemove the transparent pipe from the bleed hole.
aRefit the bleed plug.
aTop up the brake fluid level in the master cylinder
reservoir.
aDisengage and engage the clutch quickly around
twenty times.
aCheck that the clutch system is operating correctly.
aRepeat the bleed operation if necessary.
aCheck the adjustment of the switch. (see 37A, Me-
chanical component controls, Clutch pedal
switch: Removal - Refitting, page 37A-52) (37A,
mechanical control elements).
141809
Note:
Take care not to disrupt the adjustment of the
clutch start of travel switch.
Note:
The transparent pipe must remain at the same
height as the master cylinder reser voir to prevent
air from enter ing inside the clutch circuit.

37A-60
MECHANICAL COMPONENT CONTROLS
Clutch circuit: Bleed
JH3 or JR5
37A
VI - FINAL OPERATION
aRefit the engine undertray.
aRemove the vehicle from the two-post lift (see Vehi-
cle: Towing and lifting) (02A, Lifting equipment).

37A-61
MECHANICAL COMPONENT CONTROLS

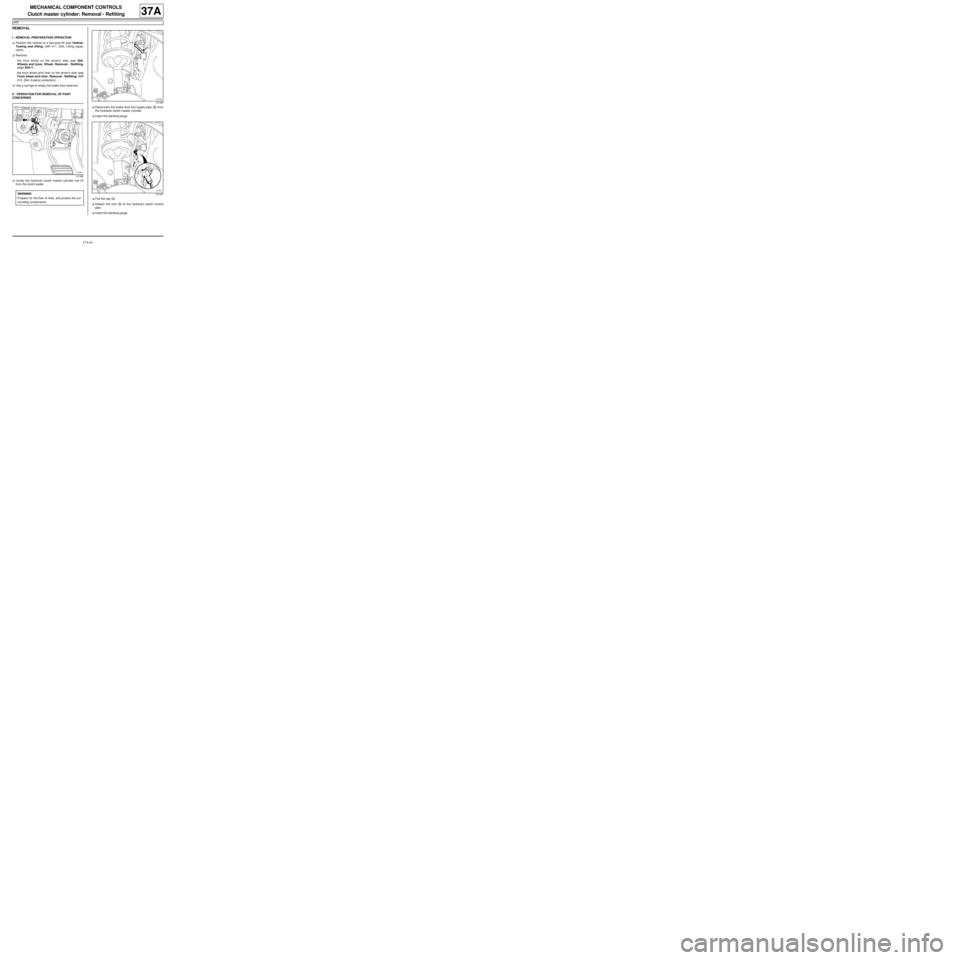

Clutch master cylinder: Removal - Refitting
JH3
37A
REMOVAL
I - REMOVAL PREPARATION OPERATION
aPosition the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (MR 411, 02A, Lifting equip-
ment).
aRemove:
-the front wheel on the driver's side (see 35A,
Wheels and tyres, Wheel: Removal - Refitting,
page 35A-1) ,
-the front wheel arch liner on the driver's side (see
Front wheel arch liner: Removal - Refitting) (MR
412, 55A, Exterior protection).
aUse a syringe to empty the brake fluid reservoir.
II - OPERATION FOR REMOVAL OF PART
CONCERNED
aUnclip the hydraulic clutch master cylinder rod (1)
from the clutch pedal.aDisconnect the brake fluid fuel supply pipe (2) from
the hydraulic clutch master cylinder.
aInsert the blanking plugs.
aPull the clip (2) .
aDetach the end (3) of the hydraulic clutch control
pipe.
aInsert the blanking plugs.
121366
WARNING
Prepare for the flow of fluid, and protect the sur-
rounding components.
121340
121341
