IEC 62368 - 1_ATTACHMENT 2
Clause Requirement + Test Result - Remark Verdict


TR F No. IEC62368_1 C

10 Modification to Bibliography
N/A
Add the following notes for the standards indicated:

N/A
11 ADDITION OF ANNEXES
N/A
ZB ANNEX ZB, SPECIAL NATIONAL CONDITIONS (EN )
N/A
4.1.15 Denmark, Finland, Norway and Swede n

To the end of the subclause the following is
added:
Class I pluggable equipment type A intended
for connection to other equipment or a
network shall, if safety relies on connection to
reliable earthing or if surge suppressors
are connected between the n etwork terminals
and accessible parts, have a marking stating
that the equipment shall be connected to an
earthed mains socket - outlet.

The marking text in the applicable countries shall
be as follows:

In Denmark : “Apparatets stikprop skal tilsluttes
en s tikkontakt med jord som giver forbindelse til
stikproppens jord.”
In Finland : "Laite on liitettä vä suojakoskettimilla
varustettuun pistorasiaan"
In Norway : “Apparatet må tilkoples jordet
stikkontakt”
In Sweden : “Apparaten skall anslutas till jordat
uttag” N/A

Page 82 of 89 Report No. : 60404488 001

IEC 62368 - 1_ATTACHMENT 2
Clause Requirement + Test Result - Remark Verdict


TRF No. IEC62368_1 C
4.7.3 United Kingdom

To the end of the subclause the following is added:

The torque test is performed using a socket - outlet
complying with BS 1363, and the plug part shall be
assessed to the relevant clauses of BS 1363. Also
see Annex G.4.2 of thi s annex N/A
5.2.2.2 Denmark

After the 2nd paragraph add the following:

A warning (marking safeguard) for high touch
current is required if the touch current exceeds the
limits of 3,5 mA a.c. or 10 mA d.c. N/A
5.4.11.1
and
Annex G Finland and Sweden

To the end of the subclause the following is added:

For separation of the telecommunication network
from earth the following is applicable:

If this insulation is solid, including insulation forming
part of a component, it shall at least
consist of either
• two layers of thin sheet material, each of which
shall pass the electric strength test below, or

• one layer having a distance through insulation of
at least 0,4 mm, which shall pass the electric
strength test below.

If this insulation forms part of a semiconductor
component (e.g. an optocoupler), there is no
distance through insulation requirement for the
insulation consisting of an insulating compound
completely filling the casing, so that clearances and
creepage distances do not exist, if the co mponent
passes the electric strength test in accordance with
the compliance clause below and in addition

• passes the tests and inspection criteria of 5.4.8
with an electric strength test of 1,5 kV multiplied
by 1,6 (the electric strength test of 5.4.9 sh all be
performed using 1,5 kV),

and

• is subject to routine testing for electric strength
during manufacturing, using a test voltage of 1,5
kV.

It is permitted to bridge this insulation with a
capacitor complying with EN 60384 - 14:2005,
subclass Y2. N/A

Page 83 of 89 Report No. : 60404488 001

IEC 62368 - 1_ATTACHMENT 2
Clause Requirement + Test Result - Remark Verdict


TRF No. IEC62368_1 C

A capacitor classified Y3 according to EN 60384 -
14:2005, may bridge this insulation under
the following conditions:

• the insulation requirements are satisfied by
having a capacitor classified Y3 as defined by EN
60384 - 14, which in addition to the Y3 tes ting, is
tested with an impulse test of 2,5 kV defined in
5.4.11;

• the additional testing shall be performed on all the
test specimens as described in EN 60384 - 14;

the impulse test of 2,5 kV is to be performed before
the endurance test in EN 60384 - 14, in the sequence
of tests as described in EN 60384 - 14.
5.5.2.1 Norway

After the 3rd paragraph the following is added:

Due to the IT power system used, capacitors are
required to be rated for the applicable line - to - line
voltage (230 V). N/A
5.5.6 Finland, Norway and Sweden

To the end of the subclause the following is added:

Resistors used as basic safeguard or bridging
basic insulation in class I pluggable equipment
type A shall comply with G.10.1 and the test of
G.10.2. N/A
5.6.1 Denmark

Add to the end of the subclause
Due to many existing installations where the socket -
outlets can be protected with fuses
with higher rating than the rating of the socket -
outlets the protection for pluggable
equipment type A shall be an integral part of the
equi pment.
Justification:
In Denmark an existing 13 A socket outlet can be
protected by a 20 A fuse. N/A
5.6.4.2.1 Ireland and United Kingdom

After the indent for pluggable equipment type A ,
the following is added:
– the protective current rating is taken t o be 13 A,
this being the largest rating of fuse used in the
mains plug. N/A

Page 84 of 89 Report No. : 60404488 001

IEC 62368 - 1_ATTACHMENT 2
Clause Requirement + Test Result - Remark Verdict


TRF No. IEC62368_1 C
5.6.4.2.1 France

After the indent for pluggable equipment type A ,
the following is added:
– in certain cases, the protective current rating of
the circuit supplied from the mai ns is taken as 20 A
instead of 16 A. N/A
5.6.5.1 To the second paragraph the following is added:

The range of conductor sizes of flexible cords to be
accepted by terminals for equipment with a rated
current over 10 A and up to and including 13 A is:
1,2 5 mm 2
to 1,5 mm 2
in cross - sectional area. N/A
5.6.8 Norway

To the end of the subclause the following is added:
Equipment connected with an earthed mains plug is
classified as class I equipment . See the Norway
marking requirement in 4.1.15. The symbol IE C
60417 - 6092, as specified in F.3.6.2, is accepted . N/A
5.7.6 Denmark

To the end of the subclause the following is added:

The installation instruction shall be affixed to the
equipment if the protective conductor current
exceeds the limits of 3,5 mA a. c. or 10 mA d.c. N/A
5.7.6.2 Denmark

To the end of the subclause the following is added:
The warning (marking safeguard) for high touch
current is required if the touch current or the
protective current exceed the limits of 3,5 mA . N/A
5.7.7.1 Norway and Sweden

To the end of the subclause the following is added:
The screen of the television distribution system is
normally not earthed at the entrance of the building
and there is normally no equipotential bonding
system within the building.
Therefore t he protective earthing of the building
installation needs to be isolated from the screen of a
cable distribution system.

It is however accepted to provide the insulation
external to the equipment by an adapter or an
interconnection cable with galvanic iso lator, which
may be provided by a retailer, for example.

The user manual shall then have the following or
similar information in Norwegian and Swedish
language respectively, depending on in what country
the equipment is intended to be used in:

“Apparatus connected to the protective earthing of N/A

Page 85 of 89 Report No. : 60404488 001

IEC 62368 - 1_ATTACHMENT 2
Clause Requirement + Test Result - Remark Verdict


TRF No. IEC62368_1 C
the building installation through the mains
connection or through other apparatus with a
connection to protective earthing –
and to a television distribution system using coaxial
cable, may in some circumstances cr eate a fire
hazard. Connection to a television distribution
system therefore has to be provided through a
device providing electrical isolation below a certain
frequency range (galvanic isolator, see EN 60728 -
11)”

NOTE In Norway, due to regulation for CAT V - installations, and in
Sweden, a galvanic isolator shall provide electrical insulation
below 5 MHz. The insulation shall withstand a dielectric strength
of 1,5 kV r.m.s., 50 Hz or 60 Hz, for 1 min.

Translation to Norwegian (the Swedish text will also
be accepted in Norway):

“Apparater som er koplet til beskyttelsesjord via
nettplugg og/eller via annet jordtilkoplet
utstyr – og er tilkoplet et koaksialbasert kabel - TV
nett, kan forå rsake brannfare.
For å unngå dette skal det ved tilkopling av
apparater til kabel - TV nett installeres en
galvanisk isolator mellom apparatet og kabel - TV
nettet.”

Translation to Swedish:
”Apparater som är kopplad till skyddsjord via jordat
vä gguttag och/eller via annan utrustning och
samtidigt ä r kopplad till kabel - TV nä t kan i v issa fall
medfőra risk főr brand. Főr att undvika detta skall vid
anslutning av apparaten till kabel - TV nä t galvanisk
isolator finnas mellan apparaten och kabel - TV
nätet.”.
8.5.4.2.3 United Kingdom

Add the following after the 2 nd
dash bullet in 3 rd

paragraph:

An emergency stop system complying with the
requirements of IEC 60204 - 1 and ISO 13850 is
required where there is a risk of personal injury. N/A

Page 86 of 89 Report No. : 60404488 001

IEC 62368 - 1_ATTACHMENT 2
Clause Requirement + Test Result - Remark Verdict


TRF No. IEC62368_1 C
B.3.1 and
B.4 Ireland and United Kingdom

The following is applicable:

To protect against exce ssive currents and short -
circuits in the primary circuit of direct plug - in
equipment , tests according to Annexes B.3.1 and
B.4 shall be conducted using an external miniature
circuit breaker complying with EN 60898 - 1, Type B,
rated 32A. If the equipment doe s not pass these
tests, suitable protective devices shall be included
as an integral part of the direct plug - in equipment ,
until the requirements of Annexes B.3.1 and B.4 are
met N/A
G.4.2 Denmark

To the end of the subclause the following is added:

Sup ply cords of single phase appliances having a
rated current not exceeding 13 A shall be provided
with a plug according to DS 60884 - 2 - D1:2011.

CLASS I EQUIPMENT provided with socket - outlets
with earth contacts or which are intended to be used
in locations where protection against indirect contact
is required according to the wiring rules shall be
provided with a plug in accordance with standard
sheet DK 2 - 1a or DK 2 - 5a.

If a single - phase equipment having a RATED
CURRENT exceeding 13 A or if a polyphase
equ ipment is provided with a supply cord with a
plug, this plug shall be in accordance with the
standard sheets DK 6 - 1a in DS 60884 - 2 - D1 or EN
60309 - 2.

Mains socket outlets intended for providing power to
Class II apparatus with a rated current of 2,5 A shal l
be in accordance DS 60884 - 2 - D1:2011 standard
sheet DKA 1 - 4a.

Other current rating socket outlets shall be in
compliance with Standard Sheet DKA 1 - 3a
or DKA 1 - 1c.

Mains socket - outlets with earth shall be in
compliance with DS 60884 - 2 - D1:2011
Standard Sh eet DK 1 - 3a, DK 1 - 1c, DK1 - 1d, DK 1 - 5a
or DK 1 - 7a

Justification:
Heavy Current Regulations, Section 6c N/A

Page 87 of 89 Report No. : 60404488 001

IEC 62368 - 1_ATTACHMENT 2
Clause Requirement + Test Result - Remark Verdict


TRF No. IEC62368_1 C
G.4.2 United Kingdom

To the end of the subclause the following is added:

The plug part of direct plug - in equipment shall be
assessed to BS 1363: Part 1, 12.1, 12.2, 12.3, 12.9,
12.11, 12.12, 12.13, 12.16, and 12.17, except that
the test of 12.17 is performed at not less than
125 °C. Where the metal earth pin is replaced by an
Insulated Shutter Opening Device (ISOD), the
requirements of clauses 22.2 and 23 also apply. N/A
G.7.1 United Kingdom

To the first paragraph the following is added:

Equipment which is fitted with a flexible cable or
cord and is designed to be connected to a mains
socket conforming to BS 1363 by means of that
flexible cable or cord shall be fitted with a ‘standard
plug’ in accordance with the Plugs and Sockets etc.
(Safety) Regulations 1994, Statutory Instrument
1994 No. 1768, unless exempted by those
regulations.

NOTE "Standard plug" is defined in SI 1768:1994 and essentia lly
means an approved plug conforming to BS 1363 or an approved
conversion plug. N/A
G.7.1 Ireland

To the first paragraph the following is added:

Apparatus which is fitted with a flexible cable or cord
shall be provided with a plug in accordance with
S tatutory Instrument 525: 1997, “13 A Plugs and
Conversion Adapters for Domestic Use Regulations:
1997. S.I. 525 provides for the recognition of a
standard of another Member State which is
equivalent to the relevant Irish Standard N/A
G.7.2 Ireland and Un ited Kingdom

To the first paragraph the following is added:

A power supply cord with a conductor of 1,25 mm 2
is
allowed for equipment which is rated over 10 A and
up to and including 13 A. N/A

Page 88 of 89 Report No. : 60404488 001

IEC 62368 - 1_ATTACHMENT 2
Clause Requirement + Test Result - Remark Verdict


TRF No. IEC62368_1 C
ZC ANNEX ZC, NATIONAL DEVIATIONS (EN)
N/A
10.5.2 Germany

The following requirement applies:

For the operation of any cathode ray tube intended
for the display of visual images operating at an
acceleration voltage exceeding 40 kV, authorization
is required, or application of type
approval (Bauartzulassung) and marking.

Justification :
German ministerial decree against ionizing radiation
(Rö ntgenverordnung), in force since
2002 - 07 - 01, implementing the European Directive
96/29/EURATOM.

NOTE Contact address:
Physikalisch - Technische Bundesanstalt, Bundesallee 100, D -
38116 Braunschweig,
Tel.: Int+49 - 531 - 592 - 6320, Internet: http://www.ptb.de N/A

Page 89 of 89 Report No. : 60404488 001

IEC 62368 - 1_ATTACHMENT 2
Clause Requirement + Test Result - Remark Verdict



TRF No. IEC62368_1 C
ZD IEC and CENELEC CODE DESIGNATIONS FOR FLEXIBLE CORDS (EN)
N/A

N/A

Report Number…….....:
6040448 8 001
Model…………………...:
L 60VW2 , MIB2GP , L7 3 VW2 , L77VW2

Page 1 of 11

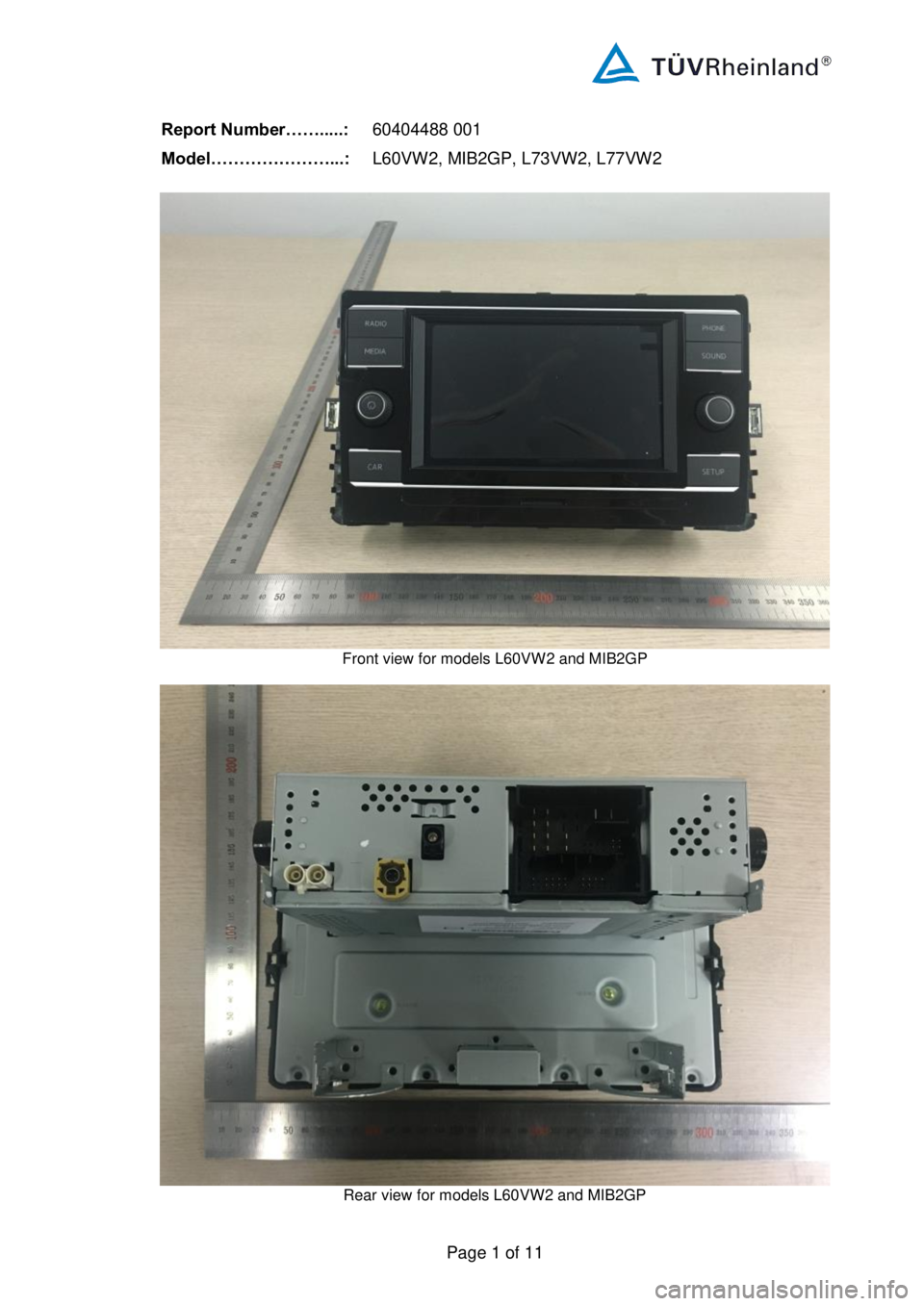

F ront view for models L60 VW 2 and MIB2GP


Rear view for models L60 VW 2 and MIB2GP
