5A-116 AUTOMATIC TRANSMISSION
SSANGYONG MY2002

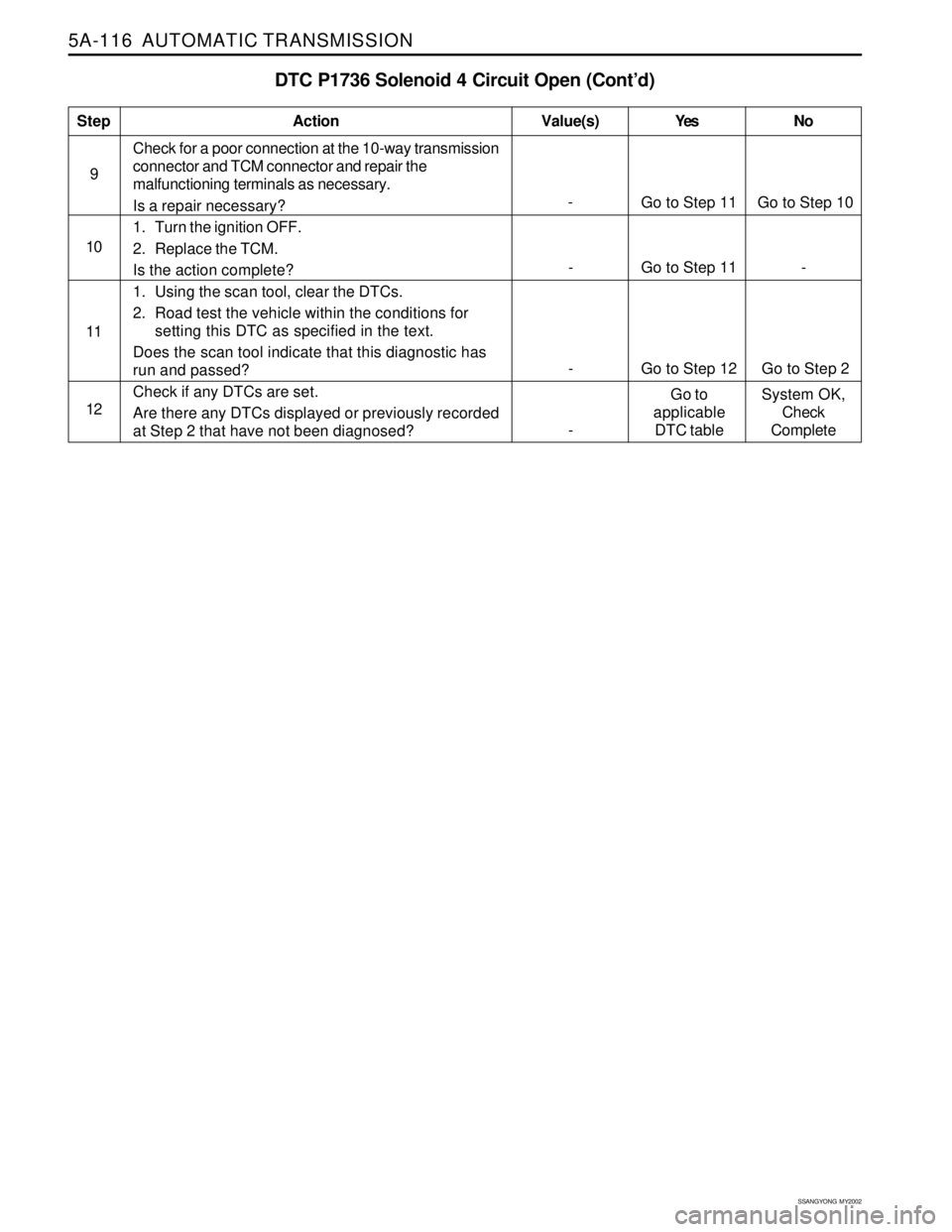

DTC P1736 Solenoid 4 Circuit Open (Cont’d)
Check for a poor connection at the 10-way transmission
connector and TCM connector and repair the
malfunctioning terminals as necessary.
Is a repair necessary?
1. Turn the ignition OFF.
2. Replace the TCM.
Is the action complete?
1. Using the scan tool, clear the DTCs.
2. Road test the vehicle within the conditions for
setting this DTC as specified in the text.
Does the scan tool indicate that this diagnostic has
run and passed?
Check if any DTCs are set.
Are there any DTCs displayed or previously recorded
at Step 2 that have not been diagnosed?
StepAction Value(s) Yes No
9
- Go to Step 11 -
11 10
12
-Go to
applicable
DTC tableSystem OK,
Check
Complete
Go to Step 11 Go to Step 10 -
- Go to Step 12 Go to Step 2

AUTOMATIC TRANSMISSION 5A-117
SSANGYONG MY2002
BLANK

5A-118 AUTOMATIC TRANSMISSION
SSANGYONG MY2002
Circuit Description
The solenoid 5 is a variable force solenoid that ramps
the pressure during the gear changes and solenoid
switching, to enhance the transmission shift quality.
This solenoid provides the signal pressure to the clutch
and band regulator, thereby controlling the shift
pressure.
The solenoid 5 is attached to the valve body within
the transmission. Voltage is supplied directly to the
solenoid through the Transmission Control Module
(TCM).
The DTC P1737 sets when the solenoid 5 (S5) circuit
is open or the switched leg of the solenoid 5 is shorted
to battery positive. The solenoid 5‘s driver Integrated
Chip (IC) status indicates a fauty circuit.
Conditions for Setting the DTC
DTCs P1717 and P1718 are not set.
The solenoid 5‘s driver Integrated Chip (IC) status
indicates a faulty circuit. This condition must be
continuously present for 60 milliseconds.
The measured S5 current is greater than 100 mA
below its expected lower limit.
Action Taken When the DTC Sets
Solenoid 5 is disabled (always OFF).
The shift quality is degraded.
DIAGNOSTIC TROUBLE CODE (DTC) P1737
SOLENOID 5 CIRCUIT OPEN
Conditions for Clearing the DTC
The DTC will clear when the malfunction has not
occurred after ignition cycle.
A history DTC will clear after 40 TCM power-up
cycles with a warm transmission (>50 °C) and
without a fault.
History DTCs can be cleared by using a scan tool.
Diagnostic Aids
The current to solenoid 5 was outside acceptable
limits.
This fault results from a mismatch between the cur-
rent set point for solenoid 5 and the current
measured by the feedback within the TCM.
Typical causes would be an open circuit or short
circuit to power in the wiring to, from or within the
solenoid.
It is also possible that there has been a fault in the
solenoid output circuit. But if this is the cause, the
fault should be continually present.
Inspect the wiring for poor electrical connections
at the TCM and at the 10-way transmission
connector. Look for possible bent, backed out,
deformed or damaged terminals. Check for weak
terminal tension as well. Also check for chafed wires
that could short to bare metal or other wiring.
Inspect for broken wire in-side the insulation.
KAC5A030

AUTOMATIC TRANSMISSION 5A-119
SSANGYONG MY2002
DTC P1737 Solenoid 5 Circuit Open
If diagnosing for a possible intermittent short or
open condition, move or massage the wiring
harness while observing test equipment for a
change.
Test Description
The number(s) below refer to the step number(s) on
the Diagnostic Table.3. Checks if the S5 circuit in the transmission is mal-
functioning.
4. Check cable in the transmission for open / short.
6. Check resistance between S5 terminal A and B.
Standard value is 3.6 - 5.5 Ω.
9. Check connections of other connectors
1Perform a Transmission Control Module (TCM) System
Check.
Is the check performed?
1. Install the scan tool.
2. Turn the ignition ON, with the engine OFF.
3. Record and then clear DTCs.
4. Operate the vehicle within the conditions for
setting this DTC as specified in the text.
Does the scan tool display P1737?
1. Turn the ignition OFF.
2. Disconnect the 10-way transmission connector.
(additional DTCs will set)
3. Connect Solenoid/Thermistor Electrical Tester
(STET) to the 10-way transmission connector of
transmission side.
4. Turn the mode knob of STET to 5 and push the red
button.
Does the bulb of open circuit on the solenoids side of
STET illuminate?
1. Remove the valve cover. Refer to the Transmission
in this section.
2. Check the wiring harnesses from 10-way trans
mission connector to Solenoid 5 (S5) on the valve
body for an open or short to positive and repair as
necessary.
Is a repair complete?
Using a Digital Volt Meter (DVM), measure the
resistance between S5 terminal A and B.
Is the resistance within the specified value?
Replace the S5.
Is the action complete?
1. Disconnect the TCM connector A.
2. Check the wiring harness from 10-way transmis-
sion connector terminal 5 to TCM terminal A1 for an
open or short to battery and repair as necessary.
Is a repair necessary?
Check the wiring harness from 10-way transmission
connector terminal 8 to TCM terminal A7 for an open
and repair as necessary.
Is a repair necessary?
StepAction Value(s) Yes No
2
3
- Go to Step 2 Go to “TCM
Diagnostic
System Check”
- Go to Step 4 Go to Step 7
5 4
- Go to Step 11 Go to Step 5
- Go to Step 3Go to
“Diagnostic
Aids”
- Go to Step 11 Go to Step 8 6
- Go to Step 11 -
7
8
- Go to Step 11 Go to Step 9
3.6 - 5.5 ΩGo to
“Diagnostic
Aids” Go to Step 6

5A-120 AUTOMATIC TRANSMISSION
SSANGYONG MY2002

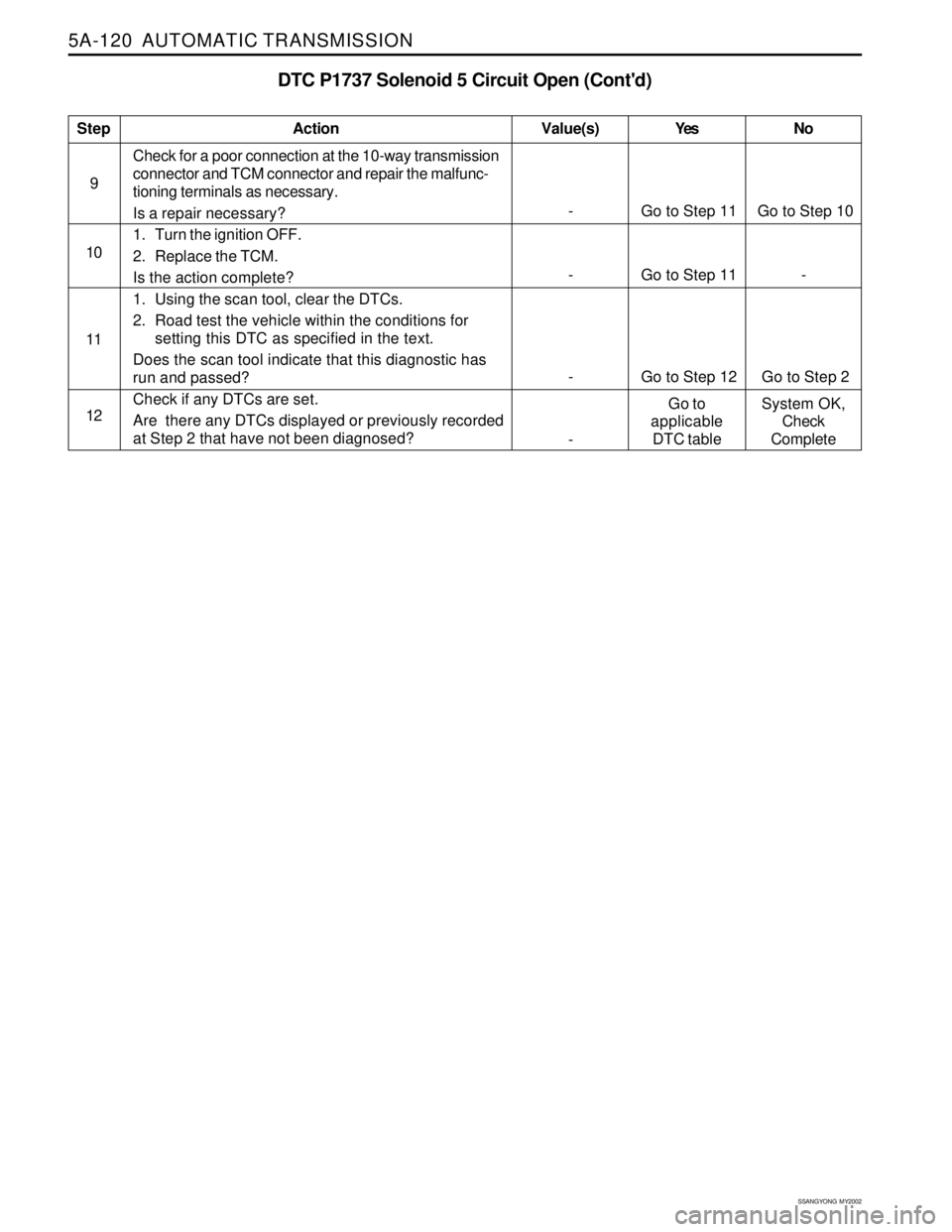

DTC P1737 Solenoid 5 Circuit Open (Cont'd)
Check for a poor connection at the 10-way transmission
connector and TCM connector and repair the malfunc-
tioning terminals as necessary.
Is a repair necessary?
1. Turn the ignition OFF.
2. Replace the TCM.
Is the action complete?
1. Using the scan tool, clear the DTCs.
2. Road test the vehicle within the conditions for
setting this DTC as specified in the text.
Does the scan tool indicate that this diagnostic has
run and passed?
Check if any DTCs are set.
Are there any DTCs displayed or previously recorded
at Step 2 that have not been diagnosed?
StepAction Value(s) Yes No
- Go to Step 12 Go to Step 2 11
12
-Go to
applicable
DTC tableSystem OK,
Check
Complete 9
- Go to Step 11 Go to Step 10
10
- Go to Step 11 -

AUTOMATIC TRANSMISSION 5A-121
SSANGYONG MY2002

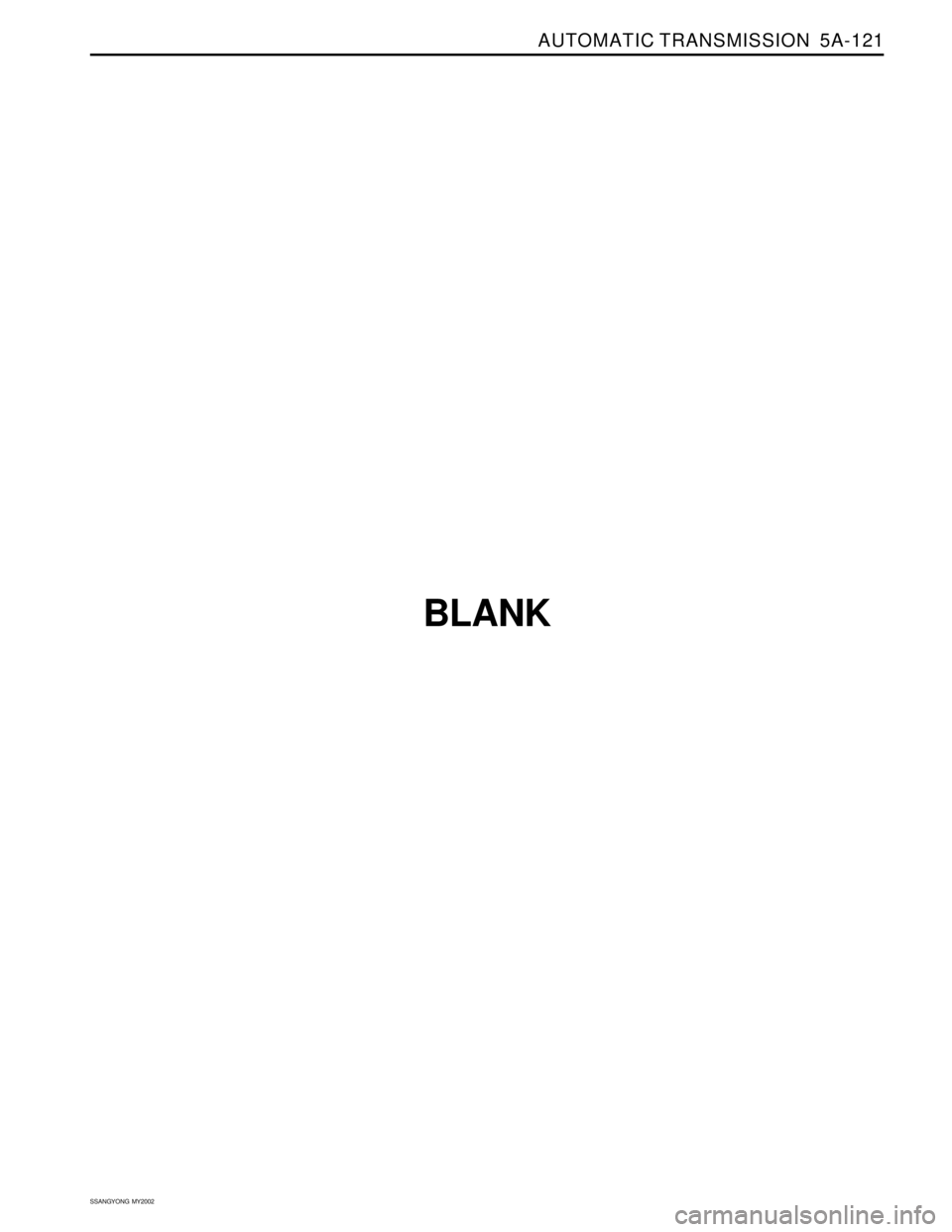

BLANK

5A-122 AUTOMATIC TRANSMISSION
SSANGYONG MY2002
Circuit Description
The solenoid 6 is a normally open ON/OFF type sole-
noid that is used to set the high/ low level of line pres-
sure.
The Solenoid 6 (S6) OFF gives high pressure and the
S6 is attached to the valve body within the
transmission. Voltage is supplied directly to the
solenoid through the Transmission Control Module
(TCM).
The DTC P1738 sets when the solenoid 6 circuit is
open or the switched leg of the solenoid 6 is shorted
to battery positive. The solenoid 6's driver Integrated
Chip (IC) status indicates a faulty circuit.
Conditions for Setting the DTC
DTCs P1717 and P1718 are not set.
S6 is OFF.
S4 is OFF.
The solenoid 6's driver Integrated Chip (IC) status
indicates a faulty circuit. This condition must be
continuously present for 60 milliseconds.
Action Taken When the DTC Sets
The solenoid 6 is disabled (OFF) resulting in high
line pressure being applied continuously.
DIAGNOSTIC TROUBLE CODE (DTC) P1738
SOLENOID 6 CIRCUIT OPEN
Conditions for Clearing the DTC
The DTC will clear when the malfunction has not
occurred after ignition cycle.
A history DTC will clear after 40 TCM power-up
cycles with a warm transmission (>50 °C) and
without a fault.
History DTCs can be cleared by using a scan tool.
Diagnostic Aids
During the TCM's testing, solenoid 6 is turned OFF/
ON by a very small (4 millisecond) pulses. This
pulse is too short for the solenoid to react so the
transmission operation is not affected.
The solenoid feedback voltage is measured before
the (4 millisecond) pulse and again during the pulse.
If the difference is outside the acceptable limits
the relevant fault is recorded.
Typical causes would be an open circuit in the wiring
to or within the solenoid, or a short circuit to power
in the wiring to or within the solenoid.
If several faults of solenoids are present, check the
wiring or connectors that are common to the selected
solenoids, especially the earth connections.
KAC5A030

AUTOMATIC TRANSMISSION 5A-123
SSANGYONG MY2002
Inspect the wiring for poor electrical connections
at the TCM and at the 10-way transmission
connector. Look for possible bent, backed out,
deformed or damaged terminals. Check for weak
terminal tension as well. Also check for chafed wires
that could short to bare metal or other wiring.
Inspect for broken wire inside the insulation.
If diagnosing for a possible intermittent short or
open condition, move or massage the wiring
harness while observing test equipment for a
change.Test Description
The number(s) below refer to the step number(s) on
the Diagnostic Table.
3. Checks if the S6 circuit in the transmission is mal-
functioning.
4. Check cable in the transmission for open / short.
6. Check resistance between S6 terminal A and B.
Standard value is 22 - 30 Ω.
9. Check connections of other connectors
DTC P1738 Solenoid 6 Circuit Open
- Go to Step 11 - 1Perform a Transmission Control Module (TCM) System
Check.
Is the check performed?
1. Install the scan tool.
2. Turn the ignition ON, with the engine OFF.
3. Record and then clear DTCs.
4. Operate the vehicle within the conditions for
setting this DTC as specified in the text.
Does the scan tool display P1738?
1. Turn the ignition OFF.
2. Disconnect the 10-way transmission connector.
(additional DTCs will set)
3. Connect Solenoid/Thermistor Electrical Tester
(STET) to the 10-way transmission connector of
transmission side and to the good ground.
4. Turn the mode knob of STET to 6 and push the red
button.
Does the bulb of open circuit on the solenoids side of
STET illuminate?
1. Remove the valve cover. Refer to the Transmission
in this section.
2. Check the wiring harness from 10-way transmission
connector to Solenoid 6 (S6) on the valve body for an
open or short to positive and repair as necessary.
Is a repair necessary?
Check the S6 ground circuit for an open and repair as
necessary.
Is a repair necessary?
Using a Digital Volt Meter (DVM), measure the resis-
tance between S6 terminal A and B.
Is the resistance within the specified value?
Replace the S6.
Is the action complete?
1. Disconnect the TCM connector A.
2. Check the wiring harness from 10-way transmission
connector terminal 6 to TCM terminal A12 for an open
and repair as necessary.
Is a repair necessary?
StepAction Value(s) Yes No
2
3
-
Go to Step 2 Go to “TCM
Diagnostic
System Check”
- Go to Step 4 Go to Step 8
5
6 4
- Go to Step 11 Go to Step 5
- Go to Step 11 Go to Step 6
7
8
- Go to Step 11 Go to Step 9
- Go to Step 3Go to
“Diagnostic
Aids”
22 - 30 ΩGo to
“Diagnostic
Aids” Go to Step 7

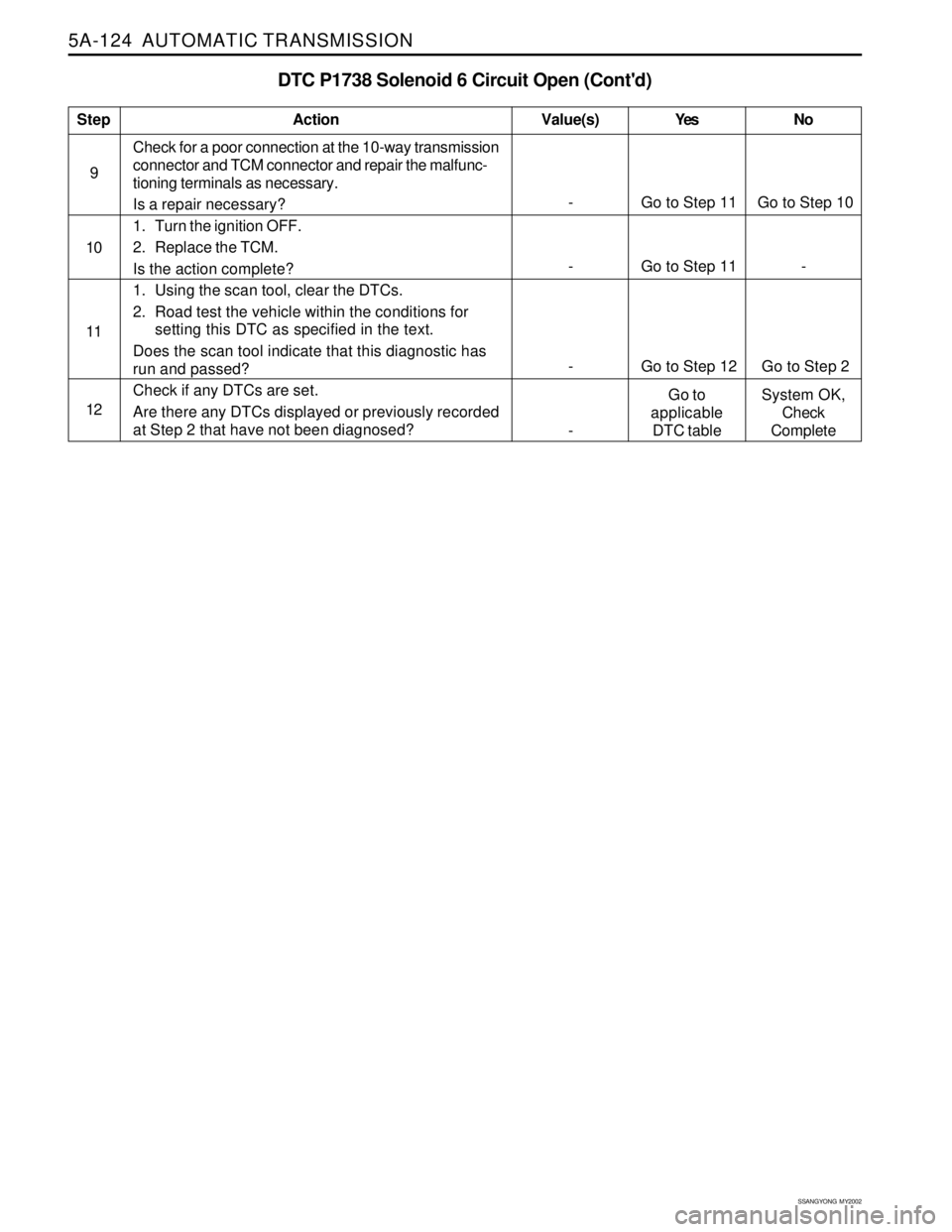

5A-124 AUTOMATIC TRANSMISSION
SSANGYONG MY2002
DTC P1738 Solenoid 6 Circuit Open (Cont'd)
Check for a poor connection at the 10-way transmission
connector and TCM connector and repair the malfunc-
tioning terminals as necessary.
Is a repair necessary?
1. Turn the ignition OFF.
2. Replace the TCM.
Is the action complete?
1. Using the scan tool, clear the DTCs.
2. Road test the vehicle within the conditions for
setting this DTC as specified in the text.
Does the scan tool indicate that this diagnostic has
run and passed?
Check if any DTCs are set.
Are there any DTCs displayed or previously recorded
at Step 2 that have not been diagnosed?
StepAction Value(s) Yes No
- Go to Step 12 Go to Step 2 11
12 10
- Go to Step 11 -
-Go to
applicable
DTC tableSystem OK,
Check
Complete
- Go to Step 11 Go to Step 10 9

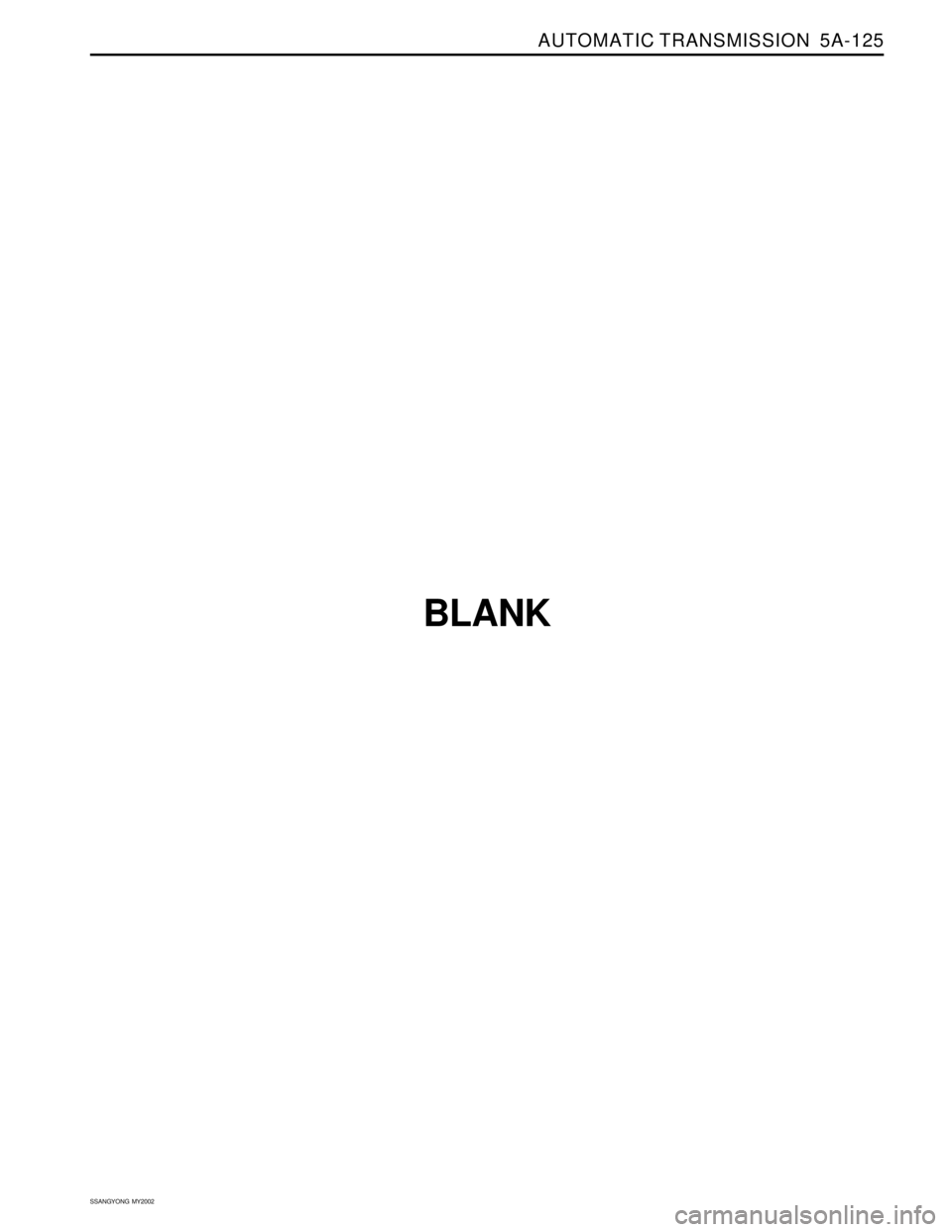

AUTOMATIC TRANSMISSION 5A-125
SSANGYONG MY2002
BLANK
