1B3 -- 120 OM600 ENGINE MECHANICAL
D AEW OO M Y_2000
5. Heat the cylinder head (1) in a wear tank to approx.
80_C.
6. Cool down the new valve guide (2) with liquid nitro-
gen.
Notice
Do not touch the cooled valve guide by hand.
Super Cooling box 346 589 00 63 00
7. Drive in new valve guide with drift (8) until the wire
ring makes contact.
Notice
Thevalveguidemustbedriveninfromthecylinder
head cover.
Drift (for Intake) 601 589 05 15 00
Drift (for Exhaust) 601 589 06 15 00
8. Check the valve guide bore with GO / NO GO gauge
(9).
The GO side (marked ’0’) should just still drop. If the
GO side cannot be inserted, the bore of valve guide
should be reamed.
Notice
Perform the check only on cooled down cylinder
head.
GO / NO GO Gauge (for Intake) 102 589 00 23 00
GO / NO GO Gauge (for Exhaust) 117 589 03 23 00

1B3 -- 122 OM600 ENGINE MECHANICAL
D AEW OO M Y_2000
VALVE SEAT RINGS
Preceding Work : Removal of valve
Checking of valve guide, replace if necessary
Removal of prechamber
1 Cylinder Head
2 Valve Seat Ring
3 Valve Guide
A Height (Cylinder Head Upper / Lower Surface)
B Height (cylinder Head Cover Surface -- Seat of
Valve Seat Ring)D Valve Seat Ring Outer Diameter
D1 Valve Seat Ring Inner Diameter
D2 Basic Bore Diameter
H Height of Valve Seat Ring
Service Ddata






































































































































































































































































Item







































































































































































































































































Intake







































































































































































































































































Exhaust
D240.000 -- 40.016 mm37.000 -- 37.016 mm
D40.084 -- 40.100 mm37.084 -- 37.100 mm
D133.400 -- 33.600 mm30.400 -- 30.600 mm
H6.955 -- 7.045 mm6.955 -- 7.045 mm
Overlap U=D-- D20.068 -- 0.100 mm0.068 -- 0.100 mm
B133.4 mm133.4 mm
A142.5 mm142.5 mm

OM600 ENGINE MECHANICAL 1B3 -- 127
D AEW OO M Y_2000
CHECK AND MACHINING OF VALVES
Preceding Work : Removal of cylinder head
Removal of the vale spring
Removal of the valve
I Valve Length
W Camshaft Cam Basic Diameter
X Distance (Camshaft Basic Bore -- Valve Stem)Y Half Camshaft Basic Bore Diameter
Z Distance (Cylinder Head Cover Parting Surface
-- V a l v e S t e m )

OM600 ENGINE MECHANICAL 1B3 -- 129
D AEW OO M Y_2000
Tools Required
001 589 32 21 00 Dial Gauge
Commercial Tool
Valve corn grinding machine
Checking and Machining
1. Clean the valves and do visual check.
Valves with wobbled valve disc, with worn or scored
valve stem should be replaced.
2. Measure valve disc height ’h’.
ServicedataIntake1.7±0.15 mmServicedataExhaust1.7±0.15 mm
3. Machine the valve.
Notice
Pay attention to setting angle ’a’.
4. Measure radial runout between valve stem and
valve seat.
LimitMax. 0.03 mm
Dial Gauge 001 589 32 21 00

1B3 -- 138 OM600 ENGINE MECHANICAL
D AEW OO M Y_2000
Tools Required
001589532100 DialGauge
363 589 02 21 00 Dial Gauge Holder
366589002105 Extension
Measurement Procedure
1. Remove the cylinder head cover.
2. Rotate the engine in the direction of engine rotation
until the intake valve of NO.1 cylinder is completely
closed. The cam lobe faces up (arrow).
Notice
Do not rotate the engine at the bolt of the crankshaft
sprocket. Do not rotate the engine in the opposite di-
rection of engine rotation. If do, thiswill cause seri-
ous measuring errors.
3. Install the dial gauge holder and dial gauge (7) with
the extension (8) to the cylinder head and position
the tracer pin (9) onto the valve tappet (intake valve
of cylinder NO.1) with a preload of min. 3mm.
Notice
The tracer pin should be positioned exactly vertical.
Dial gauge Holder 363 589 02 21 00
Dial Gauge 001 589 53 21 00
Extension 366 589 00 21 05
4. Set the dial gauge to ’0’.
5. Rotate the engine further in direction of rotation until
the dial gauge has moved back by 2mm (valve lift) to
1mm.
6. Check the timing.
NewAT DC 11 . 3 3_
After approx. 20,000kmAT DC 1 2_
Notice
If timing is out standard, the camshaft should be
checked for wear and the timing chain for stretch. If
adifferenceofmorethan4_exists, the timing chain
should be replaced.
7. Replace the gasket and install the cylinder head
cover.
Tightening Torque10 N∙m(89lb-in)

OM600 ENGINE MECHANICAL 1B3 -- 139
D AEW OO M Y_2000
CAMSHAFT
Preceding Work : Removal of cylinder head cover
1 Bolt 25N∙m (18 lb-ft) ......................
2 Washer
3 Camshaft Bearing Cap
4 Camshaft
5 Dowel Pin
6 Locking Washer
7 Timing Chain8 Cylinder Head
9OilPan
10 Camshaft Sprocket
11 Was h er
12 12-- Sided Bolt (M11)
Check, 25N∙m (18 lb-ft)+90_ ...............
13 Gasket Replace..........................
14 Chain Tensioner 80N∙m (59 lb-ft) ............

1B3 -- 142 OM600 ENGINE MECHANICAL
D AEW OO M Y_2000
7. Remove the camshaft bearing cap.
8. Pull off the camshaft.
Notice
Be careful not to miss front locking washer.
9. Pull out the locking washer.
Notice
Check the condition of locking washer and replace if
necessary.
Installation Procedure
1. Insert the locking washer.
2. Check the valve tappet and ensure that tappet
moves smoothly.
3. Coat the camshaft with oil and install the camshaft
onto the cylinder head so that the TDC marking (ar-
row) is positioned upward vertically.
4. Install the camshaft bearing caps according to
markings(1, 2, 3 etc.).

1B3 -- 144 OM600 ENGINE MECHANICAL
D AEW OO M Y_2000
Notice
If max. length ’L’ of the 12-- sided bolt exceeds
53.6mm, replace it.
8. Install the chain tensioner.
Tightening Torque80 N∙m (59 lb-ft)
Notice
Replace the seal.
Before installation, by pumping in the oil approx. 10
times, fill the oil.
9. Remove the engine lock.
10. Check the TDC marking of OT on the crankshaft.

1B3 -- 150 OM600 ENGINE MECHANICAL
D AEW OO M Y_2000
11. Place the fitting tool (8) onto the chain link and rivet
the chain pins one by one.
Tightening Torque35-- 40 N∙m (26-- 30 lb-ft)
12. Check the riveting of chain pins and re-- rivet if nec-
essary.
13. Remove the wire.
14. Position the no.1 cylinder at TDC.
In this position, the marking on camshaft / camshaft
bearing cap (arrow) must also be aligned. If the
markings are not aligned, the timing chain must be
re-- set and the injection pump timing has to be set.

1B3 -- 158 OM600 ENGINE MECHANICAL
D AEW OO M Y_2000

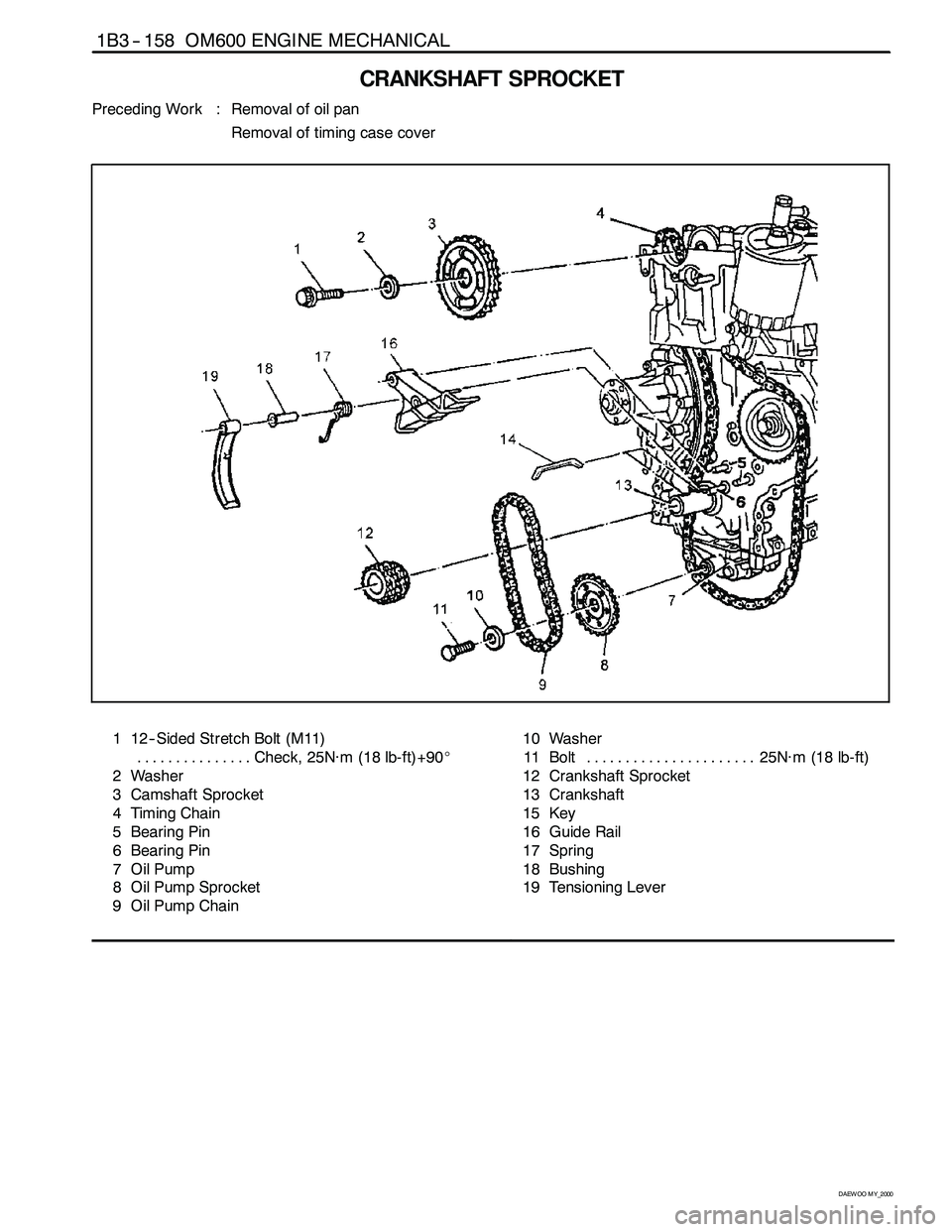

CRANKSHAFT SPROCKET
Preceding Work : Removal of oil pan
Removal of timing case cover
1 12-- Sided Stretch Bolt (M11)
Check, 25N∙m (18 lb-ft)+90_ ...............
2 Washer
3 Camshaft Sprocket
4 Timing Chain
5 Bearing Pin
6 Bearing Pin
7OilPump
8 Oil Pump Sprocket
9 Oil Pump Chain10 Washer
11 Bolt 25N∙m (18 lb-ft) ......................
12 Crankshaft Sprocket
13 Crankshaft
15 Key
16 Guide Rail
17 Spring
18 Bushing
19 Tensioning Lever
