automatic SSANGYONG KORANDO 2012 Workshop Manual

05-418010-01
SVC class instrument cluster STD class instrument cluster

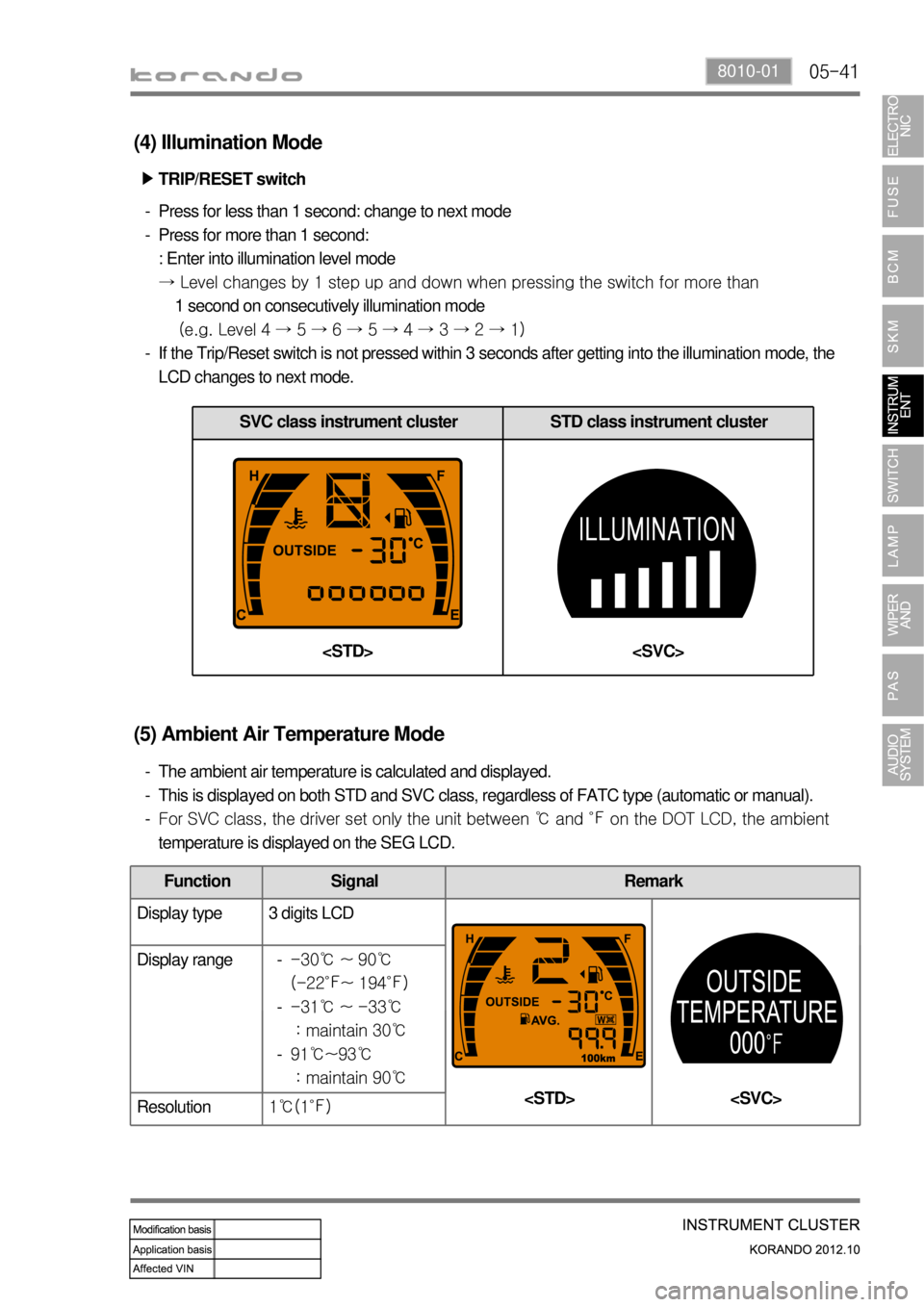

(4) Illumination Mode
(5) Ambient Air Temperature Mode
The ambient air temperature is calculated and displayed.
This is displayed on both STD and SVC class, regardless of FATC type (automatic or manual).
<006d009600990047007a007d006a0047008a00930088009a009a00530047009b008f008c0047008b00990090009d008c00990047009a008c009b004700960095009300a00047009b008f008c0047009c00950090009b00470089008c009b009e008c008c00
9500470b45004700880095008b00470d910047009600950047>the DOT LCD, the ambient
temperature is displayed on the SEG LCD. -
-
-
Function Signal Remark
Display type 3 digits LCD
Display range
Resolution1℃(1℉)
TRIP/RESET switch ▶
Press for less than 1 second: change to next mode
Press for more than 1 second:
: Enter into illumination level mode
<02e700470073008c009d008c00930047008a008f00880095008e008c009a0047008900a0004700580047009a009b008c00970047009c0097004700880095008b0047008b0096009e00950047009e008f008c0095004700970099008c009a009a0090009500
8e0047009b008f008c0047009a009e0090009b008a008f0047>for more than
1 second on consecutively illumination mode
(e.g. Level 4 → 5 → 6 → 5 → 4 → 3 → 2 → 1)
If the Trip/Reset switch is not pressed within 3 seconds after getting into the illumination mode, the
LCD changes to next mode. -
-
-
-30℃ ~ 90℃
(-22℉~ 194℉)
-31℃ ~ -33℃
: maintain 30℃
91℃~93℃
: maintain 90℃ -
-
-

06-138510-00
Door lock/unlock control by central door lock switch ▶
When pressing the central door lock/unlock switch, BCM sends the LOCK or UNLOCK signal
according to the previous condition of driver door lock switch for 0.5 seconds.
The central door dock switch is not available when the system is in theft deterrent mode.
When turning the ignition off, all doors are automatically unlocked if any of the door lock (knob)
switches is in LOCK position.
When pressing the central door lock switch with any door open, the system unlocks the doors
immediately after locking them. 1.
2.
3.
4.

06-158510-00
The outside mirror folding switch is self return type and the aiming switch is seesaw and self return type.
Do not fold or unfold the outside rearview mirrors manually. It may cause a malfunction of the mirror
folding system.
Setting 1.
Set auto folding function: When pressing the mirror folding switch for over 3 seconds, the auto folding
function is set and the internal buzzer sounds once (ON: 0.1 sec, OFF: 0.2 sec).
Release auto folding function: When pressing the mirror folding switch for over 3 seconds, the auto
folding function is set and the internal buzzer sounds twice (ON: 0.1 sec, OFF: 0.2 sec). -
-
Auto folding: 2.
When receiving the LOCK signal from the REKES, the system operates in the sequence of "Door lock
<02e70047007b008f008c008d009b0047008b008c009b008c00990099008c0095009b004700940096008b008c00470088008a009b0090009d0088009b009000960095004702e700470074009000990099009600990047008d00960093008b00900095008e00
490047008d0096009900470069006a00740047009e0090009b>hout SKM.
When receiving the outside door handle switch signal or door lock signal from the smart key remote
control, the system o
perates in the seq<009c008c0095008a008c00470096008d0047006b009600960099004700930096008a0092004702e70047007b008f008c008d009b0047008b008c009b008c00990099008c0095009b004700940096008b008c00470088008a009b0090009d0088009b009000
960095004702e70047>
Mirror folding" for BCM with SKM. -
-
Auto unfolding sequence
When receiving the UNLOCK signal from the REKES, the system operates in the sequence of "Door
unlock → Theft deterrent mode deactivation → Mirror unfolding" for BCM without SKM.
When receiving the outside door handle switch signal or door unlock signal from the smart key remote
control, the system operates in the sequence of Door unlock → Theft deterrent mode
deactivation → Mirror unfolding" for BCM with SKM.
When the auto folding function is set, the automatic unfolding is not available if the mirrors have been
folded manually.
(The outside rearview mirror will be folded automatically if the auto folding function is set.)
The factory setting is the enabling the auto folding function. 3.
4.
5.Auto folding/unfolding control ▶

06-20
Temperature dial
In full AUTO mode, the FATC receives various signals
such as the indoor temperature, ambient temperature,
engine coolant temperature, sunlight, from different
sensors to control the A/C compressor, mode door, intake
actuator assembly, air mix door, blower motors, etc. to
keep indoor environments fresh.
Fan speed dial
In full AUTO mode, the blower
motor is controlled
automatically according to the
set temperature. The blower
motor speed can also be
controlled manually.Mode dial
You can choose a desired
mode from the 5 modes by
turning the mode as required.
The dial indicator for the
selected mode comes on to
inform the operator.
Air source mode switch
When you press this switch,
recirculation indicator comes on and
the system is changed into the
recirculation mode. (However, under
defroster
mode or defroster/floor mode, it stays
in the fresh air mode.)
A/C switch
When pressing this switch, the
air conditioner operates in
manual mode and A/C ON
indicator comes on.
The A/C starts automatically
when the defroster mode is
selected.

06-32
Light switch ▶
Headlamps ON
Headlamp, side-marker, tail,
license plate, fog, and
instrument cluster lamps come
on.
Tail lamp ON
Side-marker, tail, license plate,
fog, and instrument cluster
lamps come on.
Automatic light ON
Head- and tail lamps
automatically turn on or off based
upon the intensity of the sunlight
analyzed by the automatic light
sensor.Lights OFF
High beam ON
To turn on the headlamp high
beam, push the lever towards
the instrument cluster with the
headlamp low beam on.Right turn signal lamp blinks
Passing
Regardless of the position of the light
switch, when holding the lever toward
the steering wheel, the headlights are
on high beam during the hold.Front fog lamp switch
To turn on the fog lights, turn this
switch while the tail lamps or
headlamps are turned on. Left turn signal lamp blinks

06-338510-00
The wiper operates for 1 cycle
when pushing up the lever. The
lever will return to the "OFF"
position when released.
Wiping speed control switch
When turning to FAST, wiping speed gets faster and when
turning to SLOW, wiping speed gets slower. Stop the operation.
Wiper speed controls
automatically according to the
vehicle speed or amount of rain
(rain sensing wiper).
Wiping speed gets faster when
placing the pointer at the "HI"
position. Wiping speed gets slower
when placing the
pointer at the "LO" position. MIST
OFF
AUTO
LO
HI Auto washer switch
If pressing the switch when the wiper
switch turns to the "OFF" position,
washer fluid is sprayed once and
wiper operates 4 times.
After a while, washer fluid is sprayed
once more and the wiper operates 3
times. Wiper switch ▶

06-358510-00
3) Cruise Control Switch
Cruise control switch
The cruise control is an automatic speed control system that maintains a desired driving speed without
using the accelerator pedal. The cruise control switch is fitted to the bottom right section of the steering
wheel. When this switch is operated, the AUTO CRUISE or ECO lamp on the instrument cluster comes
on.
The cruise control switch has a fivefold switch in it. The engine ECU can determine the current driving
condition since the resistance varies depending on the operation of the switch.
The cruise control system is operated at vehicle speed of between 38 km/h and 150 km/h. The manual
transmission is operated in the range of 3rd gear or higher.
This function can be used at the following traffic condition. (It is important to be careful for using this
function)
Cruise control (ON)
Cruise control (OFF)
Cruise control (Acceleration)Cruise control (Deceleration)
Cruise control (Reset)

06-398510-00
Front room lamp switch
The driver/passenger room lamps turns on
when pressing in these switches.Door coupled operation switch
The front room lamp and center room
lamp come on when opening a door with
this switch pressed in.
Sunroof switch
Push up the switch briefly: 2-step auto sliding open ▶
Push up and hold the switch: manual sliding open ▶When pushing up the switch briefly, the sunroof is automatically opened. Opening is carried
out in 2 steps. In first step, the area 5 cm behind the sunroof is not opened. Push up the switch
once again in order to open the sunroof completely. The sunroof operation stops if you
operate the switch during its operation.
The sunroof is opened as long as pushing up the switch.
Pull down the switch briefly: auto sliding close ▶
Pull down and hold the switch: manual sliding close ▶When pulling down the switch briefly, the sunroof is automatically closed. To stop the closing
sunroof, operate the switch to either direction.
The sunroof is closed as long as pulling down the switch.

06-40
Door coupled room lamp operation and dimming control ▶
When opening any of doors while the room lamp switch in overhead console is pressed in ("Door"
coupled position), the front and center room lamps come on. If the key is removed and door stays open,
the room lamps automatically goes off after 10 minutes. The sleep mode will be deactivated when the
door is locked or closed with the lamp OFF automatically.
When closing the door with IGN ON, the room lamps go off immediately.
When closing the door with IGN OFF, the room lamps stay on for 2 seconds more and are dimmed
out the side fascia panel.
When turning the ignition switch to ON position during dimming out operation, the room lamps go off
immediately.
When receiving the door unlock signal with IGN OFF, key removed and door closed, the overhead
console room lamp/center room lamp come on for 30 seconds.
For specification with the SKM, the lamps come on by the REKES unlock or passive unlock signal.
When receiving the door unlock signal again while the lamps stay on by the REKES or passive unloc
k
signal, the overhead console/center room lamps stays on for 30 seconds more. (the lamps stay on
when receiving door unlock signal)
When opening a door during the coupled operation and dimming operation, the room lamps stays
ON. When closing it again, the lamps stay on for 2 seconds more and are dimmed out for 3 seconds.
While the room lamps dim out when the driver/passenger/rear doors are open and closed, they go off
immediately when entering into the theft deterrent mode.
The room lamps come on when AUTO approach signal is received. 1.
2.
3.
4.
5.
6.
7.
8.

07-38310-00
Luminous intensity is a measure for the amount of light which passes through the unit area per
time unit. The SI unit of luminous intensity is the candela (cd), an SI base unit. -Luminous Intensity ▶
Luminance describes the amount of light that passes through or is emitted from a particular area,
and falls within a given solid angle. It is measured in sb or nt. -Luminance ▶
This indicates the amount of light reaching a given area. Measuring unit is lux (lx) and it is not
directly proportional to the brightness of the area as the reflection rate is not included. -Intensity of illumination ▶The LED stands for "Light Emitting Diode" or "Luminescent Diode." LED is a semiconductor diode
that emits incoherent narrow-spectrum light when electrically biased in the forward direction of the
p-n junction, as in the common LED circuit. In short, it is an element that converts electric signals
into light signals. Yellow, blue, red and white LEDs are currently available.
The followings are the advantages of LED.
It is not glaring and doesn't have short circuit unlike the conventional lamps.
It is semi-permanent and doesn't generate heat.
Its power consumption is much lower than those of conventional bulbs. -
- ▶ LED
Pin No. Specification
Operating voltage 9 V to 16 V
Load Max. 200 mA (relay load)
Operating temperature-30℃ to 85℃
Storage temperature-40℃ to ±120℃
Mounting location Top center of inner side of windshield glass
2. AUTOMATIC LIGHT SENSOR SPECIFICATIONS
