SUBARU FORESTER 2004 Service User Guide

AC-9
HVAC SYSTEM (HEATER, VENTILATOR AND A/C)
General Description
2. BLOWER MOTOR UNIT
 LHD MODEL WITH AUTO A/C
(1) Upper case (4) Link lever (7) Lower case
(2) Air inlet select actuator (5) Filter cover (8) Blower motor ASSY
(3) Air inlet select link (6) Cover
AC-00334
(1)
(5)
(3)(2)
(4)
(6)
(7)
(8)

AC-10
HVAC SYSTEM (HEATER, VENTILATOR AND A/C)
General Description
 RHD MODEL WITH AUTO A/C
(1) Upper case (4) Link lever (7) Lower case
(2) Air inlet select actuator (5) Filter cover (8) Blower motor ASSY
(3) Air inlet select link (6) Cover
AC-00332
(1)
(5)
(3)(2)
(4)
(6)
(7)
(8)

AC-11
HVAC SYSTEM (HEATER, VENTILATOR AND A/C)
General Description
 LHD MODEL WITH MANUAL A/C
(1) Upper case (4) Link rod (7) Cover
(2) Air inlet select actuator (5) Filter cover (8) Lower case
(3) Air inlet select link (6) Blower resistor (9) Blower motor ASSY
AC-00209
(1)
(5)
(3)(2)
(4)
(7)
(8)
(6)
(9)

AC-12
HVAC SYSTEM (HEATER, VENTILATOR AND A/C)
General Description
 RHD MODEL WITH MANUAL A/C
(1) Upper case (4) Air inlet select link (7) Cover
(2) Air inlet select actuator (5) Filter cover (8) Lower case
(3) Air inlet select lever (6) Blower resister (9) Blower motor ASSY
AC-00085
(1)
(5)
(3)(2)
(4)
(7)
(8)
(6)
(9)

AC-13
HVAC SYSTEM (HEATER, VENTILATOR AND A/C)
General Description
3. CONTROL UNIT
 AUTO A/C MODEL
(1) Panel (4) Control case (front) (7) Control case (rear)
(2) Control dial (5) Bulb
(3) Switch (6) Control unit circuit
AC-00210
(7)
(6)
(5)
(4)
(1)
(2)(3)

AC-14
HVAC SYSTEM (HEATER, VENTILATOR AND A/C)
General Description
 LHD MODEL WITH MANUAL A/C
(1) Panel (5) A/C switch (9) Mode control cable
(2) Temperature control dial (6) Air inlet select switch (10) Temperature control cable
(3) Fan dial (7) Rear defogger switch (11) Bulb
(4) Mode control dial (8) Switch circuit board
AC-00211
(2)
(6)
(5)(7)
(4)(3)
(1)
(8)
(10)
(9)
(11)

AC-15
HVAC SYSTEM (HEATER, VENTILATOR AND A/C)
General Description
 RHD MODEL WITH MANUAL A/C
(1) Panel (5) A/C switch (9) Mode control cable
(2) Mode control dial (6) Rear defogger switch (10) Temperature control cable
(3) Fan dial (7) Air inlet select switch (11) Bulb
(4) Temperature control dial (8) Switch circuit board
AC-00333
(2)
(6)
(5)(7)(4)(3)
(1)
(8)
(10)
(9)
(11)

AC-16
HVAC SYSTEM (HEATER, VENTILATOR AND A/C)
General Description

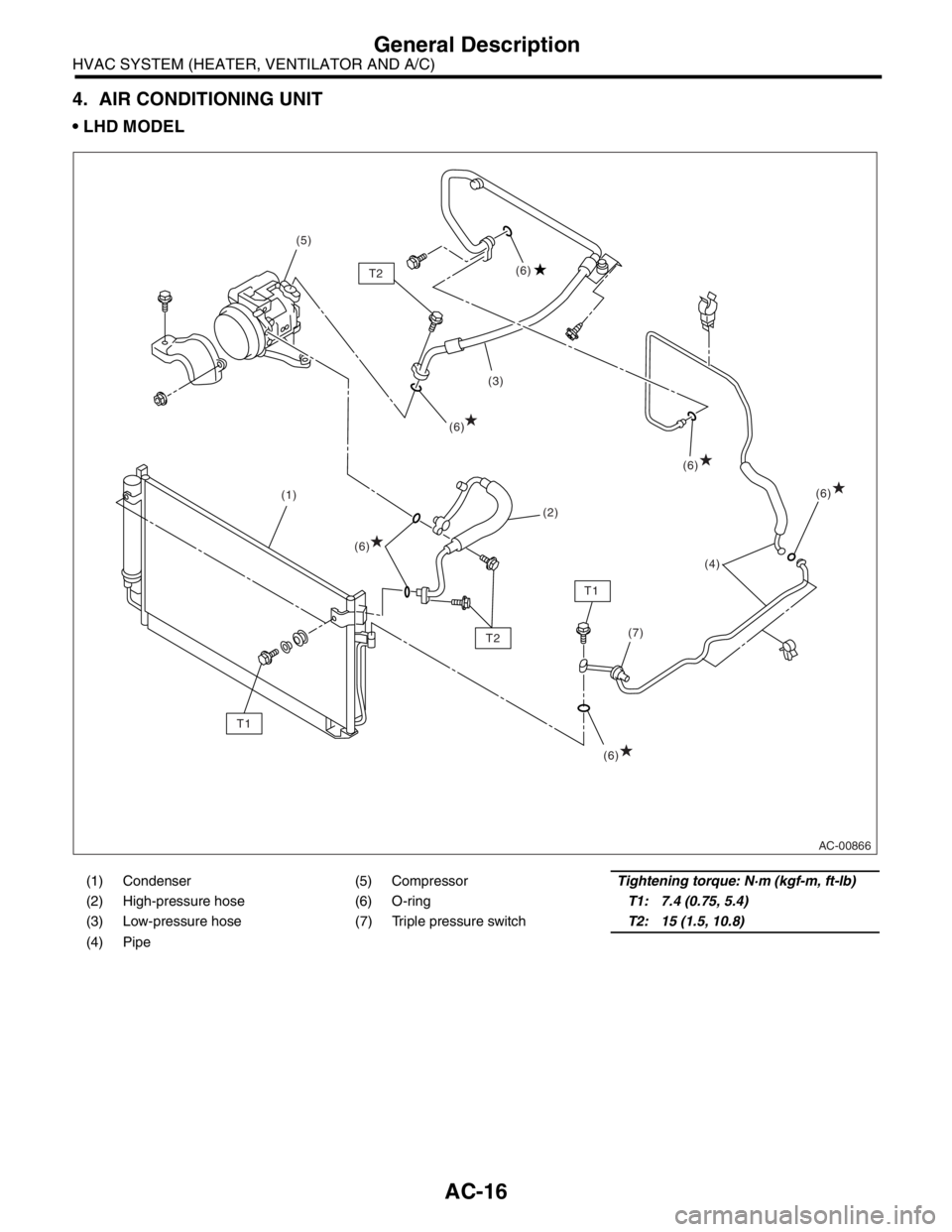

4. AIR CONDITIONING UNIT
 LHD MODEL
(1) Condenser (5) CompressorTightening torque: N·m (kgf-m, ft-lb)
(2) High-pressure hose (6) O-ringT1: 7.4 (0.75, 5.4)
(3) Low-pressure hose (7) Triple pressure switchT2: 15 (1.5, 10.8)
(4) Pipe
AC-00866
(1)(3)
(4)
(7) (5)
(2)
T1
T1T2(6) (6)
(6)(6)
(6) T2(6)

AC-17
HVAC SYSTEM (HEATER, VENTILATOR AND A/C)
General Description
 RHD MODEL
(1) Condenser (5) CompressorTightening torque: N·m (kgf-m, ft-lb)
(2) High-pressure hose (6) O-ringT1: 7.4 (0.75, 5.4)
(3) Low-pressure hose (7) Triple pressure switchT2: 15 (1.5, 10.8)
(4) Pipe
AC-00243
(1)(3)
(4)
(7)
(5)
(2)
T1
T1
T2
(6)
(6)
(6)
(6)
(6)
T2

AC-18
HVAC SYSTEM (HEATER, VENTILATOR AND A/C)
General Description
5. COMPRESSOR
(1) Idler pulley bracket (7) Compressor belt cover (Non-turbo
model)Tightening torque: N·m (kgf-m, ft-lb)
(2) Idler pulley adjusterT1: 4.0 (0.40, 2.95)
(3) Idler pulley (8) Compressor stayT2: 22.6 (2.3, 16.6)
(4) Compressor bracketT3: 23.0 (2.35, 17.0)
(5) CompressorT4: 28.9 (2.95, 21.3)
(6) V-beltT5: 35 (3.6, 26)
AC-00335
(1)
(3)
(2)
(4)
(5)
(8)
(6)
(7)
T3
T2
T1
T5
T5
T5
T4T4
