SUBARU FORESTER 2004 Service Repair Manual

INTAKE (INDUCTION)
IN(H4SO)
Page
1. General Description ....................................................................................2
2. Air Cleaner Element ....................................................................................5
3. Air Cleaner Case .........................................................................................6
4. Air Intake Duct.............................................................................................7
5. Resonator Chamber ....................................................................................8

IN(H4SO)-2
INTAKE (INDUCTION)
General Description
1. General Description

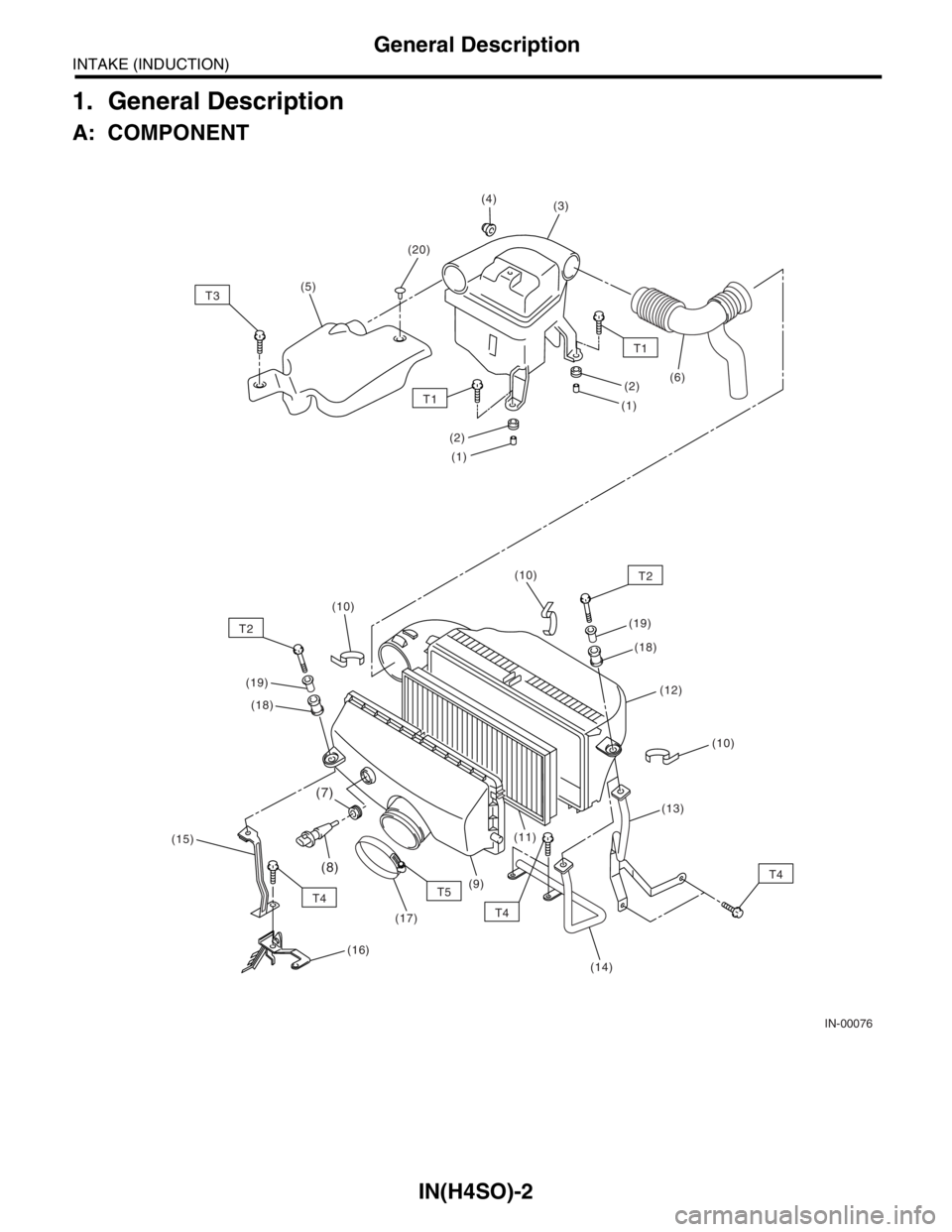

A: COMPONENT
IN-00076
T2
T2
T4
T4T4T5
T3
(6)
(19)
(19)(18)
(18)
(15)(11)
(17)
(16)(9)(12)
(10) (10)
(10)
(13)
(14) (3)
(5)
(4)
T1
T1
(2)
(1)(2)
(1)
(8) (7)
(20)

IN(H4SO)-3
INTAKE (INDUCTION)
General Description
(1) Spacer (10) Clip (19) Spacer
(2) Bushing (11) Air cleaner element (20) Clip
(3) Resonator chamber (12) Air cleaner case B
(4) Cushion (13) Stay LH (MT model)Tightening torque: N
⋅m (kgf-m, ft-lb)
(5) Air intake duct A (14) Stay LH (AT model)T1: 33 (3.4, 24.6)
(6) Air intake duct B (15) Stay RHT2: 6.5 (0.66, 4.8)
(7) Bushing (16) Engine harness bracketT3: 7.5 (0.76, 5.5)
(8) Intake air temperature sensor (17) ClampT4: 16 (1.6, 11.6)
(9) Air cleaner case A (18) BushingT5: 3 (0.3, 2.2)

IN(H4SO)-4
INTAKE (INDUCTION)
General Description
B: CAUTION
 Wear working clothing, including a cap, protec-
tive goggles, and protective shoes during opera-
tion.
 Remove contamination including dirt and corro-
sion before removal, installation or disassembly.
 Keep the disassembled parts in order and pro-
tect them from dust or dirt.
 Before removal, installation or disassembly, be
sure to clarify the failure. Avoid unnecessary re-
moval, installation, disassembly, and replacement.
 Be careful not to burn your hands, because each
part on the vehicle is hot after running.
 Be sure to tighten fasteners including bolts and
nuts to the specified torque.
 Place shop jacks or rigid racks at the specified
points.
 Before disconnecting electrical connectors of
sensor or units, be sure to disconnect the ground
cable from battery.

IN(H4SO)-5
INTAKE (INDUCTION)
Air Cleaner Element
2. Air Cleaner Element
A: REMOVAL

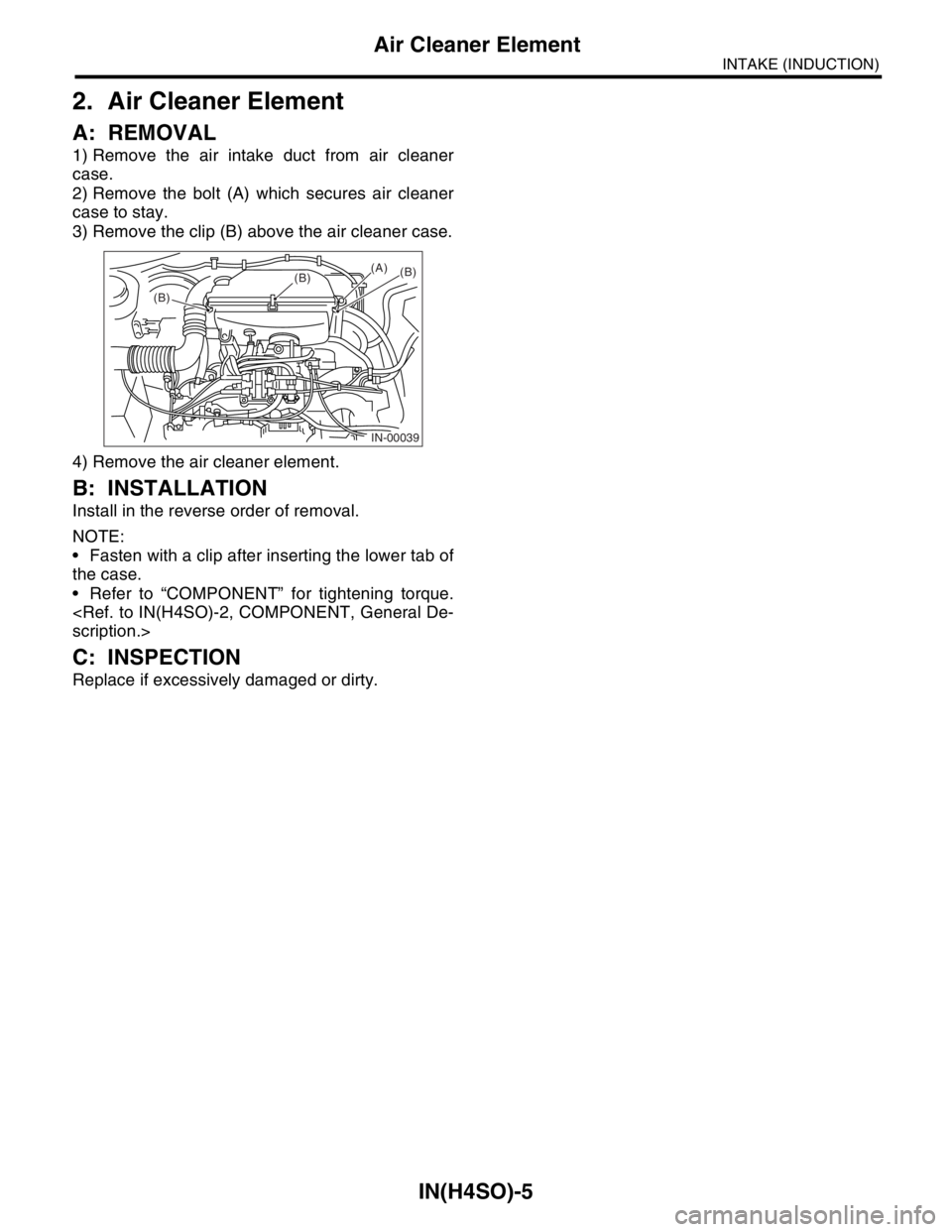

1) Remove the air intake duct from air cleaner
case.
2) Remove the bolt (A) which secures air cleaner
case to stay.
3) Remove the clip (B) above the air cleaner case.
4) Remove the air cleaner element.
B: INSTALLATION
Install in the reverse order of removal.
NOTE:
 Fasten with a clip after inserting the lower tab of
the case.
 Refer to “COMPONENT” for tightening torque.
scription.>
C: INSPECTION
Replace if excessively damaged or dirty.
IN-00039
(B)(B)(B)
(A)

IN(H4SO)-6
INTAKE (INDUCTION)
Air Cleaner Case
3. Air Cleaner Case
A: REMOVAL

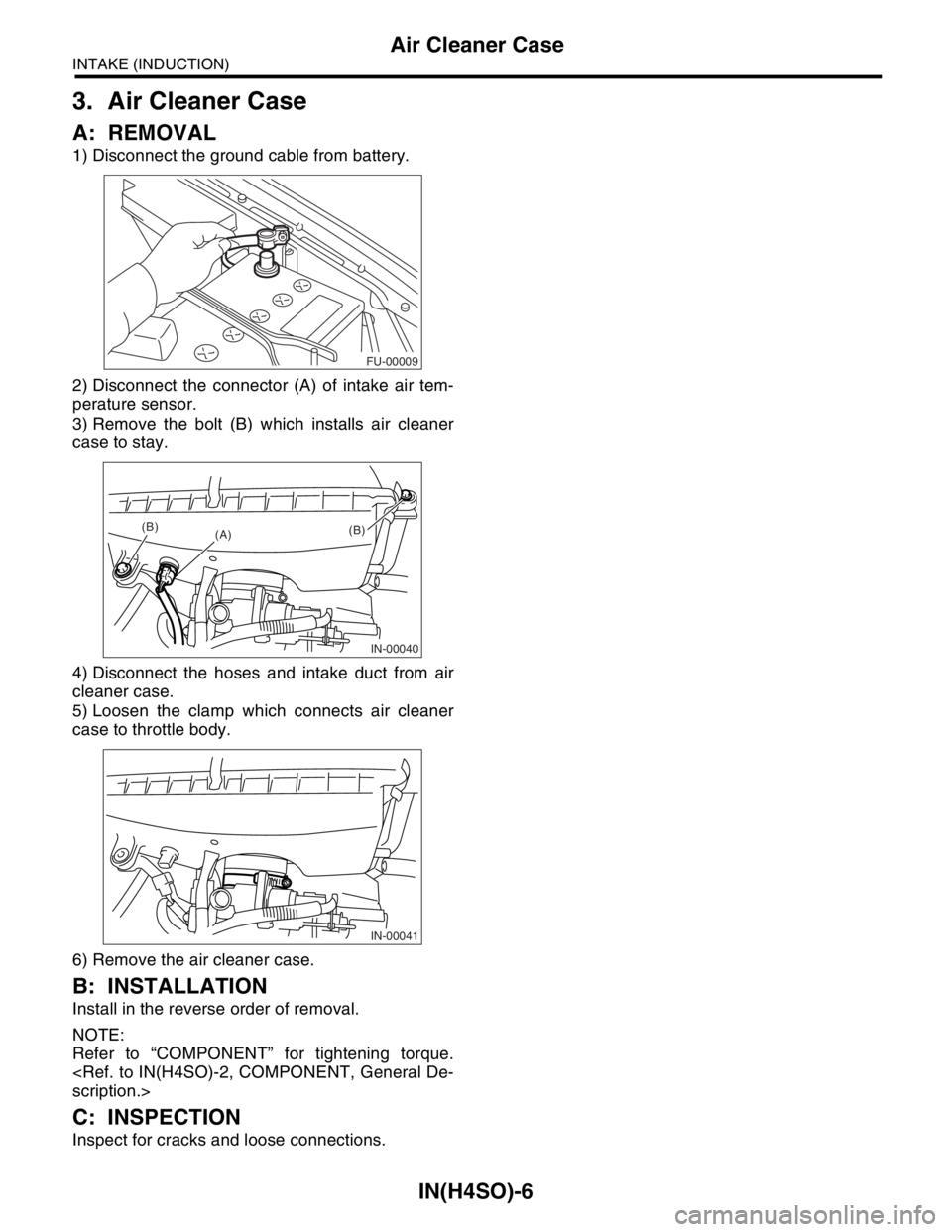

1) Disconnect the ground cable from battery.
2) Disconnect the connector (A) of intake air tem-
perature sensor.
3) Remove the bolt (B) which installs air cleaner
case to stay.
4) Disconnect the hoses and intake duct from air
cleaner case.
5) Loosen the clamp which connects air cleaner
case to throttle body.
6) Remove the air cleaner case.
B: INSTALLATION
Install in the reverse order of removal.
NOTE:
Refer to “COMPONENT” for tightening torque.
scription.>
C: INSPECTION
Inspect for cracks and loose connections.
FU-00009
IN-00040
(B)
(A)(B)
IN-00041

IN(H4SO)-7
INTAKE (INDUCTION)
Air Intake Duct
4. Air Intake Duct
A: REMOVAL

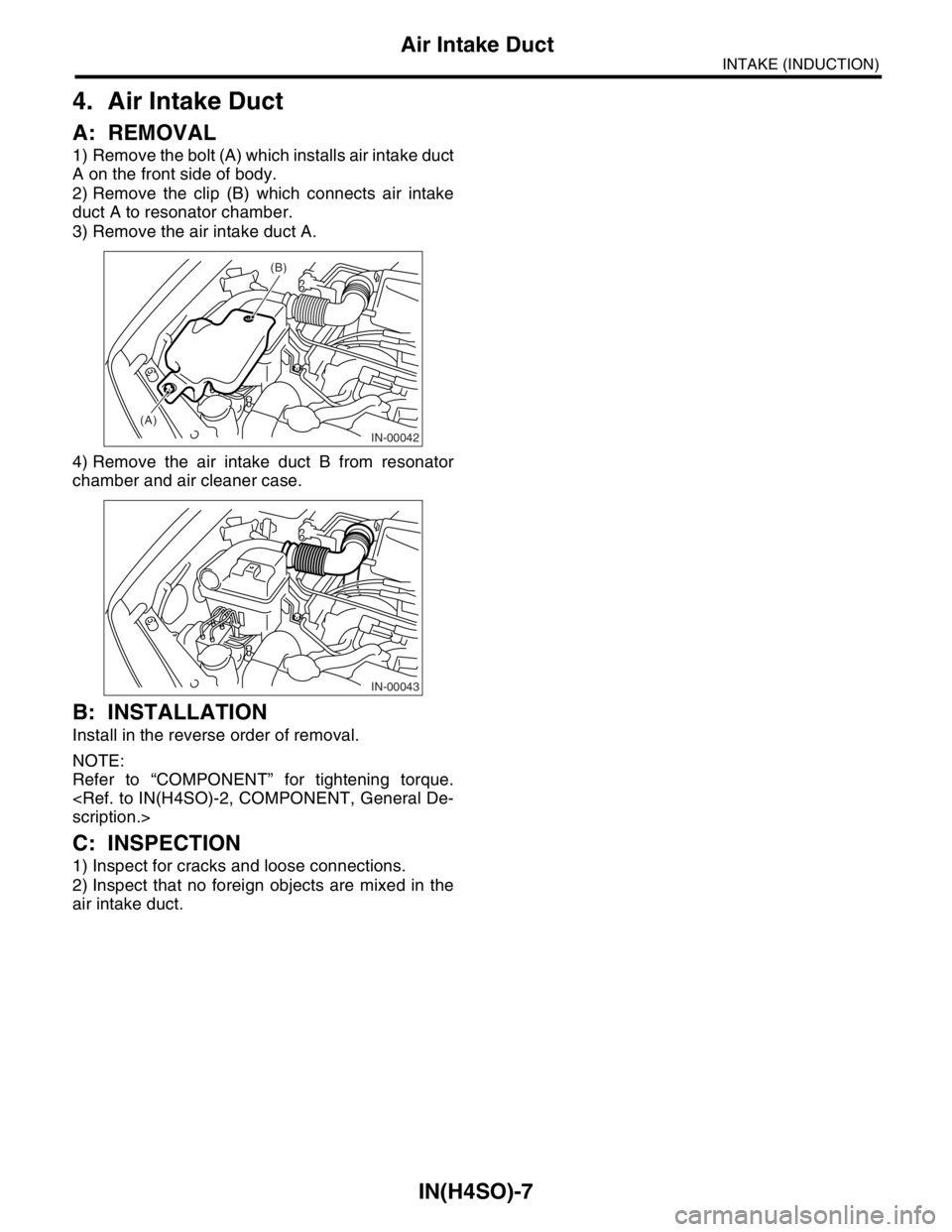

1) Remove the bolt (A) which installs air intake duct
A on the front side of body.
2) Remove the clip (B) which connects air intake
duct A to resonator chamber.
3) Remove the air intake duct A.
4) Remove the air intake duct B from resonator
chamber and air cleaner case.
B: INSTALLATION
Install in the reverse order of removal.
NOTE:
Refer to “COMPONENT” for tightening torque.
scription.>
C: INSPECTION
1) Inspect for cracks and loose connections.
2) Inspect that no foreign objects are mixed in the
air intake duct.
IN-00042
(A)(B)
IN-00043

IN(H4SO)-8
INTAKE (INDUCTION)
Resonator Chamber
5. Resonator Chamber
A: REMOVAL

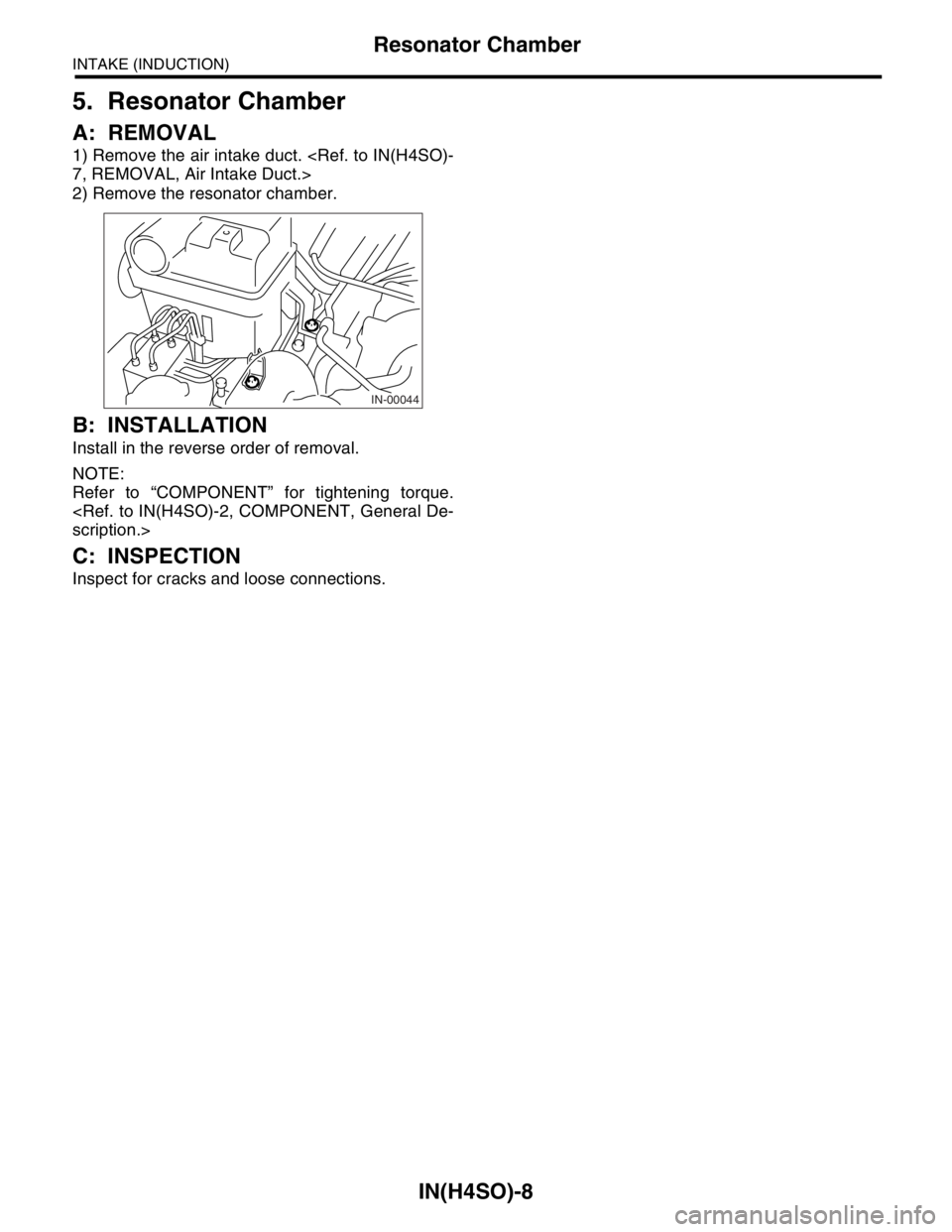

1) Remove the air intake duct. 7, REMOVAL, Air Intake Duct.>
2) Remove the resonator chamber.
B: INSTALLATION
Install in the reverse order of removal.
NOTE:
Refer to “COMPONENT” for tightening torque.
scription.>
C: INSPECTION
Inspect for cracks and loose connections.
IN-00044
