SUBARU TRIBECA 2009 1.G Service Workshop Manual

AB(diag)-87
Diagnostic Chart with Trouble Code
AIRBAG SYSTEM (DIAGNOSTICS)
Step Check Yes No
1CHECK POOR CONTACT OF CONNEC-
TORS.
Check for poor contact of the connectors
between the airbag control module, side airbag
module LH and the side airbag sensor LH.
Is there poor contact? Replace the airbag
rear harness LH
with the body har-
ness.
Go to step 2.
2CHECK SIDE AIRBAG MODULE.
1) Turn the ignition switch to OFF, disconnect
the battery ground cable, and wait more than
20 seconds.
2) Disconnect the connector (AB20) from
(AB19), and connect the connector (1F) in test
harness F to connector (AB19).
3) Connect the airbag resistor to the connec-
tor (3F) of test harness F.
4) Connect the battery ground terminal and
turn the ignition switch to ON.
Does the airbag warning light
illuminate for 6 seconds and go
off?
Replace the side
airbag module
(LH). 7, Front Seat.>
Go to step 3.
3CHECK AIRBAG REAR HARNESS LH (SIDE
AIRBAG MODULE HARNESS LH).
1) Turn the ignition switch to OFF, disconnect
the battery ground cable, and wait more than
20 seconds.
2) Disconnect the connector (AB21) from seat
belt pretensioner (LH).
3) Disconnect the connector (AB31) from cur-
tain airbag module (LH).
4) Disconnect the airbag resistor from test
harness.
5) Disconnect the connector (AB17) from air-
bag control module.
6) Connect the connector (1U) in the test har-
ness U to connector (AB17).
7) Measure the resistance between connector
(3U) in the test harness U and connector (3F)
in the test harness F.
Connector & terminal
(3U) No. 12 — (3F) No. 4:
(3U) No. 10 — (3F) No. 3:
Is the resistance less than 10
Ω?
Go to step 4.Replace the airbag
rear harness LH
with the body har-
ness.
4CHECK AIRBAG REAR HARNESS LH (SIDE
AIRBAG MODULE HARNESS LH).
Measure the resistance between connector
(3U) terminals in the test harness U.
Connector & terminal
(3U) No. 12 — (3U) No. 10:
Is the resistance more than 1
MΩ?
Go to step 5.Replace the airbag
rear harness LH
with the body har-
ness.
5CHECK AIRBAG REAR HARNESS LH (SIDE
AIRBAG MODULE HARNESS LH).
Measure the resistance between connector
(3U) in the test harness U and chassis ground.
Connector & terminal
(3U) No. 12 — Chassis ground:
(3U) No. 10 — Chassis ground:
Is the resistance more than 1
MΩ?
Go to step 6.Replace the airbag
rear harness LH
with the body har-
ness.

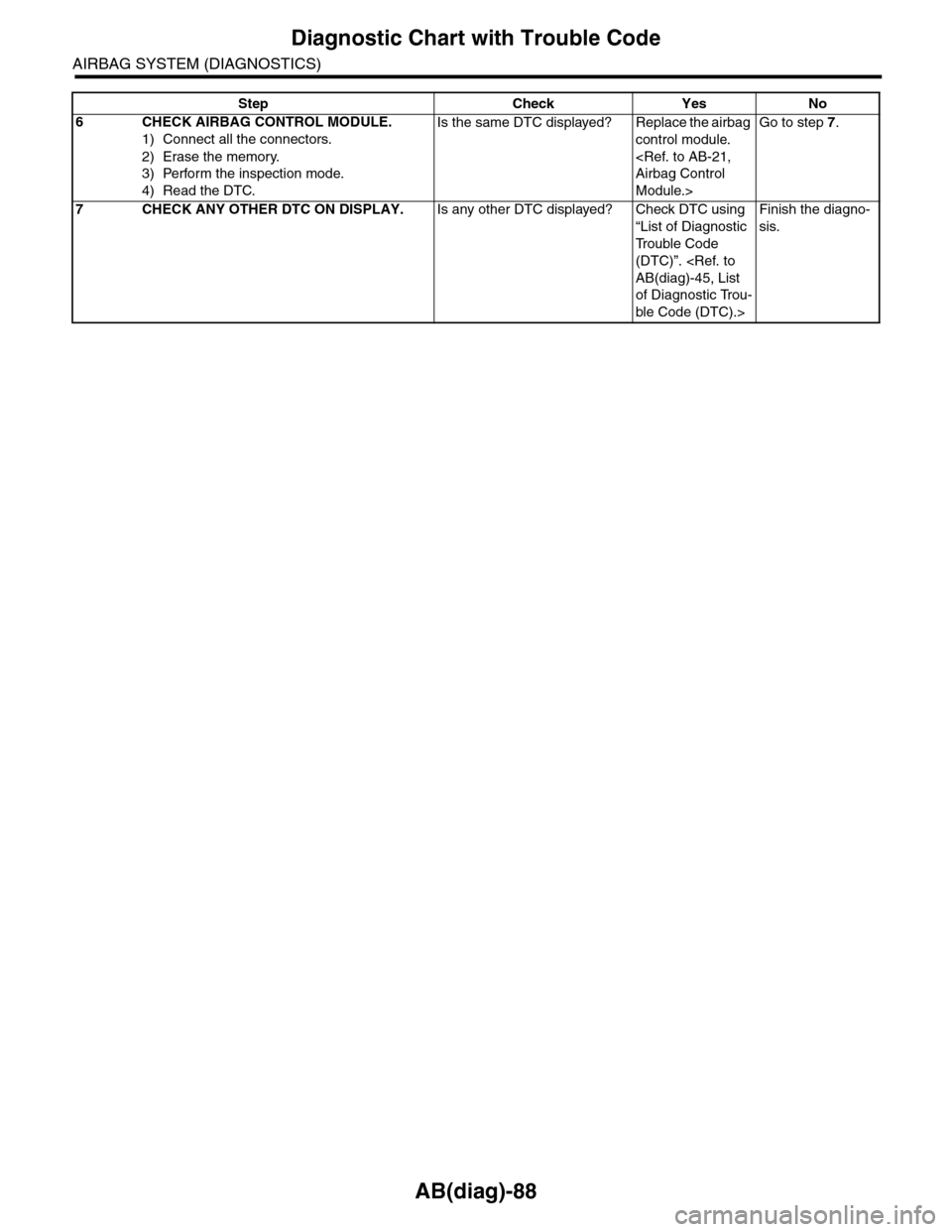

AB(diag)-88
Diagnostic Chart with Trouble Code
AIRBAG SYSTEM (DIAGNOSTICS)
6CHECK AIRBAG CONTROL MODULE.
1) Connect all the connectors.
2) Erase the memory.
3) Perform the inspection mode.
4) Read the DTC.
Is the same DTC displayed? Replace the airbag
control module.
Airbag Control
Module.>
Go to step 7.
7CHECK ANY OTHER DTC ON DISPLAY.Is any other DTC displayed? Check DTC using
“List of Diagnostic
Tr o u b l e C o d e
(DTC)”. AB(diag)-45, List
of Diagnostic Trou-
ble Code (DTC).>
Finish the diagno-
sis.
Step Check Yes No

AB(diag)-89
Diagnostic Chart with Trouble Code
AIRBAG SYSTEM (DIAGNOSTICS)
Z: DTC 45 SIDE AIRBAG RH FAILURE
DTC DETECTING CONDITION:
•Side airbag harness (RH) is shorted to power supply.
•Airbag control module is faulty.
CAUTION:
•Before diagnosing the airbag system, be sure to turn the ignition switch to OFF, disconnect the
ground terminal from battery, and wait more than 20 seconds before starting to work.
•After replacing the airbag module, seat belt pretensioner, roll connector, control module and sen-
sor, reconnect each part and confirm that the warning light operates properly.
•When inspecting the airbag main harness, disconnect the airbag module connectors of driver's
and passenger's seats for safety reasons.
•When inspecting the airbag rear harness, disconnect the side airbag module connector, curtain
airbag module connector and seat belt pretensioner connector for safety reasons.
WIRING DIAGRAM:
AB-00669
AB18
AB24
AB25
12
78
AB28
15171316
3412
AB18AB24
12789101112
13141516171819
56
20
1234
AIRBAG CONTROL MODULE
INFLATOR(SIDE RH)
SIDE AIRBAGSENSOR RH
AB28
1234

AB(diag)-90
Diagnostic Chart with Trouble Code
AIRBAG SYSTEM (DIAGNOSTICS)
Step Check Yes No
1CHECK POOR CONTACT OF CONNEC-
TORS.
Check for poor contact of the connectors
between the airbag control module, side airbag
module RH and the side airbag sensor RH.
Is there poor contact? Replace the airbag
rear harness RH
with body harness.
Go to step 2.
2CHECK SIDE AIRBAG MODULE.
1) Turn the ignition switch to OFF, disconnect
the battery ground cable, and wait more than
20 seconds.
2) Disconnect the connector (AB25) from
(AB24), and connect the connector (1F) in test
harness F to connector (AB24).
3) Connect the airbag resistor to the connec-
tor (3F) of test harness F.
4) Connect the battery ground terminal and
turn the ignition switch to ON.
Does the airbag warning light
illuminate for 6 seconds and go
off?
Replace the side
airbag module
(RH). 7, Front Seat.>
Go to step 3.
3CHECK AIRBAG REAR HARNESS RH (SIDE
AIRBAG MODULE HARNESS RH).
1) Turn the ignition switch to OFF, disconnect
the battery ground cable, and wait more than
20 seconds.
2) Disconnect the connector (AB26) from seat
belt pretensioner (RH).
3) Disconnect the connector (AB33) from cur-
tain airbag module (RH).
4) Disconnect the airbag resistor from test
harness.
5) Disconnect the connector (AB18) from air-
bag control module.
6) Connect the connector (1U) in the test har-
ness U to connector (AB18).
7) Connect the battery ground terminal and
turn the ignition switch to ON.
8) Measure the voltage between connector
(3U) in the test harness U and chassis ground.
Connector & terminal
(3U) No. 20 (+) — Chassis ground (–):
(3U) No. 18 (+) — Chassis ground (–):
Is the voltage less than 1 V? Go to step 4.Replace the airbag
rear harness RH
with body harness.
4CHECK AIRBAG CONTROL MODULE.
1) Connect all the connectors.
2) Erase the memory.
3) Perform the inspection mode.
4) Read the DTC.
Is the same DTC displayed? Replace the airbag
control module.
Airbag Control
Module.>
Go to step 5.
5CHECK ANY OTHER DTC ON DISPLAY.Is any other DTC displayed? Check DTC using
“List of Diagnostic
Tr o u b l e C o d e
(DTC)”. AB(diag)-45, List
of Diagnostic Trou-
ble Code (DTC).>
Finish the diagno-
sis.

AB(diag)-91
Diagnostic Chart with Trouble Code
AIRBAG SYSTEM (DIAGNOSTICS)
AA:DTC 46 SIDE AIRBAG LH FAILURE
DTC DETECTING CONDITION:
•Side airbag harness (LH) is shorted to power supply.
•Airbag control module is faulty.
CAUTION:
•Before diagnosing the airbag system, be sure to turn the ignition switch to OFF, disconnect the
ground terminal from battery, and wait more than 20 seconds before starting to work.
•After replacing the airbag module, seat belt pretensioner, roll connector, control module and sen-
sor, reconnect each part and confirm that the warning light operates properly.
•When inspecting the airbag main harness, disconnect the airbag module connectors of driver's
and passenger's seats for safety reasons.
•When inspecting the airbag rear harness, disconnect the side airbag module connector, curtain
airbag module connector and seat belt pretensioner connector for safety reasons.
WIRING DIAGRAM:
AB-00670
AB2312
109
AB19
AB20
17201618
3412
AB19
12
AB17
AB17
789101112
13141516171819
56
20
1234
AIRBAG CONTROL MODULE
INFLATOR(SIDE LH)
SIDE AIRBAGSENSOR LH
AB23
1234

AB(diag)-92
Diagnostic Chart with Trouble Code
AIRBAG SYSTEM (DIAGNOSTICS)
Step Check Yes No
1CHECK POOR CONTACT OF CONNEC-
TORS.
Check for poor contact of the connectors
between the airbag control module, side airbag
module LH and the side airbag sensor LH.
Is there poor contact? Replace the airbag
rear harness LH
with the body har-
ness.
Go to step 2.
2CHECK SIDE AIRBAG MODULE.
1) Turn the ignition switch to OFF, disconnect
the battery ground cable, and wait more than
20 seconds.
2) Disconnect the connector (AB20) from
(AB19), and connect the connector (1F) in test
harness F to connector (AB19).
3) Connect the airbag resistor to the connec-
tor (3F) of test harness F.
4) Connect the battery ground terminal and
turn the ignition switch to ON.
Does the airbag warning light
illuminate for 6 seconds and go
off?
Replace the side
airbag module
(LH). 7, Front Seat.>
Go to step 3.
3CHECK AIRBAG REAR HARNESS LH (SIDE
AIRBAG MODULE HARNESS LH).
1) Turn the ignition switch to OFF, disconnect
the battery ground cable, and wait more than
20 seconds.
2) Disconnect the connector (AB21) from seat
belt pretensioner (LH).
3) Disconnect the connector (AB31) from cur-
tain airbag module (LH).
4) Disconnect the airbag resistor from test
harness.
5) Disconnect the connector (AB17) from air-
bag control module.
6) Connect the connector (1U) in the test har-
ness U to connector (AB17).
7) Connect the battery ground terminal and
turn the ignition switch to ON.
8) Measure the voltage between connector
(3U) in the test harness U and chassis ground.
Connector & terminal
(3U) No. 12 (+) — Chassis ground (–):
(3U) No. 10 (+) — Chassis ground (–):
Is the voltage less than 1 V? Go to step 4.Replace the airbag
rear harness LH
with the body har-
ness.
4CHECK AIRBAG CONTROL MODULE.
1) Connect all the connectors.
2) Erase the memory.
3) Perform the inspection mode.
4) Read the DTC.
Is the same DTC displayed? Replace the airbag
control module.
Airbag Control
Module.>
Go to step 5.
5CHECK ANY OTHER DTC ON DISPLAY.Is any other DTC displayed? Check DTC using
“List of Diagnostic
Tr o u b l e C o d e
(DTC)”. AB(diag)-45, List
of Diagnostic Trou-
ble Code (DTC).>
Finish the diagno-
sis.

AB(diag)-93
Diagnostic Chart with Trouble Code
AIRBAG SYSTEM (DIAGNOSTICS)
AB:DTC 51 SIDE AIRBAG SENSOR RH FAILURE
DTC DETECTING CONDITION:
•Side airbag sensor (RH) is faulty.
•Side airbag harness (RH) is faulty.
•Airbag control module is faulty.
CAUTION:
•Before diagnosing the airbag system, be sure to turn the ignition switch to OFF, disconnect the
ground terminal from battery, and wait more than 20 seconds before starting to work.
•After replacing the airbag module, seat belt pretensioner, roll connector, control module and sen-
sor, reconnect each part and confirm that the warning light operates properly.
•When inspecting the airbag main harness, disconnect the airbag module connectors of driver's
and passenger's seats for safety reasons.
•When inspecting the airbag rear harness, disconnect the side airbag module connector, curtain
airbag module connector and seat belt pretensioner connector for safety reasons.
WIRING DIAGRAM:
AB-00669
AB18
AB24
AB25
12
78
AB28
15171316
3412
AB18AB24
12789101112
13141516171819
56
20
1234
AIRBAG CONTROL MODULE
INFLATOR(SIDE RH)
SIDE AIRBAGSENSOR RH
AB28
1234

AB(diag)-94
Diagnostic Chart with Trouble Code
AIRBAG SYSTEM (DIAGNOSTICS)
Step Check Yes No
1CHECK POOR CONTACT OF CONNEC-
TORS.
Check for poor contact of the connectors
between the airbag control module, side airbag
module RH and the side airbag sensor RH.
Is there poor contact? Replace the airbag
rear harness RH
with body harness.
Go to step 2.
2CHECK AIRBAG REAR HARNESS RH (SIDE
AIRBAG SENSOR HARNESS RH).
1) Turn the ignition switch to OFF, disconnect
the battery ground cable, and wait more than
20 seconds.
2) Disconnect the connector (AB26) from seat
belt pretensioner (RH).
3) Disconnect the connector (AB33) from cur-
tain airbag module (RH).
4) Disconnect the connector (AB25) from
(AB24).
5) Disconnect the connector (AB18) from air-
bag control module.
6) Connect the connector (1U) in the test har-
ness U to connector (AB18).
7) Disconnect the connector (AB28) from side
airbag sensor (RH), and connect the connector
(2V) in test harness V to connector (AB28).
8) Measure the resistance between connector
(4U) in the test harness U and connector (3V)
in the test harness V.
Connector & terminal
(4U) No. 5 — (3V) No. 2:
(4U) No. 7 — (3V) No. 1:
(4U) No. 8 — (3V) No. 5:
(4U) No. 6 — (3V) No. 4:
Is the resistance less than 10
Ω?
Go to step 3.Replace the airbag
rear harness RH
with body harness.
3CHECK AIRBAG REAR HARNESS RH (SIDE
AIRBAG SENSOR HARNESS RH).
Measure the resistance between connector
(4U) in the test harness U and chassis ground.
Connector & terminal
(4U) No. 5 — Chassis ground:
(4U) No. 7 — Chassis ground:
(4U) No. 8 — Chassis ground:
(4U) No. 6 — Chassis ground:
Is the resistance more than 1
MΩ?
Go to step 4.Replace the airbag
rear harness RH
with body harness.
4CHECK AIRBAG CONTROL MODULE.
1) Connect all the connectors.
2) Erase the memory.
3) Perform the inspection mode.
4) Read the DTC.
Is the same DTC displayed? Replace the side
airbag sensor
(RH). 22, Side Airbag
Sensor.> Replace
the airbag control
module if not oper-
ating normally
even after replac-
ing the sensor.
Airbag Control
Module.>
Go to step 5.
5CHECK ANY OTHER DTC ON DISPLAY.Is any other DTC displayed? Check DTC using
“List of Diagnostic
Tr o u b l e C o d e
(DTC)”. AB(diag)-45, List
of Diagnostic Trou-
ble Code (DTC).>
Finish the diagno-
sis.

AB(diag)-95
Diagnostic Chart with Trouble Code
AIRBAG SYSTEM (DIAGNOSTICS)
AC:DTC 52 SIDE AIRBAG SENSOR LH FAILURE
DTC DETECTING CONDITION:
•Side airbag sensor (LH) is faulty.
•Side airbag harness (LH) is faulty.
•Airbag control module is faulty.
CAUTION:
•Before diagnosing the airbag system, be sure to turn the ignition switch to OFF, disconnect the
ground terminal from battery, and wait more than 20 seconds before starting to work.
•After replacing the airbag module, seat belt pretensioner, roll connector, control module and sen-
sor, reconnect each part and confirm that the warning light operates properly.
•When inspecting the airbag main harness, disconnect the airbag module connectors of driver's
and passenger's seats for safety reasons.
•When inspecting the airbag rear harness, disconnect the side airbag module connector, curtain
airbag module connector and seat belt pretensioner connector for safety reasons.
WIRING DIAGRAM:
AB-00670
AB2312
109
AB19
AB20
17201618
3412
AB19
12
AB17
AB17
789101112
13141516171819
56
20
1234
AIRBAG CONTROL MODULE
INFLATOR(SIDE LH)
SIDE AIRBAGSENSOR LH
AB23
1234

AB(diag)-96
Diagnostic Chart with Trouble Code
AIRBAG SYSTEM (DIAGNOSTICS)
Step Check Yes No
1CHECK POOR CONTACT OF CONNEC-
TORS.
Check for poor contact of the connectors
between the airbag control module, side airbag
module LH and the side airbag sensor LH.
Is there poor contact? Replace the airbag
rear harness LH
with the body har-
ness.
Go to step 2.
2CHECK AIRBAG REAR HARNESS LH (SIDE
AIRBAG SENSOR HARNESS LH).
1) Turn the ignition switch to OFF, disconnect
the battery ground cable, and wait more than
20 seconds.
2) Disconnect the connector (AB21) from seat
belt pretensioner (LH).
3) Disconnect the connector (AB31) from cur-
tain airbag module (LH).
4) Disconnect the connector (AB20) from
(AB19).
5) Disconnect the connector (AB17) from air-
bag control module.
6) Connect the connector (1U) in the test har-
ness U to connector (AB17).
7) Disconnect the connector (AB23) from side
airbag sensor (LH), and connect the connector
(2V) in test harness V to connector (AB23).
8) Measure the resistance between connector
(4U) in the test harness U and connector (3V)
in the test harness V.
Connector & terminal
(4U) No. 3 — (3V) No. 4:
(4U) No. 1 — (3V) No. 5:
(4U) No. 2 — (3V) No. 1:
(4U) No. 4 — (3V) No. 2:
Is the resistance less than 10
Ω?
Go to step 3.Replace the airbag
rear harness LH
with the body har-
ness.
3CHECK AIRBAG REAR HARNESS LH (SIDE
AIRBAG SENSOR HARNESS LH).
Measure the resistance between connector
(4U) in the test harness U and chassis ground.
Connector & terminal
(4U) No. 3 — Chassis ground:
(4U) No. 1 — Chassis ground:
(4U) No. 2 — Chassis ground:
(4U) No. 4 — Chassis ground:
Is the resistance more than 1
MΩ?
Go to step 4.Replace the airbag
rear harness LH
with the body har-
ness.
4CHECK AIRBAG CONTROL MODULE.
1) Connect all the connectors.
2) Erase the memory.
3) Perform the inspection mode.
4) Read the DTC.
Is the same DTC displayed? Replace the side
airbag sensor
(LH). 22, Side Airbag
Sensor.> Replace
the airbag control
module if not oper-
ating normally
even after replac-
ing the sensor.
Airbag Control
Module.>
Go to step 5.
5CHECK ANY OTHER DTC ON DISPLAY.Is any other DTC displayed? Check DTC using
“List of Diagnostic
Tr o u b l e C o d e
(DTC)”. AB(diag)-45, List
of Diagnostic Trou-
ble Code (DTC).>
Finish the diagno-
sis.
