SUZUKI GRAND VITARA 2022 Owners Manual

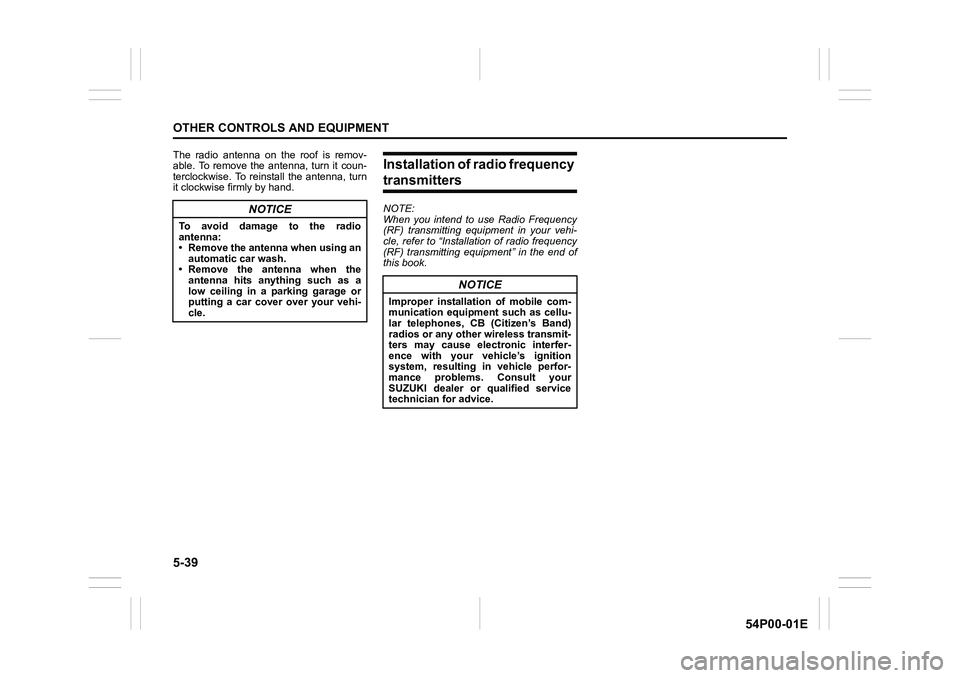

5-39
OTHER CONTROLS AND EQUIPMENT
54P00-01E
The radio antenna on the roof is remov-
able. To remove the antenna, turn it coun-
terclockwise. To reinstall the antenna, turn
it clockwise firmly by hand.Installation of radio frequency
transmitters
NOTE:
When you intend to use Radio Frequency
(RF) transmitting equipment in your vehi-
cle, refer to “Installation of radio frequency
(RF) transmitting equipment” in the end of
this book.NOTICE
To avoid damage to the radio
antenna:
• Remove the antenna when using an
automatic car wash.
• Remove the antenna when the
antenna hits anything such as a
low ceiling in a parking garage or
putting a car cover over your vehi-
cle.
NOTICE
Improper installation of mobile com-
munication equipment such as cellu-
lar telephones, CB (Citizen’s Band)
radios or any other wireless transmit-
ters may cause electronic interfer-
ence with your vehicle’s ignition
system, resulting in vehicle perfor-
mance problems. Consult your
SUZUKI dealer or qualified service
technician for advice.

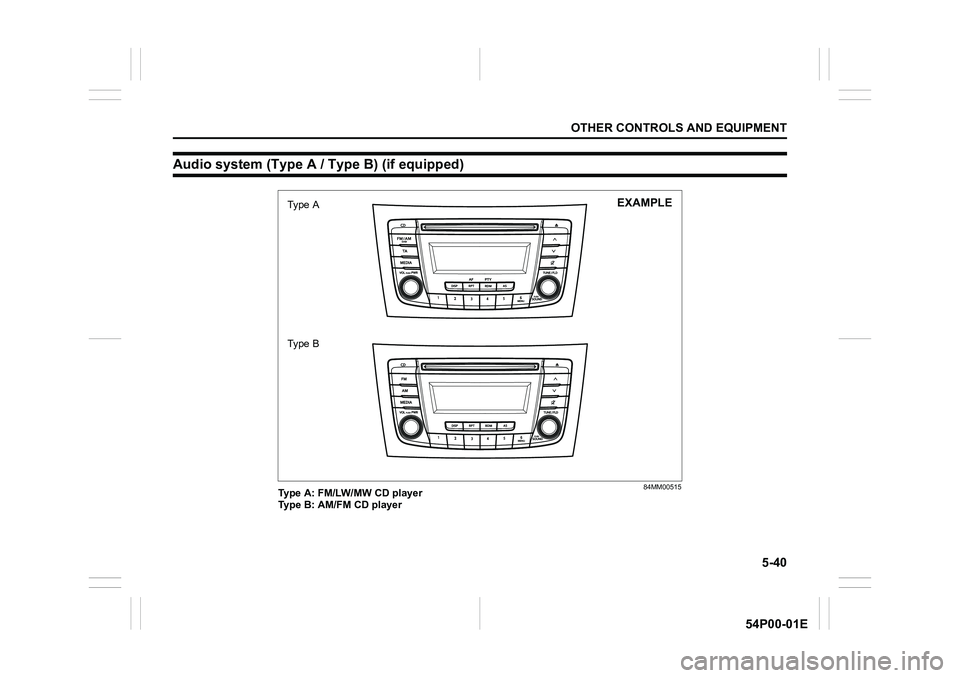

5-40
OTHER CONTROLS AND EQUIPMENT
54P00-01E
Audio system (Type A / Type B) (if equipped)
84MM00515Type A: FM/LW/MW CD player
Type B: AM/FM CD playerTy p e A
Ty p e B
EXAMPLE

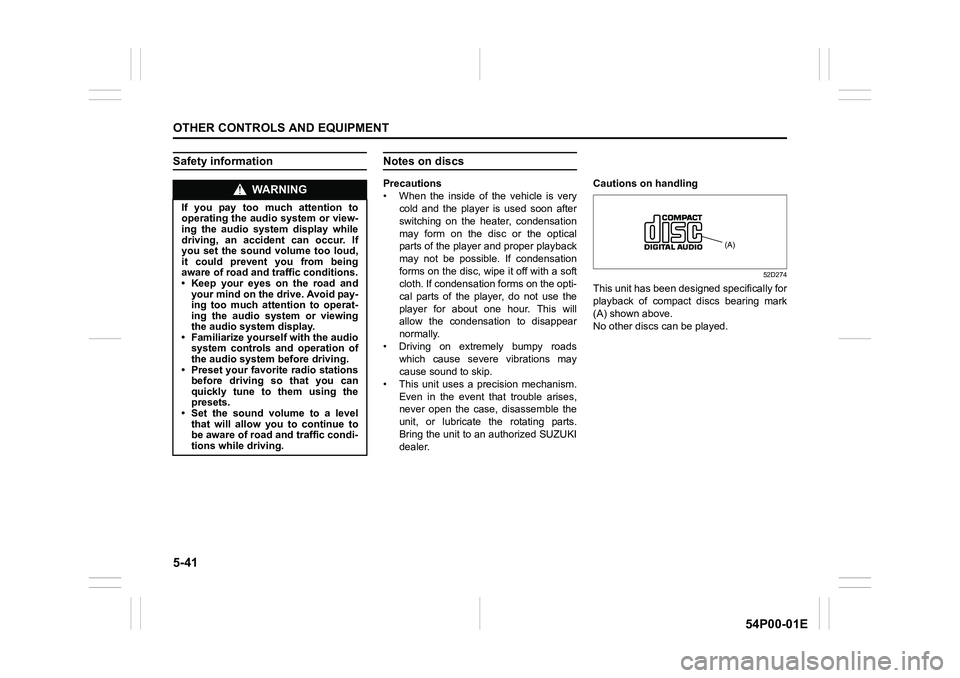

5-41
OTHER CONTROLS AND EQUIPMENT
54P00-01E
Safety informationNotes on discs
Precautions
• When the inside of the vehicle is very
cold and the player is used soon after
switching on the heater, condensation
may form on the disc or the optical
parts of the player and proper playback
may not be possible. If condensation
forms on the disc, wipe it off with a soft
cloth. If condensation forms on the opti-
cal parts of the player, do not use the
player for about one hour. This will
allow the condensation to disappear
normally.
• Driving on extremely bumpy roads
which cause severe vibrations may
cause sound to skip.
• This unit uses a precision mechanism.
Even in the event that trouble arises,
never open the case, disassemble the
unit, or lubricate the rotating parts.
Bring the unit to an authorized SUZUKI
dealer.Cautions on handling
52D274
This unit has been designed specifically for
playback of compact discs bearing mark
(A) shown above.
No other discs can be played.
WA R N I N G
If you pay too much attention to
operating the audio system or view-
ing the audio system display while
driving, an accident can occur. If
you set the sound volume too loud,
it could prevent you from being
aware of road and traffic conditions.
• Keep your eyes on the road and
your mind on the drive. Avoid pay-
ing too much attention to operat-
ing the audio system or viewing
the audio system display.
• Familiarize yourself with the audio
system controls and operation of
the audio system before driving.
• Preset your favorite radio stations
before driving so that you can
quickly tune to them using the
presets.
• Set the sound volume to a level
that will allow you to continue to
be aware of road and traffic condi-
tions while driving.
(A)

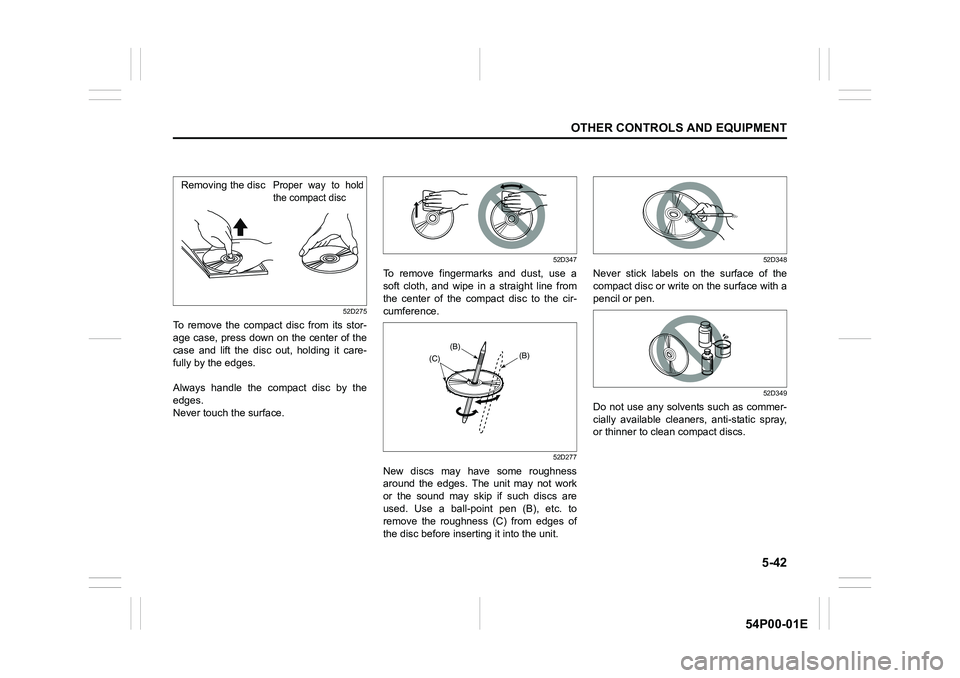

5-42
OTHER CONTROLS AND EQUIPMENT
54P00-01E
52D275
To remove the compact disc from its stor-
age case, press down on the center of the
case and lift the disc out, holding it care-
fully by the edges.
Always handle the compact disc by the
edges.
Never touch the surface.
52D347
To remove fingermarks and dust, use a
soft cloth, and wipe in a straight line from
the center of the compact disc to the cir-
cumference.
52D277
New discs may have some roughness
around the edges. The unit may not work
or the sound may skip if such discs are
used. Use a ball-point pen (B), etc. to
remove the roughness (C) from edges of
the disc before inserting it into the unit.
52D348
Never stick labels on the surface of the
compact disc or write on the surface with a
pencil or pen.
52D349
Do not use any solvents such as commer-
cially available cleaners, anti-static spray,
or thinner to clean compact discs.
Removing the discProper way to hold
the compact disc
(B)
(B)
(C)

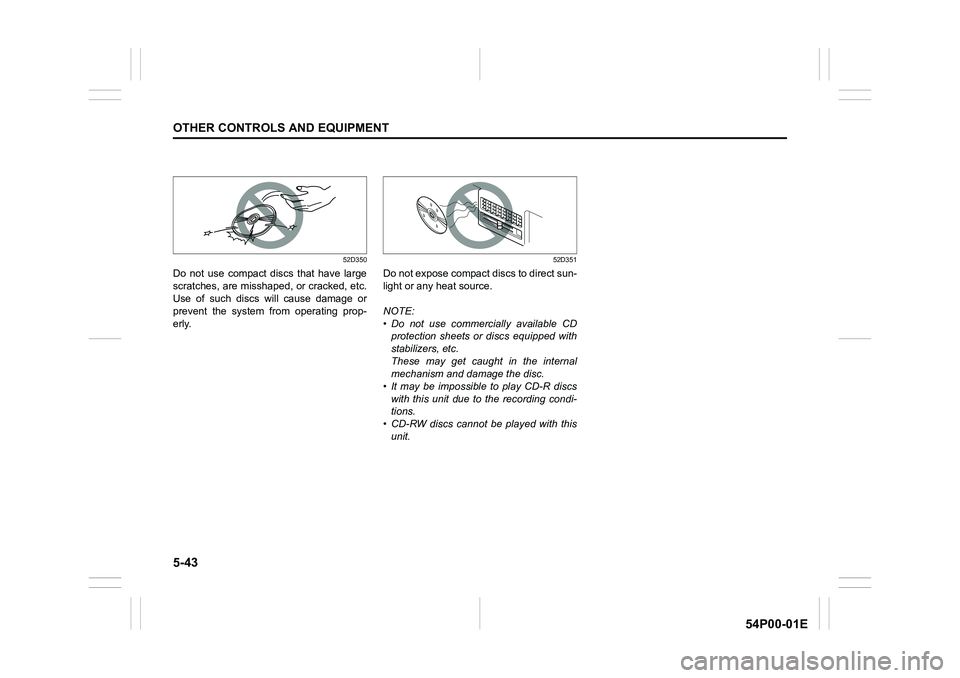

5-43
OTHER CONTROLS AND EQUIPMENT
54P00-01E
52D350
Do not use compact discs that have large
scratches, are misshaped, or cracked, etc.
Use of such discs will cause damage or
prevent the system from operating prop-
erly.
52D351
Do not expose compact discs to direct sun-
light or any heat source.
NOTE:
• Do not use commercially available CD
protection sheets or discs equipped with
stabilizers, etc.
These may get caught in the internal
mechanism and damage the disc.
• It may be impossible to play CD-R discs
with this unit due to the recording condi-
tions.
• CD-RW discs cannot be played with this
unit.

5-44
OTHER CONTROLS AND EQUIPMENT
54P00-01E
The Bluetooth® word mark and logo are
registered trademarks and are owned by
the Bluetooth SIG, Ink.
Stop using this unit and a Bluetooth
®
ready device whenever requested.
This unit shares the communication fre-
quency with other private or public wireless
communication equipment such as a wire-
less LAN and other wireless communica-
tion radios.
You should stop using this unit whenever
you are notified that your unit disturbs
other wireless communication immediately.The latest “DECLARATION of CONFOR-
MITY” (DoC) is available at the following
address:
http://www.ptc.panasonic.eu/
To check DoC, access the above men-
tioned URL.
And then search DoC by entering the fol-
lowing Model No. into “Keyword Search”
box in “Downloads” page.
Model No. YEP0PTA606A0
WA R N I N G
This is a class I laser product. Use
of controls or adjustments or perfor-
mance of procedures other than
those specified herein may result in
hazardous radiation exposure.
Do not open covers and do not
attempt to repair this unit by your-
self.
Ask an authorized dealer for the
repair.
“Questo prodotto e’ conforme al DM
28/8/1955, N.548, ottemperando alle
prescrizioni di cui al DM 25/6/1985
(par. 3, All. A) e DM 27/8/1987 (All. I).”

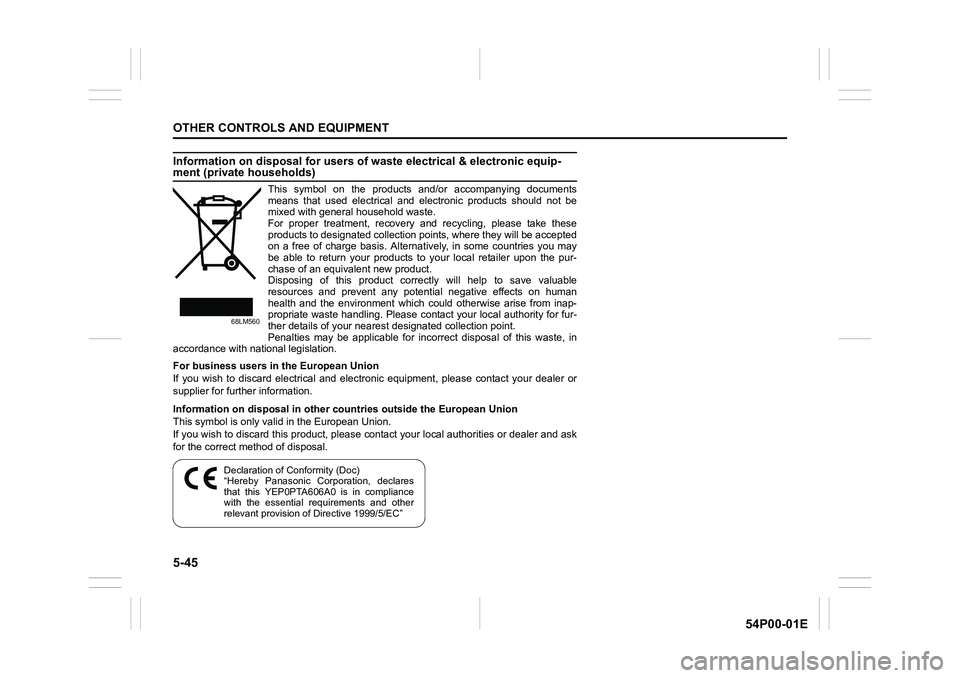

5-45
OTHER CONTROLS AND EQUIPMENT
54P00-01E
Information on disposal for users of waste electrical & electronic equip-ment (private households)
This symbol on the products and/or accompanying documents
means that used electrical and electronic products should not be
mixed with general household waste.
For proper treatment, recovery and recycling, please take these
products to designated collection points, where they will be accepted
on a free of charge basis. Alternatively, in some countries you may
be able to return your products to your local retailer upon the pur-
chase of an equivalent new product.
Disposing of this product correctly will help to save valuable
resources and prevent any potential negative effects on human
health and the environment which could otherwise arise from inap-
propriate waste handling. Please contact your local authority for fur-
ther details of your nearest designated collection point.
Penalties may be applicable for incorrect disposal of this waste, in
accordance with national legislation.
For business users in the European Union
If you wish to discard electrical and electronic equipment, please contact your dealer or
supplier for further information.
Information on disposal in other countries outside the European Union
This symbol is only valid in the European Union.
If you wish to discard this product, please contact your local authorities or dealer and ask
for the correct method of disposal.
68LM560
Declaration of Conformity (Doc)
“Hereby Panasonic Corporation, declares
that this YEP0PTA606A0 is in compliance
with the essential requirements and other
relevant provision of Directive 1999/5/EC”

5-46
OTHER CONTROLS AND EQUIPMENT
54P00-01E
Part 15 of the FCC Rules
FCC Warning:
Any unauthorized changes or modifica-
tions to this equipment would void the
user’s authority to operate this device.The Bluetooth
® word mark and logo are
registered trademarks and are owned by
the Bluetooth SIG, Ink.
NOTE:
This equipment complies with FCC radia-
tion exposure limits set forth for uncon-
trolled equipment and meets the FCC
radio frequency (RF) Exposure Guidelines
in Supplement C to OET65. This equip-
ment has very low level of RF energy
which does not comply with maximum per-
missive exposure (MPE) evaluation. But it
is desirable that it should be installed and
operated with at least 20cm and more
between the radiator and person’s body
(excluding extremities: hands, wrists, feet
and ankles).Stop using this unit and a Bluetooth
®
ready device whenever requested.
This unit shares the communication fre-
quency with other private or public wireless
communication equipment such as a wire-
less LAN and other wireless communica-
tion radios.
You should stop using this unit whenever
you are notified that your unit disturbs
other wireless communication immediately.
WA R N I N G
This is a class I laser product. Use of
controls or adjustments or perfor-
mance of procedures other than
those specified herein may result in
hazardous radiation exposure.
Do not open covers and do not
attempt to repair this unit by yourself.
Ask an authorized dealer for the
repair.

5-47
OTHER CONTROLS AND EQUIPMENT
54P00-01E
This device complies with Part 15 of FCC
Rules and RSS-210 of Industry Canada.
Operation is subject to the following two
conditions: (1) this device may not cause
interference, and (2) this device must
accept any interference, including interfer-
ence that may cause undesired operation
of this device.NOTE:
This equipment has been tested and found
to comply with the limits for a Class B digi-
tal device, pursuant to part 15 of the FCC
Rules. These limits are designed to pro-
vide reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses and can
radiate radio frequency energy and, if not
installed and used in accordance with the
instructions, may cause harmful interfer-
ence to radio communications. However,
there is no guarantee that interference will
not occur in a particular installation. If this
equipment does cause harmful interfer-
ence to radio or television reception, which
can be determined by turning the equip-
ment off and on, the user is encouraged to
try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving anten-
na.
• Increase the separation between the
equipment and receiver.
• Connect the equipment into an outlet on
a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced
radio/TV technician for help. • This transmitter must not be co-located
or operated in conjunction with any other
antenna or transmitter.
FCC ID: ACJ932YEP0PTA606
Certificación para la unidad del
teléfono manos libres
Este equipo tiene instalado una
unidad de manos libre Bluetooth
®
(Tipo: YEP0PTA606A0).
YEP0PTA606A0 cumple con la LEY
FEDERAL DE TELECOMUNICA-
CIONES. No. de certificación es
COFETEL: RCPPYE14-0724.

5-48
OTHER CONTROLS AND EQUIPMENT
54P00-01E
Basic operations
84MM00516
(1) “VOL PUSH PWR” knob
(2) “TUNE/FLD PUSH SOUND” knob
(3) MUTE button
(2)
(3)
(1)
(2)
(3)
(1)
Type A
Type BEXAMPLE
Turning on/off power
Press “VOL PUSH PWR” knob (1) to turn
on the power. The unit starts to operate in
the previous setting that the power was
turned off.
Adjusting the volume
Turn “VOL PUSH PWR” knob (1).
Turning it clockwise increases the volume;
turning it counterclockwise decreases the
volume.
NOTE:
For the purposes of safe driving, adjust the
audio volume to a level that allows you to
hear sounds outside of the vehicle includ-
ing car horns and particularly emergency
vehicle sirens.
Mute
Press MUTE button (3) to mute the sound.
To cancel the mute, press MUTE button (3)
again.
